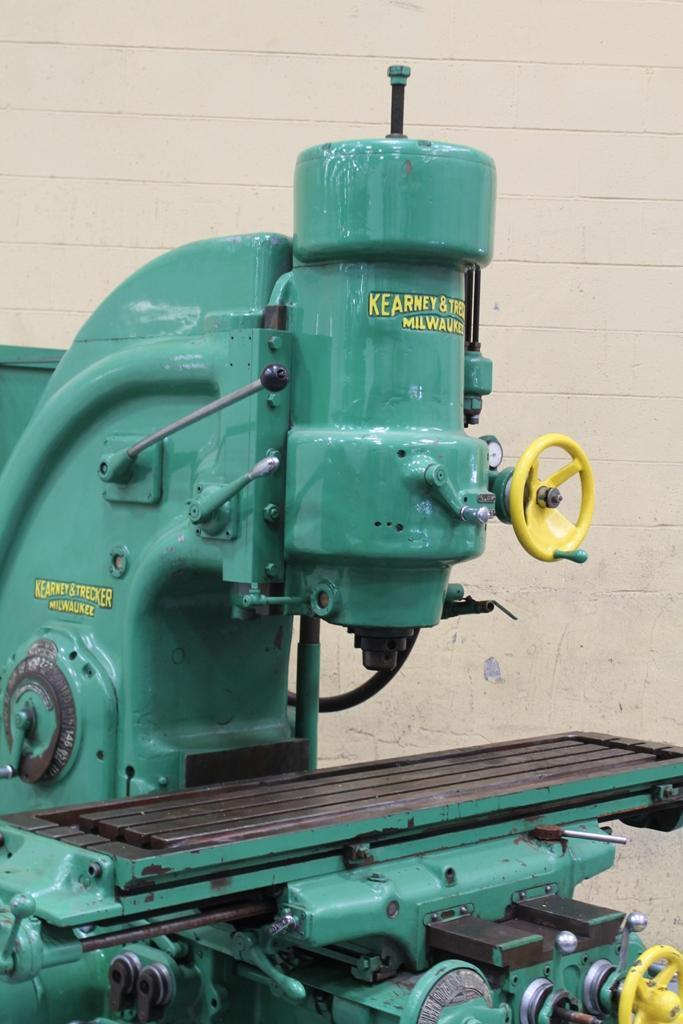

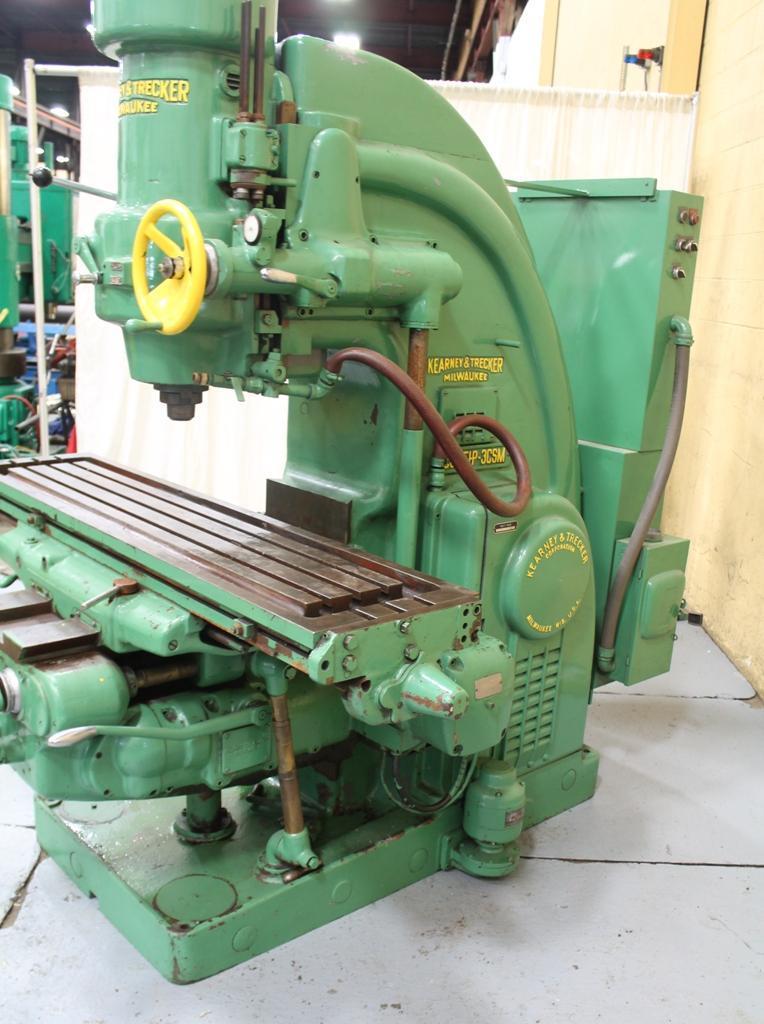

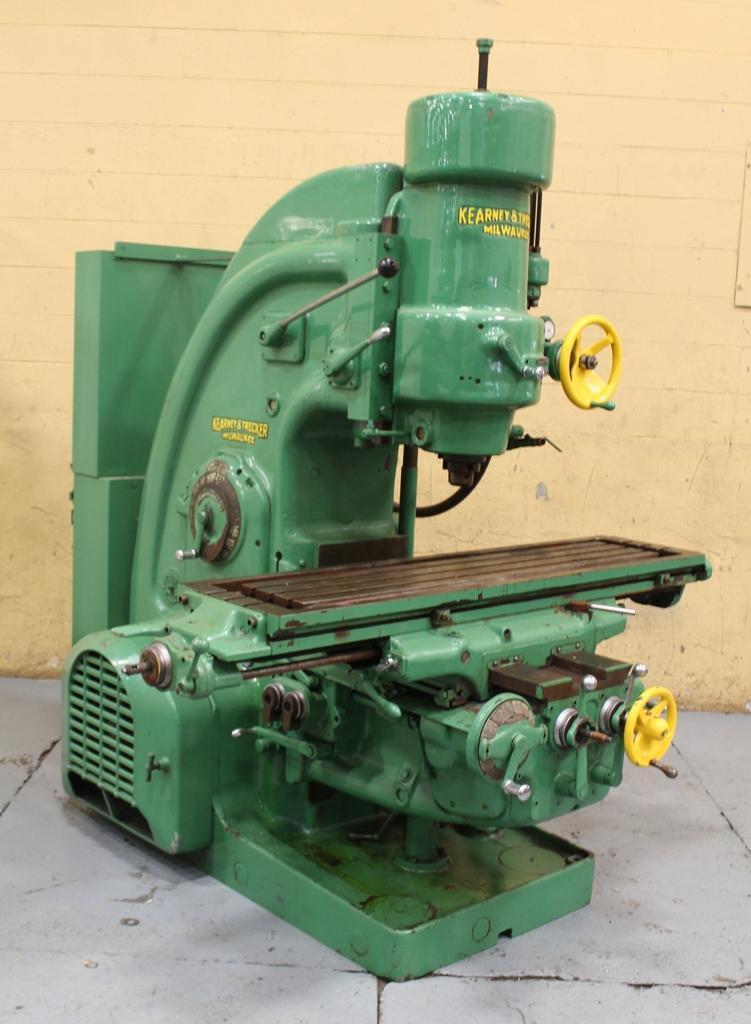

#3 CSM KEARNEY & TRECKER VERTICAL MILL: STOCK #62129

Manufacturer

Category

Milling Machines

Type

MILLERS, VERTICAL

Stock

62129

Model

3CSM

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet



SERIAL .............................. 7-7260
MODEL ............................... 30/CSM
SPEED ............................... 25 TO 1500 RPM

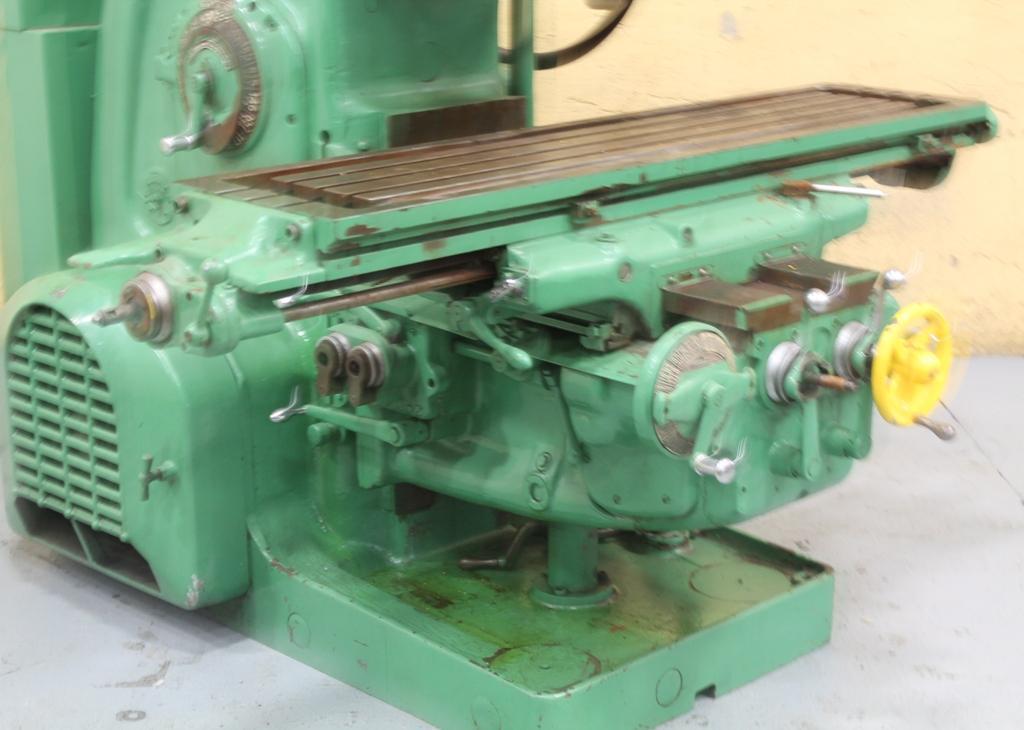

AREA OF TABLE ....................... 64" X 15-1/2"

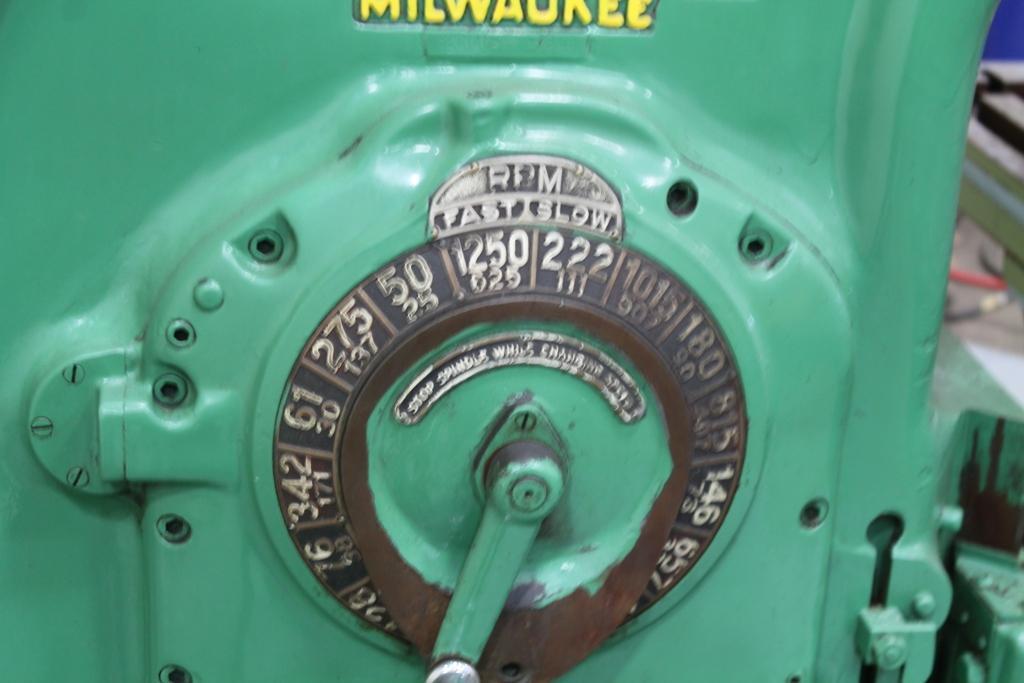

SPINDLE SPEEDS ...................... 15 TO 1500 RPM
LONGITUDINAL & CROSS FEEDS .......... (32) 3/8 TO 90 IPM
VERTICAL FEEDS ...................... (32) 3/16 TO 45 IPM
LONGITUDINAL TRAVEL ................. 34"
CROSS TRAVEL ........................ 12"
VERTICAL TRAVEL OF TABLE ............ 14"
VERTICAL TRAVEL OF HEAD ............. 4"
TAPER IN SPINDLE .................... #50 NS
DISTANCE SPINDLE TO TABLE ........... 0" MINIMUM, 18" MAXIMUM
RAPID TRAVERSE ...................... 150 IPM
4 POSITION TURRET ON HEAD ........... YES
MAIN MOTOR .......................... 30
RAPID TRAVERSE AND FEED MOTOR ....... 3
