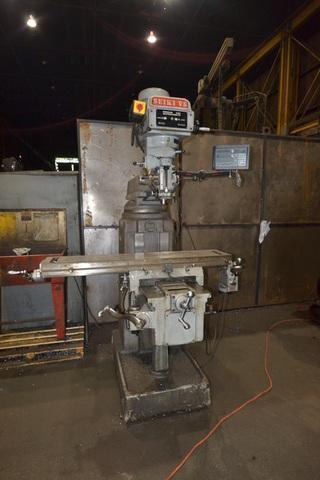

3 HP US SEIKI MODEL #AVS 2012 VERTICAL MILL: STOCK # 65311

Manufacturer

Category

Milling Machines

Type

MILLERS, VERTICAL

Stock

65311

Model

3 AVS

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet



SERIAL ............................... 13242
MODEL ................................ AVS
YEAR ................................. 2012
TABLE ................................ 10" X 50"
SPINDLE SPEEDS ....................... 60 TO 4200 RPM, VARIABLE
SPINDLE TAPER ........................ R8
DIGITAL READ OUT ..................... NEWALL DP700
SPINDLE FEEDS ........................ .003, .006 & .0015 IPR
LONGITUDINAL TABLE TRAVEL ............ 30"
CROSS TRAVEL ......................... 15-1/4"
VERTICAL TRAVEL OF KNEE .............. 14-1/4"
QUILL TRAVEL ......................... 5"
QUILL DIAMETER ....................... 4-1/8"
HEAD TILTS ........................... 45 DEGREES FRONT TO BACK
CENTER OF SPINDLE TO COLUMN FACE ..... 3" MINIMUM TO 26" MAXIMUM
SPINDLE NOSE TO TABLE ................ 3" MINIMUM TO 19" MAXIMUM
TABLE CAPACITY ....................... 720 LBS
1 SHOT LUBE .......................... YES
POWER FEED ........................... YES
MOTOR ................................ 3 HP
