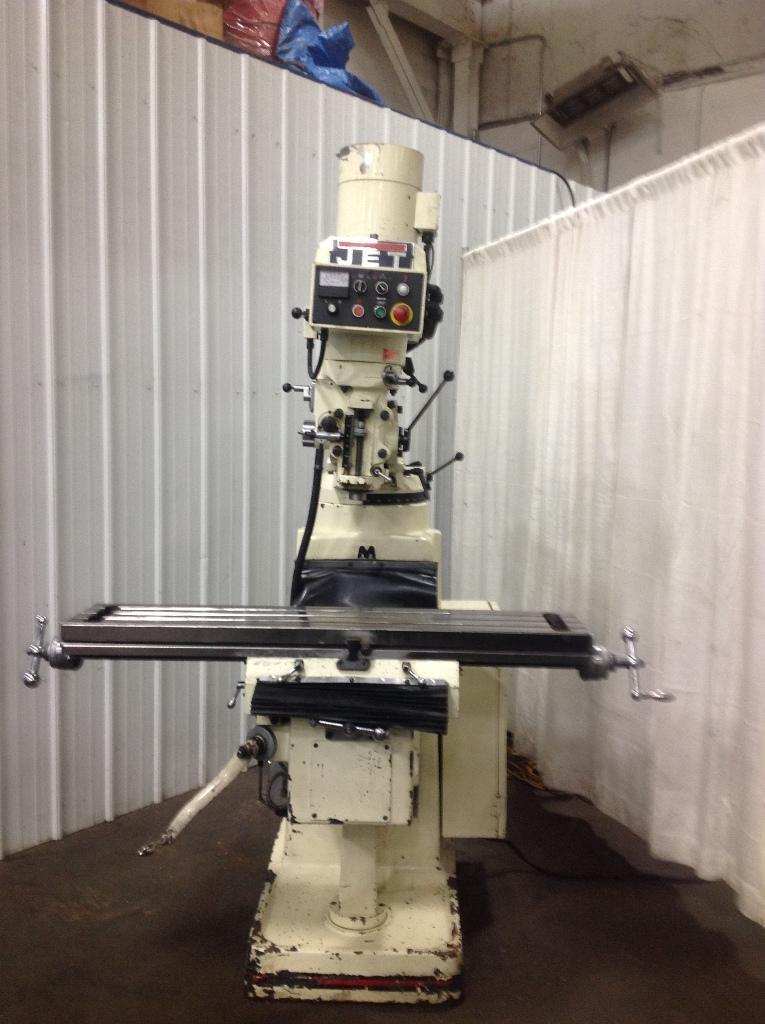

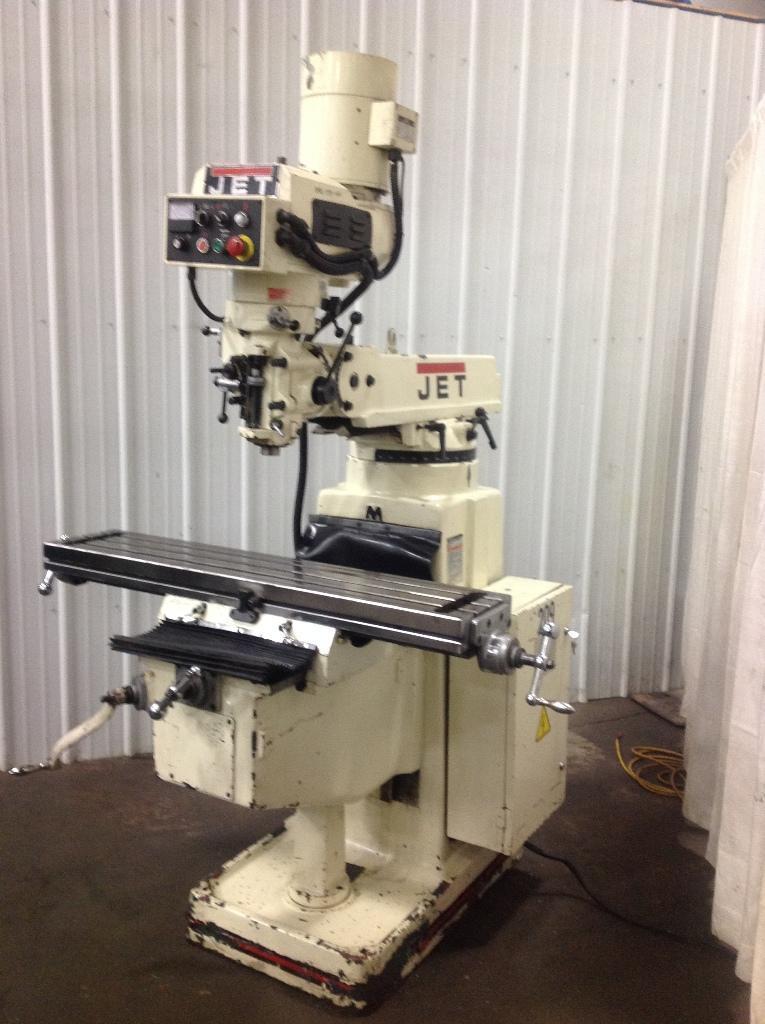

3 HP JET RAM TYPE VERTICAL MILL: STOCK #65576

Manufacturer

Category

Milling Machines

Type

MILLERS, VERTICAL

Stock

65576

Model

3

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet



SERIAL ............................... 690060 1100082
MODEL ................................ JTM -1050EVS

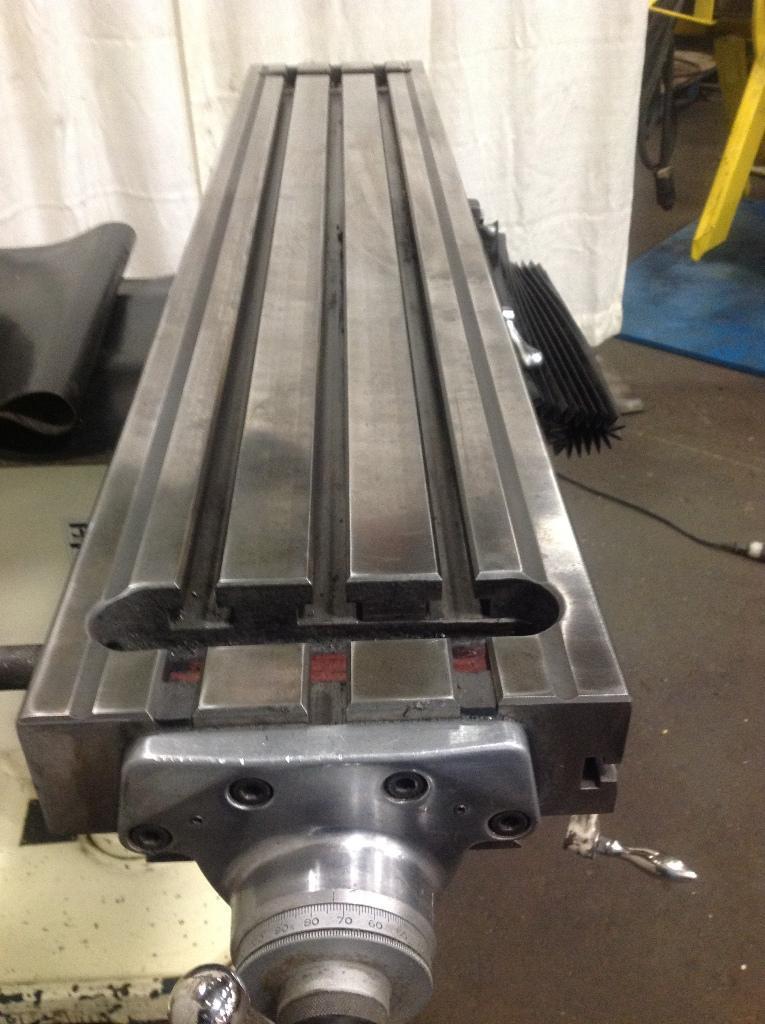

AREA OF TABLE ........................ 50" X 10"
SPINDLE SPEEDS (VARIABLE) ............ 10 TO 3600 RPM
SPINDLE FEEDS ........................ .003, .006 & .0015 IPR
LONGITUDINAL TABLE TRAVEL ............ 30"
CROSS TRAVEL ......................... 15-1/4"
VERTICAL TRAVEL OF KNEE .............. 14-1/4"
QUILL TRAVEL ......................... 5"
QUILL DIAMETER ....................... 4-1/8"
HEAD TILTS ........................... 45 DEGREES FRONT TO BACK
CENTER OF SPINDLE TO COLUMN FACE ..... 3" MINIMUM TO 26" MAXIMUM
TAPER IN SPINDLE ..................... NST40
SPINDLE NOSE TO TABLE ................ 3" MINIMUM TO 19" MAXIMUM
TABLE CAPACITY ....................... 720 LBS
1 SHOT LUBE .......................... YES
MOTOR ................................ 3 HORSEPOWER
