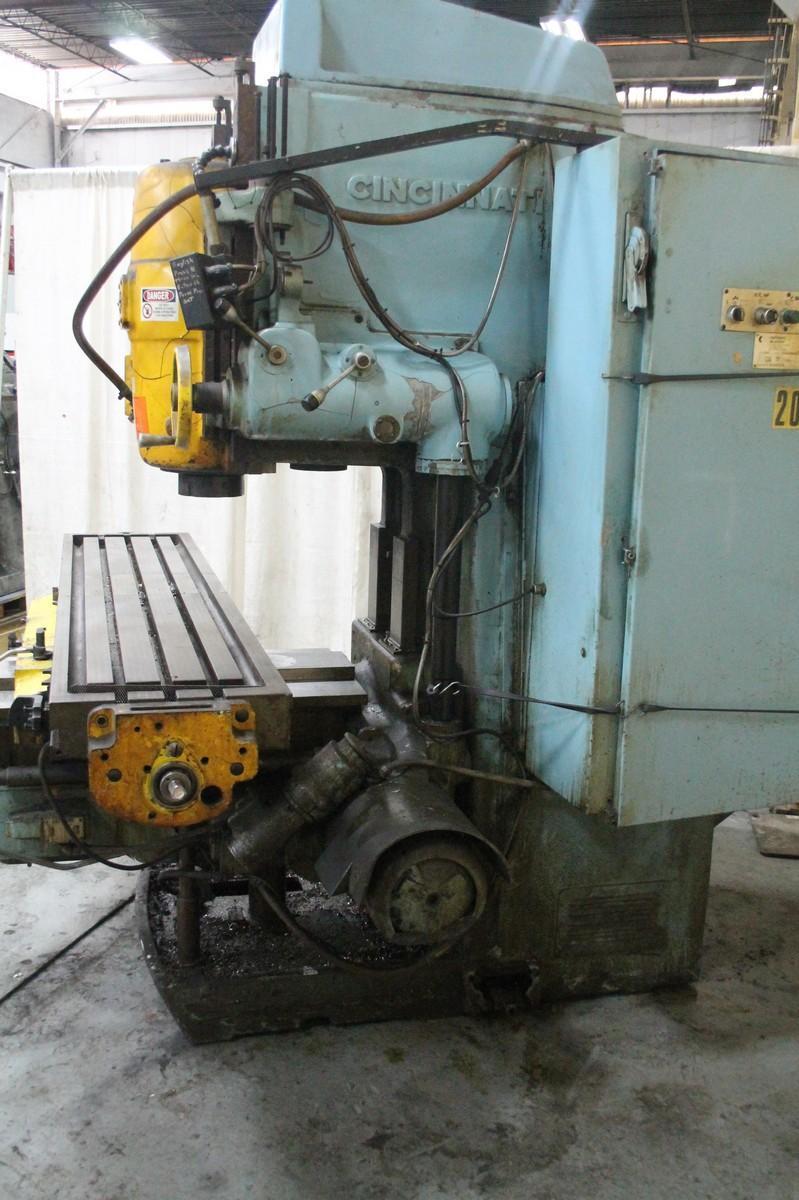

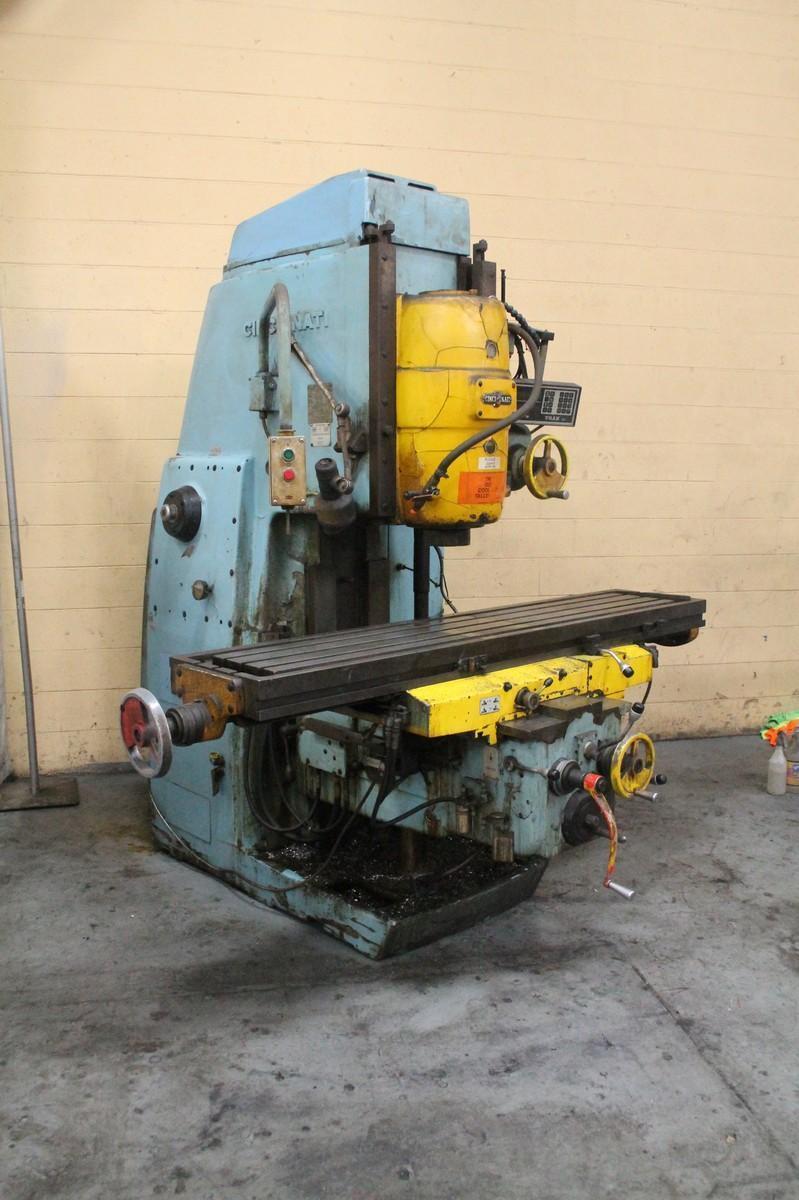

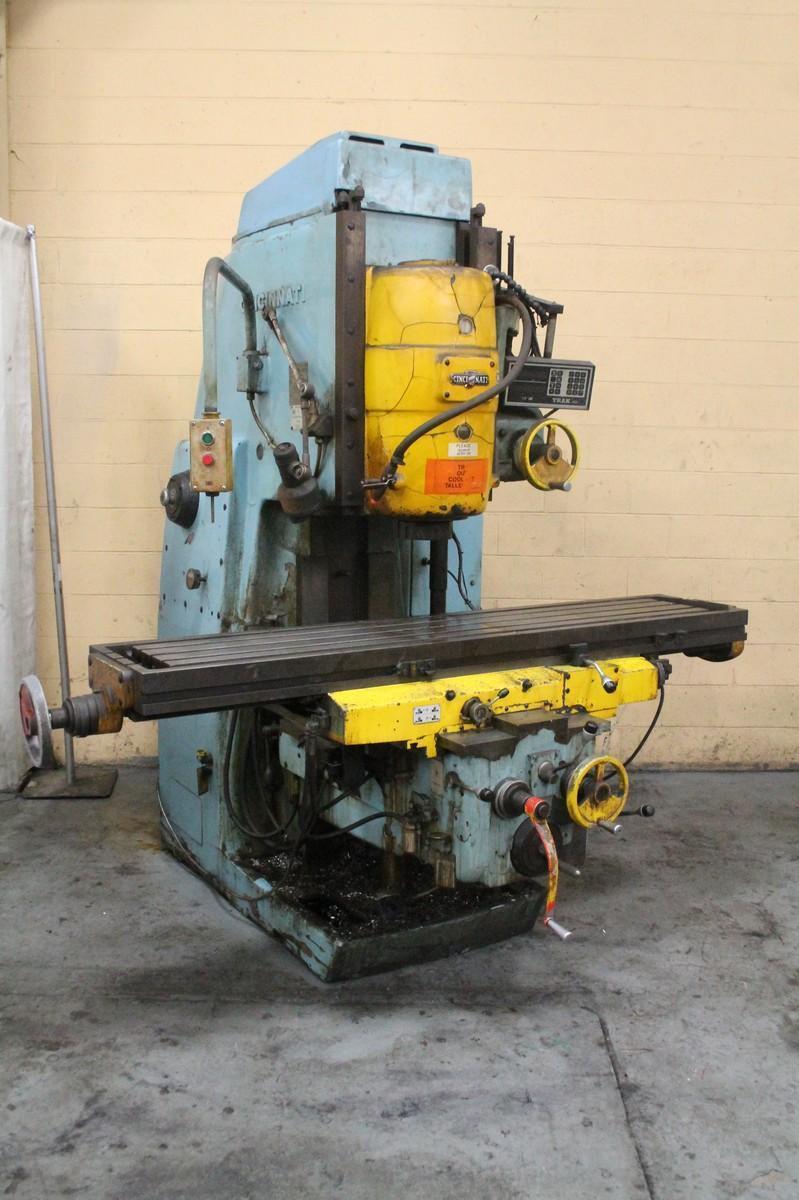

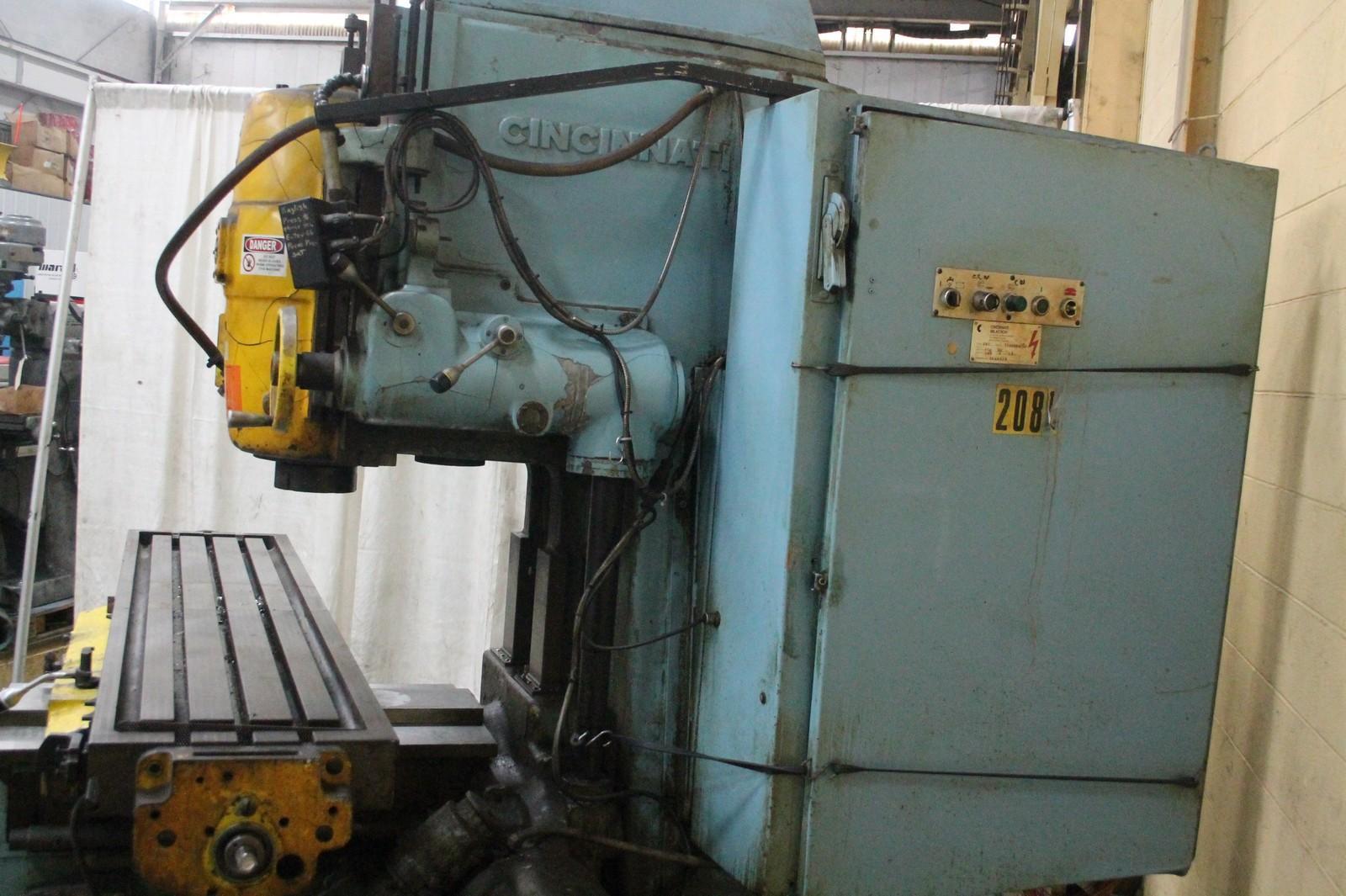

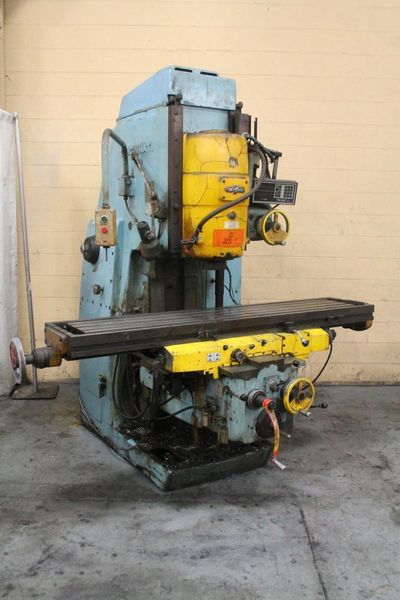

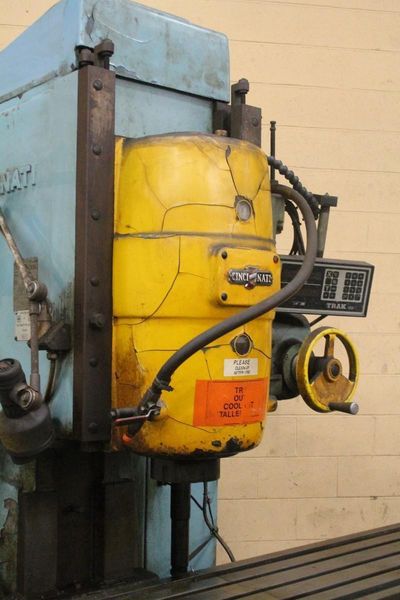

CINCINNATI MODEL #415-16 VERTICAL MILL: STOCK #65934

Manufacturer

Cincinnati

Category

Milling Machines

Type

MILLERS, VERTICAL

Stock

65934

Model

415-16

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet



MODEL  ........................... 415-46

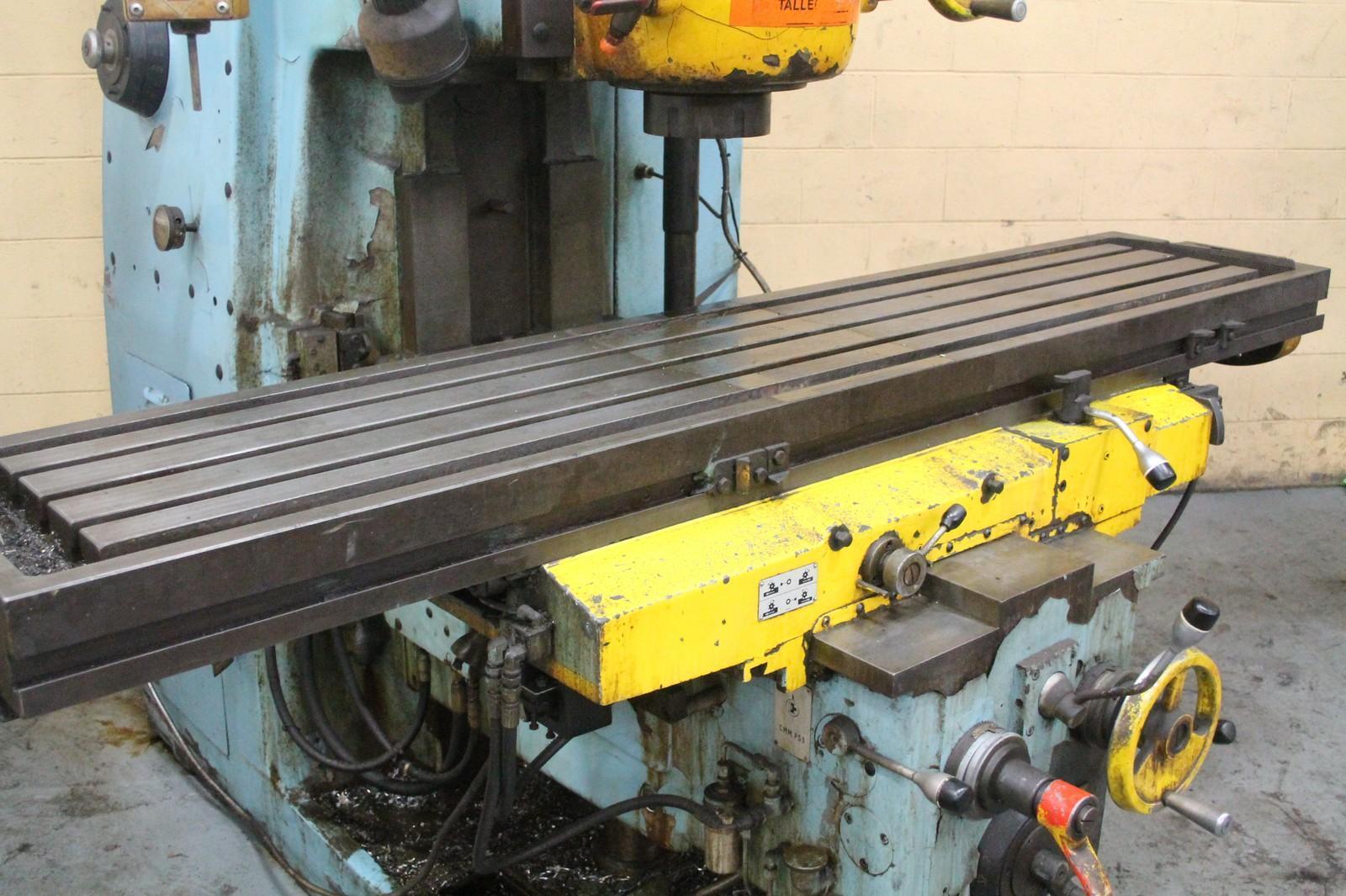

AREA OF TABLE .................... 79-3/4" X 16-1/4"
SPINDLE SPEEDS ................... (24) 16 TO 1600 RPM
LONGITUDINAL & CROSS FEEDS ....... (32) 3/8 TO 90 IPM
VERTICAL FEEDS ................... (32) 3/16 TO 45 IPM
LONGITUDINAL TRAVEL .............. 42"
CROSS TRAVEL ..................... 16"
VERTICAL TRAVEL OF KNEE .......... 16"
VERTICAL TRAVEL OF HEAD .......... 6"
TAPER IN SPINDLE ................. #50 NT
DISTANCE SPINDLE TO TABLE ........ 0" MIN TO 22-1/8" MAXIMUM
RAPID TRAVERSE ................... 150 IPM
VERTICAL RAPID TRAVERSE .......... 75 IPM
DEPTH OF THROAT .................. 18"

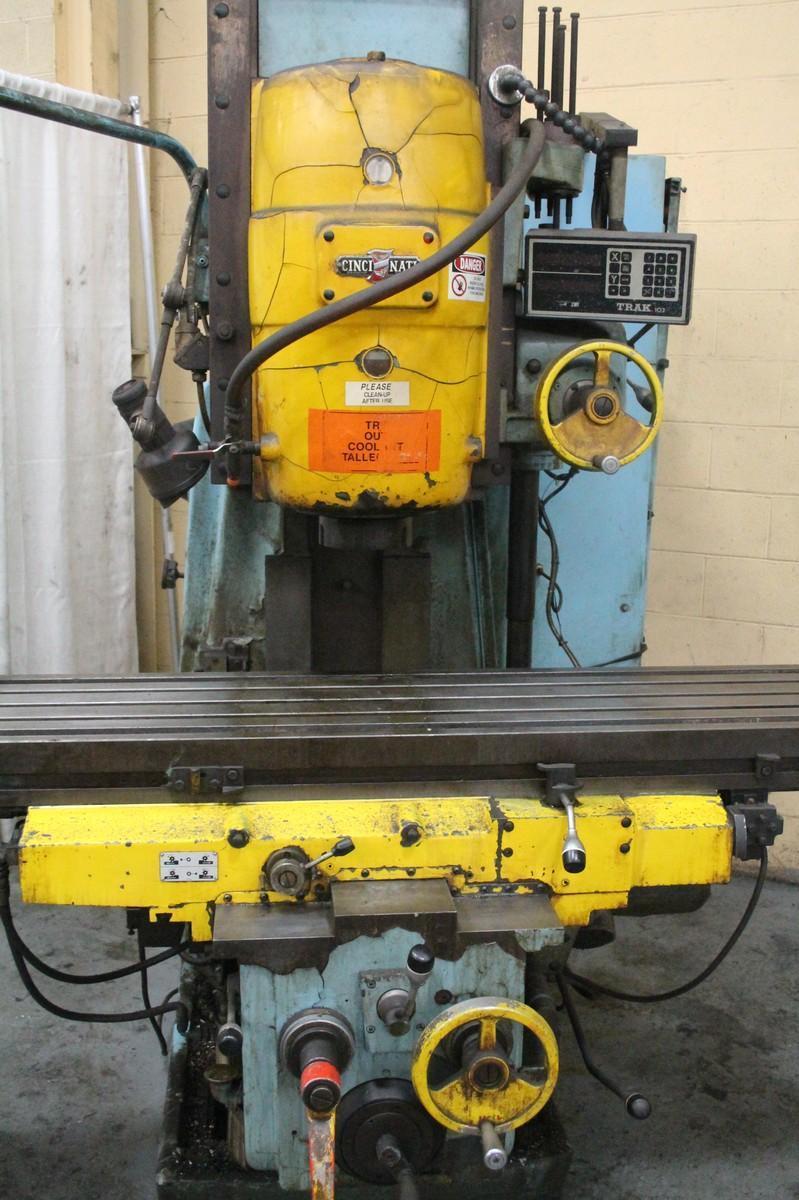

PROT TRAK ........................ YES
COOLANT .......................... YES
SPINDLE DRIVE MOTOR .............. 15
FEED MOTOR ....................... 5
