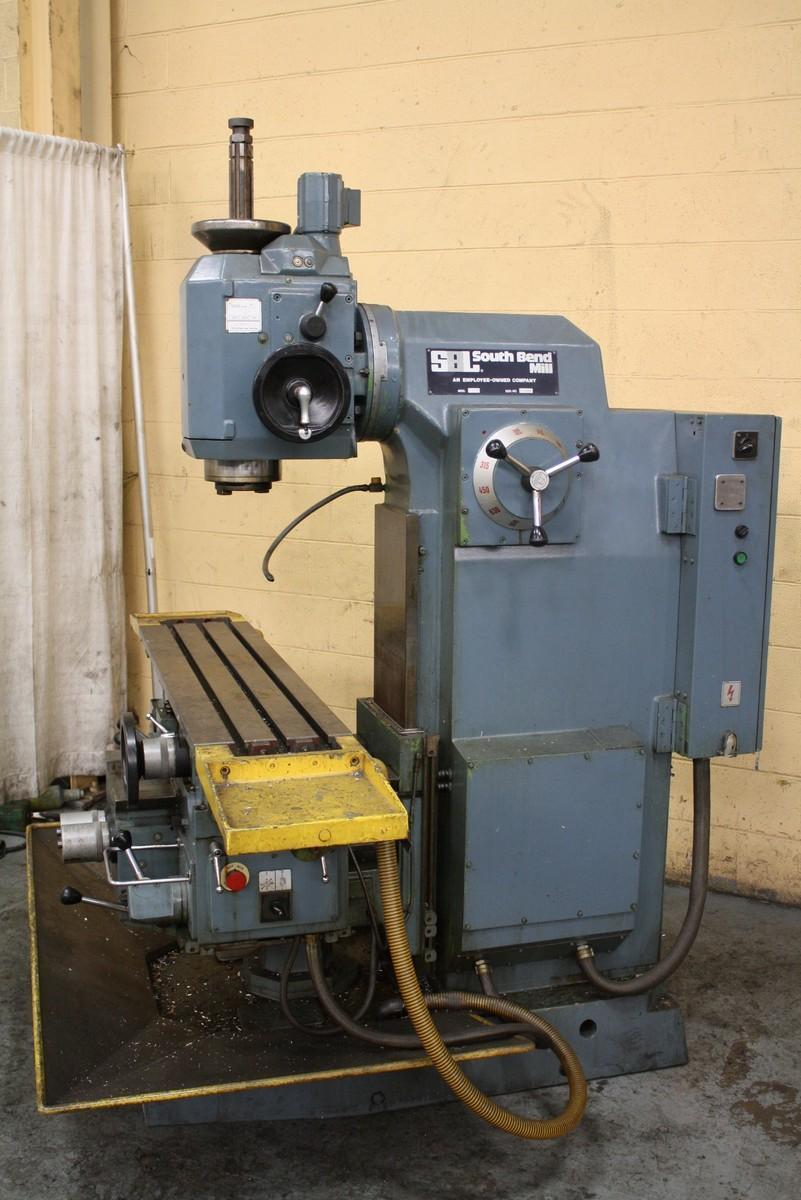

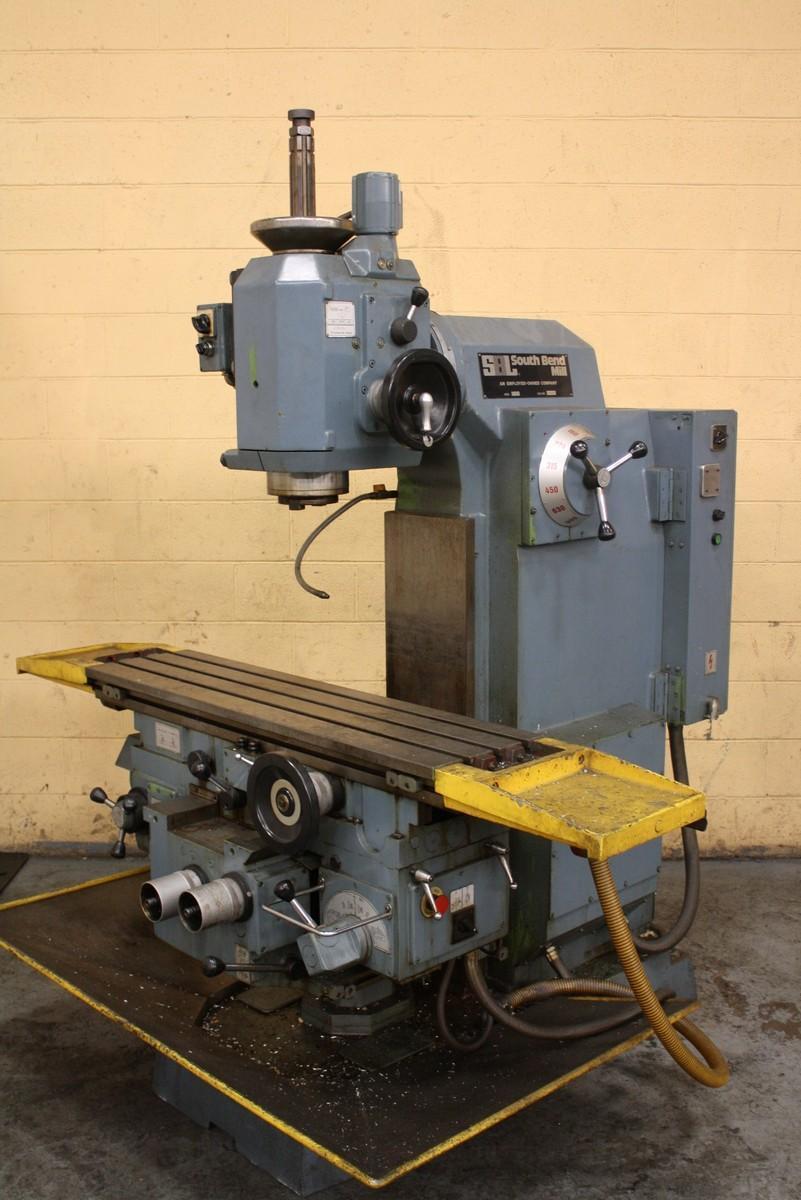

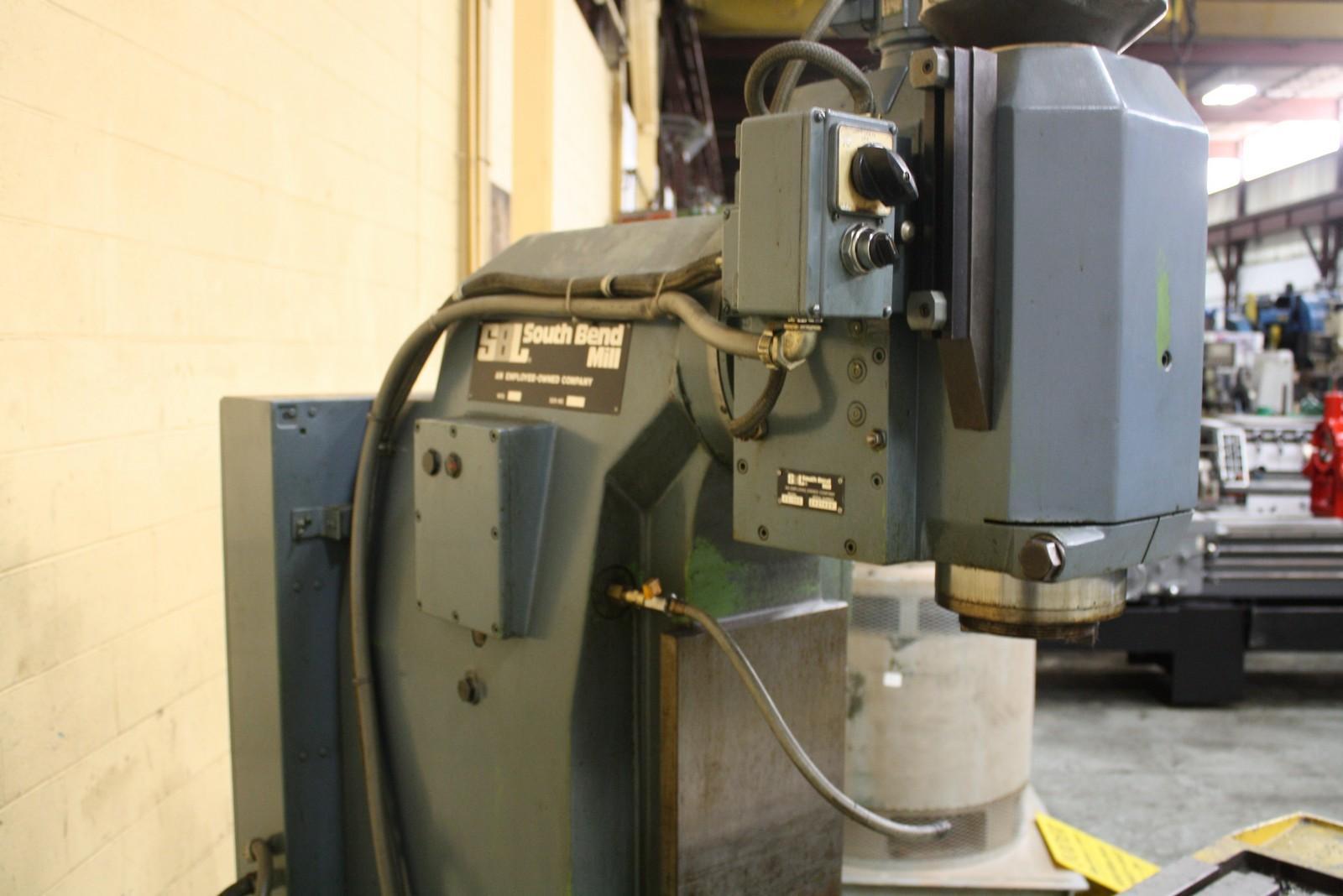

5 HP SOUTHBEND MODEL F2VE VERTICAL MILLING MACHINE: STOCK #66443

Manufacturer

Category

Milling Machines

Stock

66443

Model

5

Dealer Location

Ohio

Spec Sheet



SERIAL .......................... 5111804
MODEL ........................... F2VE

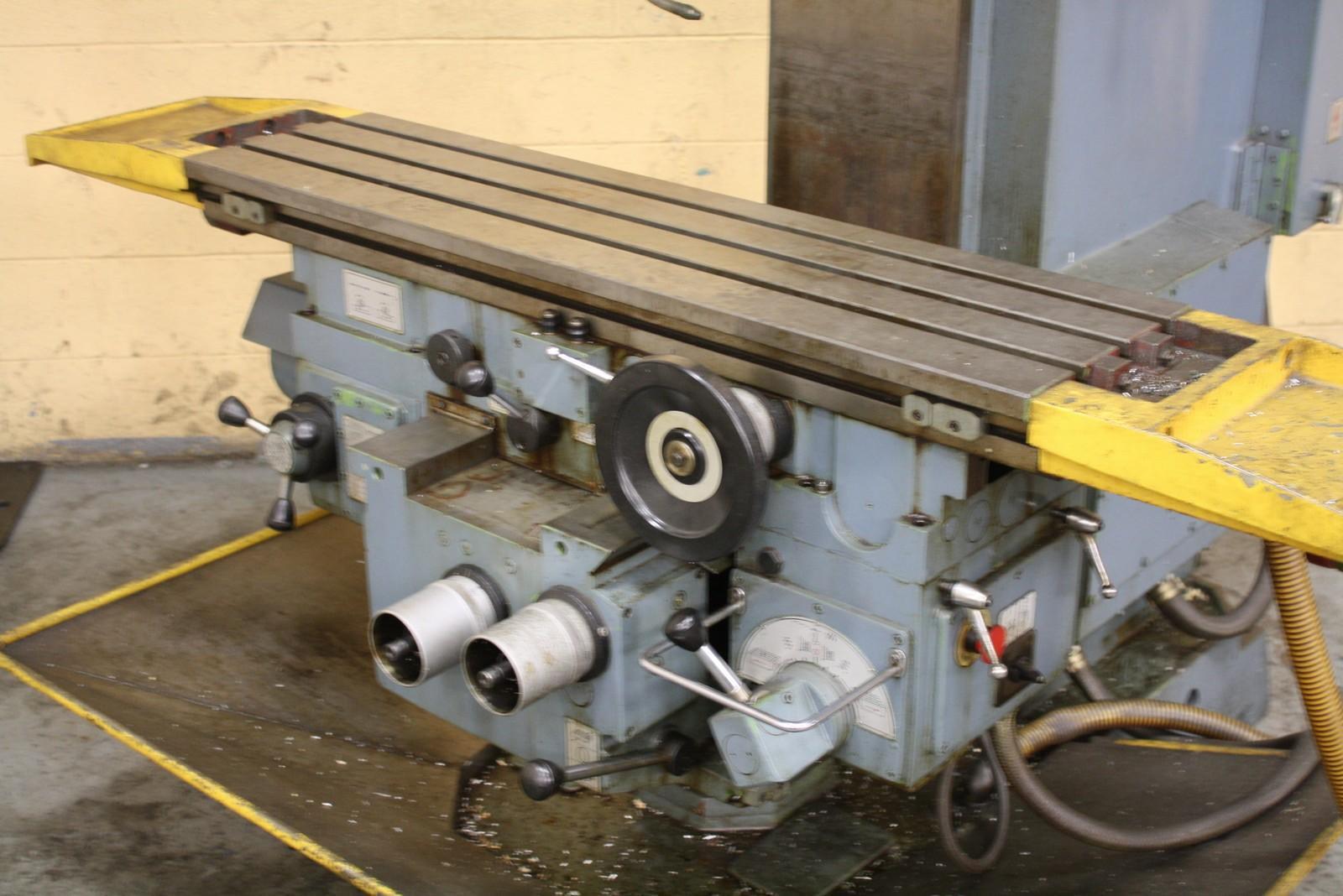

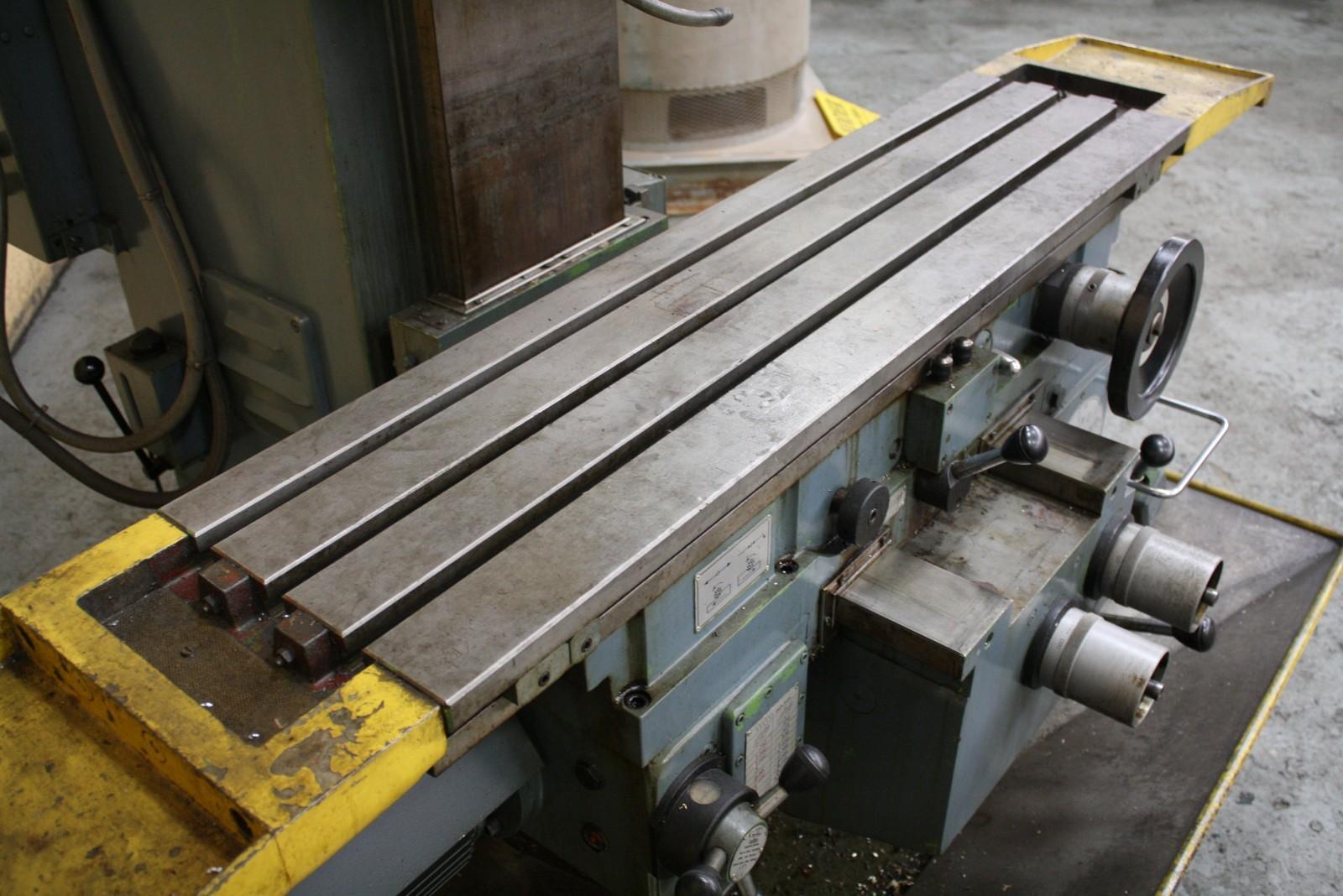

CAPACITIES
TABLE LENGTH .................... 47"
TABLE WIDTH ..................... 12"
LONNGITUDINAL TRAVEL ............ 37-3/8"
CROSS TRAVEL .................... 11"
VERTICAL TRAVEL ................. 18-5/8"
SPINDLE OR FACE TO TABLE MAX. ... 21-3/4"
VERTICAL SPINDLE TO FACE MAX. ... 13-1/2"

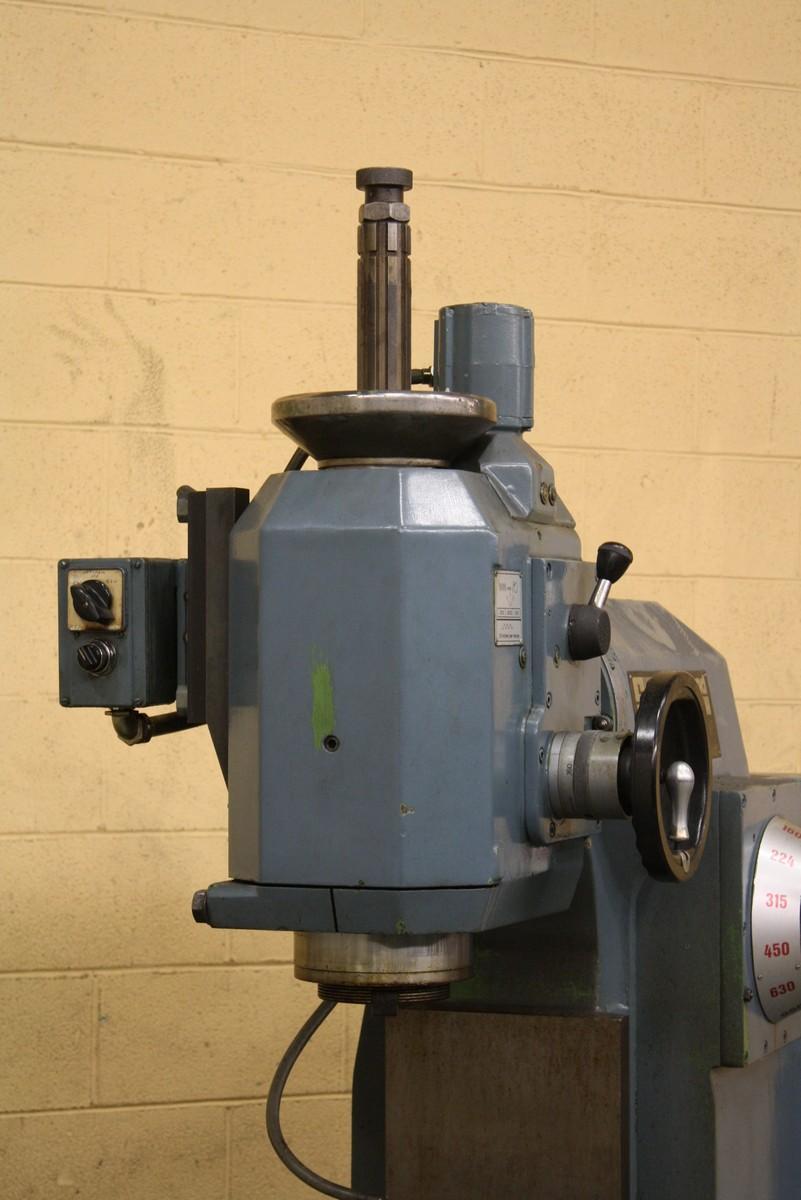

SPINDLE

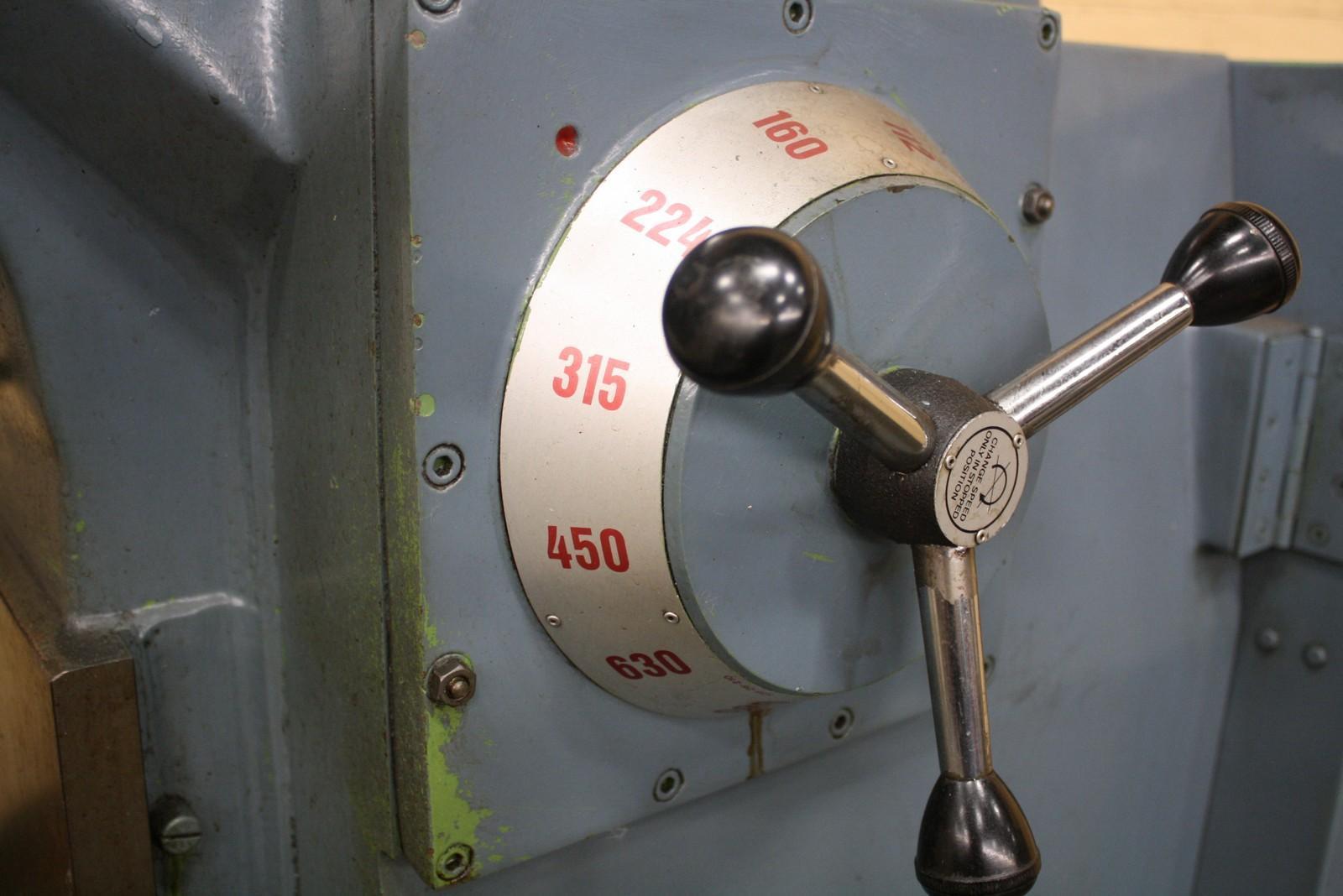

RPM RANGE ....................... 40-1800
NUMBER OF SPEEDS ................ 12
TAPER IST 50

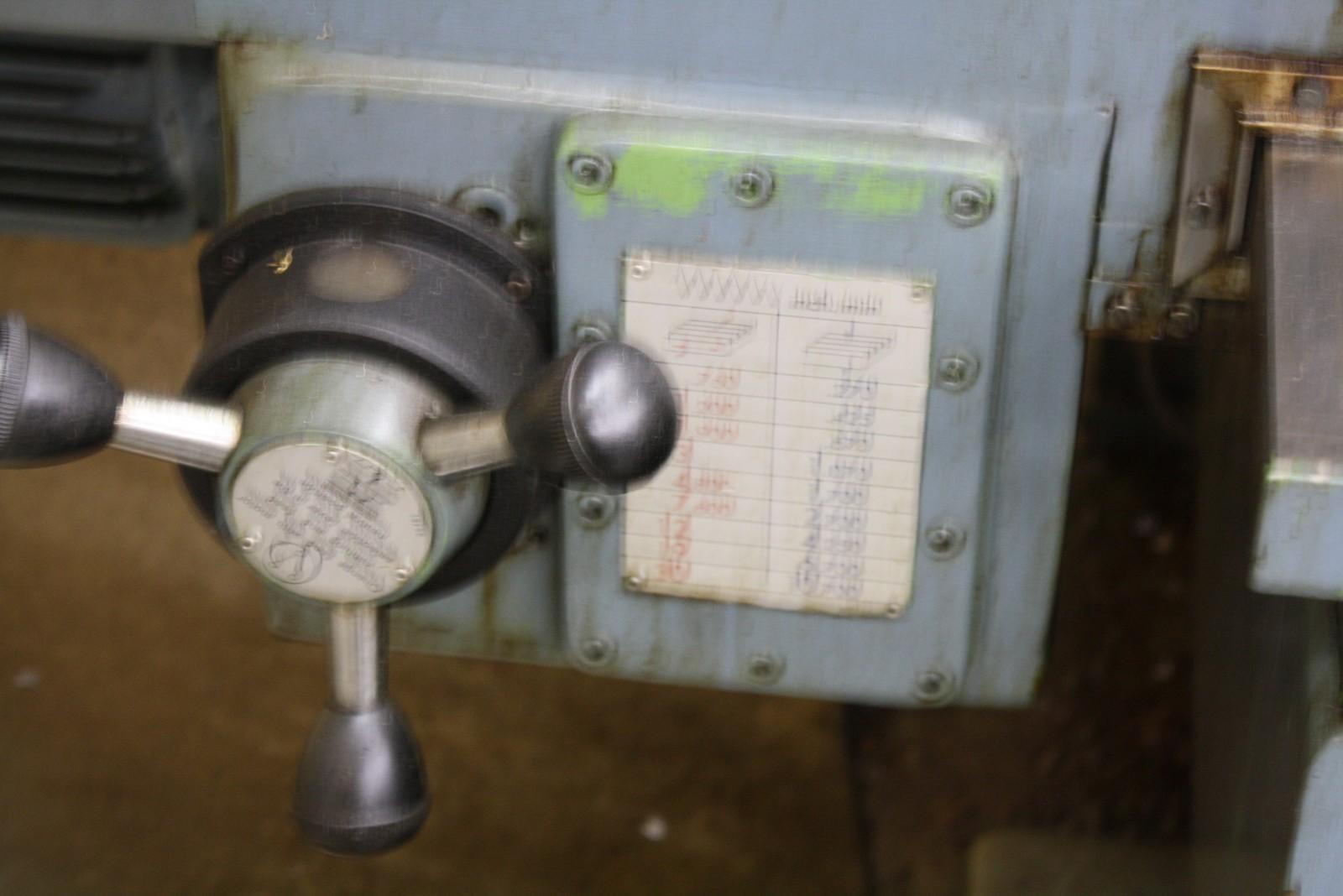

FEEDS
NUMBER OF FEEDS ................. 9
LONG. & CROSS FEEDS RANGE, IPM 0.63-24.8
VERTICAL FEED RANGE IPM ......... 0.22-8.82
RAPID TRAVERSE LONG & CROSS ..... 118
RAPID TRAVERSE VERTICAL ......... 39
MOTOR MAIN SPINDLE .............. 5.5 HP
MOTOR FEED ...................... 1.5 HP
