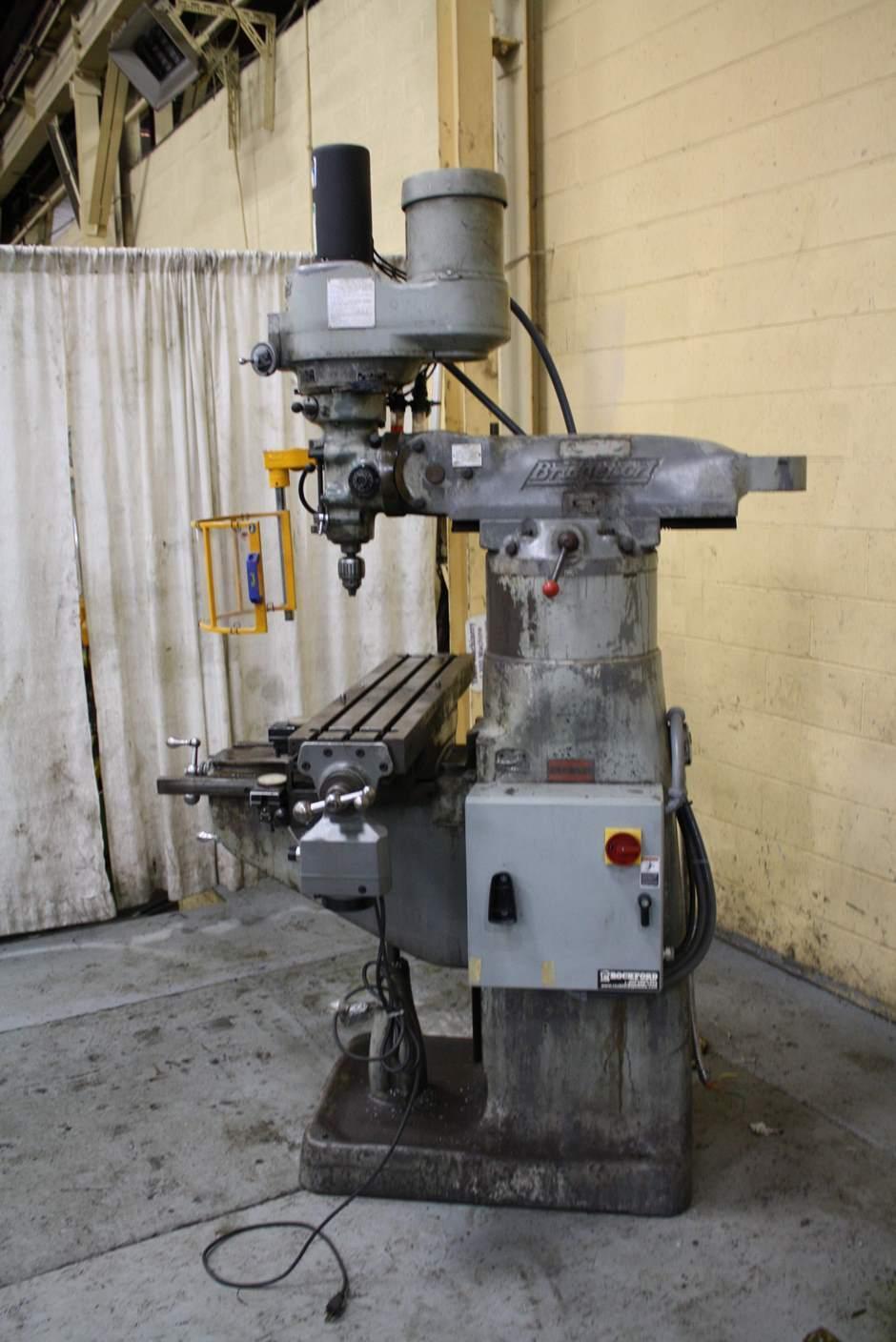

9' X 42' BRIDGEPORT VERTICAL KNEE MILL: STOCK #67297

Manufacturer

Category

Milling Machines

Type

MILLERS, VERTICAL

Stock

67297

Model

1.5

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet



SERIAL ............................. 19600
MODEL .............................. SERIES I
AREA OF TABLE ...................... 42" X 9"
SPINDLE SPEEDS, VARIABLE ........... 60 TO 4200 RPM
SPINDLE FEEDS ...................... .0015, .003, .006 IPR
LONGITUDINAL TABLE TRAVEL .......... 30"
CROSS TRAVEL ....................... 12"
VERTICAL KNEE TRAVEL ............... 16"
QUILL TRAVEL ....................... 5"
DEPTH OF THROAT .................... 6-3/4" TO 18-3/4"
TAPER IN SPINDLE ................... R8
POWER FEED(SERVO) .................. LONGITUDINAL
HEAD TILTS, FRONT/BACK ............. 45 DEGREE EITHER WAY
HEAD SWIVELS, LEFT/RIGHT ........... 90 DEGREE EITHER WAY
CHROME KNEE WAYS ................... YES
POWER DRAW BAR ..................... YES
RISER UNDER HEAD ................... 7"
TRAVEL DIALS ....................... CROSS & LONGITUDINALLY
1 SHOT LUBE ........................ YES
MOTOR .............................. 1-1/2 HORSEPOWER
