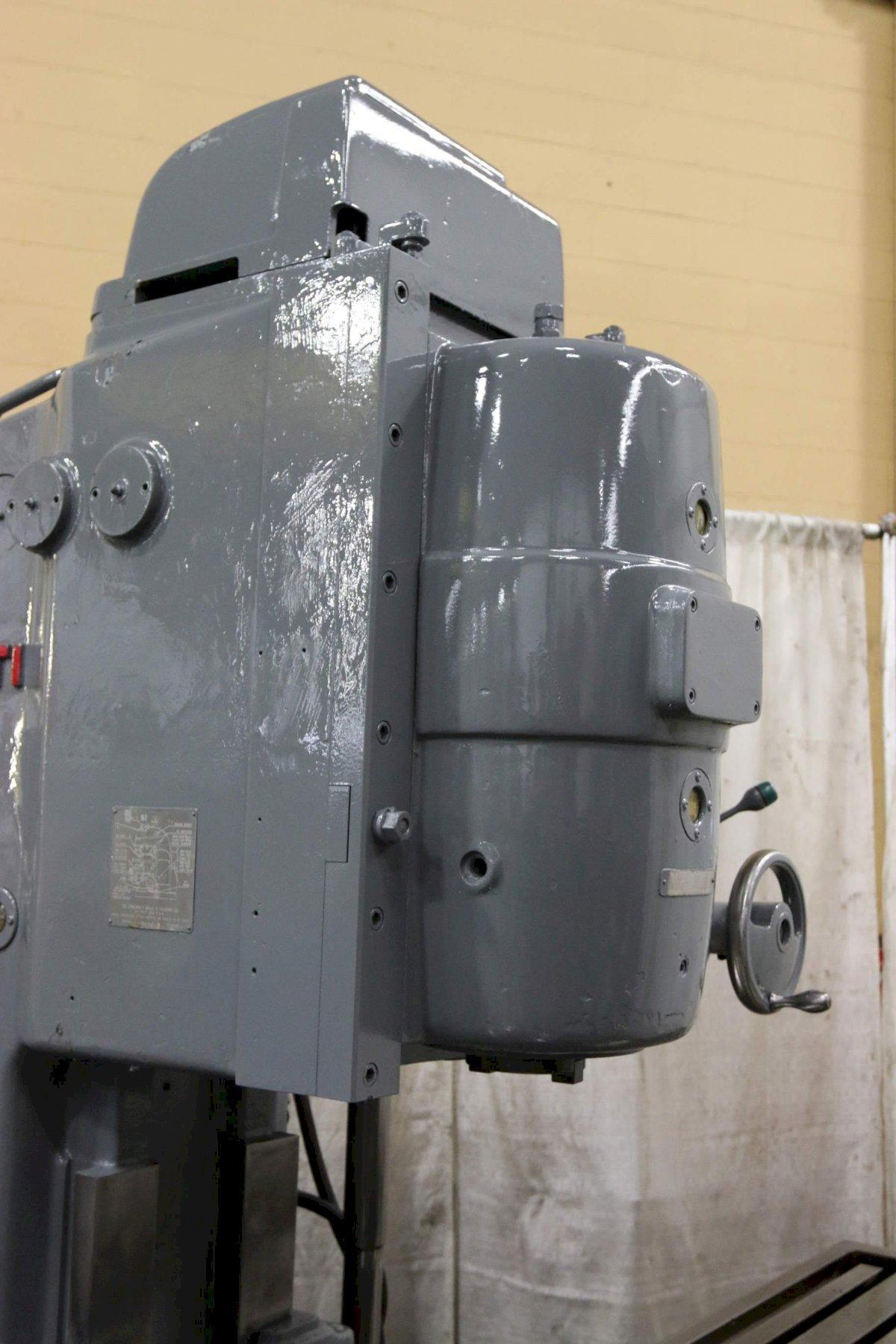

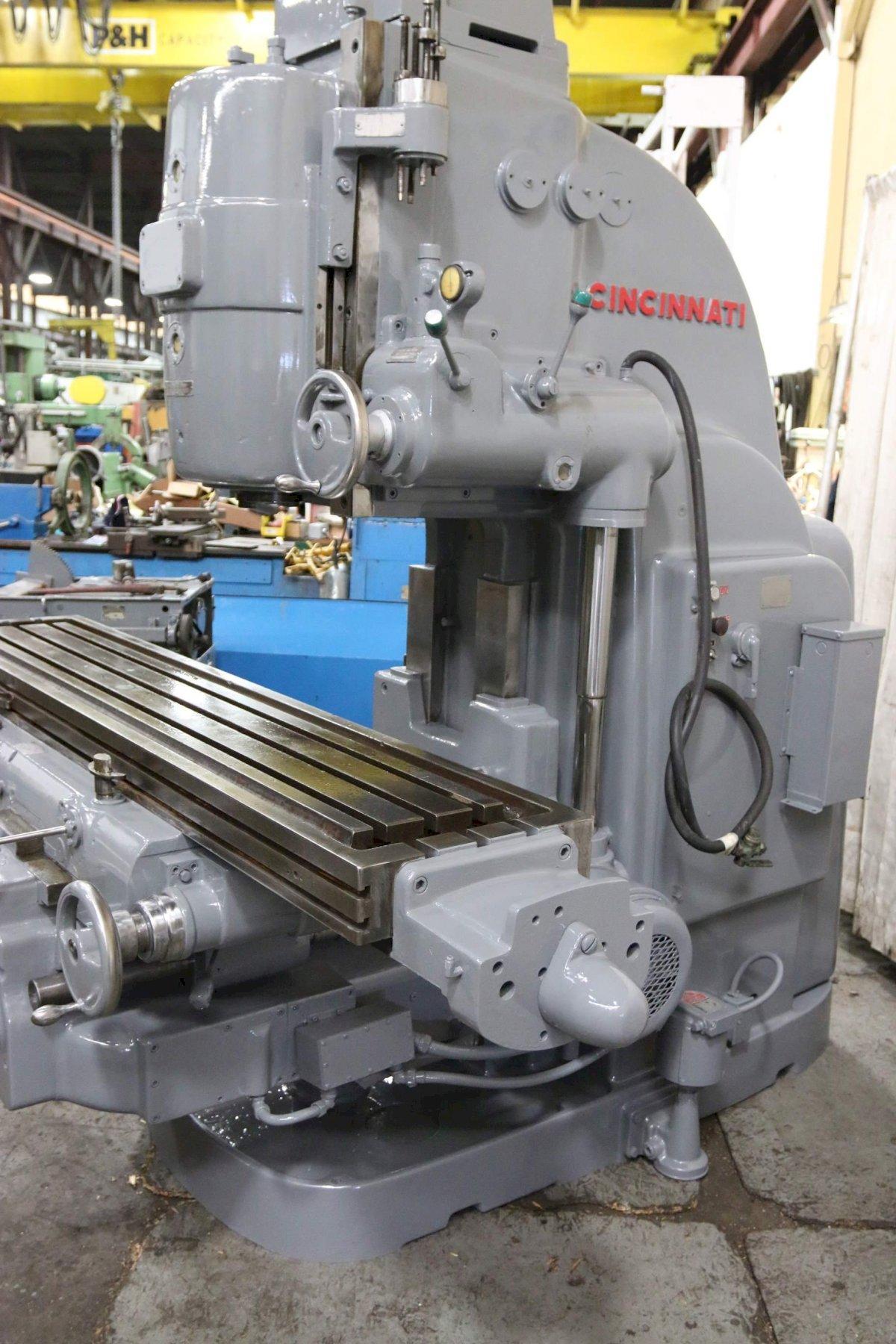

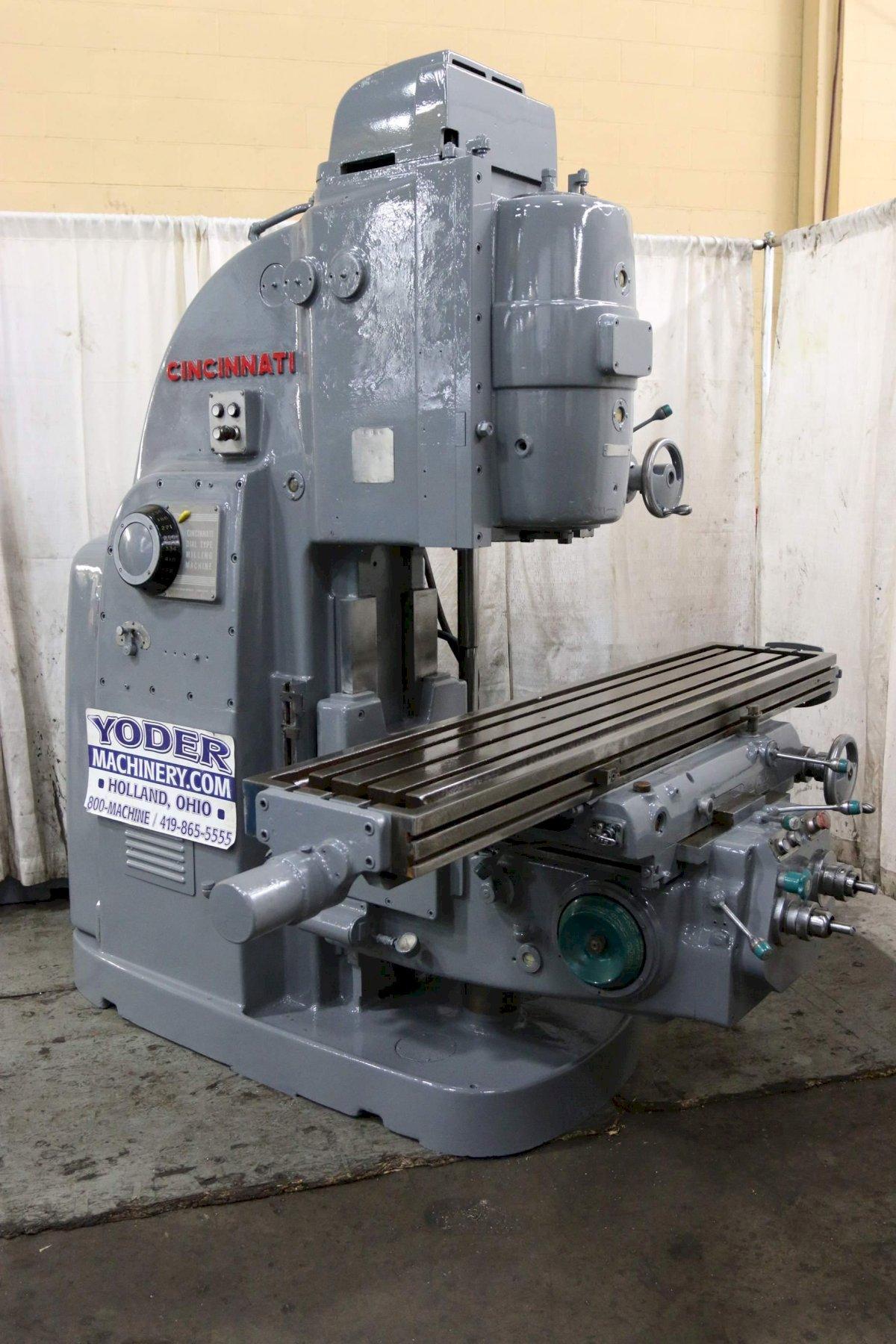

CINCINNATI #3 VERTICIAL MILL: STOCK #69727

Manufacturer

Category

Milling Machines

Type

MILLERS, VERTICAL

Stock

69727

Model

3

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet



SERIAL ................................ 4A3V5H-3
MODEL ................................. 3 "DIAL TYPE"
WORKING SURFACE OF TABLE .............. 68-1/2" X 15-1/4"
SPINDLE SPEEDS ........................ (24) 16 TO 1600 RPM
LONGITUDINAL AND CROSS FEEDS .......... (32) 3/8 TO 90 IPM
VERTICAL HEAD AND KNEE FEEDS .......... (32) 3/16 TO 45 IPM
LONGITUDINAL TABLE TRAVEL ............. 34"
CROSS TABLE TRAVEL .................... 16"
VERTICAL HEAD TRAVEL .................. 6"
VERTICAL KNEE TRAVEL .................. 16"
DISTANCE SPINDLE NOSE TO TABLE ........ 0" MINIMUM, 22-1/2" MAXIMUM
LONG AND CROSS POWER RAPID TRAVERSE ... 150 IPM
VERTICAL POWER RAPID TRAVERSE ......... 75 IPM
TAPER IN SPINDLE ...................... #50 NS
SPINDLE MOTOR ......................... 15 HORSEPOWER
