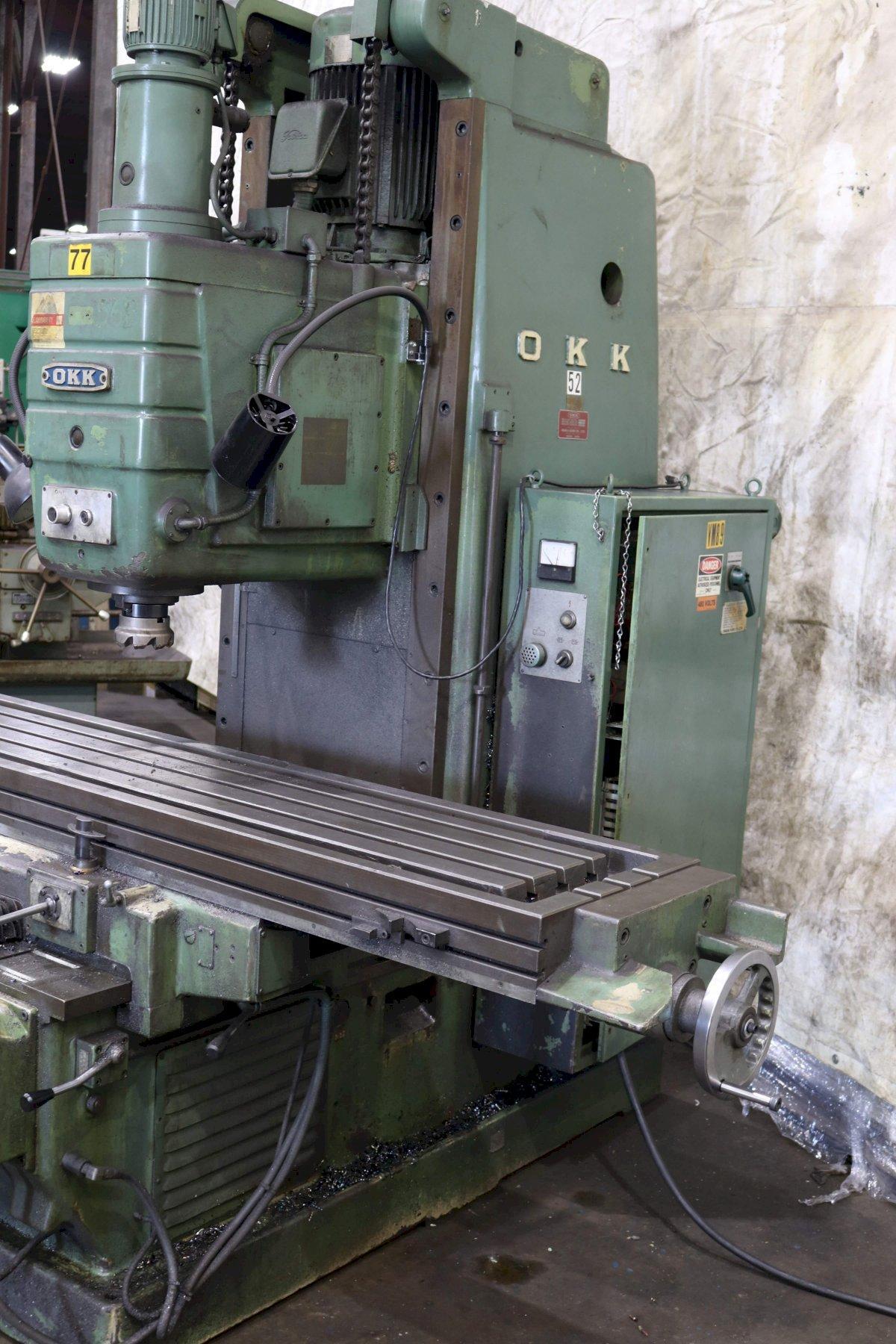

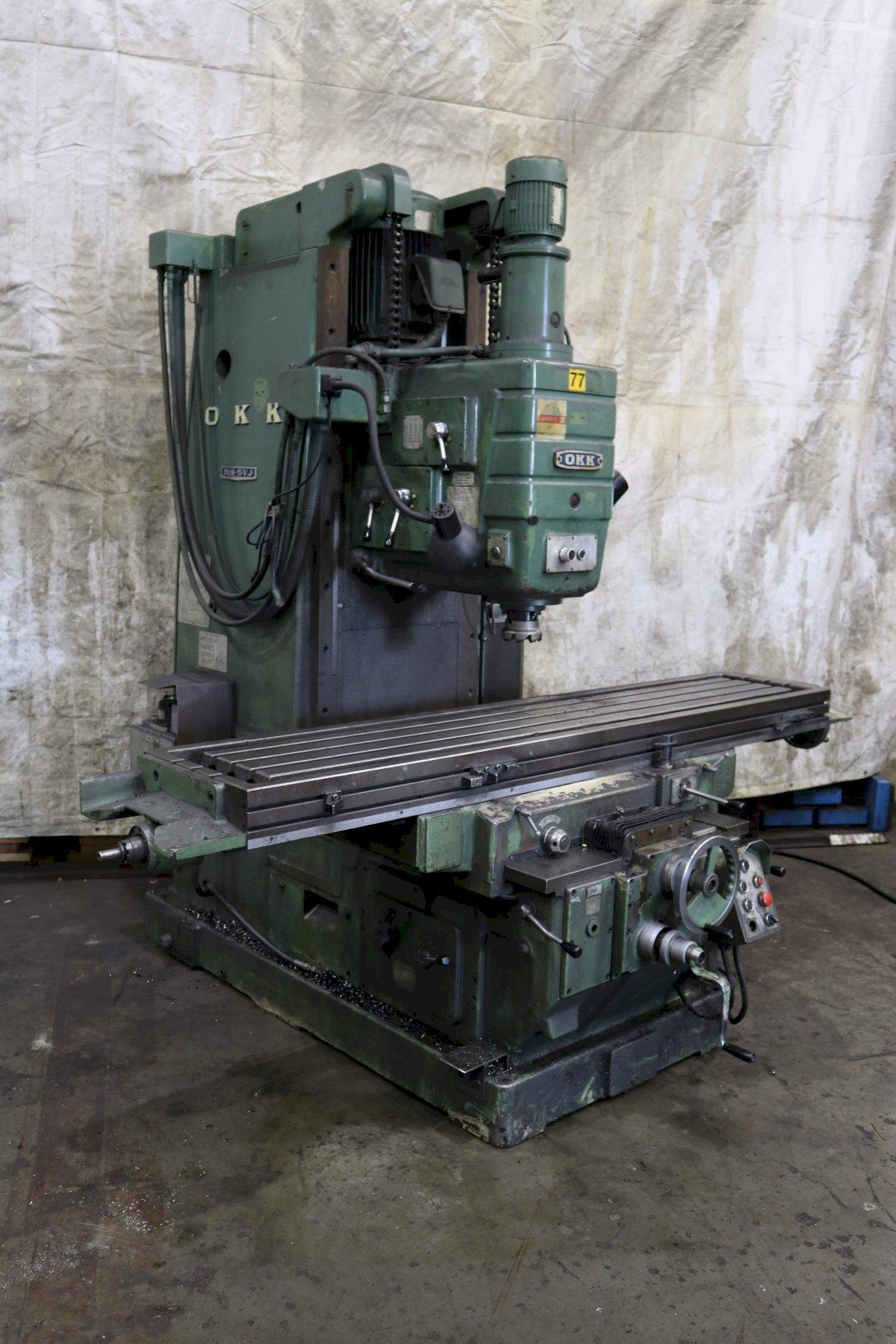

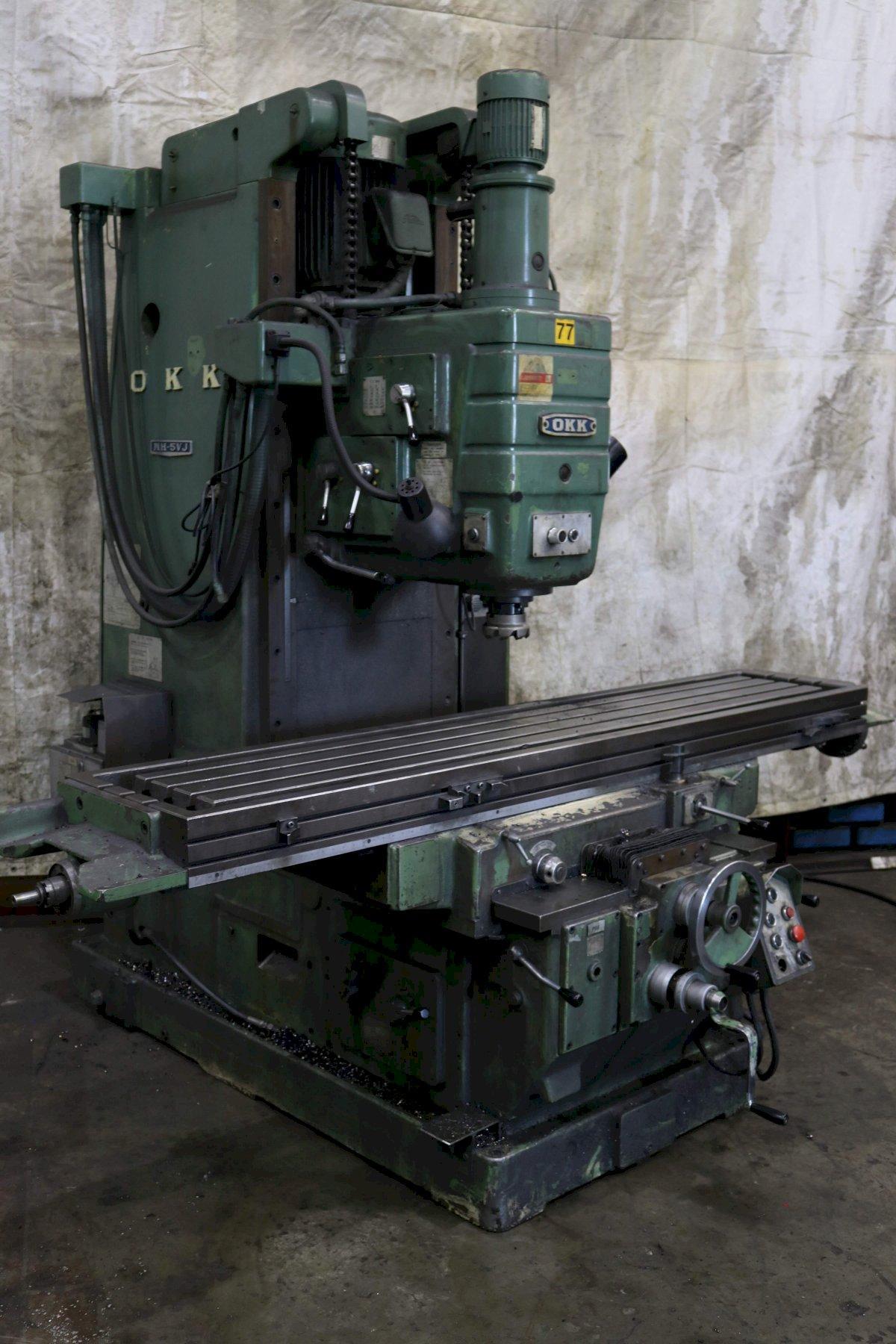

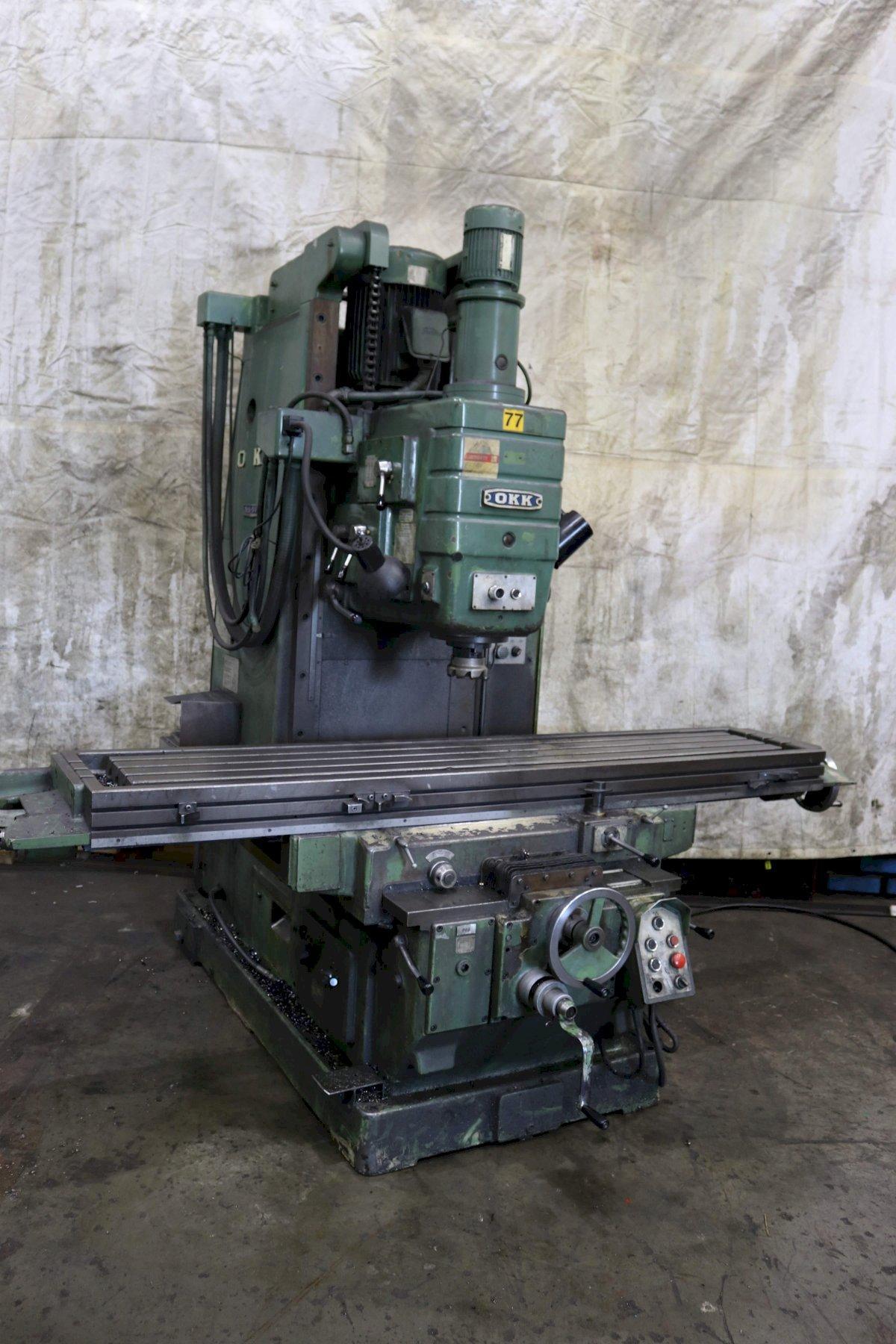

OKK MODEL #5 VERTICAL MILL: STOCK #73156

Manufacturer

OKK

Category

Milling Machines

Stock

73156

Model

None listed

Dealer Location

Ohio

Spec Sheet

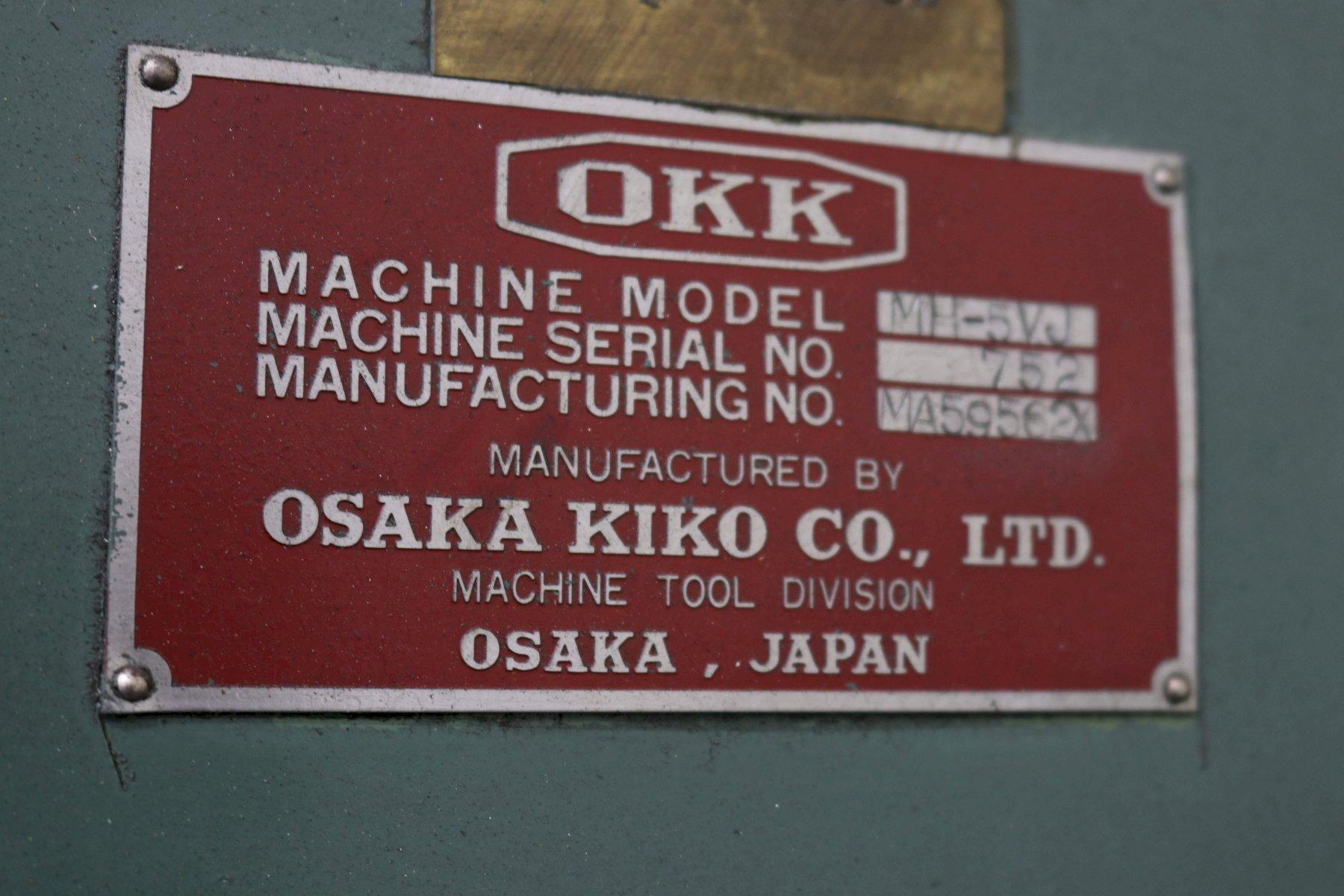

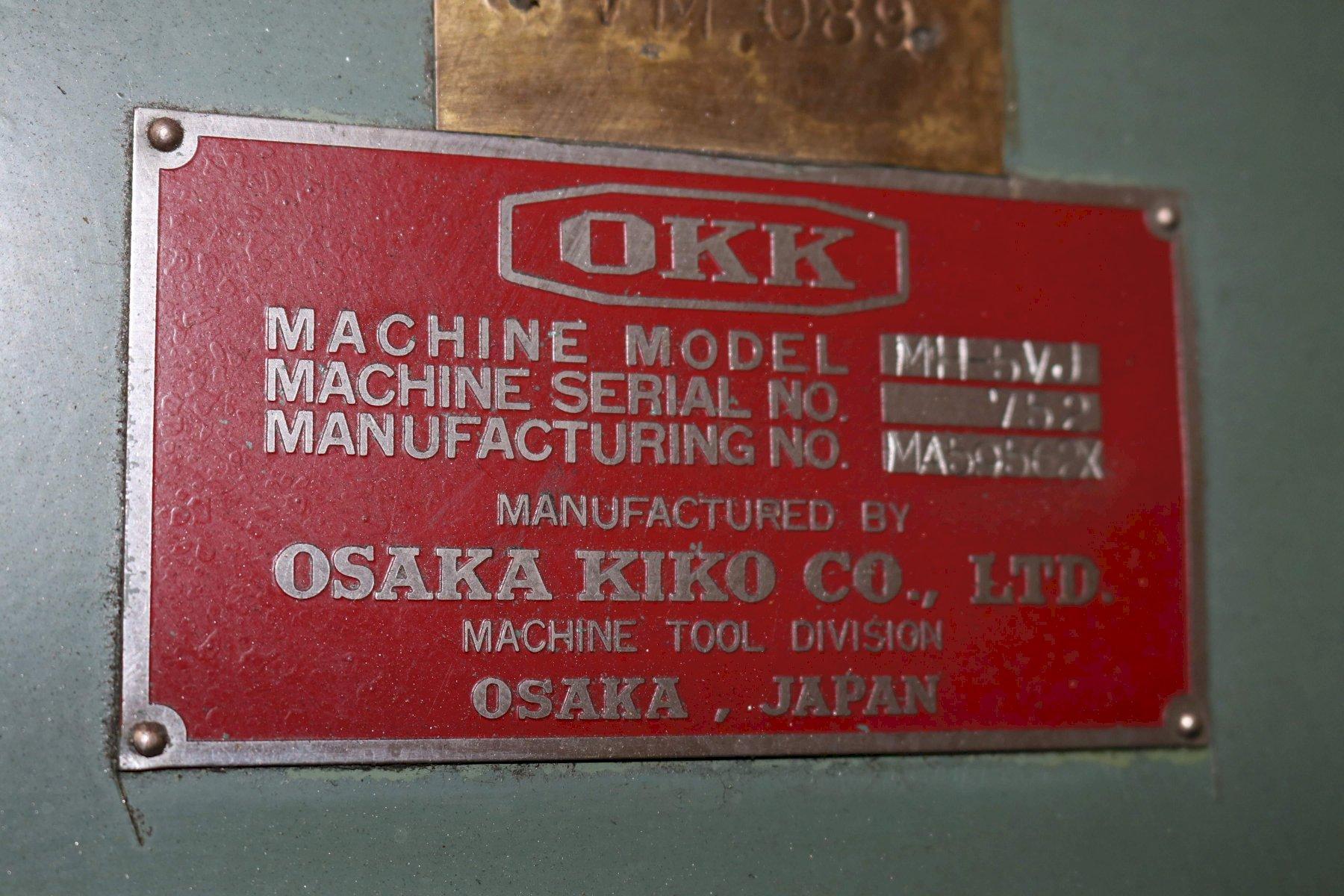

SERIAL ................................. #752
MODEL .................................. MH5VJ
YEAR NEW ............................... 1982

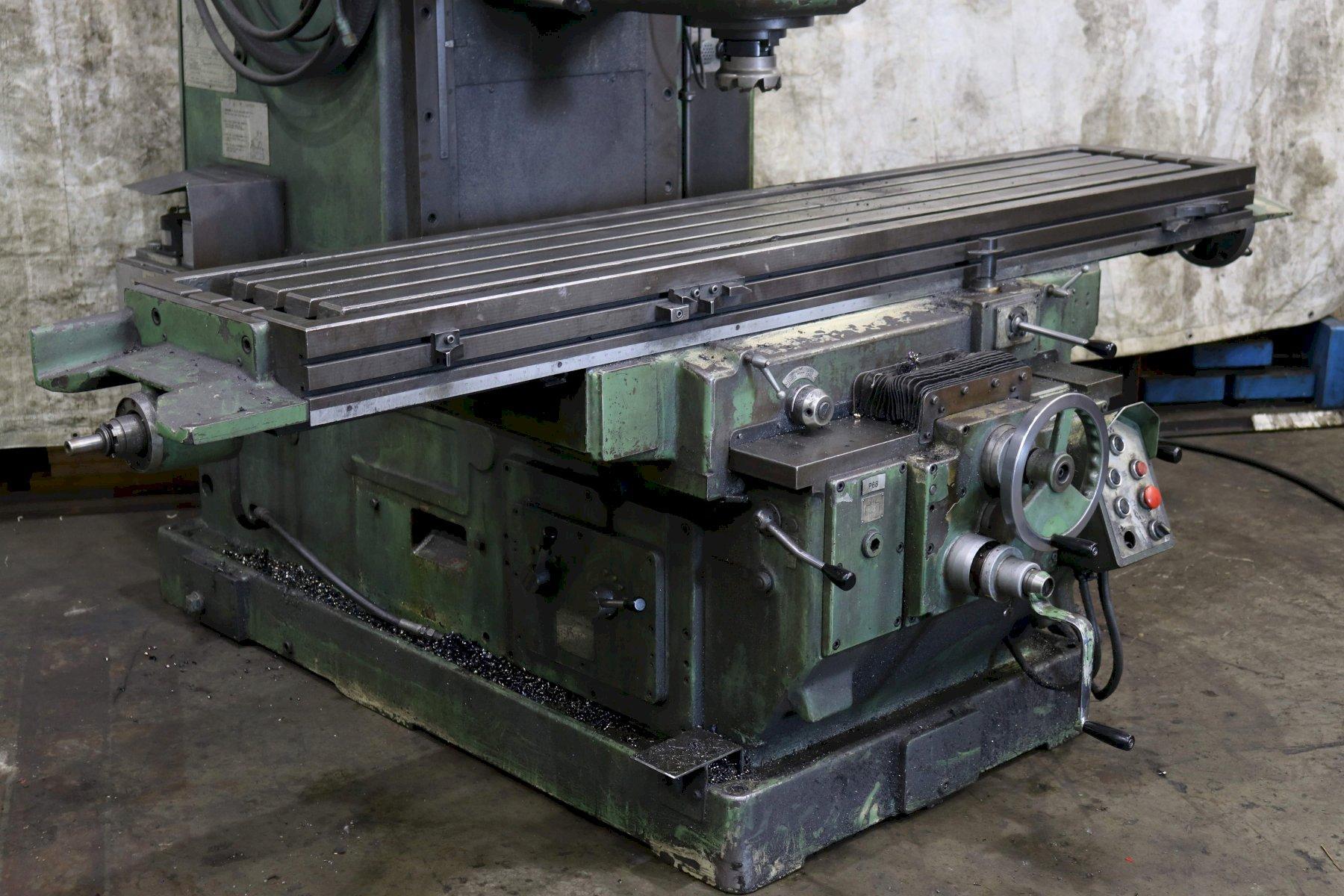

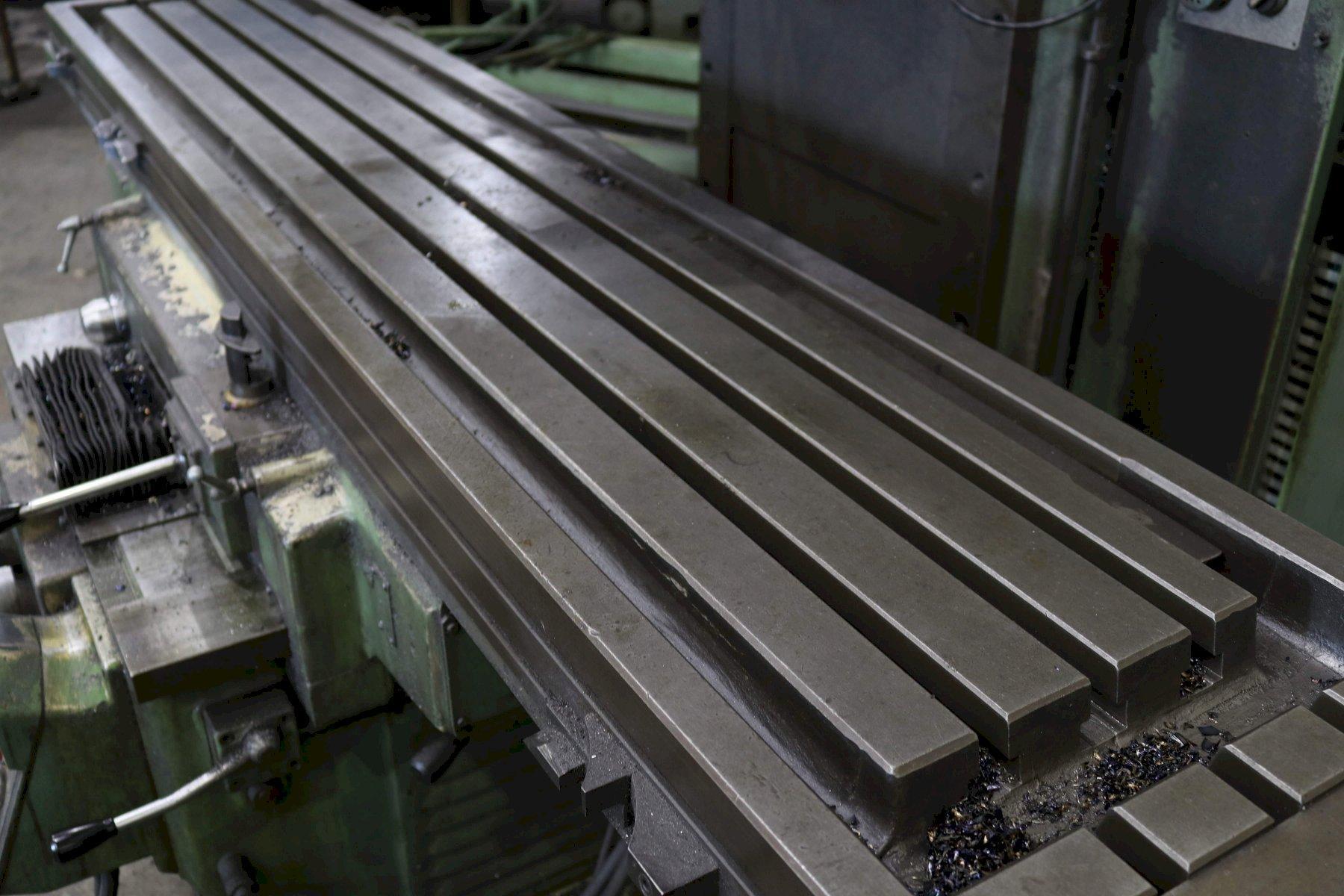

AREA OF TABLE .......................... 89" X 18"

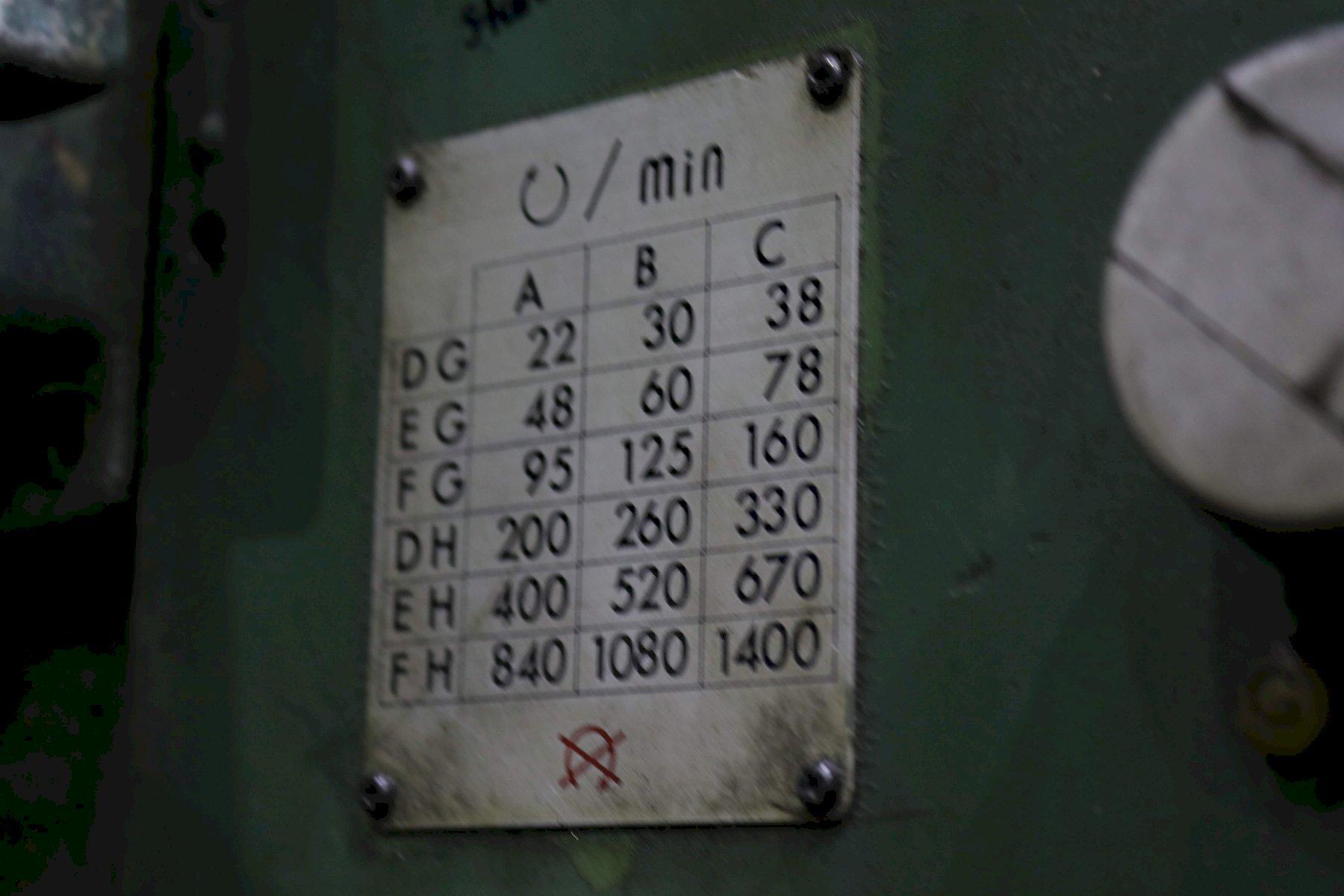

SPINDLE SPEEDS ......................... (18) 22 TO 1400 RPM

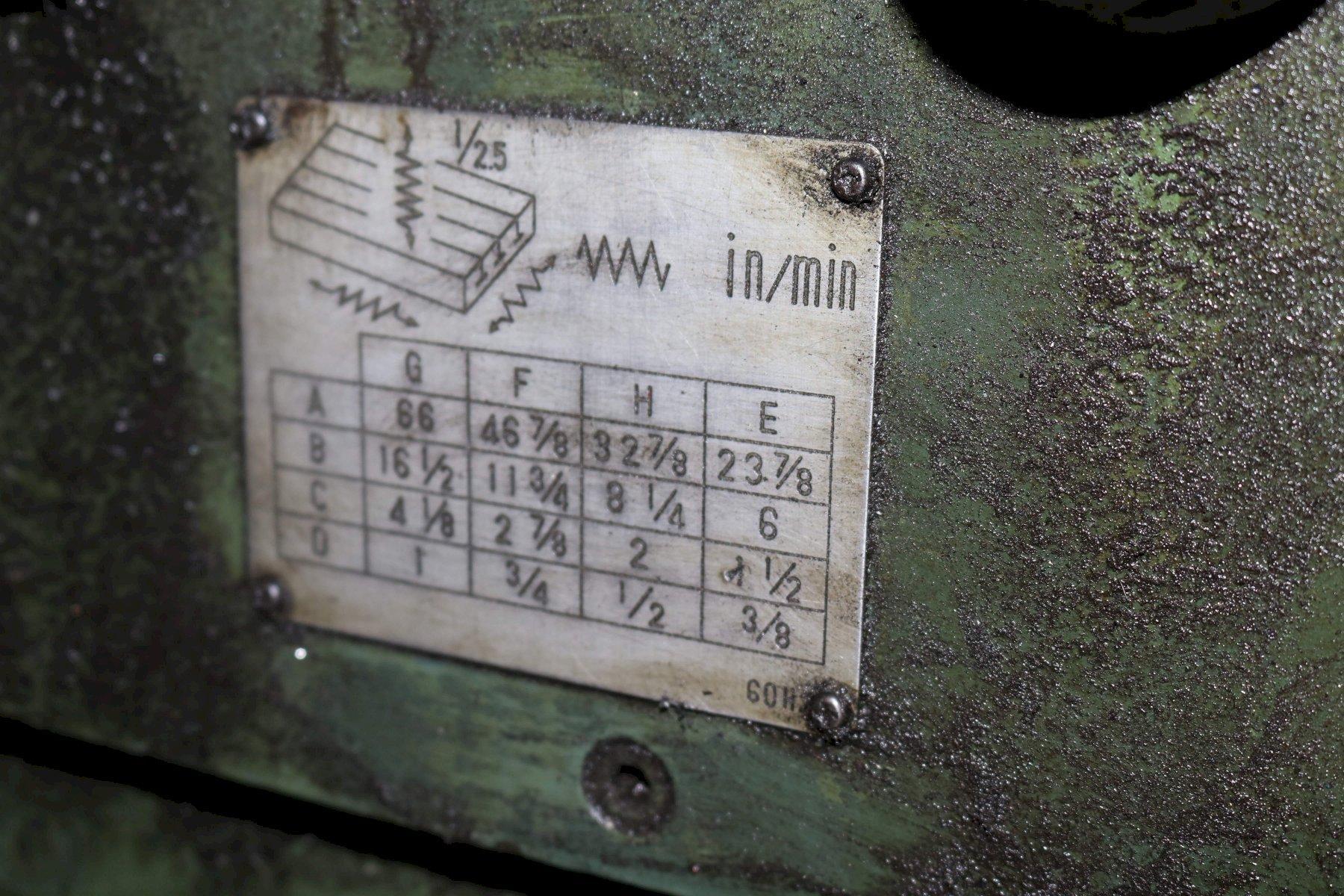

LONGITUDINAL & CROSS FEEDS ............. (24) 3/8 TO 66 IPM
VERTICAL FEEDS ......................... (24) .15 TO 26.4 IPM
LONGITUDINAL TRAVEL .................... 51-1/4"
CROSS TRAVEL ........................... 16-1/2"
VERTICAL TRAVEL ........................ 19-1/16"
DISTANCE SPINDLE NOSE TO TABLE ......... 4" MINIMUM, 23-1/16" MAXIMUM
DISTANCE CENTER OF SPINDLE TO COLUMN ... 20-1/2"
TAPER IN SPINDLE ....................... #50 NSTD
POWER DRAW BAR ......................... YES
HORSEPOWER SPINDLE MOTOR ............... 25
HORSEPOWER FEED MOTOR .................. 3
