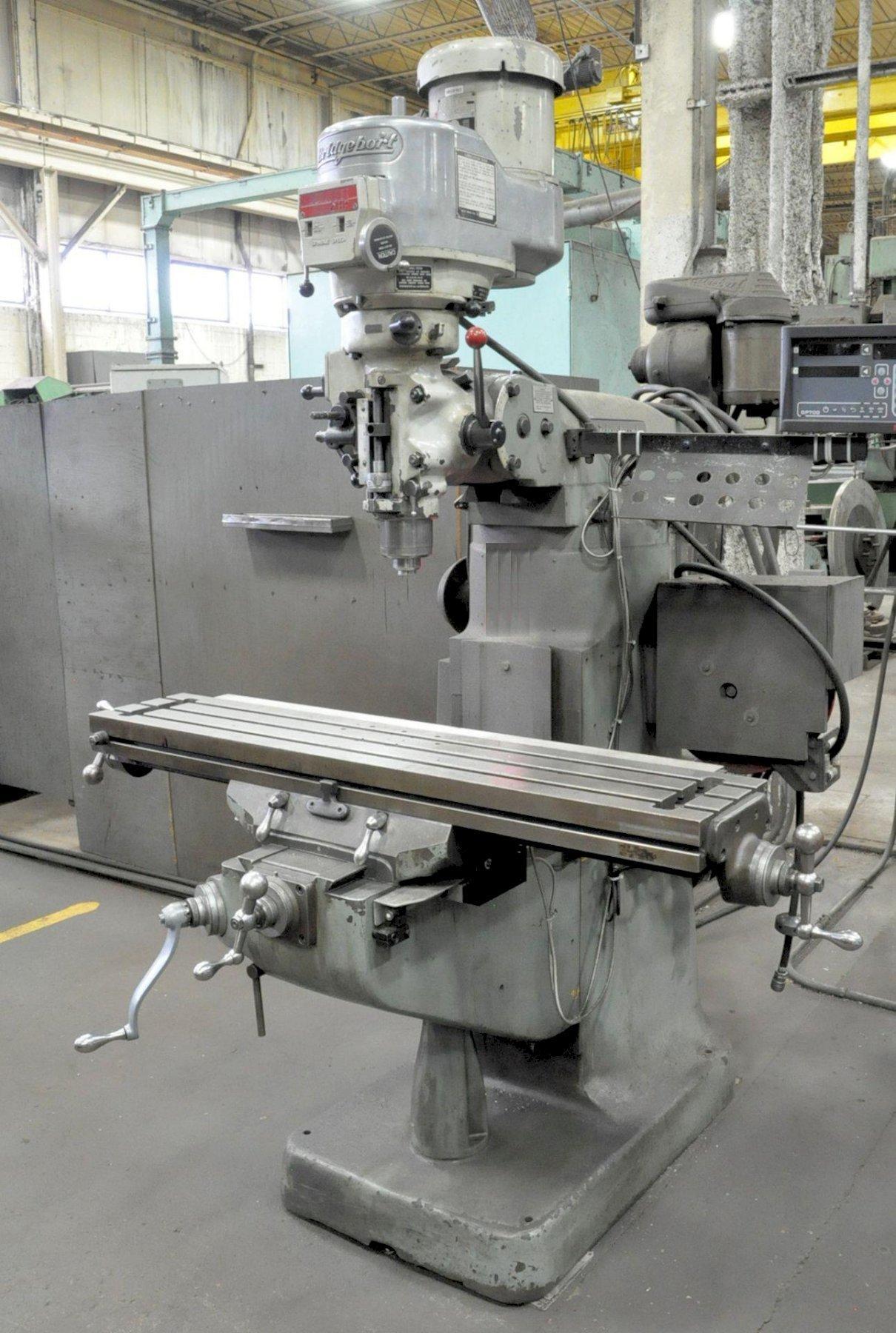

2 HP BRIDGEPORT SERIES 1 VERTICAL MILL: STOCK #73740

Manufacturer

BRIDGEPORT

Category

Milling Machines

Type

MILLERS, VERTICAL

Stock

73740

Model

None listed

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet



SERIAL ............................ 234368
SERIES ............................ 1
YEAR NEW .......................... 1983

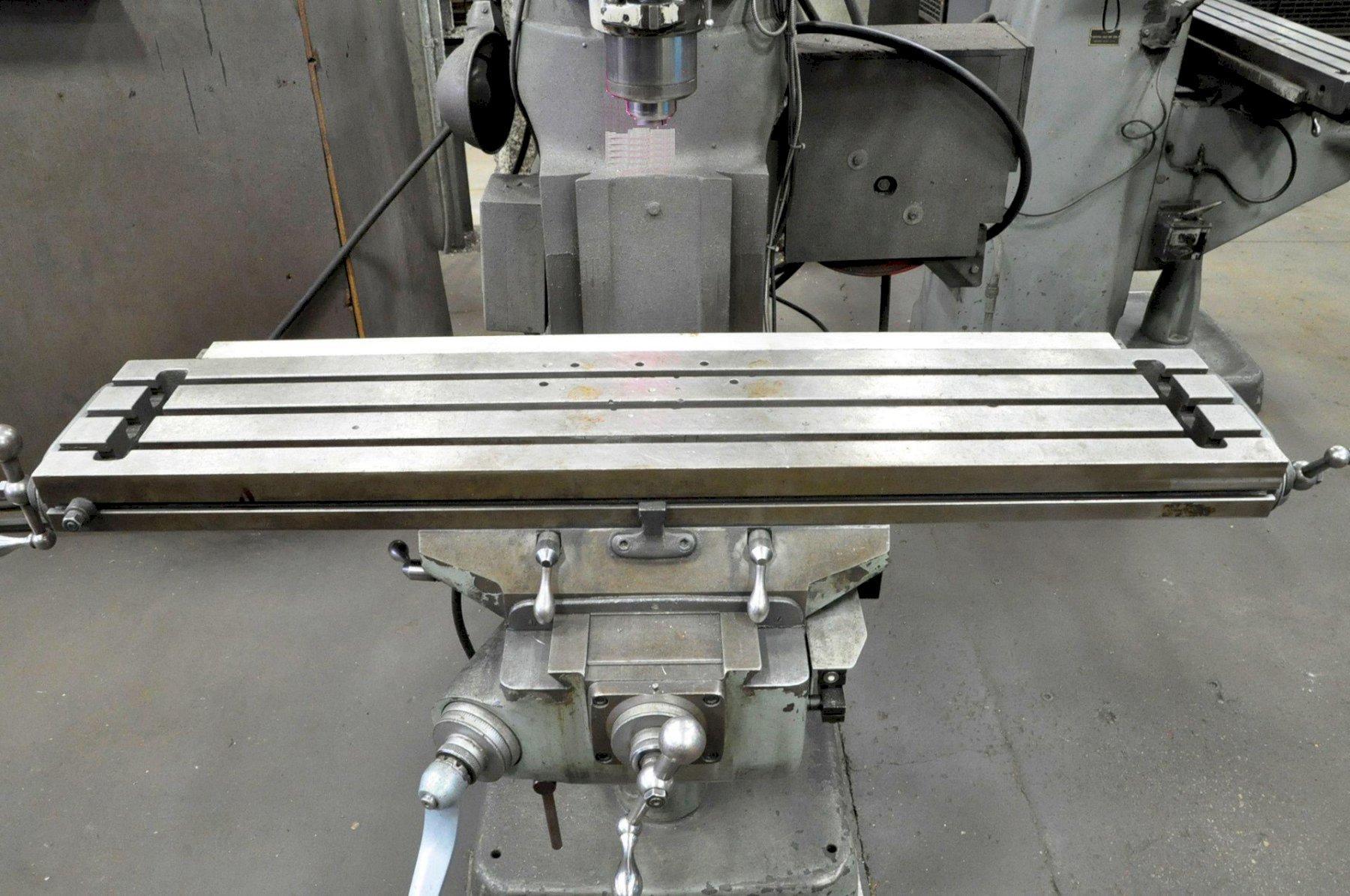

AREA OF TABLE ..................... 48" X 9"
SPINDLE SPEEDS, VARIABLE .......... 60 TO 4200 RPM
SPINDLE FEEDS ..................... .0015, .003, .006 IPR
LONGITUDINAL TABLE TRAVEL .......... 36"
CROSS TRAVEL ...................... 12"
VERTICAL KNEE TRAVEL .............. 16"
QUILL TRAVEL ...................... 5"
RAM TRAVEL ........................ 12"
DEPTH OF THROAT ................... 6-3/4" TO 18-3/4"

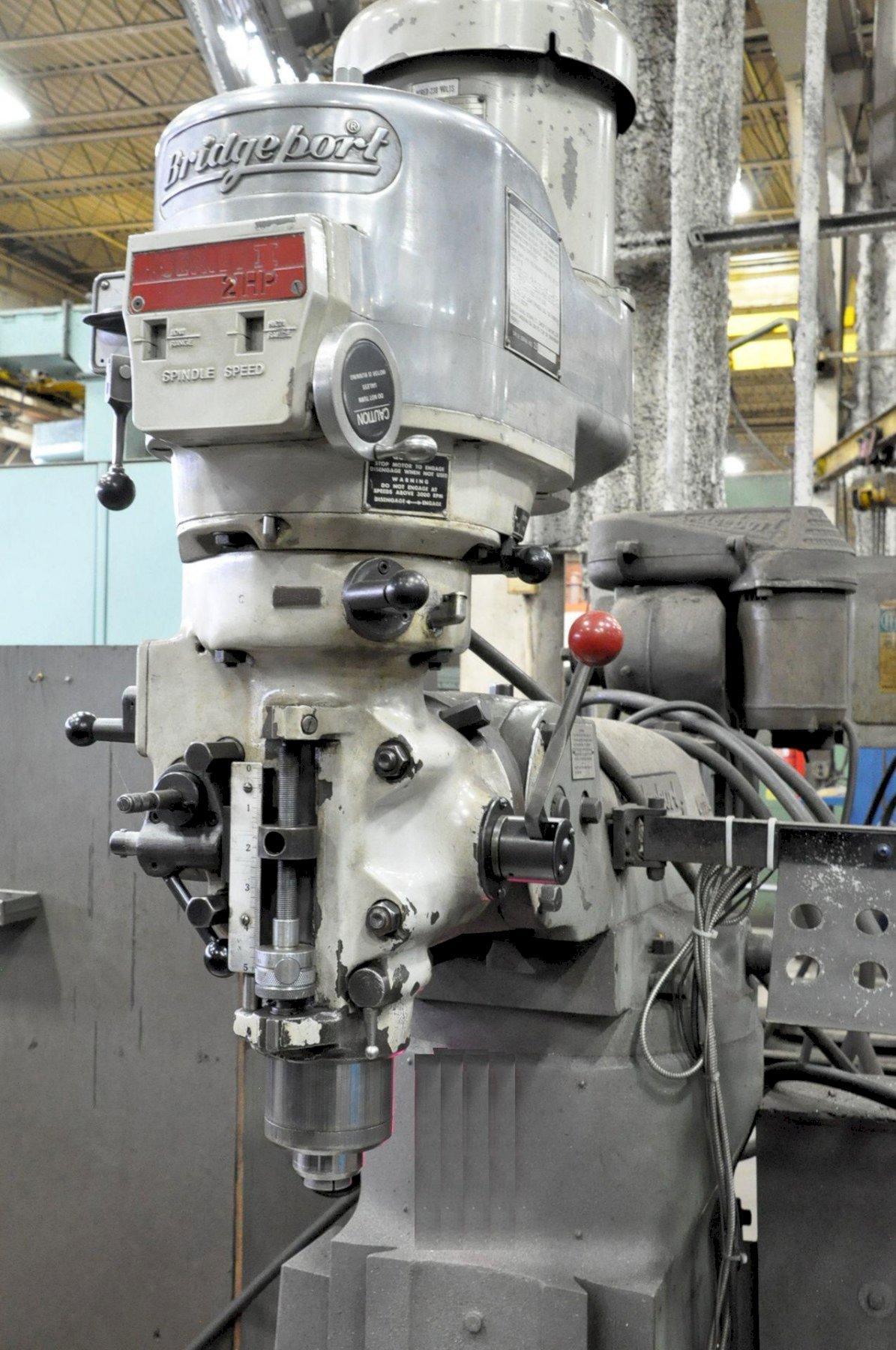

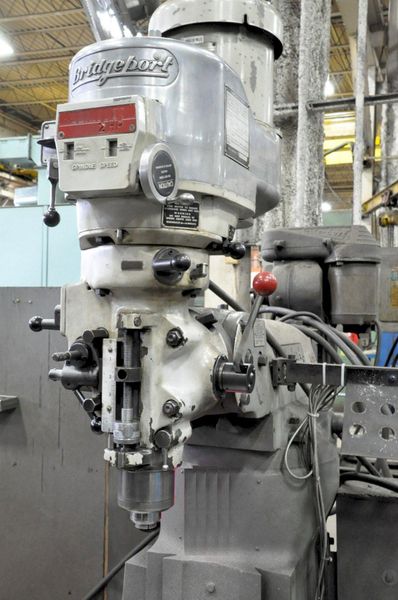

TAPER IN SPINDLE .................. R8
HEAD TILTS, FRONT/BACK ............ 45 DEGREE EITHER WAY
HEAD SWIVELS, LEFT/RIGHT .......... 90 DEGREE EITHER WAY

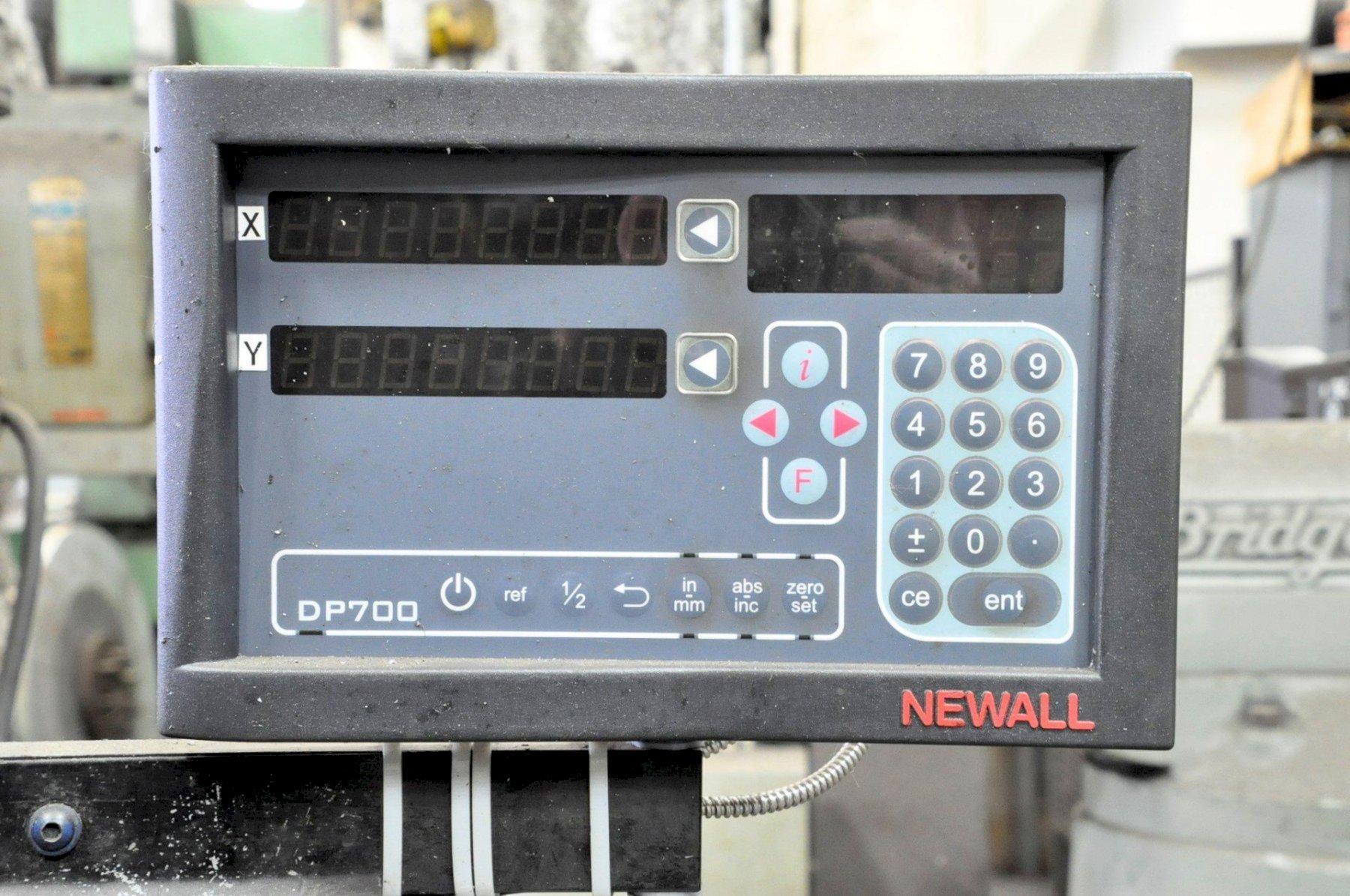

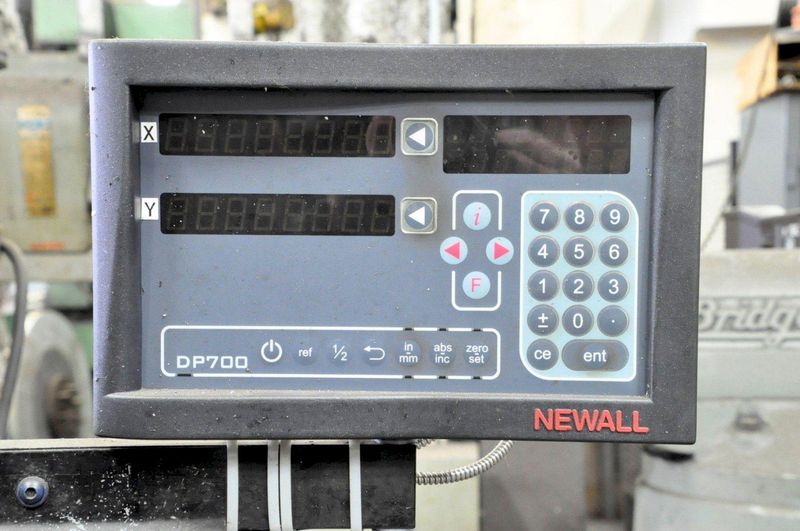

2 AXIS DIGITAL READ OUT ........... NEWALL DP 700
CHROME KNEE WAYS .................. YES
MOTOR ............................. 2 HORSEPOWER
