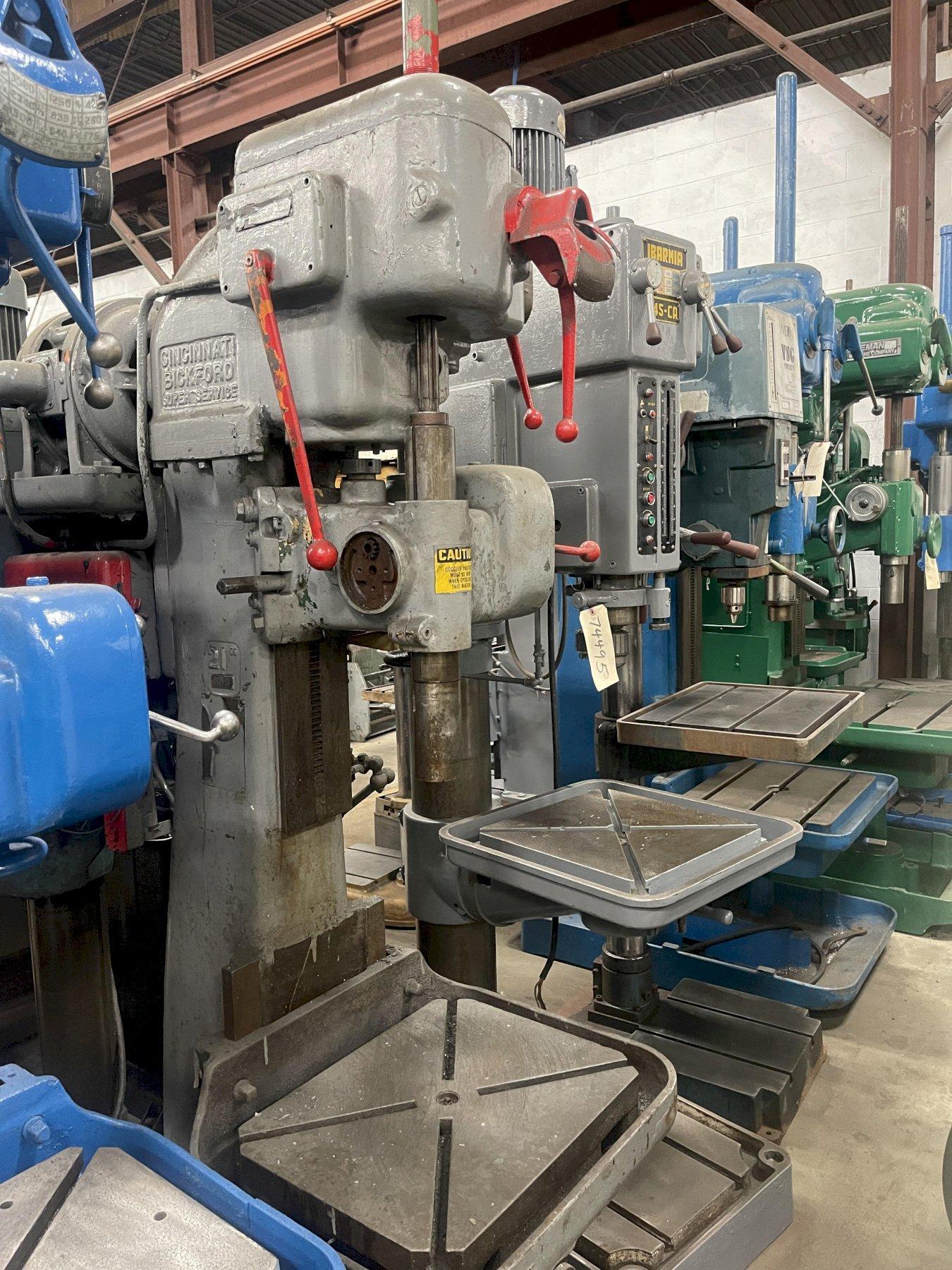

21' CINCINNATI BICKFORD SINGLE SPINDLE: STOCK #67485

Manufacturer

Stock

67485

Model

21

Dealer Location

Ohio

Spec Sheet



SERIAL ............................. 1L-357
MODEL .............................. 1L BOX COLUMN
DEPTH OF THROAT .................... 10-1/2"
DIAMETER OF SWING AWAY TABLE ....... 19"
SPINDLE SPEEDS ..................... (9) 100 TO 2000 RPM
SPINDLE FEEDS ...................... .004, .008, .014, .020 IPR
SPINDLE TRAVEL ..................... 10"
TAPER IN SPINDLE ................... #4 MT
DIAMETER OF SPINDLE ................ 2-3/4"
AREA OF BASE ....................... 20-1/2" X 17-1/2"
TRAVEL OF HEAD ON COLUMN ........... 12"
VERTICAL TRAVEL OF TABLE ........... 18"
DISTANCE SPINDLE TO TABLE .......... 0" MINIMUM TO 30" MAXIMUM
DISTANCE SPINDLE TO BASE ........... 32" MINIMUM TO 44" MAXIMUM
FORWARD AND REVERSE ................ YES
COOLANT ............................ YES
MOTOR .............................. 3 HORSEPOWER
