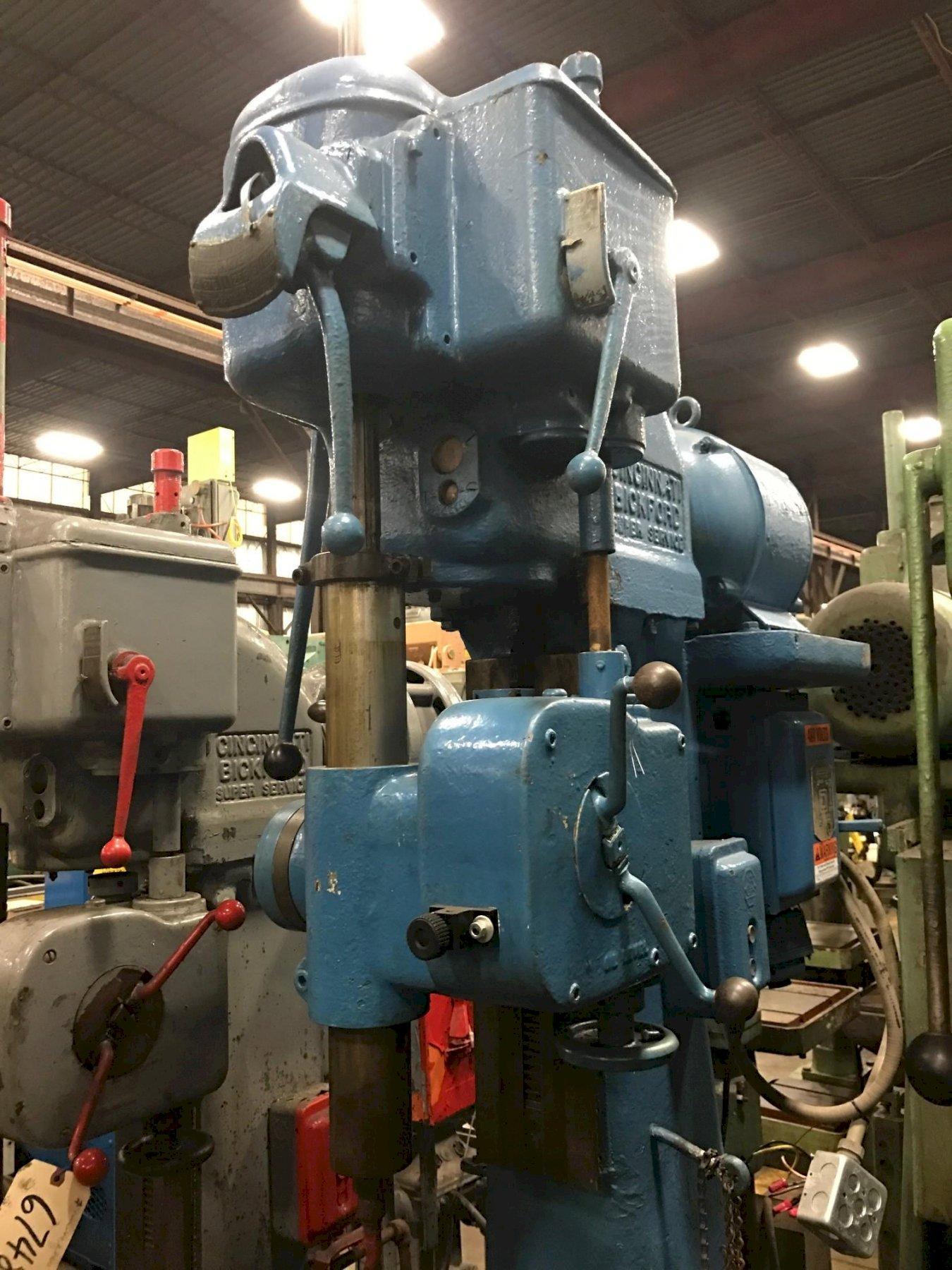

21' CINCINNATI BICKFORD SINGLE SPINDLE DRILL: STOCK #67486

Manufacturer

Category

Drilling Machines

Type

DRILLS, MISCELLANEOUS

Stock

67486

Model

21

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet



SERIAL ............................. 1L-1403
MODEL .............................. 1L BOX COLUMN
DEPTH OF THROAT .................... 10-1/2"
DIAMETER OF SWING AWAY TABLE ....... 19"
SPINDLE SPEEDS ..................... (9) 100 TO 2000 RPM
SPINDLE FEEDS ...................... .004, .008, .014, .020 IPR
SPINDLE TRAVEL ..................... 10"
TAPER IN SPINDLE ................... #4 MT
DIAMETER OF SPINDLE ................ 2-3/4"
AREA OF BASE ....................... 20-1/2" X 17-1/2"
TRAVEL OF HEAD ON COLUMN ........... 12"
VERTICAL TRAVEL OF TABLE ........... 18"
DISTANCE SPINDLE TO TABLE .......... 0" MINIMUM TO 30" MAXIMUM
DISTANCE SPINDLE TO BASE ........... 32" MINIMUM TO 44" MAXIMUM
FORWARD AND REVERSE ................ YES
MOTOR .............................. 3 HORSEPOWER
