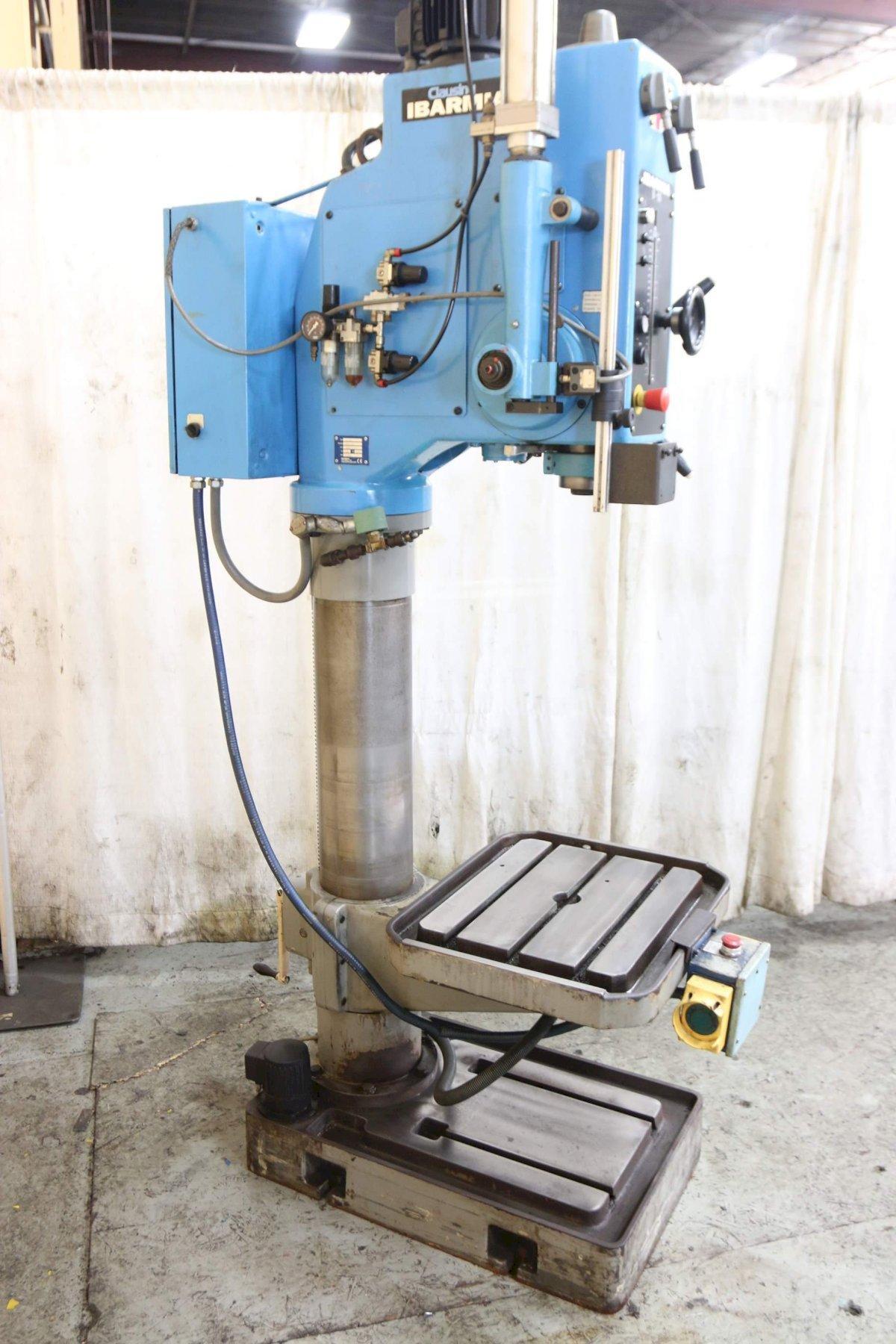

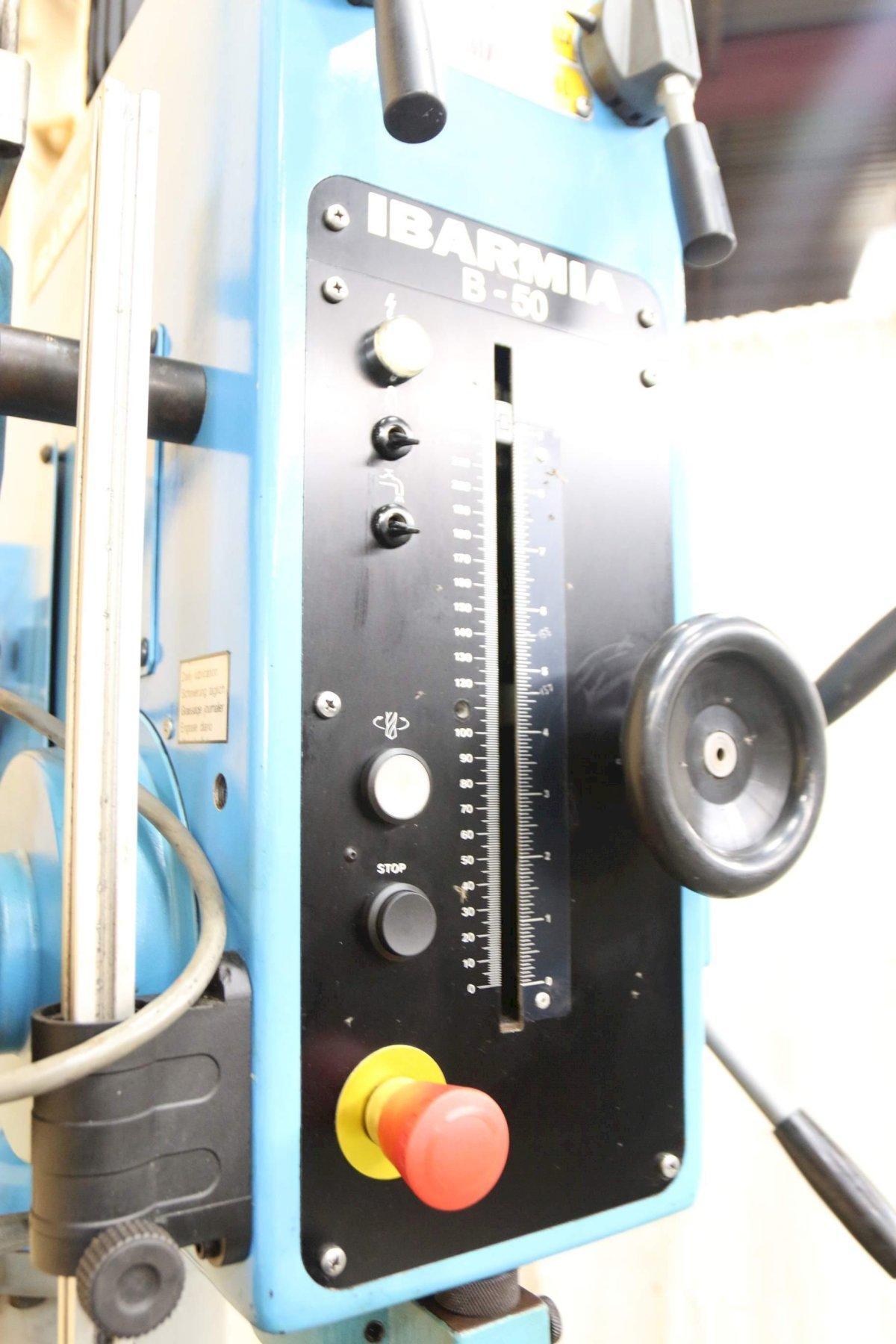

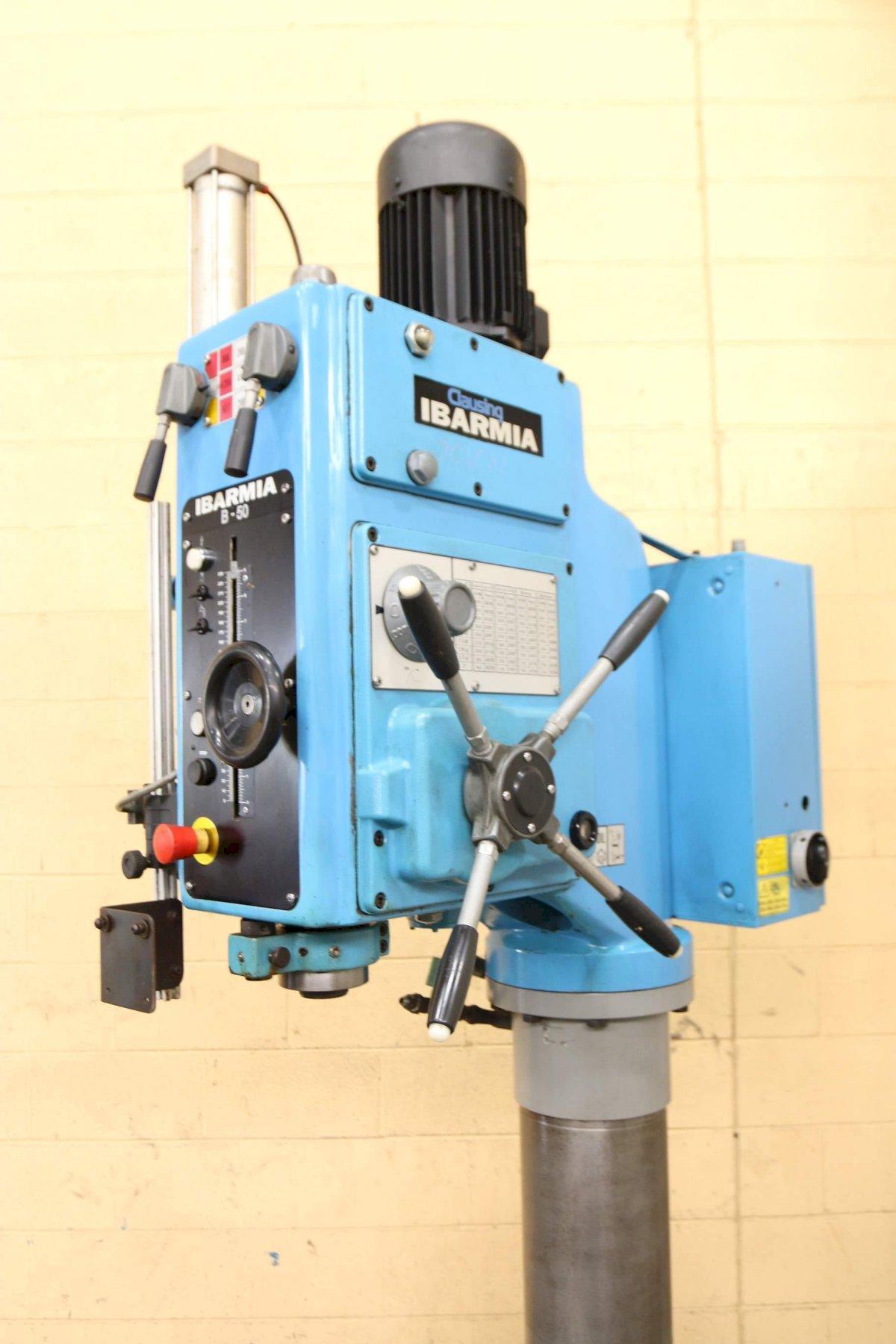

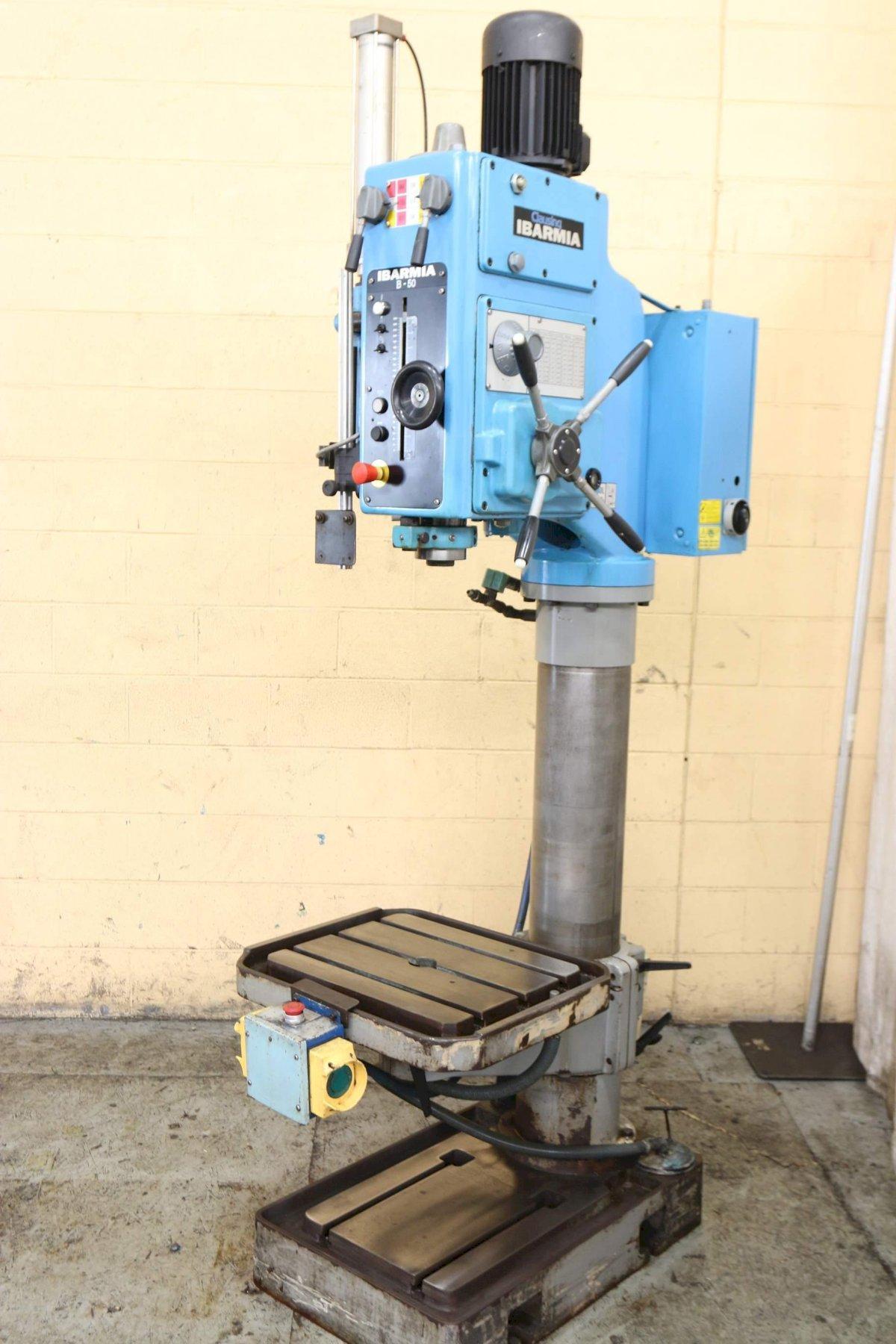

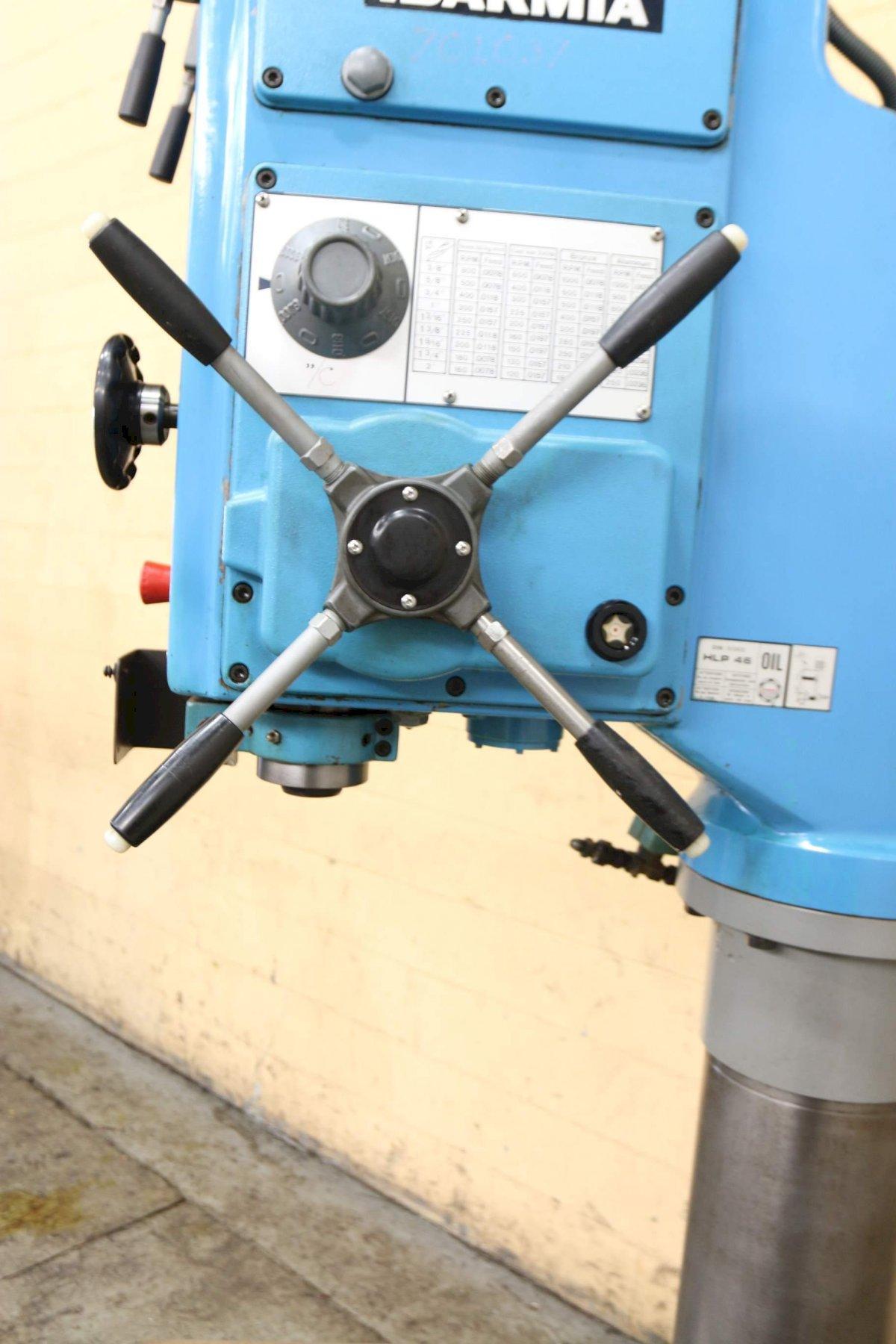

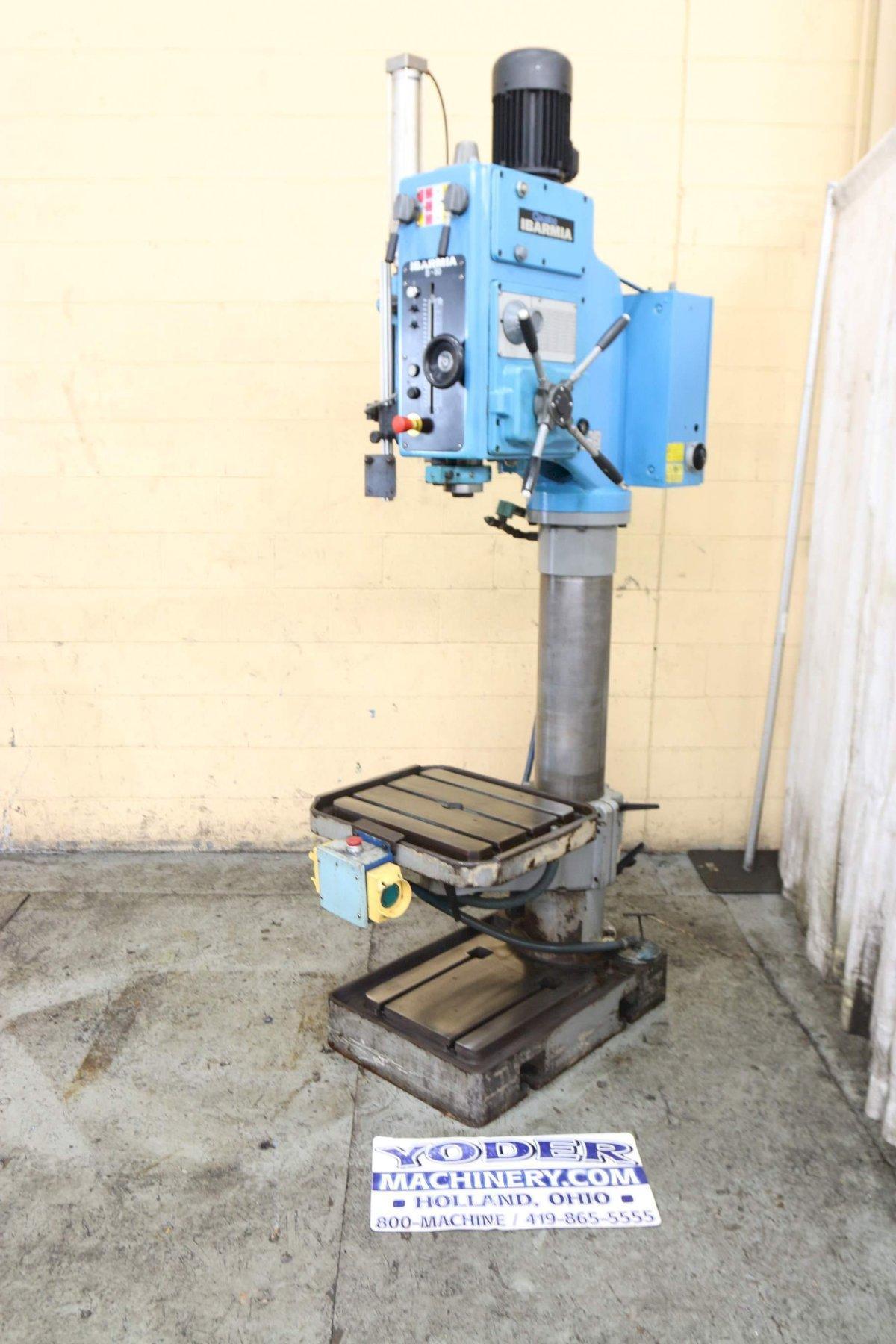

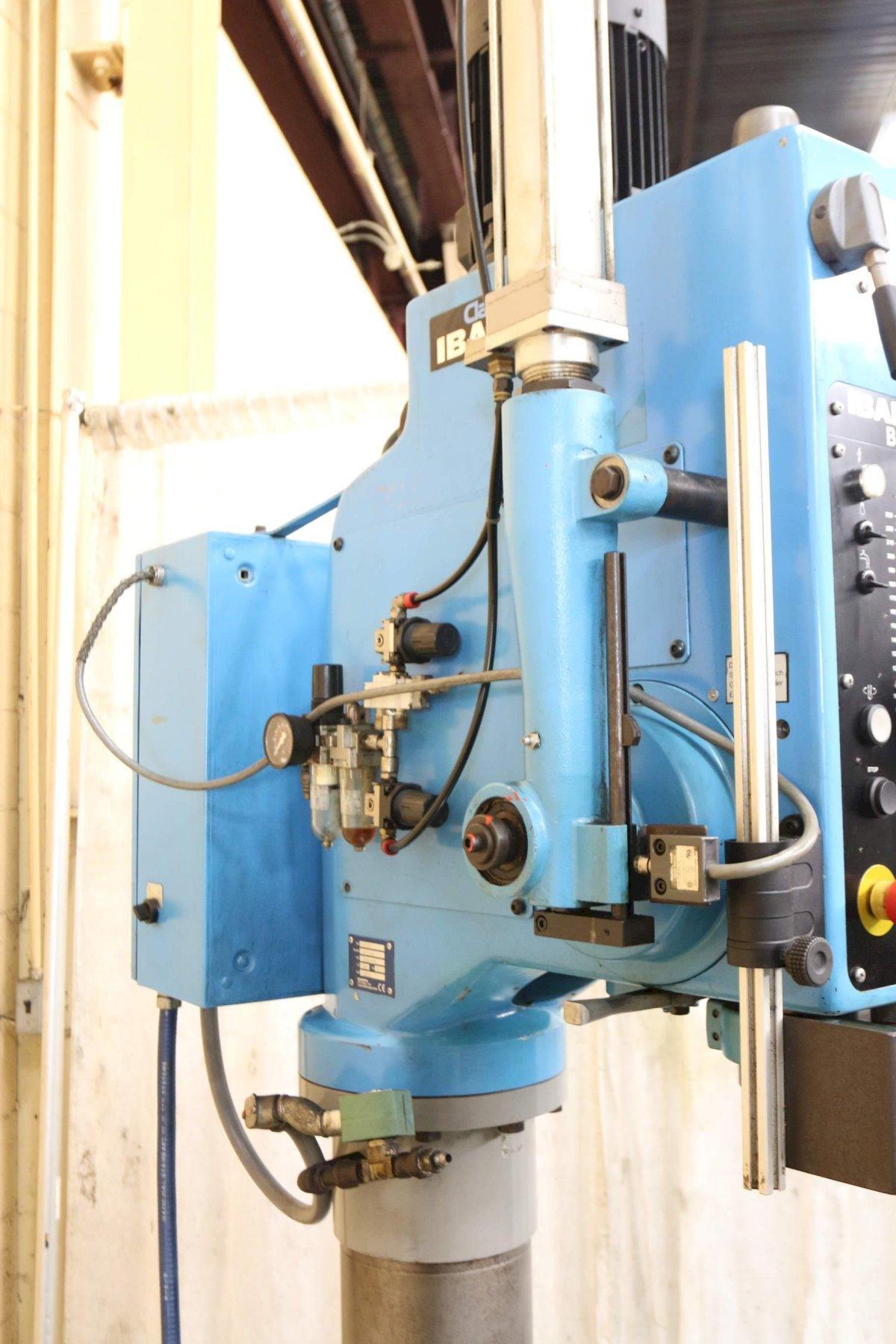

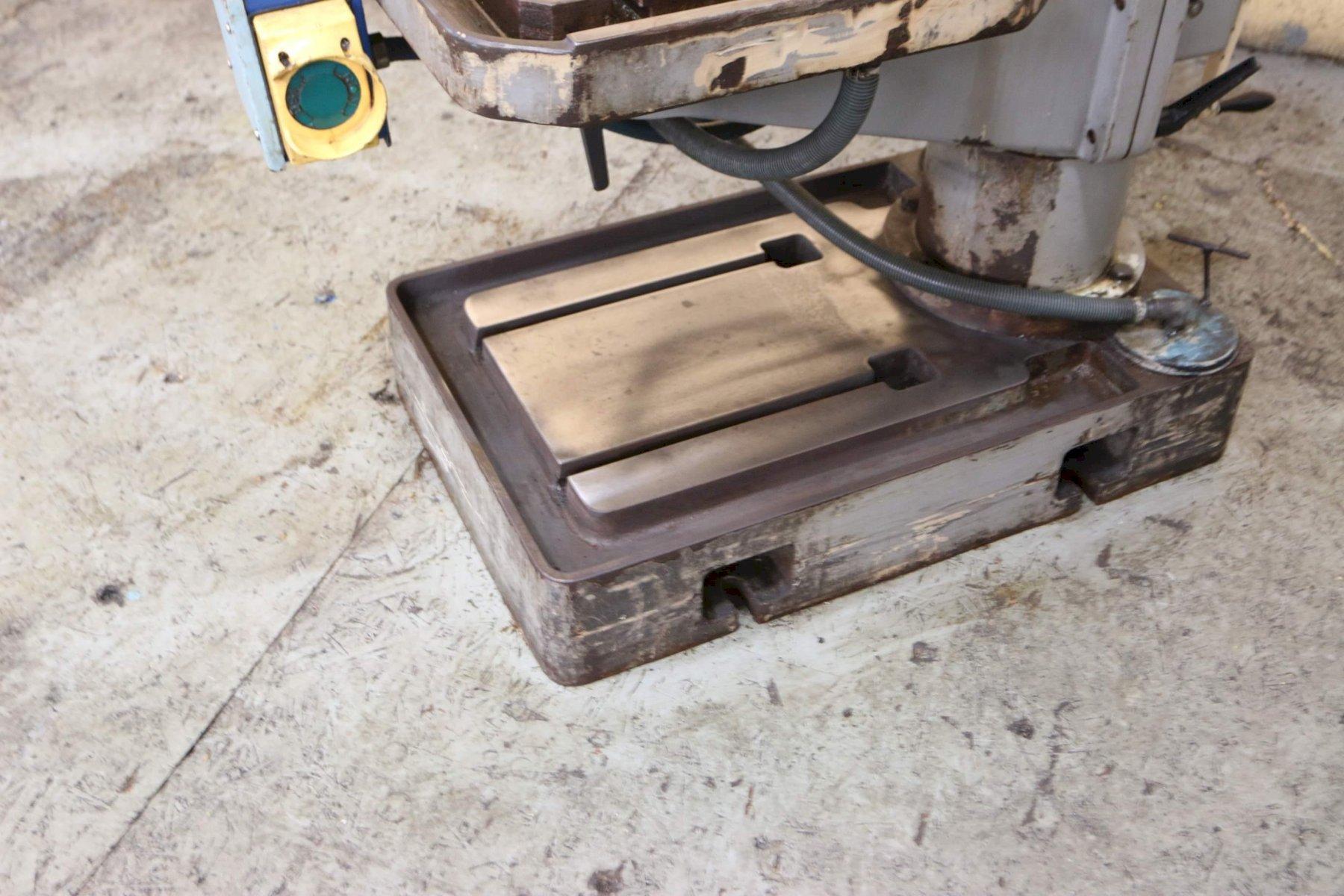

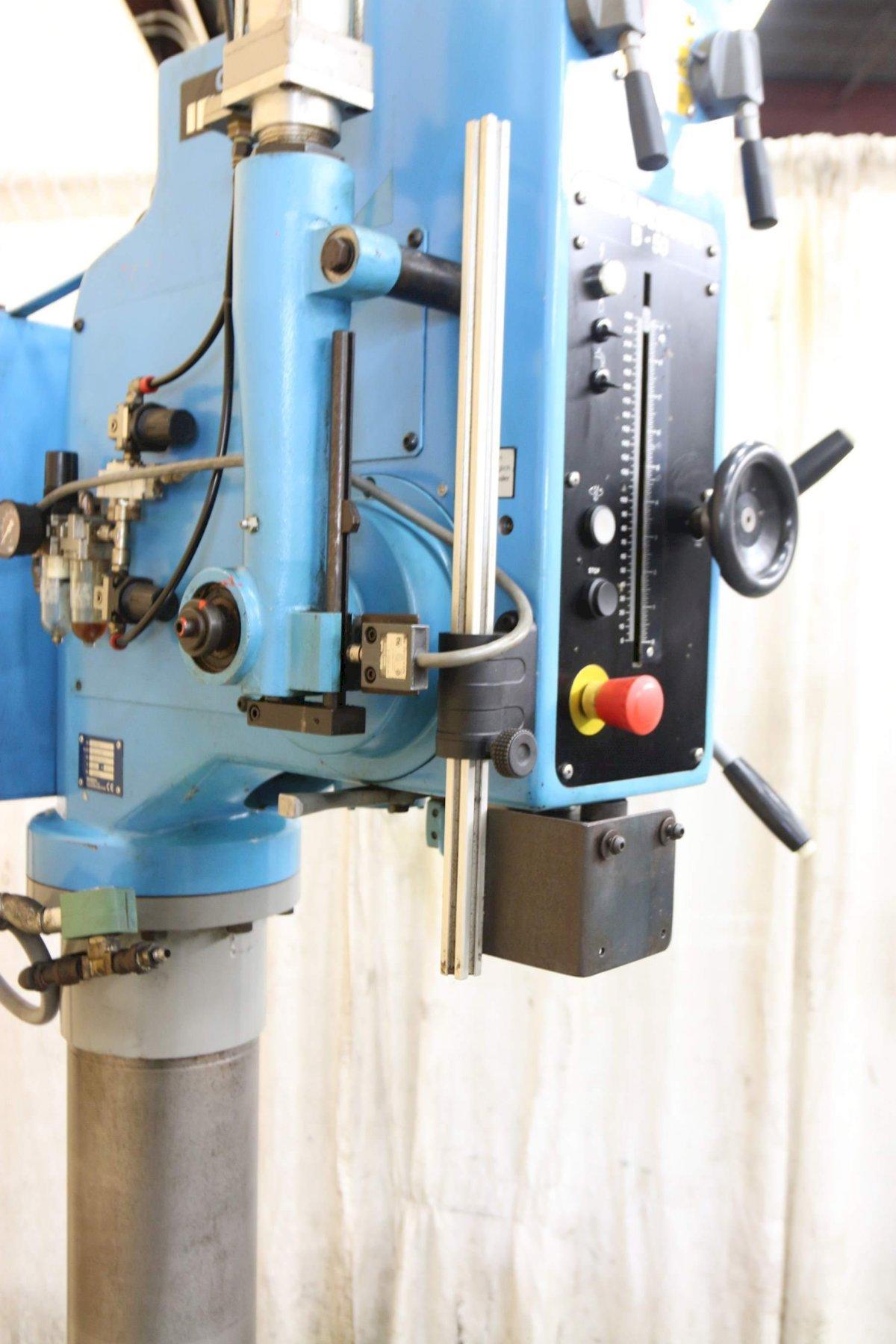

IBARMIA MODEL #B-50 SINGLE SPINDLE DRILL: STOCK #70247

Manufacturer

CLAUSING IBARMIA

Category

Drilling Machines

Type

DRILLS, MISCELLANEOUS

Stock

70247

Model

30

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet



SERIAL .................................. 871-AA
MODEL ................................... B-50
YEAR NEW ................................ 2000

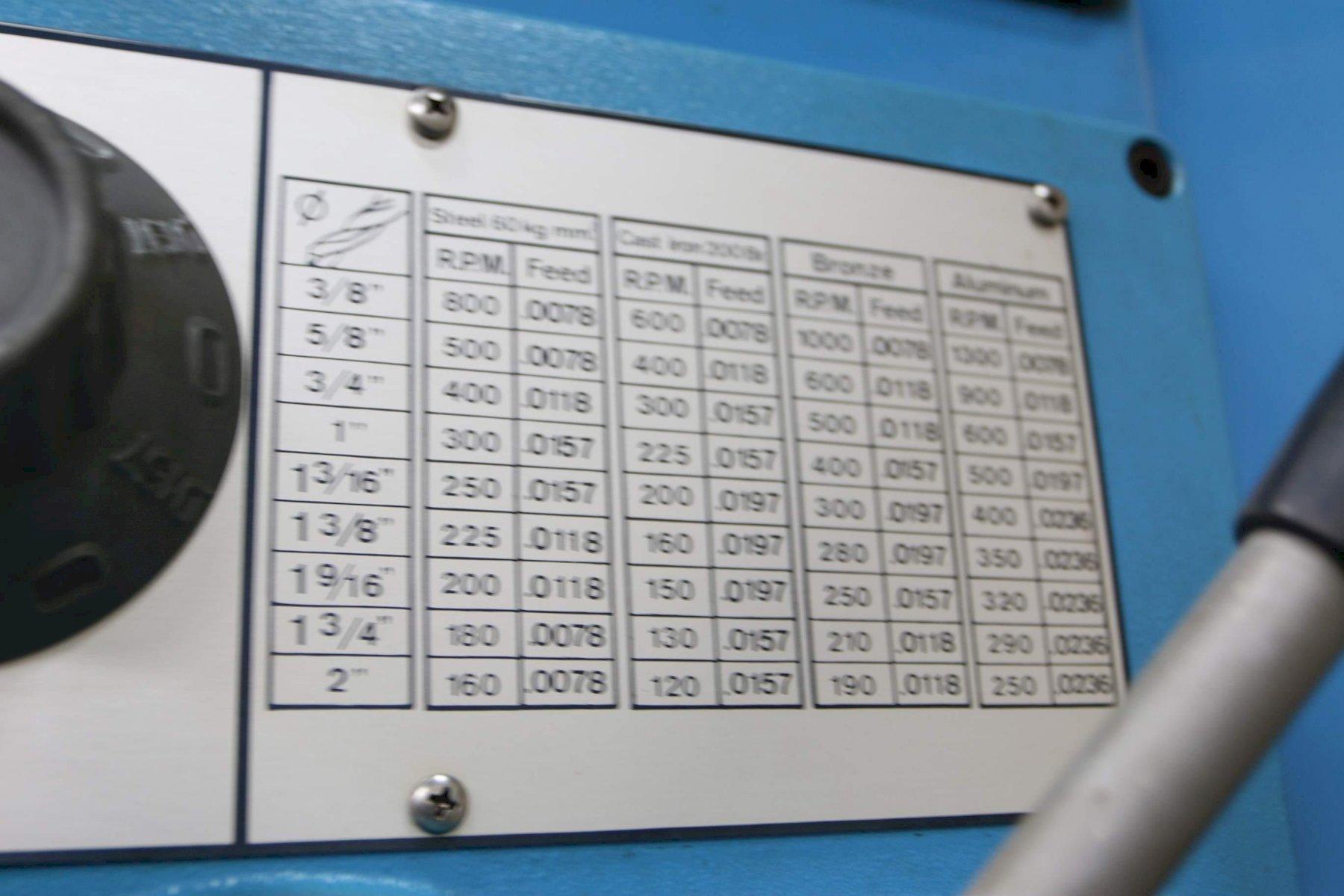

SPINDLE SPEEDS .......................... 120 TO 1300 RPM
DEPTH OF THROAT ......................... 14.57"
DRILLING CAPACITY (MILD STEEL) .......... 1.97"
DRILLING CAPACITY CAST IRON ............. 2.36"
TAPPING CAPACITY ........................ 1.42"
POWER FEEDS ............................. (6) .0039 TO .0236 IPR

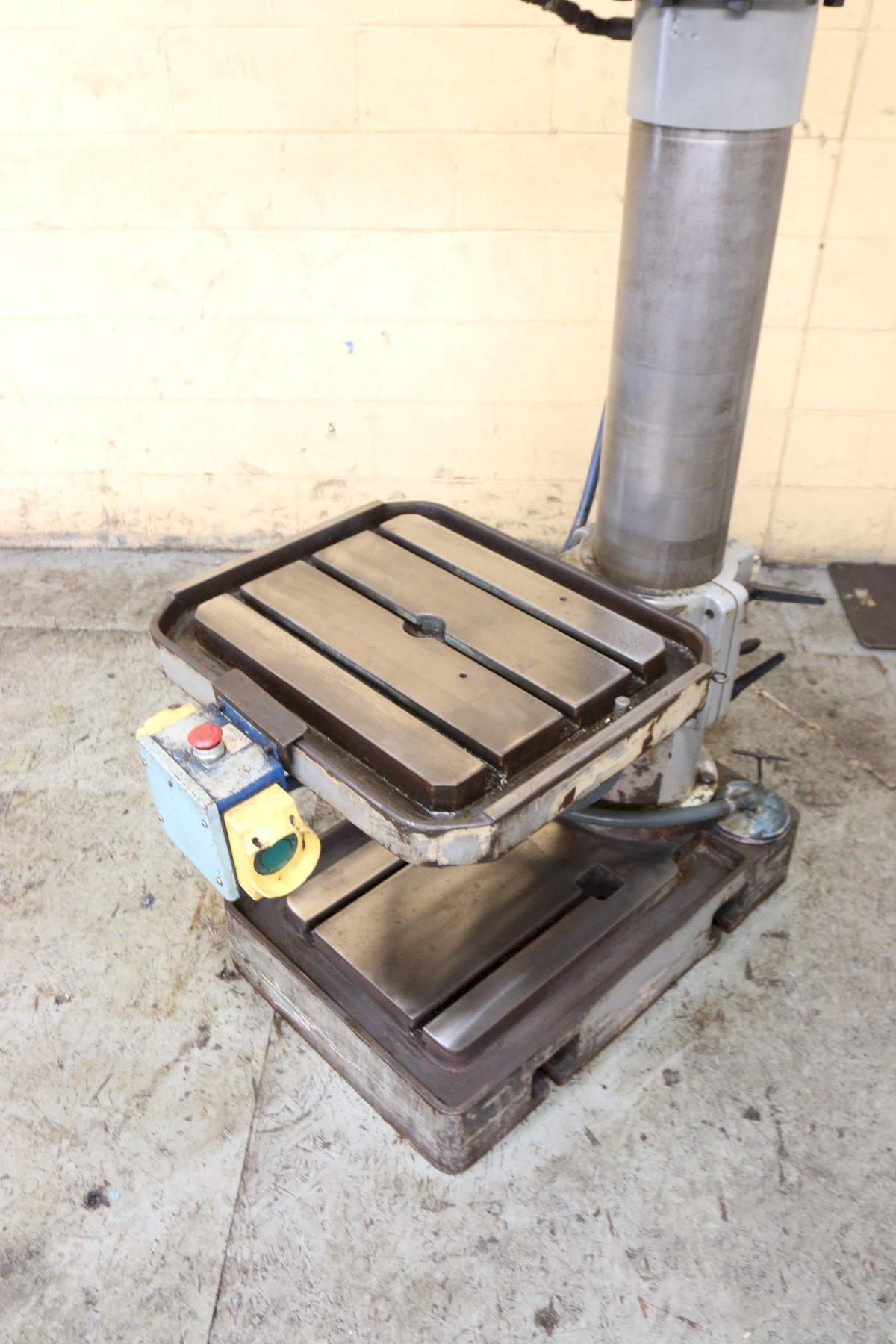

AREA OF TABLE ........................... 20-1/2" X 24.4"
DIAMETER OF SPINDLE ..................... 3.46"
SPINDLE TRAVEL .......................... 9/06"
TAPER IN SPINDLE ........................ #4 MT
DISTANCE SPINDLE TO BASE ................ 51.18"
DISTANCE SPINDLE TO TABLE ............... 0" MINIMUM TO 30" MAXIMUM
FORWARD & REVERSING ..................... YES
TAPPING ................................. YES
ELECTRIC FOOT TRIP ...................... YES
MOTOR ................................... 4 HORSEPOWER
