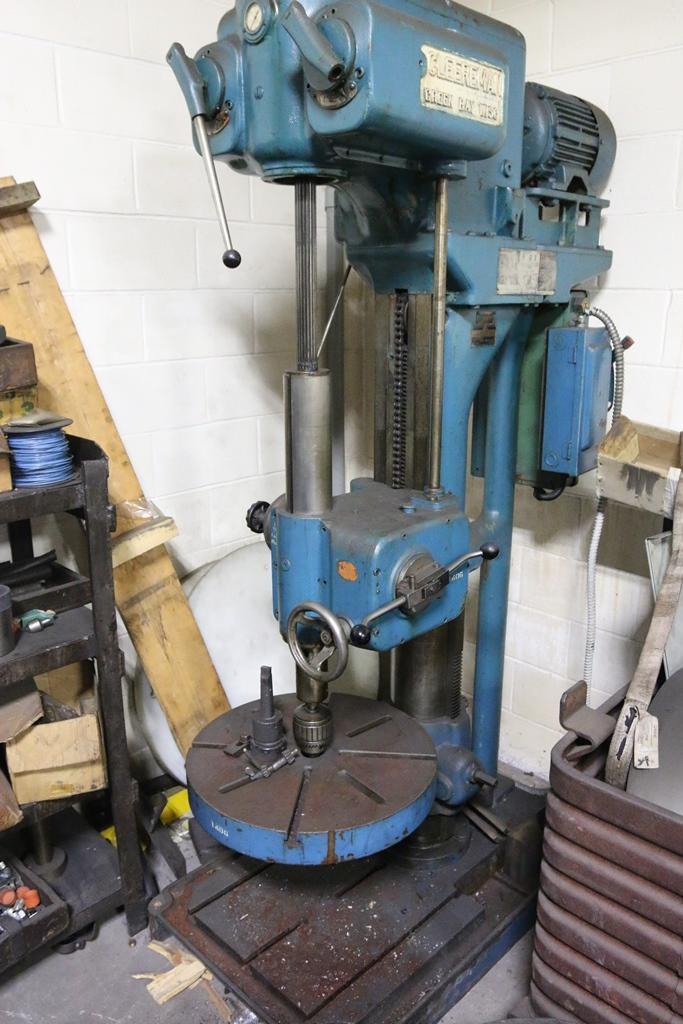

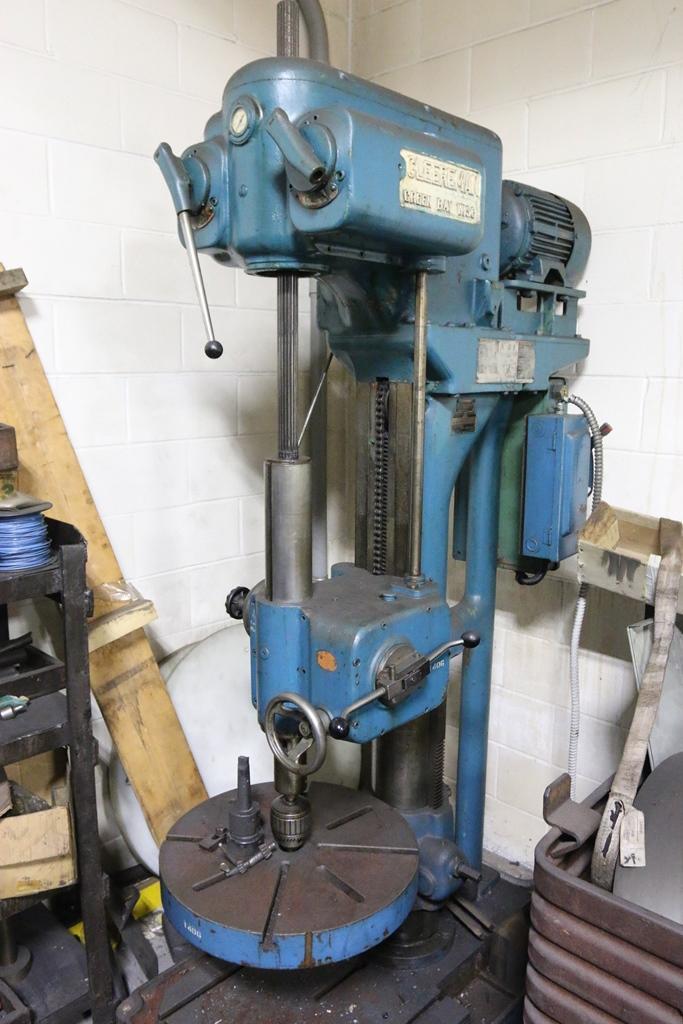

22" CLEEREMAN SINGLE SPINDLE DRILL: STOCK #70266

Manufacturer

CLEEREMAN

Category

Drilling Machines

Type

DRILLS, MISCELLANEOUS

Stock

70266

Model

22

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet



SERIAL .................................. 25C-1560
MODEL ................................... 25C ROUND COLUMN
SPINDLE SPEEDS .......................... (12) 75 TO 1500 RPM
SPINDLE FEEDS ........................... (9) .005-.045 IPR
SPINDLE CENTER TO LOWER COLUMN .......... 15"
SPINDLE CENTER TO UPPER COLUMN .......... 14"
DISTANCE SPINDLE TO TABLE ............... 31" MAX.
DISTANCE SPINDLE TO BASE ................ 48" MAX.
POWER SPINDLE STROKE .................... 12"
VERTICAL SLIDING HEAD ADJUSTMENT ........ 18"
VERTICAL TABLE ADJUSTMENT ............... 15"
SPINDLE TAPER ........................... #4 MT
WORK TABLE DIAMETER (T-SLOTTED) ......... 23-1/2"
SPINDLE MOTOR ........................... 5 HORSEPOWER
