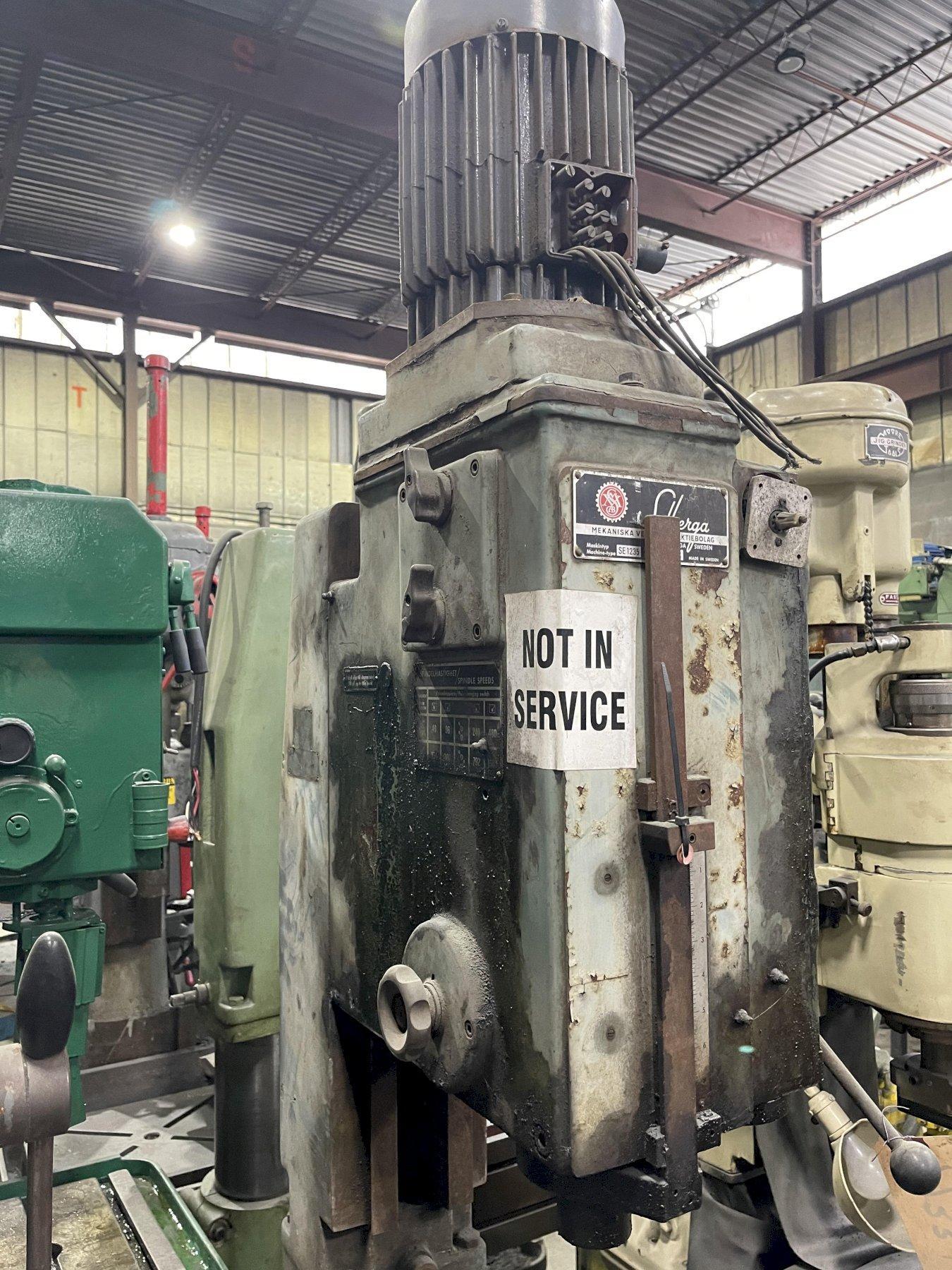

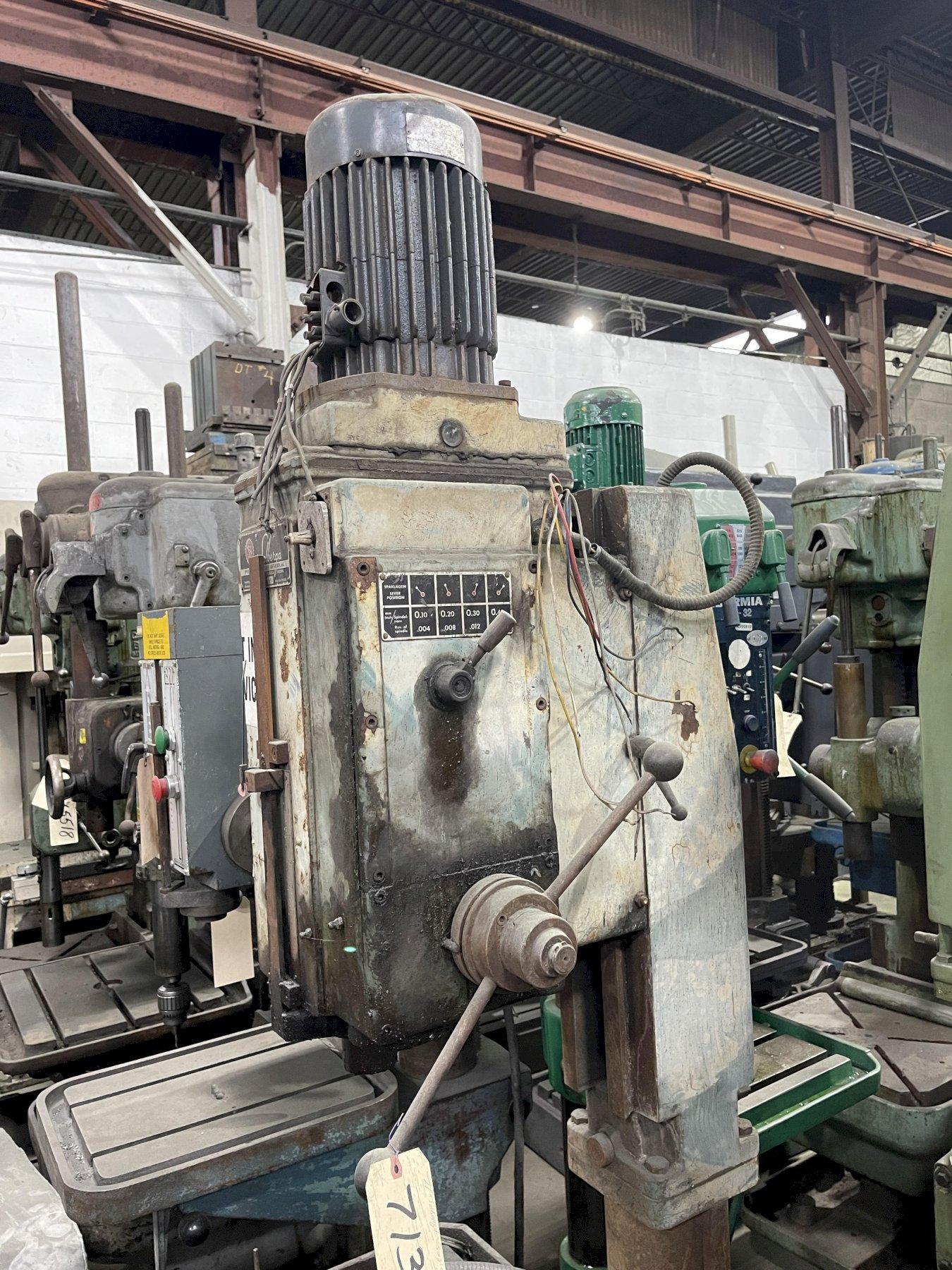

26" SOLBERGA SINGLE SPINDLE DRILL PRESS: STOCK #71331

Manufacturer

SOLBERGA

Category

Drilling Machines

Type

DRILLS, MISCELLANEOUS

Stock

71331

Model

026

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet



SERIAL ...........................
MODEL ............................ SE1235
DEPTH OF THROAT .................. 13"
DRILLING CAPACITY (CAST IRON) .... 1-3/4"
DRILLING CAPACITY (MILD STEEL) ... 1-1/2"
SPINDLE SPEEDS ................... (8) 48 TO 1584 RPM
SPINDLE FEEDS .................... (4) .004, .008, .012, & .016 IPR
DIAMETER OF SPINDLE .............. 3-1/8"
SPINDLE TRAVEL.................... 7-7/8"
TAPER IN SPINDLE ................. #4 MT
DISTANCE SPINDLE TO TABLE ........ 0" MINIMUM TO 32" MAXIMUM
DISTANCE SPINDLE TO BASE ......... 35" MINIMUM TO 49-1/2" MAXIMUM
HEAD TRAVEL IN PRISMATIC COLUMN .. 14-1/2"

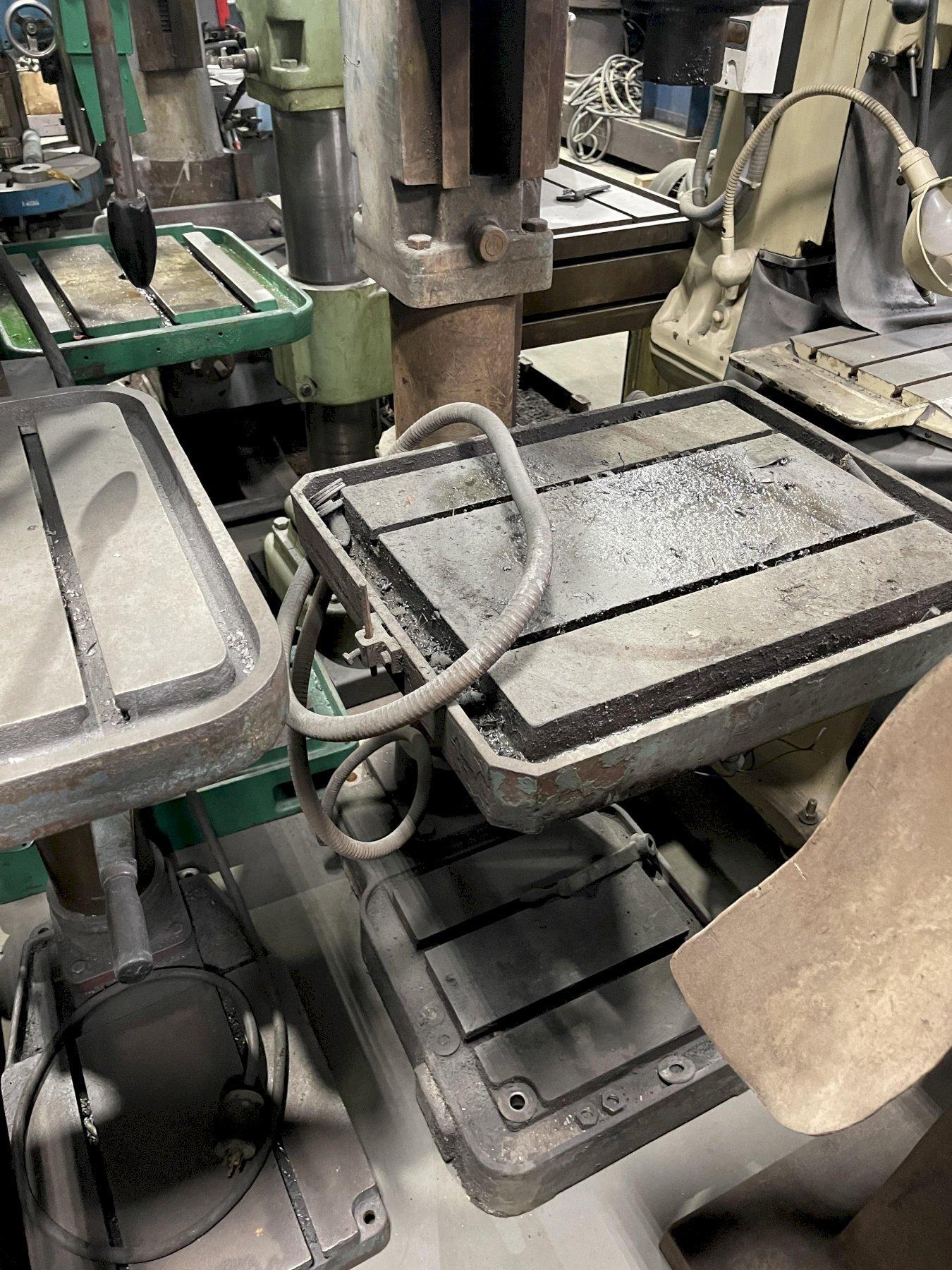

VERTICAL TRAVEL OF TABLE ......... 32"
FORWARD & REVERSING .............. YES

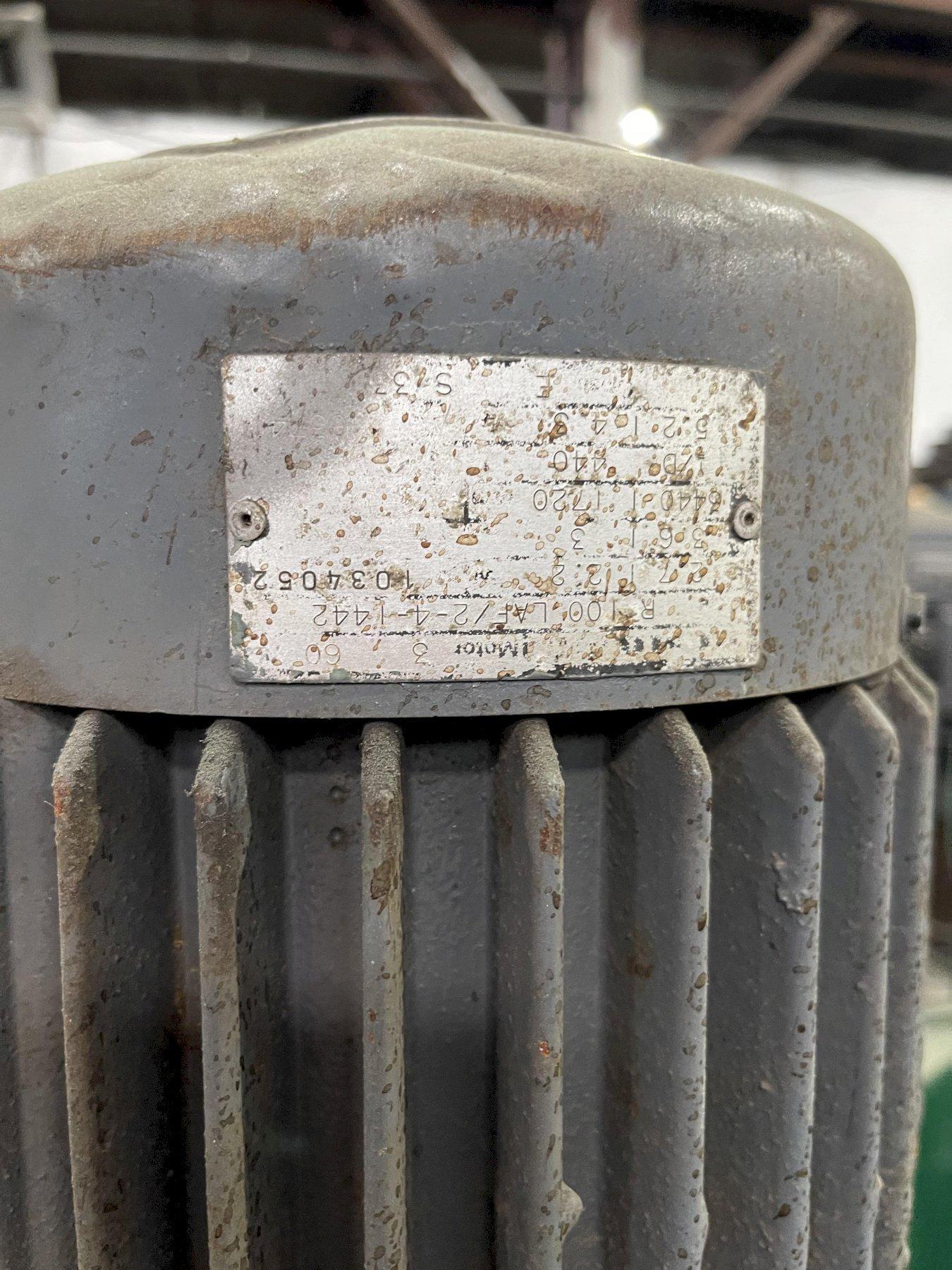

MOTOR ............................ 2 HORSEPOWER

No Video Available
