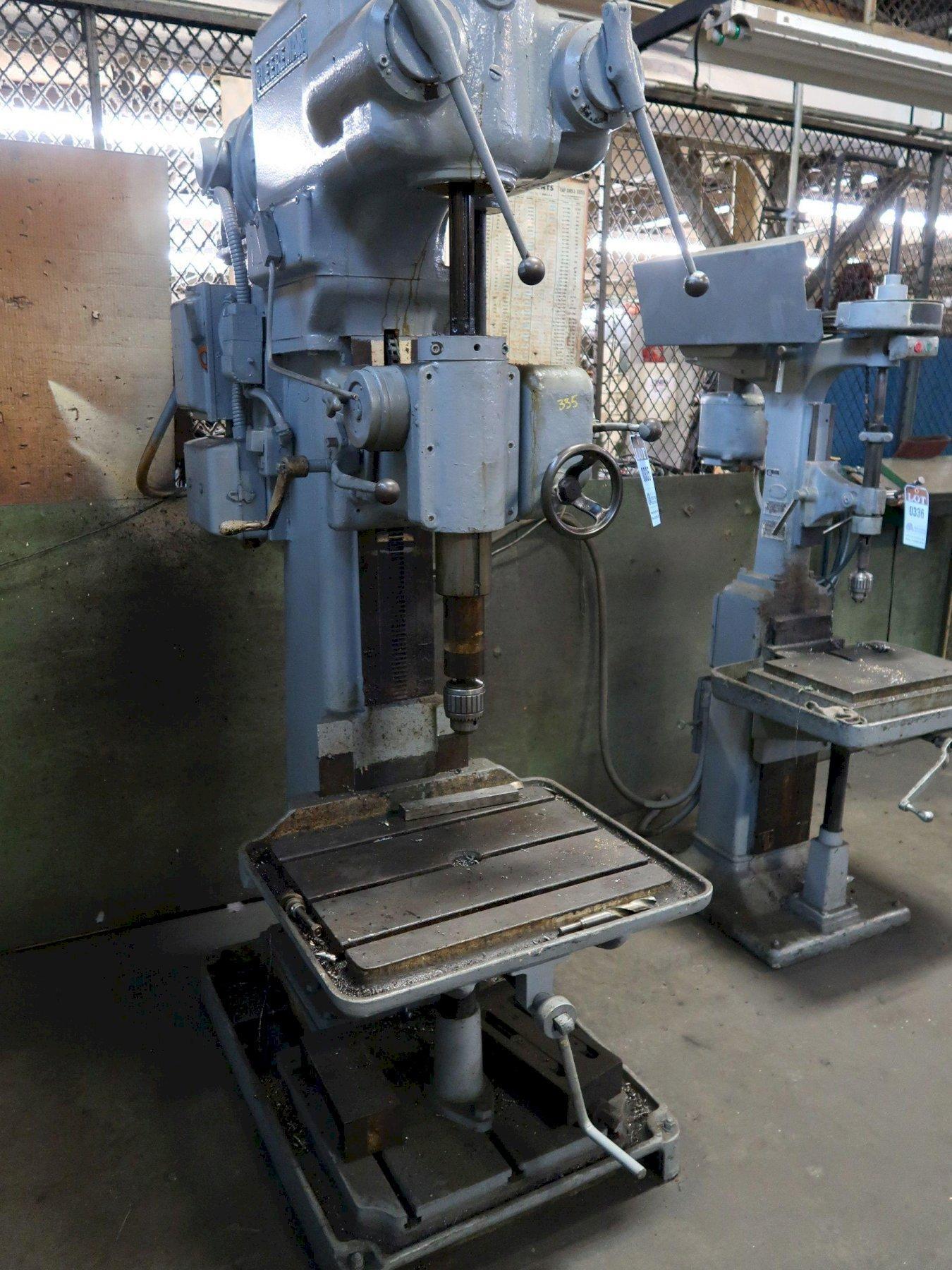

25" CLEEREMAN SINGLE SPINDLE DRILL: STOCK # 71464

Manufacturer

CLEEREMAN

Category

Drilling Machines

Type

DRILLS, MISCELLANEOUS

Stock

71464

Model

25

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet



SERIAL ................................. 25C-682
MODEL .................................. 25C BOX COLUMN
NUMBER OF SPINDLES ..................... 2
SPINDLE TO UPPER COLUMN ................ 11-1/2"
SPINDLE TO LOWER COLUMN ................ 12-1/2"
SPINDLE TO TABLE, MAXIMUM .............. 33"

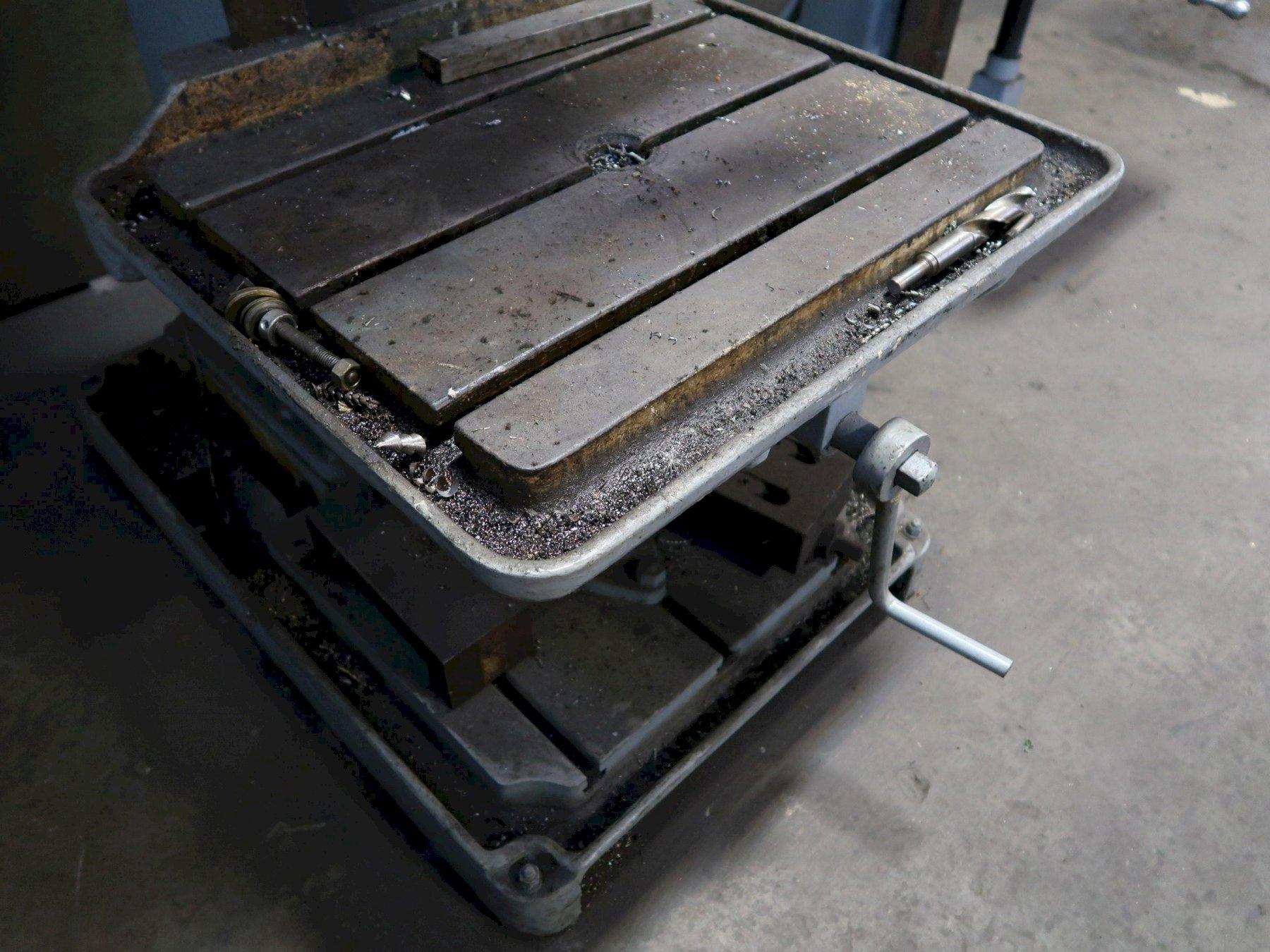

WORK TABLE AREA, T-SLOTTED ............. 18" X 48"

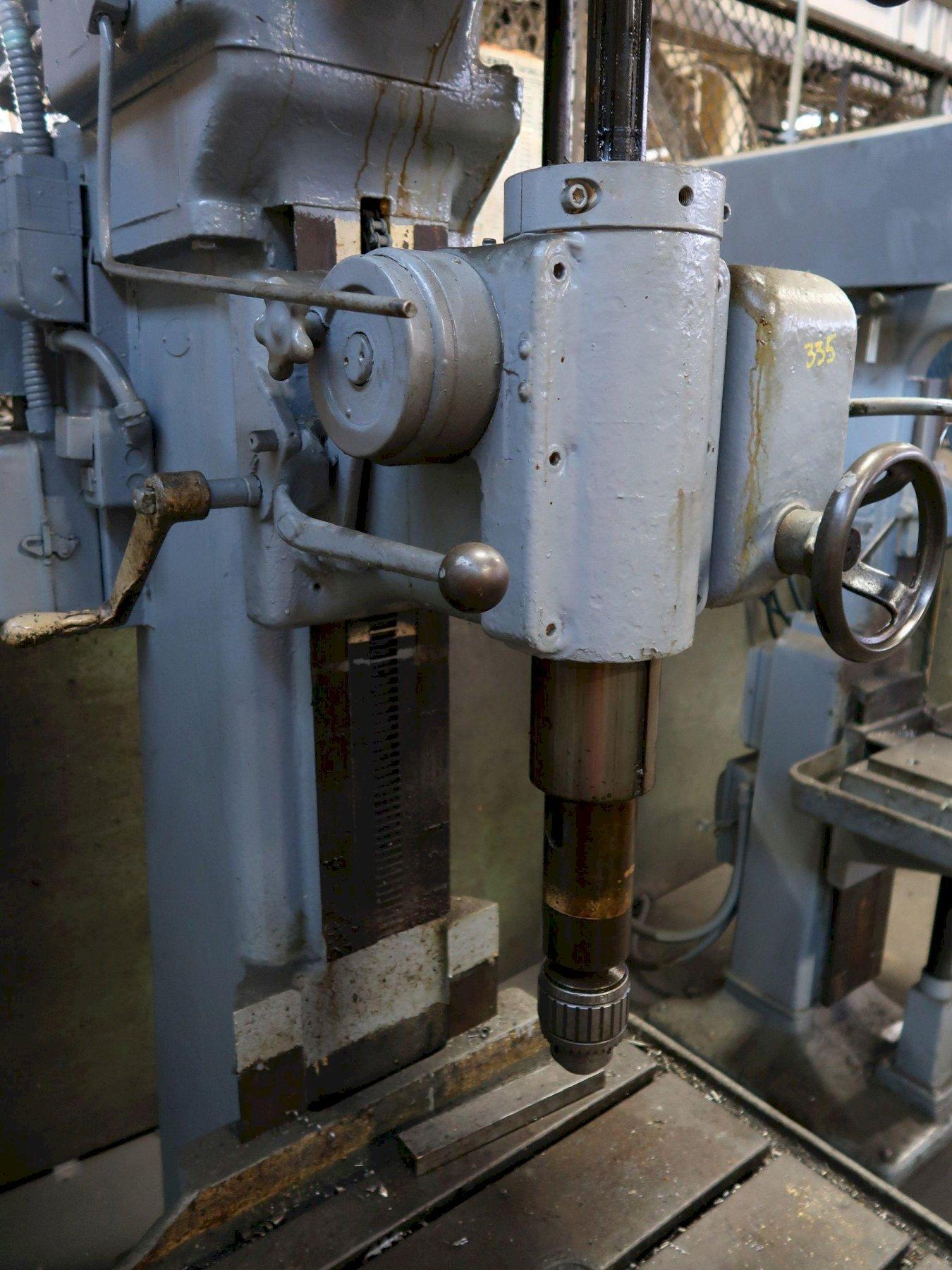

SPINDLE DIAMETER ....................... 2-7/8"
SPINDLE TRAVEL ......................... 12"
SPINDLE SPEEDS ......................... (12) 75 - 1500 RPM
SPINDLE FEEDS .......................... (9) .005 - .045 IPR
SPINDLE TAPER .......................... #4 MT
SLIDING HEAD TRAVEL .................... 18"
VERTICAL TABLE TRAVEL .................. 12"
HORSEPOWER SPINDLE MOTOR ............... 5
