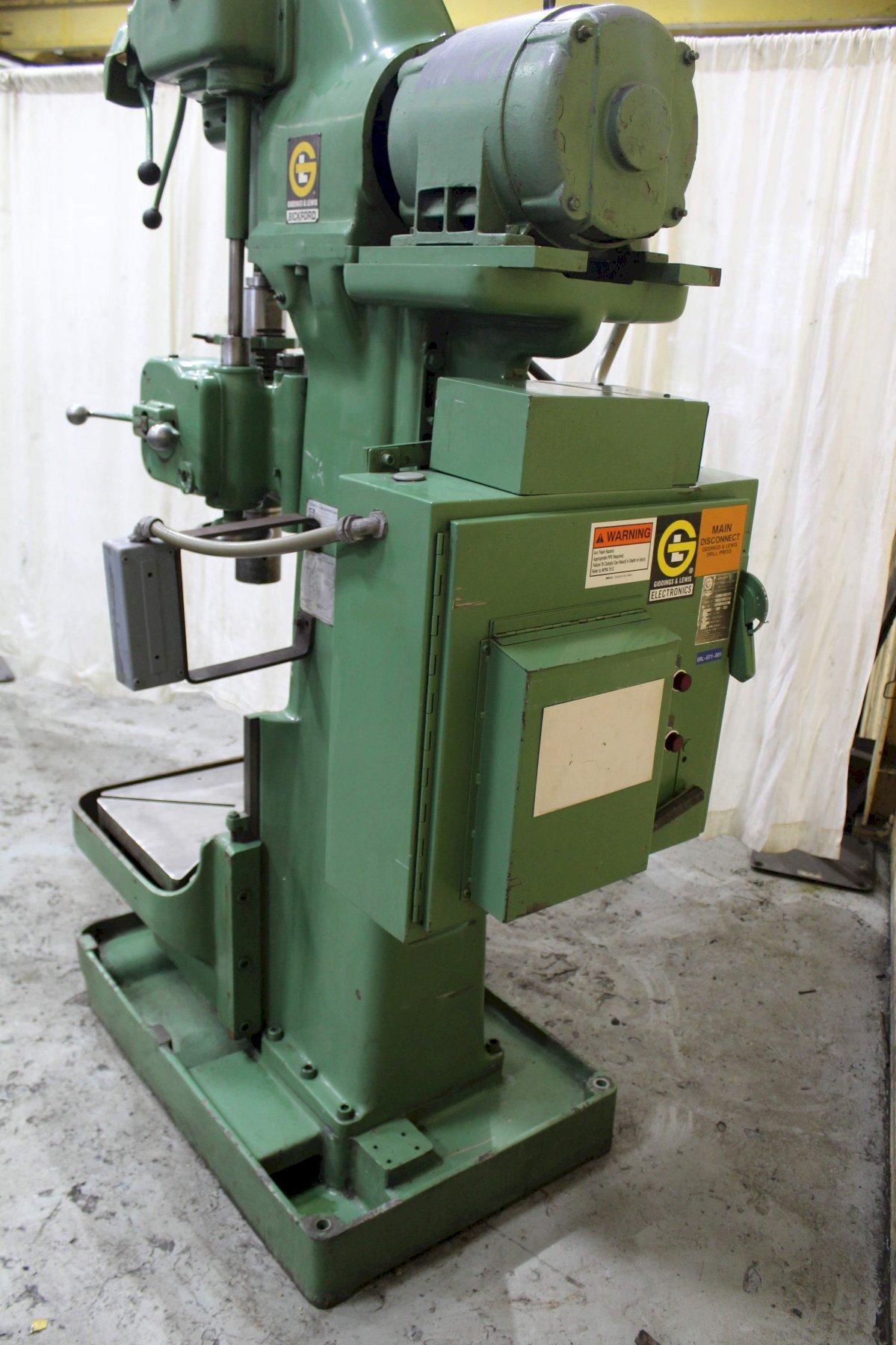

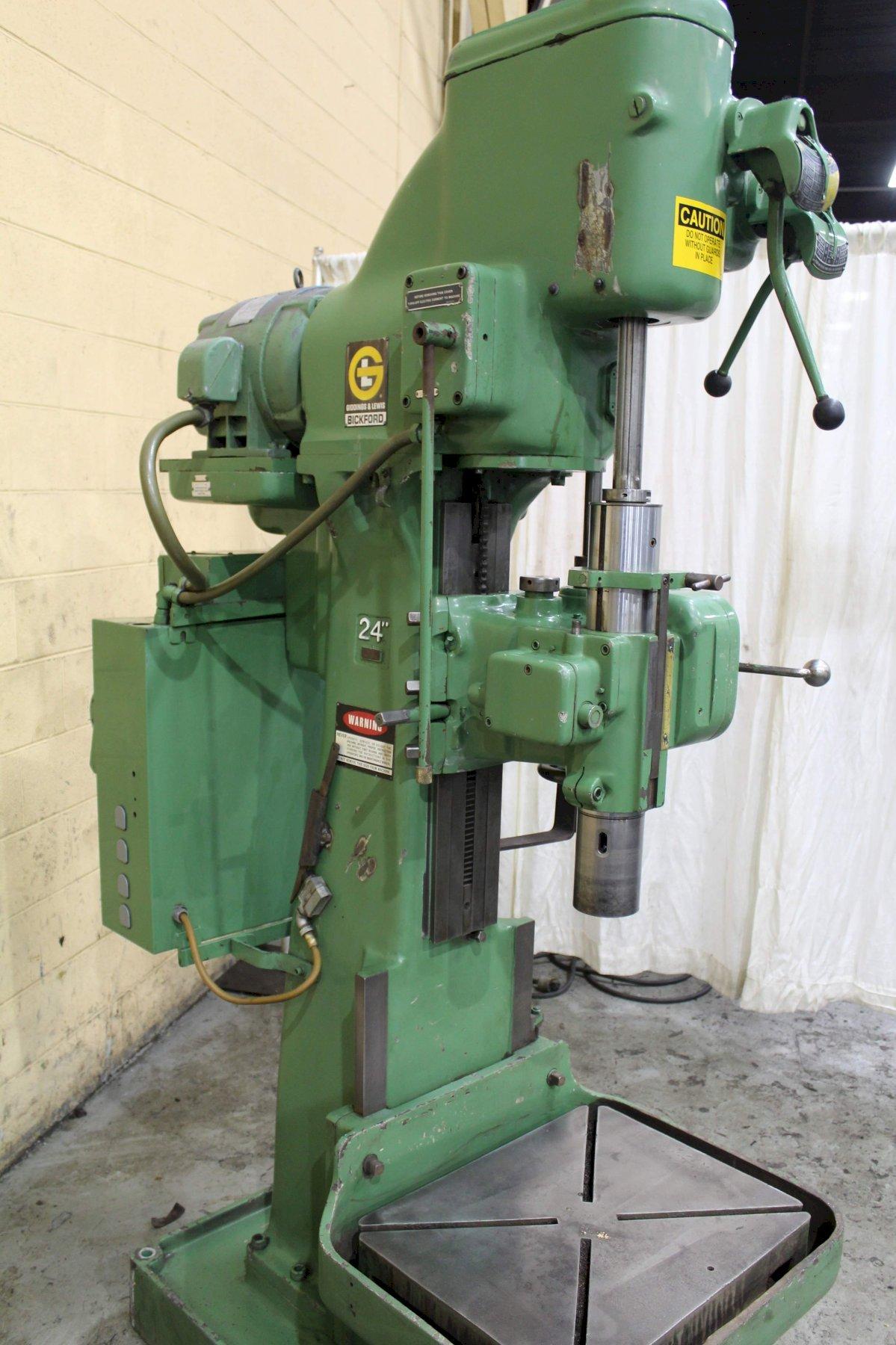

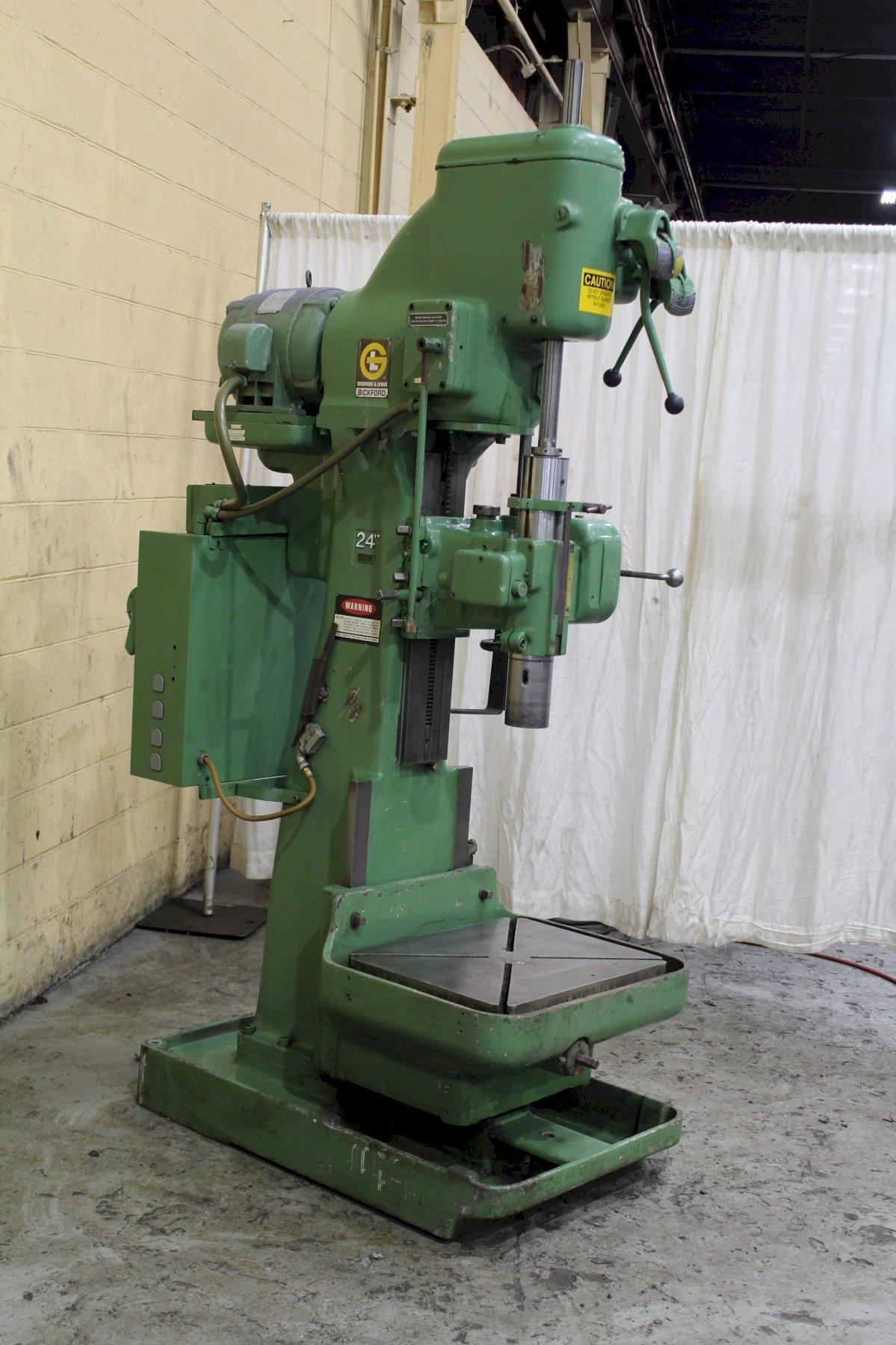

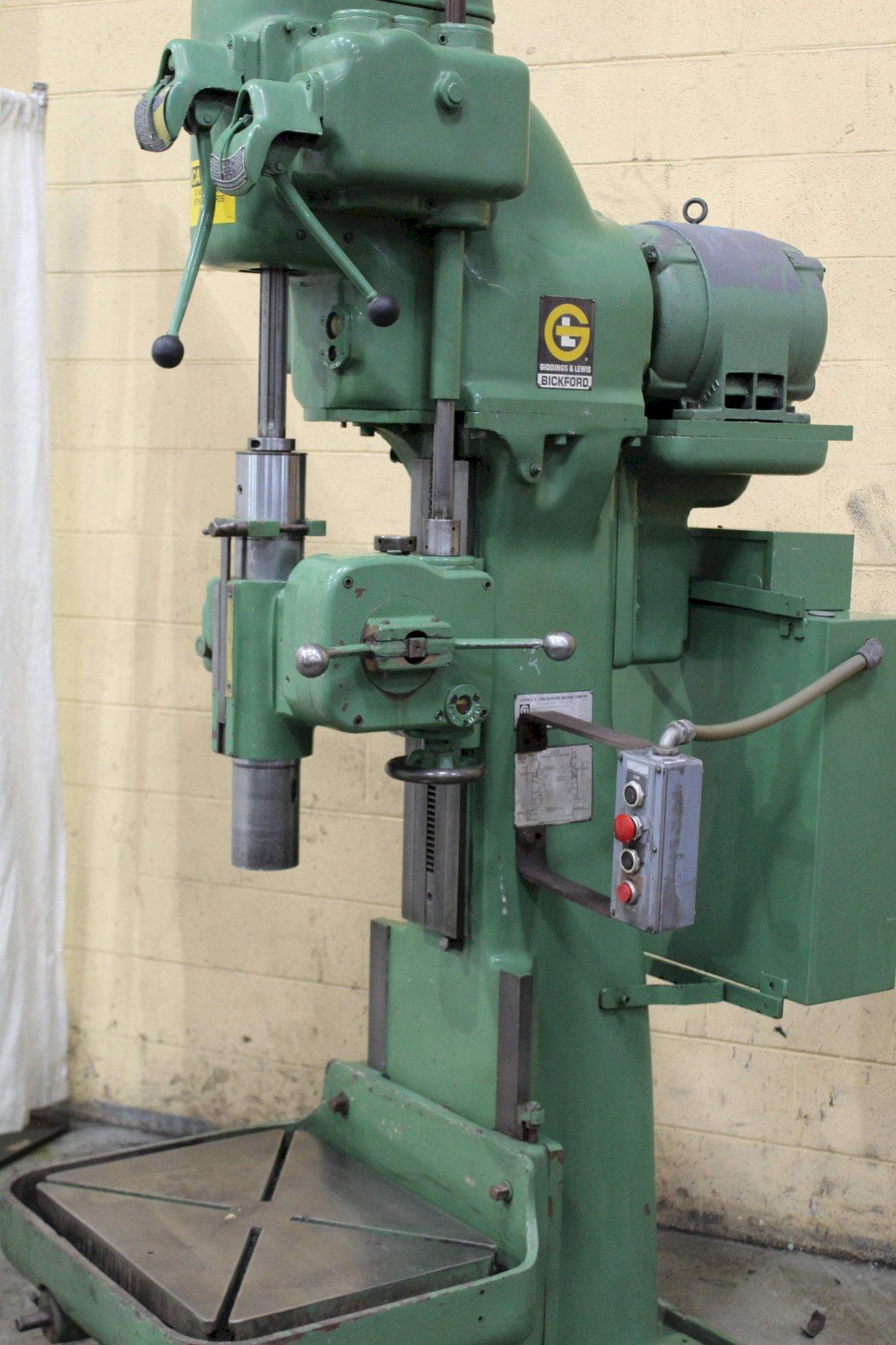

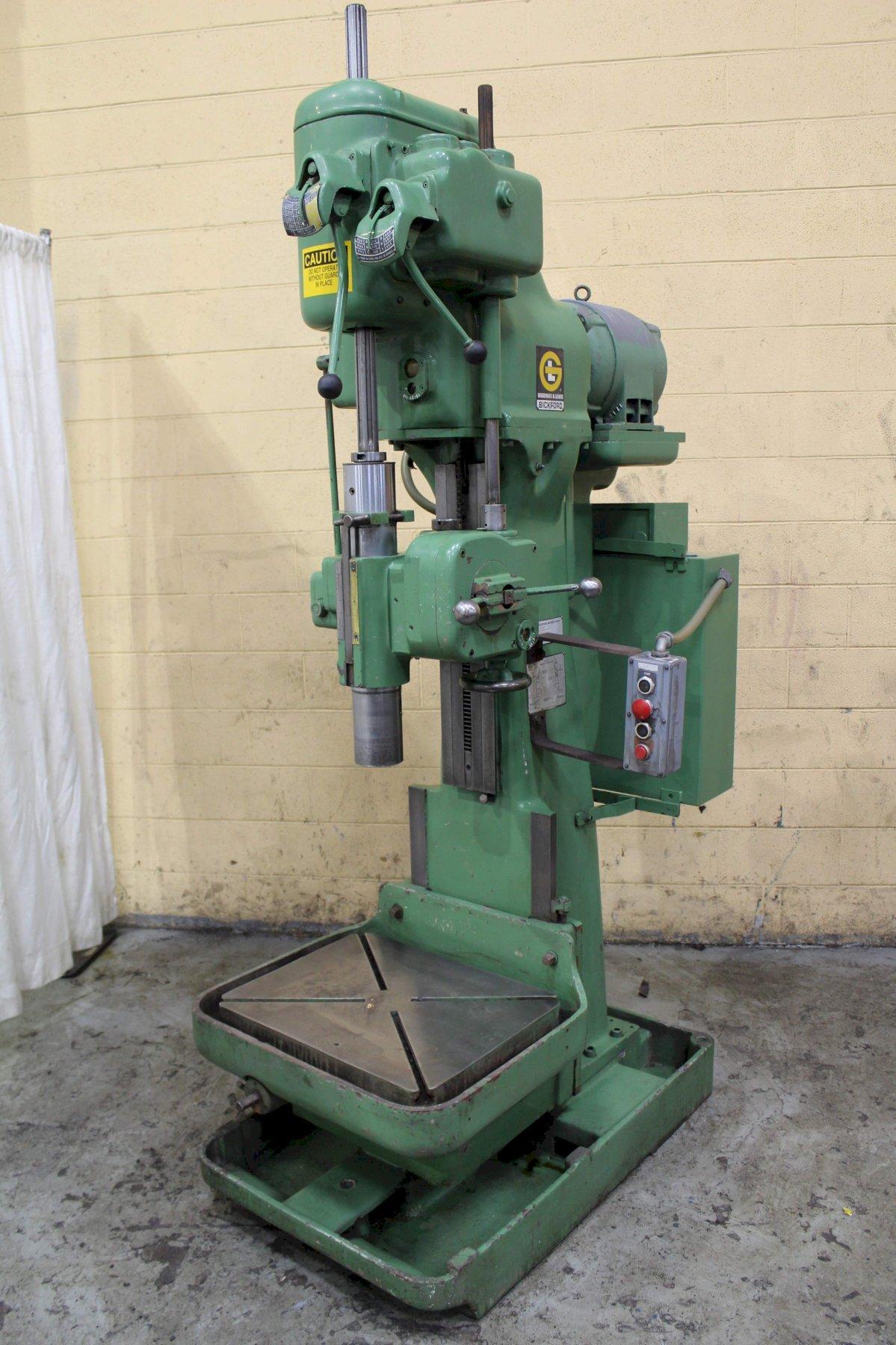

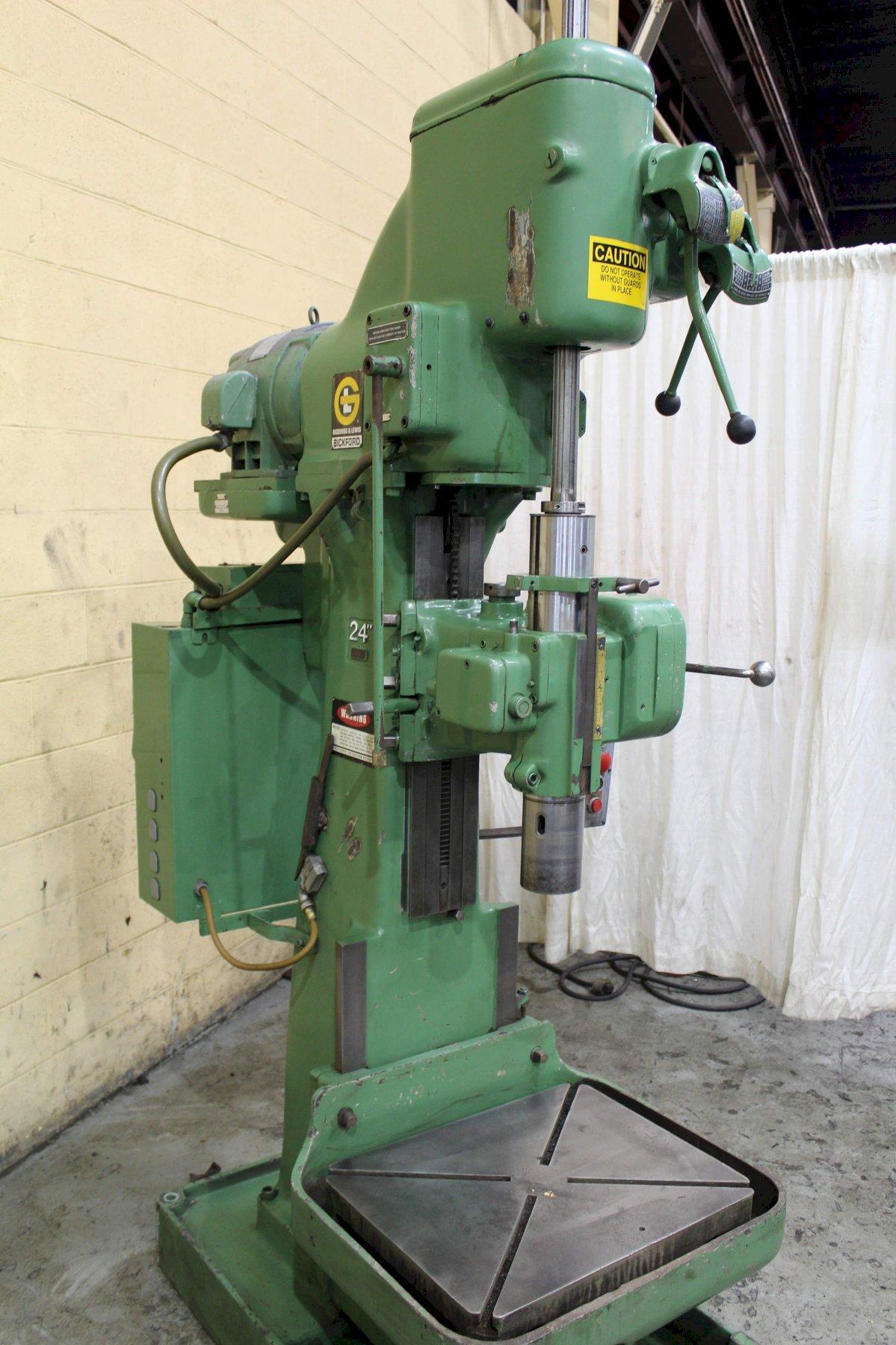

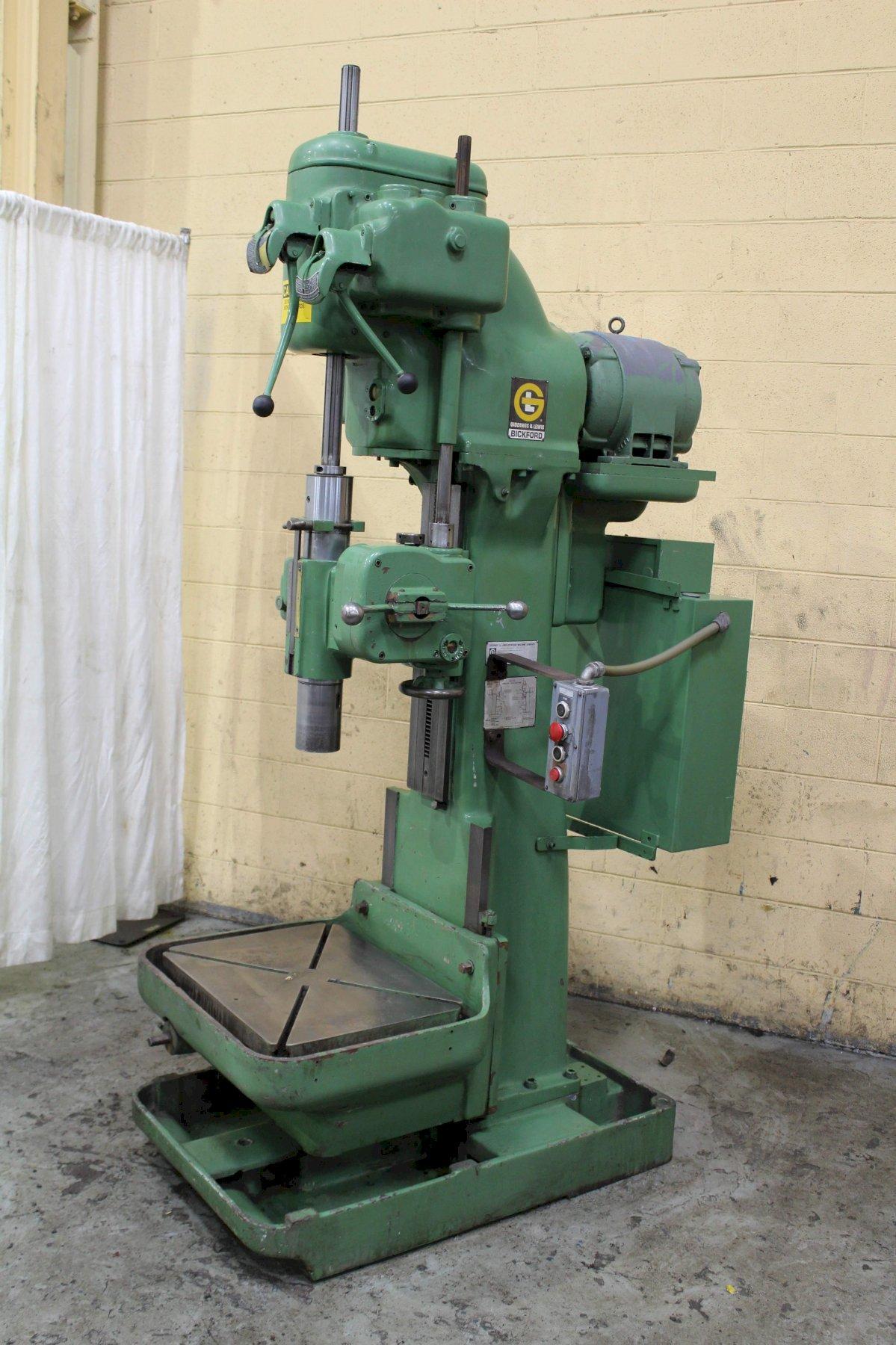

24" GIDDINGS & LEWIS SINGLE SPINDLE DRILL: STOCK #71890

Manufacturer

GIDDINGS & LEWIS

Category

Drilling Machines

Type

DRILLS, MISCELLANEOUS

Stock

71890

Model

024

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet

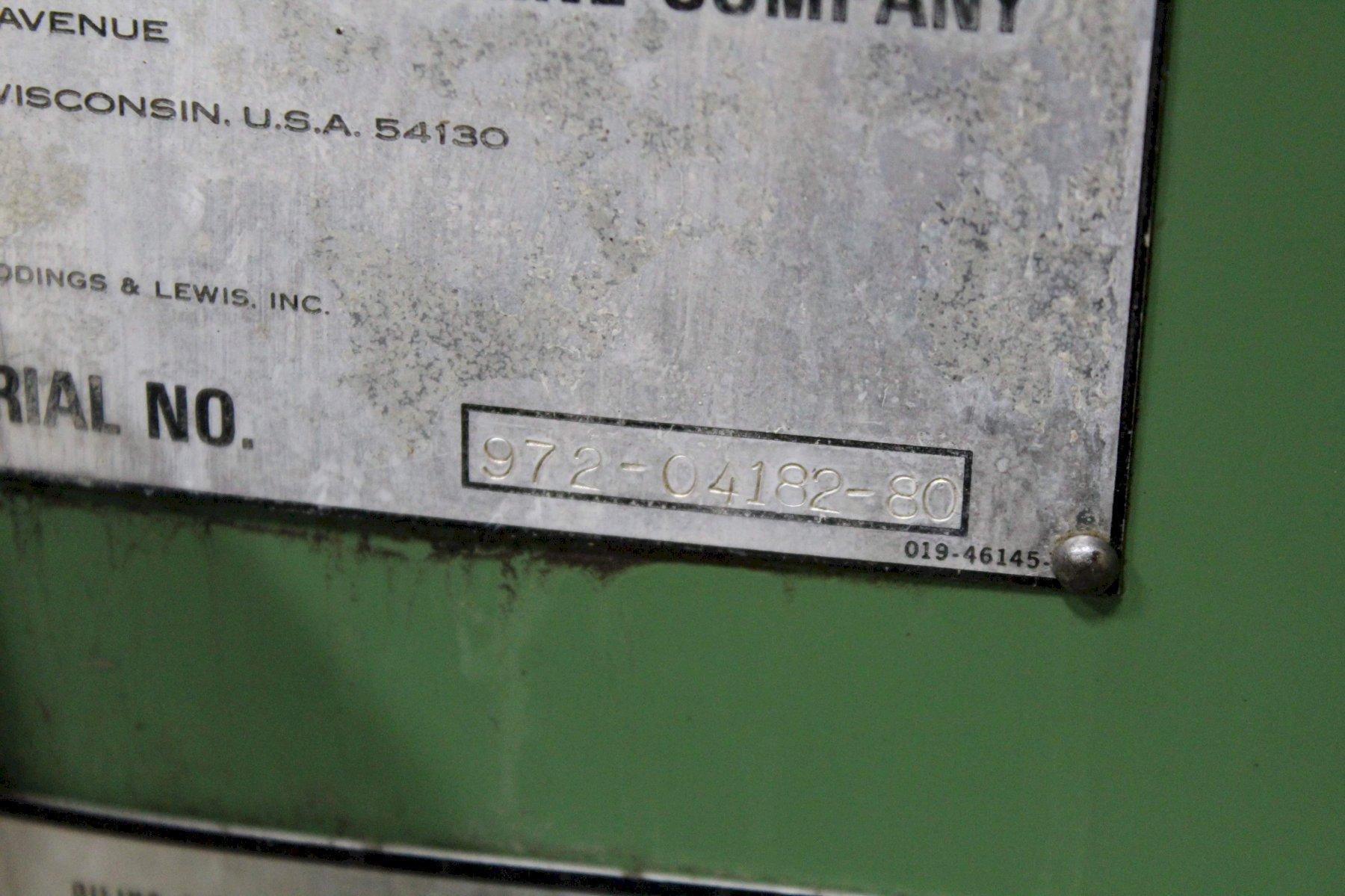

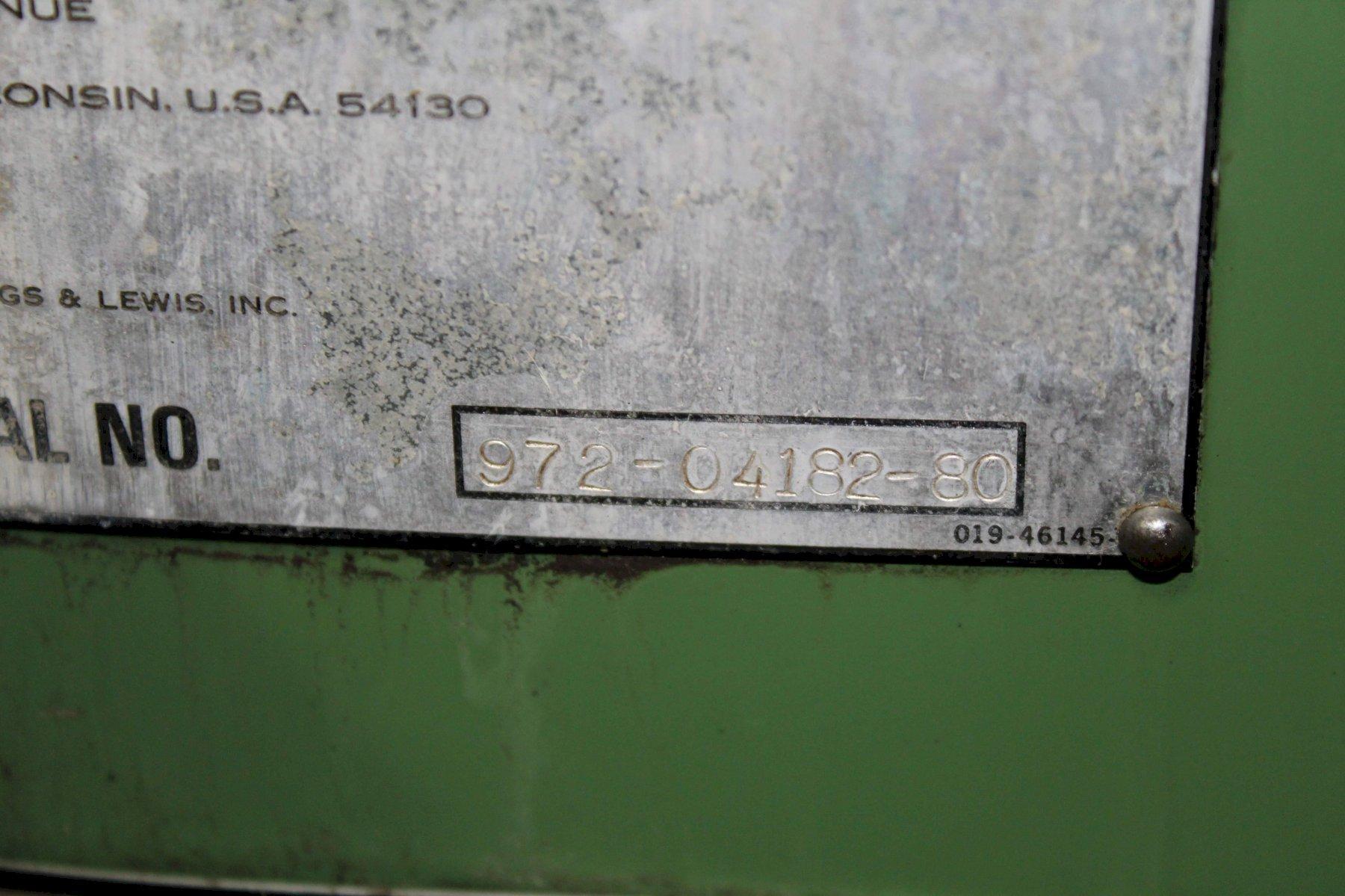

SERIAL .................................. 04182-80
MODEL ................................... 972 BOX COLUMN
SPINDLE CENTER TO LOWER COLUMN .......... 12-1/2"
SPINDLE CETER TO UPPER COLUMN ........... 11-1/2"

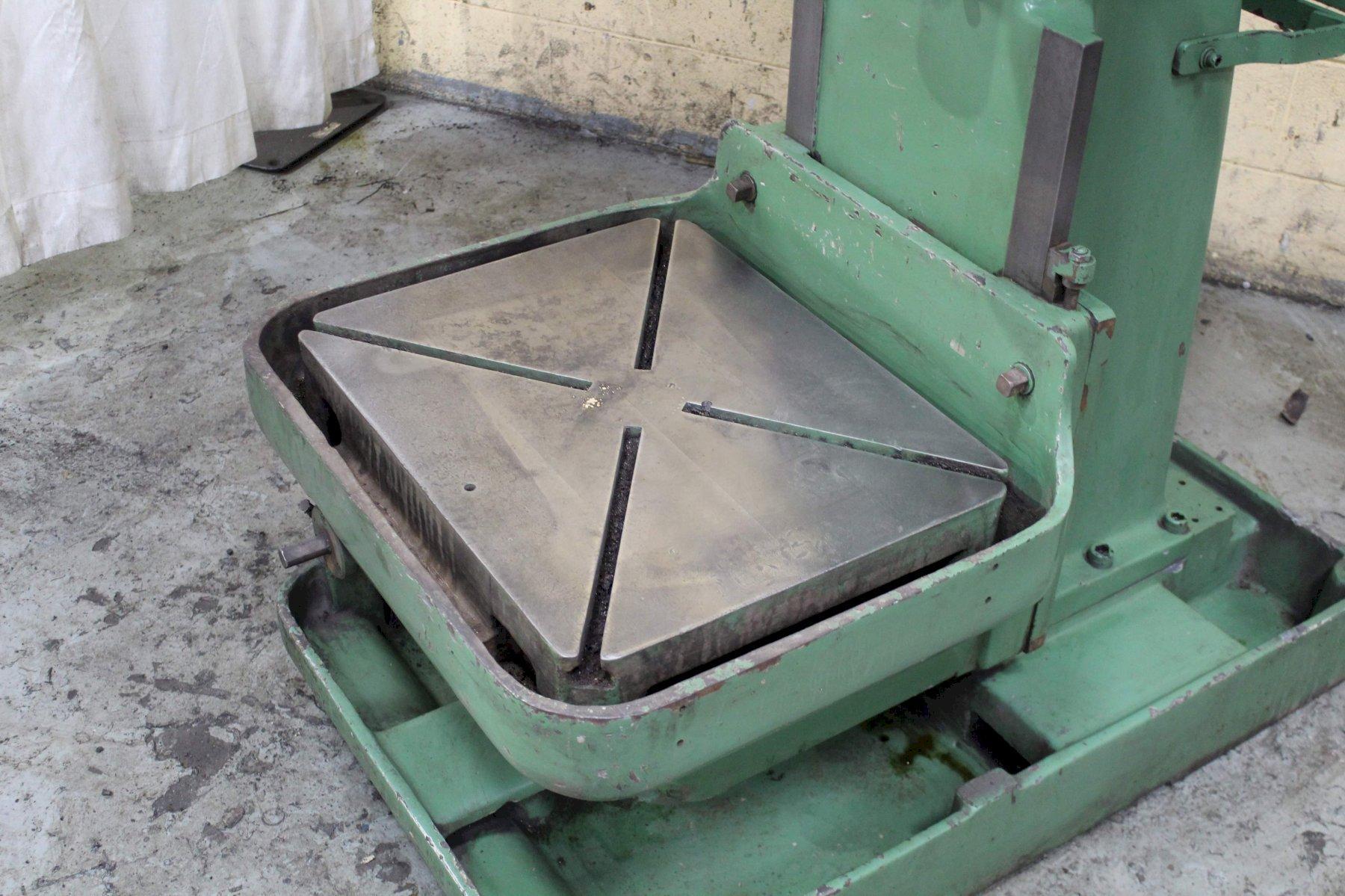

AREA OF TABLE ........................... 24" X 19"

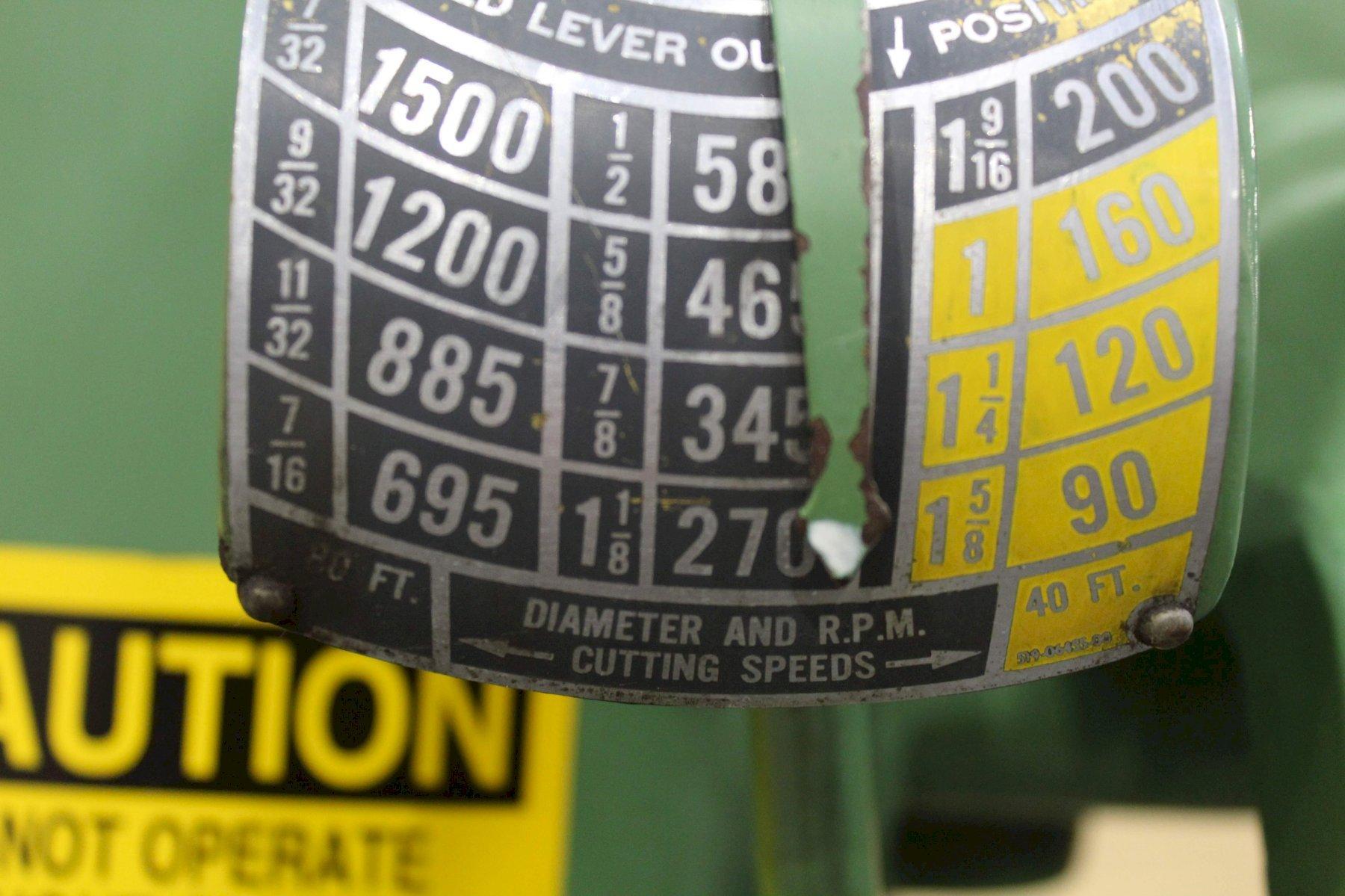

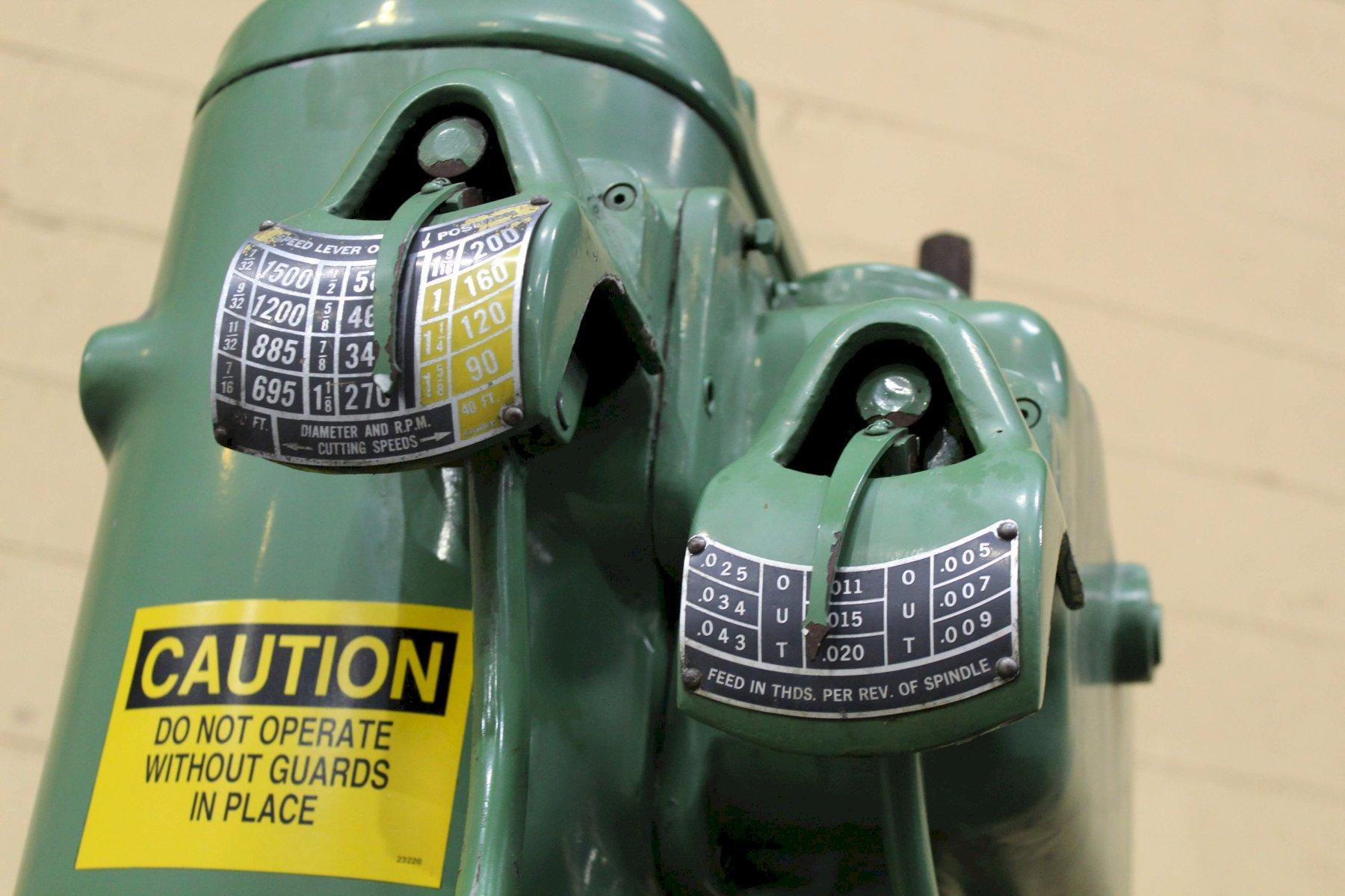

SPINDLE SPEEDS .......................... 90 TO 1500 RPM
MAXIMUM DISTANCE SPINDLE NOSE TO TABLE .. 32-3/4"
VERTICAL ADJUSTMENT OF TABLE ............ 10-3/4"

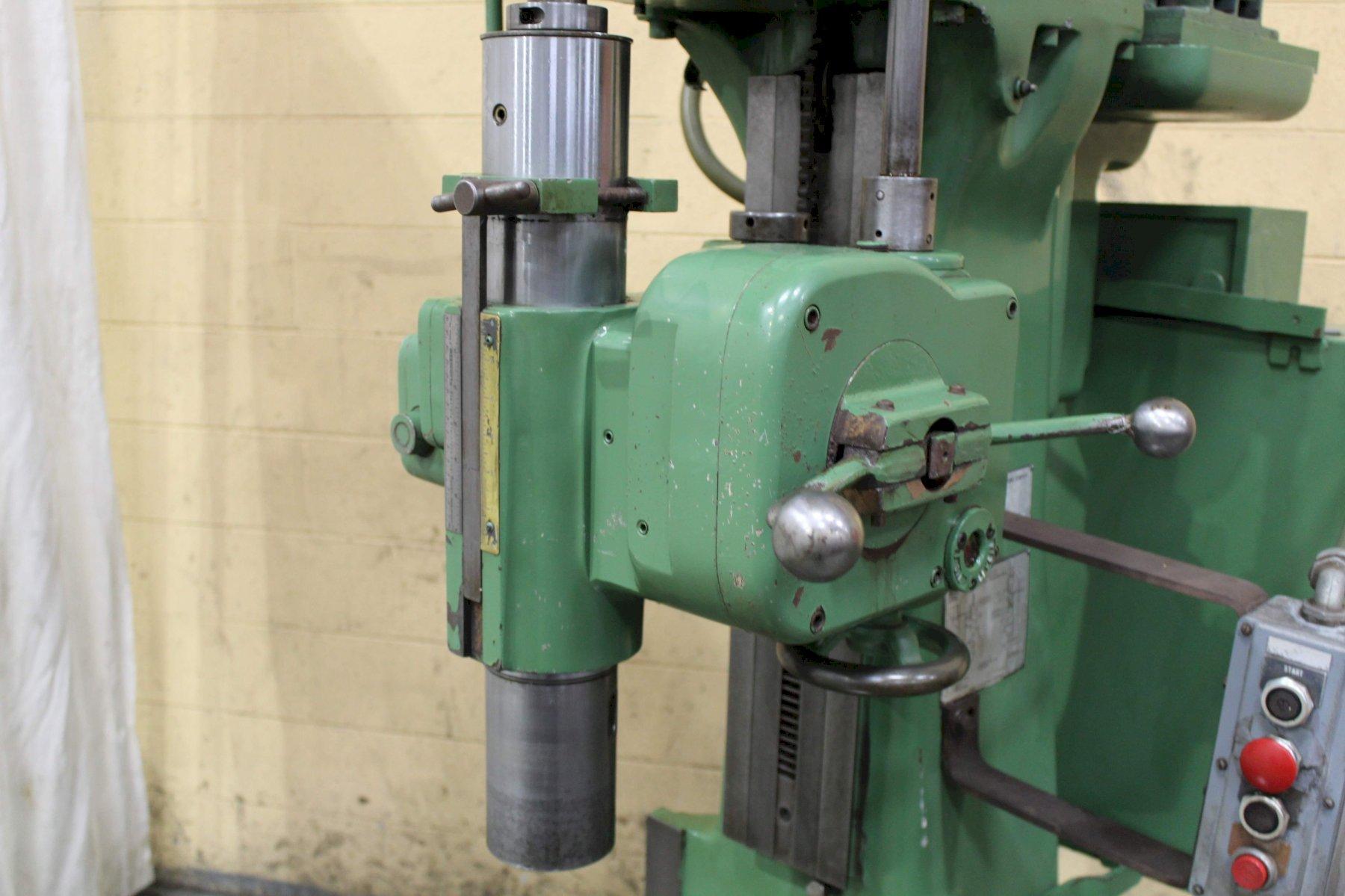

VERTICAL ADJUSTMENT OF SLIDING HEAD ..... 17-1/2"
SPINDLE TRAVEL .......................... 10-1/2"
POWER FEEDS ............................. (9) .05 TO .043 IPR
SPINDLE TAPER ........................... #4 MT
FORWARD & REVERSING ..................... YES

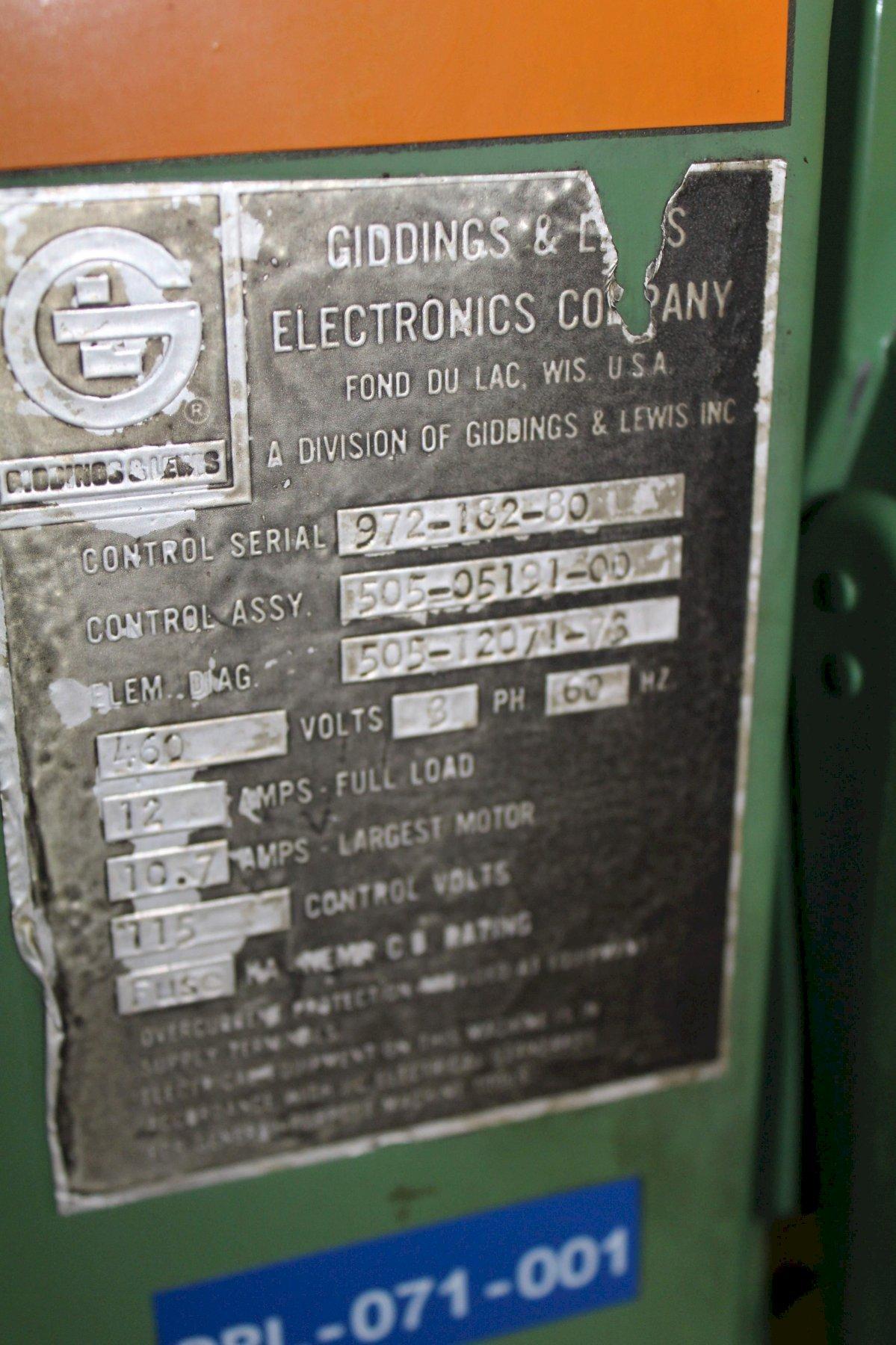

MOTOR ................................... 5 HORSEPOWER
