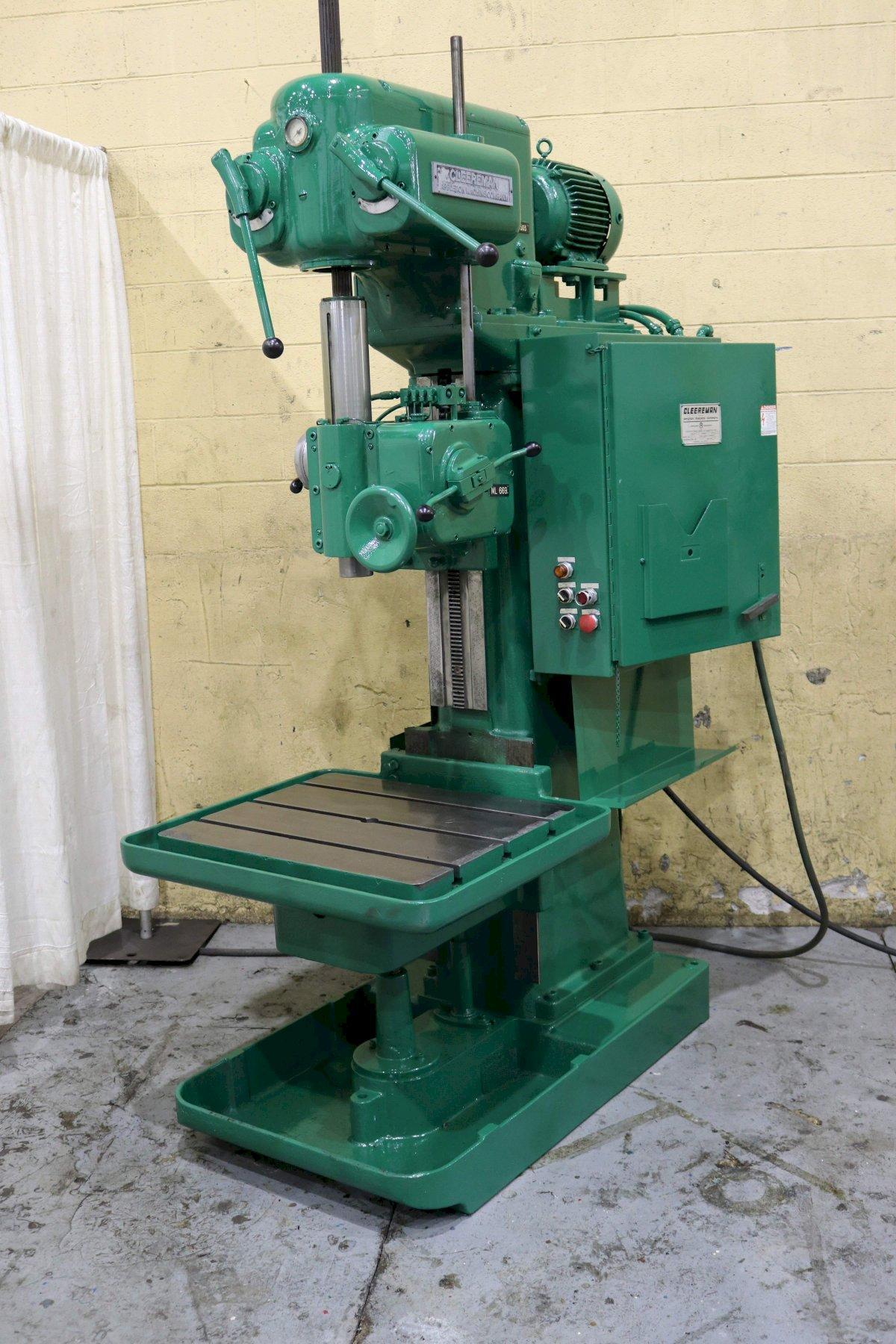

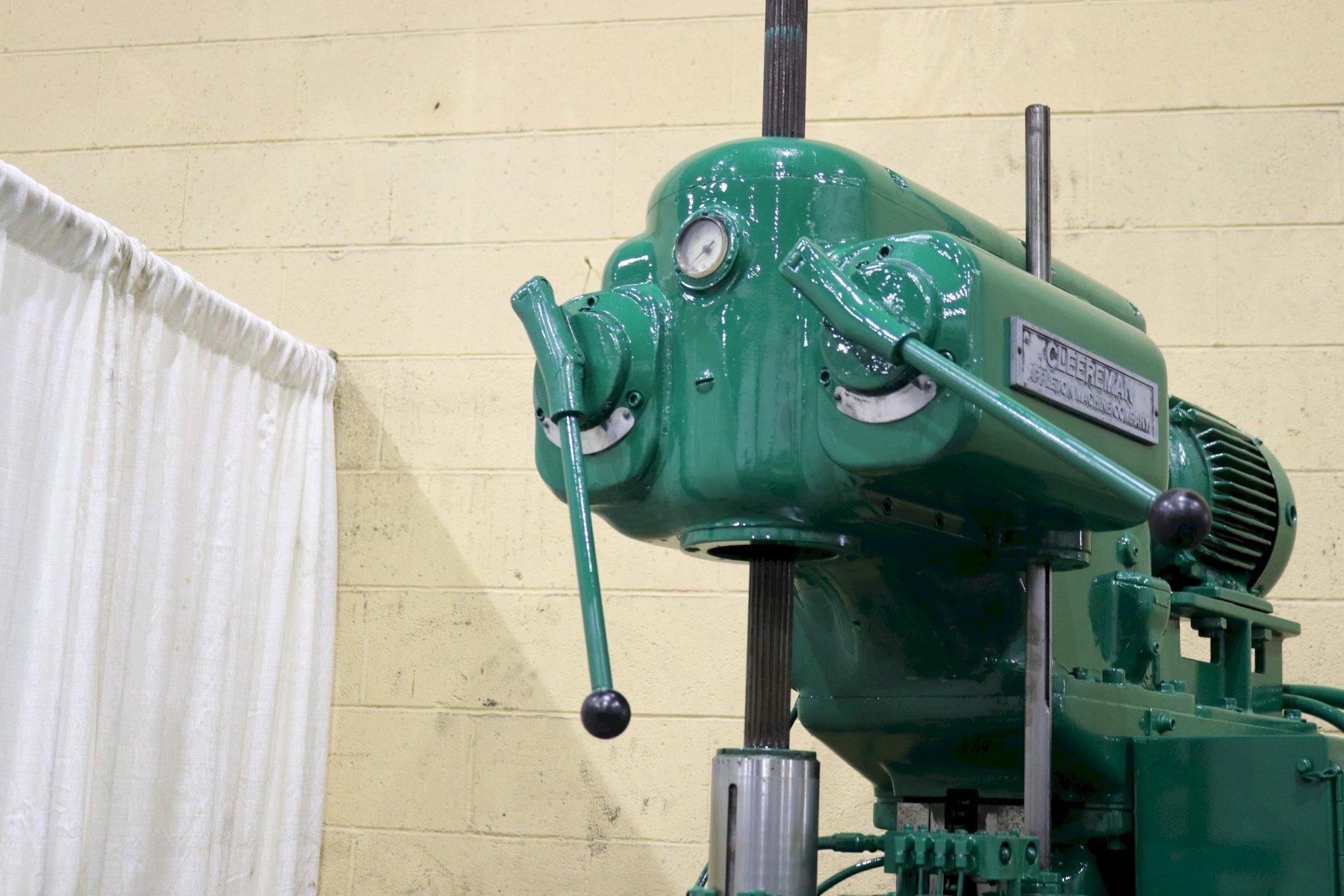

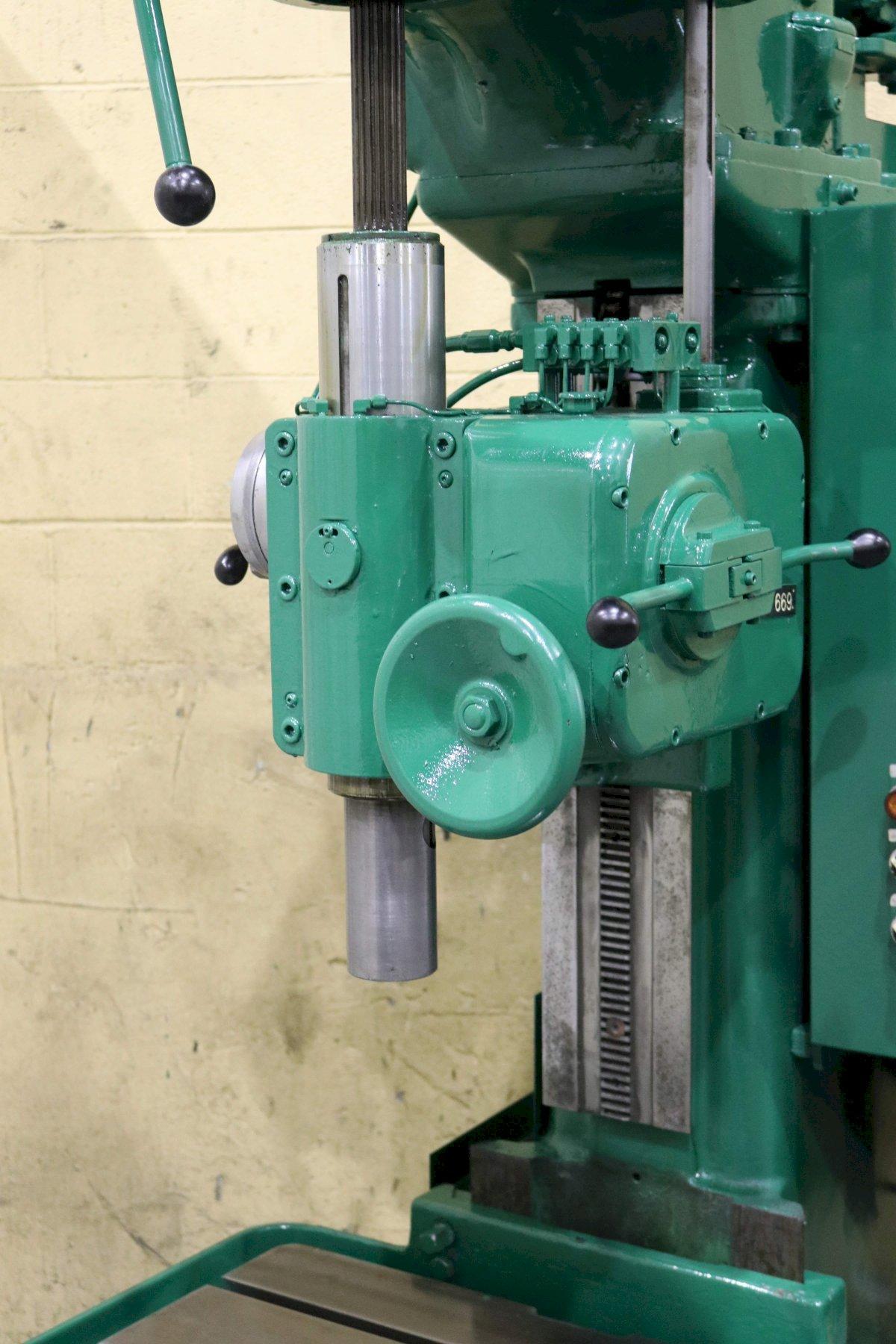

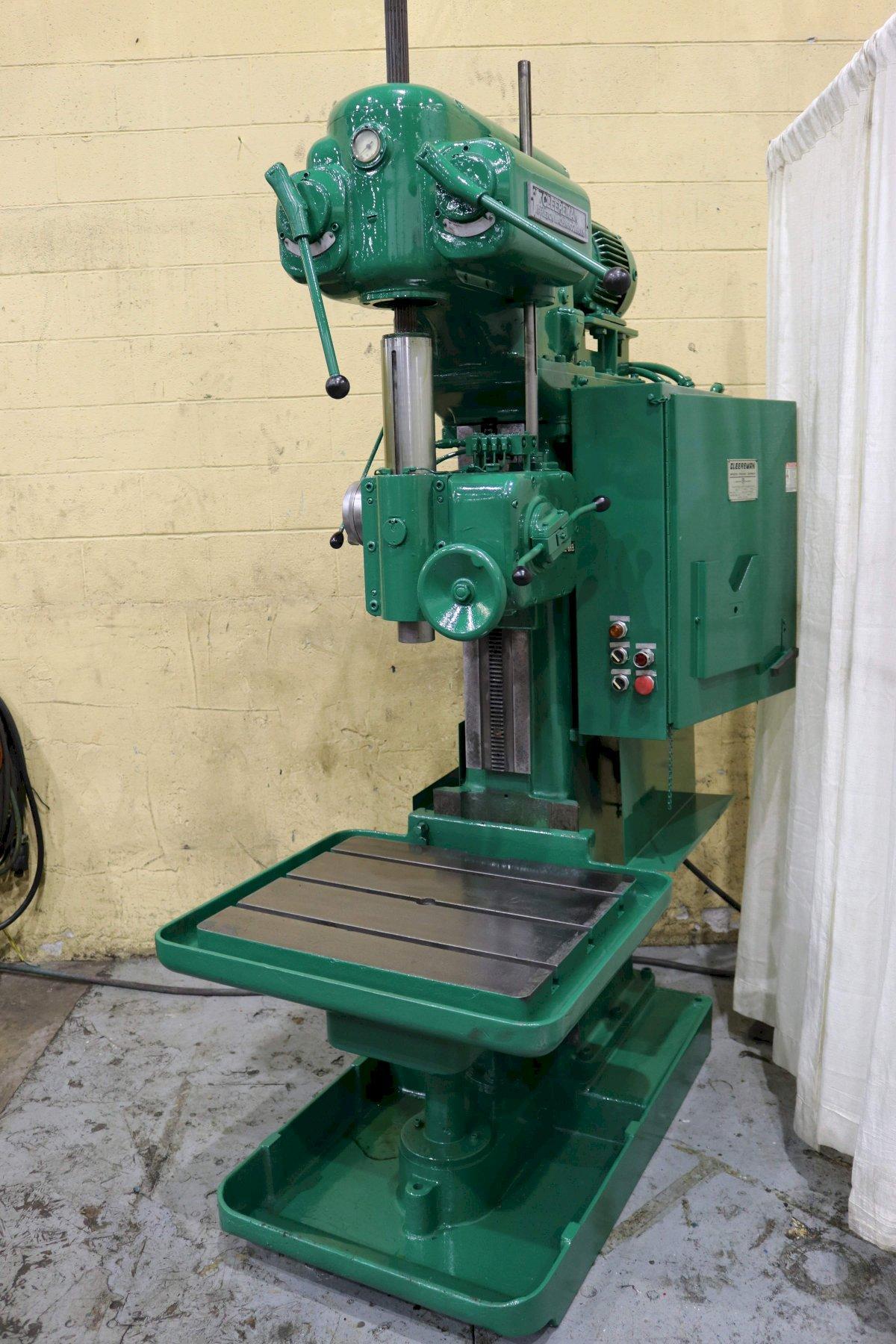

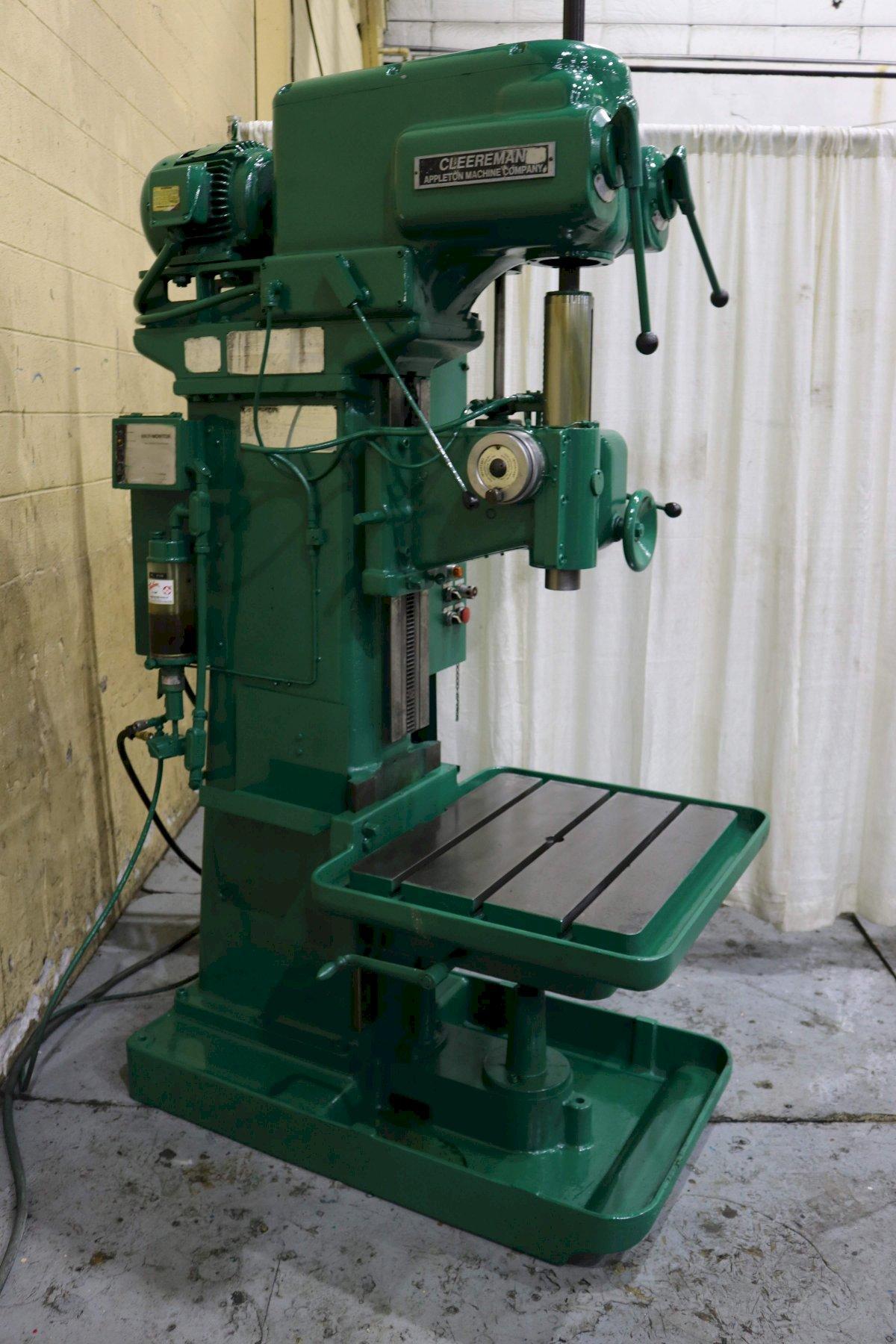

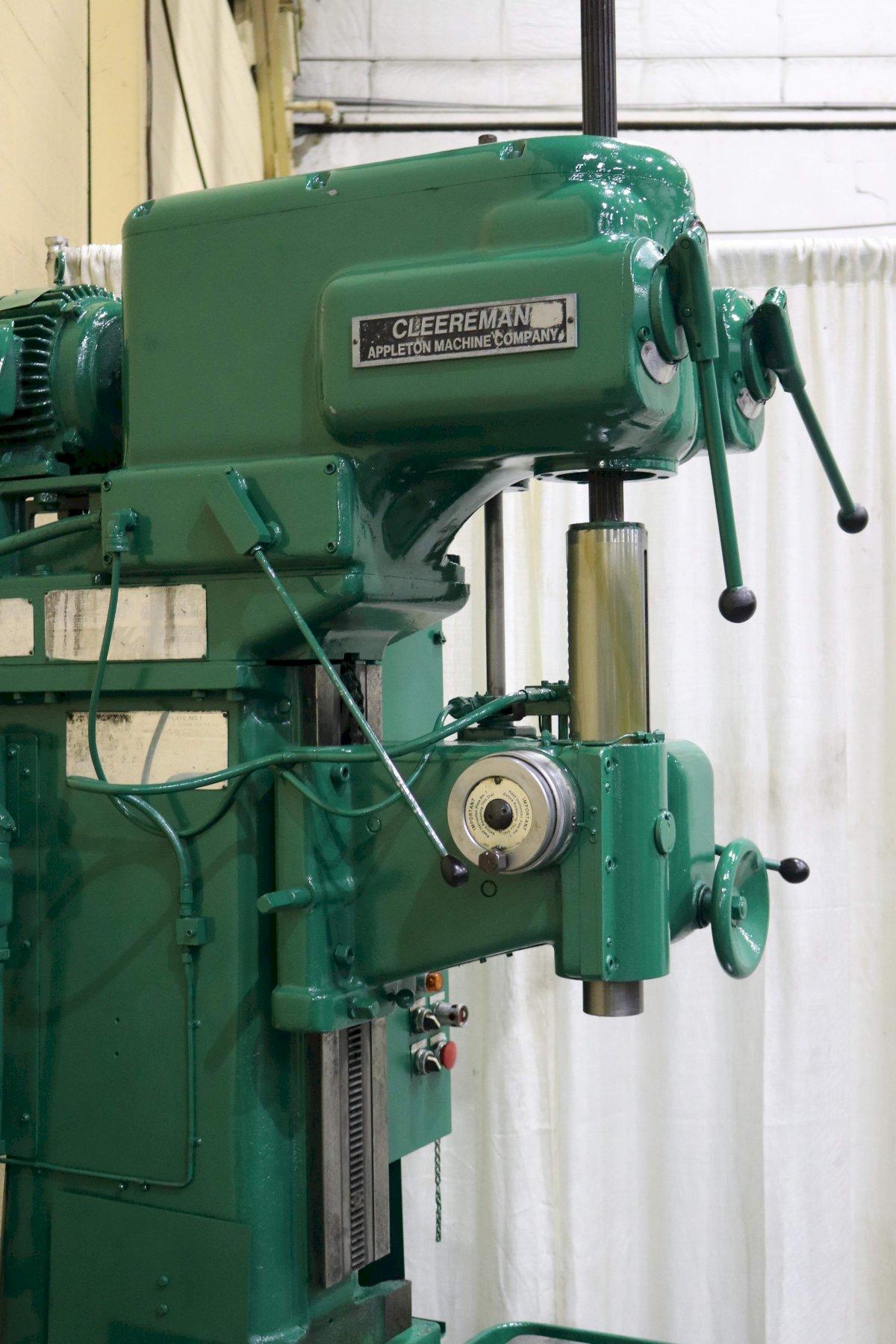

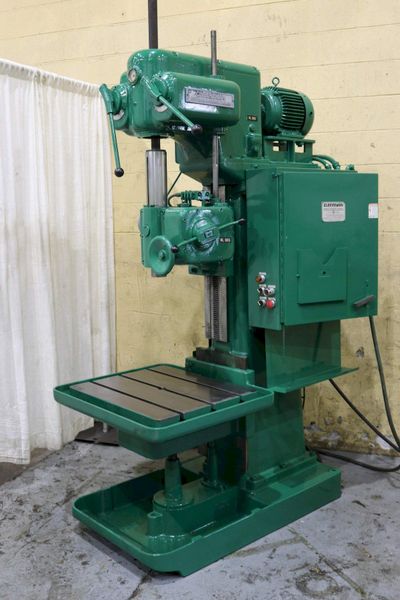

30" CLEERMAN SINGLE SPINDLE DRILL PRESS: STOCK # 72805

Manufacturer

CLEEREMAN

Category

Drilling Machines

Type

DRILLS, MISCELLANEOUS

Stock

72805

Model

null

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet

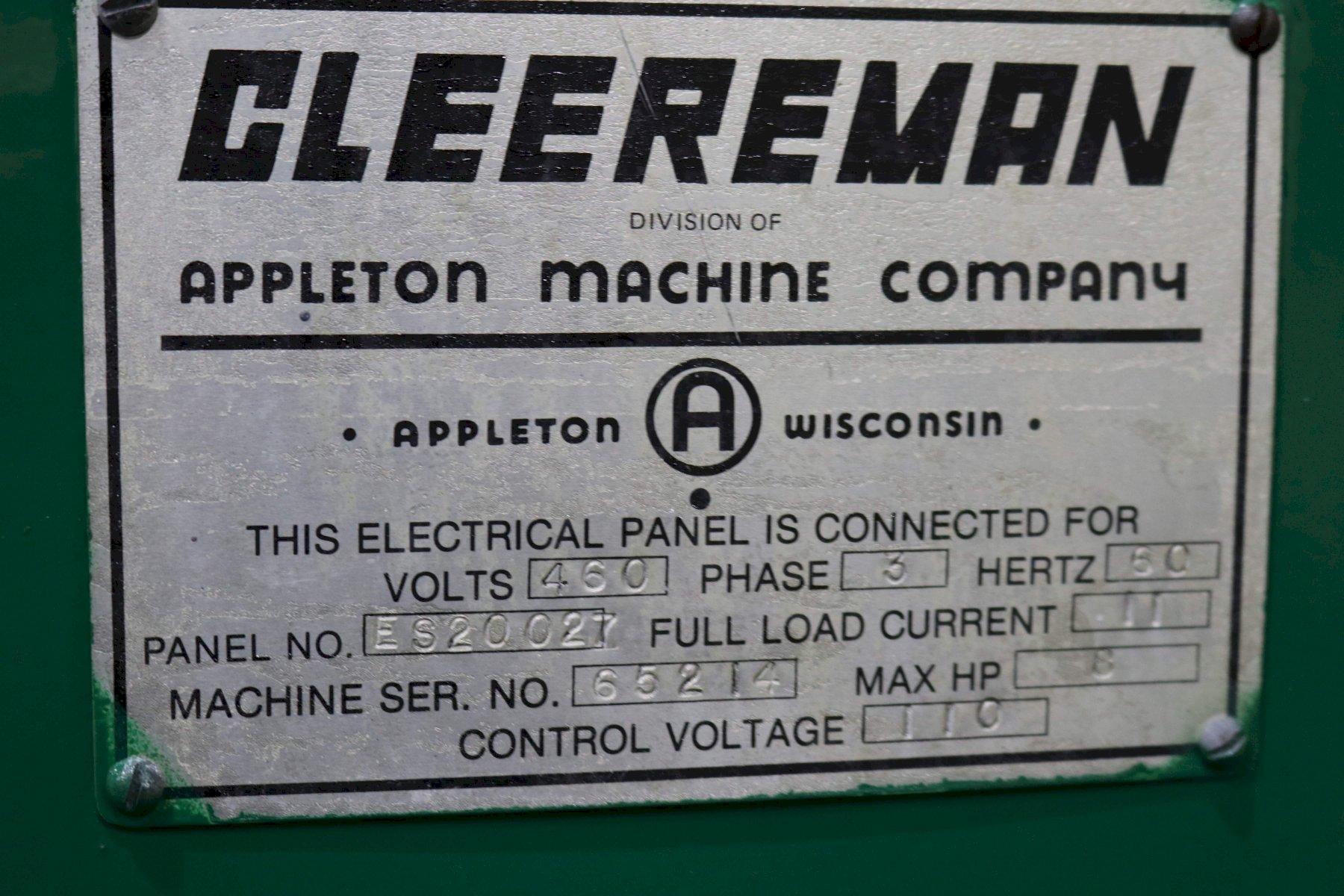

SERIAL .................................. 65215
MODEL ................................... 30 BOX COLUMN
YEAR NEW ................................ 1982
SPINDLE TO UPPER COLUMN ................. 14"
SPINDLE TO LOWER COLUMN ................. 15"
SPINDLE TO TABLE, MAXIMUM ............... 33"

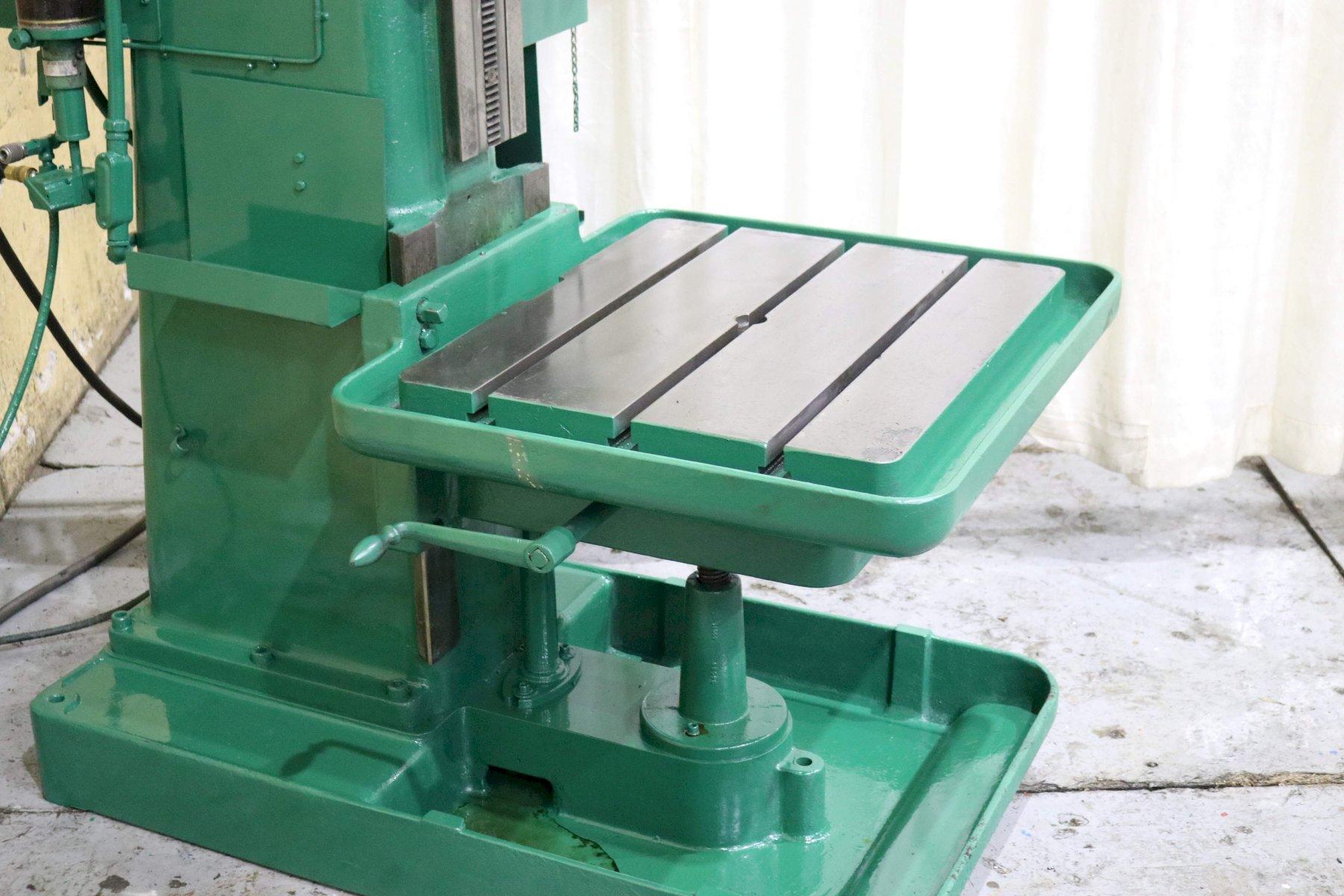

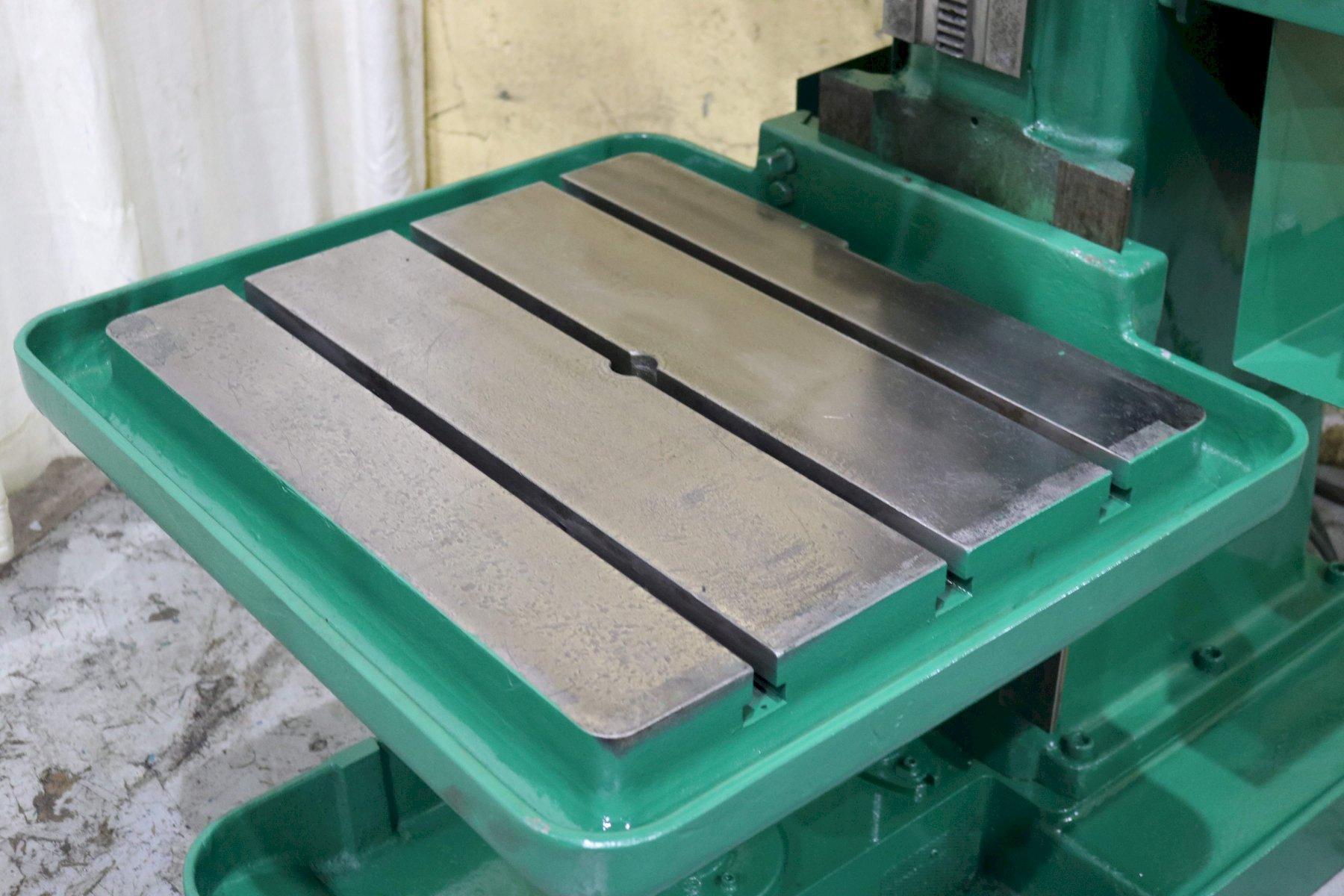

WORK TABLE AREA, T-SLOTTED .............. 24" X 28"
SPINDLE DIAMETER ........................ 2-7/8"
SPINDLE TRAVEL .......................... 12"
SPINDLE SPEEDS .......................... (12) 75 - 1500 RPM
SPINDLE FEEDS ........................... (9) .0023 - .023 IPR
SPINDLE TAPER ........................... #4 MT
SLIDING HEAD TRAVEL ..................... 18"
VERTICAL TABLE TRAVEL ................... 12"
TAPPING ................................. YES
COOLANT ................................. YES
LUBE SYSTEM ............................. AUTOMATIC
 MOTOR ................................... 7-1/2 HORSEPOWER
