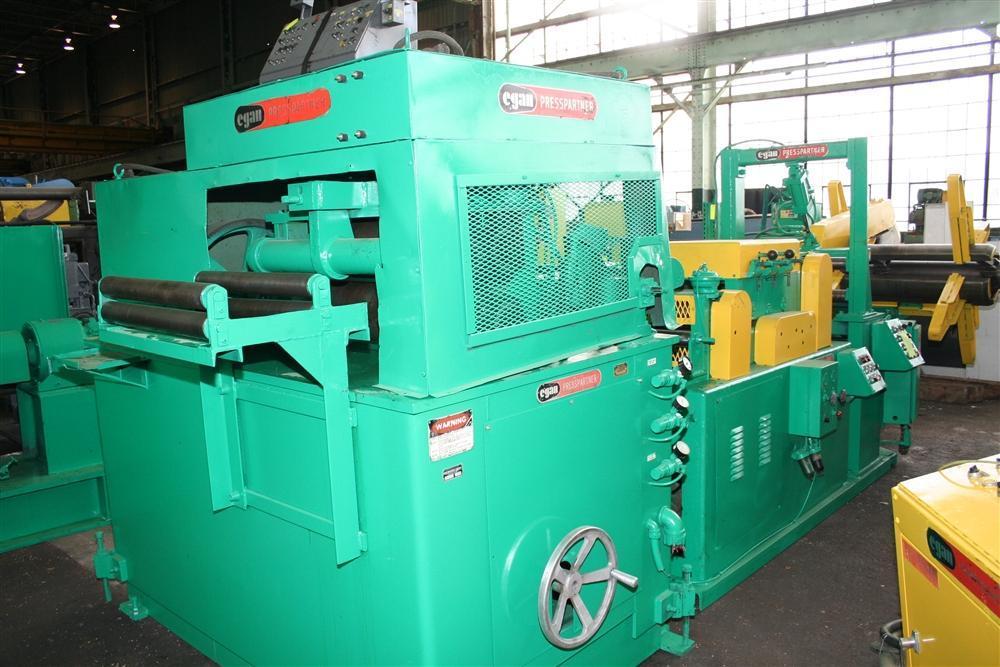

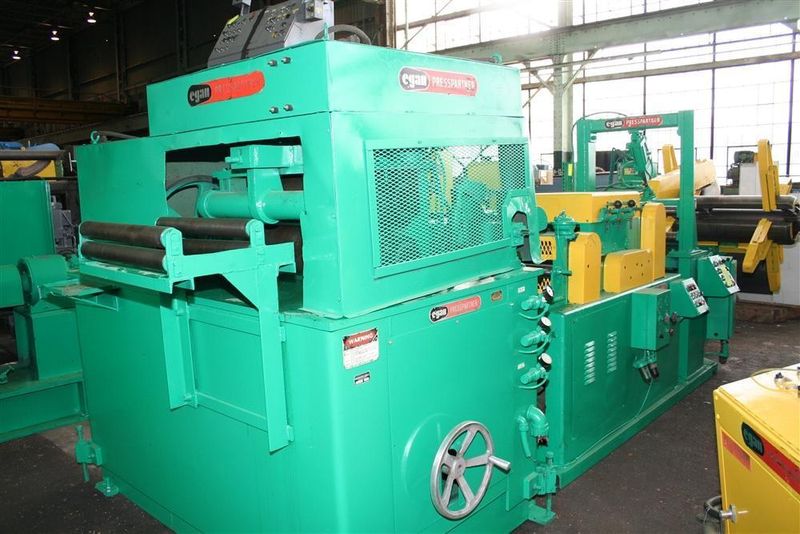

EGAN 7 ROLL MODEL #S40-620 POWER STRAIGHTENER: STOCK #16946

Manufacturer

Category

Feeders & Straighteners

Type

STRAIGHTENERS, BEAM

Stock

16946

Model

020 X 195

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet



SERIAL ............................. 4146
MODEL .............................. S40-620
CAPACITY ........................... .195
WIDTH .............................. 20"
SPEED .............................. VARIABLE
NUMBER OF ROLLS .................... 7
DIAMETER OF ROLLS .................. 4"
QUICK OPEN ENTRY PINCH ROLLS ....... YES
QUICK OPEN EXIT PINCH ROLLS......... YES

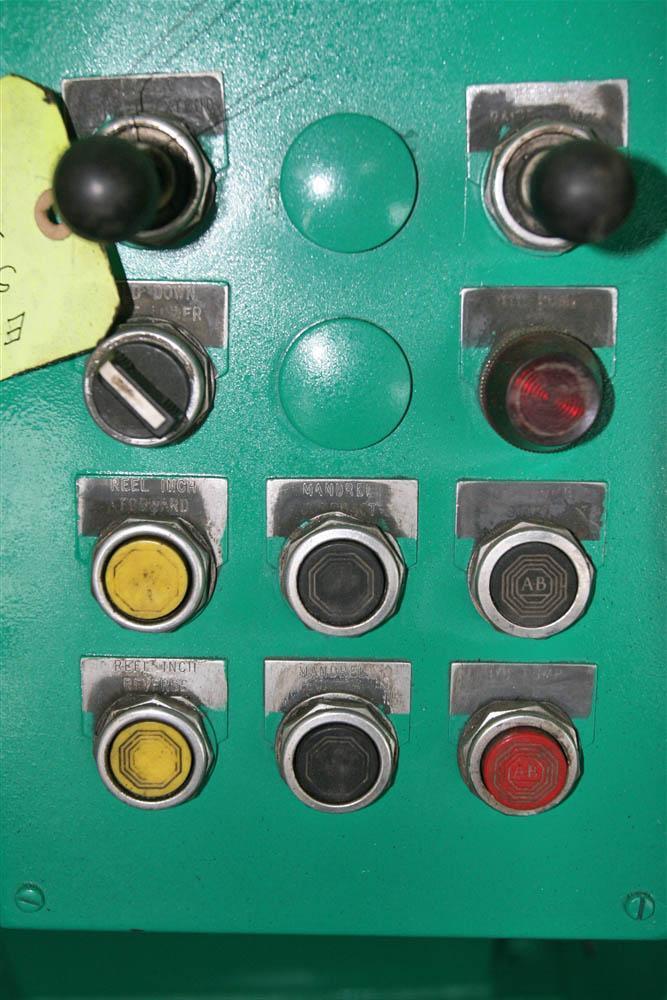

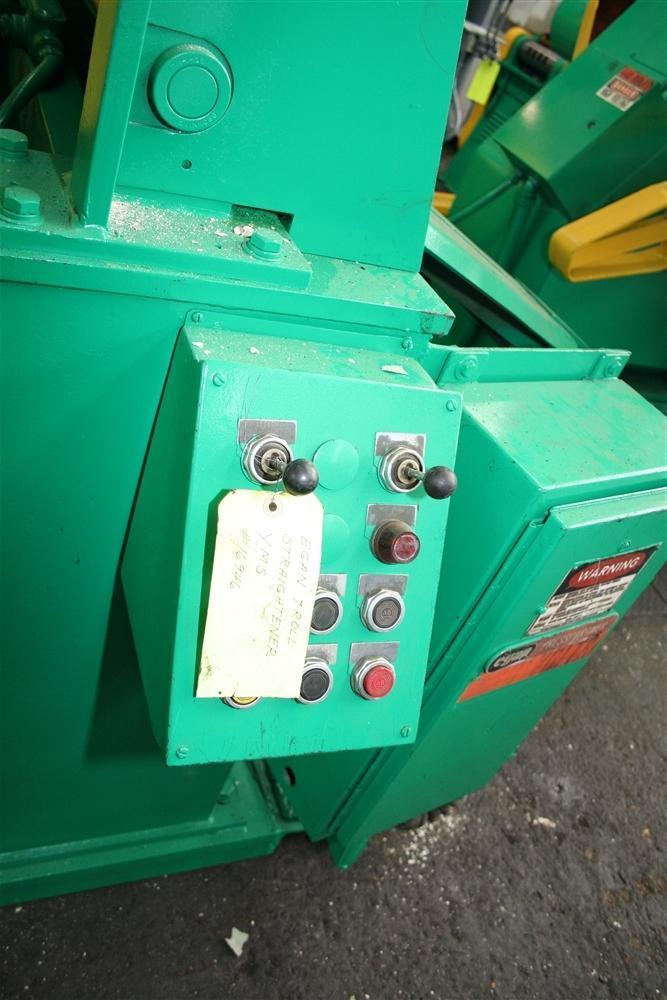

9 BUTTON CONTROLS .................. YES
MOTOR .............................. 5 HORSEPOWER

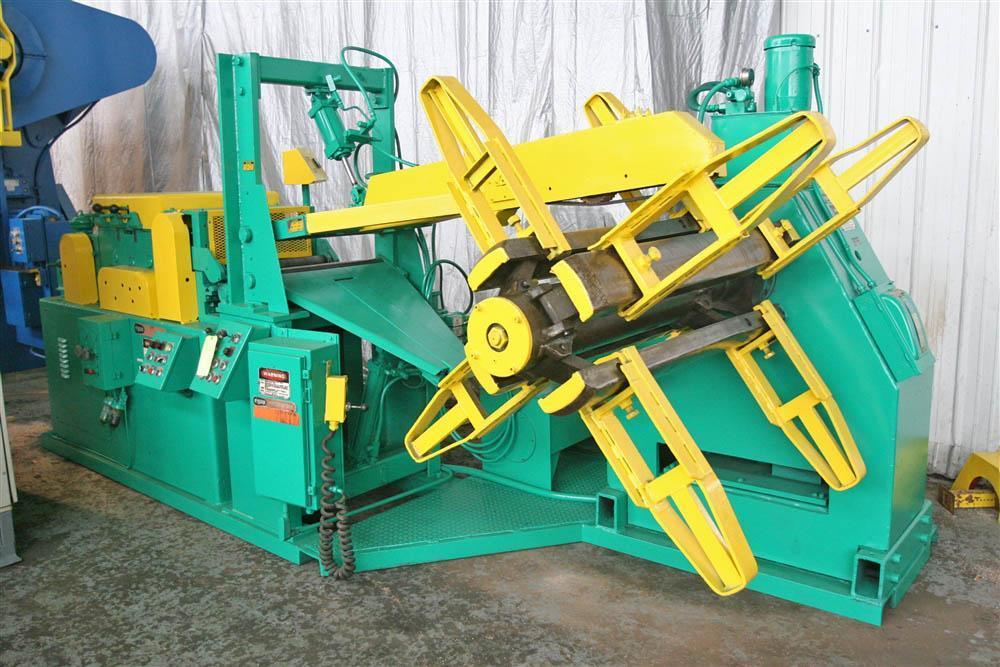

10,000 LB HYDRAULIC S. E. UNCOILER
MODEL .............................. M1001-38
MAX COIL WEIGHT .................... 5000 LBS
MAX COIL WIDTH ..................... 48"
COIL I.D. .......................... 8" - 24"
MAX COIL O.D. ...................... 60"
WITH 8 KEEPERS .....................
REEL BRAKE MOTOR ................... 1 HP
HYDRAULIC MOTOR ....................
PEELER WITH HYD HOLDDOWN ...........
PEELER HOLDDOWN .................... 9 BUTTON CONTROL
EXTENDS TO ........................ 48"
RETRACTS TO ........................ 36"
ALL MACHINES MOUNTED ON A BASE ..... 14'8" L X 5'6" W

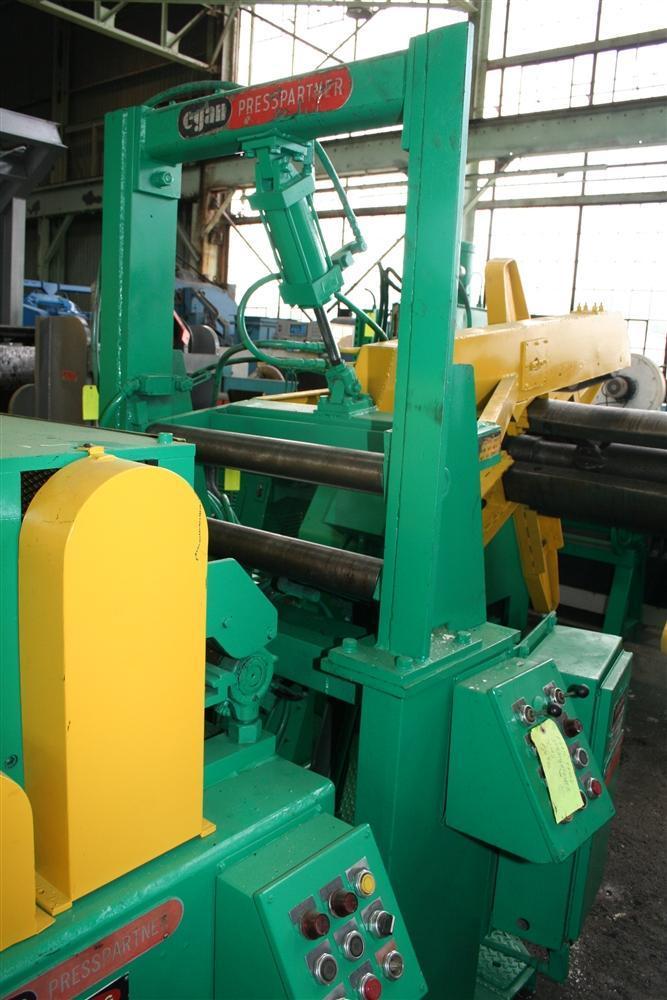

EGAN PRESS PARTNER FEEDER
MODEL .............................. CA71-24S
2 MAIN ENTRY SERRATED ..............
ROLLS .............................. 8" X 25 3/4"
AIR HOLDDOWNS ...................... YES
2 PRE ENTRY ROLLS .................. 7 1/4" X 6"
ENTRY GUIDES ....................... YES
EXIT ROLLS ......................... 4

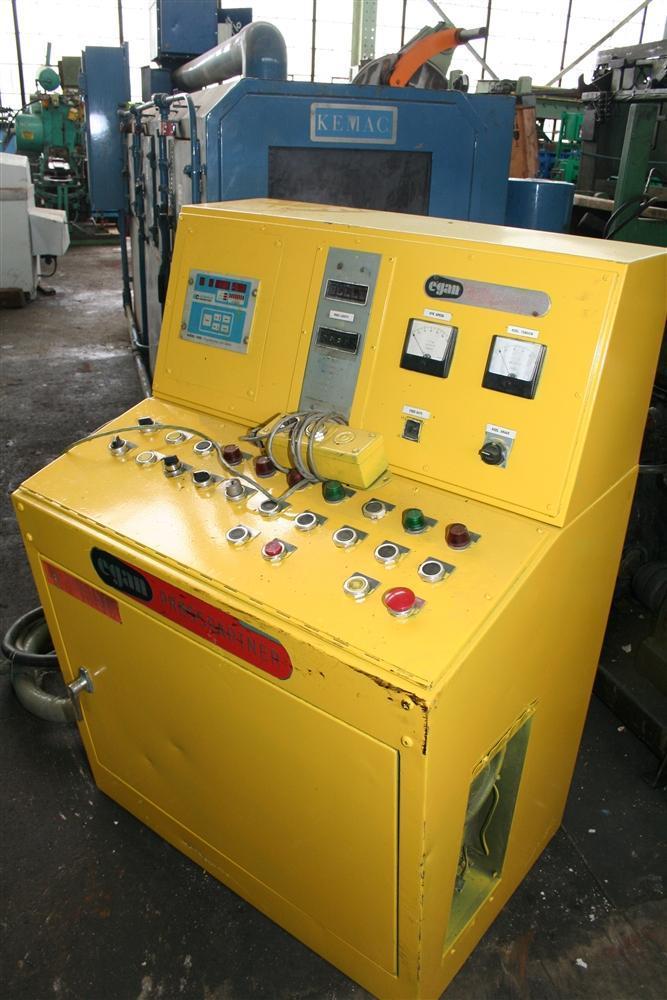

MAIN OPERATORS CONSOLE .............
MOTOR DC ...........................
HOOD COVER .........................
DIMENSIONS ......................... 6'6" H X 6'7" L X 4' W
