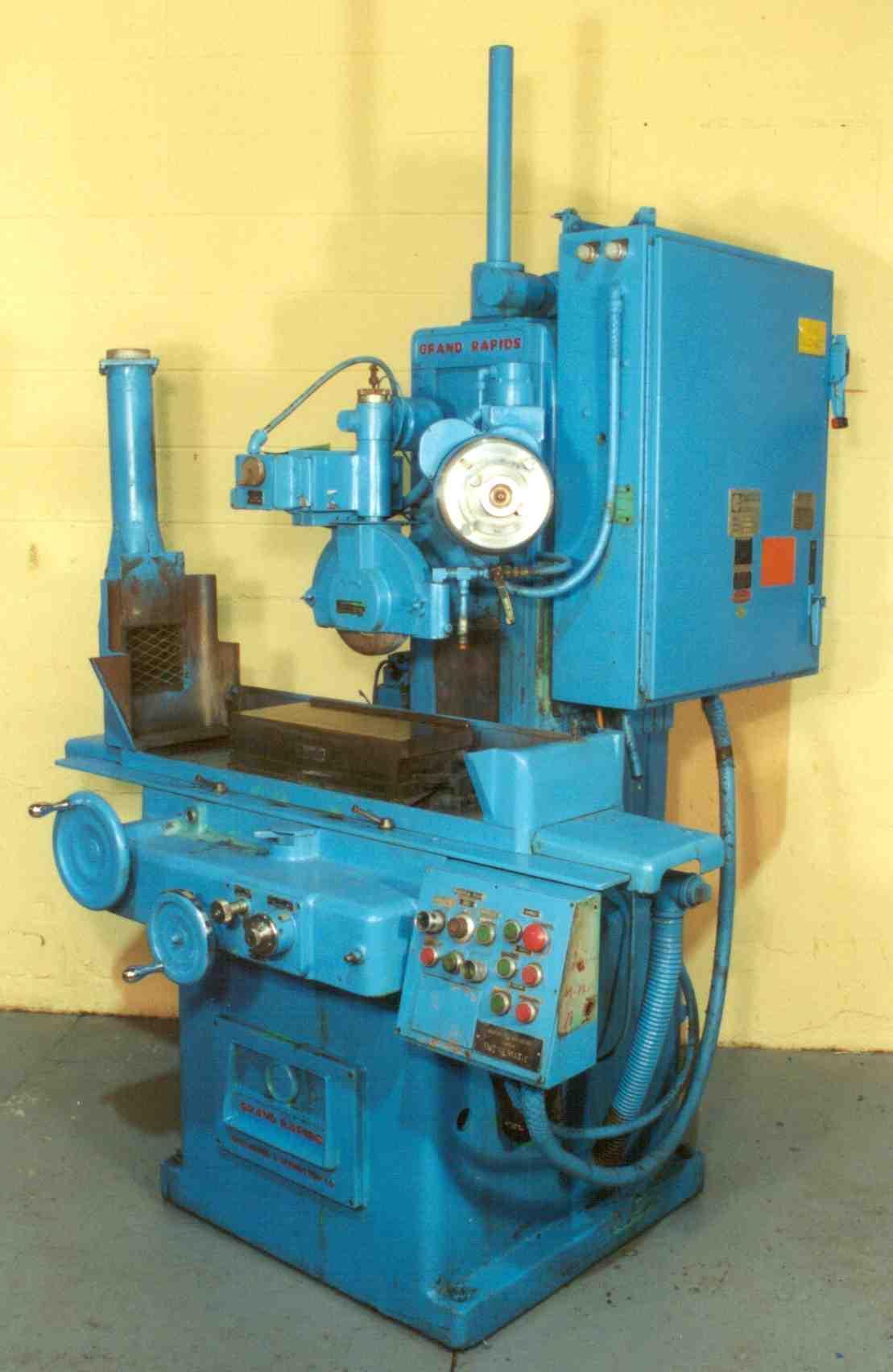

8' X 18' GALLMEYER & LIVINGSTON HORIZONTAL SURFACE GRINDER: #14777

Manufacturer

Category

Grinding Machines

Type

GRINDERS, SURFACE, ROTARY TYPE, (Horizontal Spindle)

Stock

14777

Model

08 X 018

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet



SERIAL ........................................ 260191
MODEL ......................................... 260
YEAR NEW ...................................... 1972
GRINDING CAPACITY ............................. 18" X 8"
MAXIMUM WORK HEIGHT ........................... 15"
ELECTRO-MAGNETIC CHUCK SIZE .............. 18-1/4" X 8" X 4-1/8"
GRINDING WHEEL SIZE ........................... 10" X 1/2" X 3"
SPINDLE SPEEDS ................................ 2300 & 3000 RPM
TABLE SPEEDS (VARIABLE) .................. 3" TO 150 PER MINUTE
LONGITUDINAL TABLE TRAVEL ..................... 23-1/2"
CROSS TABLE TRAVEL ............................ 9-1/4"
INCREMENTAL DOWNFEED .......................... YES
POWER ELEVATION ............................... YES
HYDRAULIC CROSS & LONGITUDINAL TABLE FEEDS .... YES
OVER THE WHEEL HYDRAULIC DRESSER .............. YES
BIJUR LUBE .................................... YES
SPINDLE MOTOR ................................. 1 HORSEPOWER
HYDRAULIC MOTOR ............................... 1-1/2 HORSEPOWER
