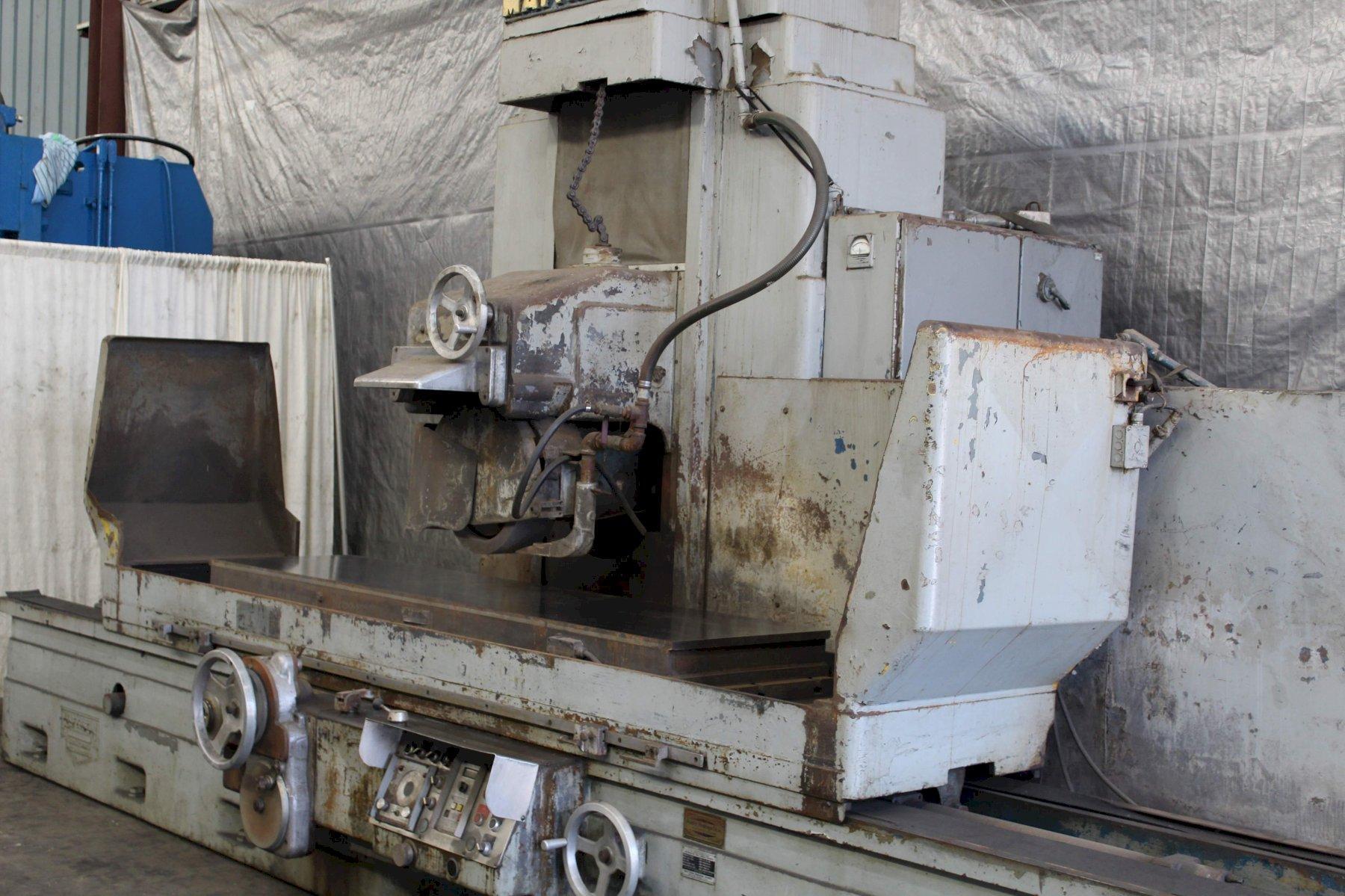

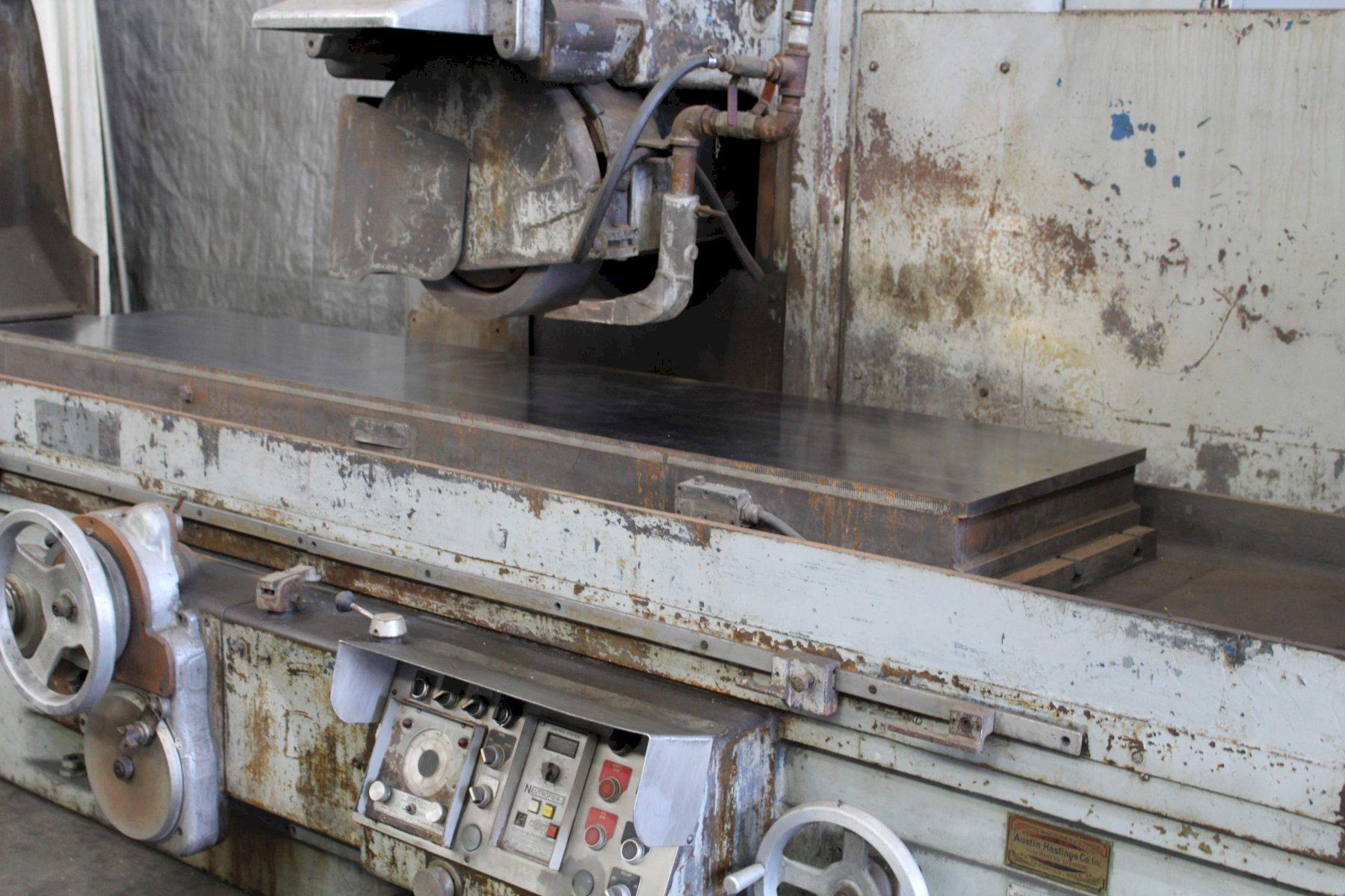

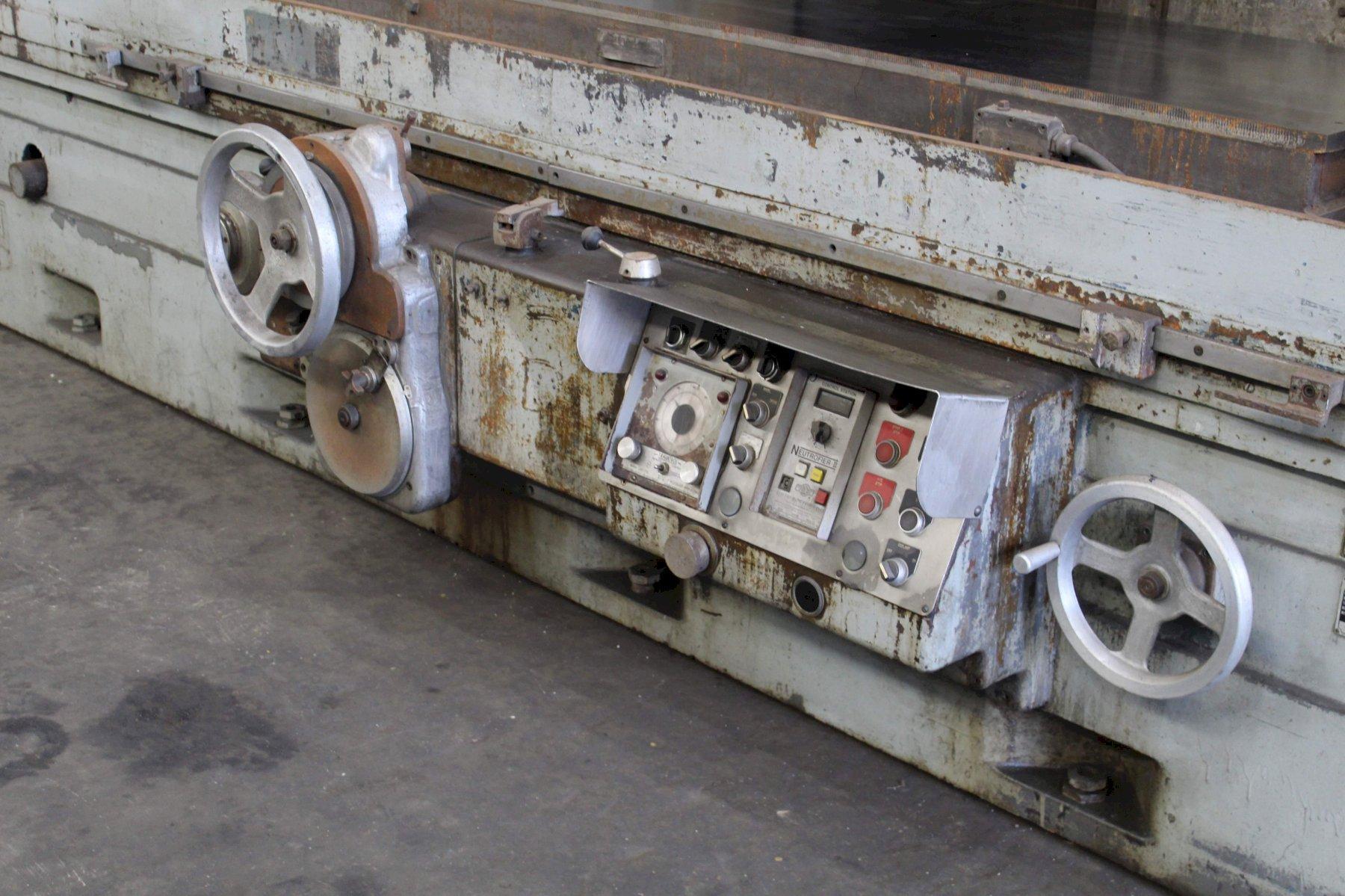

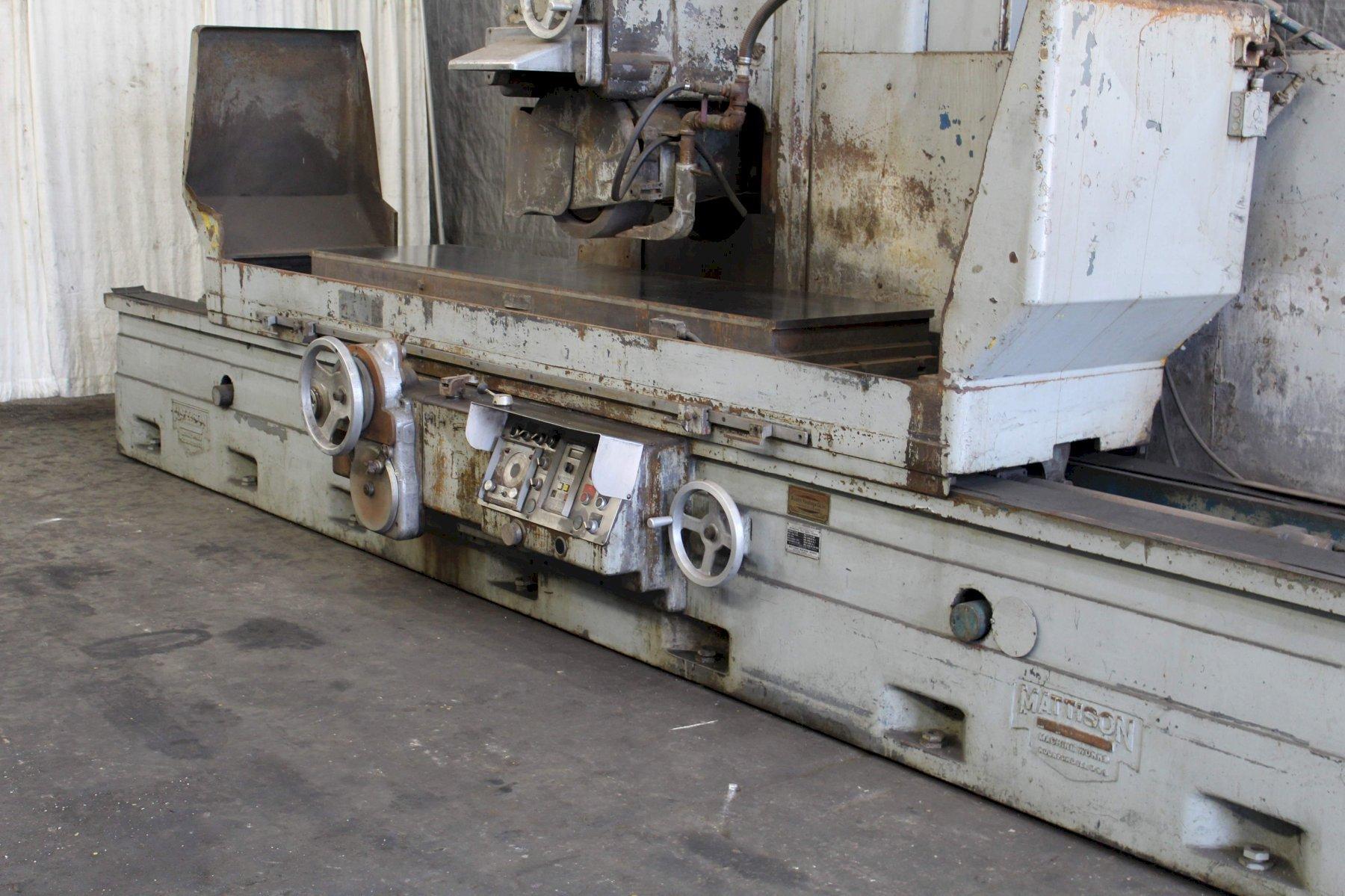

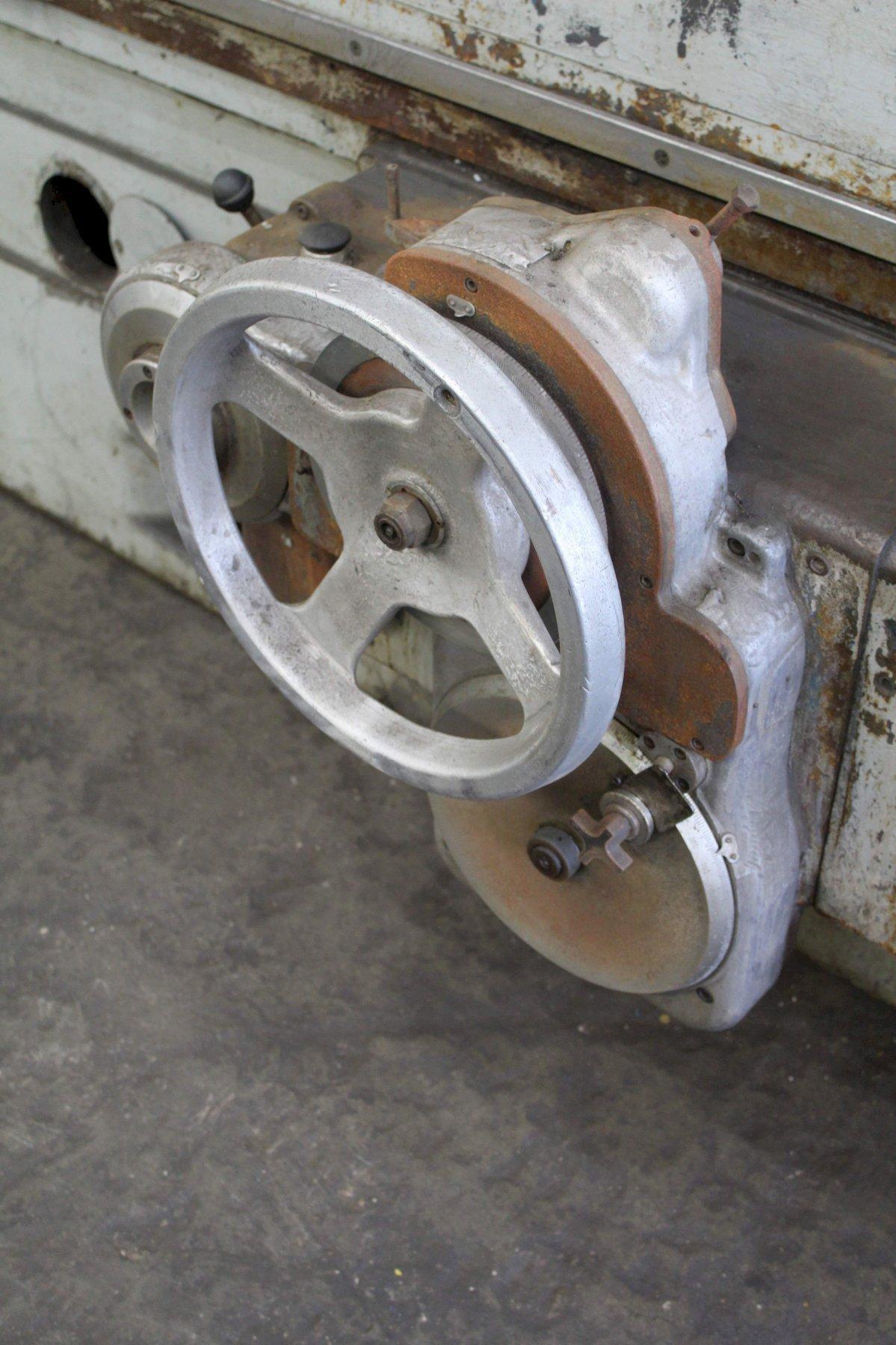

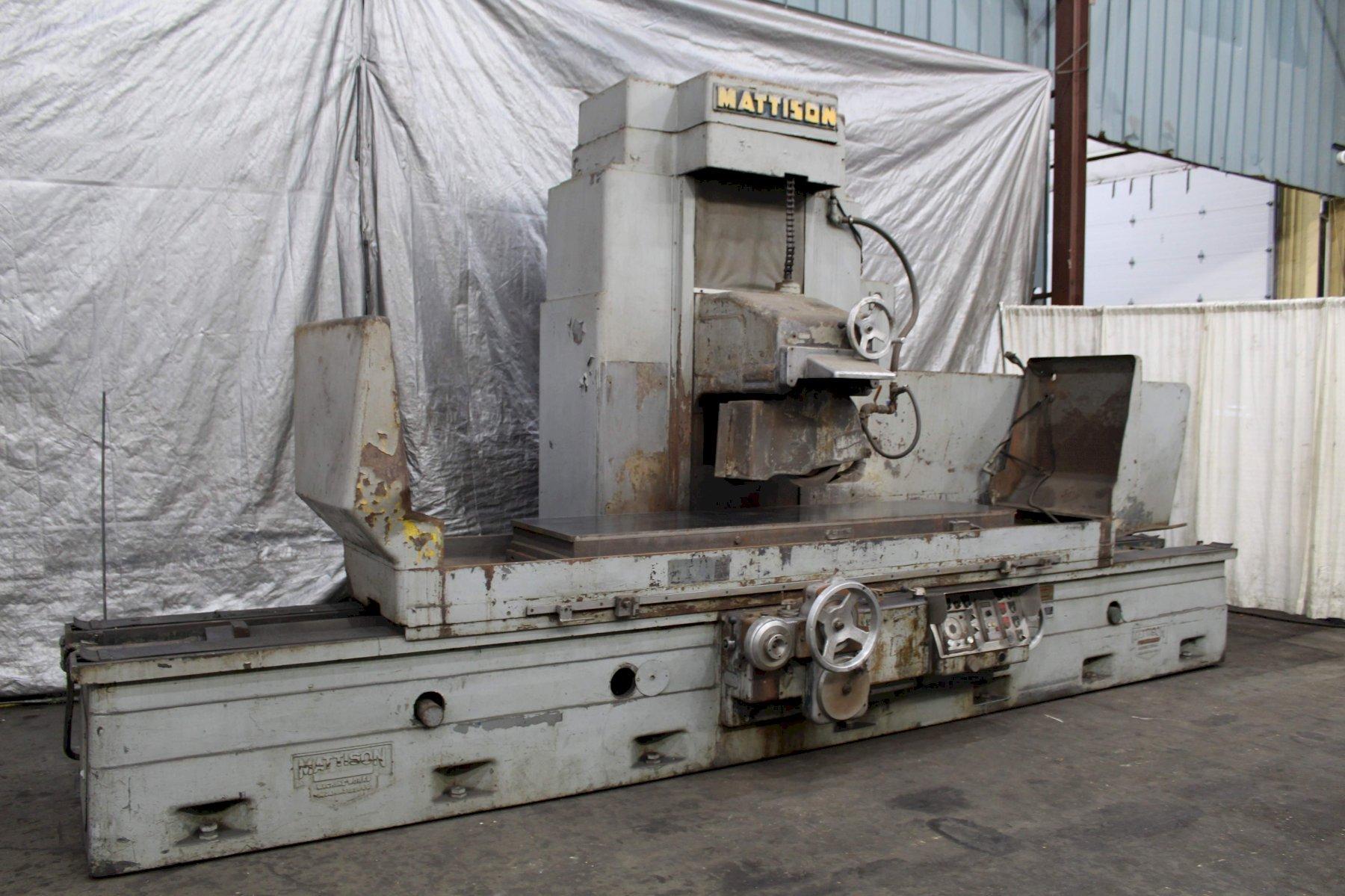

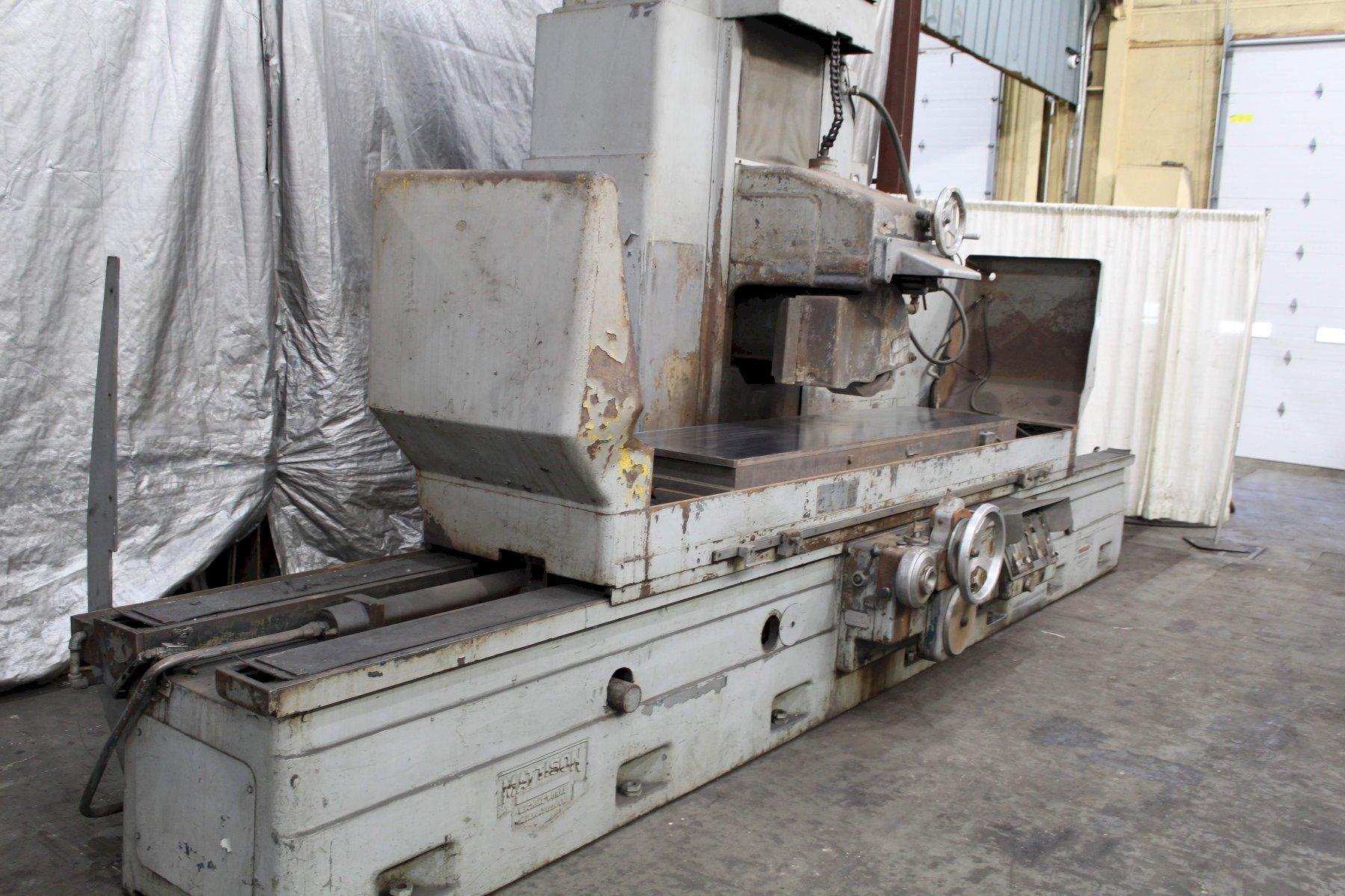

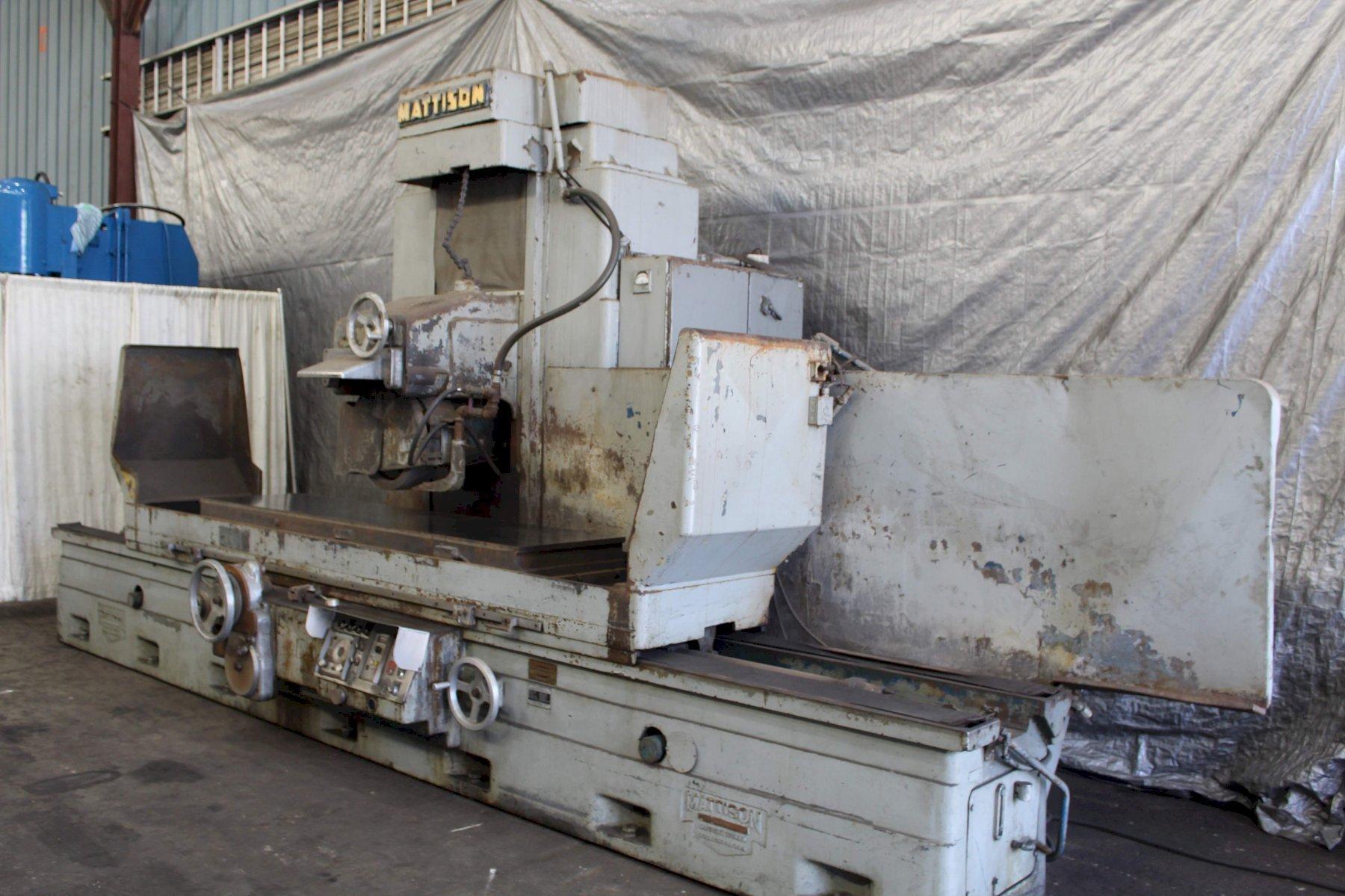

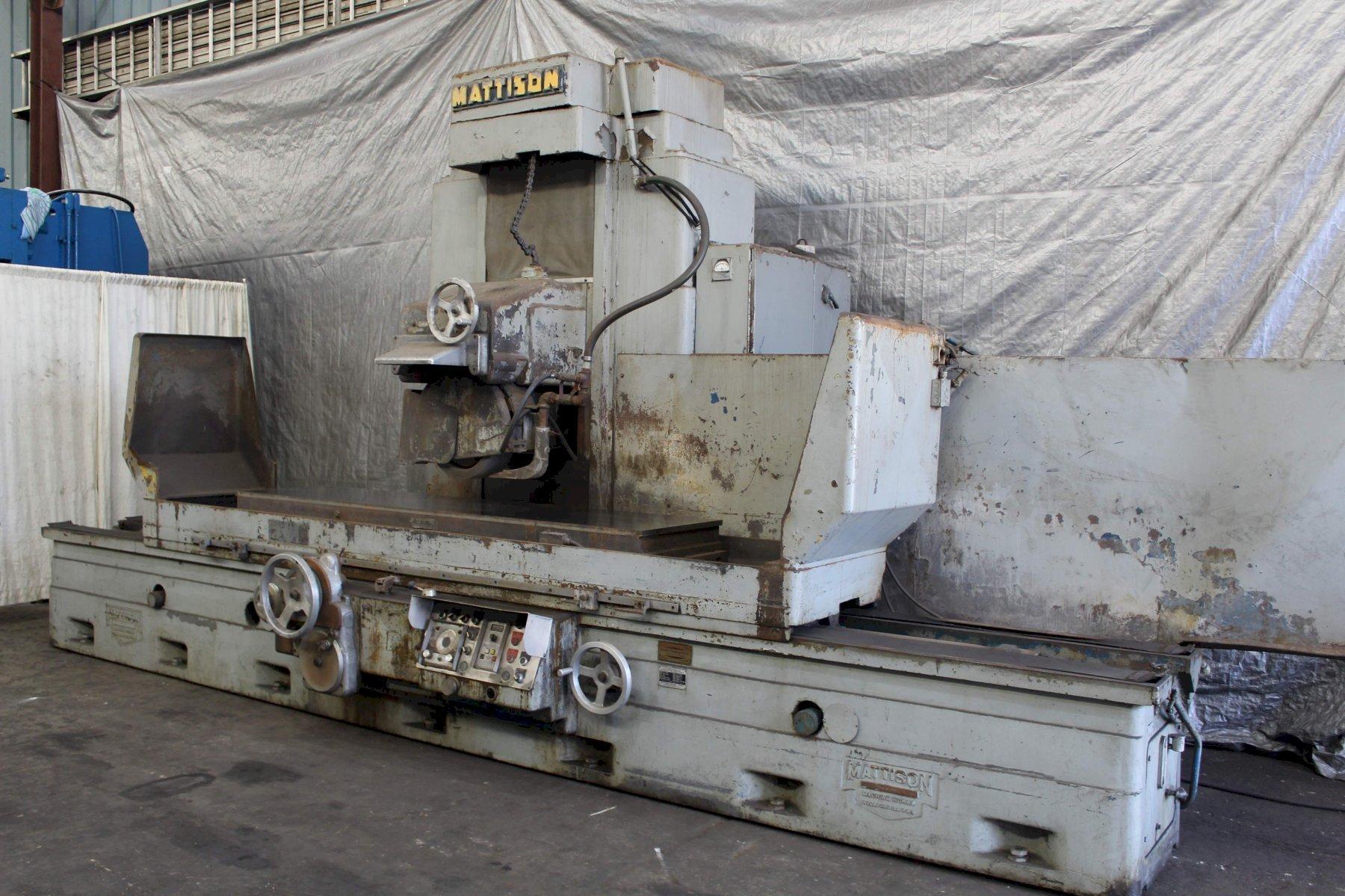

24' X 96' X 30' MATTISON HORIZONTAL SURFACE GRINDER: LOT #58851

Manufacturer

Category

Grinding Machines

Type

GRINDERS, SURFACE, ROTARY TYPE, (Horizontal Spindle)

Stock

58851

Model

24 X 096

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet



SERIAL .................................... 20648
GRINDING CAPACITY ......................... 24" X 96"
MAXIMUM WORK HEIGHT UNDER WHEEL ........... 30"
TABLE AREA (T-SLOTTED) .................... 24" X 102"

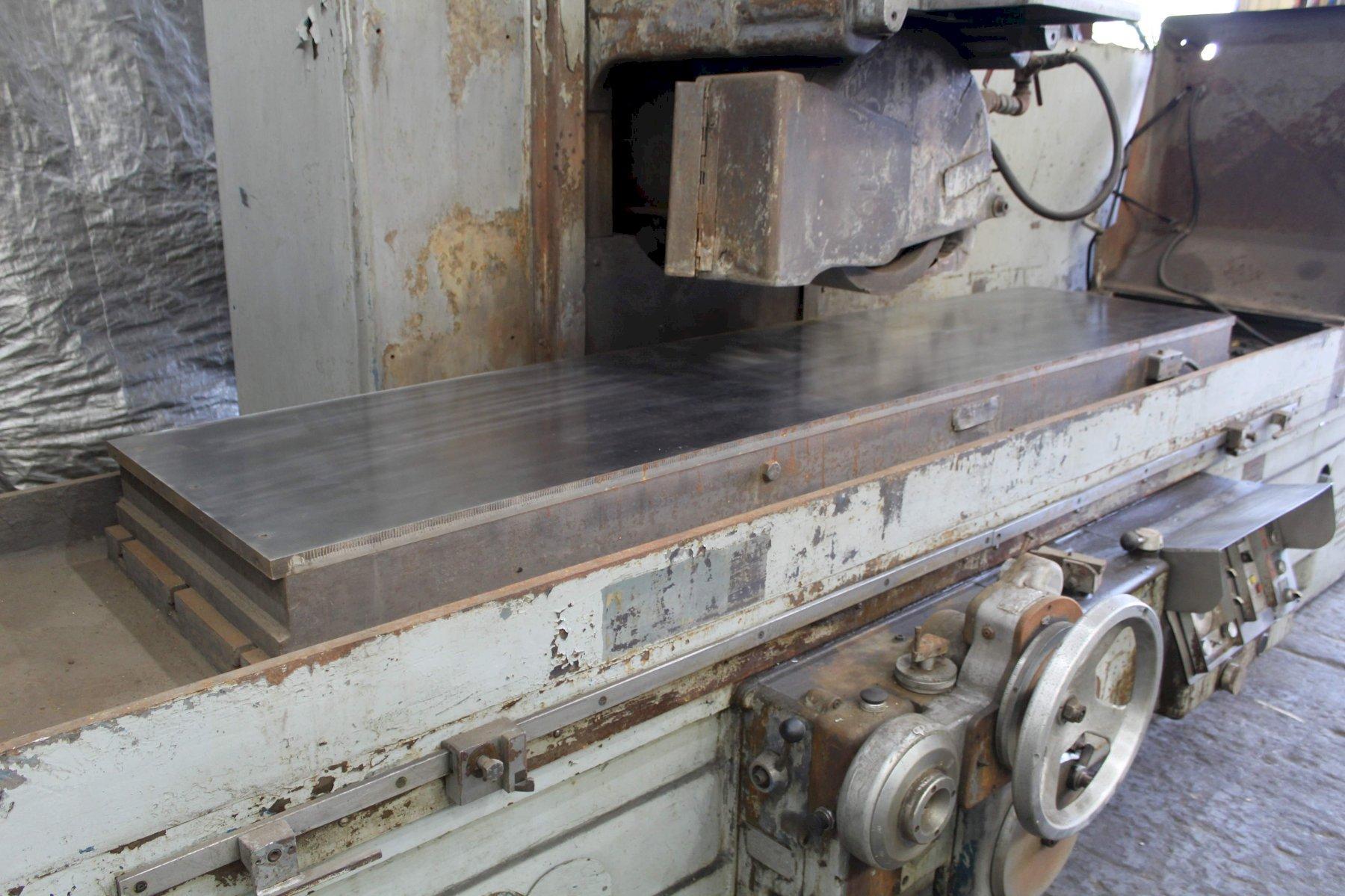

ELECTRO-MAGNETIC CHUCK , FINE LINE ........ 24" X 101" X 5-1/4"
GRINDING WHEEL SIZE ....................... 20" X 6" X 5"
SPINDLE SPEED ............................. 1160 RPM
TABLE SPEEDS (VARIABLE) ................... 30 TO 100 FPM
LONGITUDINAL TABLE TRAVEL ................. 102"
INCREMENTAL DOWNFEED ...................... YES
AUTOMATIC CROSSFEED ....................... 24"
POWER ELEVATION ........................... 25"
JUMP FEED LONGITUDINAL & CROSS ............ YES
OVER THE WHEEL HYDRAULIC DRESSER .......... YES

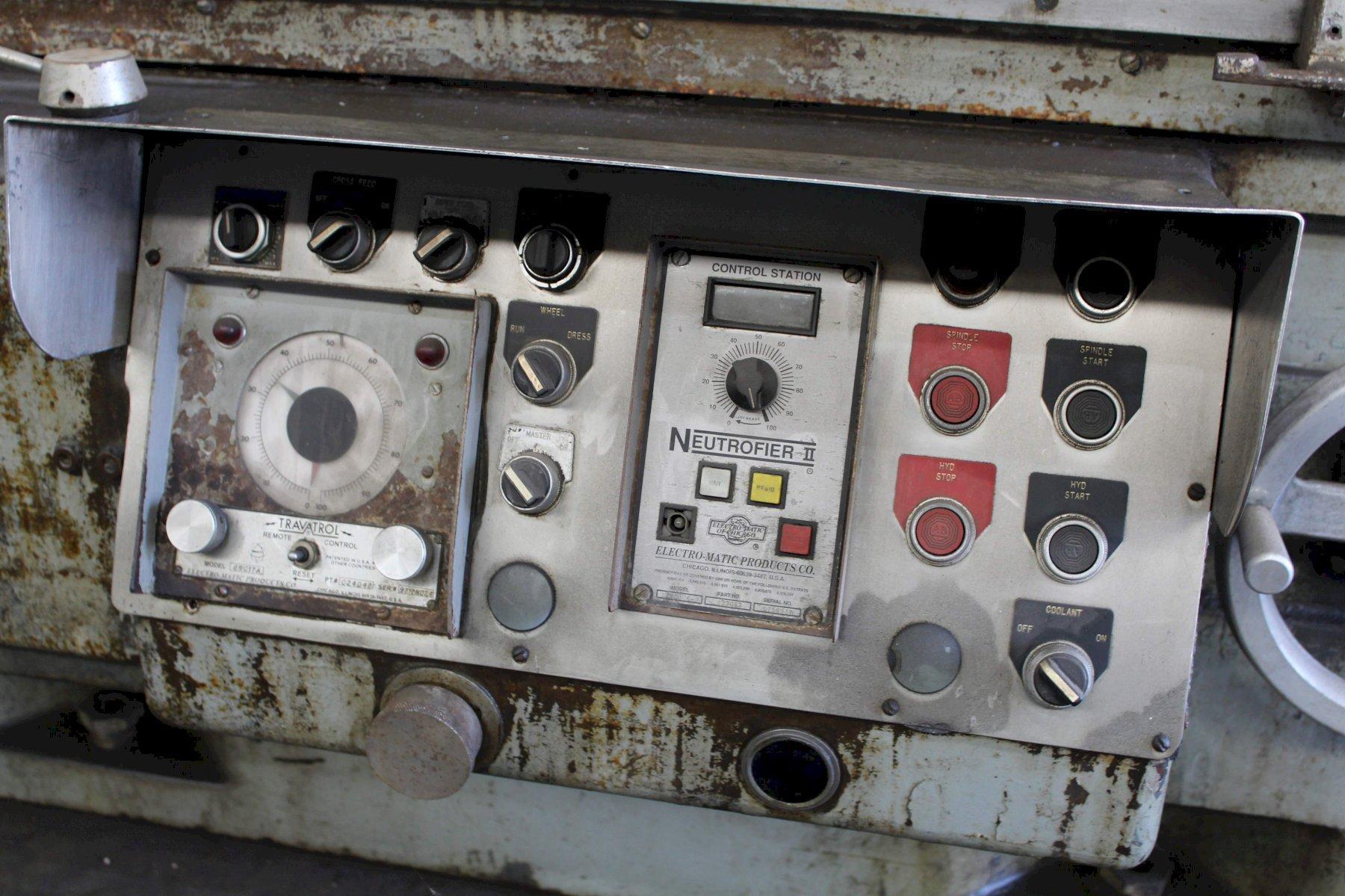

ELECTRO-MAGNETIC CHUCK CONTROLS ........... NEUTROFIER II
COOLANT WITH SLUG CONVEYOR ................ YES
AUTOMATIC LUBRICATION ..................... YES
HYDRAULIC MOTOR ........................... 15 HORSEPOWER

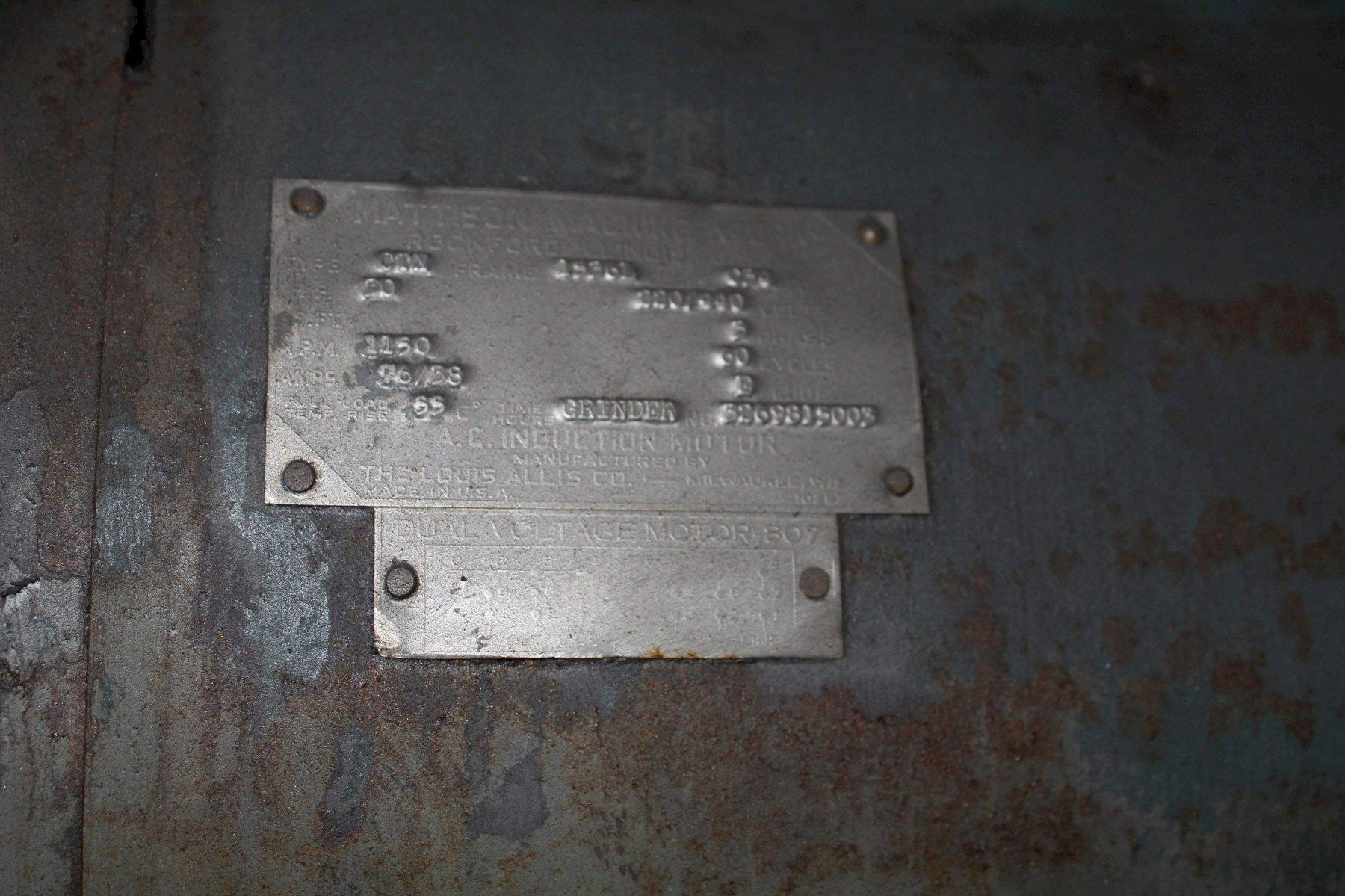

SPINDLE MOTOR ............................. 30 HORSEPOWER
