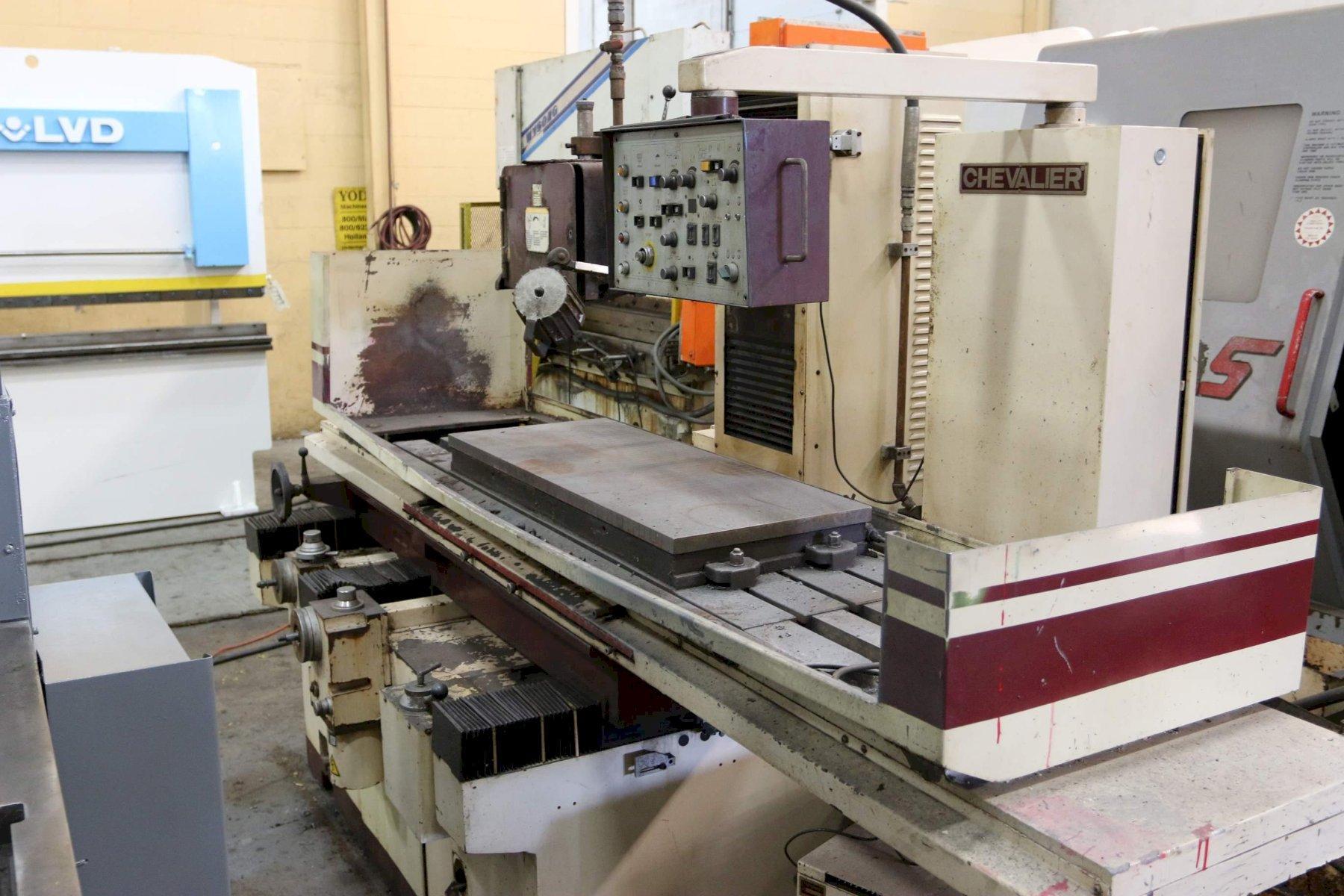

16' X 40' CHEVALIER 3AXIS HORIZONTAL SURFACE GRINDER: STOCK #68114

Manufacturer

Category

Grinding Machines

Type

GRINDERS, SURFACE, ROTARY TYPE, (Horizontal Spindle)

Stock

68114

Model

16 X 040

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet



SERIAL .............................. G4856003
MODEL ............................... FSG-1640AD
GRINDING CAPACITY ................... 16" X 40"
SPINDLE TO TABLE (MAXIMUM) .......... 18-3/8"
LONGITUDINAL TABLE TRAVEL ........... 41-5/16"
CROSS TABLE TRAVEL .................. 16"
TABLE SPEED (VARIABLE) .............. 16 TO 82 FPM
SPINDLE SPEED ....................... 3450 RPM
GRINDING WHEEL SIZE ................. 14" X 2" X 5"
ELECTRO-MAGNETIC CHUCK SIZE ......... 15-3/4" X 39-3/8"
INCREMENTAL DOWNFEED ................ 0.00005 TO 0.002"
AUTOMATIC CROSSFEED ................. 0.0005
POWER ELEVATION ..................... YES
COOLANT ............................. YES
OVER THE WHEEL DRESSER .............. YES
ELECTRO-MAGNETIC CHUCK W/CONTROLS ... YES
SPINDLE MOTOR ....................... 5 HORSEPOWER
HYDRAULIC MOTOR ..................... 3 HORSEPOWER
