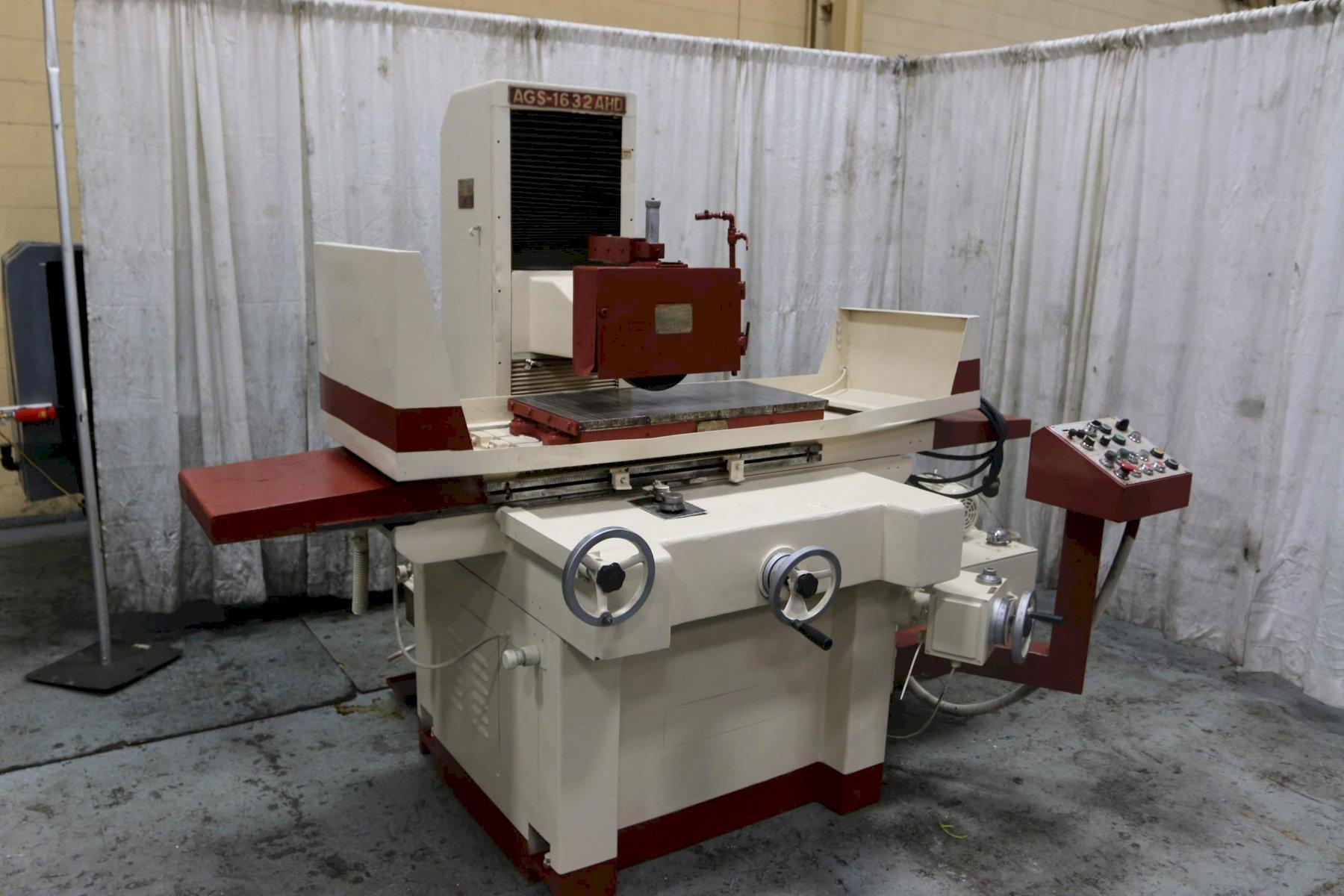

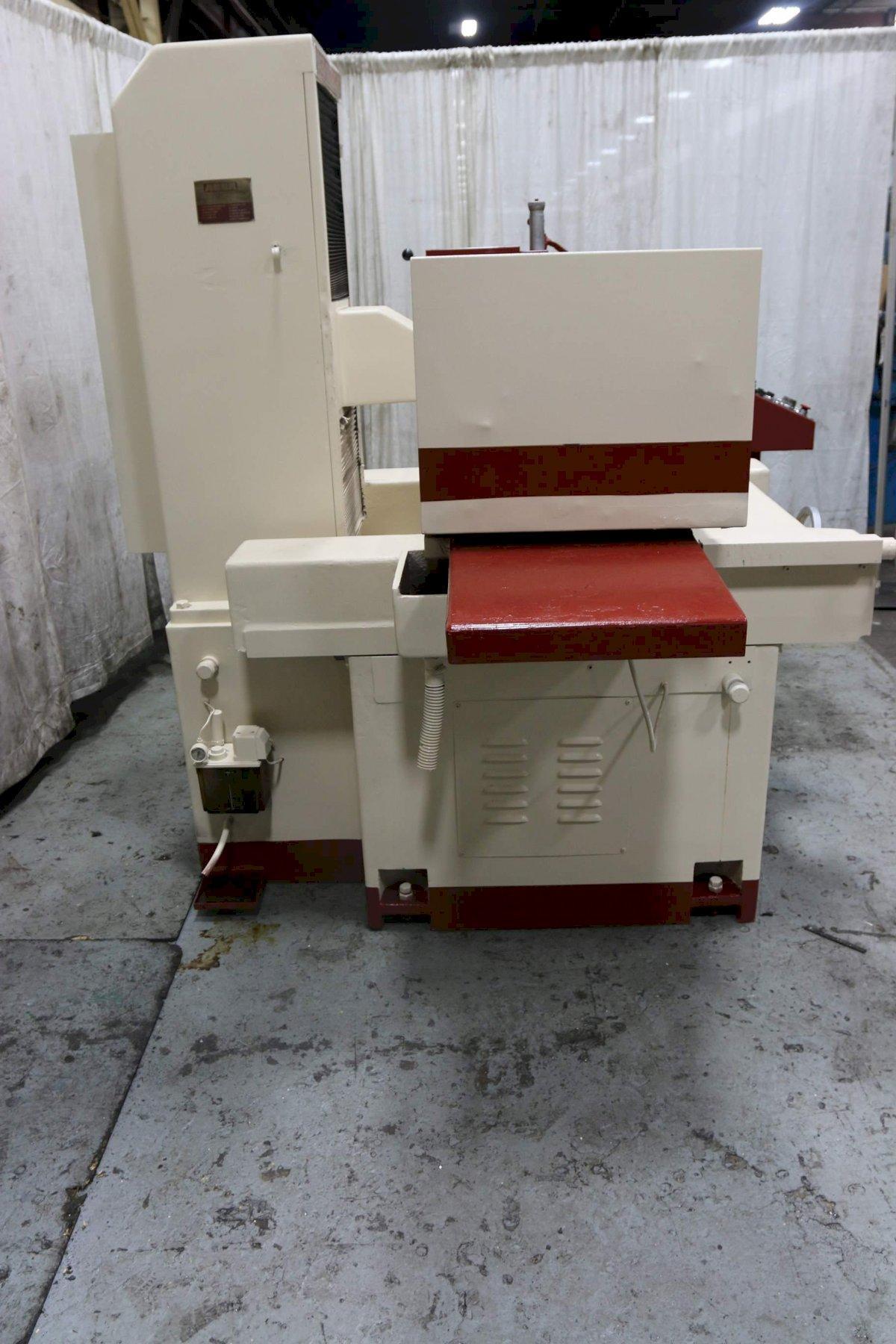

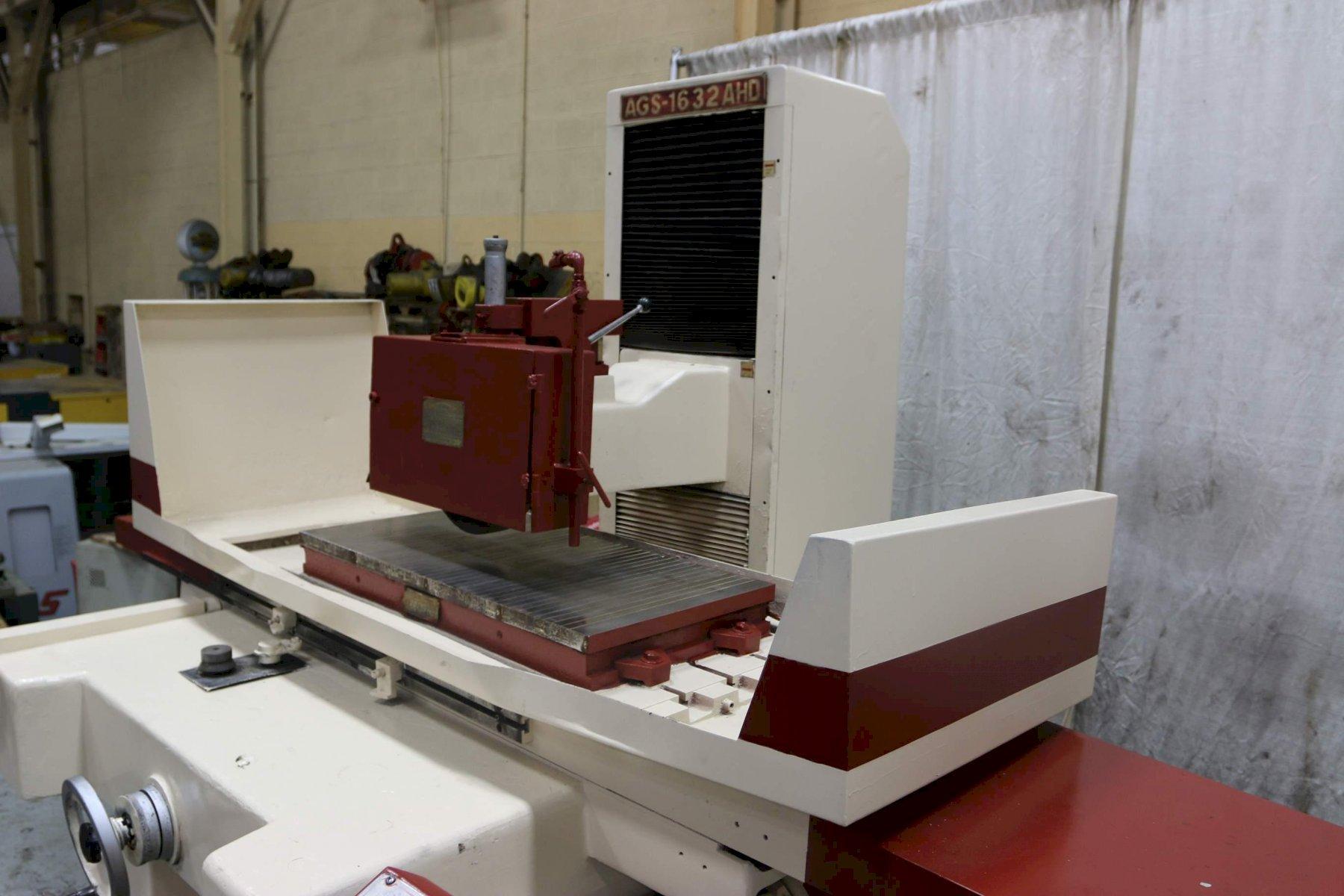

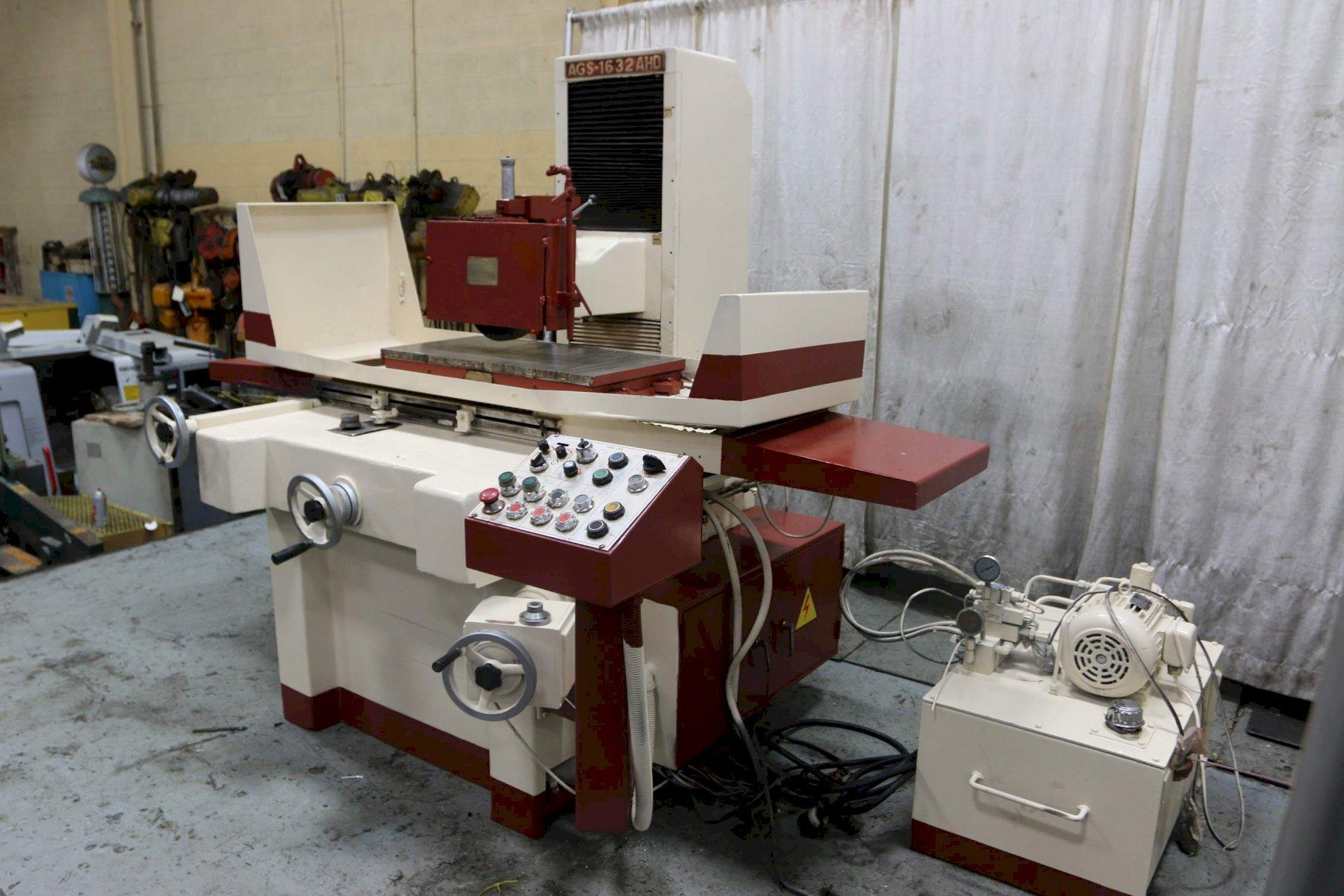

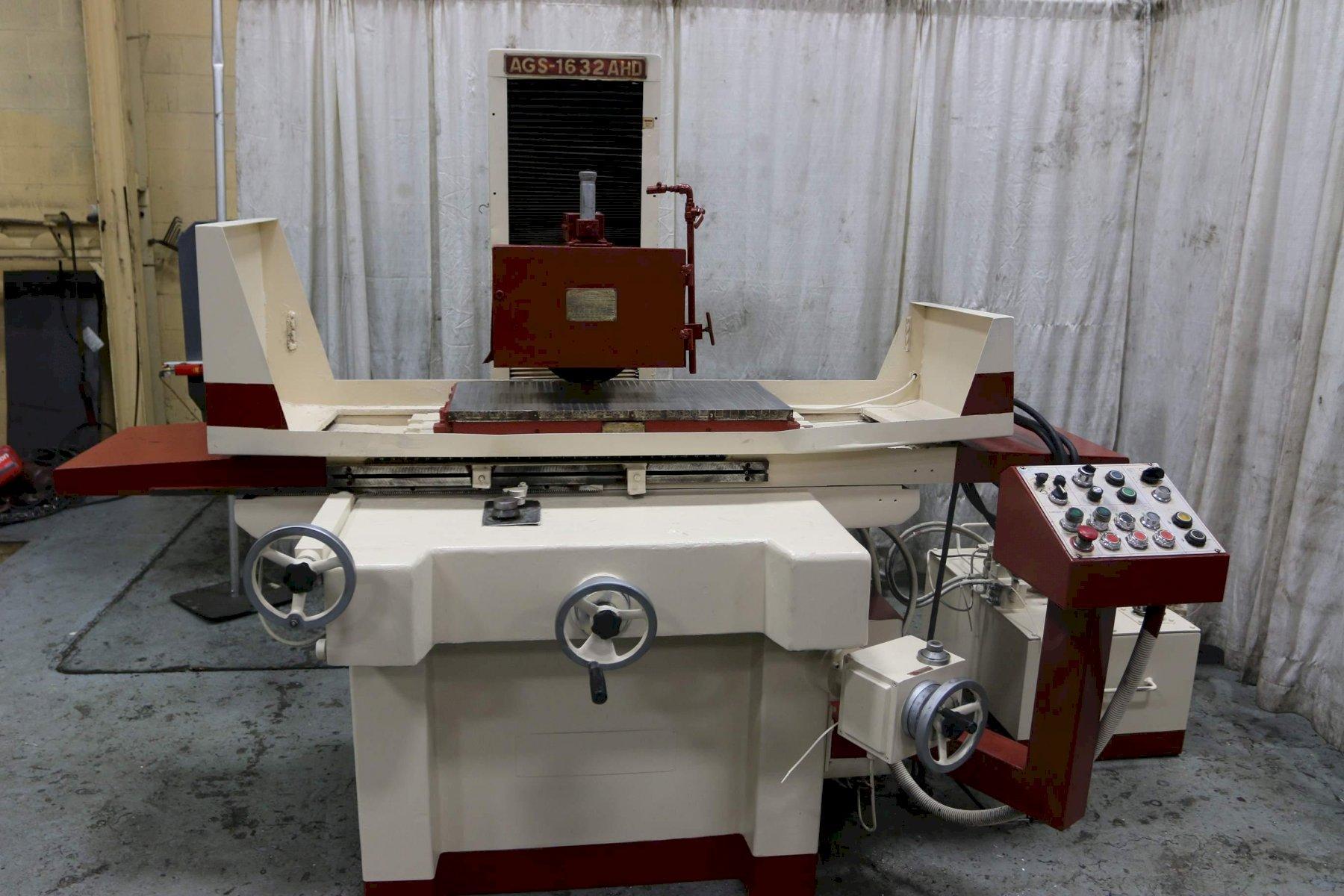

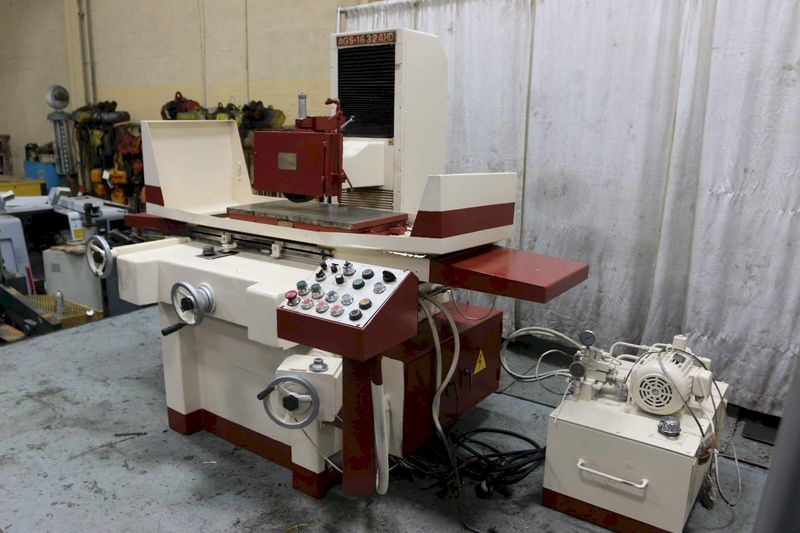

16' X 32' ACER MODEL AGS-1632AHD SURFACE GRINDER: STOCK #68676

Manufacturer

Category

Grinding Machines

Type

GRINDERS, SURFACE, ROTARY TYPE, (Horizontal Spindle)

Stock

68676

Model

16 X 032

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet



SERIAL ................................... 9321014
MODEL .................................... AGS1632AHD
YEAR NEW ................................. 1993
CHUCK SIZE ............................... 15-3/4 x 31-1/2"
HEIGHT UNDER NEW WHEEL (OVER TABLE) ...... 18"
CHUCK THICKNESS .......................... 3"
LONGITUDINAL TABLE TRAVEL ................ 33"
CROSS TRAVEL ............................. 17-3/4"
HYDRAULIC TABLE TRAVEL ................... 16 TO 80 FPM
INCREMENTAL DOWNFEED RATES (6) ........... .001"PER REVOLUTION
POWER SPINDLE ELEVATIONS ................. YES
WHEEL SIZE ............................... 14" X 5" X 2"
OVER HEAD WHEEL DRESSERS ................. YES
MAXIMUM WORKPIECE WEIGHT ................. 1,600 LBS.
COOLANT WITH MAGNETIC FILTER ............. YES
PAPER COOLANT FILTER ..................... YES
AUTOMATIC LUBE SYSTEM .................... YES
SPINDLE MOTOR ............................ 7-1/2 HORSEPOWER
HYDRAULIC MOTOR .......................... 3 HORSEPOWER
