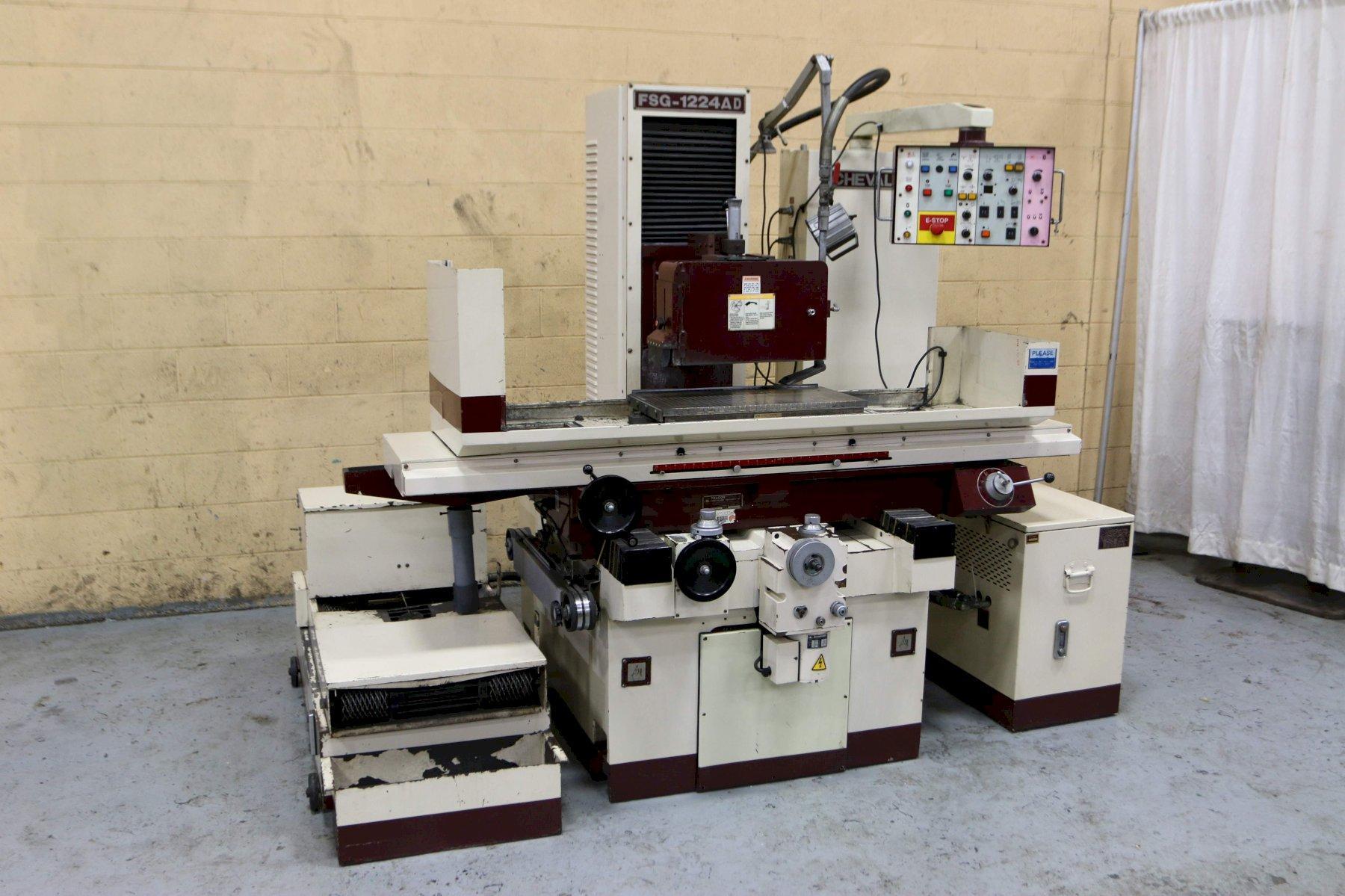

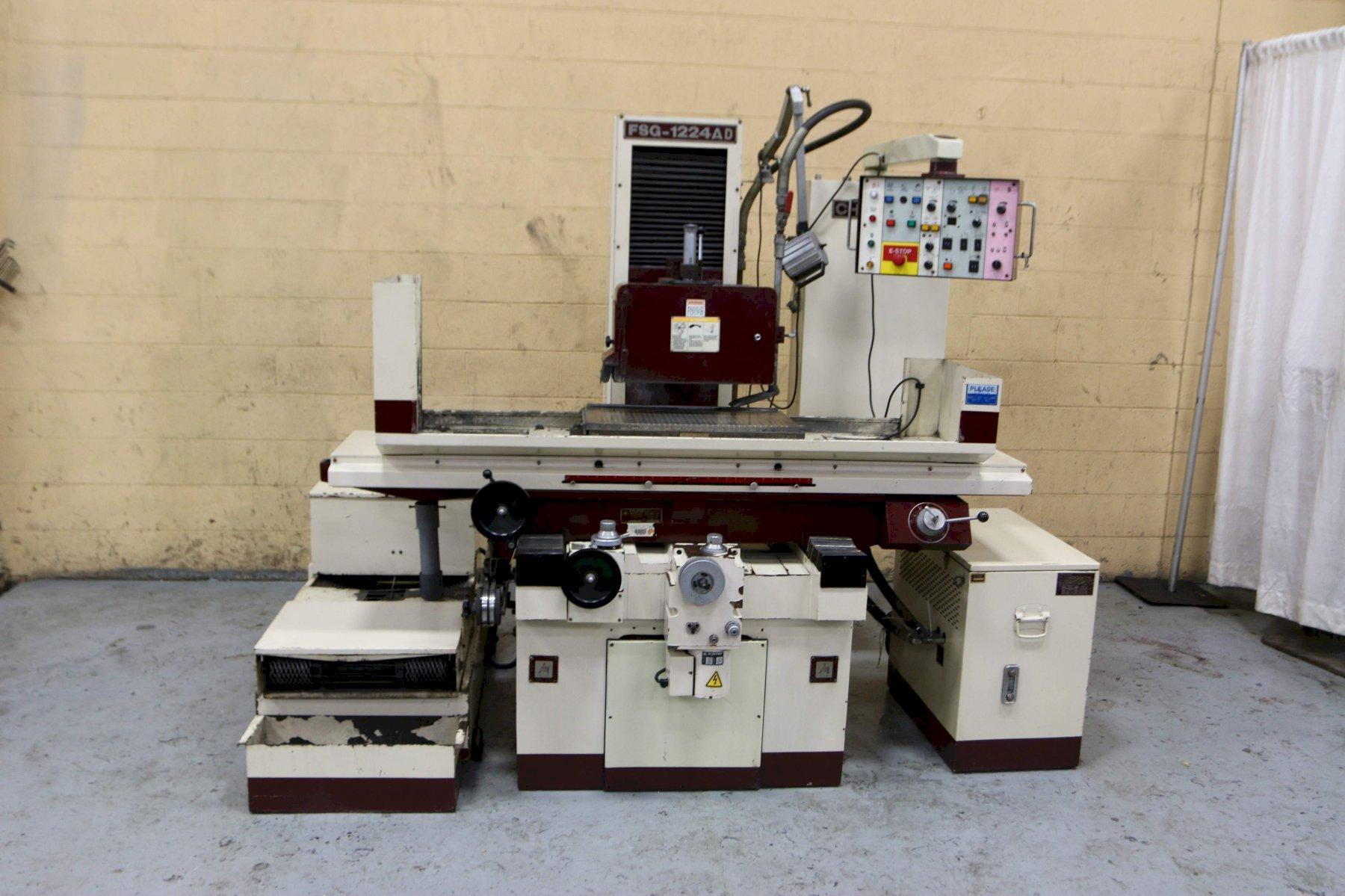

12" X 24" CHEVALIER FALCON MODEL #FSG-1224AD HORIZONTAL SURFACE GRINDER: STOCK #70439

Manufacturer

CHEVALIER

Category

Grinding Machines

Type

GRINDERS, SURFACE, ROTARY TYPE, (Horizontal Spindle)

Stock

70439

Model

12 X 024

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet



SERIAL ............................. F1854010
MODEL .............................. FSG-1224AD
GRINDING CAPACITY .................. 12" X 24"
SPINDLE TO TABLE (MAXIMUM) ......... 19-3/4"
LONGITUDINAL TABLE TRAVEL .......... 25-5/8"
CROSS TABLE TRAVEL ................. 12"
TABLE SPEED (VARIABLE) ............. 16 TO 82 FPM
SPINDLE SPEED ...................... 3450 RPM
GRINDING WHEEL SIZE ................ 14" X 2" X 5"
ELECTRO-MAGNETIC CHUCK SIZE ........ 11-3/4" X 23-7/8" X 2-3/4"
INCREMENTAL DOWNFEED ............... 0.00005" TO 0.002"
AUTOMATIC CROSSFEED ................ 0.005 IPR
POWER ELEVATION .................... 12 FPM

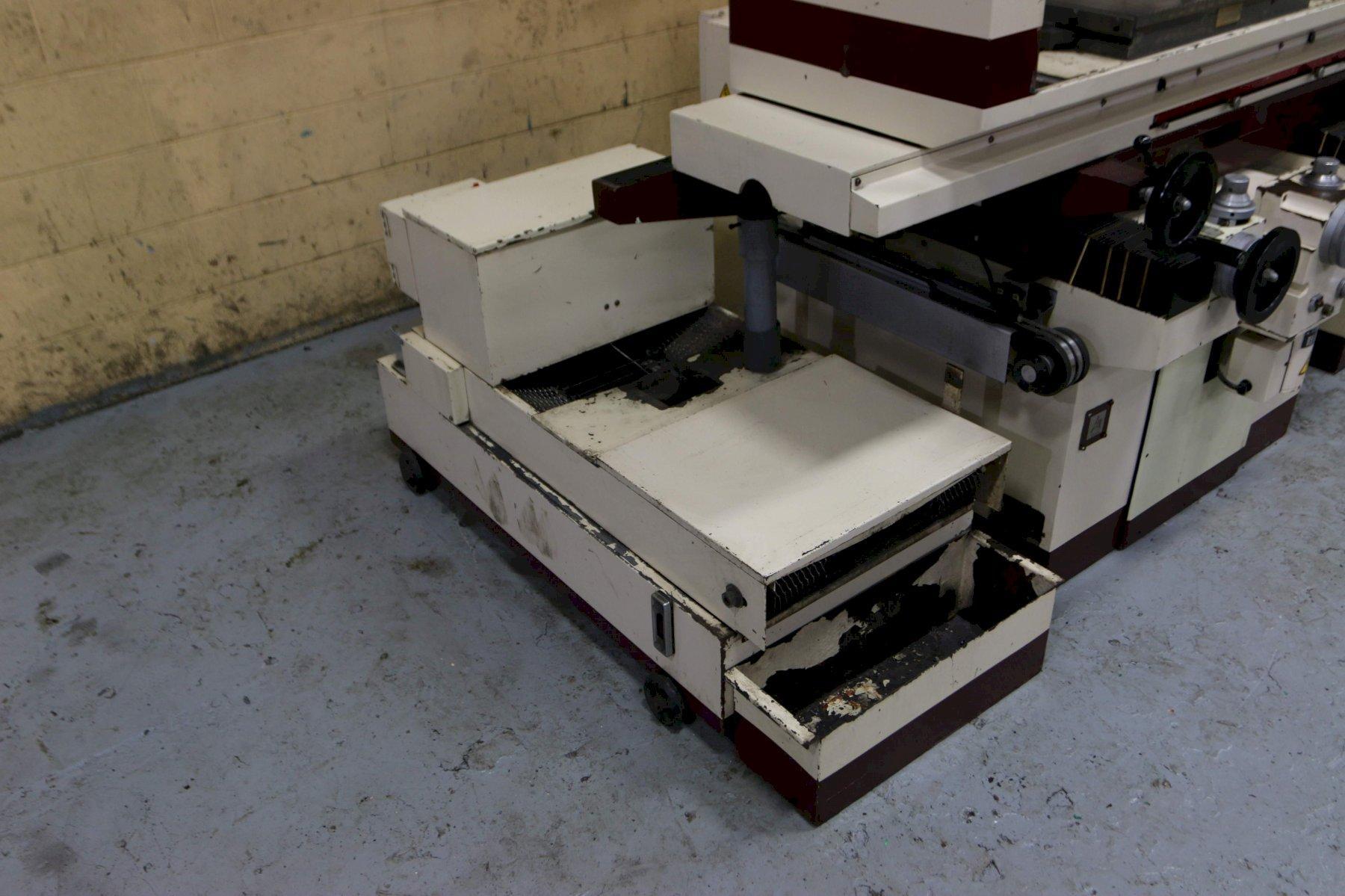

COOLANT W/PAPER FILTRATION ......... YES
OVER THE WHEEL DRESSER ............. YES
ELECTRO-MAGNETIC CHUCK W/CONTROLS .. YES
SPINDLE MOTOR ...................... 5 HORSEPOWER
HYDRAULIC MOTOR .................... 2 HORSEPOWER
