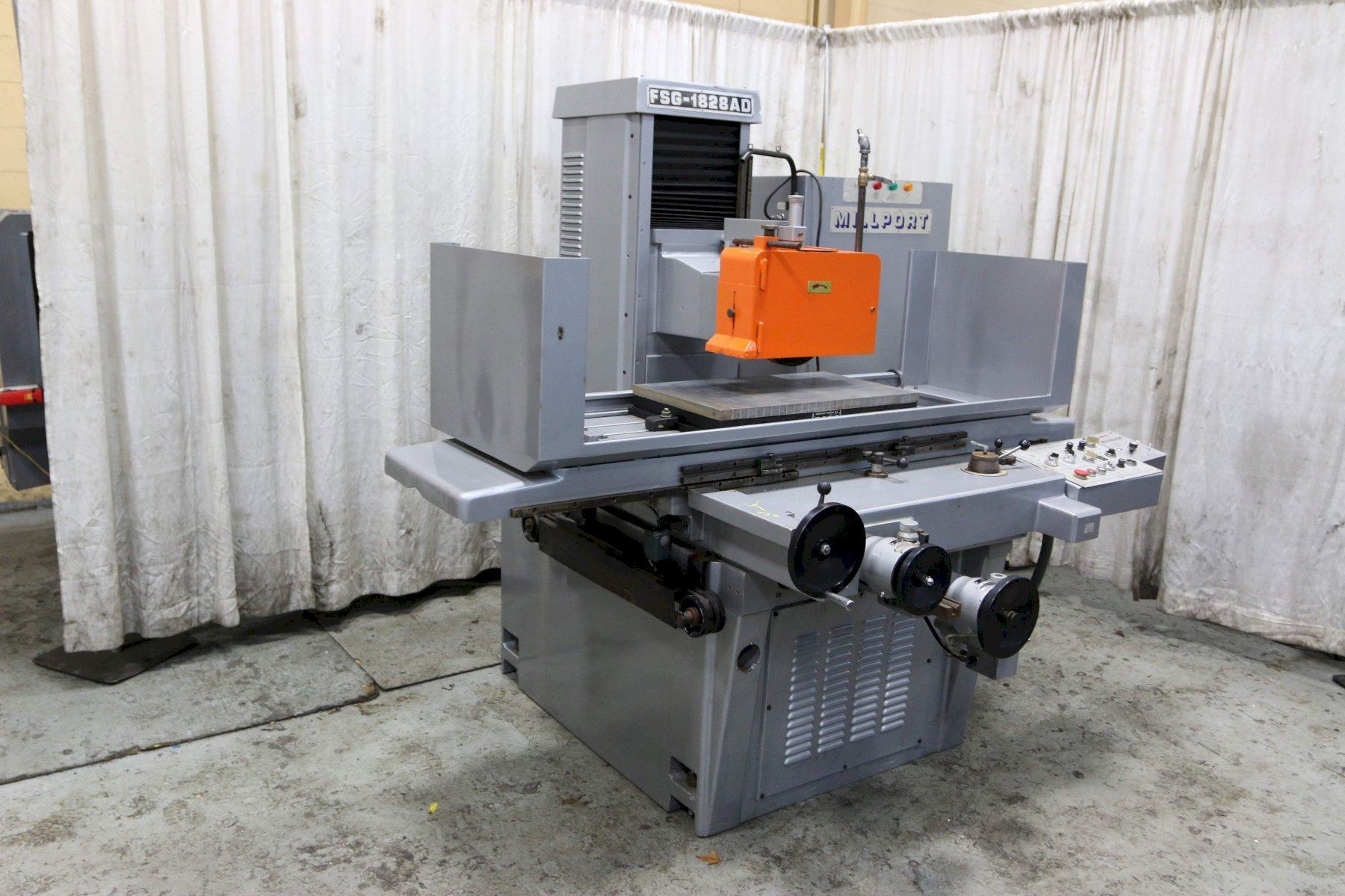

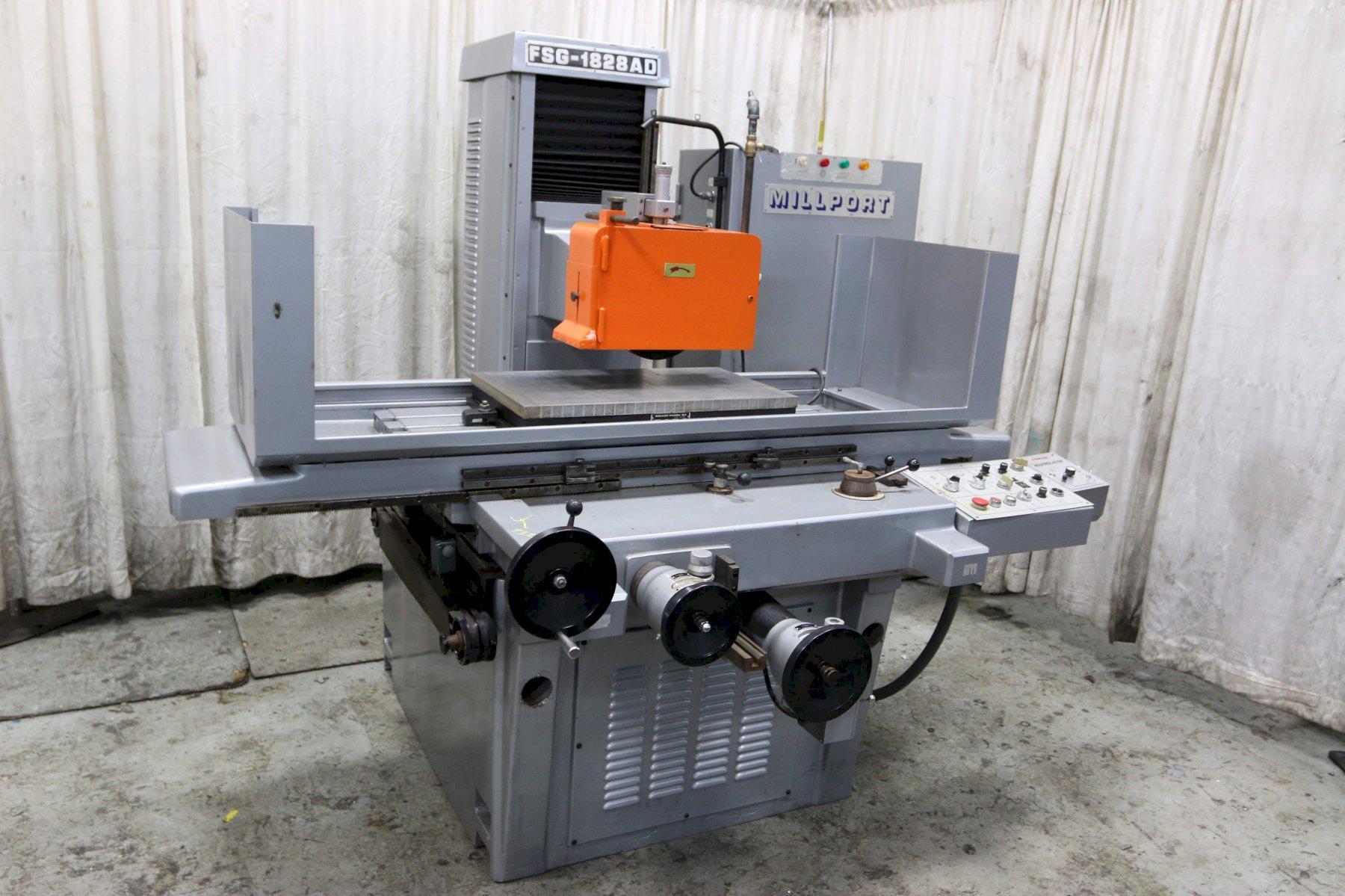

18' X 28' MILLPORT HORIZONTAL SURFACE GRINDER: STOCK #71555

Manufacturer

Category

Grinding Machines

Type

GRINDERS, SURFACE, ROTARY TYPE, (Horizontal Spindle)

Stock

71555

Model

18 X 028

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet



MODEL ............................. FSG-1828AD
GRINDING CAPACITY ................. 18" X 28"
SPINDLE CENTER TO TABLE (MAX.) .... 22-3/8"
LONGITUDINAL TABLE TRAVEL ......... 29-1/2"
CROSS TABLE TRAVEL ................ 18"
ELECTRO-MAGNETIC CHUCK SIZE ....... 28" X 18"
TABLE SPEED (VARIABLE) ............ 16 TO 82 FPM
GRINDING WHEEL SIZE ............... 14" X 2" X 5"
SPINDLE SPEED ..................... 1740 RPM
POWER ELEVATION ................... YES
AUTO INCREMENTAL DOWNFEED ......... .0.00005 TO .002"
AUTO CROSS FEED ................... .1/8" TO 2"
ELECTRO-MAGNETIC CHUCK W/CONTROLS . YES
COOLANT ........................... YES
OVERHEAD WHEEL DRESSER ............ YES
AUTO LUBE SYSTEM .................. YES
SPARK OUT ......................... YES
SPINDLE MOTOR ..................... 5 HORSEPOWER
HYDRAULIC MOTOR ................... 1 HORSEPOWER
