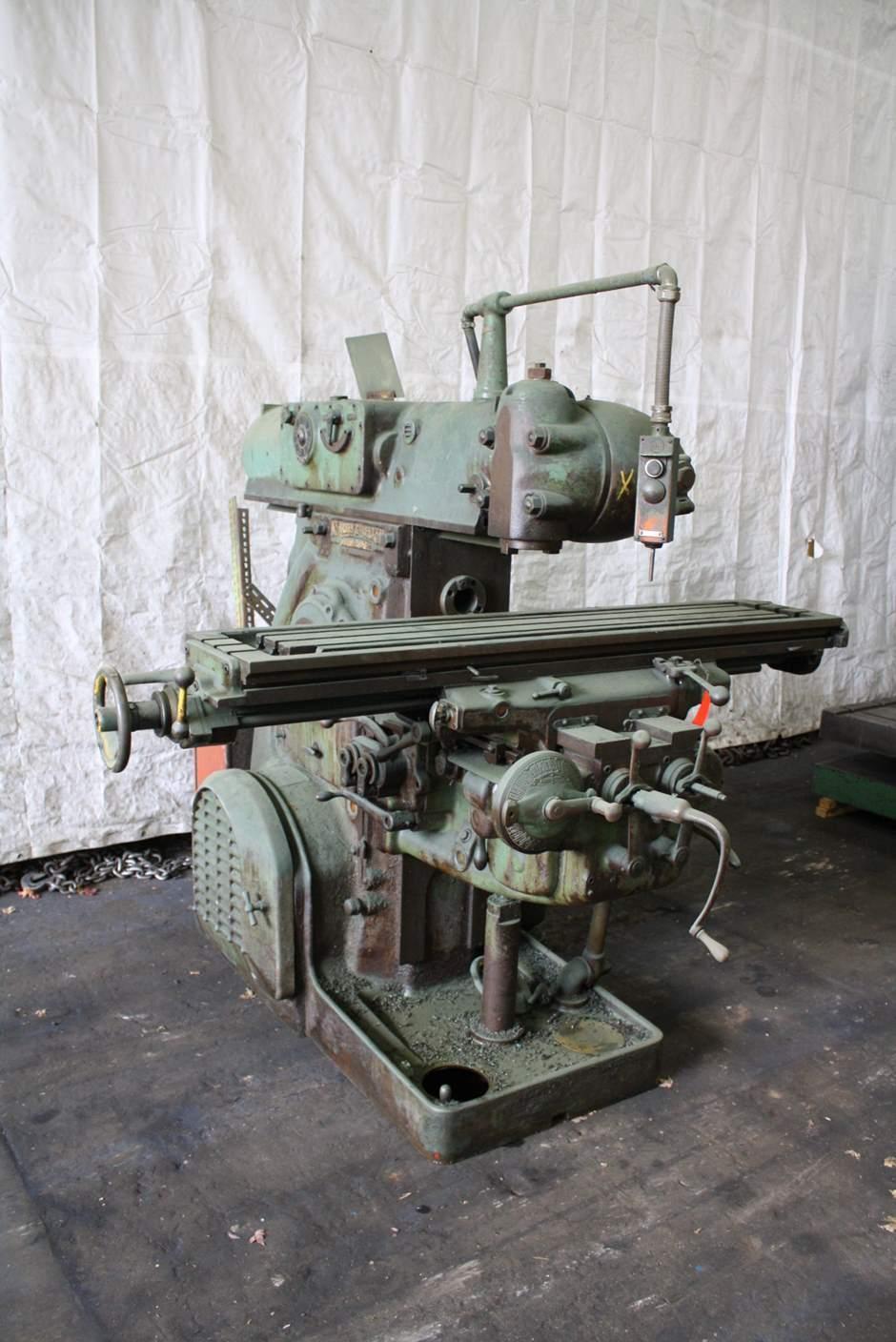

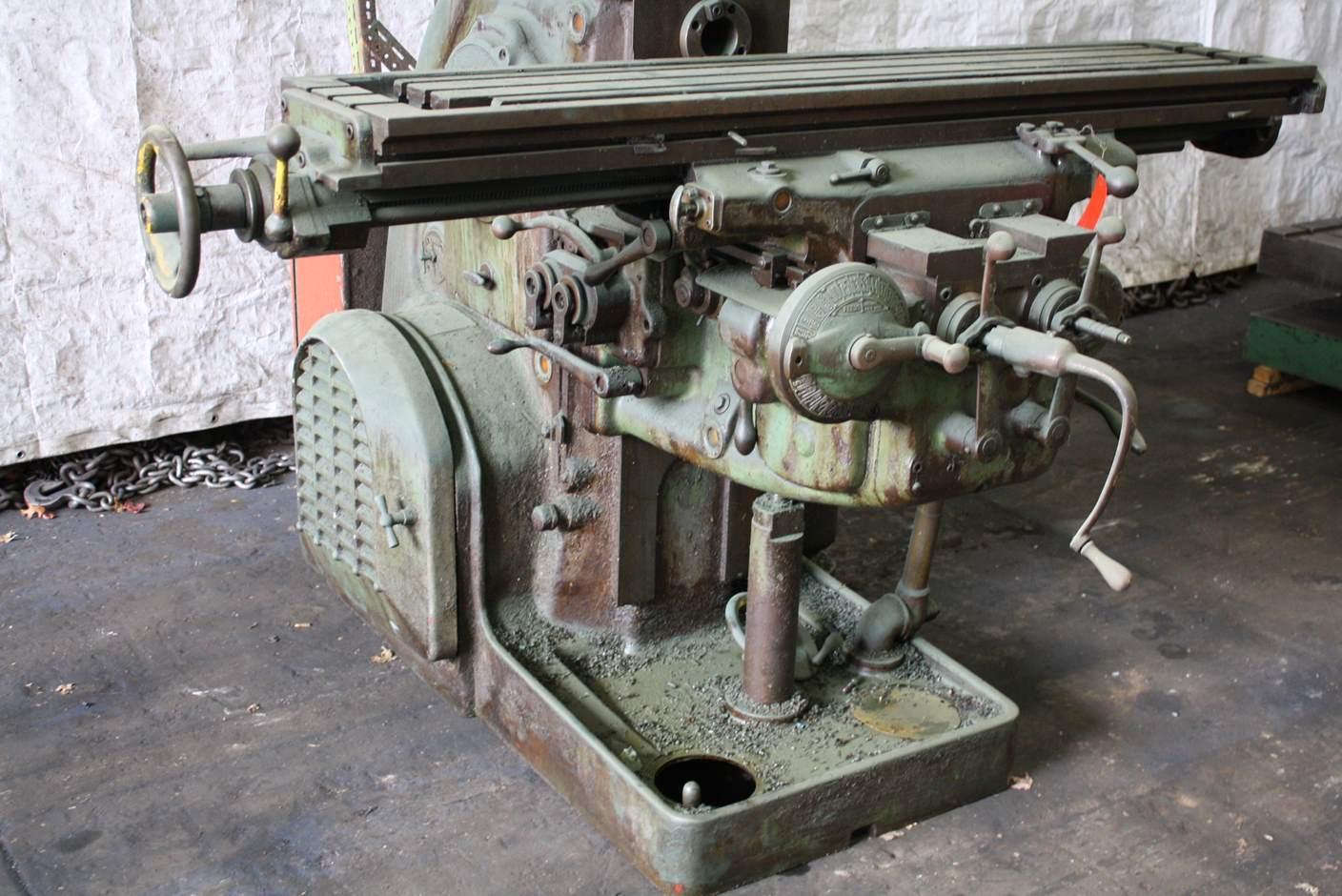

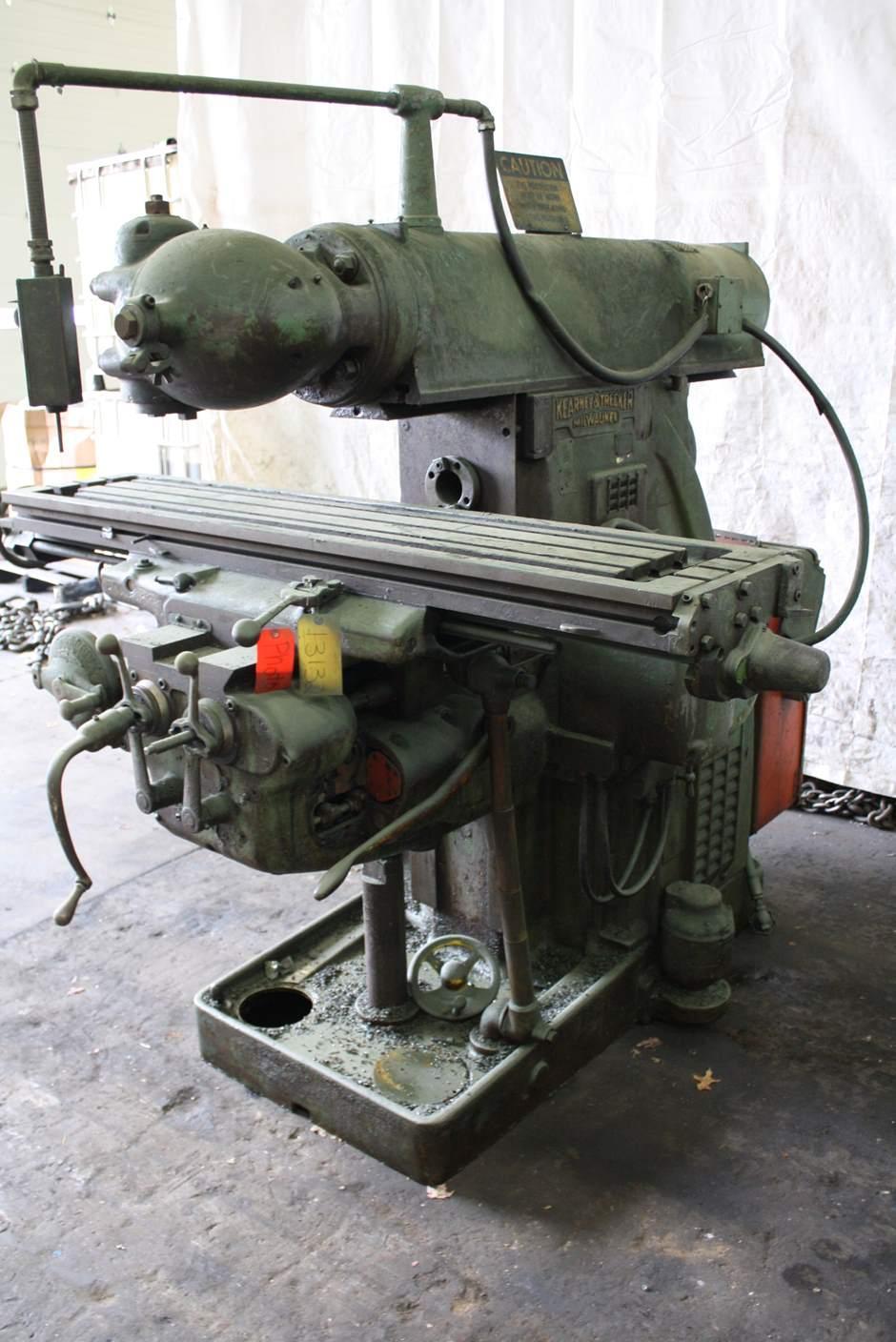

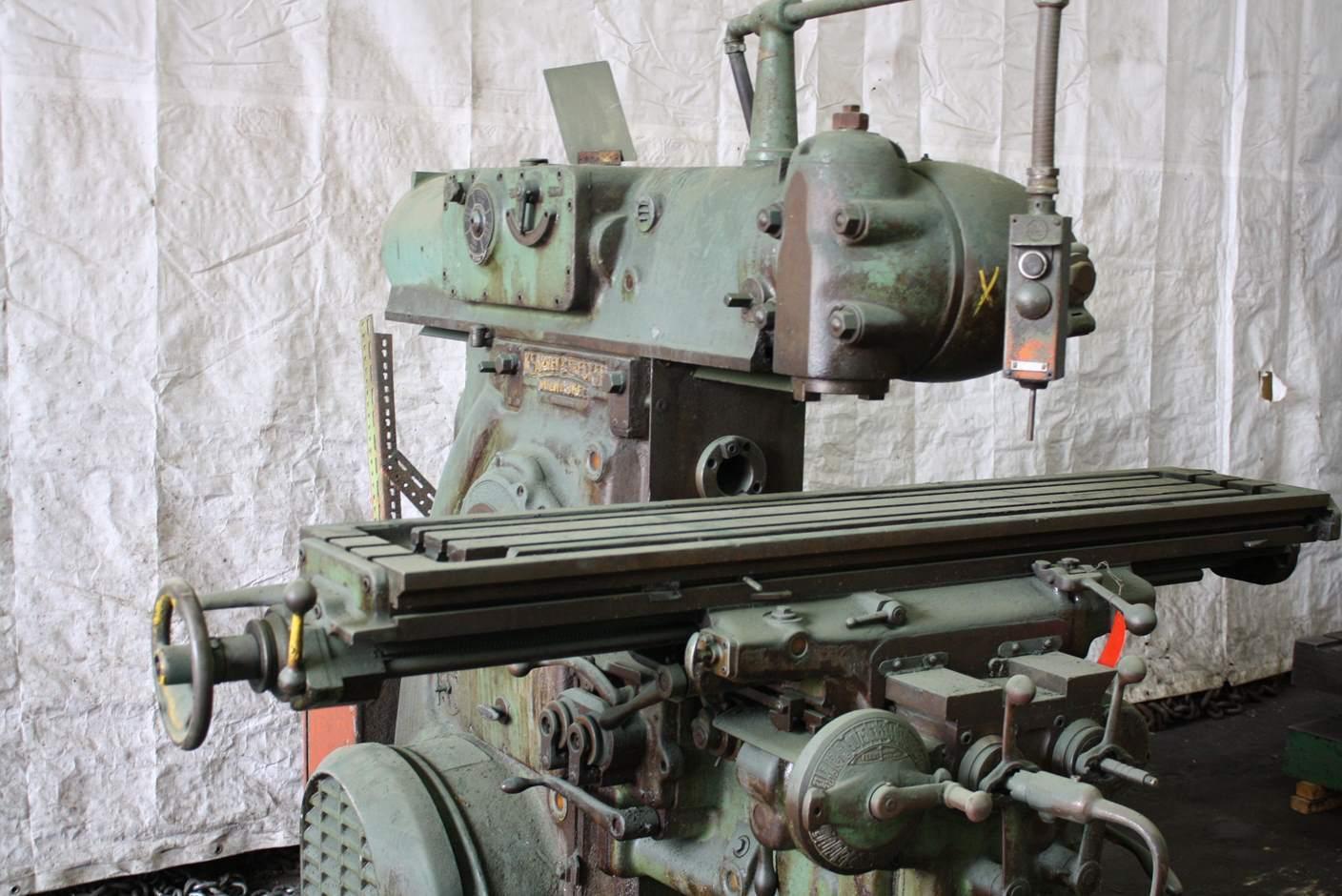

#3CH KEARNEY & TRECKER HORIZONTAL MILL: STOCK #13132

Manufacturer

KEARNEY & TRECKER

Category

Milling Machines

Type

MILLERS, PLAIN, HORIZONTAL

Stock

13132

Model

3CH

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet



SERIAL ................................... 5-7057
MODEL .................................... 3CH
MACHINE EQUIPPED W/UNIVERSAL VERTICAL HEAD MOUNTED ON OVER ARM
INDEPNEDANT OF HORIZONTAL SPINDLE
AREA OF TABLE ............................ 64" X 13-1/2"
HORIZONTAL SPINDLE SPEEDS ................ (24) 15 TO 1500 RPM
VERTICAL SPINDLE ......................... (8) 150 TO 1500 RPM
LONGITUDINAL & CROSS FEEDS ............... (32) 3/8 TO 90 IPM
VERTICAL FEEDS ........................... (32) 3/16 TO 45 IPM
LONGITUDINAL TRAVEL ...................... 34"
CROSS TRAVEL ............................. 12"
VERTICAL KNEE TRAVEL ..................... 17"
TAPER IN SPINDLE ......................... #50 NS
TABLE TO CENTERLINE OF HORIZONTAL SPINDLE . 0" MIN. TO 15-3/4" MAXIMUM
RAPID TRAVESE ............................ 150 IPM
DUAL CONTROLS
10 HORSEPOWER MAIN MOTOR
5 HORSEPOWER VERTICAL SPINDLE MOTOR
3 HORSEPOWER FEED MOTOR
