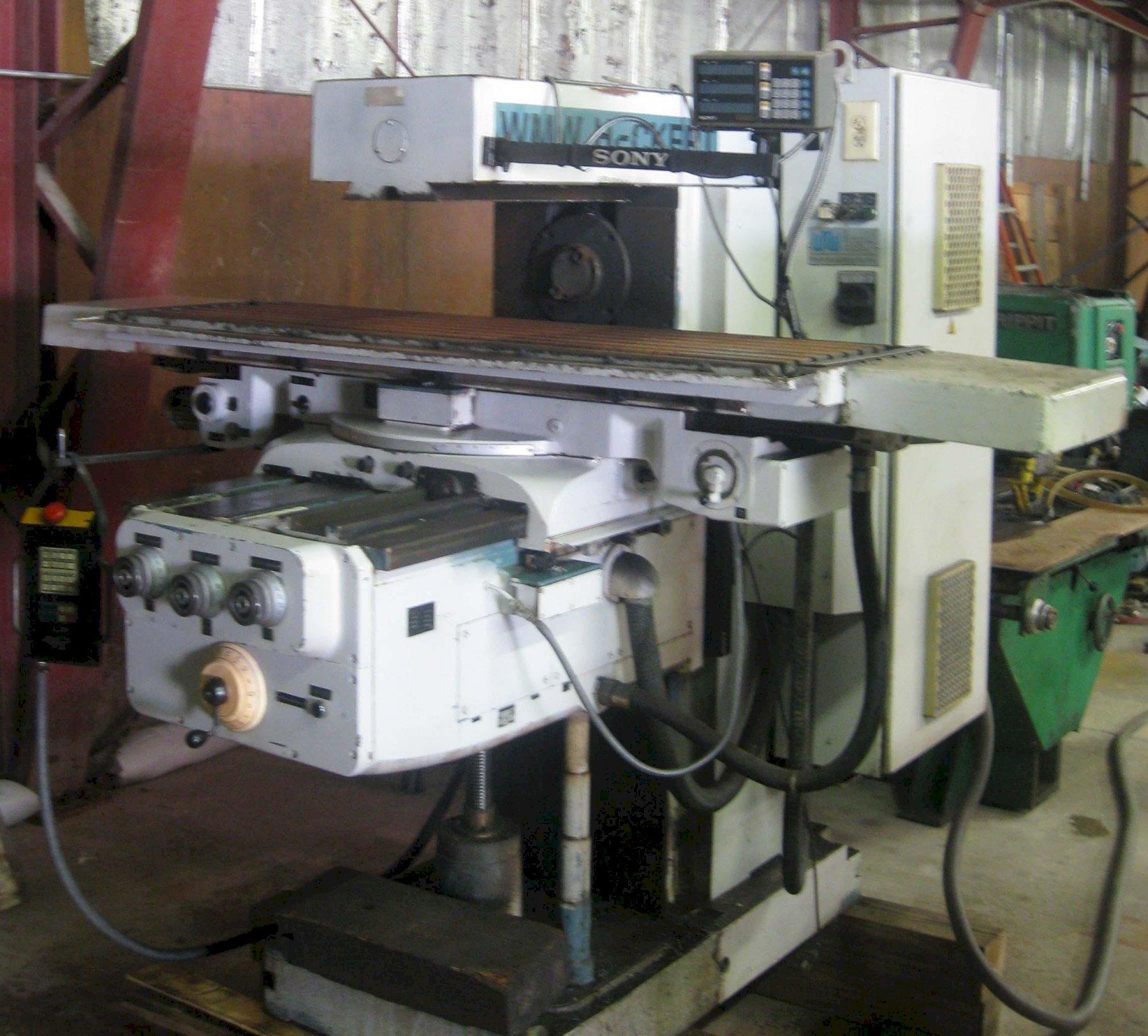

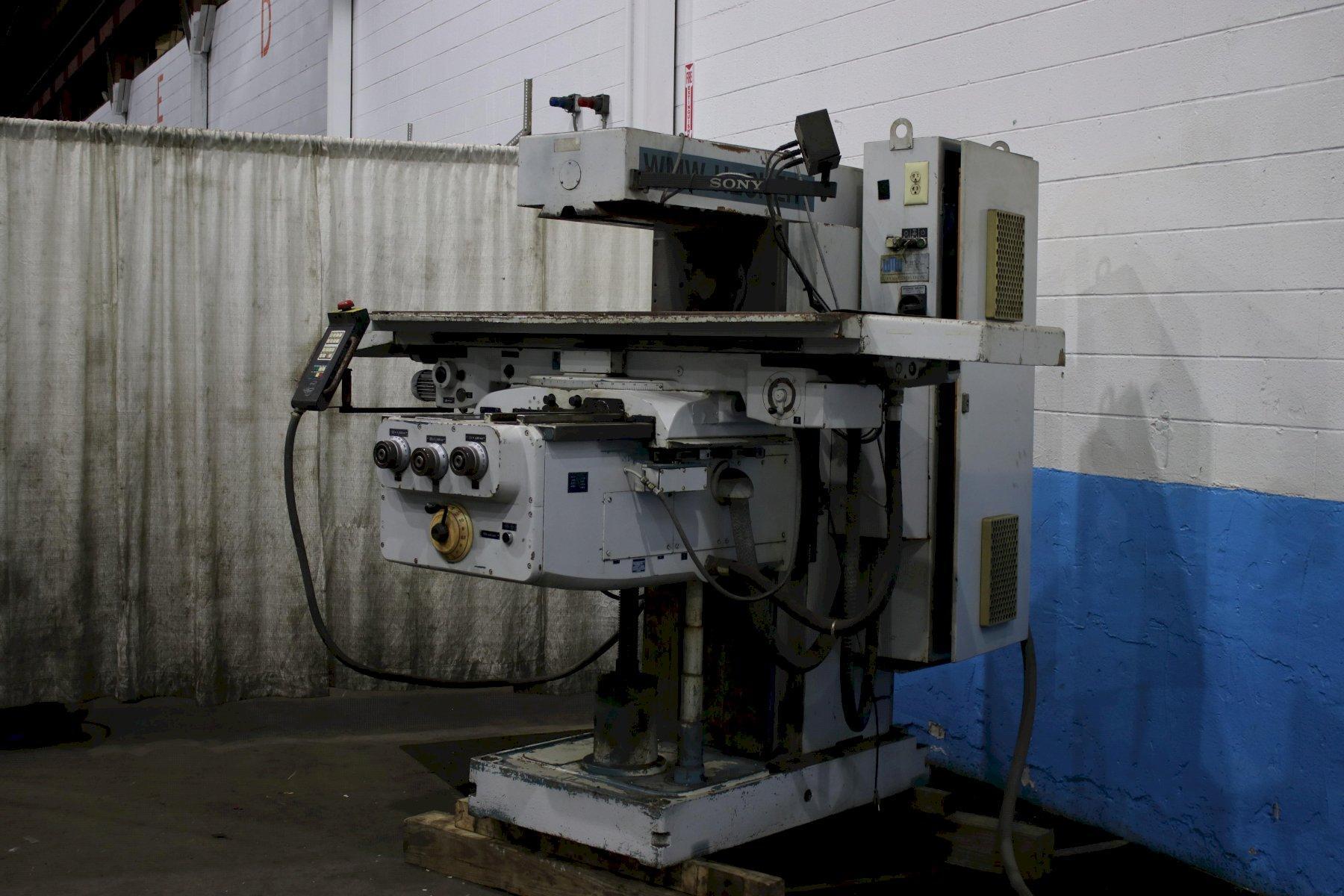

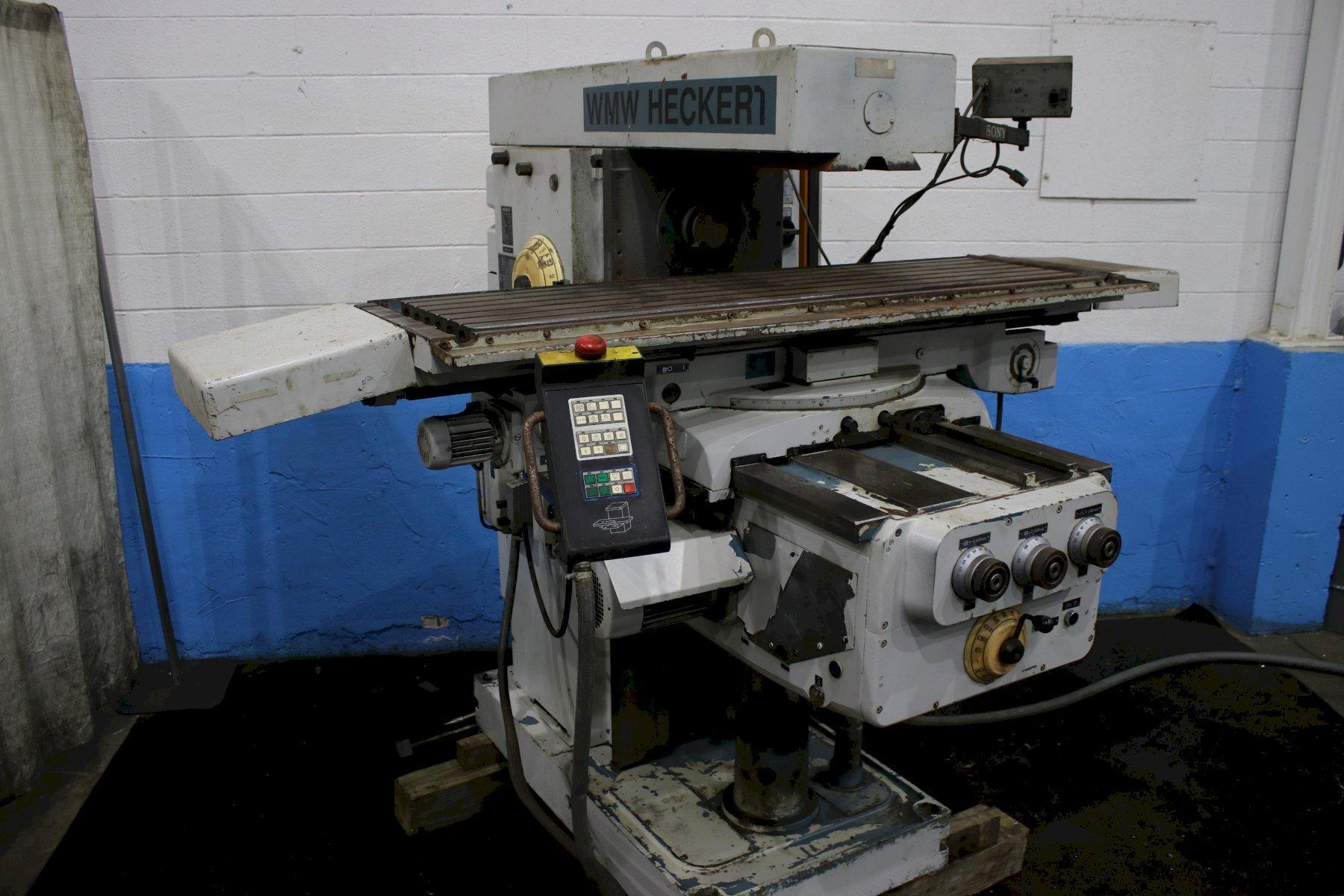

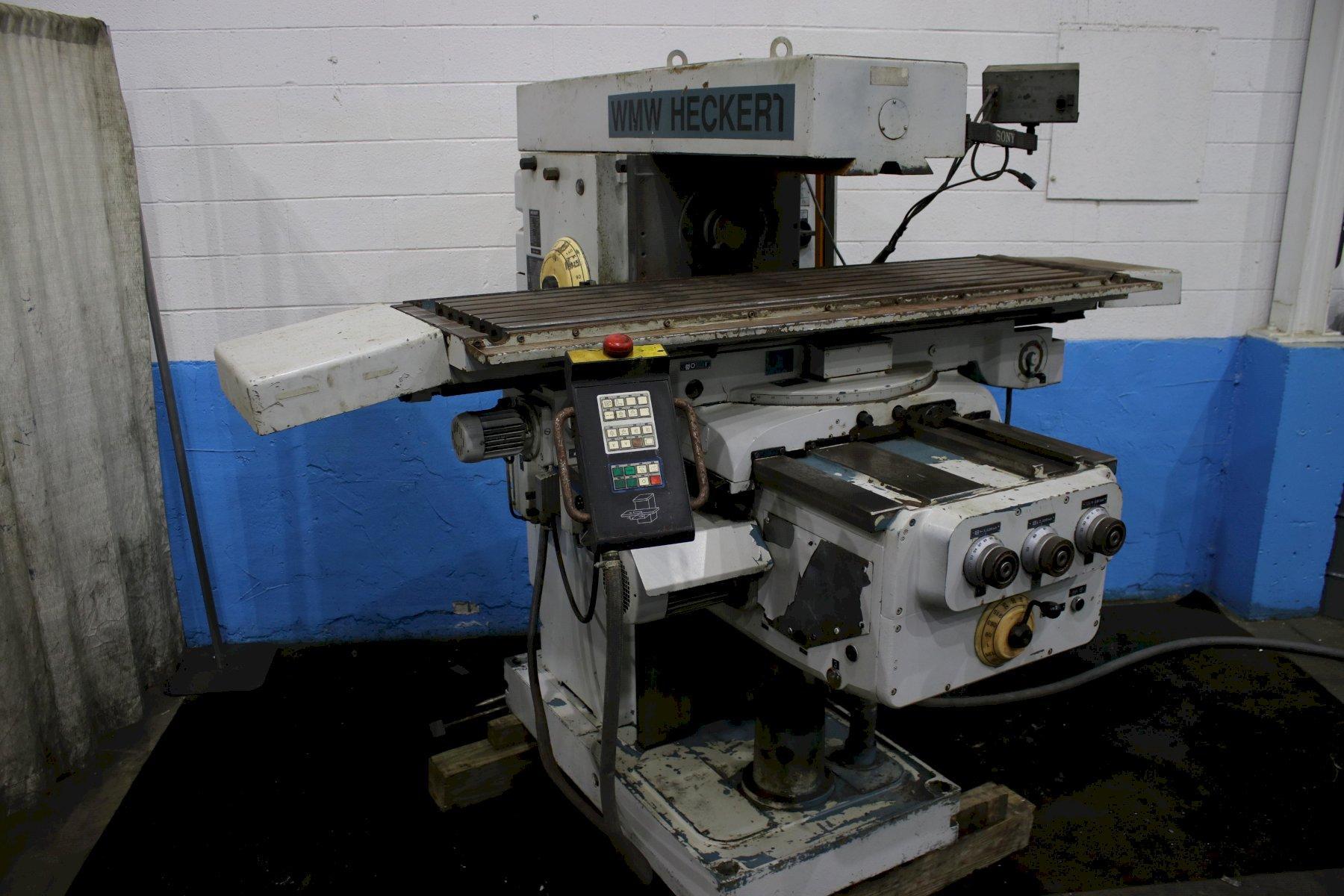

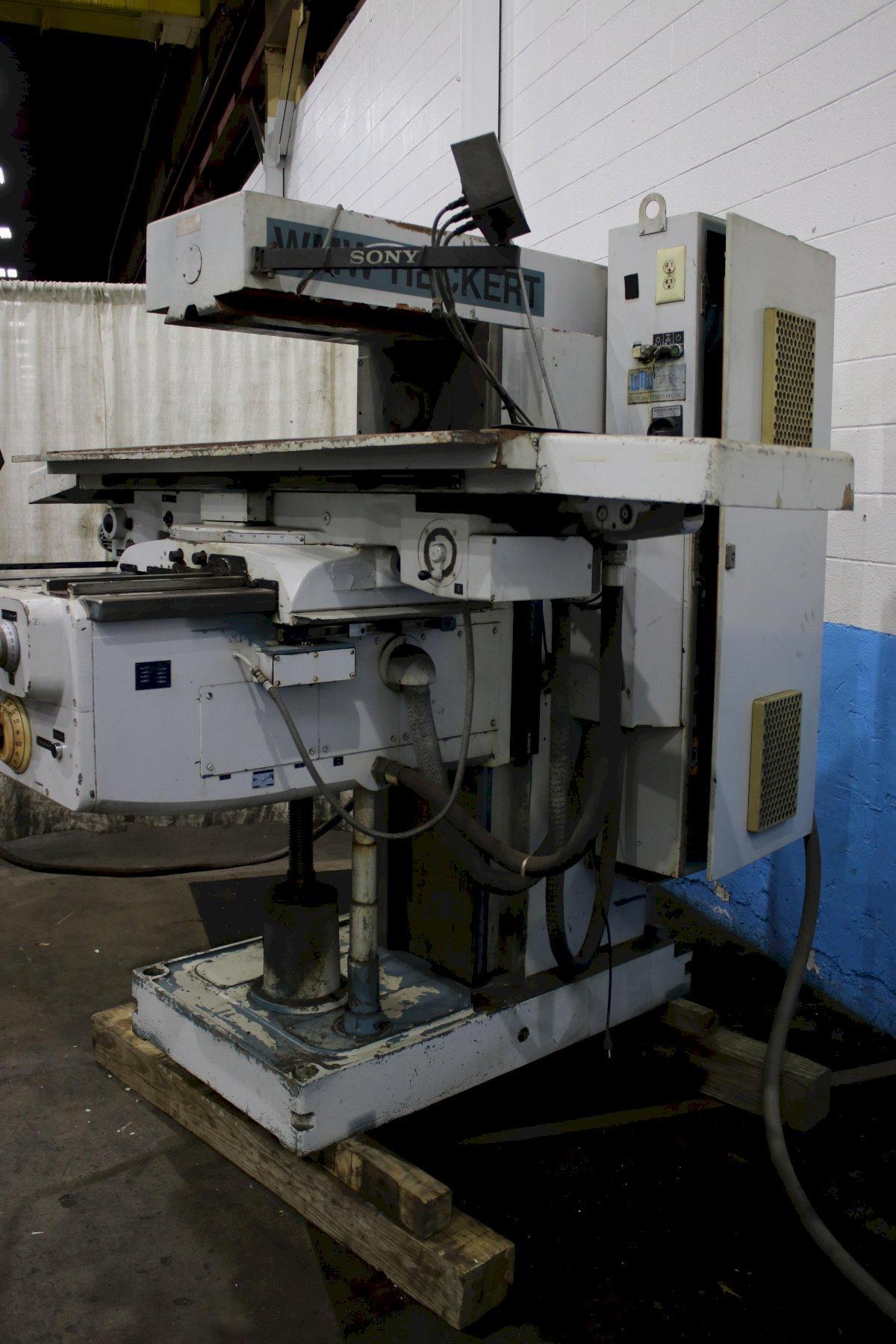

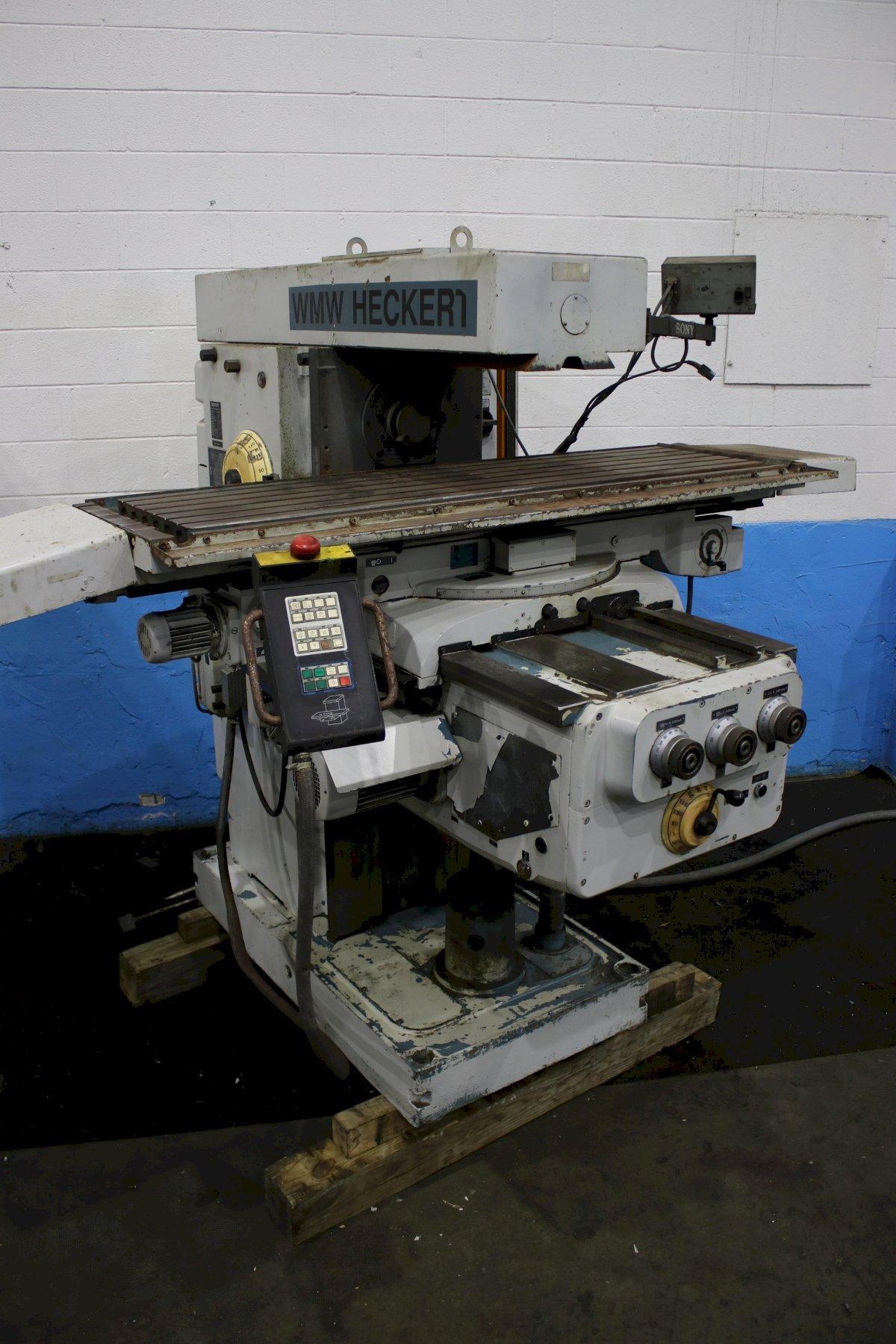

HECKERT MODEL #MS-F400-3 HORIZONTAL MILL: STOCK 59389

Manufacturer

Category

Milling Machines

Type

MILLERS, PLAIN, HORIZONTAL

Stock

59389

Model

400

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet



SN# 326211/207
Cutter Spindle : Spindle nose : 50mm tgl 7836mm ; 1.9 to 308
Diameter of front bearing : in case of FSS 400: 100mm; 3.93 "
Maximum Cutter Head diameter:315mm 25.4
Speed of cutter spindle : RPM 28-1400 mm standard 1.25 -55
Powered Workable traverse : mm
X-axis Longitudinal : 1120 mm : 44.1"
Y-Axis (transverse ) 345mm : 13.58"
Z-Axis (vertical ) 400mm standard 15.7"

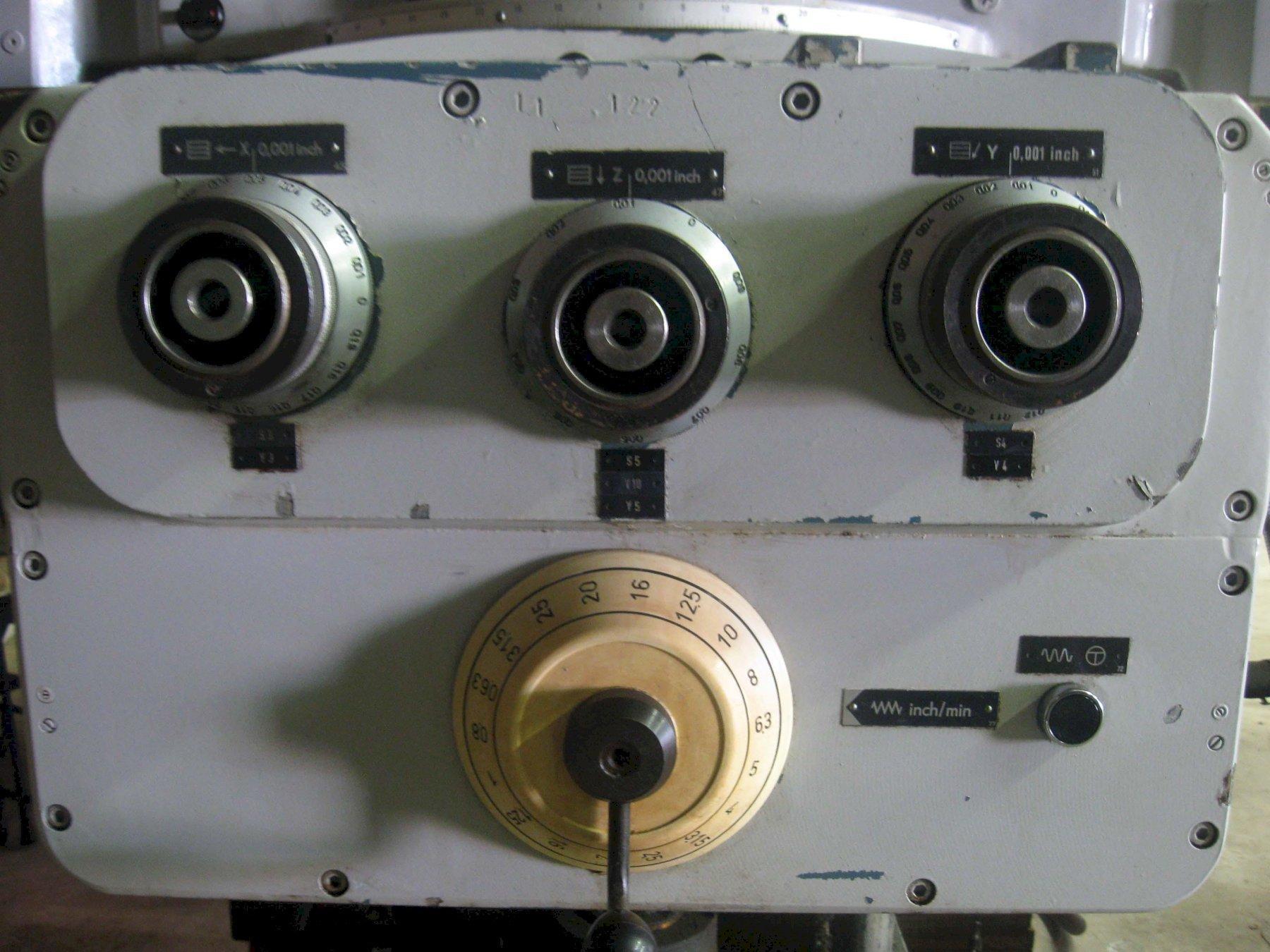

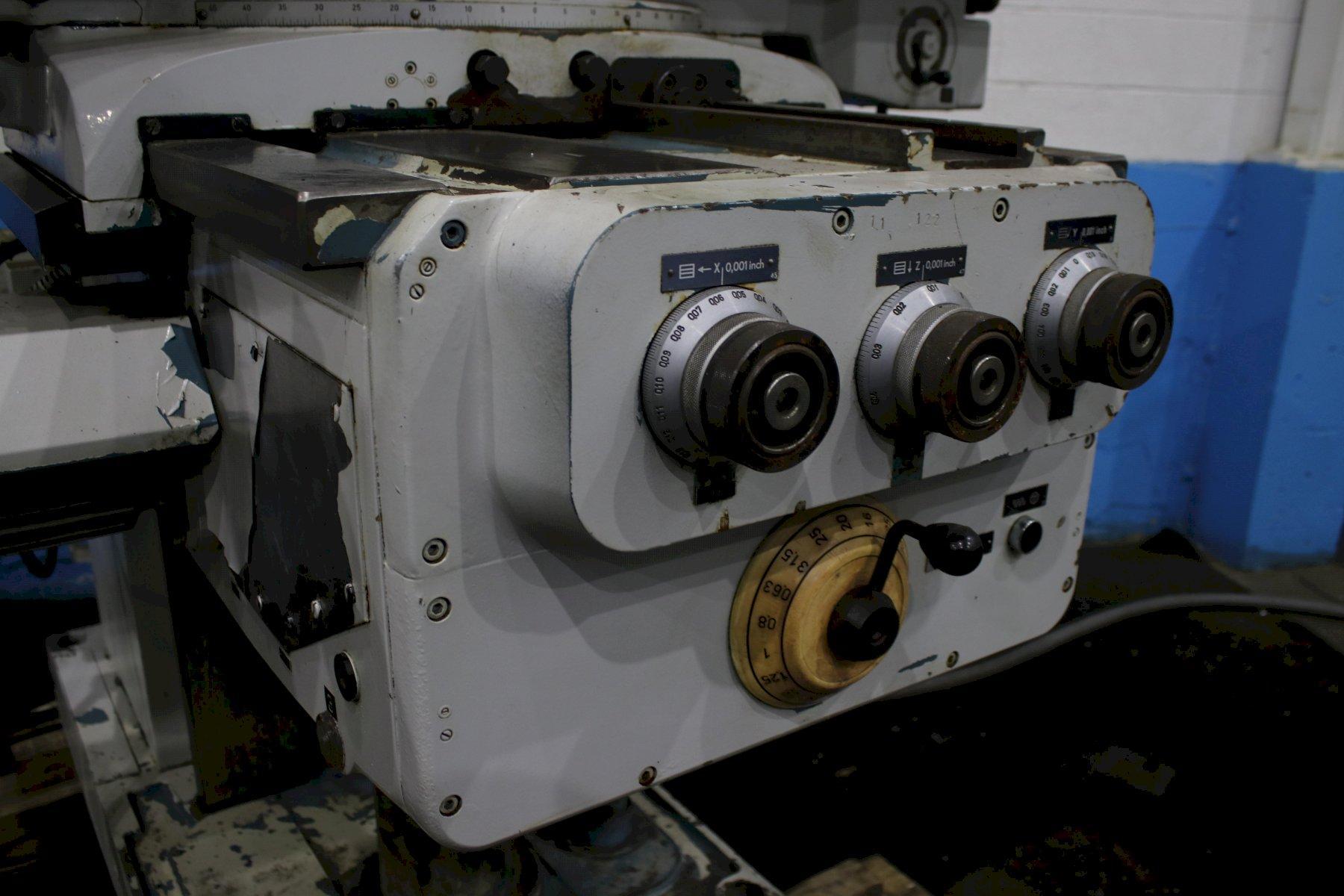

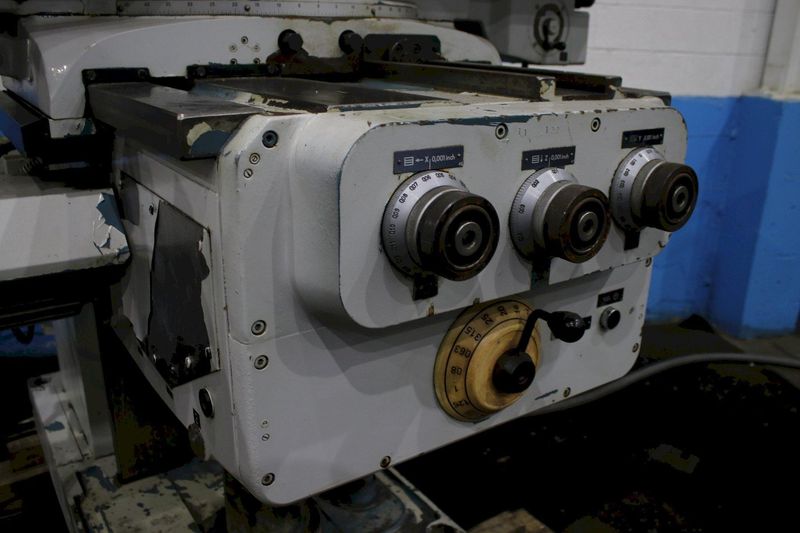

Manual worktable traverse :
X-axis 1150 mm : 45.27"
Y-axis 370 mm : 14.56"
Z-axis 430mm : 16.9"
Arbor.
Overarm L component for holding the arbor end supports
Cross slide: functions and components like those of saddle,
additionally divided into table base and cross slide thus swiveling the
worktable becomes possible.

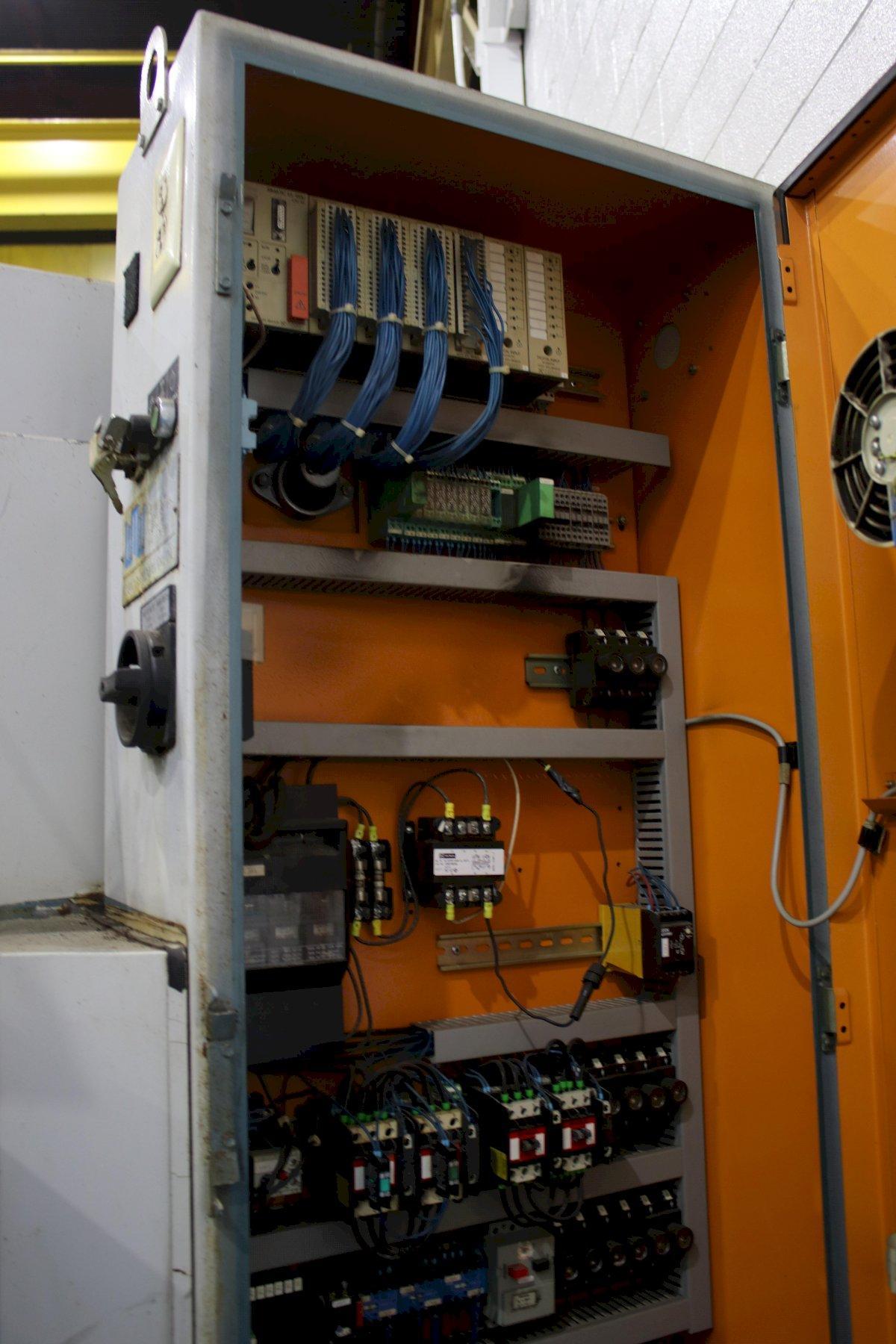

460 volts 60 hz 3 phase
made 1991
mass 12.5 kg
63 amp
18.5 kw
Weight: 7000 lbs

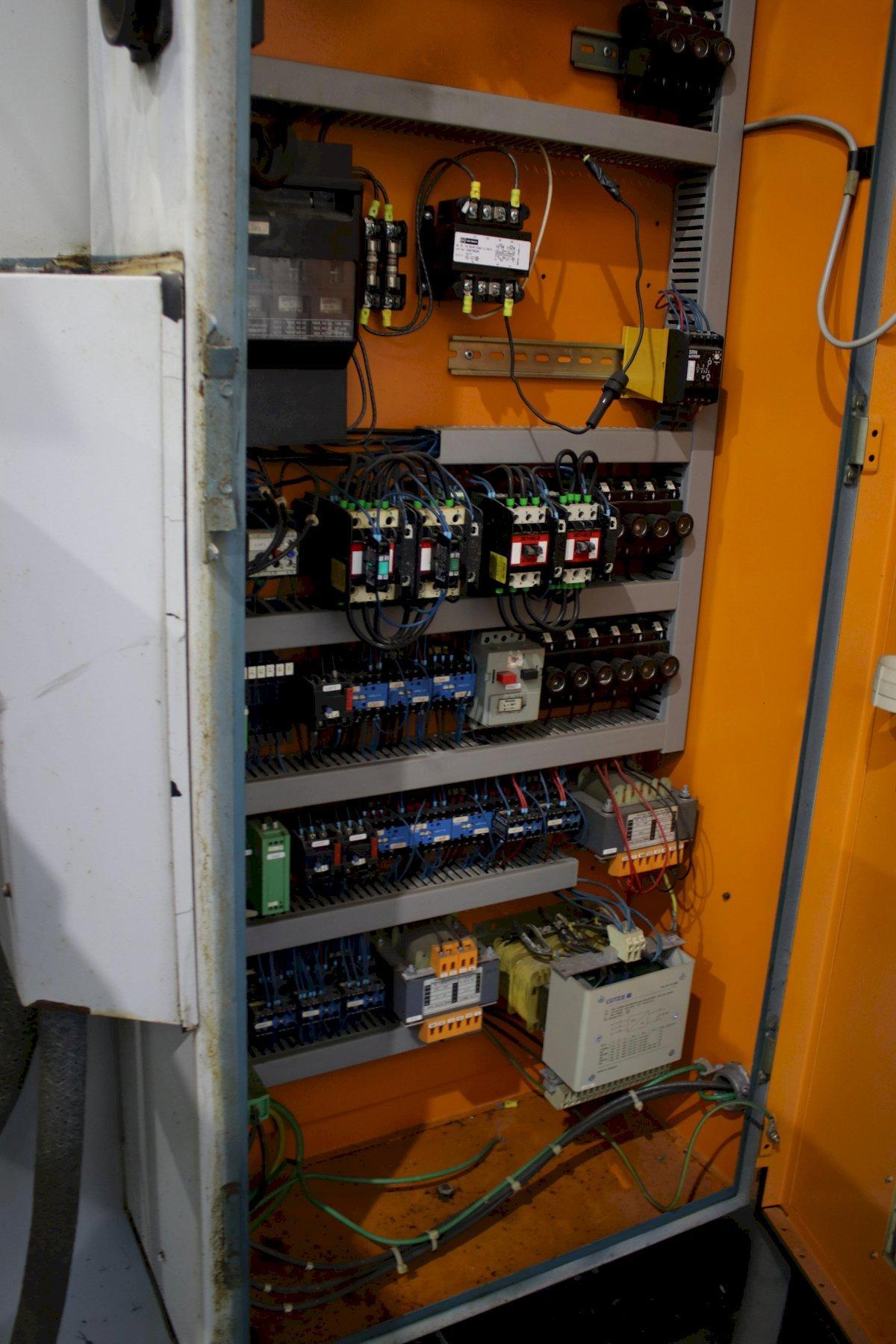

Schalt plan 517656-0tk
