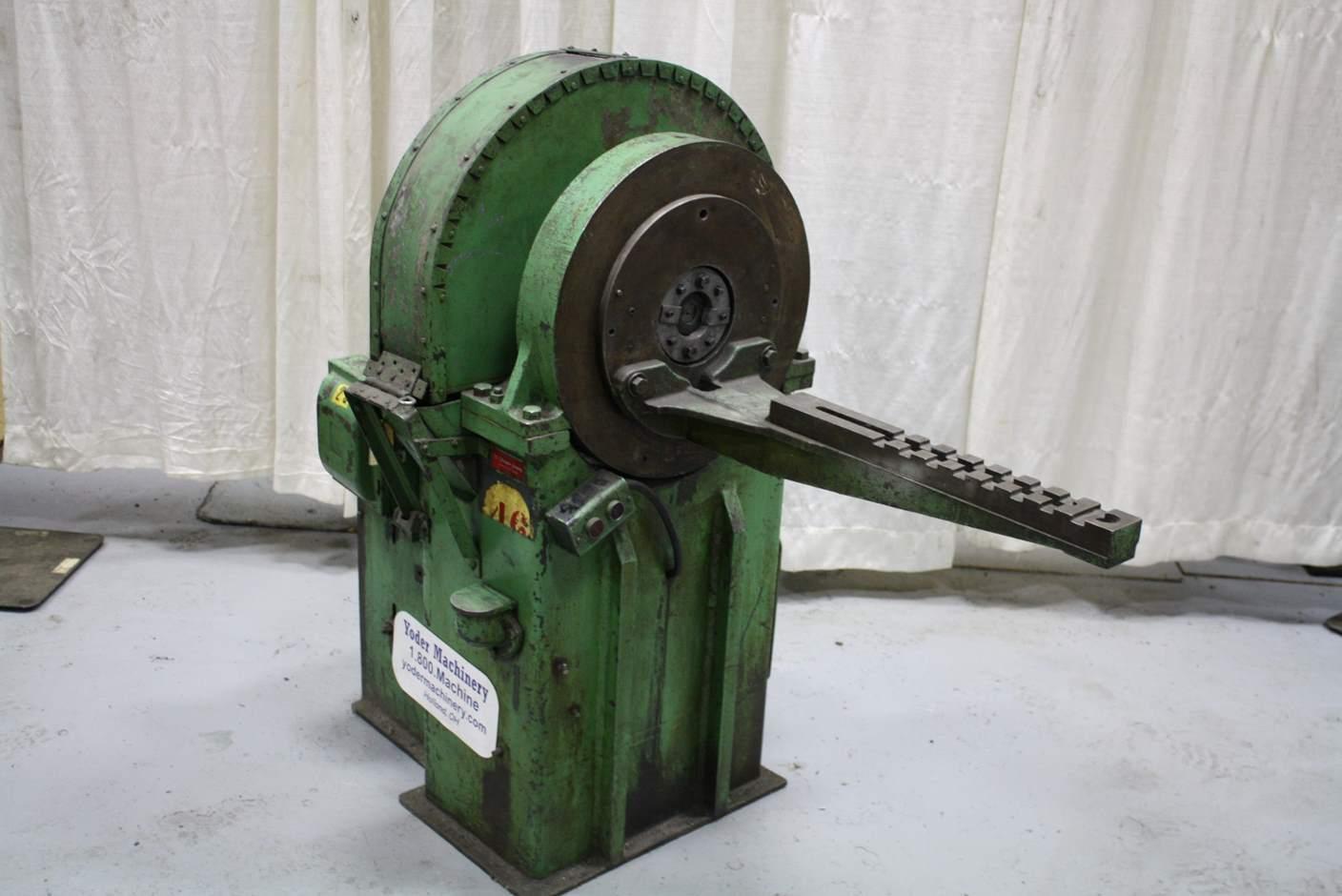

TORRINGTON #3 2-DIE SWAGER: STOCK #67092

Manufacturer

TORRINGTON

Type

SWAGERS

Stock

67092

Model

None listed

Dealer Location

Ohio

Spec Sheet



SERIAL ............................... 3157
MODEL ................................ #3
CAPACITY MILD STEEL (SOLID WORK) ..... 3/8" DOWN
CAPACITY MILD STEEL (TUBING) ......... 3/4" DOWN
LONGEST TAPER (ONE OPERATION) ........ 1-1/2"

DIE SIZE:
LENGTH ............................... 1-11/16"
WIDTH ................................ 31/32"
THICKNESS ............................ 31/32"

BACKER SIZE:
LENGTH ............................... 1-11/16"
WIDTH ................................ 2"
THICKNESS ............................ 31/32"

NUMBER OF ROLLS ...................... 12
DIAMETER OF ROLLS .................... 1-1/2"
LENGTH OF ROLLS ...................... 2-1/4"

RAFTED MACHINE SPEED ................. 400 RPM

COUNTER SHAFT:
TIGHT & LOOSE PULLEYS ................ 12" X 4"
DRIVING PULLEY ....................... 20" X 4"

FLYWHEEL (OVERHEAD FLAT BELT DRIVE) .. 25" X 3-1/4"
FLYWHEEL (V-BELT MOTOR DRIVE) ........ 25" PITCH DIA

DIAMETER HOLE THOUGH SPINDLE ......... 3/4"
