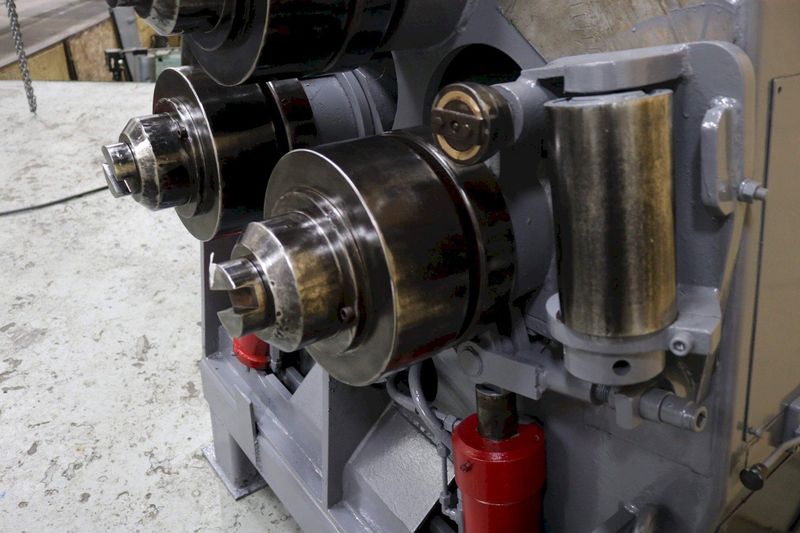

3-1/2 X 3-1/2 X 3/8 ROUNDO MODEL R-4 HYDRAULIC ANGLE ROLL: STOCK 72770

Manufacturer

Category

Rolls

Type

ROLLS, ANGLE BENDING

Stock

72770

Model

None listed

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet



SERIAL ................................. 853654
MODEL .................................. R4
YEAR NEW ............................... 1985
CAPACITY ANGLE LEG OUT ................. 3-1/2" X 3-1/2" X 3/8
CAPACITY ANGLES LEG IN ................. 3" X 3" X 3/8"
SMALLEST ANGLES ROLLED ................. 1" X 1" X 1/8"
CAPACITY FLAT ON FLAT .................. 1" X 7"
CAPACITY FLAT ON EDGE .................. 1" X 3-1/2 @ 32 DIA.
CAPACITY SQUARE BARS ................... 1-3/4"
CAPACITY ROUND BARS .................... 2"
CAPACITY PIPE .......................... 2-1/2"
DIAMETER OF BENDING ROLLS .............. 11"
ROLL SPEED, VARIABLE ................... 0 TO 23 FPM
ROLL ADJUSTMENT ........................ HYDRAULIC
THREE ROLL DRIVE ....................... YES
PENDANT CONTROL ........................ YES
MOTOR .................................. 10 HORSEPOWER
MACHINE EQUIPPED WITH ANGLE ROLLS.
