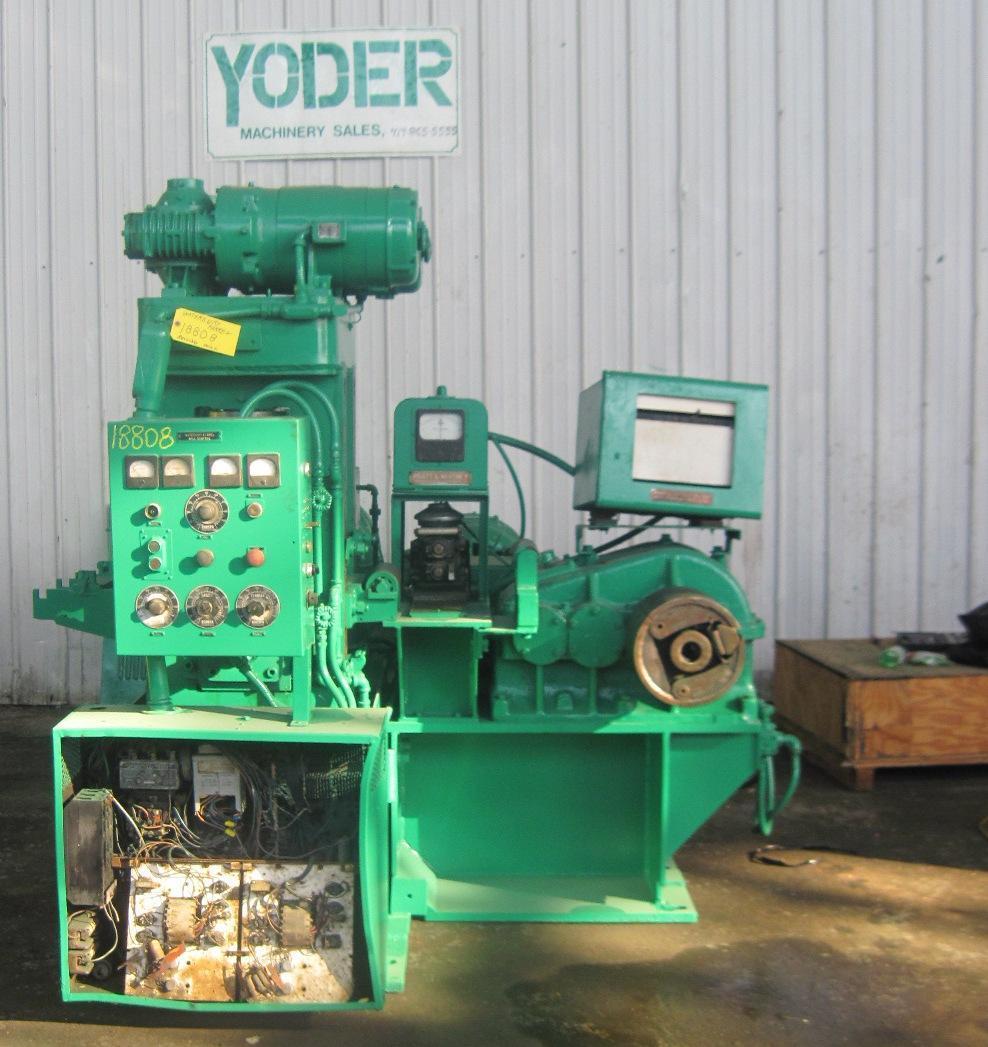

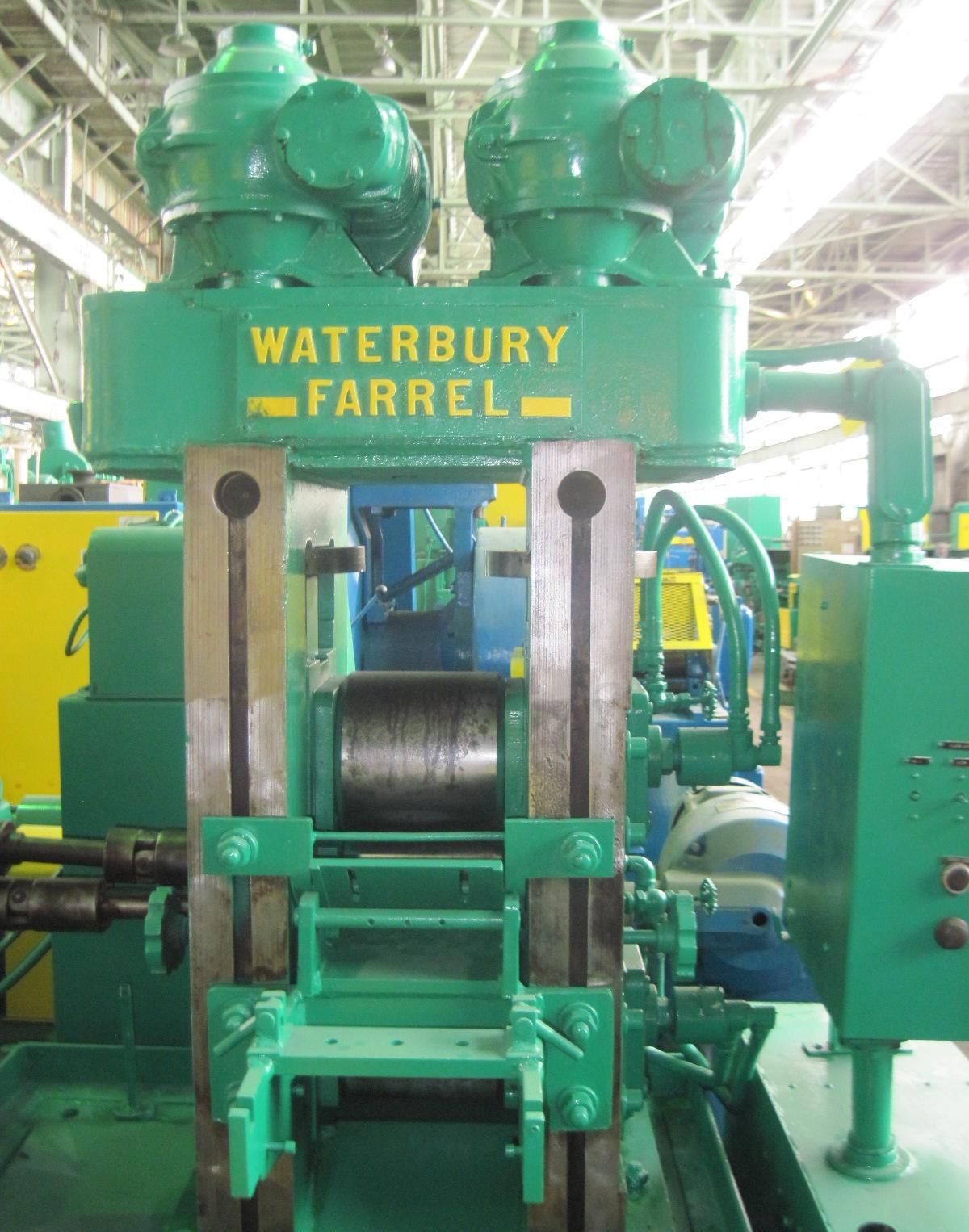

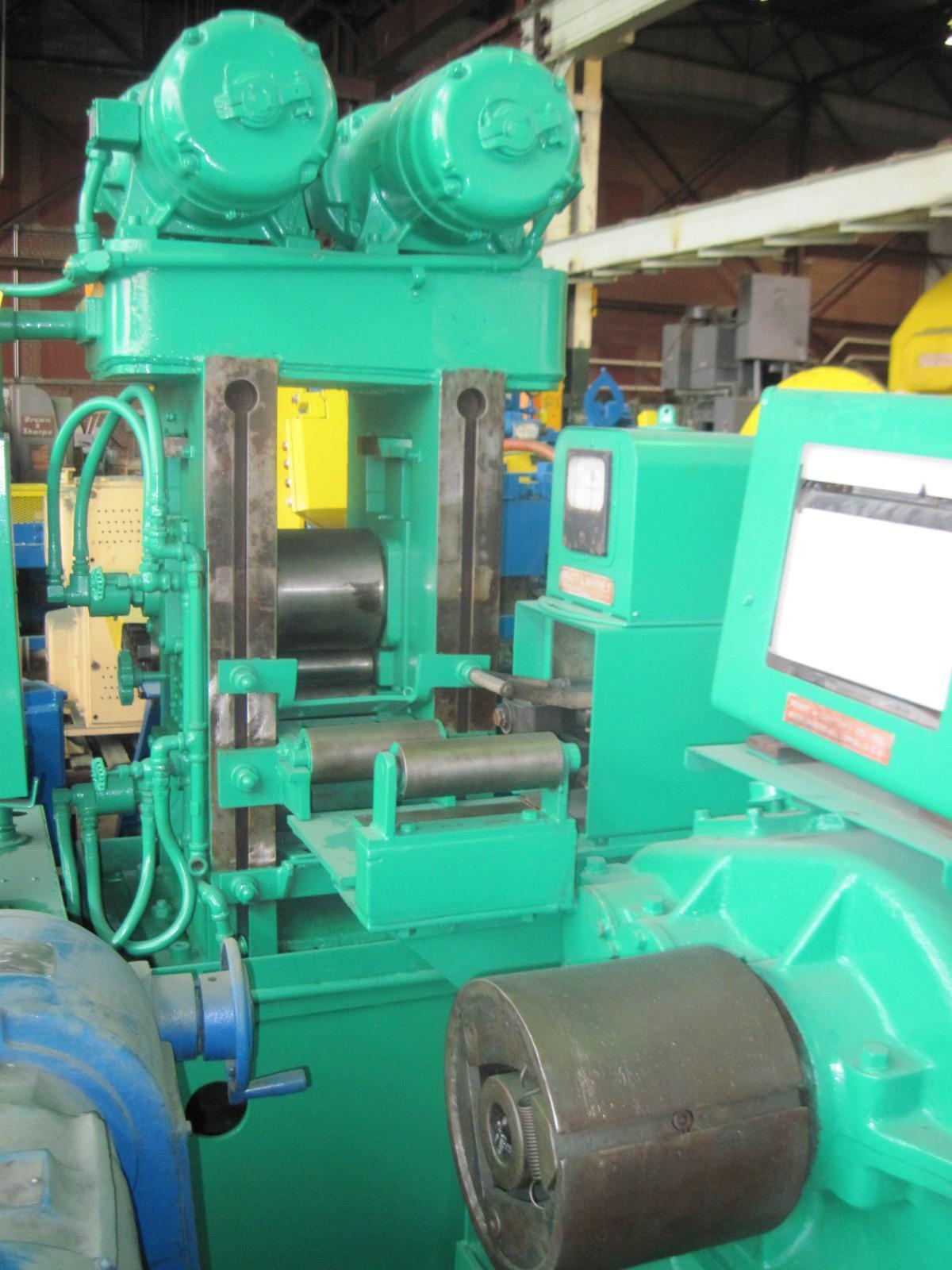

2-1/2" X 8" X 8" WATERBURY-FARREL #2 2-HI/4-HI ROLLING MILL: STOCK #18808

Manufacturer

WATERBURY FARREL

Category

Rolling Mills

Type

ROLLING MILLS, 3-HI

Stock

18808

Model

08 X 08 X 02.5

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet



SINGLE STAND WITH INTRICAL TAKE-UP COILER
WORK CAPACITY .............. .060" DOWN TO .005" FINAL THICKNESS
LOW CARBON STEEL & NON-FERROUS
WORK ROLL DIAMETER .................... 2-1/2"
WORK ROLL FACE ........................ 8"
BACK UP ROLL DIAMETER ................. 8"
BACK UP ROLL FACE ..................... 8"
RATE OF SCREWDOWN ADJUSTMENT........... .20 INCHES PER MINUTE
POST SIZE ............................. 5-1/2" F-B X 4-3/4" WIDE
LINE SPEED ............................ UP TO 600 FPM
DISTANCE BETWEEN WORK ROLL ATTAINABLE . 1" APPROXIMATELY (AS TOOLED)
MOTORIZED SCREWDOWNS

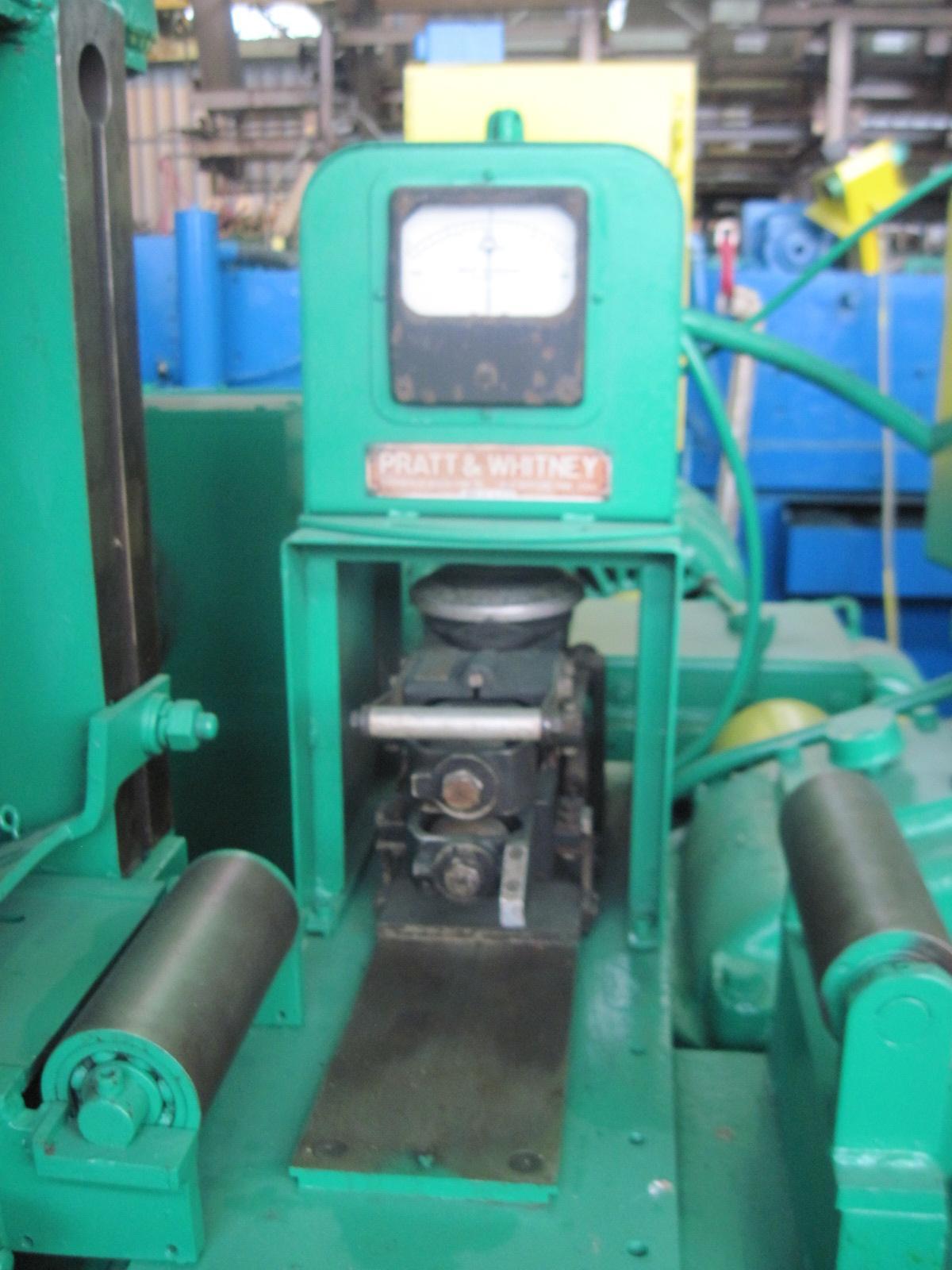

PRATT & WHITNEY THICKNESS GAUGE - S/N M-876 - MODEL #10A ANALOG DISPLAY
GRADUATIONS ARE IN .0001 INCREMENTS
UNIVERSAL WORK ROLL DRIVE

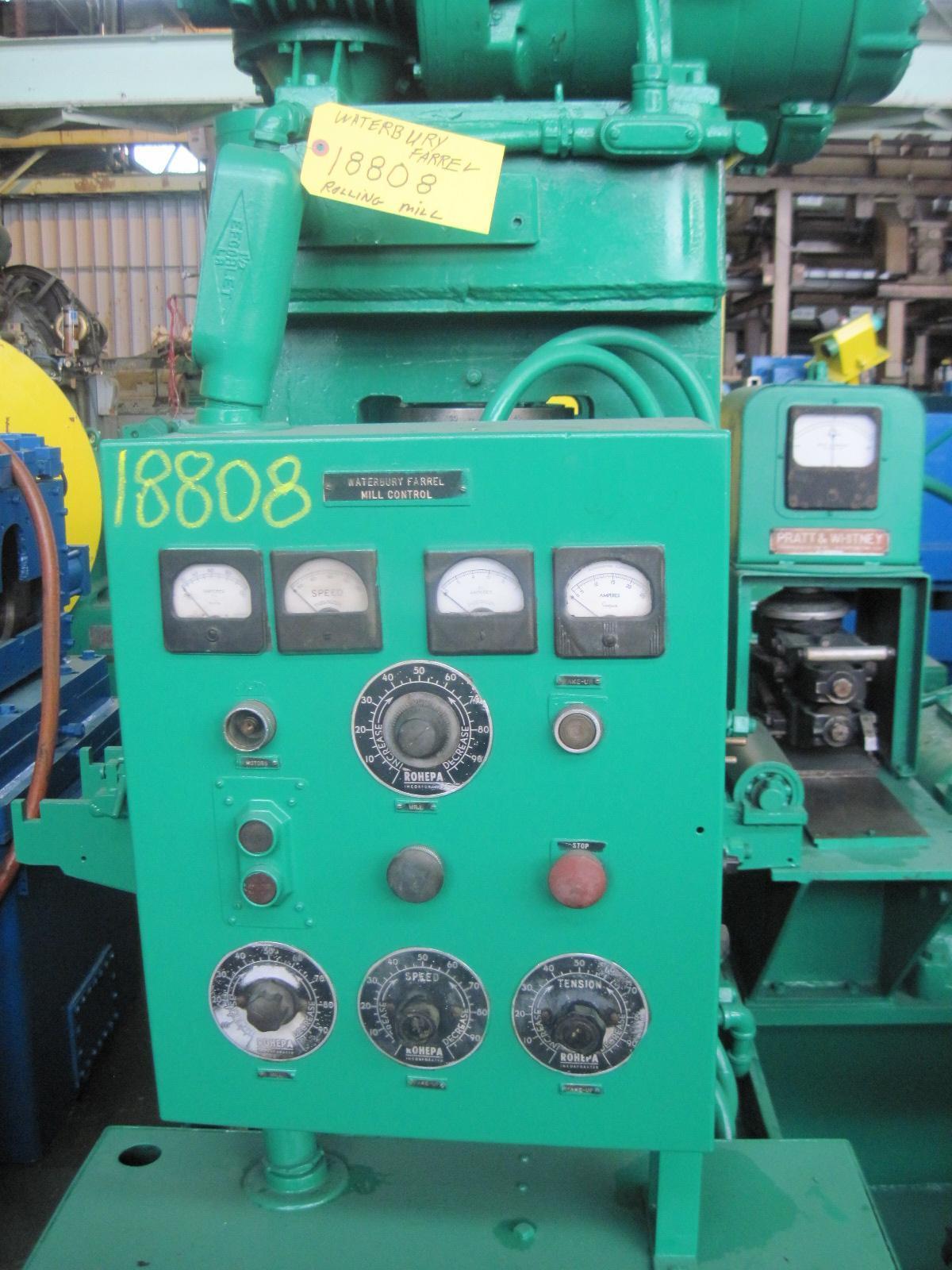

CONTROL PANEL
SPARE ROLLS
GEAR BOX WITH UNIVERSAL DRIVE TO WORK ROLLS ON MILL

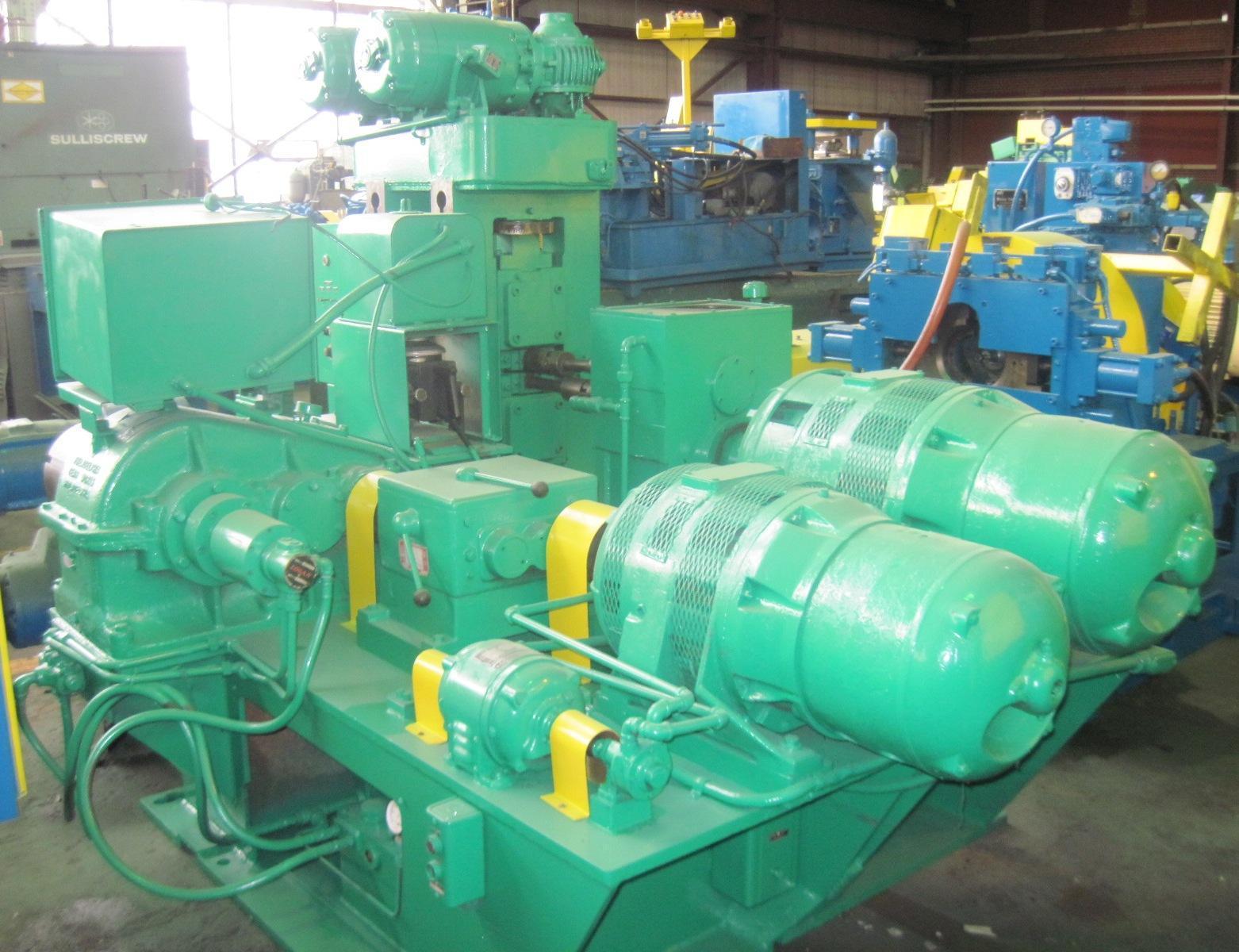

MOTOR - MILL DRIVE .................... 25 HORSEPOWER
MOTOR - REWIND DRIVE .................. 10 HORSEPOWER
SCREWDOWN MOTORS ...................... 3/4 HORSEPOWER
COOLING PUMP .......................... 1/2 HORSEPOWER
WATER COOLED BACK UP ROLLS
ENTRY & EXIT SUPPORT ROLLS
TIMKIN ROLLER BEARINGS
CHART RECORDER ........................ SCROLL TYPE
REWINDER ................... 10" FACE X 12" DIAMETER
(COLLAPSING MANDREL - HYDRAULIC OPERATED)

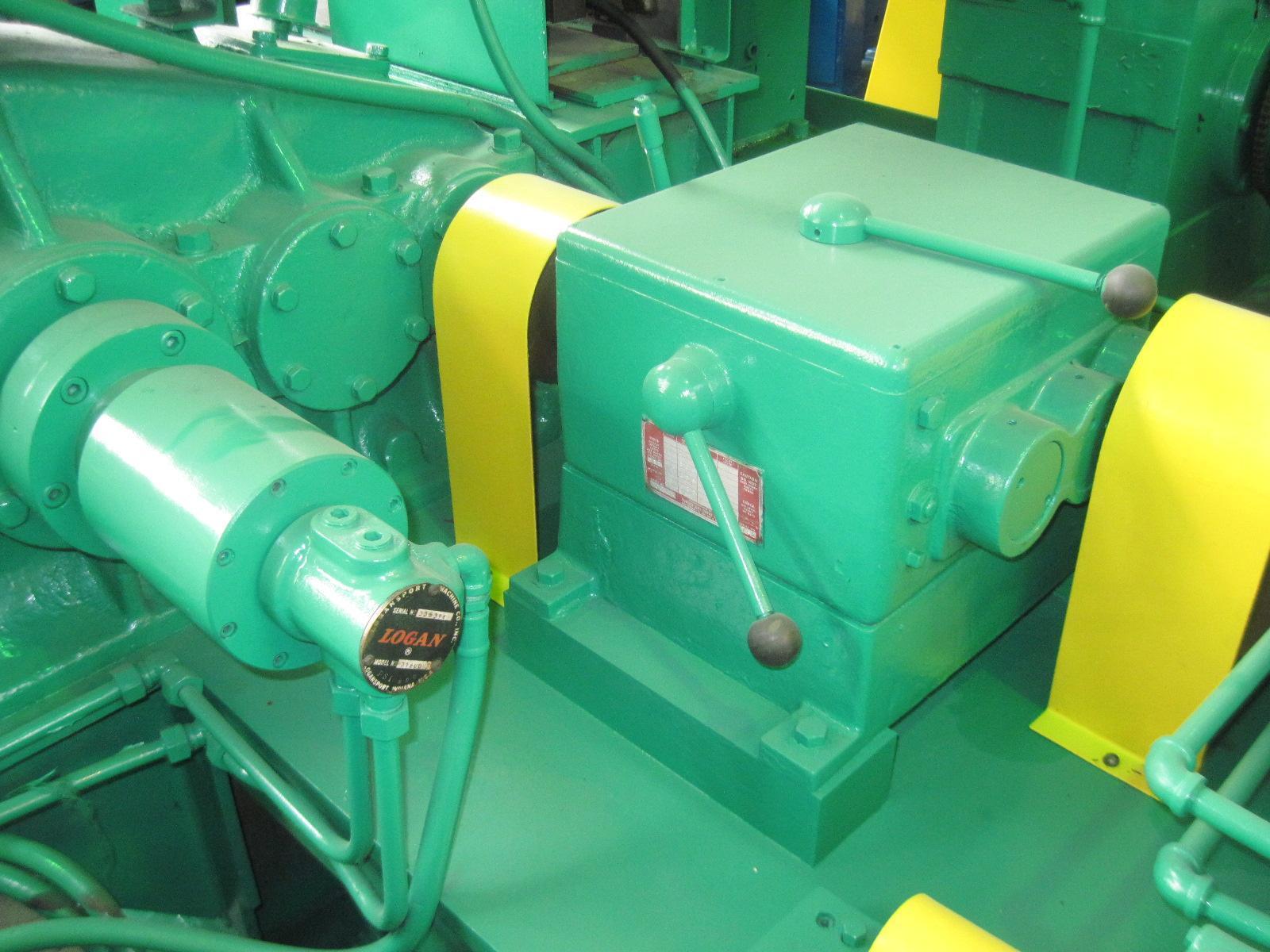

GEAR BOX DRIVE & 4-SPEED TRANSMISSION WITH 633 RPM INPUT
210, 306, 435, 633 OUTPUT, VIA QUICK CHANGE LEVERS
HYDRAULIC EXPANSION
