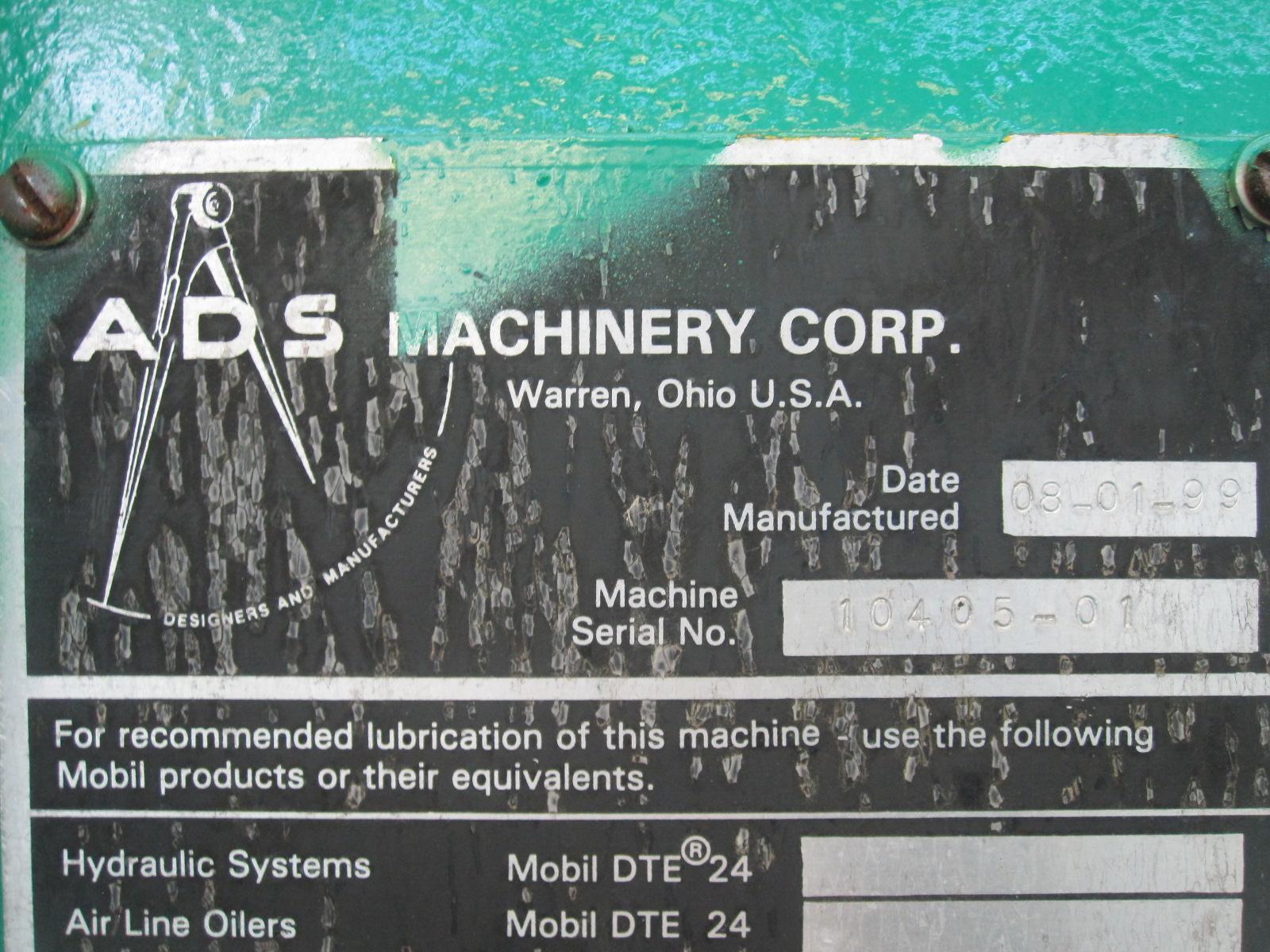

5-1/2' X 15' X 12' FACE FENN FOUR-HIGH ROLLING MILL: STOCK #59449

Manufacturer

Category

Rolling Mills

Type

ROLLING MILLS, 3-HI

Stock

59449

Model

5.5' x 15' x 12'

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet



MATERIAL TO BE ROLLED ........... LOW CARBON GALVANIZED STEEL
MAX WIDTH ....................... 8"
NORMAL WIDTH .................... 6.5"(APPROX)
MAX STARTING THICKNESS .......... .035
NORMAL STARTING THICKNESS ....... .032
MIN FINISHED THICKNESS .......... .018"

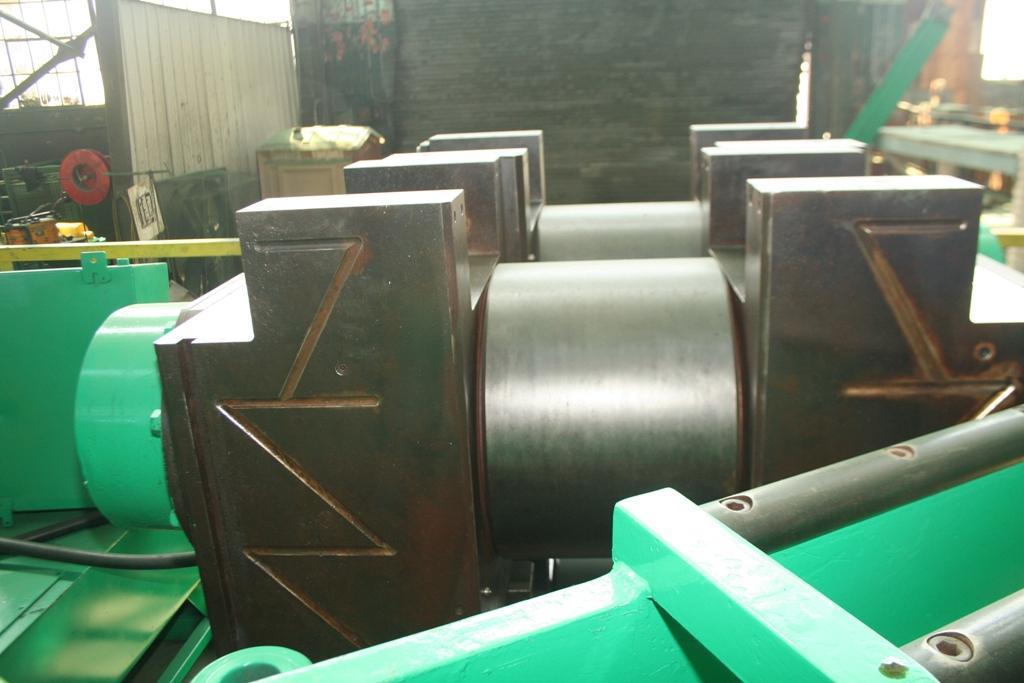

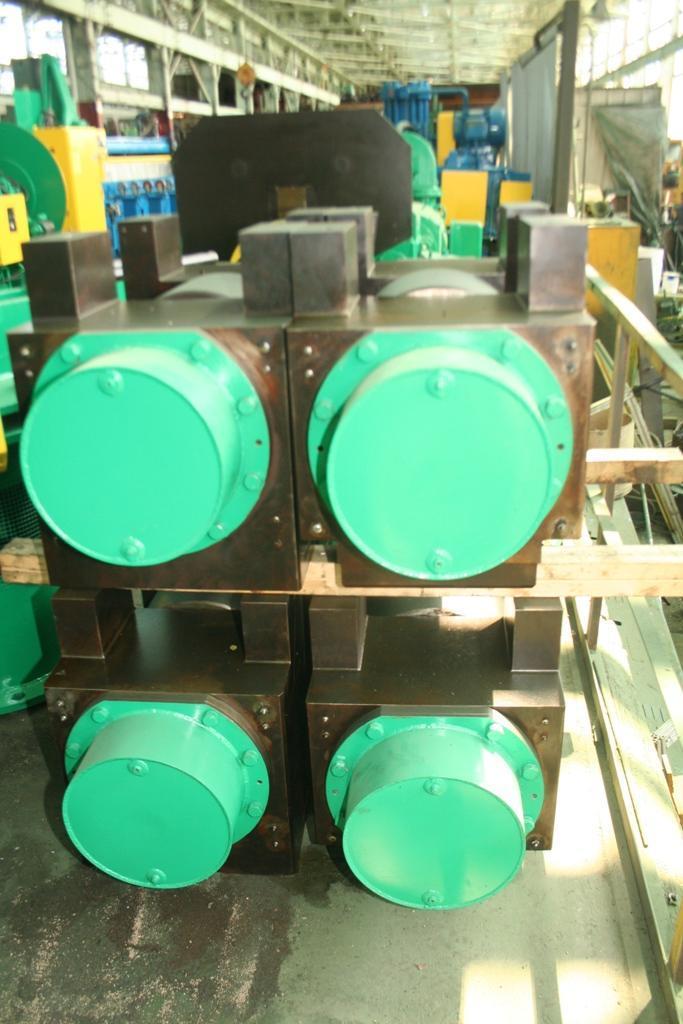

ROLL SIZE:
WORK ROLL ...................... 5-1/2" DIA X 12" FACE
BACK UP ROLL ................... 15" DIA X 12" FACE

MAX SEPARATING FORCE CAPACITY .. 400,000 LBS @ 500 FPM
SPEED RANGE .................... 0/600 FPM

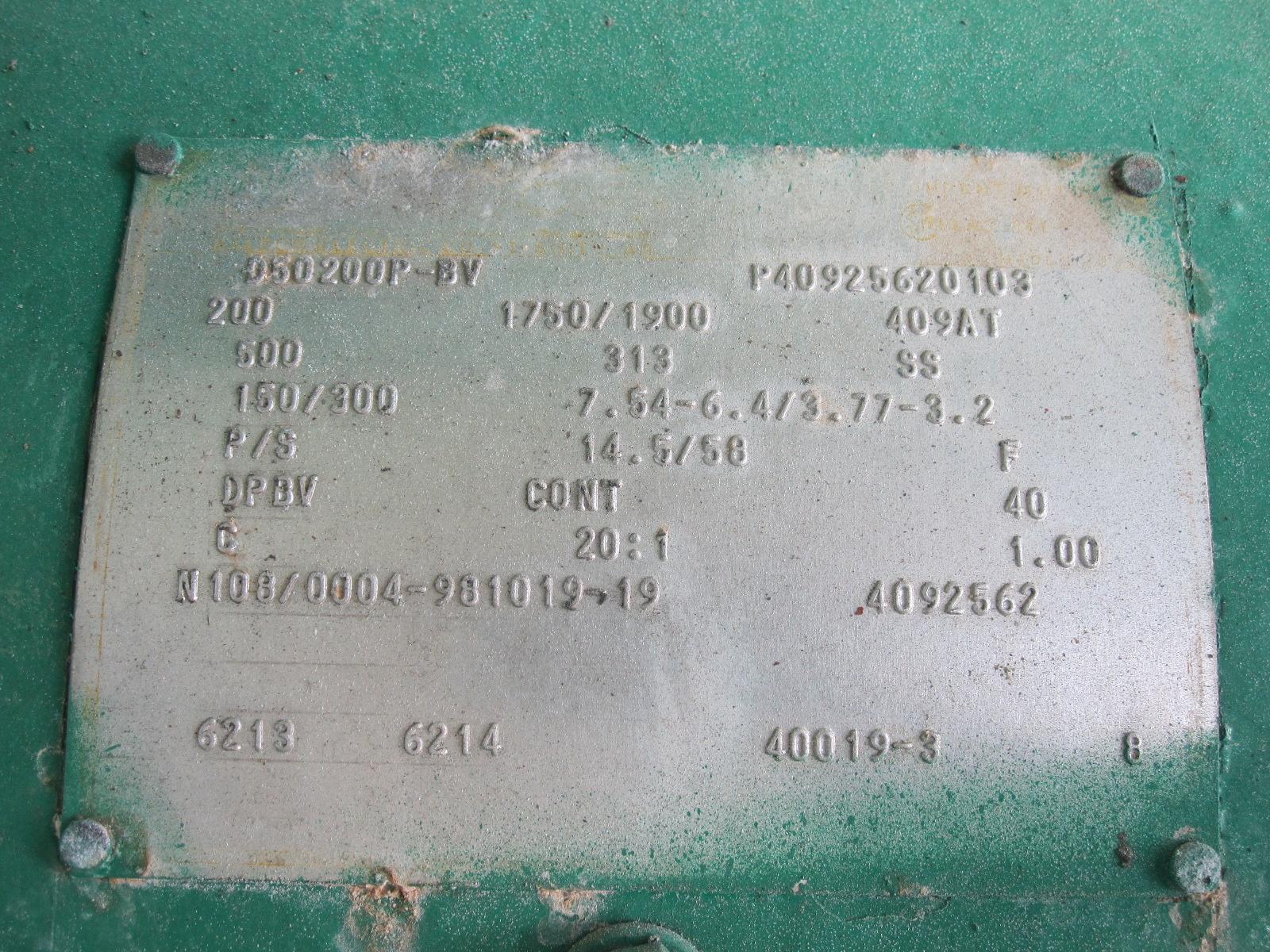

MILL DRIVE ..................... 200 HP/1750 RPM
TAKE UP DRIVE .................. 50 HP / 500/1500 RPM
LINE DIRECTION ................. LEFT TO RIGHT

MAX MILL DUTY WILL BE TO REDUCE 6.5" W X .032" THICK STRIP DOWN TO .018"
THICK IN ONE PASS (APPROX 40% REDUCTION) AT LINE SPEED OF 500 FPM. A MAX
LINE OF 600 FPM IS ACHIEVABLE WITH LIGHTER DUTY APPLICATIONS.

EQUIPPED WITH:

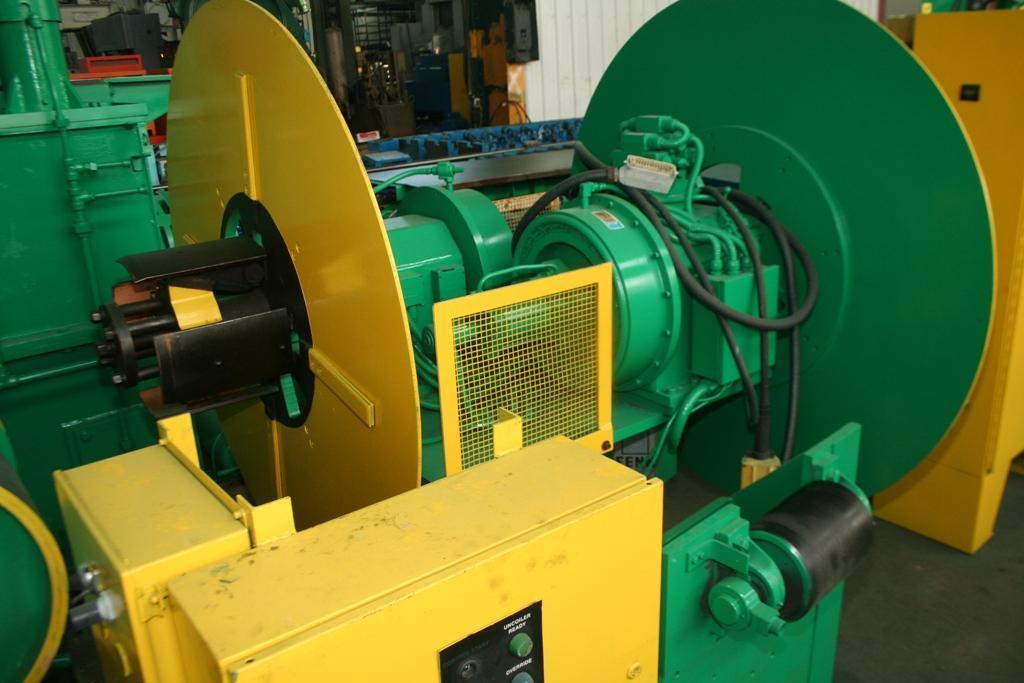

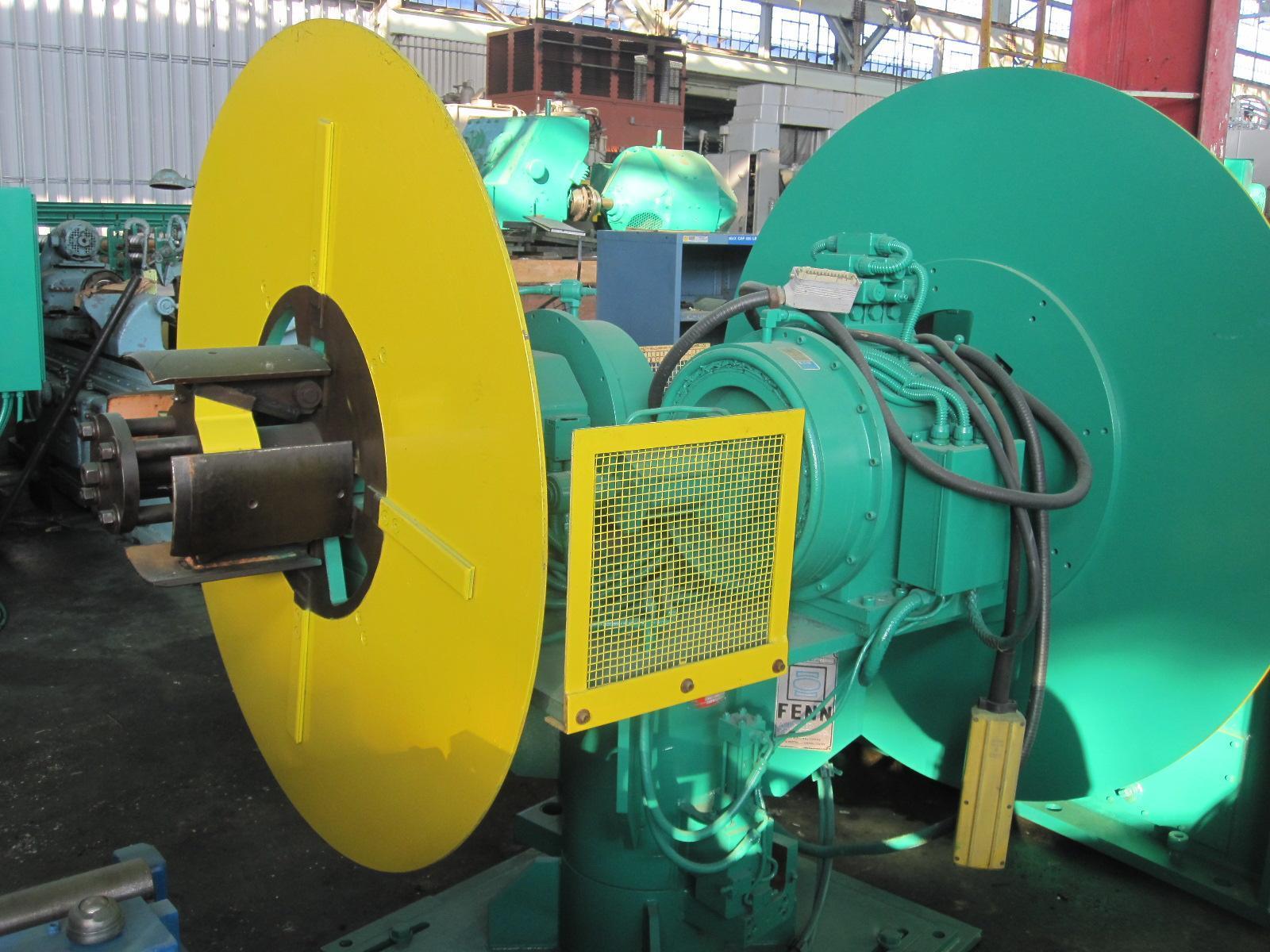

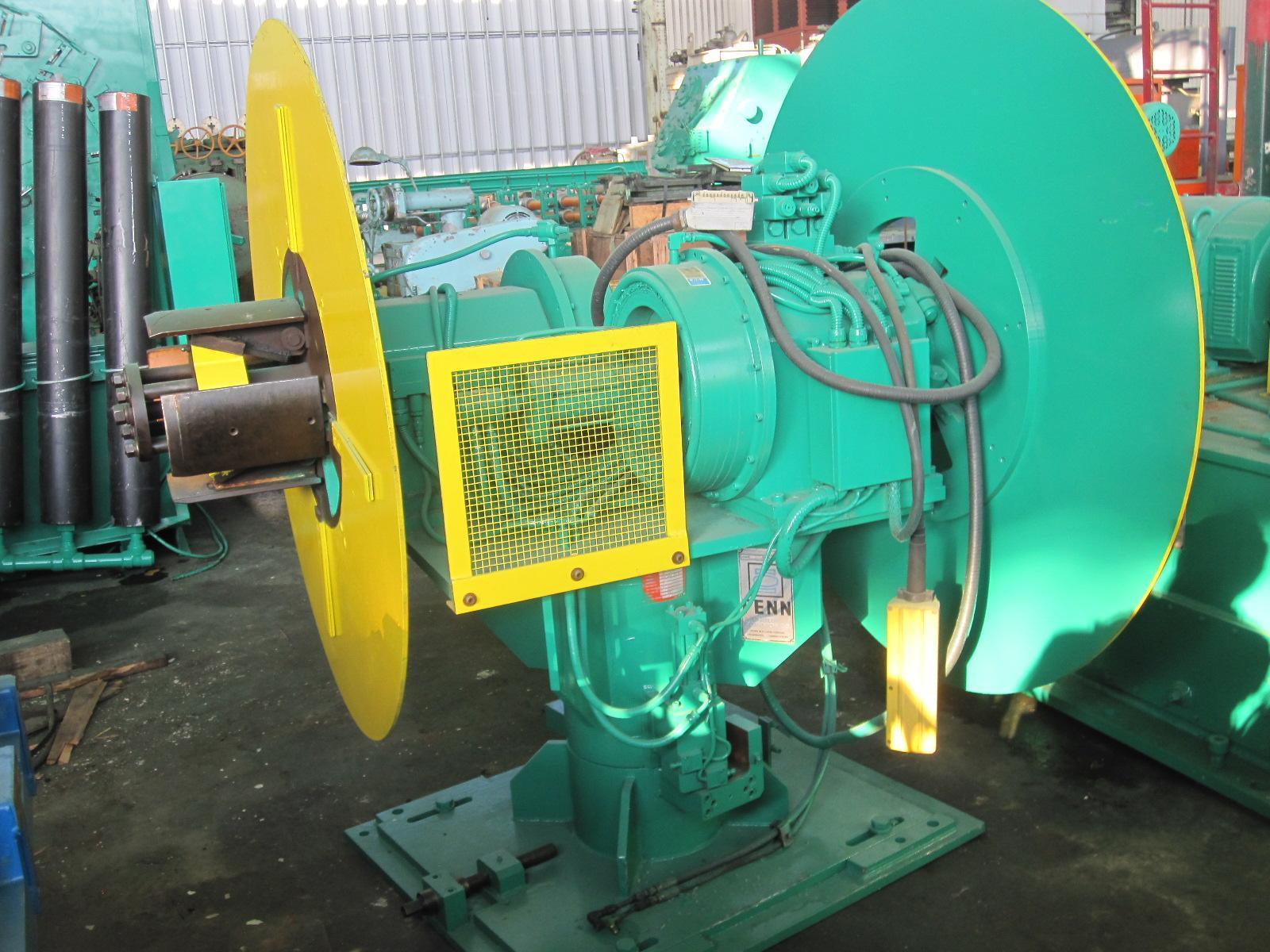

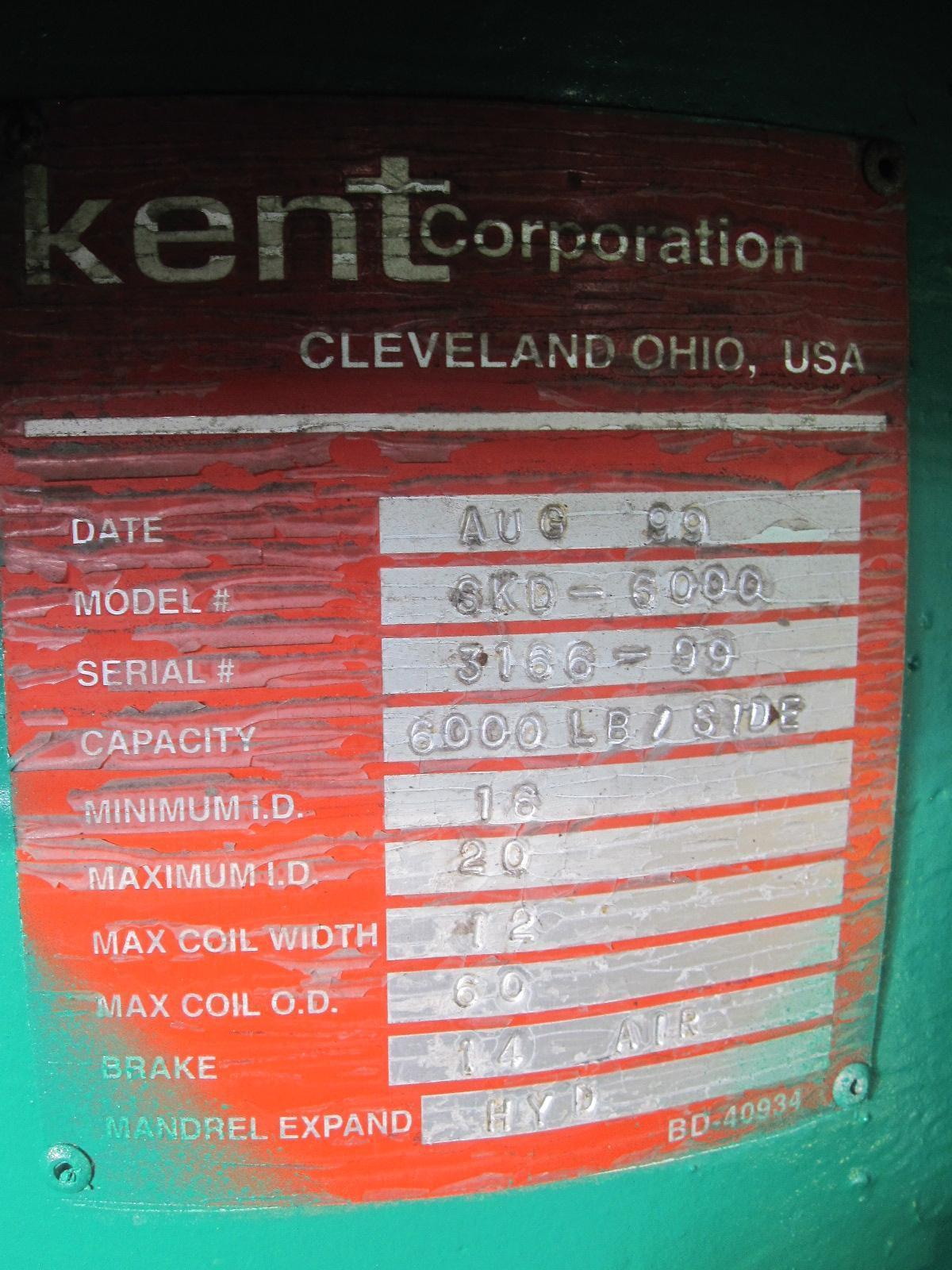

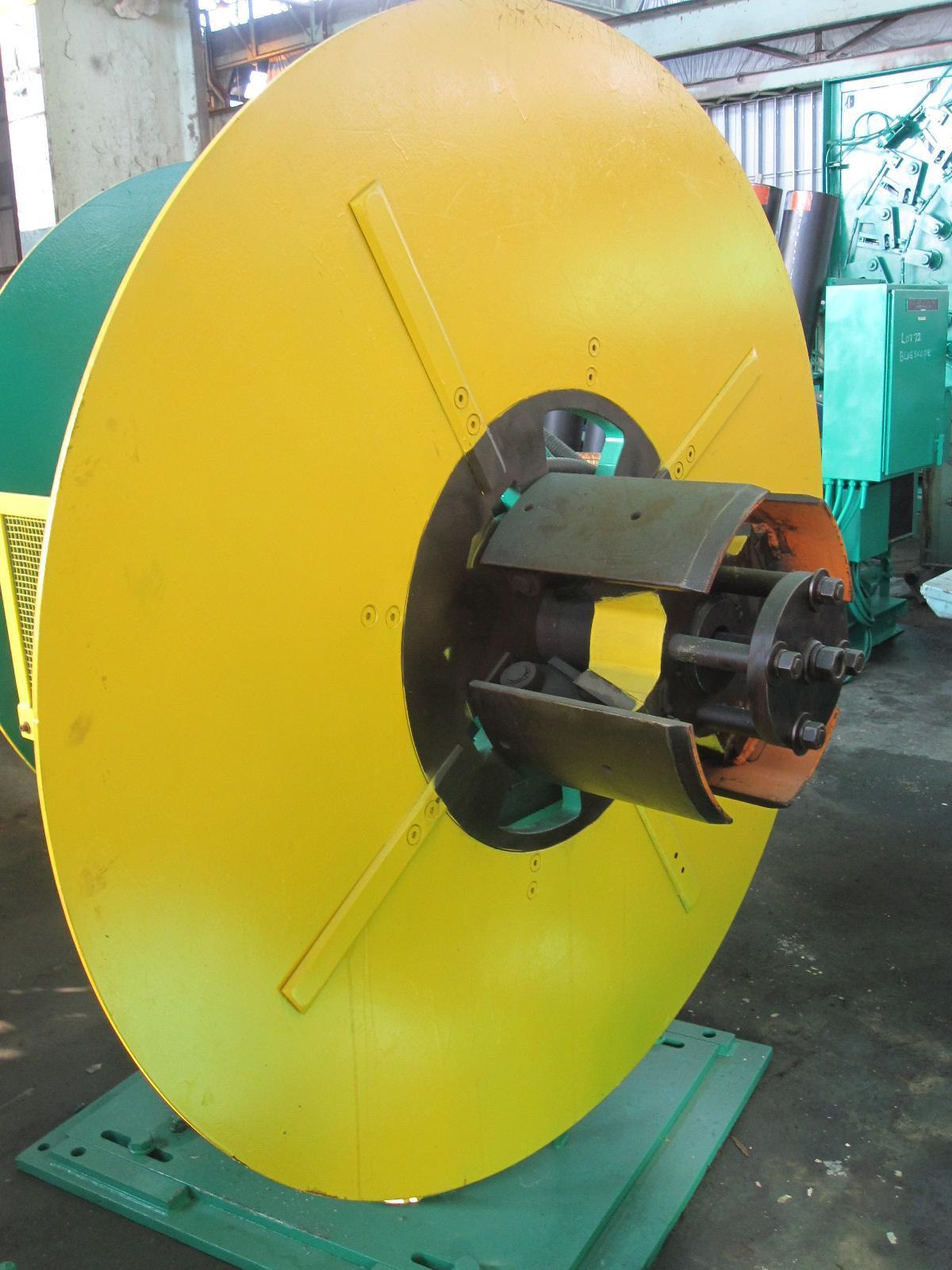

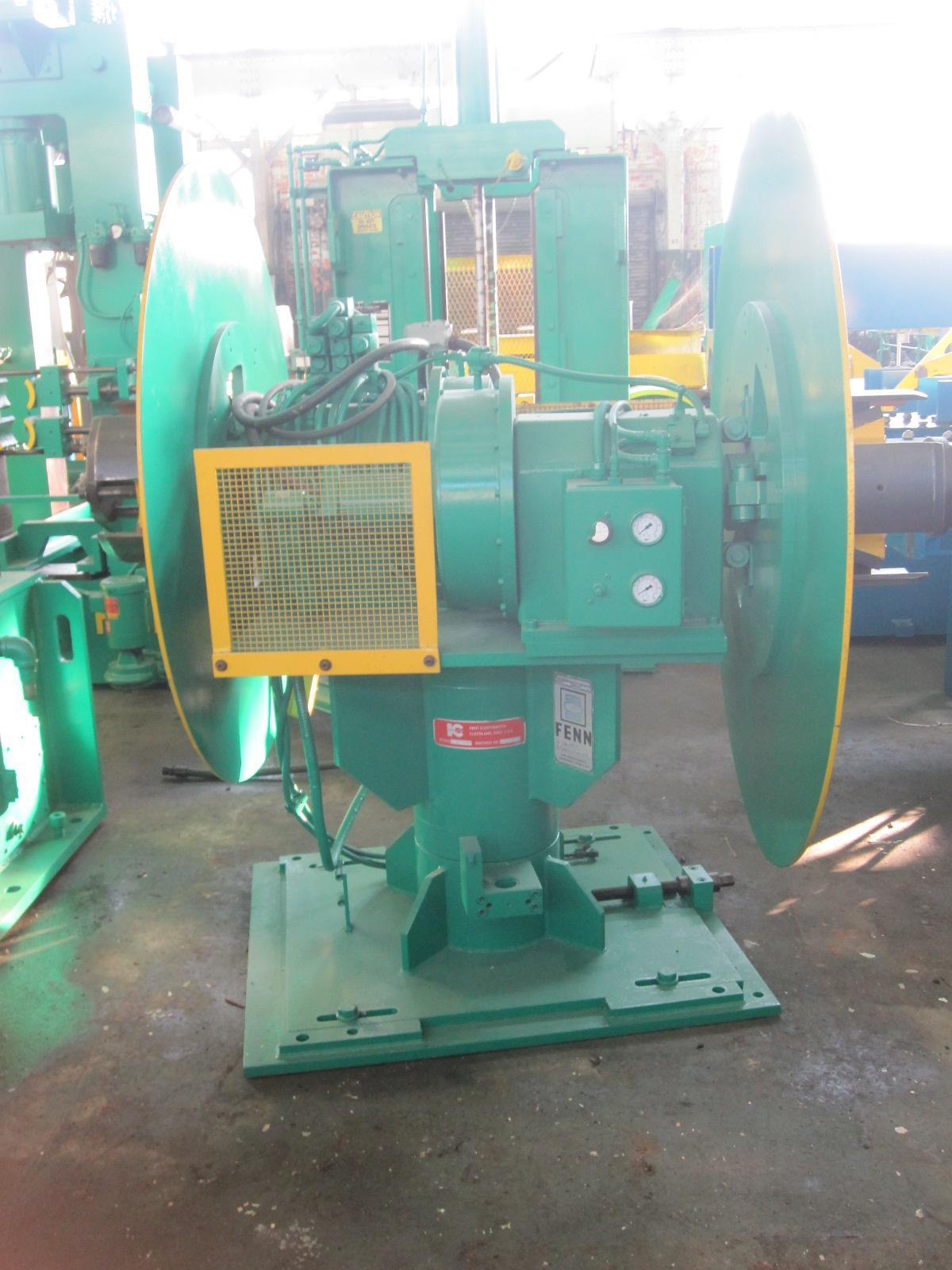

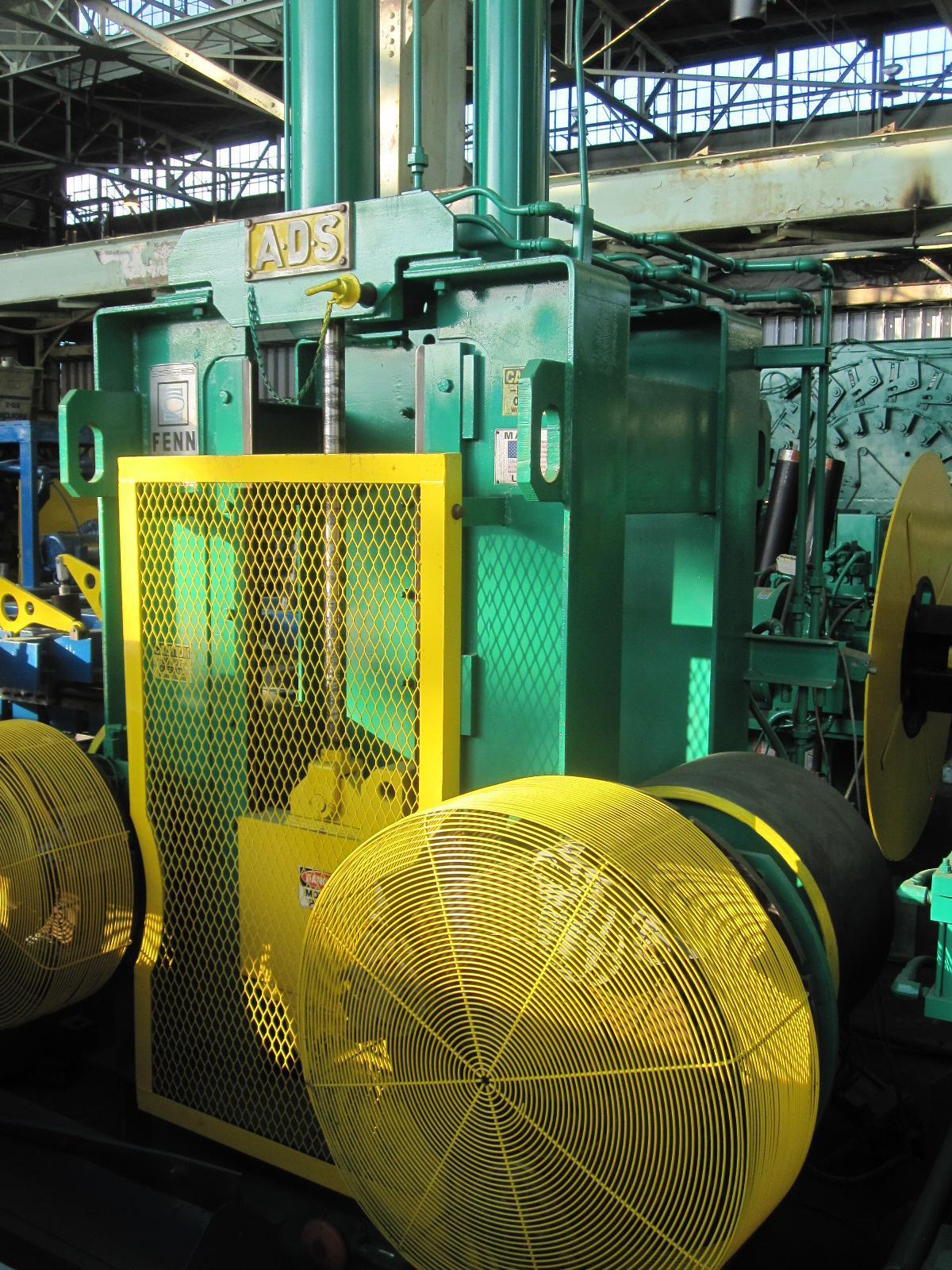

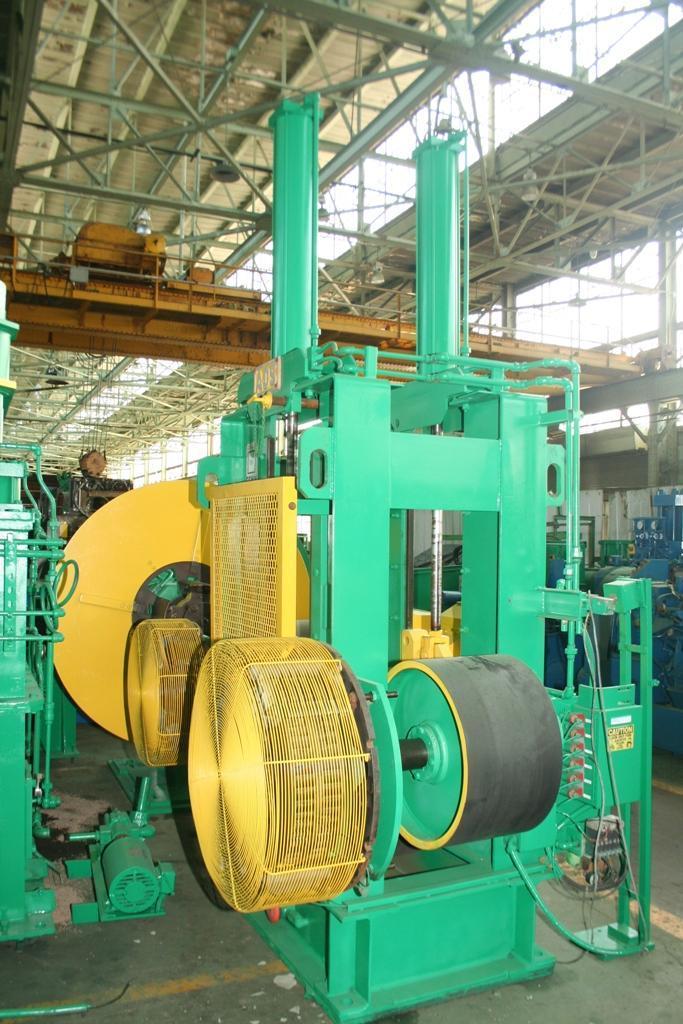

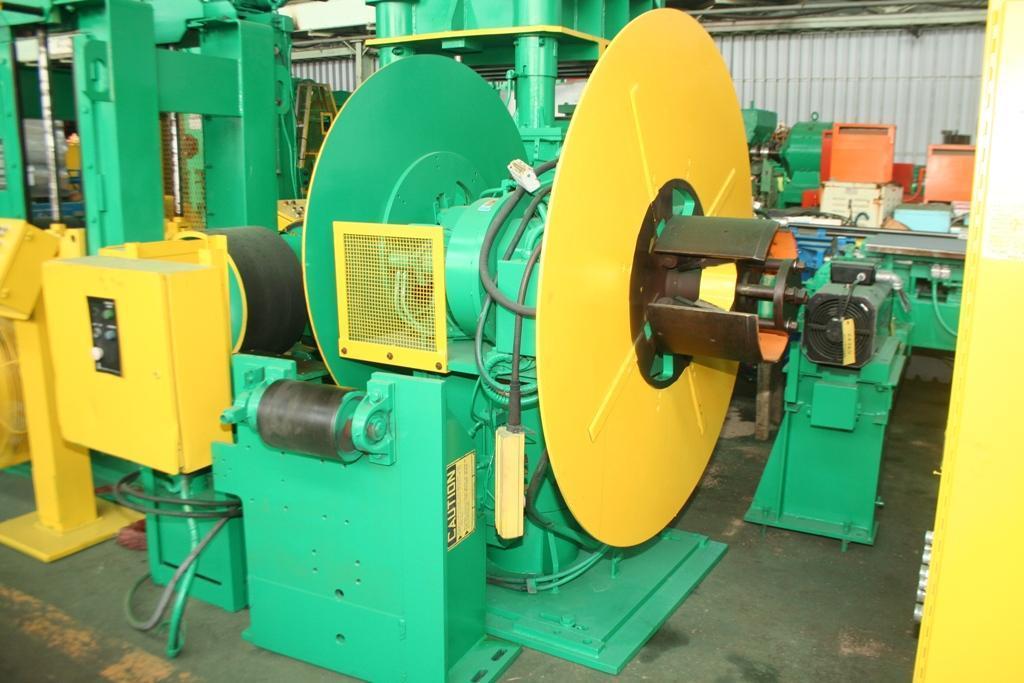

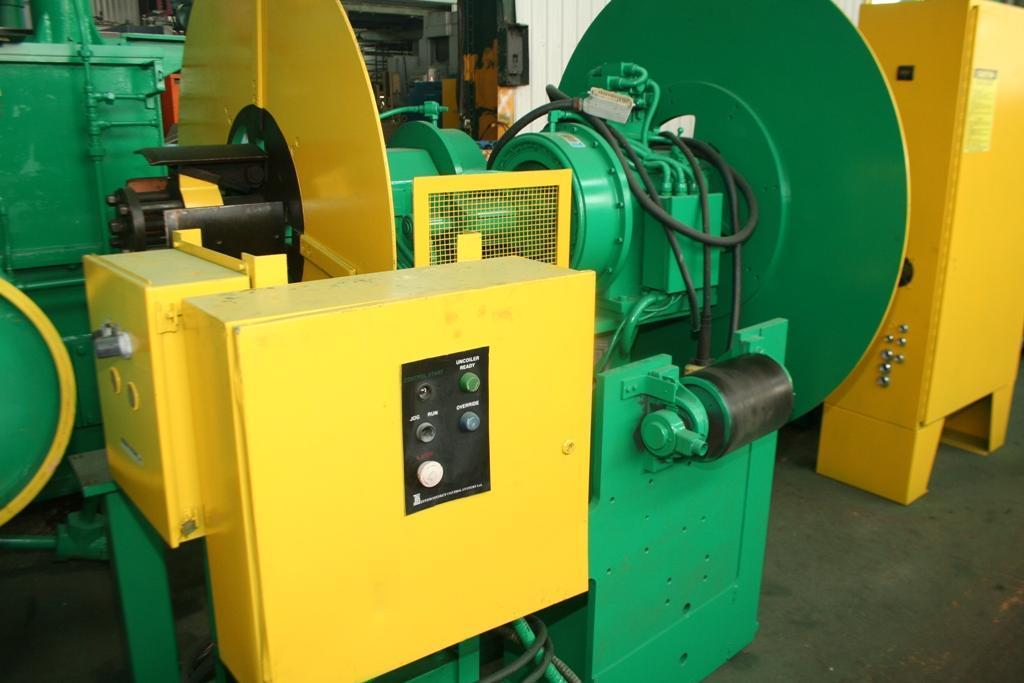

DOUBLE END PAYOFF REEL
CAPACITY ..................... 6,000 LBS PER SPINDLE
COIL INSIDE DIAMETER ......... 20" TO 24" MANUALLY ADJ
COILS OUTSIDE DIAMETER ....... 60"
MAX WIDTH OF COIL ............ UP TO 12"

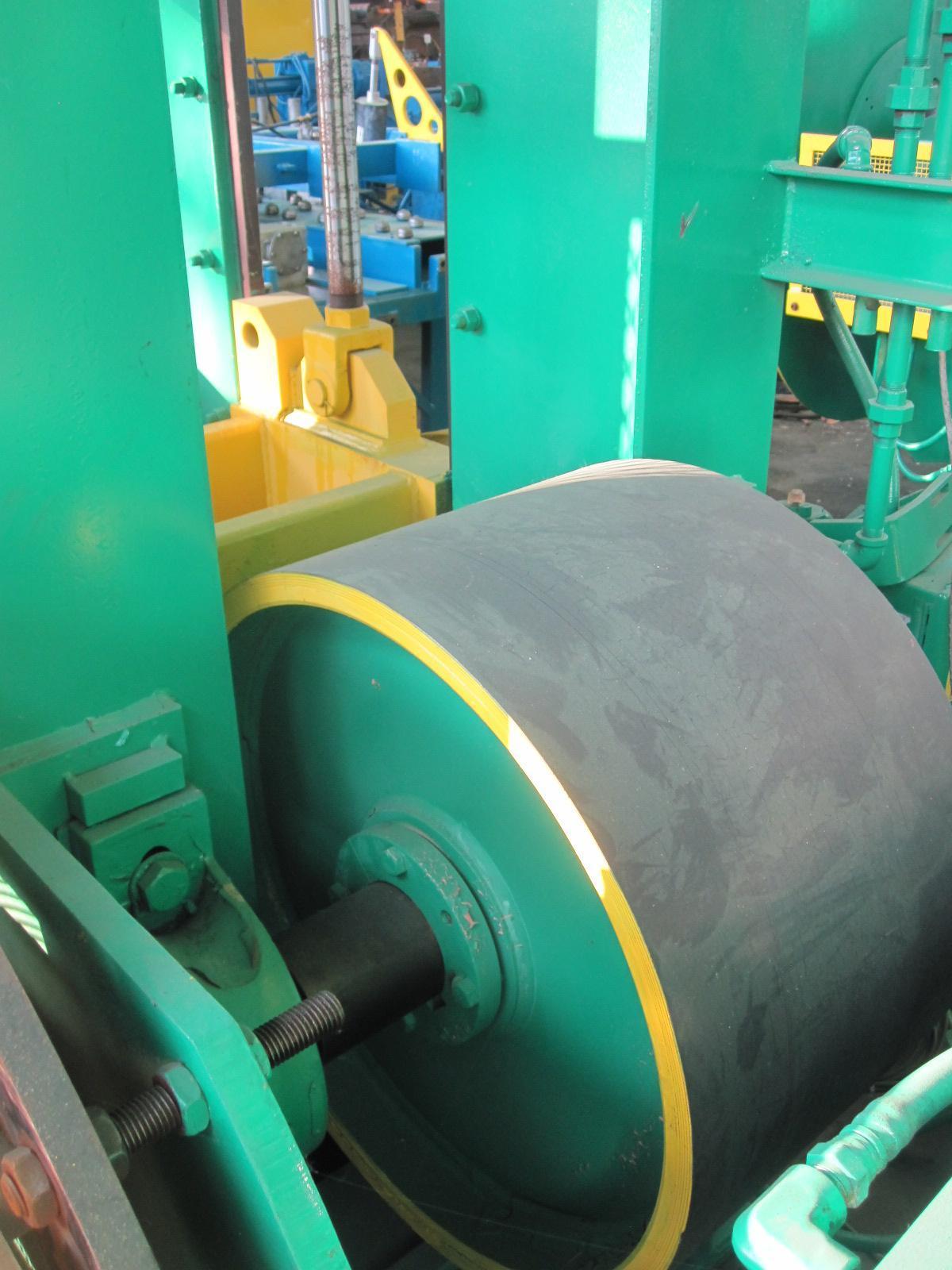

3-ROLL BRIDLE STAND
NUMBER OF BRIDLE ROLLS ....... 3
BRIDLE ROLL SIZE ............. 24" DIA X 14" FACE
BRIDLE ROLL COVERING ......... 0.5" THICK ELASTOMER

COIL END JOINER
STRIP EDGE ALIGNMENT GUIDES
STRIP CLAMPING & WELD STATION
AUTOMATIC TIG WELD TORCH CARRIAGE

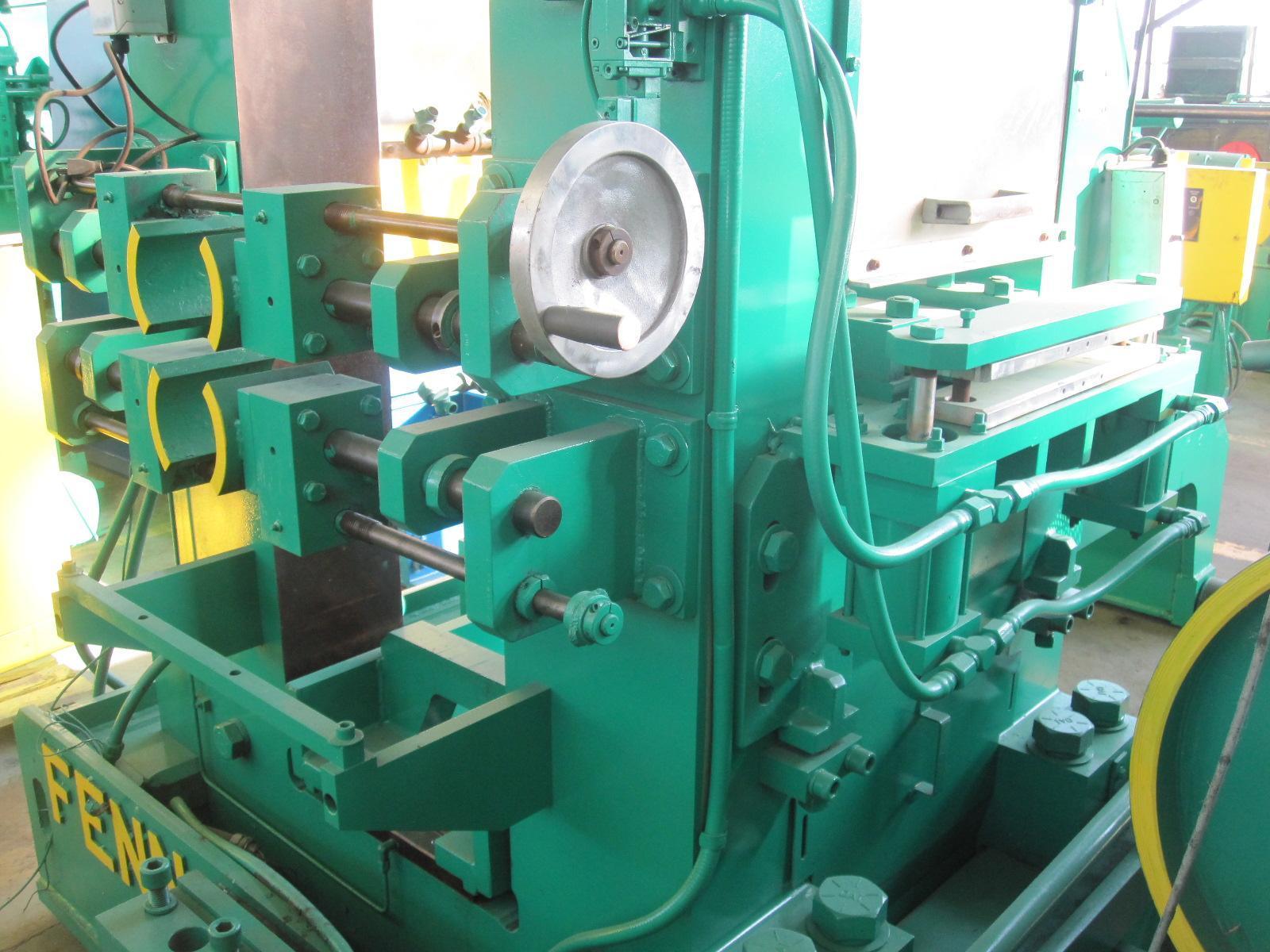

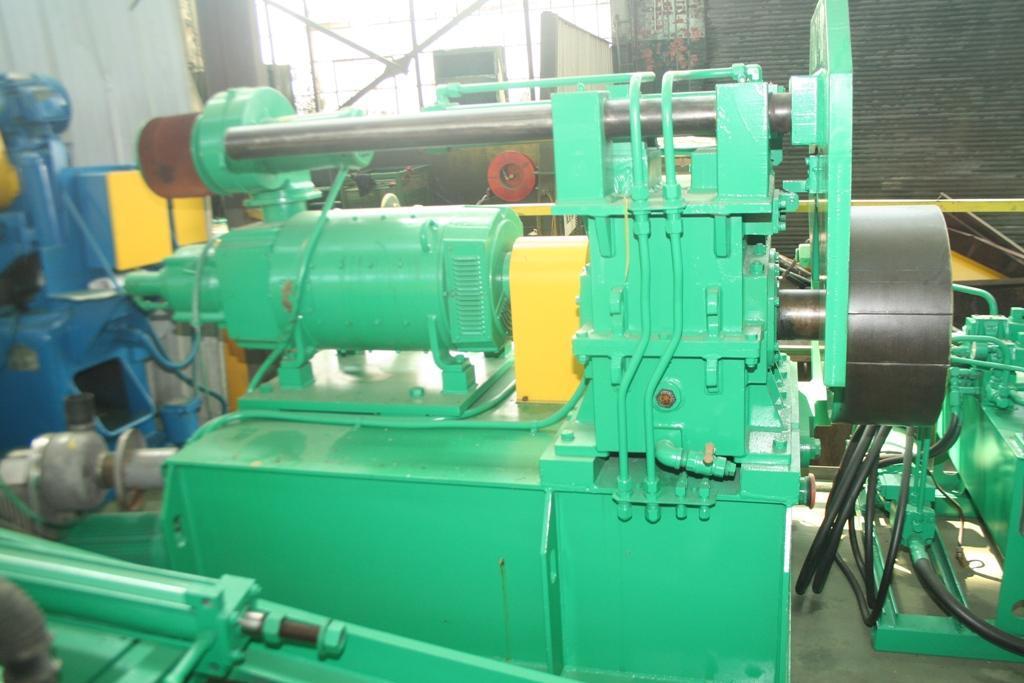

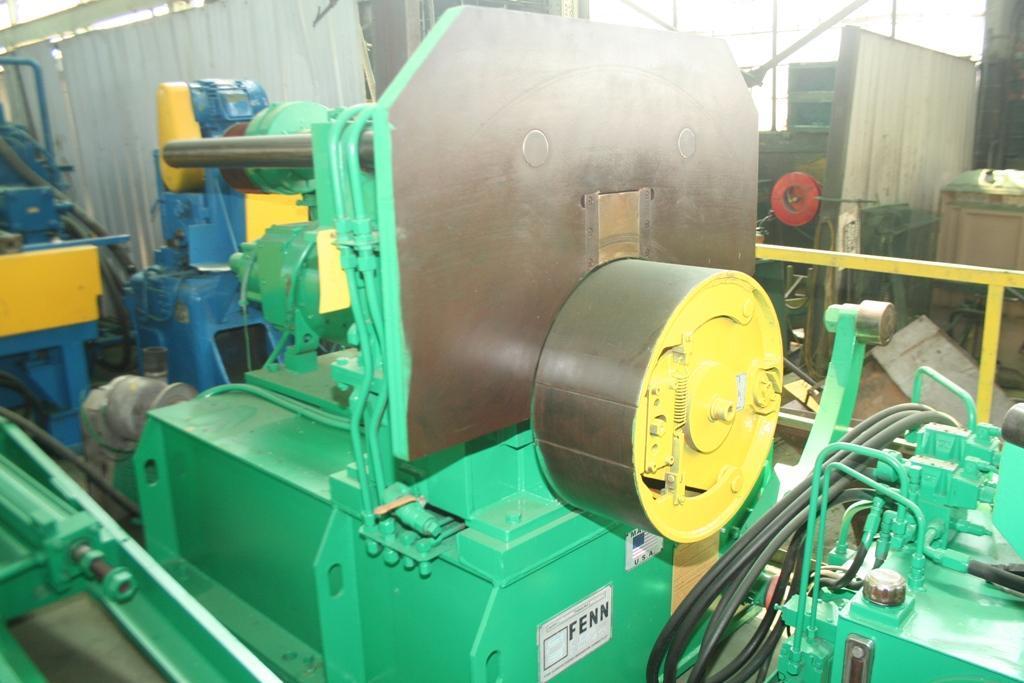

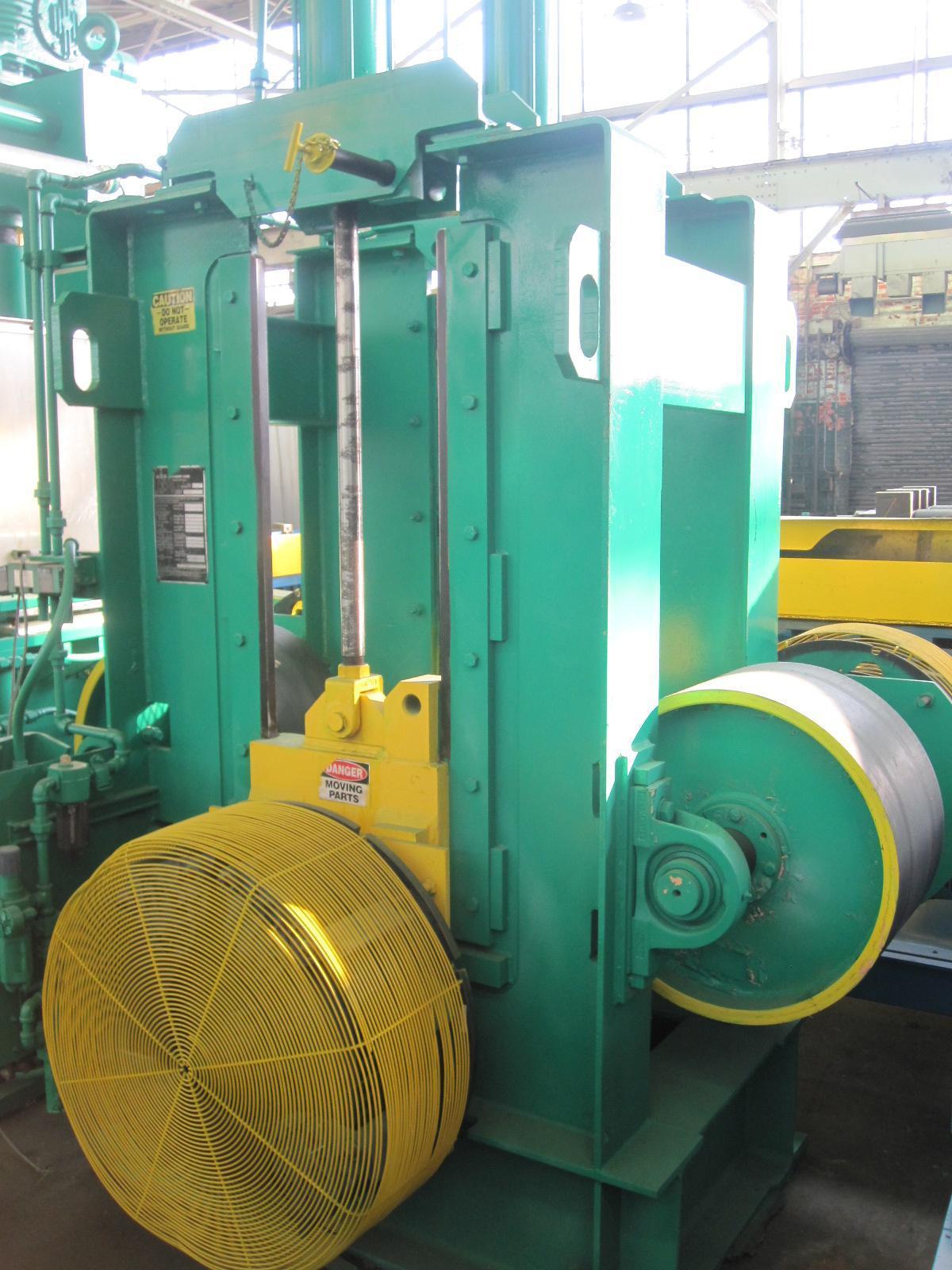

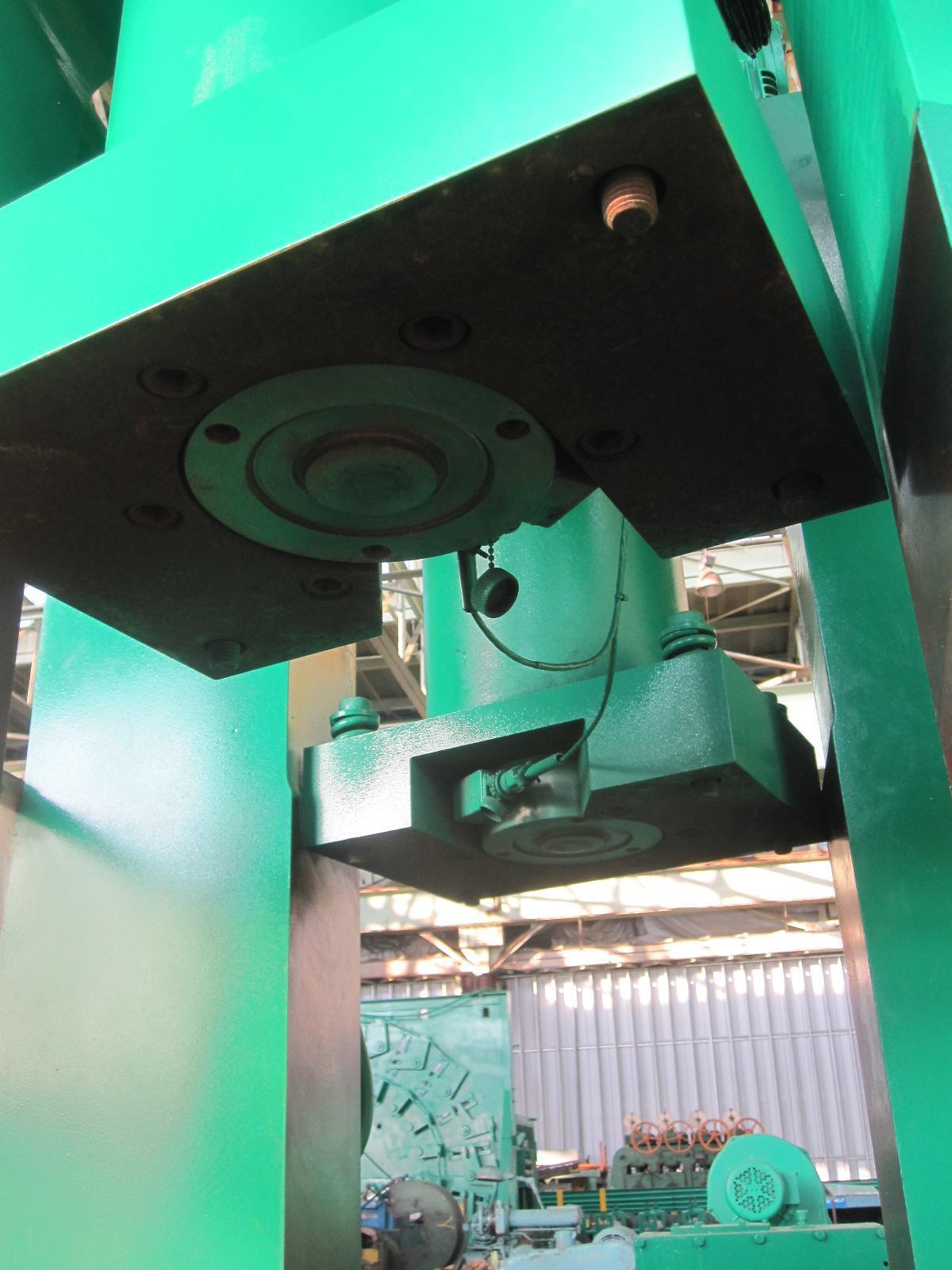

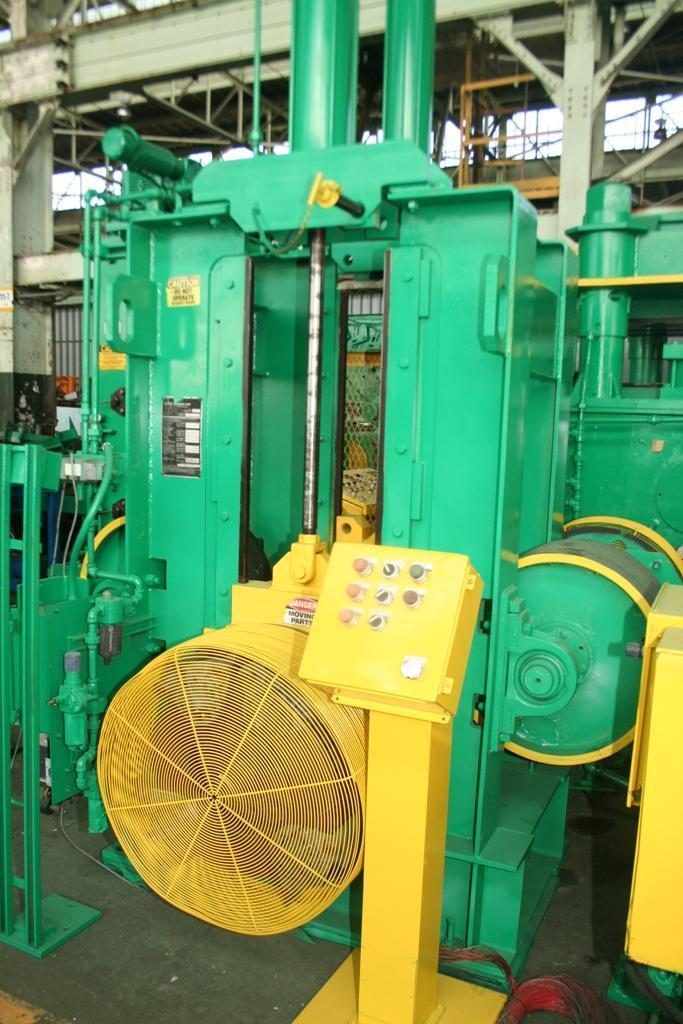

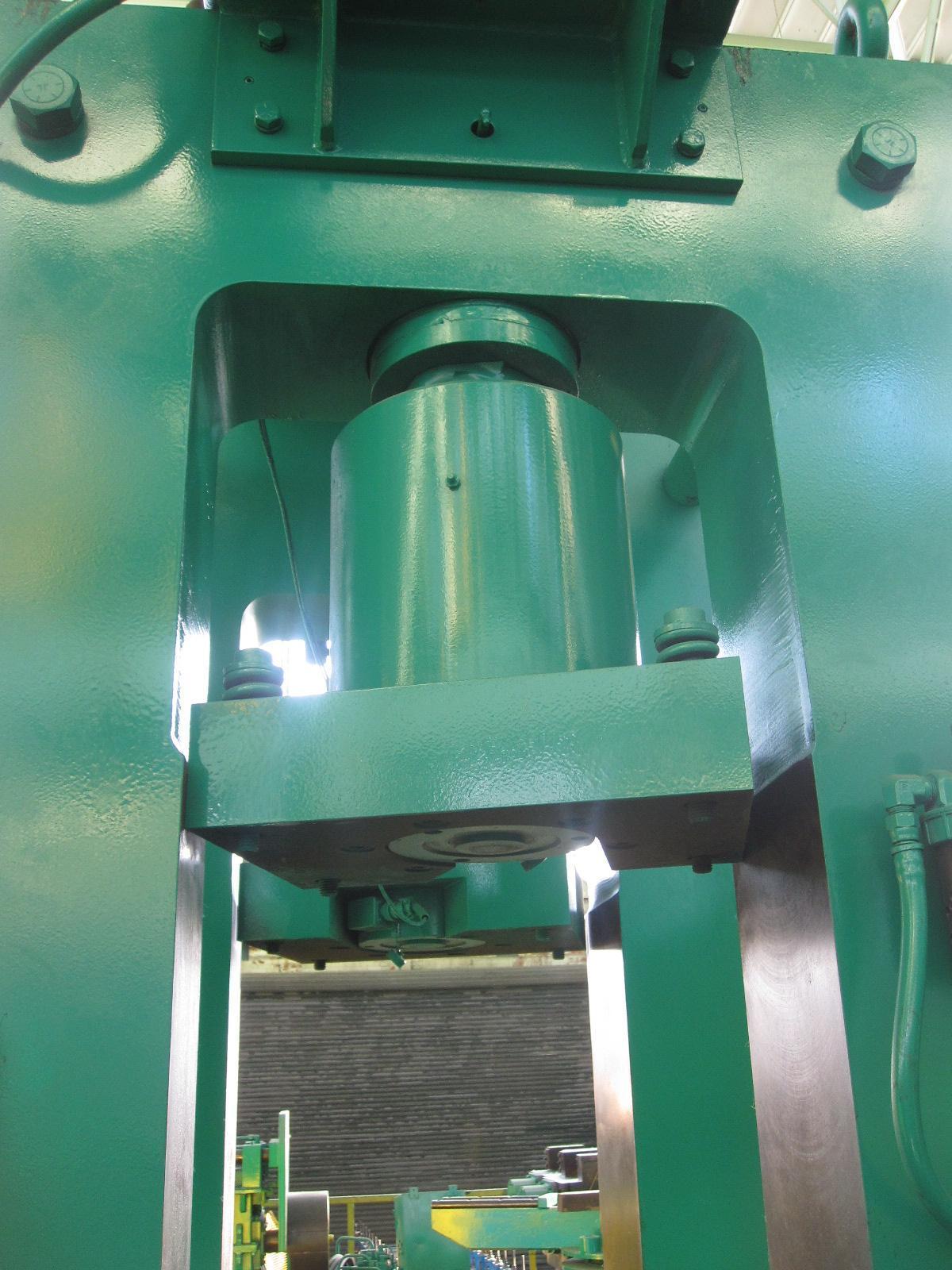

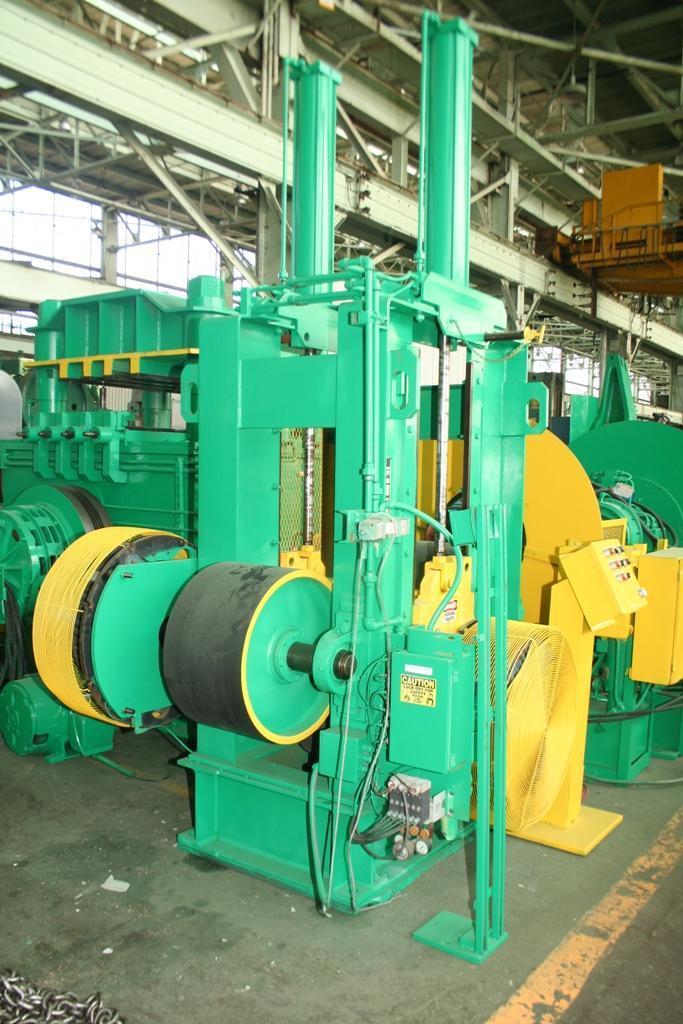

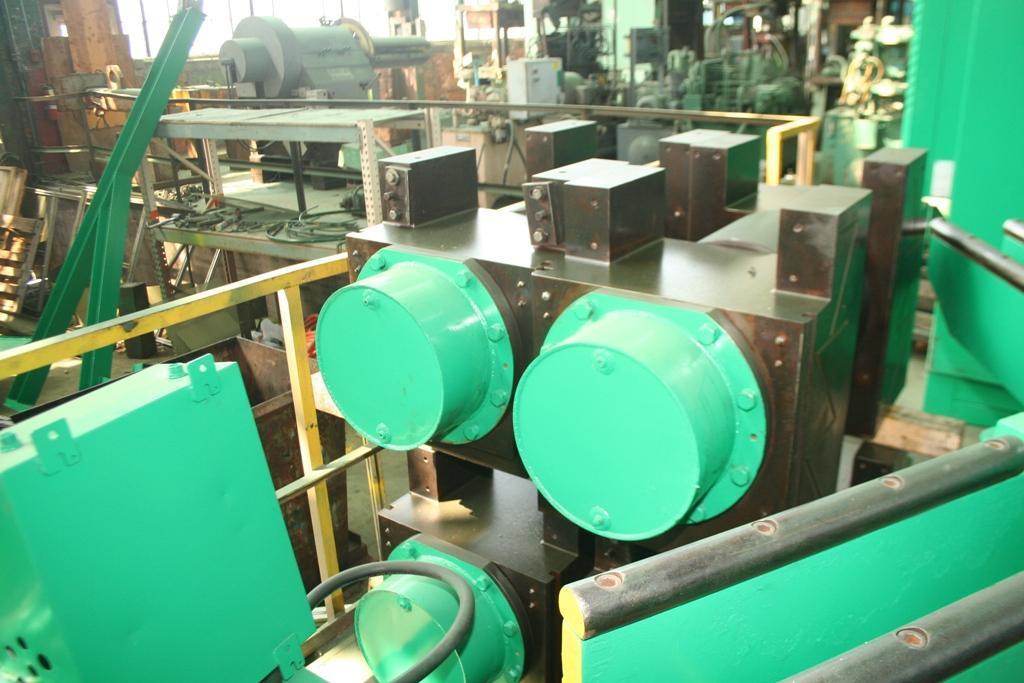

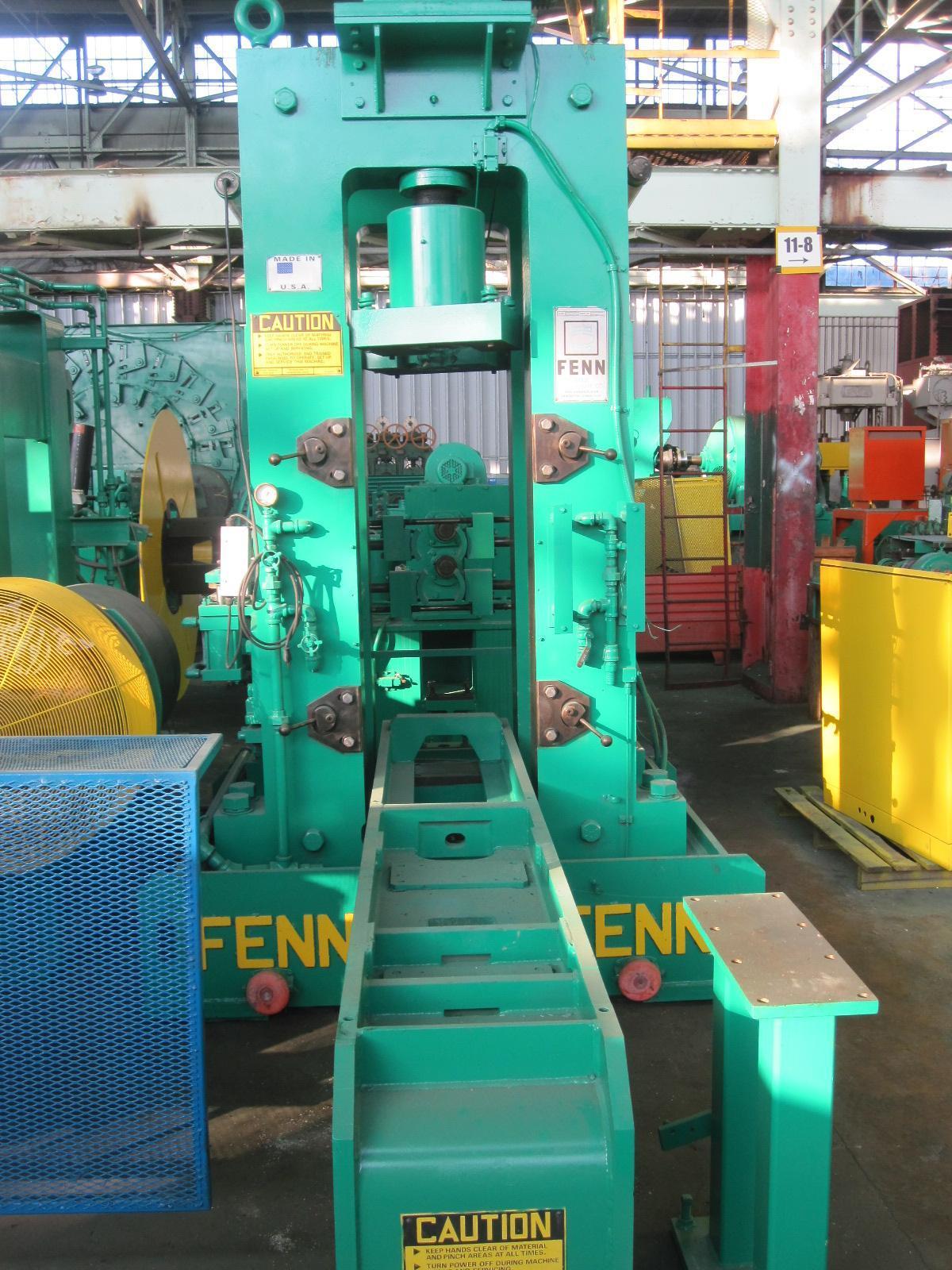

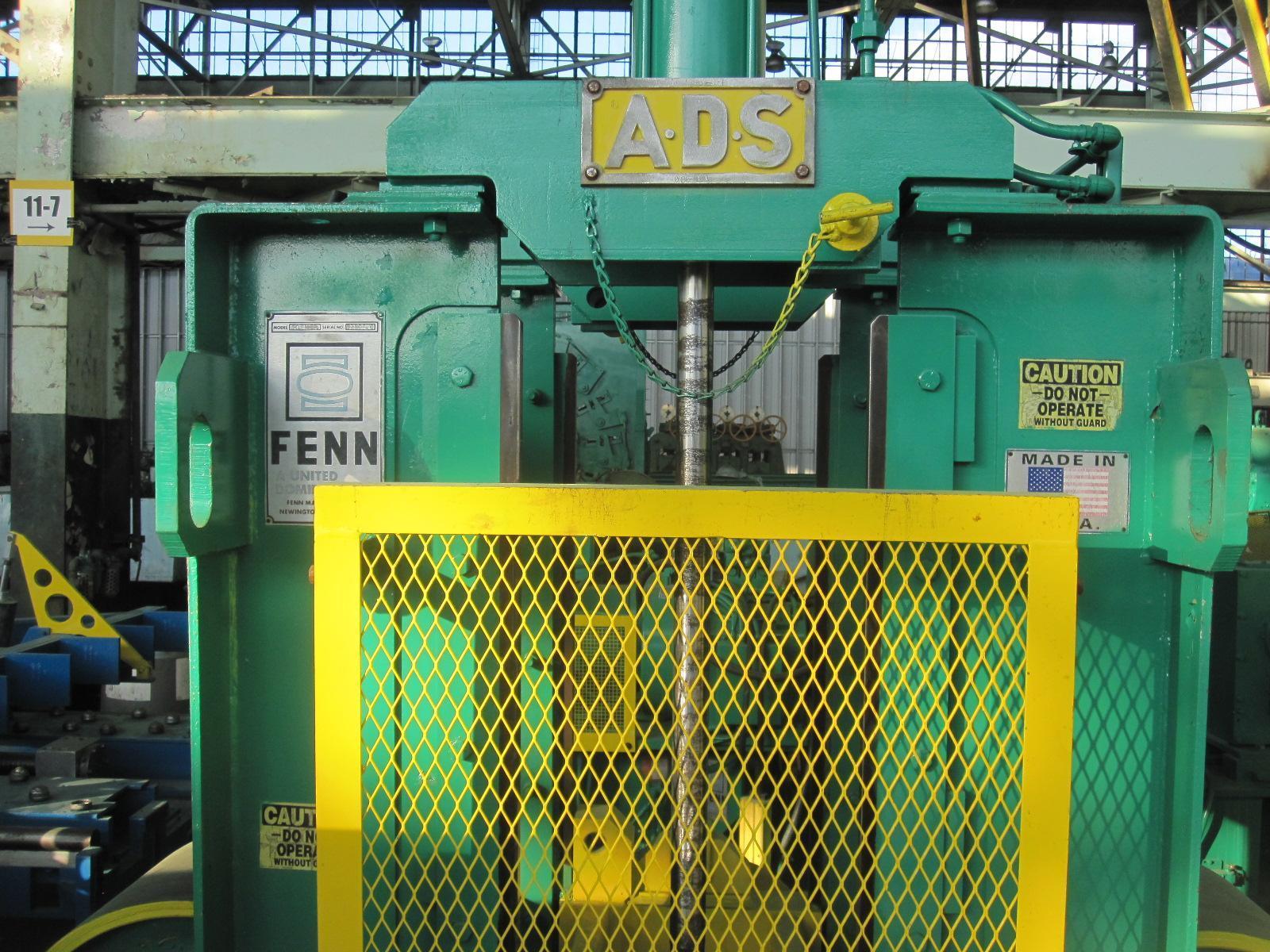

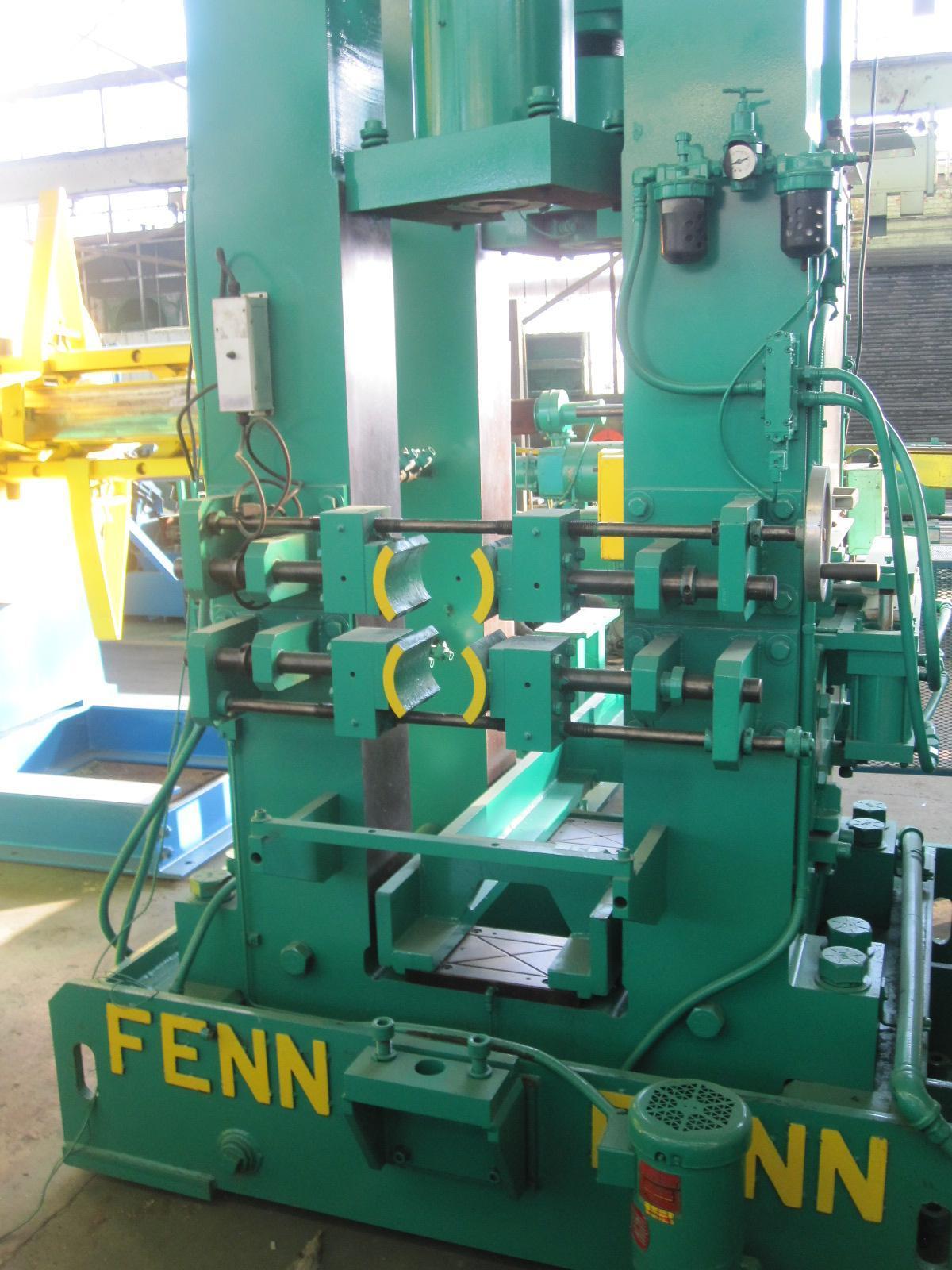

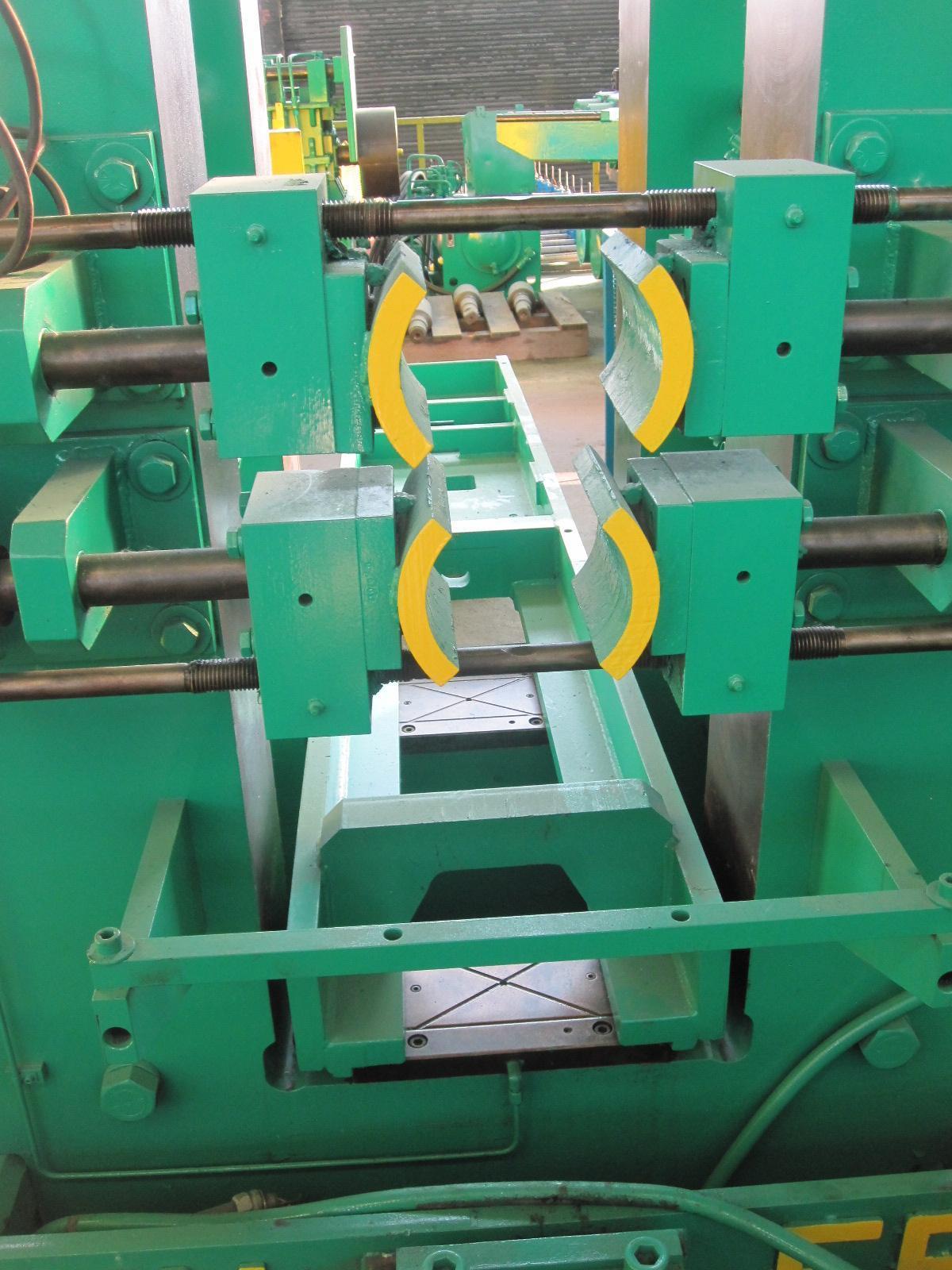

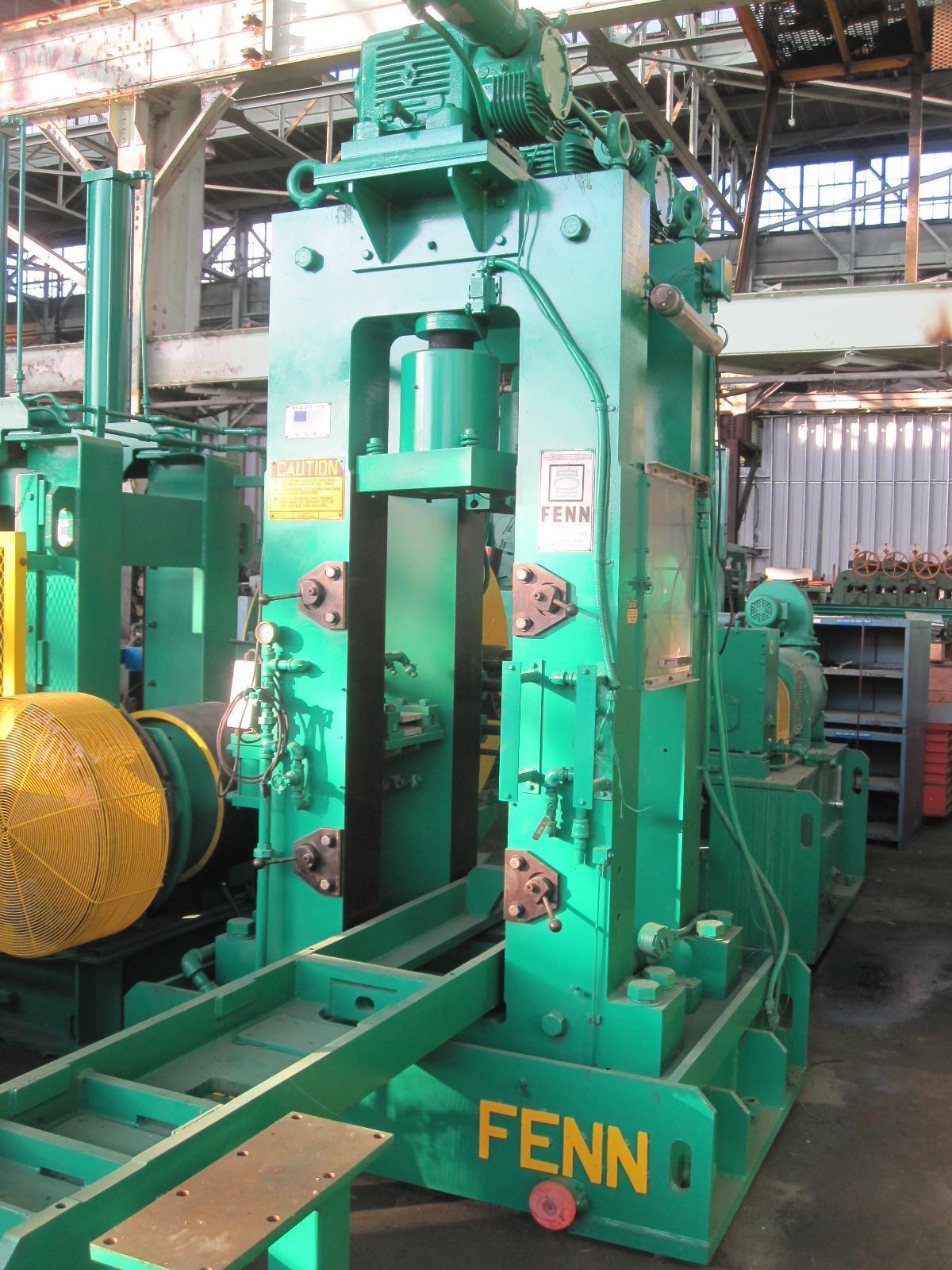

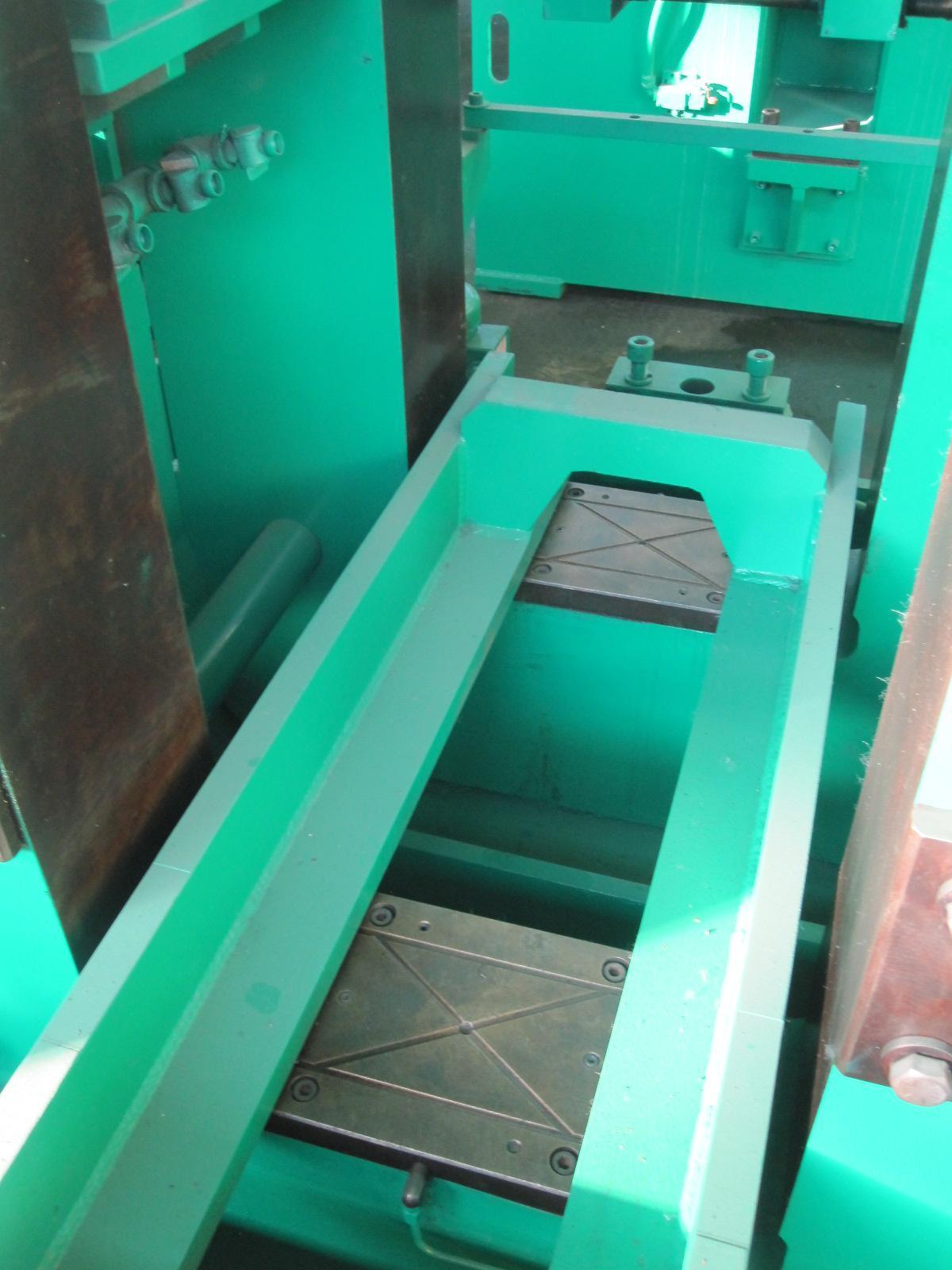

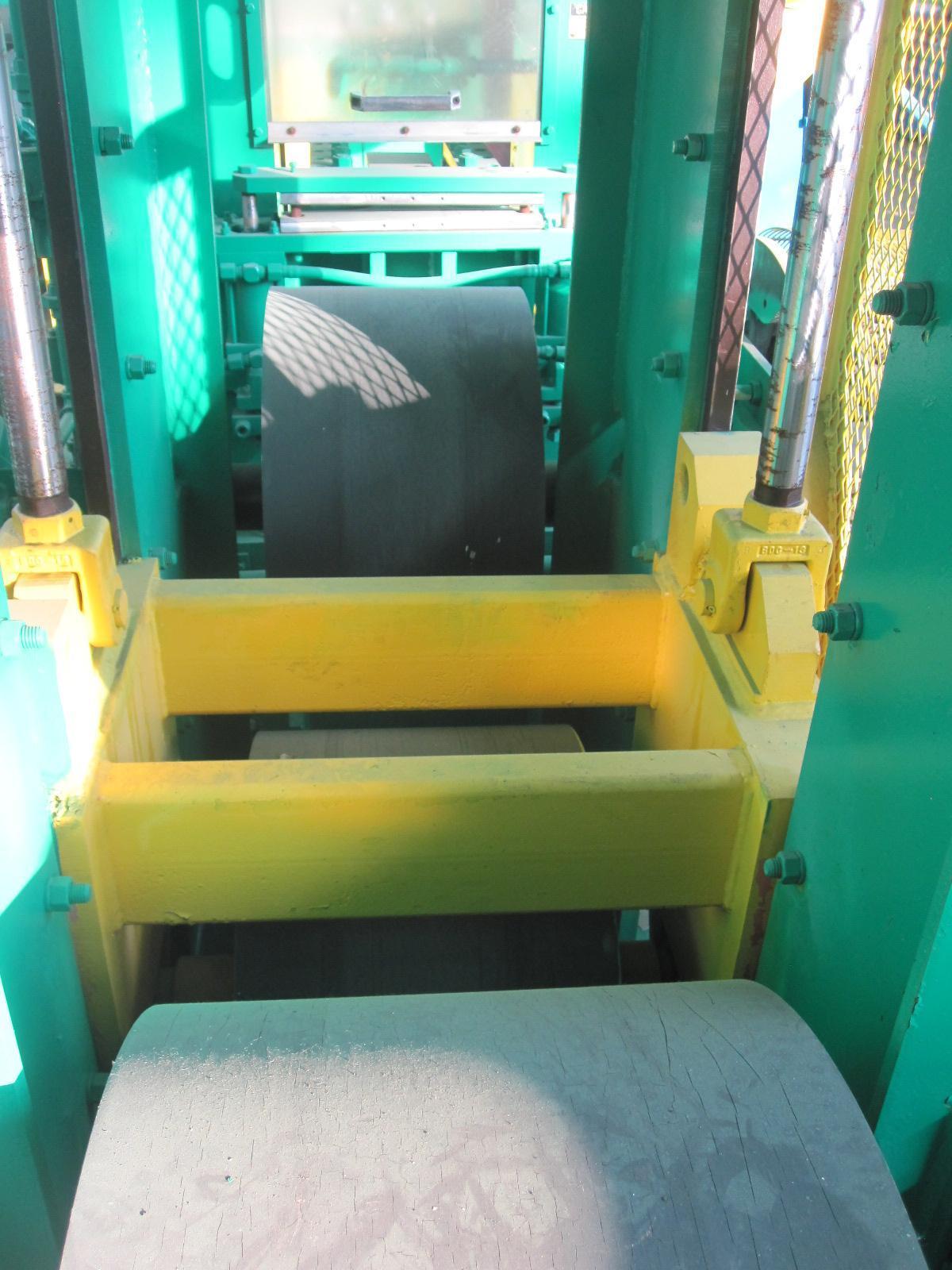

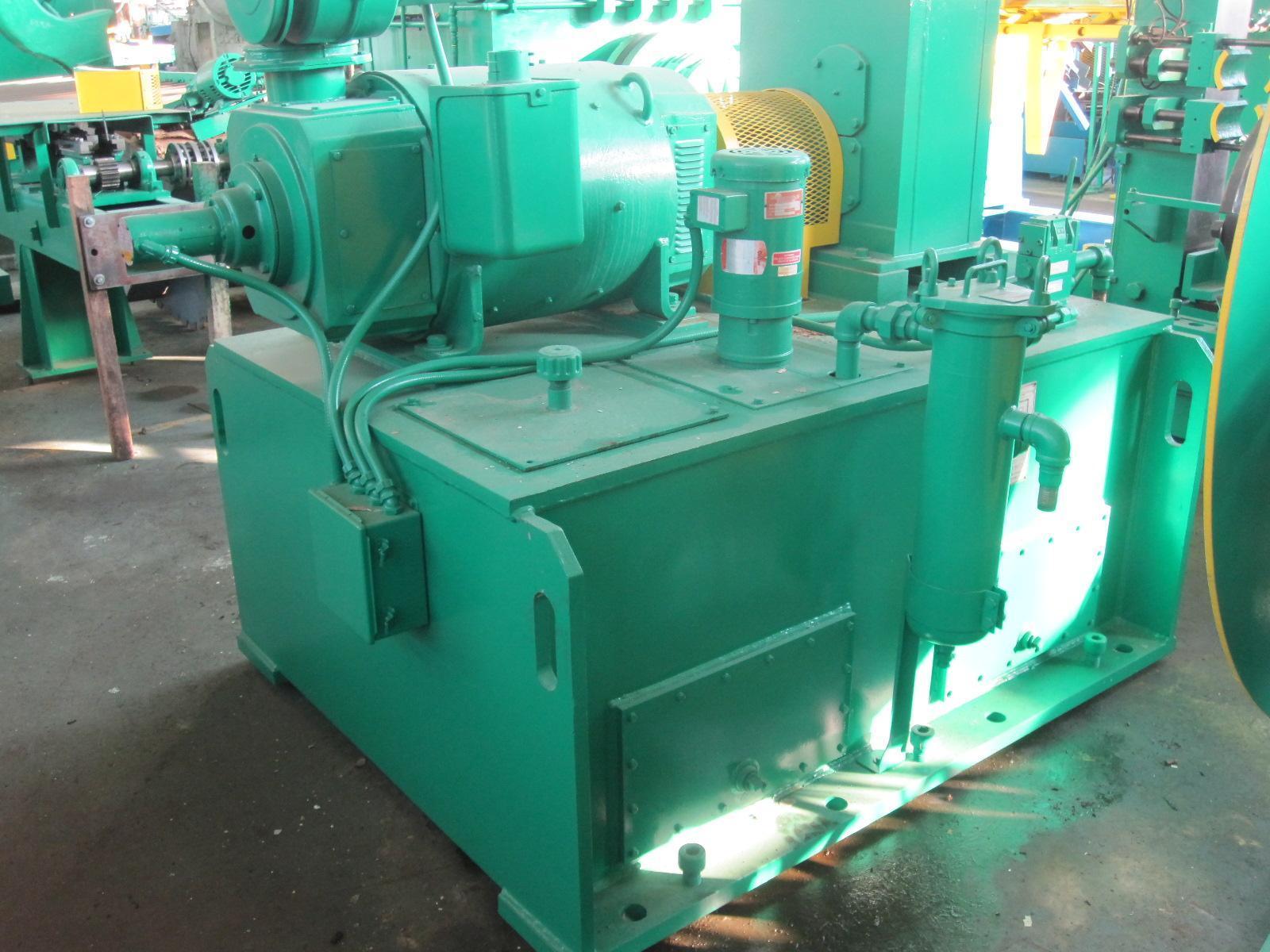

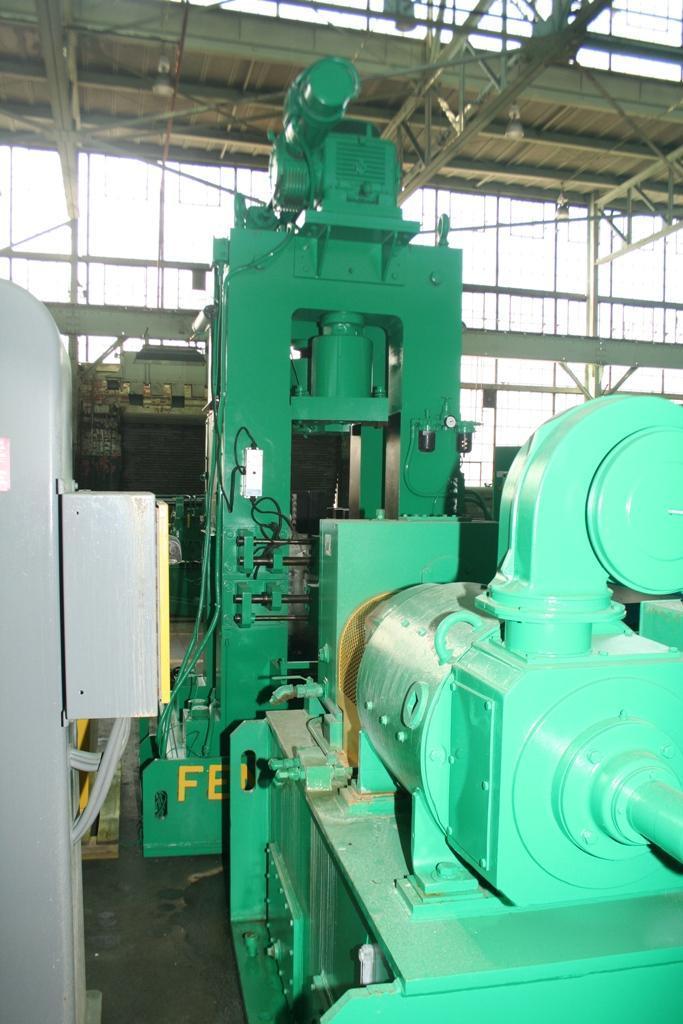

5-1/2" X 15" X 12" FACE FOUR-HIGH ROLLING MILL

PRECISION THICKNESS GAGE & FOOTAGE COUNTER

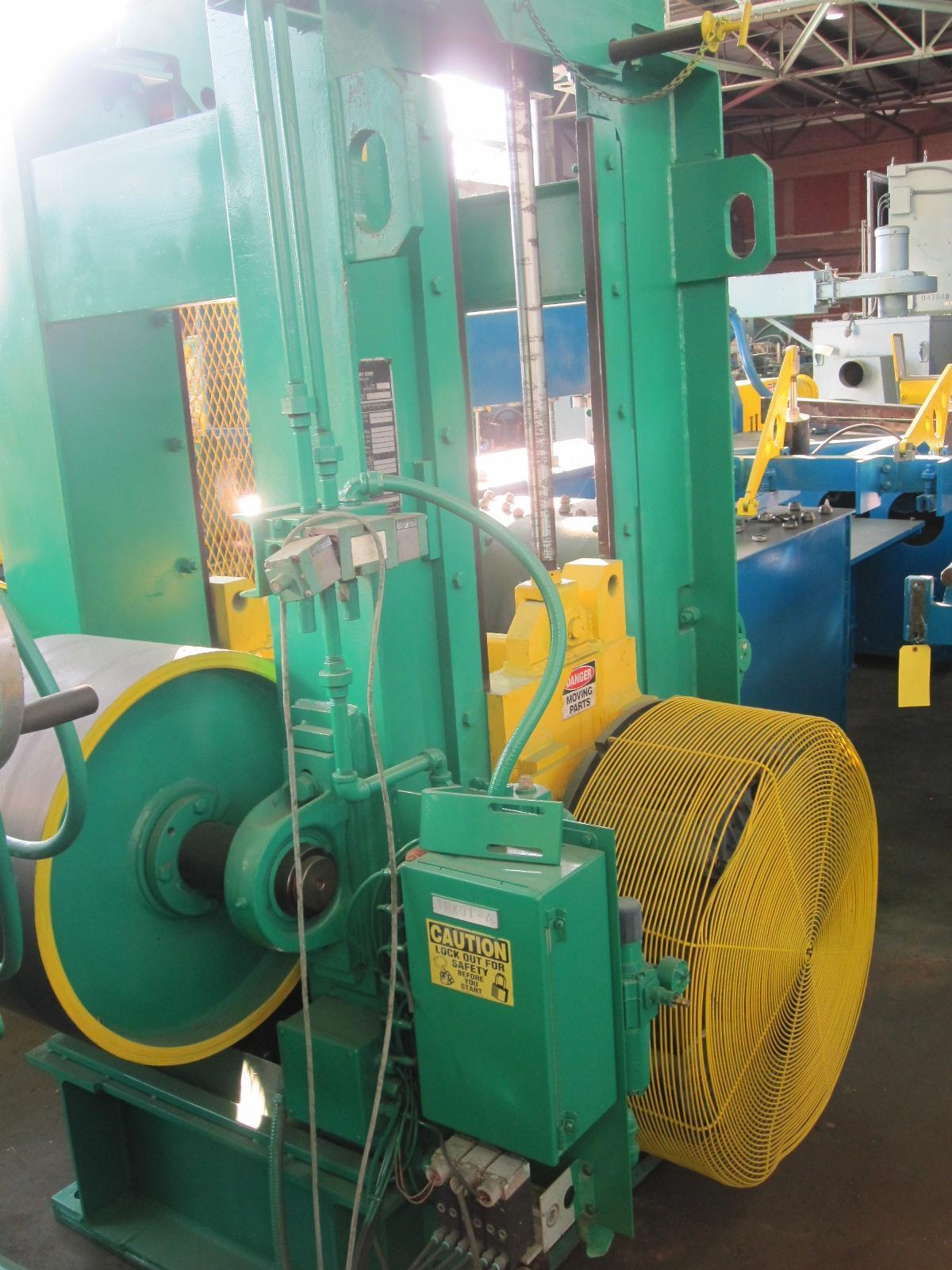

MOTORIZED TAKE-UP REEL
TENSION CAPACITY ............ 2,000 LBS
MAX COIL WEIGHT ............. 6,000 LBS
MAX COIL DIAMETER ........... 60"
DRUM DIAMETER ............... 20"
MAX STRIP WIDTH ............. 8"
MAX LINE SPEED .............. 600 FEET PER MINUTE
MOTOR ....................... 50 HP / 500/1500 RPM

THREE SECTION COLLAPSIBLE DRUM
DRUM DIAMETER ............... 20"
DRUM FACE ................... 10"
MAX COIL WEIGHT ............. 6,000 LBS

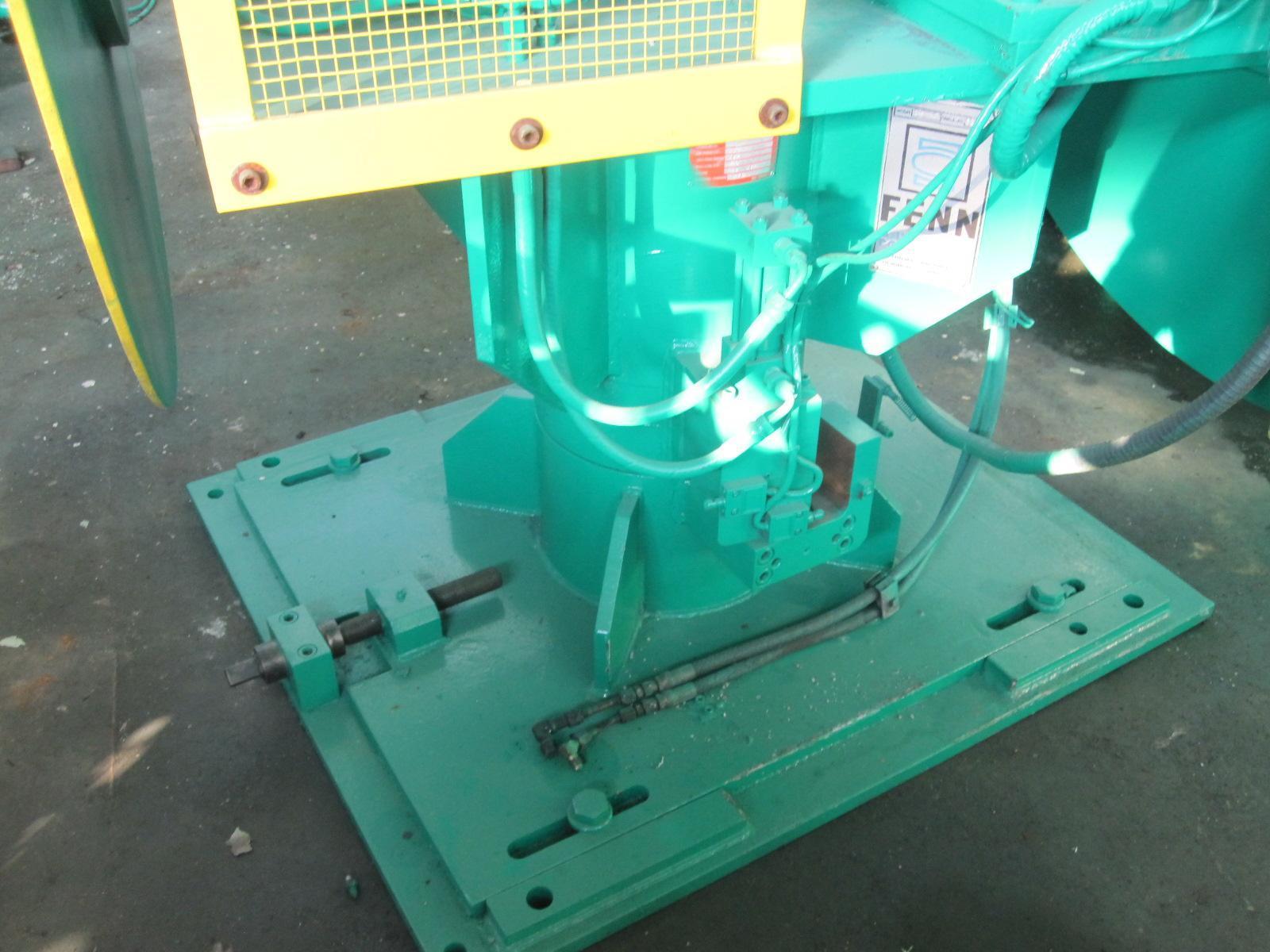

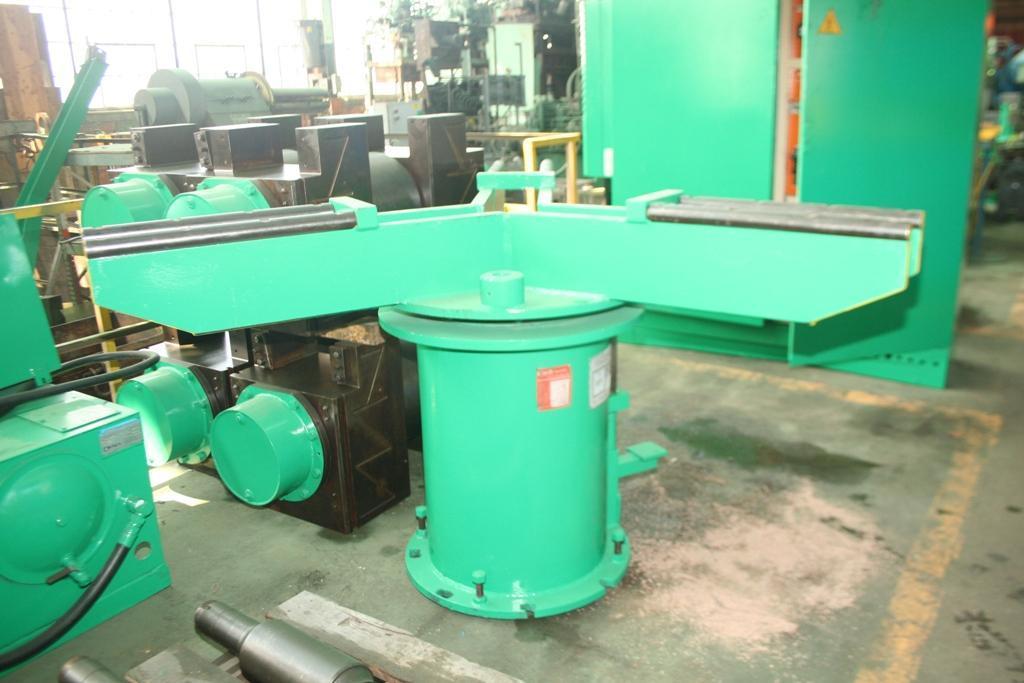

THREE POST COIL COLLECTION CAROUSEL

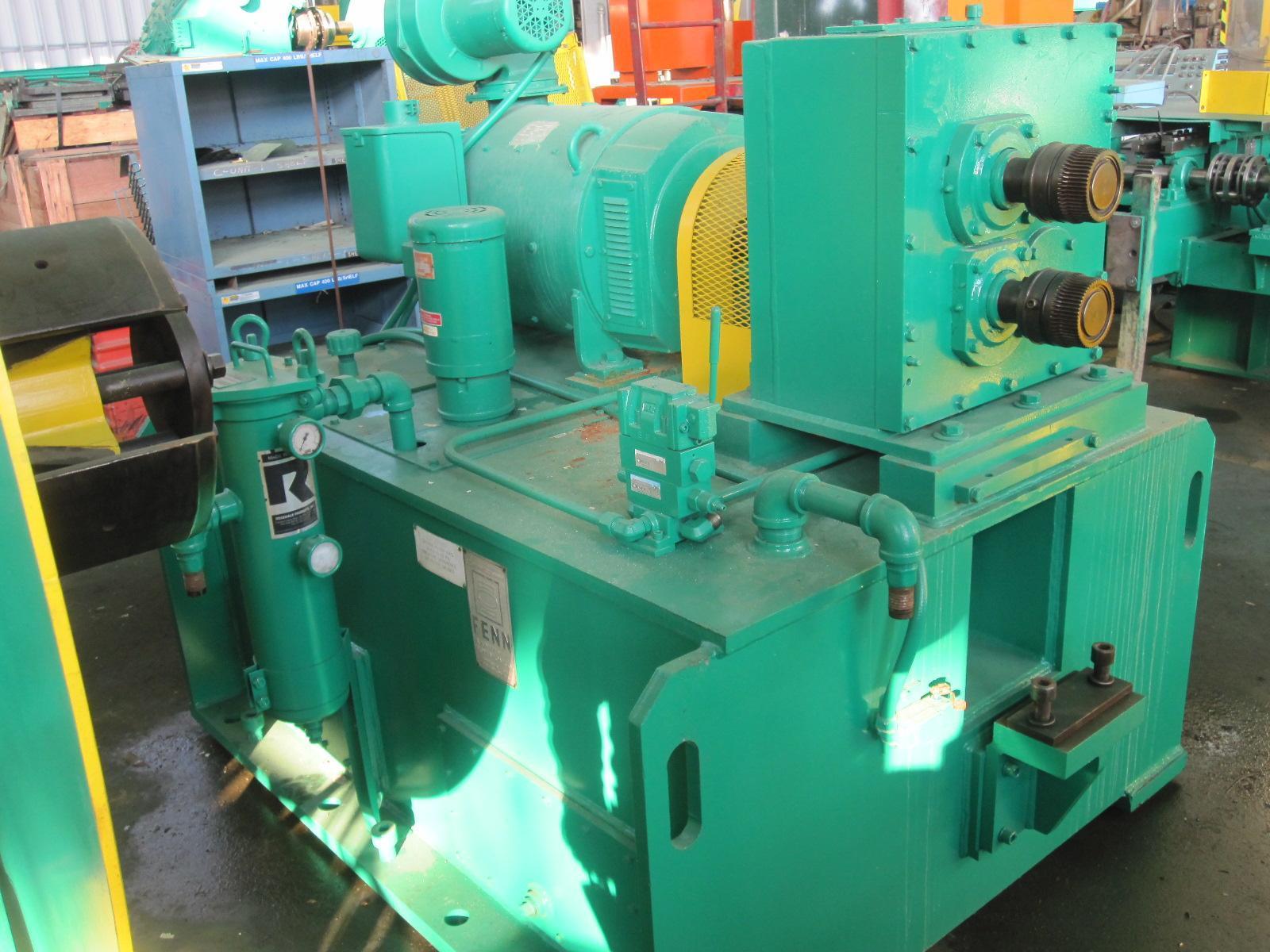

COMPLETE DC ELECTRICAL DRIVE & CONTROL SYSTEM
SCR POWER CONVERSION UNIT
MASTER REFERENCE SPEED REGULATOR
TENSION REGULATOR
SEPARATELY ADJUSTABLE ACCELERATION/DECELERATION
ADJUSTABLE JOG SPEED
DYNAMIC BRAKING

* ONE MAIN OPERATOR'S CONTROL STATION WITH THE FOLLOWING DEVICES
MOUNTED AND WIRED
LINE SPEED INDICATOR
MOTOR AMMETER
LINE SPEED POTENTIOMETER
LINE START/STOP/E-STOP PUSH BUTTONS
KEY LOCK RESET
ADDITIONAL PUSH-BUTTONS & SELECTOR SWITCHES AS REQUIRED
ADJUSTABLE JOG SPEED
