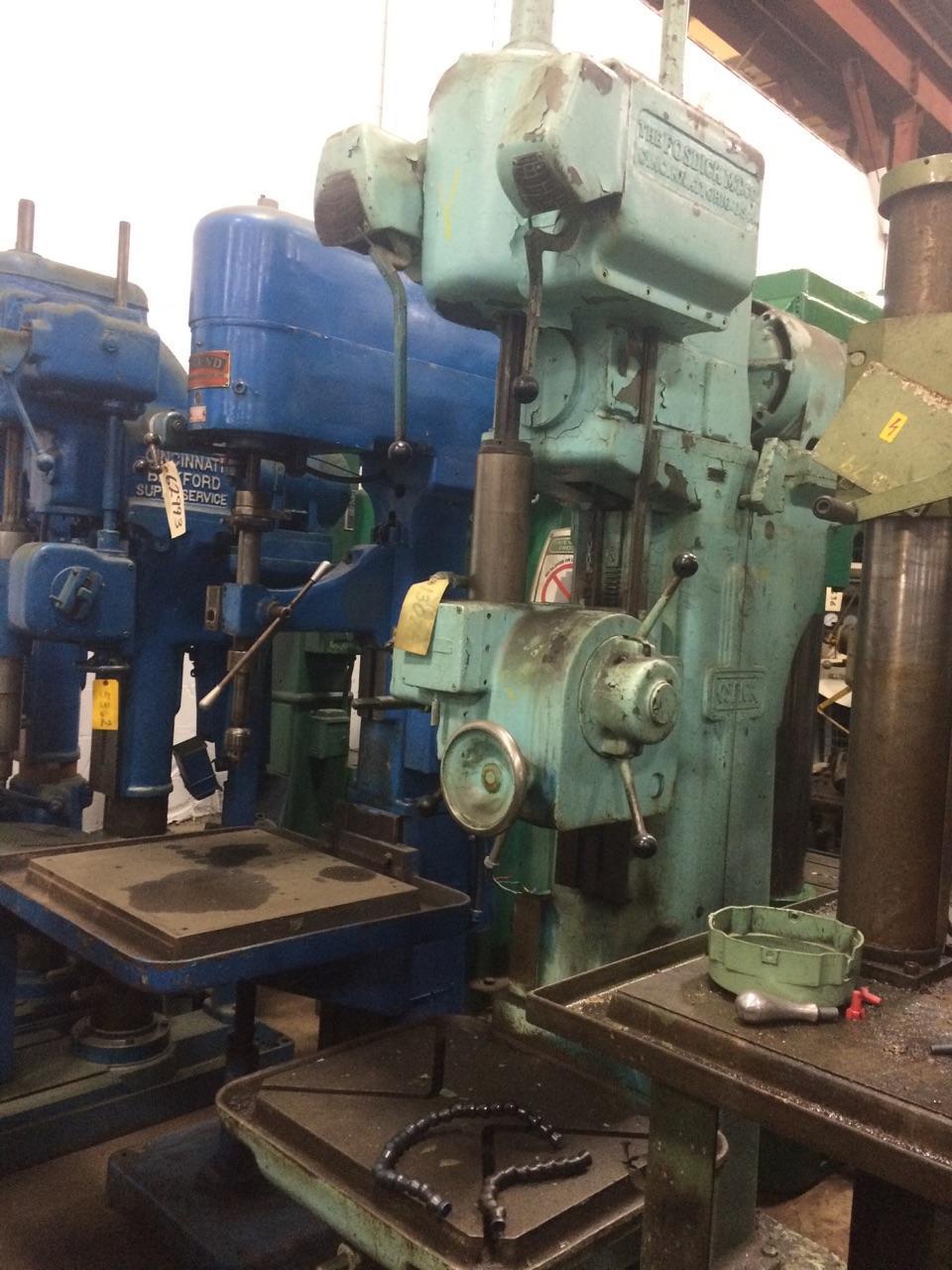

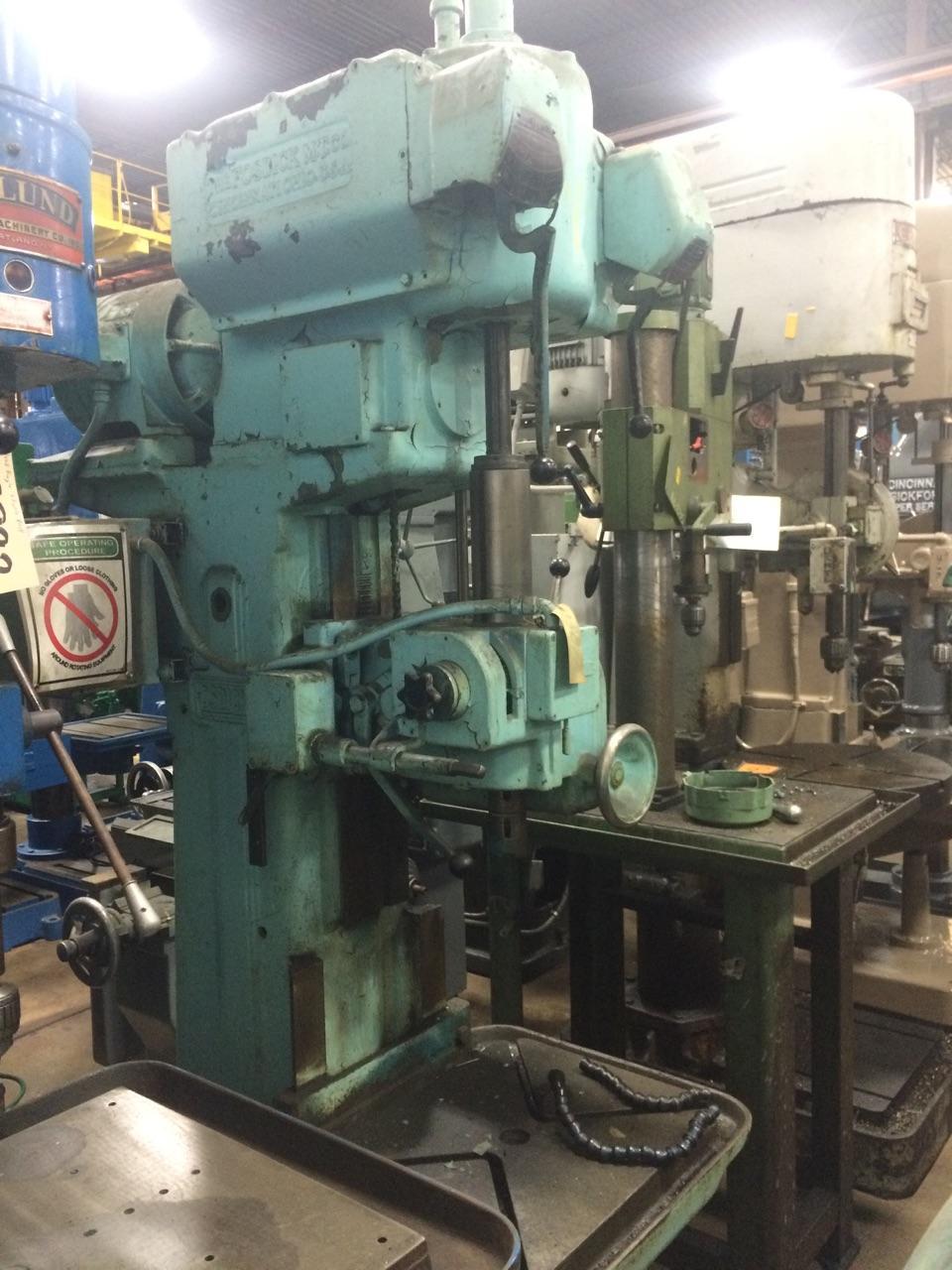

25" FOSDICK SINGLE SPINDLE DRILL: STOCK #13075

Manufacturer

FOSDICK

Category

Drilling Machines

Type

DRILLS, HEAVY DUTY & SENSITIVE, (Single Vertical Spindle)

Stock

13075

Model

25

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet



SERIAL ........................................ 18720
BOX COLUMN .................................... YES
SPINDLE CENTER TO LOWER COLUMN ................ 12-1/2"
SPINDLE CENTER TO UPPER COLUMN ................ 12"
MAXIMUM DISTANCE SPINDLE TO TABLE ............. 34"
AREA OF WORK TABLE ............................ 24" X 19"
POWER FEED SPINDLE TRAVEL ..................... 12"
VERTICAL TABLE TRAVEL ......................... 16"
VERTICAL ADJUSTMENT OF SLIDING HEAD ........... 18"
SPINDLE SPEEDS ................................ (12) 60-1500 RPM
SPINDLE FEEDS ................................. (9) .005-.043 IPR
SPINDLE TAPER ................................. #4 MT
POWER DOWNFEED ................................ YES
TAPPING ....................................... YES
MOTOR ......................................... 5 HORSEPOWER
