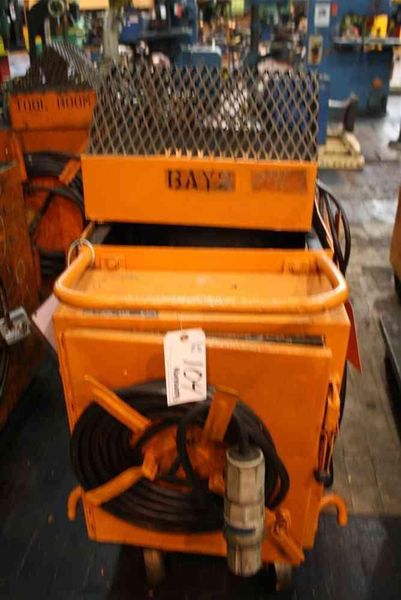

LAMINA MAGNETIC DRILL WITH PORTABLE HYDRAULIC DRILL: STOCK #54250

Manufacturer

Category

Drilling Machines

Type

DRILLS, HEAVY DUTY & SENSITIVE, (Single Vertical Spindle)

Stock

54250

Model

None listed

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet



SERIAL # HYDRAULIC TANK ............... P12354
DRILLING HEAD SERIAL .................. CH178
DRILLING HEAD MODEL # ................. A10048SH
DRILLING CAPACITY ..................... 13/16" STEEL
TAPPING CAPACITY ...................... 3/4"- 10
SPINDLE SPEEDS (VARIABLE) ............. 0 TO 625 RPM
STROKE OF HEAD ON COLUMN .............. 3-1/8"
TAPER IN SPINDLE ...................... #1MT
TORQUE ................................ 525 IN.LBS
MAGNETIC BASE ......................... YES
MAGNETIC BASE HAS A BATTERY BACK ...... YES
DRILL HEIGHT .......................... 10-5/8"
HAND FEED ............................. YES
UNIT PORTABLE ON WHEELS ............... YES
PENDANT CONTROL ....................... YES
12 GPM HYDRAULIC UNIT ................. @ 1600 PSI
DRILL HEAD (HYDRAULIC) ................ 5-1/4 HORSEPOWER
