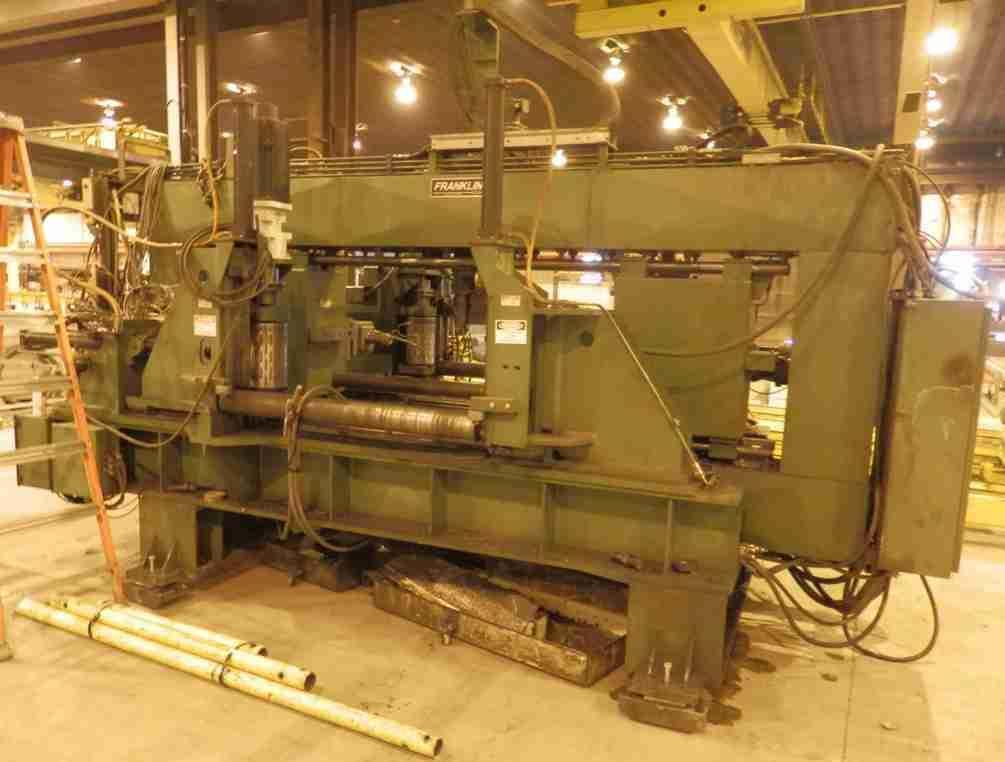

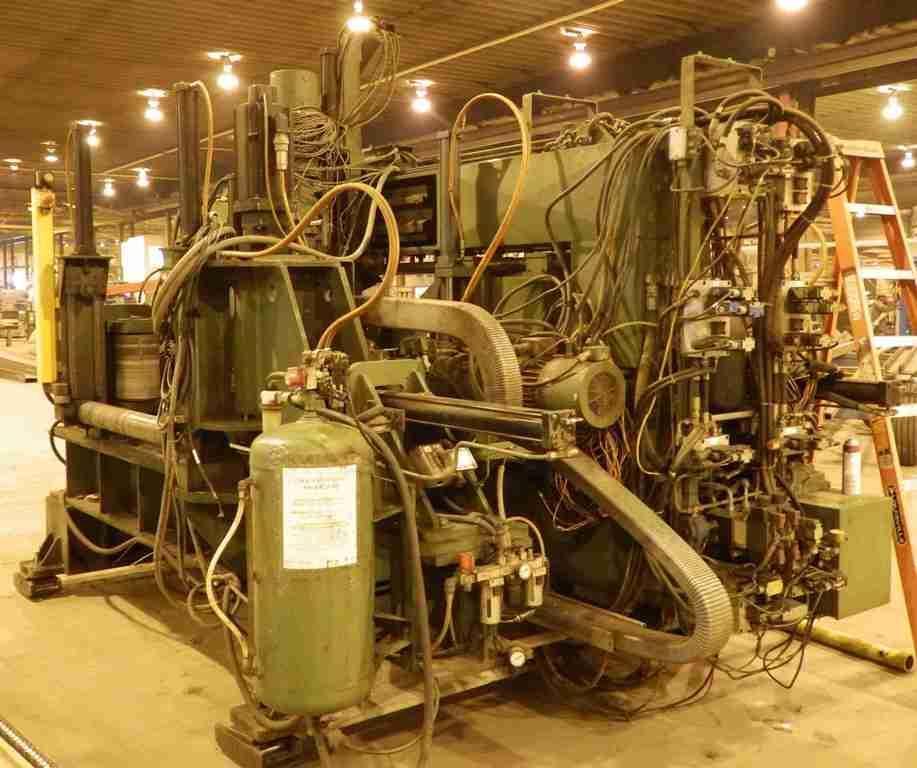

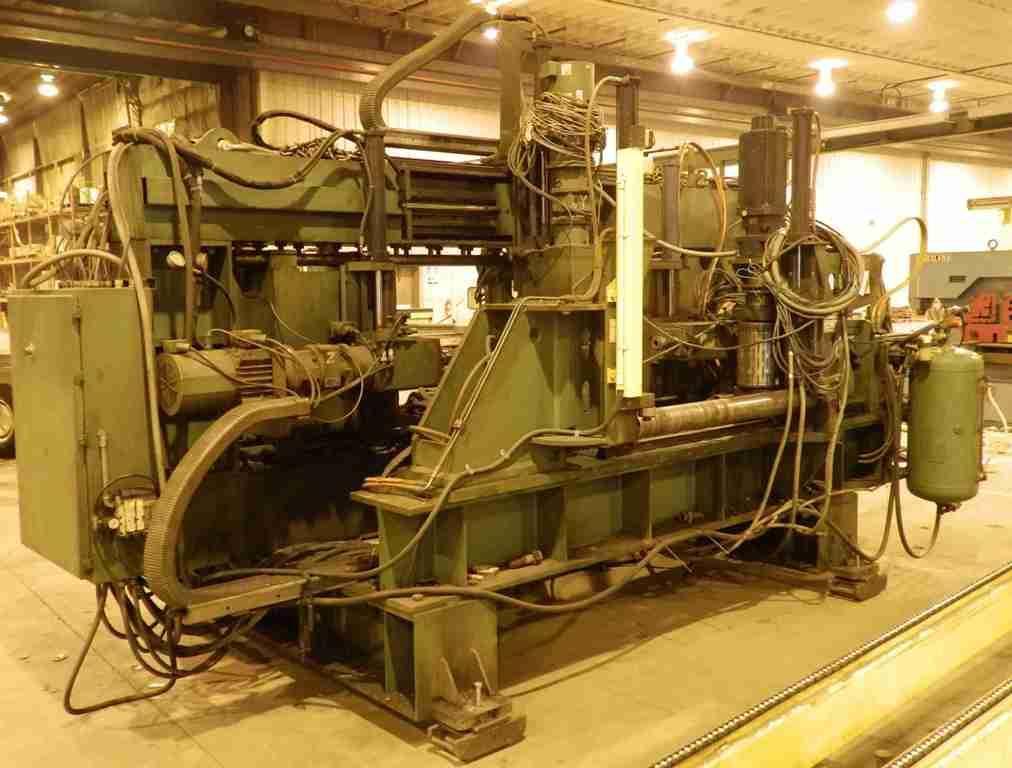

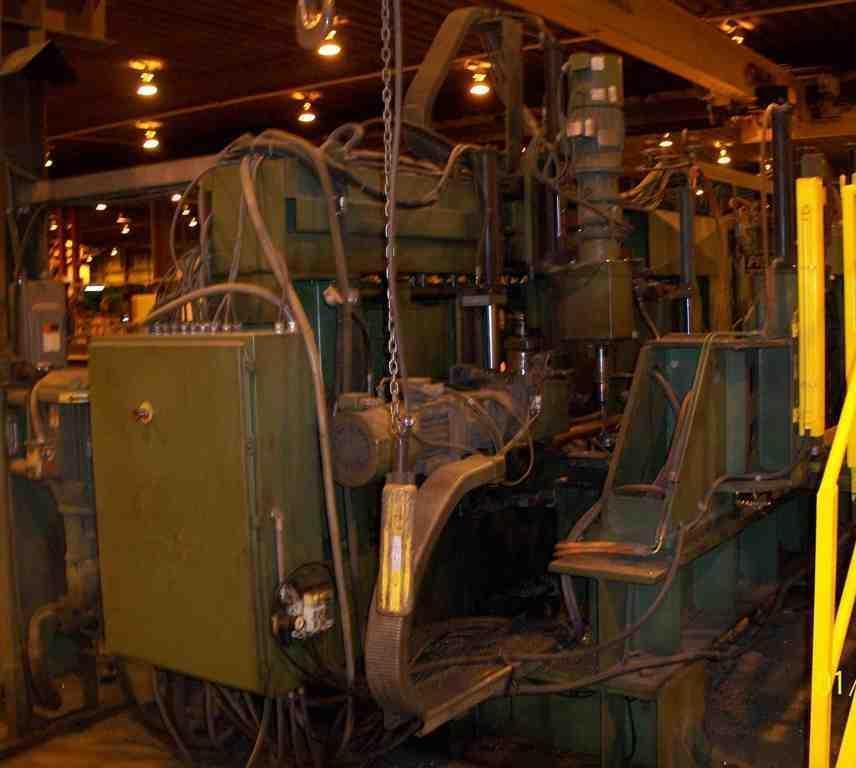

1-9/16' x 40' #HD-145 FRANKLIN CNC 3-SPINDLE DRILL LINE: STOCK #62388

Manufacturer

Category

Drilling Machines

Type

DRILLS, HEAVY DUTY & SENSITIVE, (Single Vertical Spindle)

Stock

62388

Model

3 SPINDLE

Dealer Location

Ohio

Request a Quote
View Contact Information

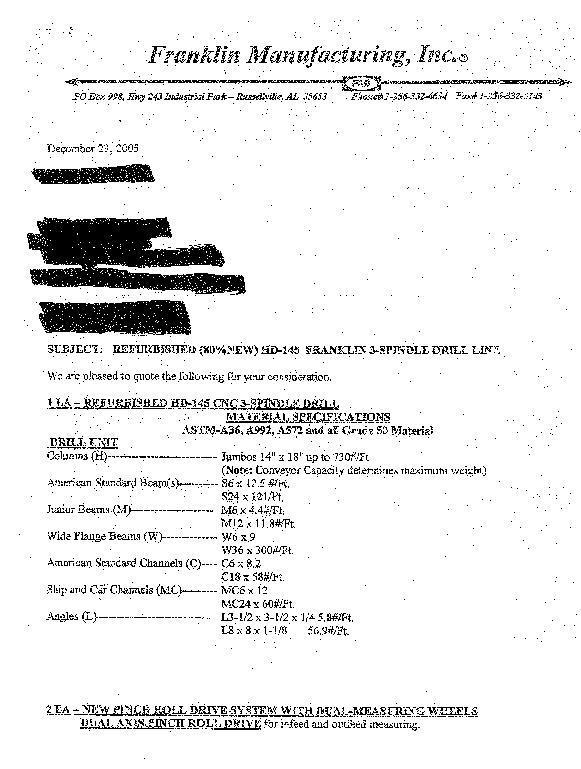

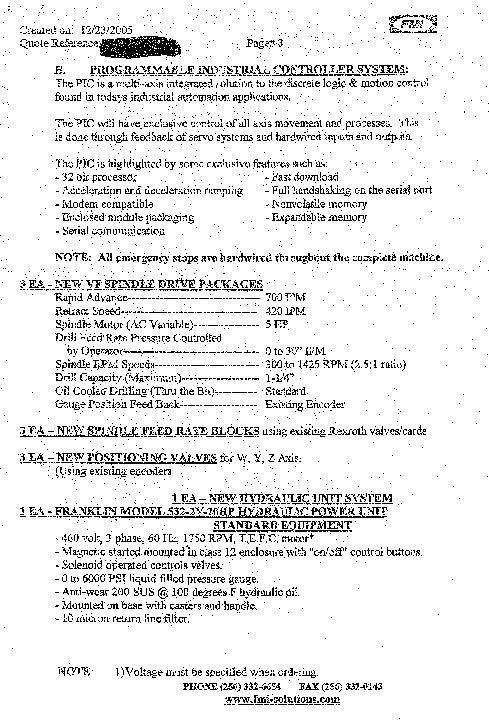

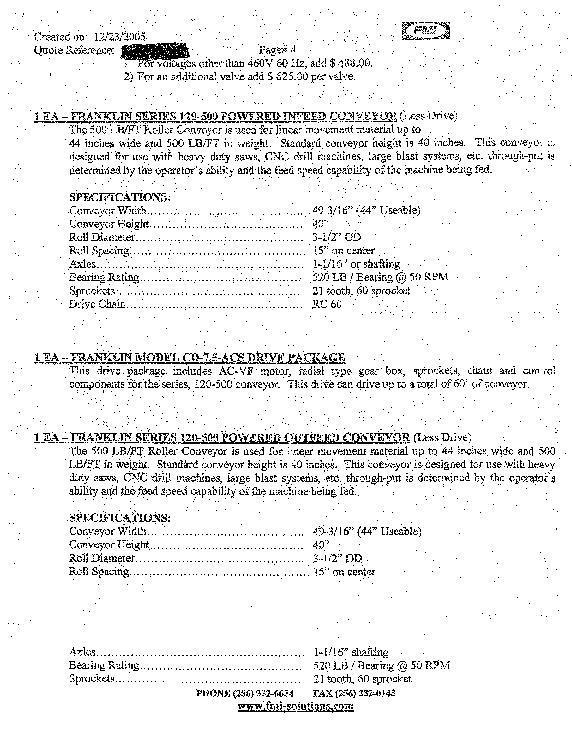

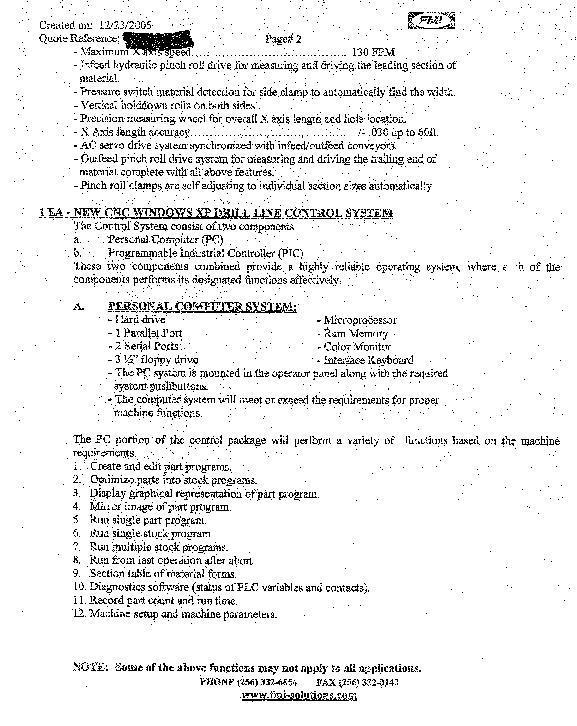

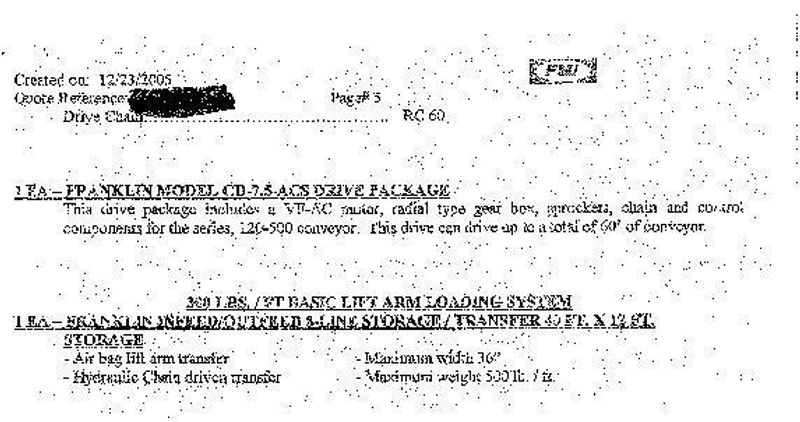

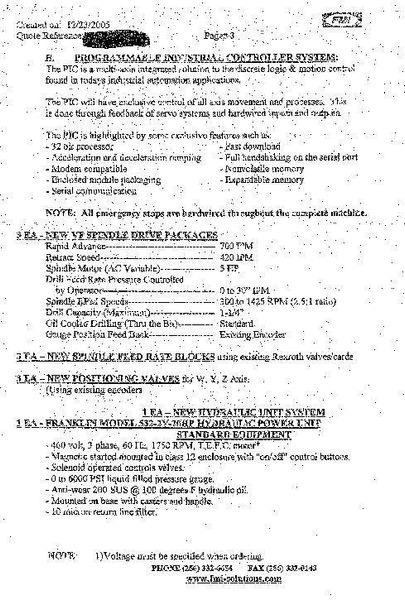

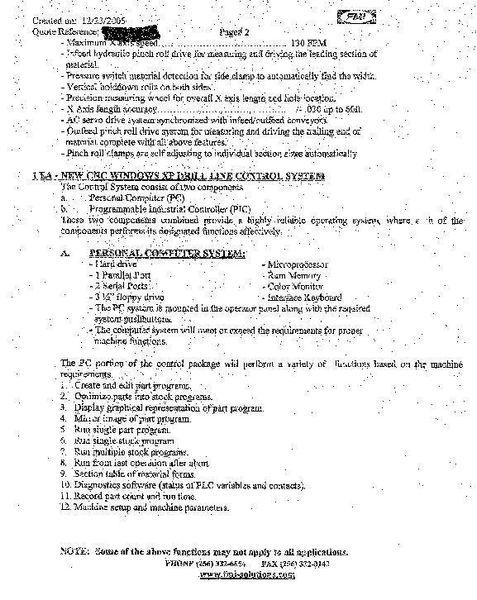

Spec Sheet



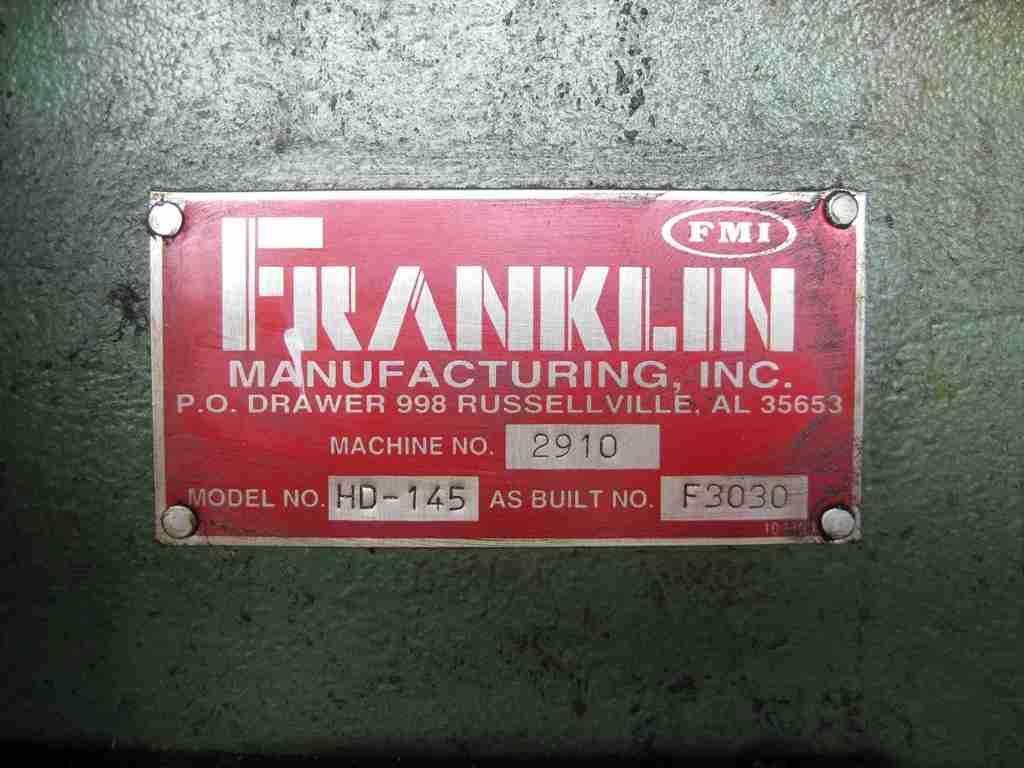

SERIAL ......................................... 2910
MODEL .......................................... HD-145
YEAR OF MFG .................................... 1989
YEAR OF REBUILD ................................ 2006
DRILL CAPACITY (WEB) ........................... 1-9/16" (#4 MORSE)
DRILL CAPACITY (FLANGES) ....................... 1-9/16" (#4 MORSE)
MAXIMUM BEAM WITH/FOOT ......................... 300 LBS
MAXIMUM BEAM DEPTH ............................. 40"
MINIMUM BEAM DEPTH ............................. 6"
BEAM FEED RATE IN X-AXIS (MAXIMUM) ............. 100 FPM
RAPID ADVANCE (WEB) ............................ 420 IPM
RAPID ADVANCE (FLANGES) ........................ 420 IPM
RETRACT SPEED (WEB AND FLANGES) ................ 420 IPM
SPINDLE MOTORS (AC VARIABLE) ................... 10 HP
MOTOR CAPACITIES (HYDRAULIC) .................... 3 @ 12 HP
DRILL FEED RATES (CNC CONTROLLED & MONITORED) ... 0-30" IPM
DRILL SPEEDS .................................... 0-1,800 RPM

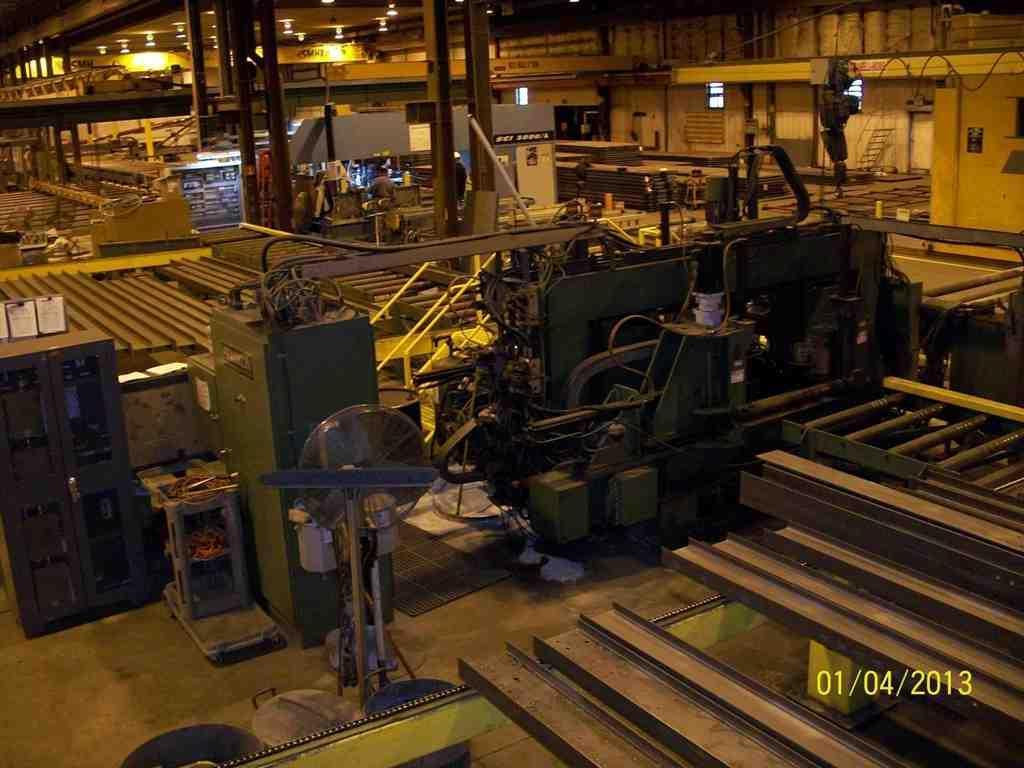

CROSS FEED CONVEYOR LENGTH ...................... 18' TO BACK OF CONVEYOR
INFEED CONVEYOR LENGTH .......................... 40'
OUTFEED CONVEYOR LENGTH ......................... 40'
CONVEYOR HEIGHT ................................. 30"

EQUIPPED WITH:
THRU SPINDLE COOLANT
LINEAR TRANSDUCER POSITION FEED BACK
FRANKLIN HD-532-20 HP HYDRAULIC POWER UNIT
FRANKLIN HD-532-20 HP HYDRAULIC POWER UNIT

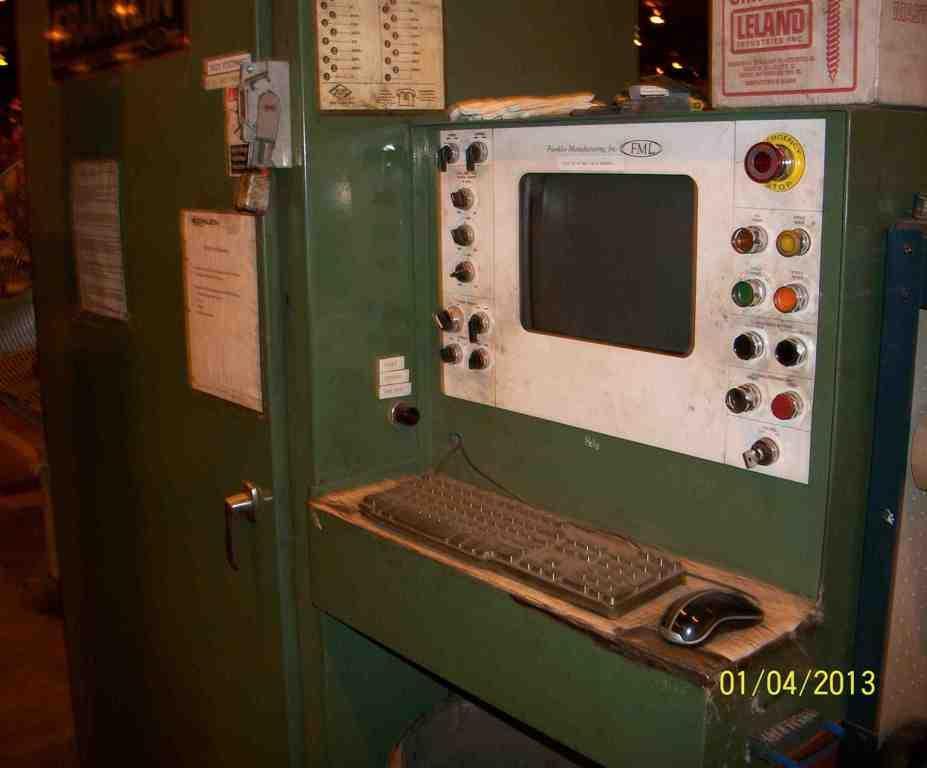

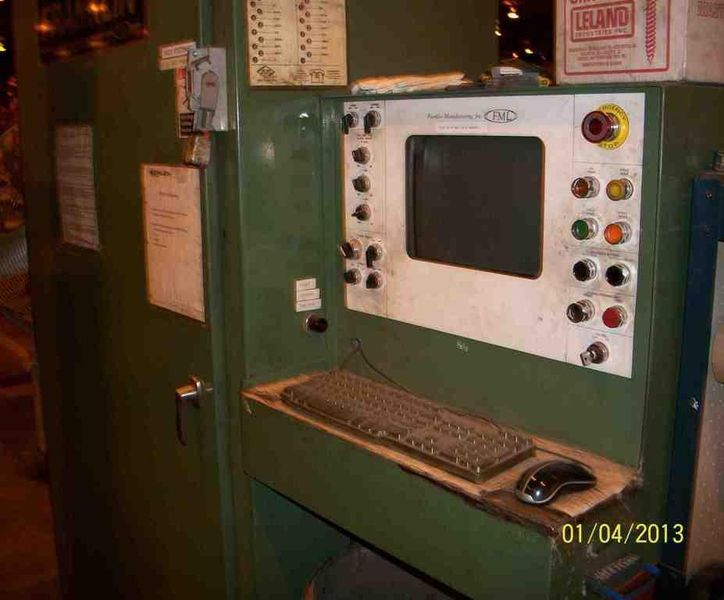

PROGRAMMABLE INDUSTRIAL CONTROLLER SYSTEM
COOLANT SYSTEM FOR THE HIGH PRESSURE MIST COOLANT THROUGH THE BIT
DUAL AXIS PINCH ROLL DRIVE FOR INFEED & OUTFEED MEASURING
MAXIMUM X AXIS SPEED ............................ 130 FPM
