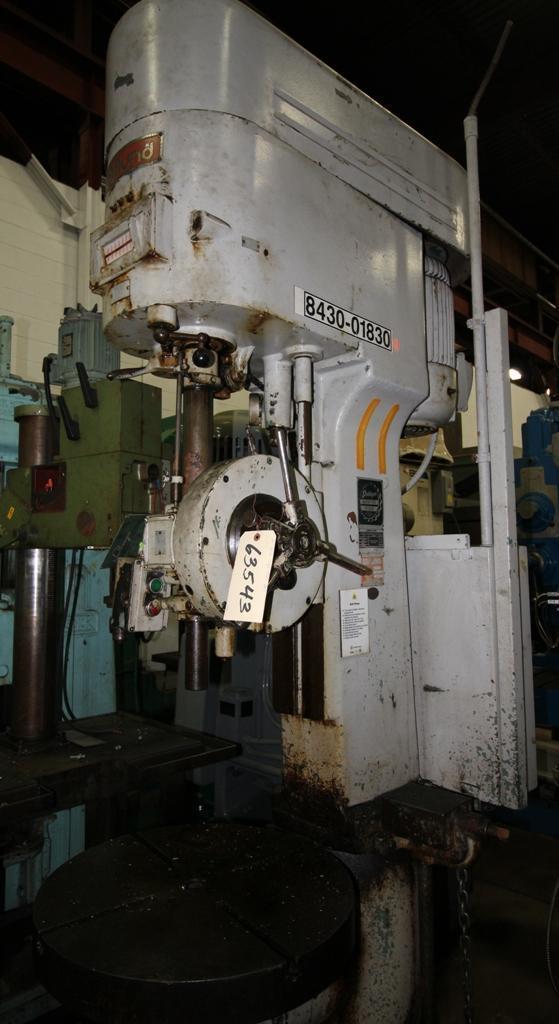

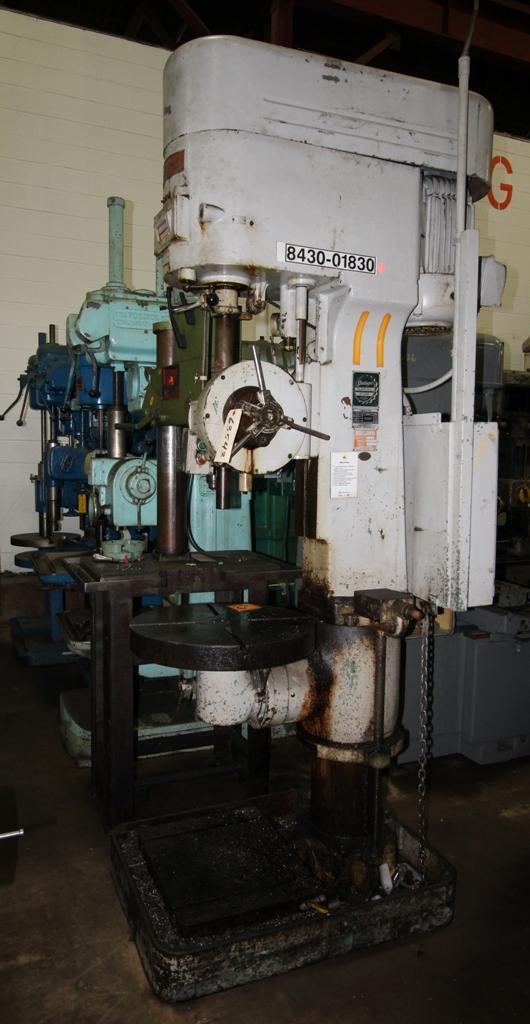

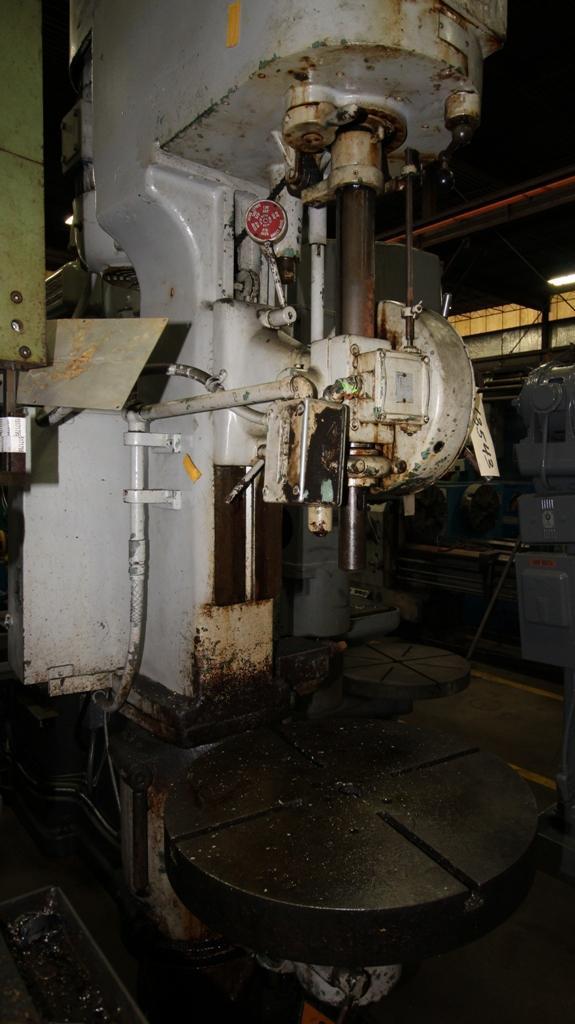

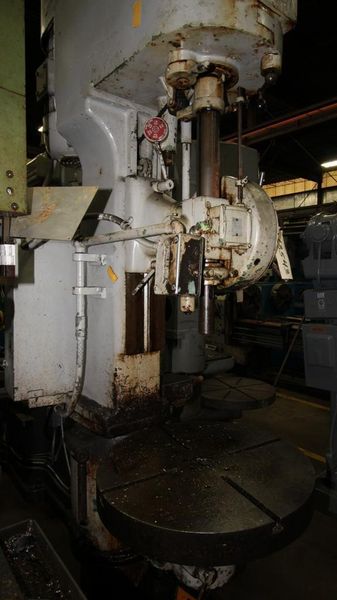

24" EDLUND MODEL #4F-12 SINGLE SPINDLE DRILL: STOCK #63543

Manufacturer

EDLUND

Category

Drilling Machines

Type

DRILLS, HEAVY DUTY & SENSITIVE, (Single Vertical Spindle)

Stock

63543

Model

24

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet



SERIAL ........................... 14445
MODEL ............................ 4F12
DEPTH OF THROAT .................. 12"
SPINDLE SPEEDS ................... 90 TO 2000 RPM
SPINDLE TRAVEL ................... 10"
DIAMETER OF SPINDLE SLEEVE ....... 2-1/2"
SPINDLE DIAMETER AT DRIVE ........ 1-3/8"
TAPER IN SPINDLE ................. #4 MT
DIAMETER OF TABLE ................ 24"
TABLE TRAVEL ..................... 14"
DISTANCE SPINDLE TO TABLE ........ 29" MAXIMUM
DISTANCE SPINDLE TO BASE ......... 48"
TABLE TILTS LEFT OR RIGHT ........ 90 DEGREES
POWER FEEDS ...................... .0025 TO .10 IPR
MOTOR ............................ 5 HORSEPOWER
