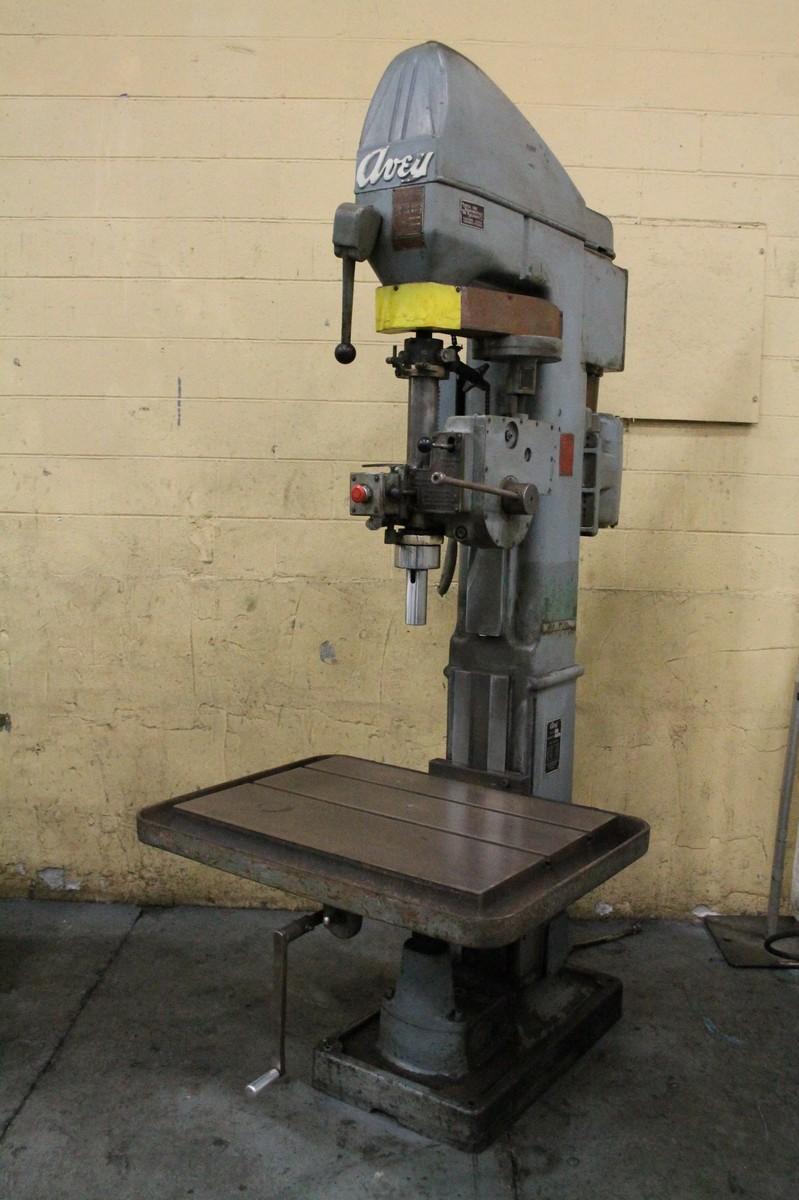

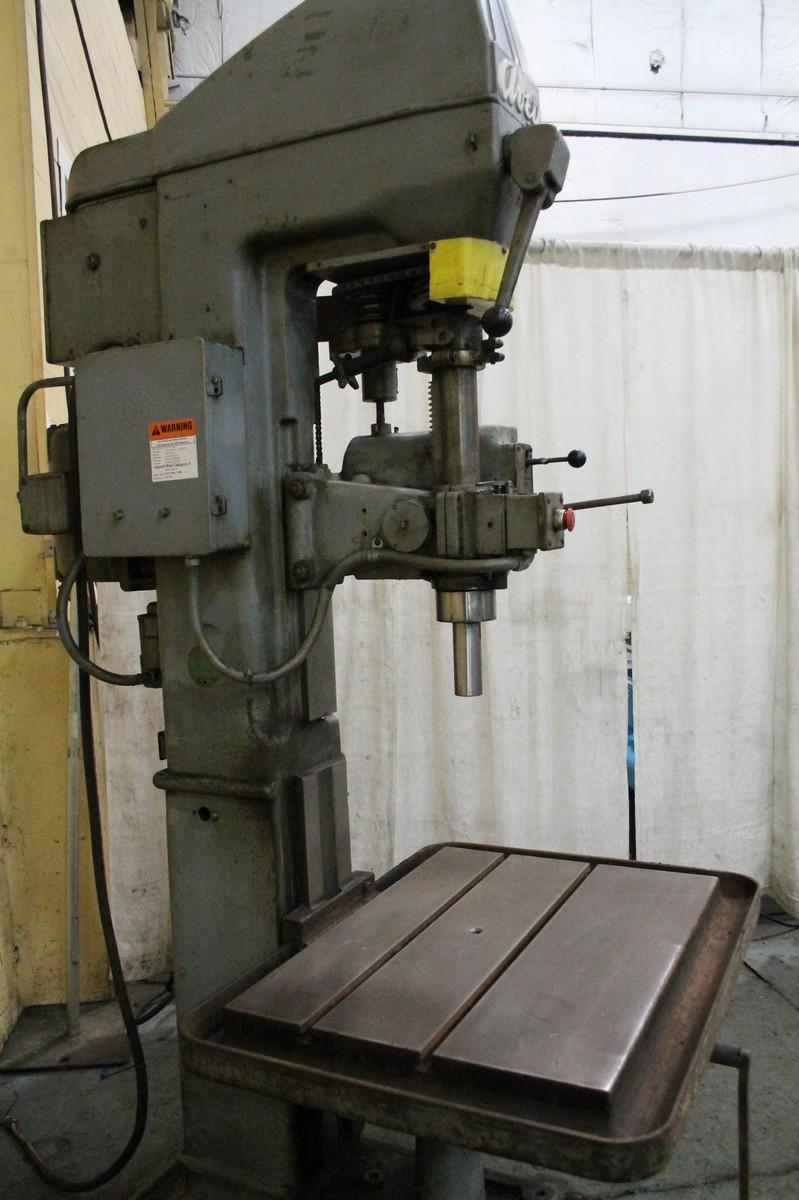

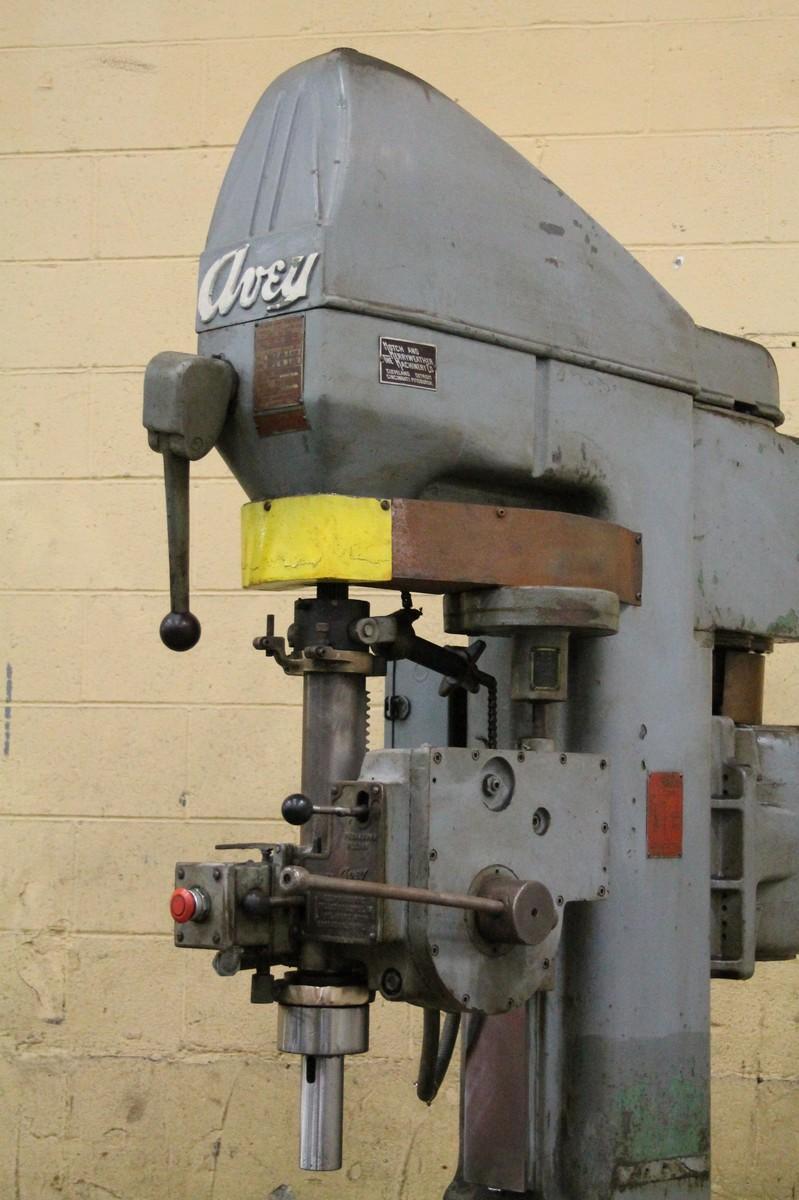

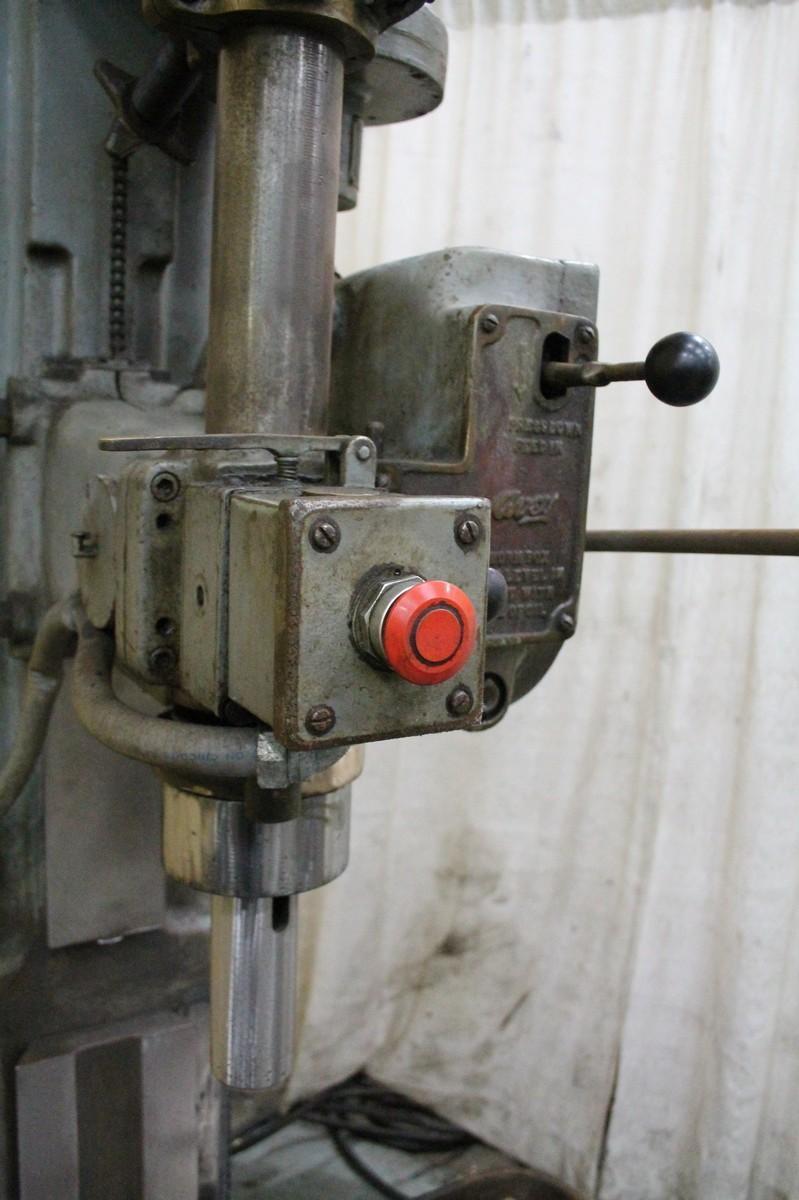

24' AVEY, MODEL #3 SINGLE SPINDLE DRILL: STOCK #64745

Manufacturer

Category

Drilling Machines

Type

DRILLS, HEAVY DUTY & SENSITIVE, (Single Vertical Spindle)

Stock

64745

Model

24

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet



SERIAL .......................... 32236
MODEL ........................... #3
DEPTH OF THROAT ................. 12"

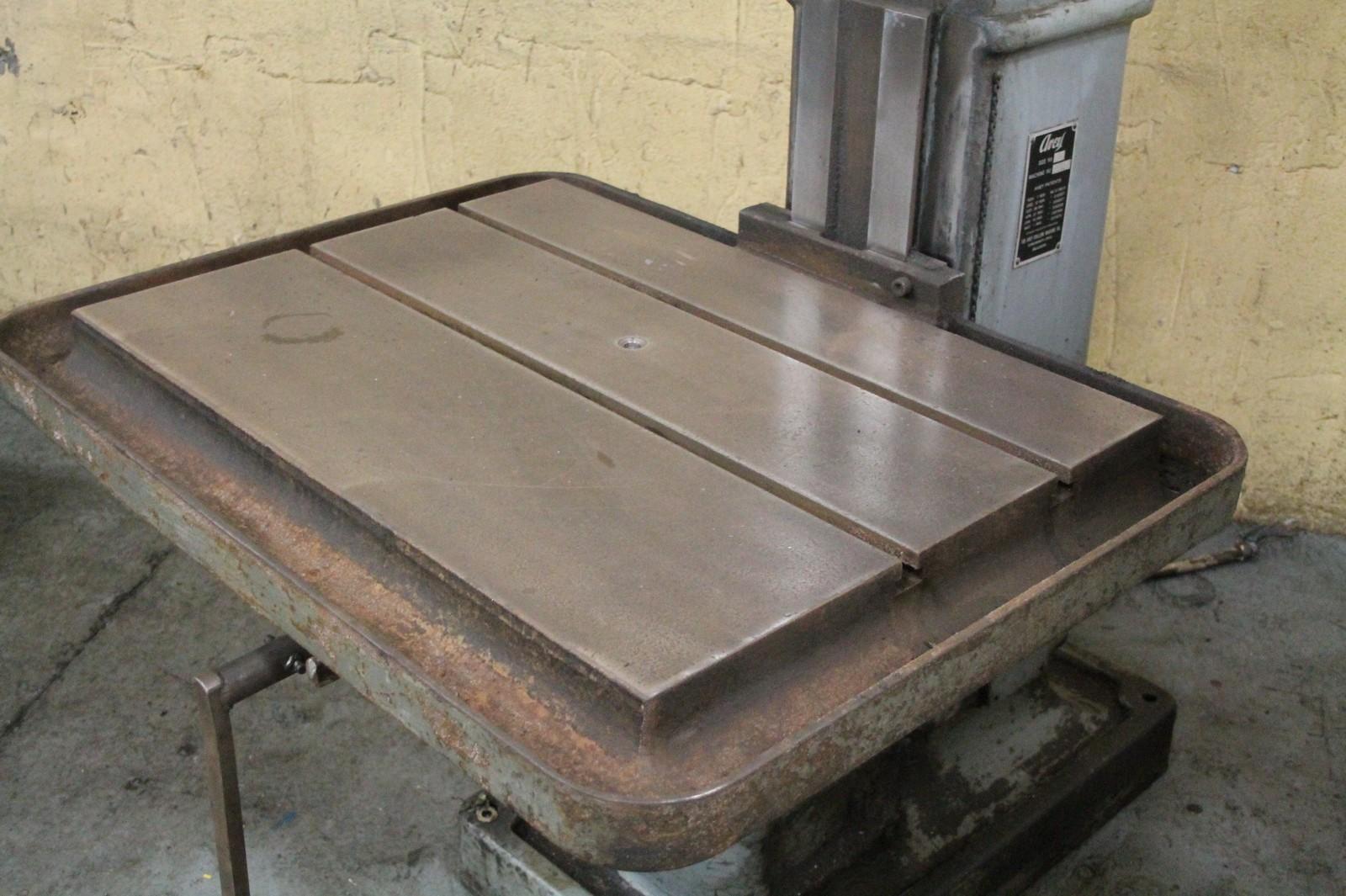

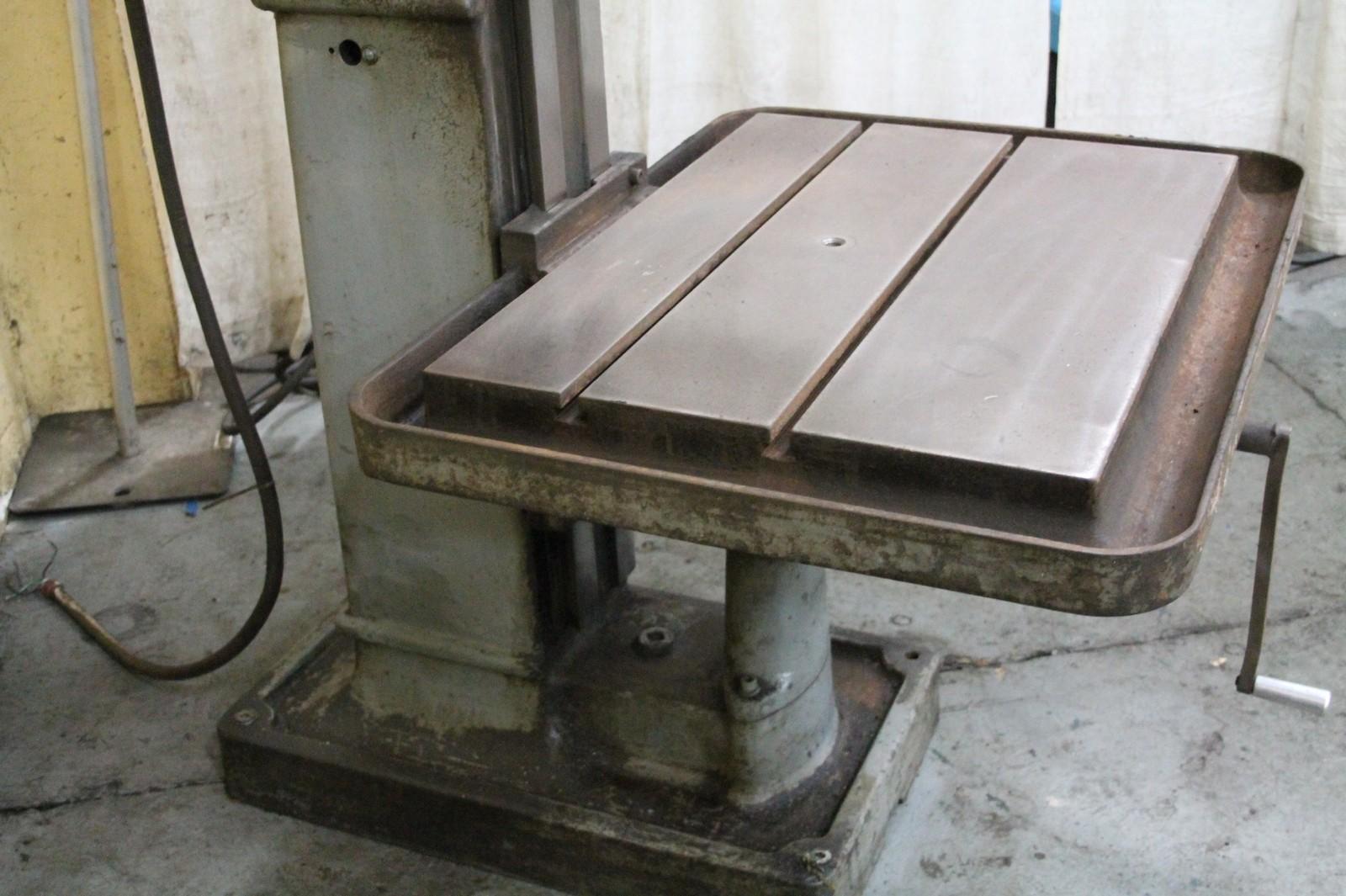

WORKING SURFACE OF TABLE ........ 34" X 25"
SPINDLE SPEEDS .................. (6) 95 TO 1130 RPM
SPINDLE FEEDS ................... (4) .002,.008,.012 & .020 IPR
SPINDLE TRAVEL .................. 8"
VERTICAL HEAD TRAVEL ............ 10"
VERTICAL TABLE TRAVEL ........... 19-1/2"
DISTANCE SPINDLE TO TABLE ....... 0" TO 28" MAXIMUM
TAPER IN SPINDLE ................ #3 MT
MOTOR ........................... 3 HORSEPOWER
