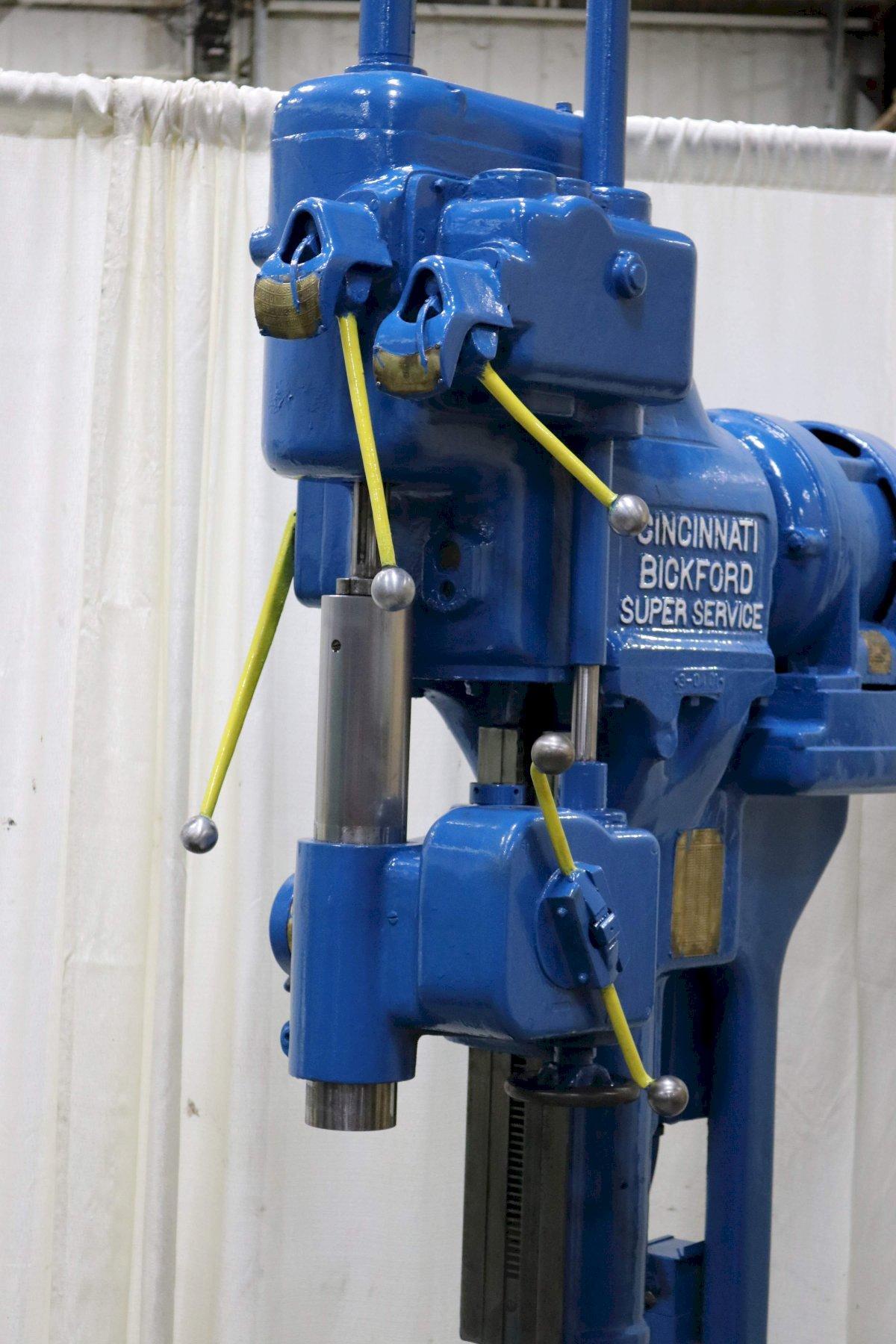

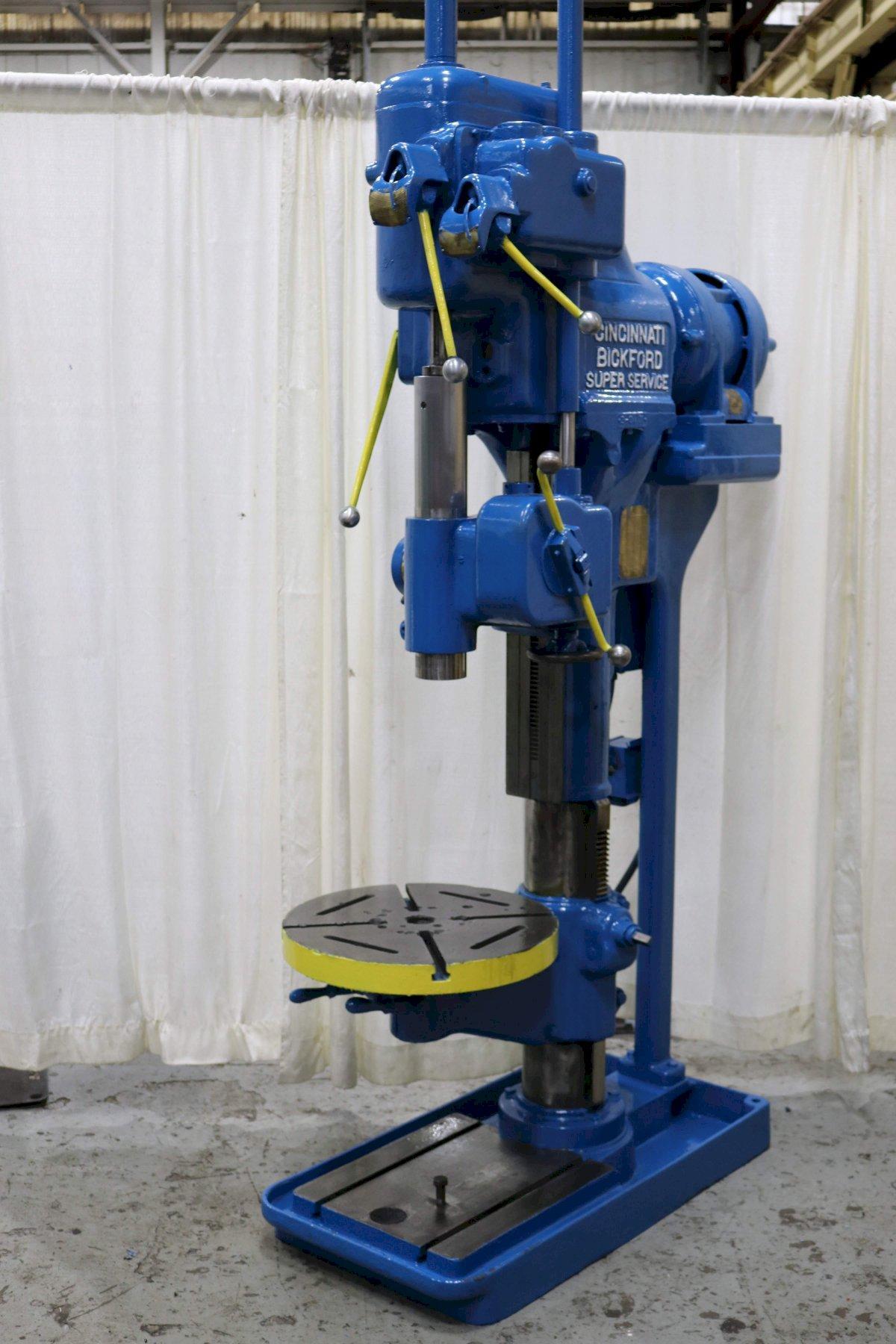

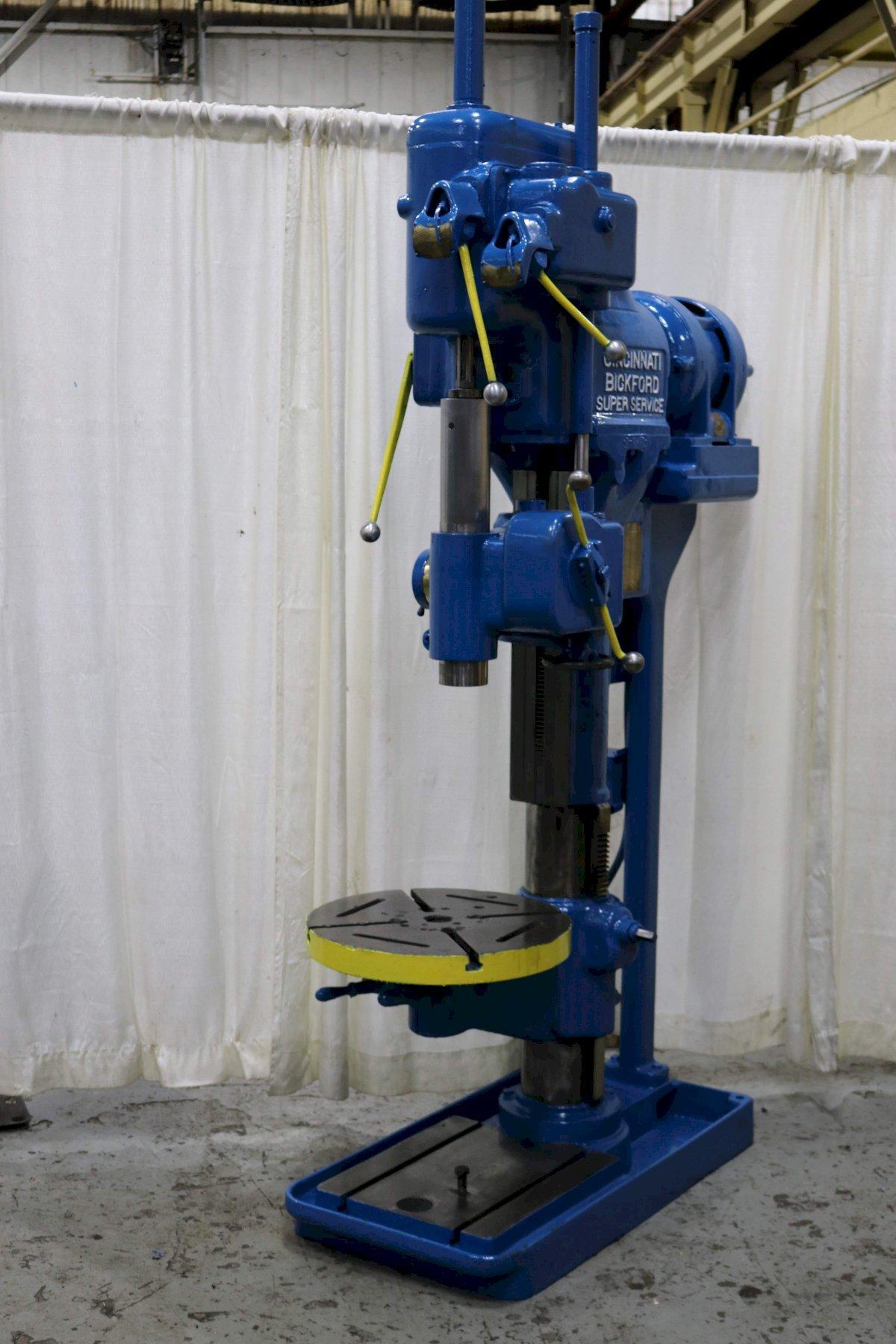

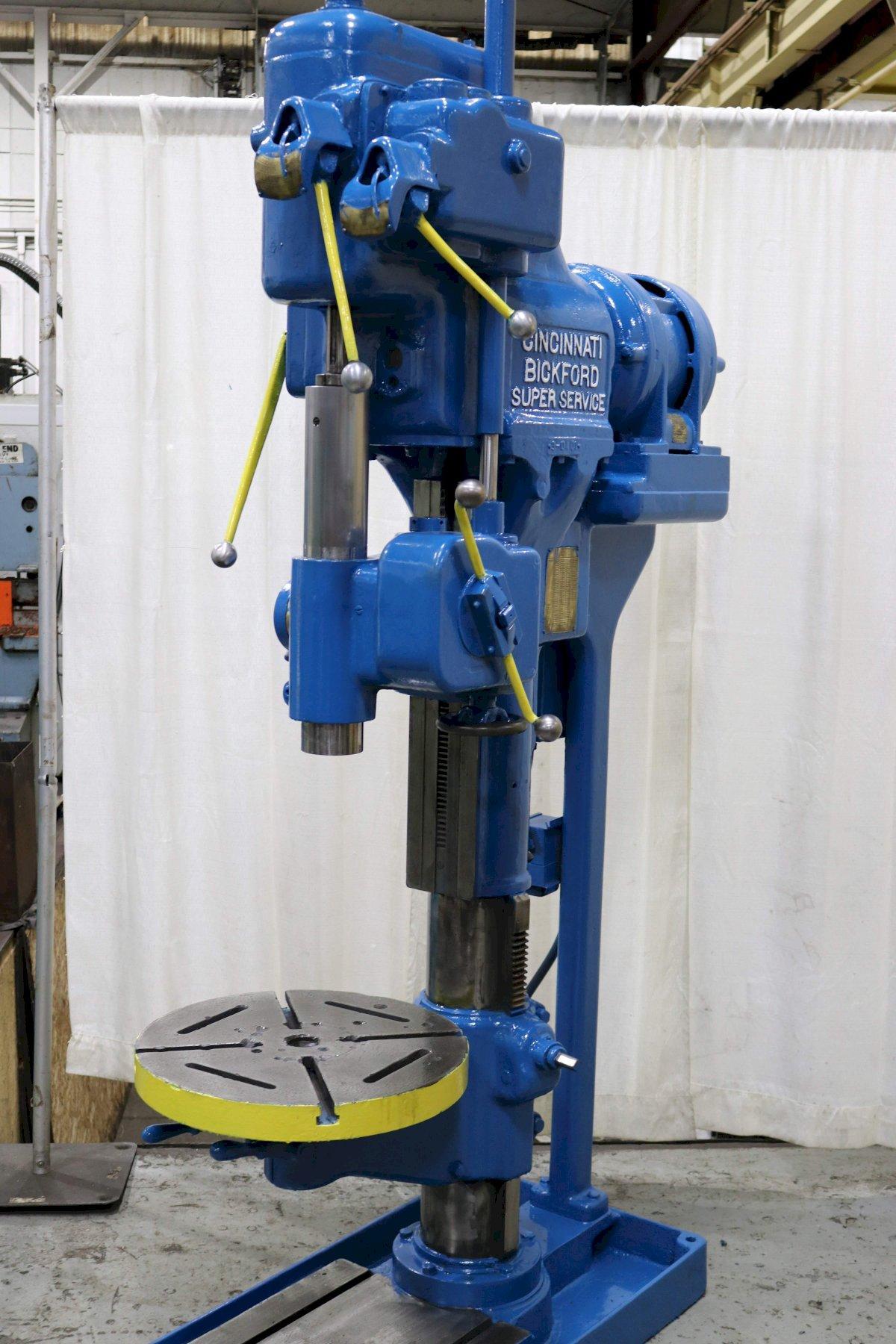

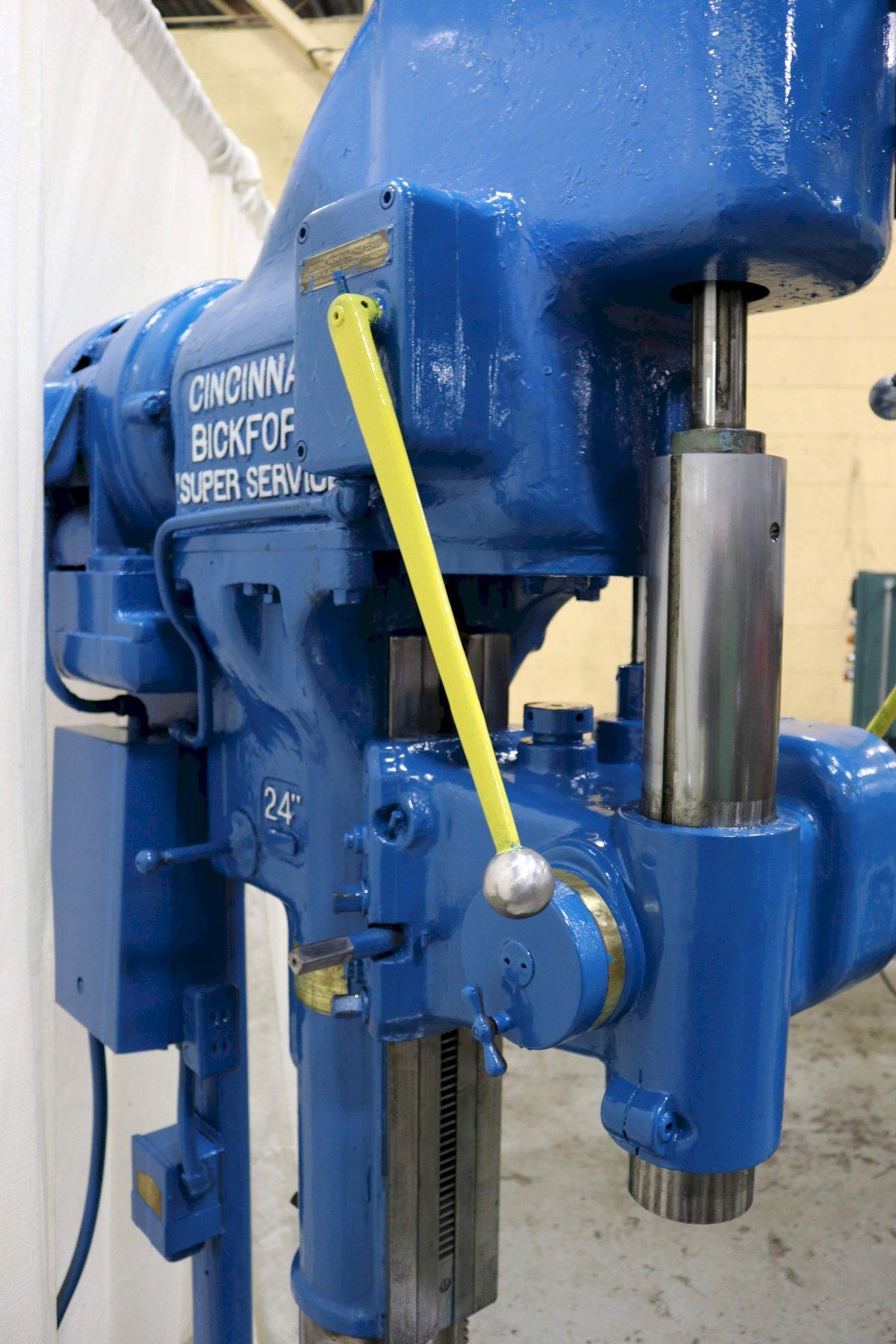

24" CINCINNATI SINGLE SPINDLE DRILL: STOCK #72416

Manufacturer

Cincinnati

Category

Drilling Machines

Type

DRILLS, HEAVY DUTY & SENSITIVE, (Single Vertical Spindle)

Stock

72416

Model

24

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet



SERIAL ............................. 2L813
MODEL .............................. 24
ROUND COLUMN ....................... YES
DEPTH OF THROAT .................... 12-1/2"

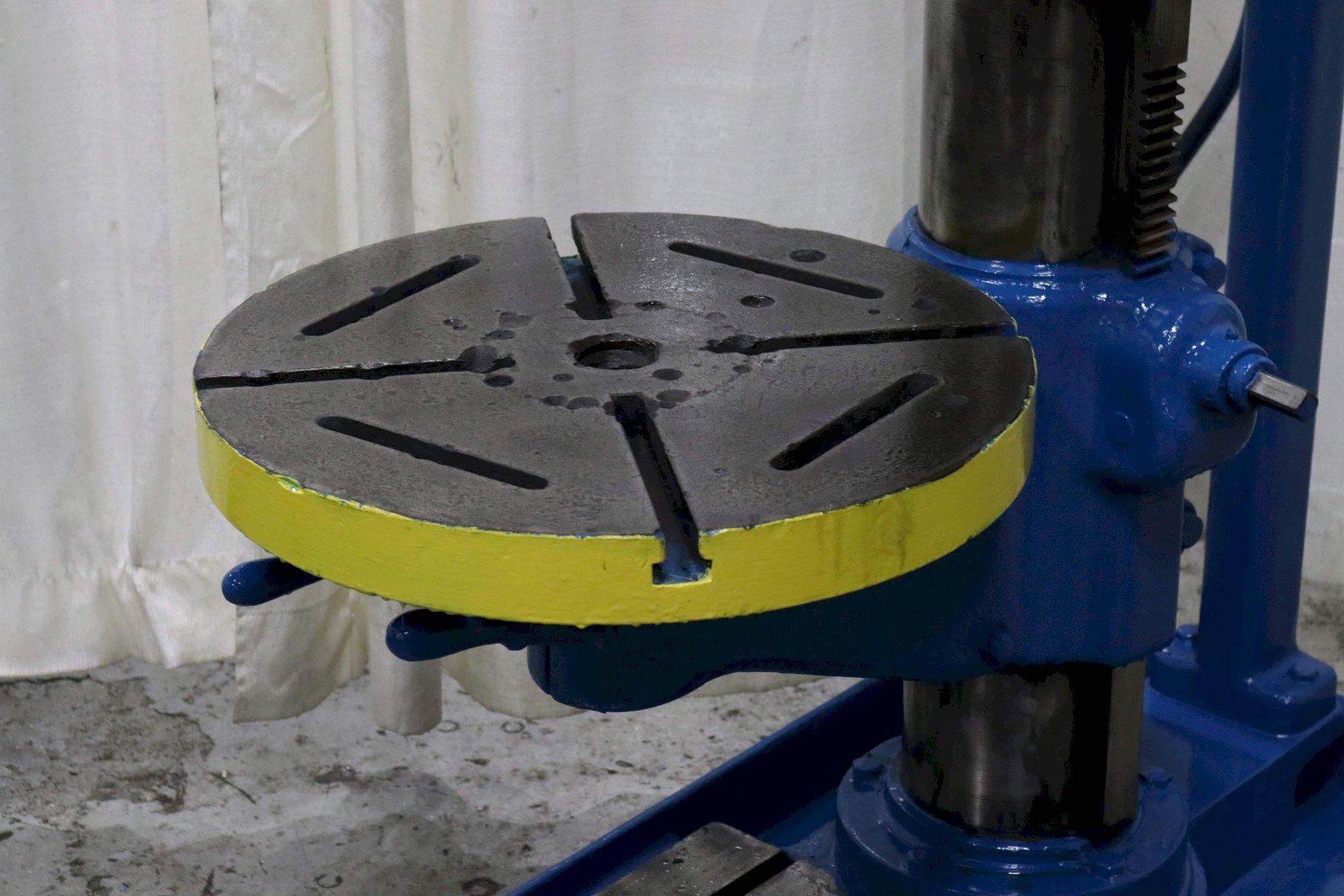

DIAMETER OF TABLE .................. 22"
AREA OF BASE ....................... 17-1/2" X 20-1/2"
SPINDLE SPEEDS ..................... (9) 60 TO 1000 RPM
FEEDS .............................. (9) .005 TO .043 IPR
DISTANCE SPINDLE TO BASE ........... 36"
VERTICAL TRAVEL OF HEAD ON COLUMN .. 17"
VERTICAL TRAVEL OF TABLE ON COLUMN . 12"
SPINDLE TRAVEL ..................... 11"
DIAMETER OF SPINDLE ................ 3-3/4"
TAPER IN SPINDLE ................... #4 MT
MOTOR .............................. 5 HORSEPOWER
