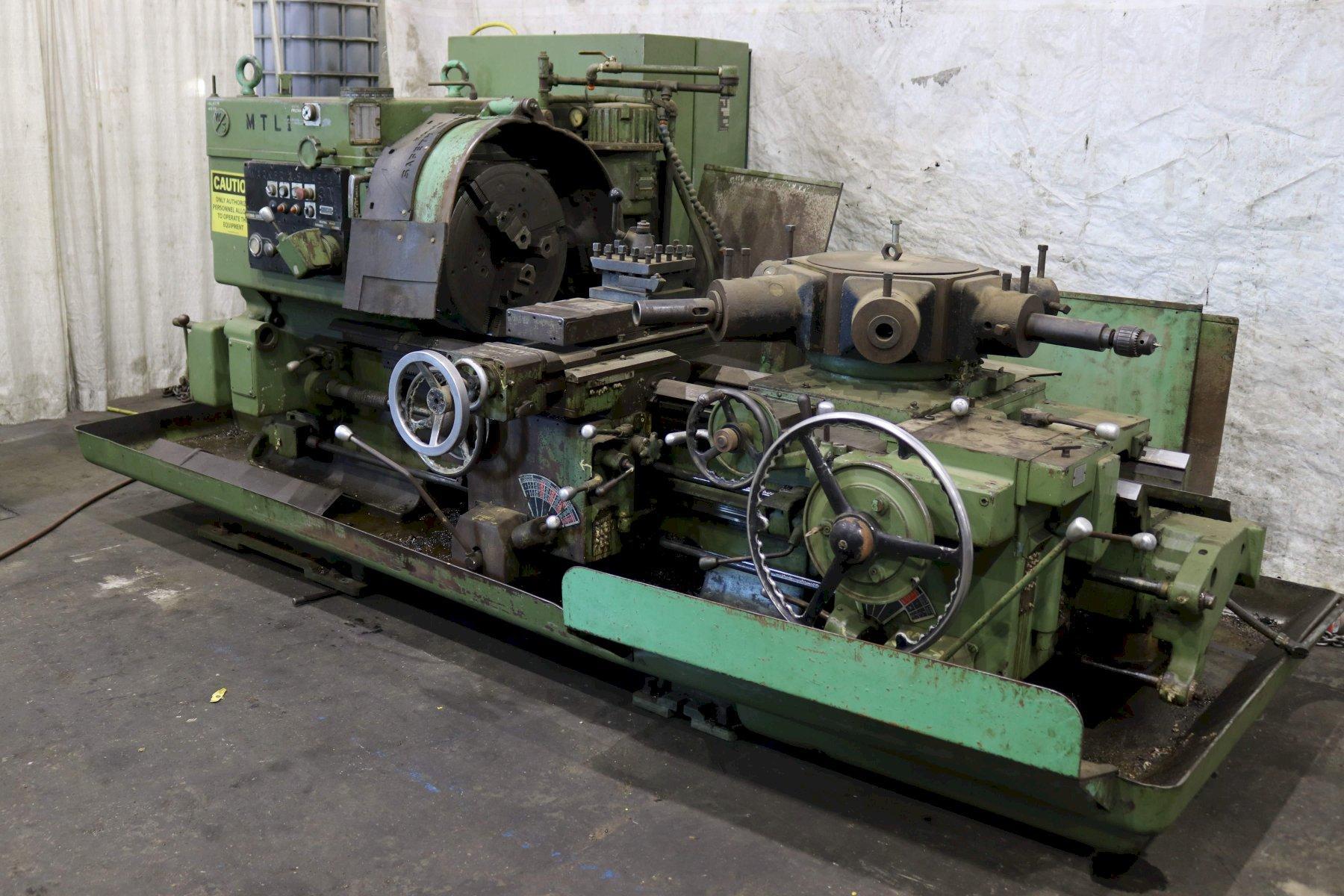

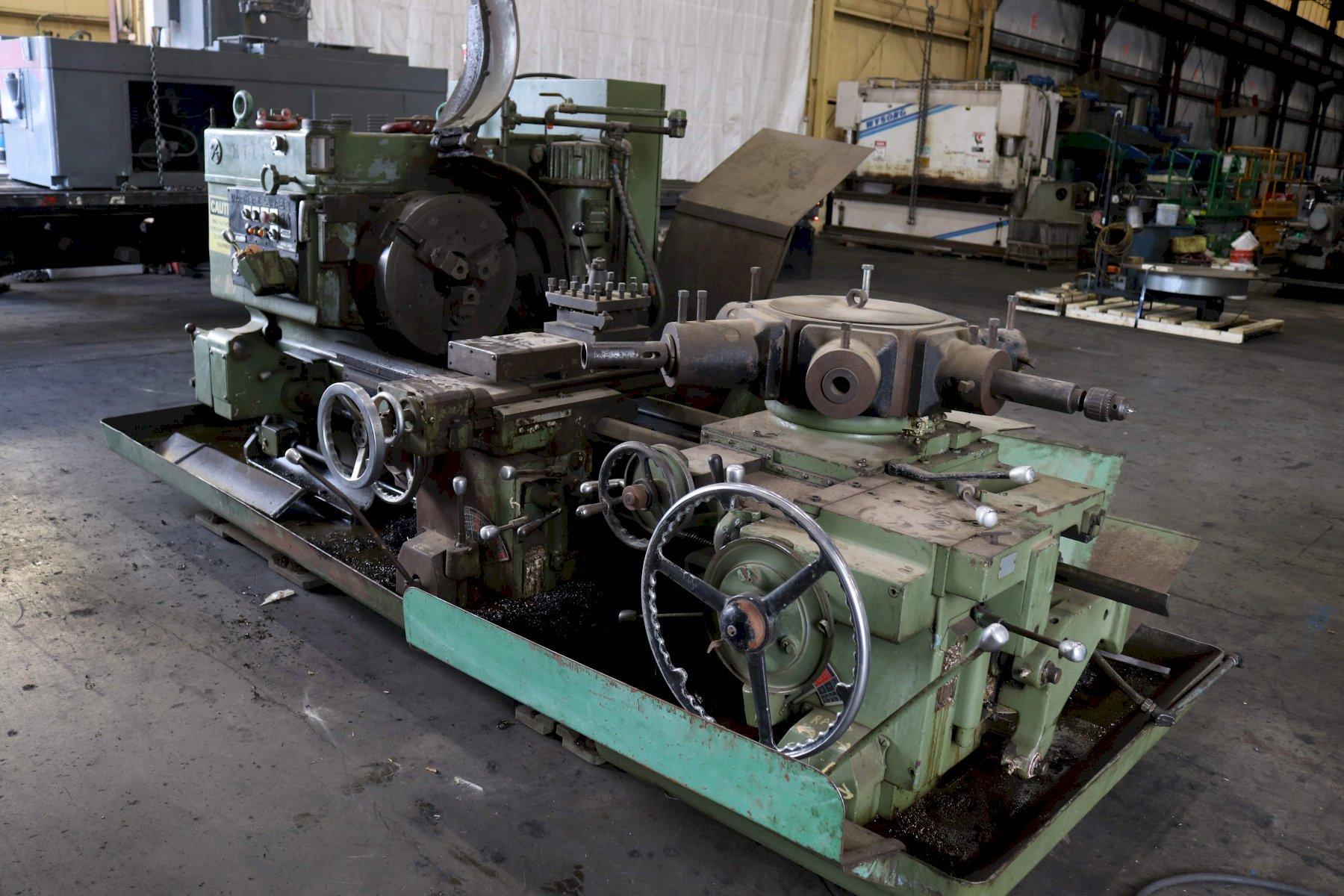

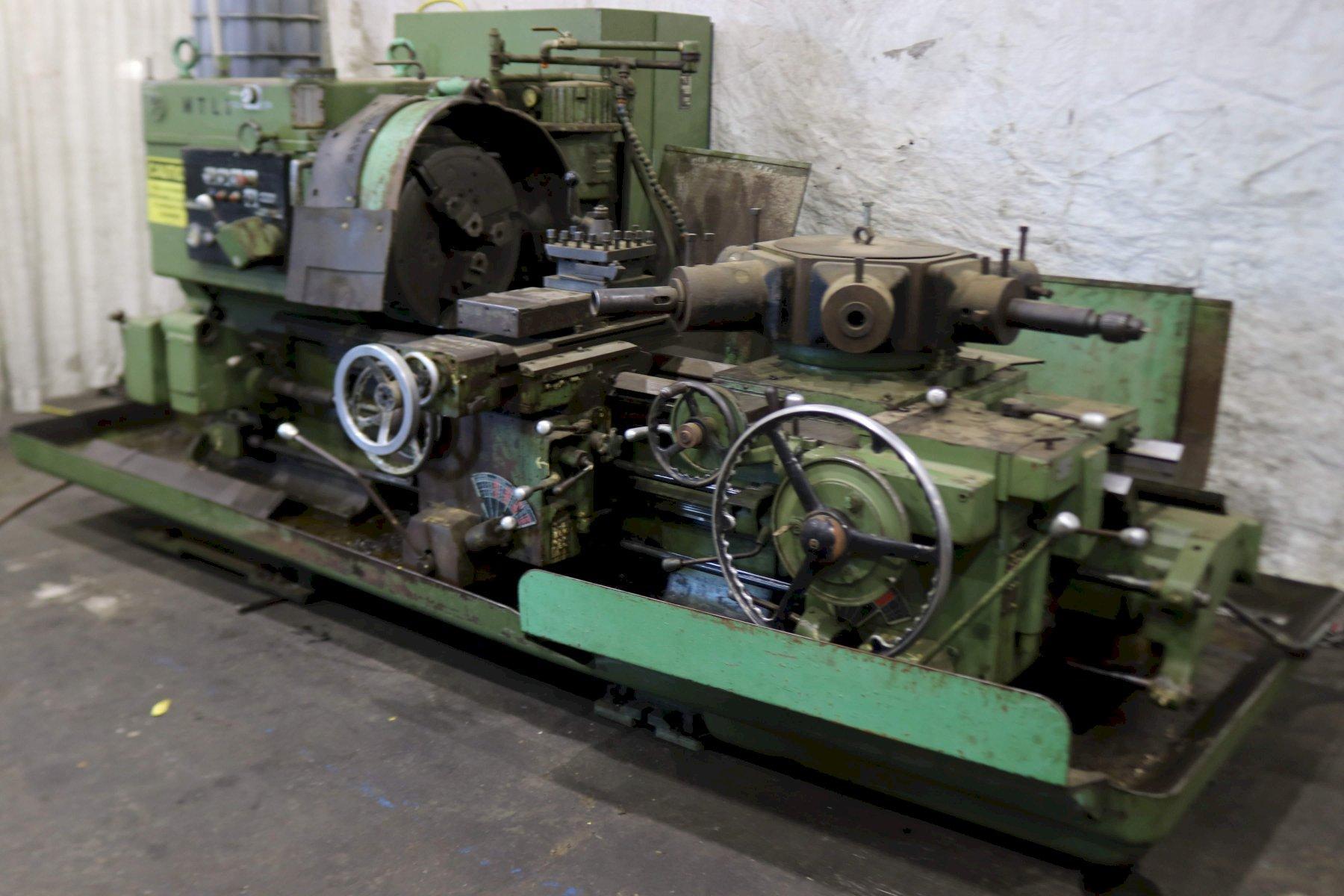

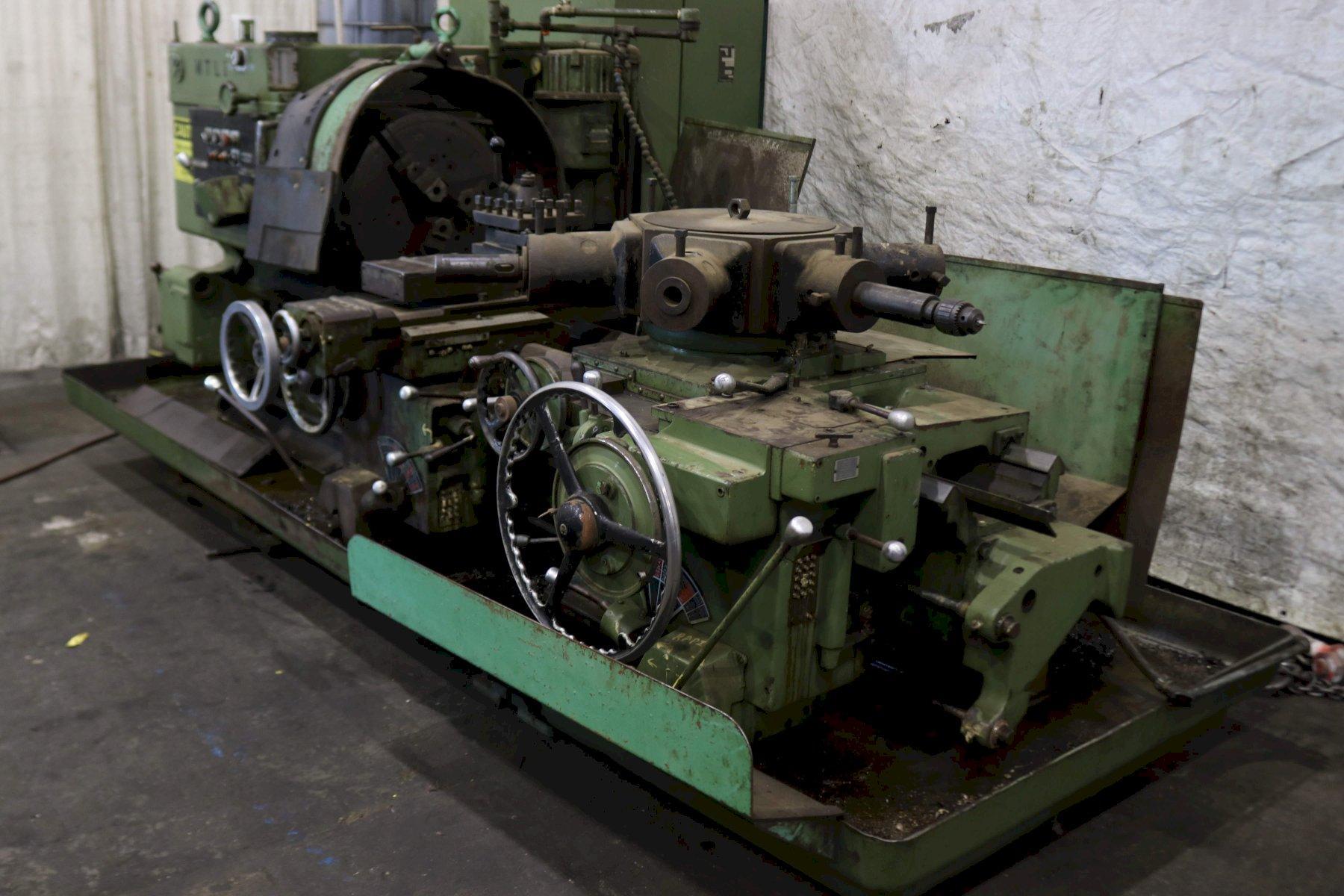

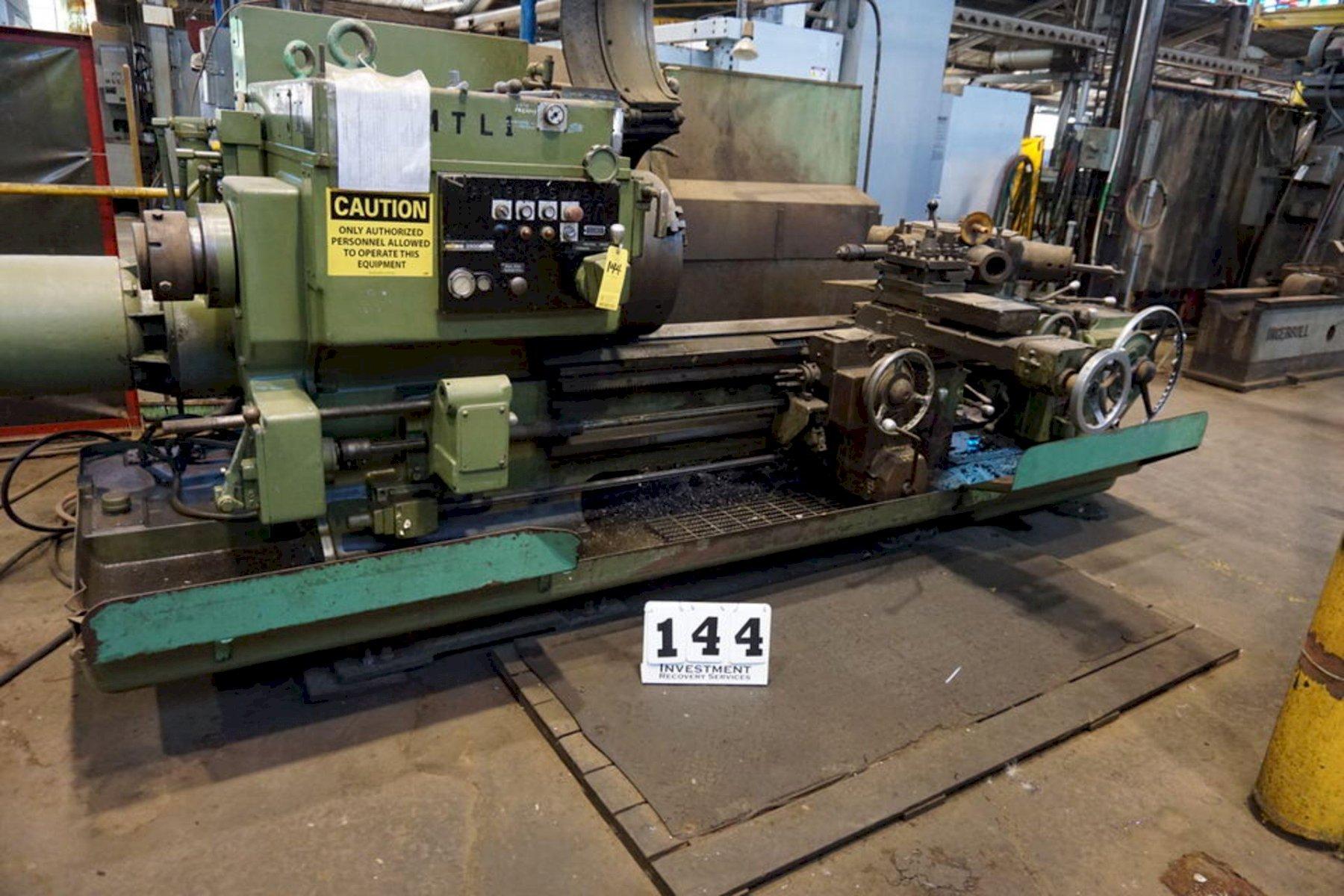

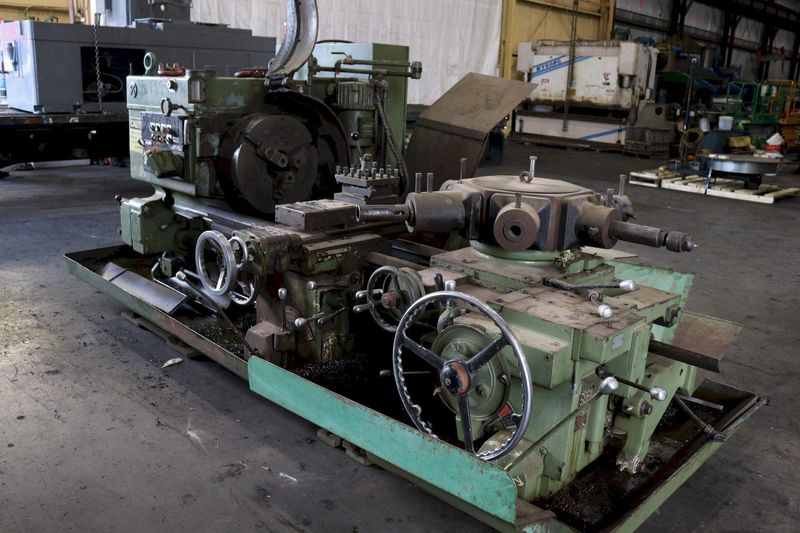

3A WARNER & SWASEY SADDLE TYPE TURRET LATHE: STOCK #73423

Manufacturer

WARNER & SWASEY

Category

Lathes

Type

LATHES, TURRET, SADDLE TYPE

Stock

73423

Model

3A

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet

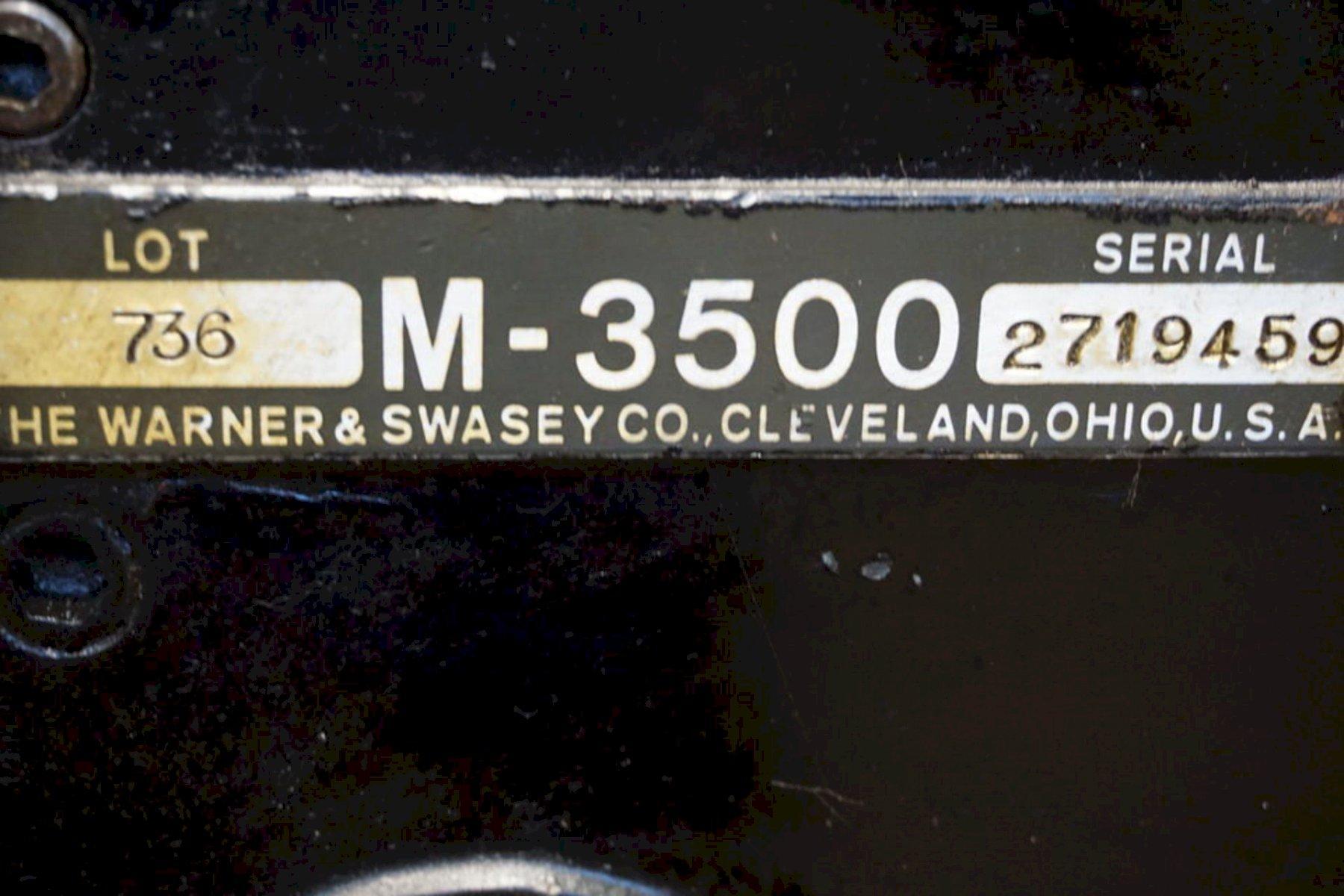

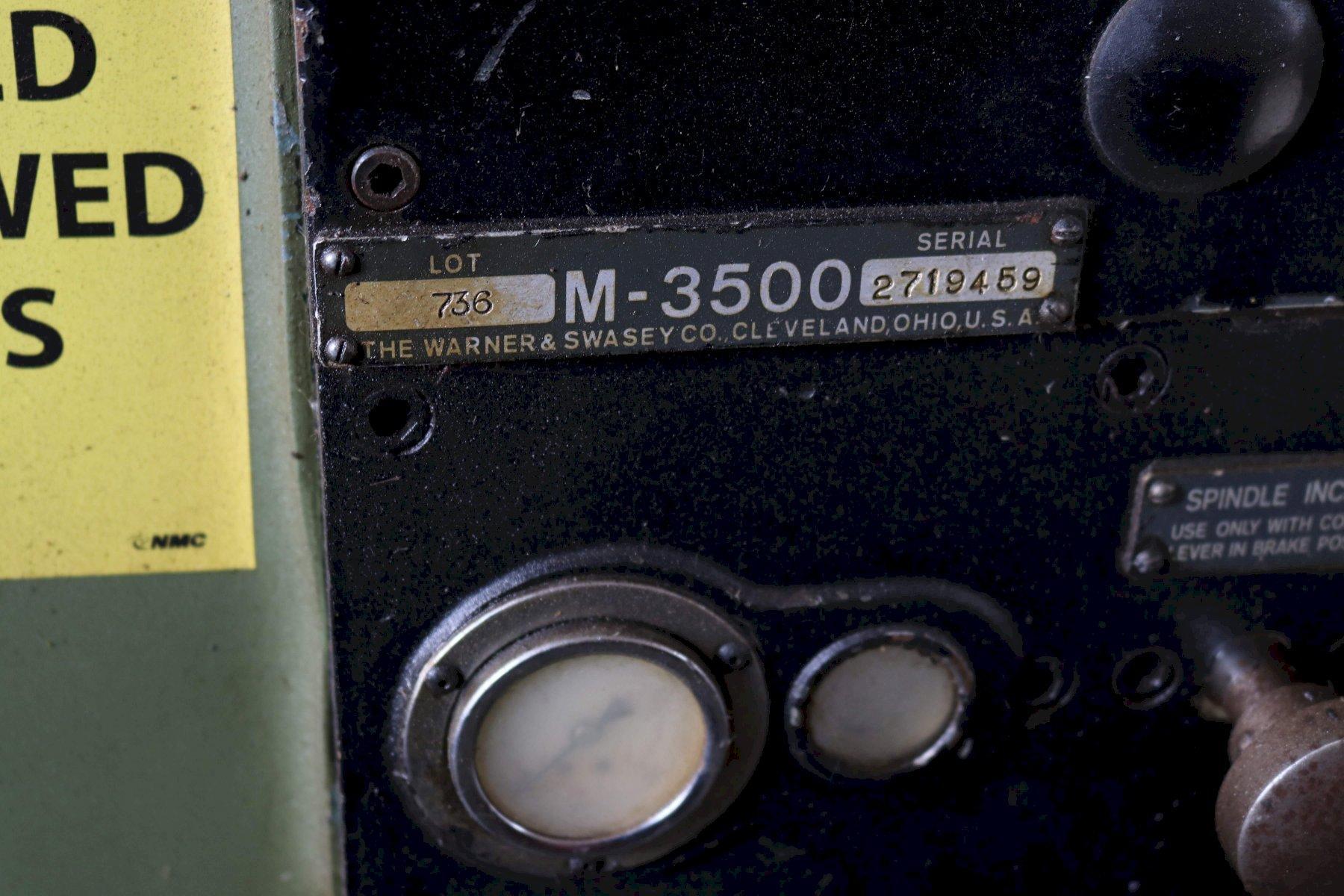

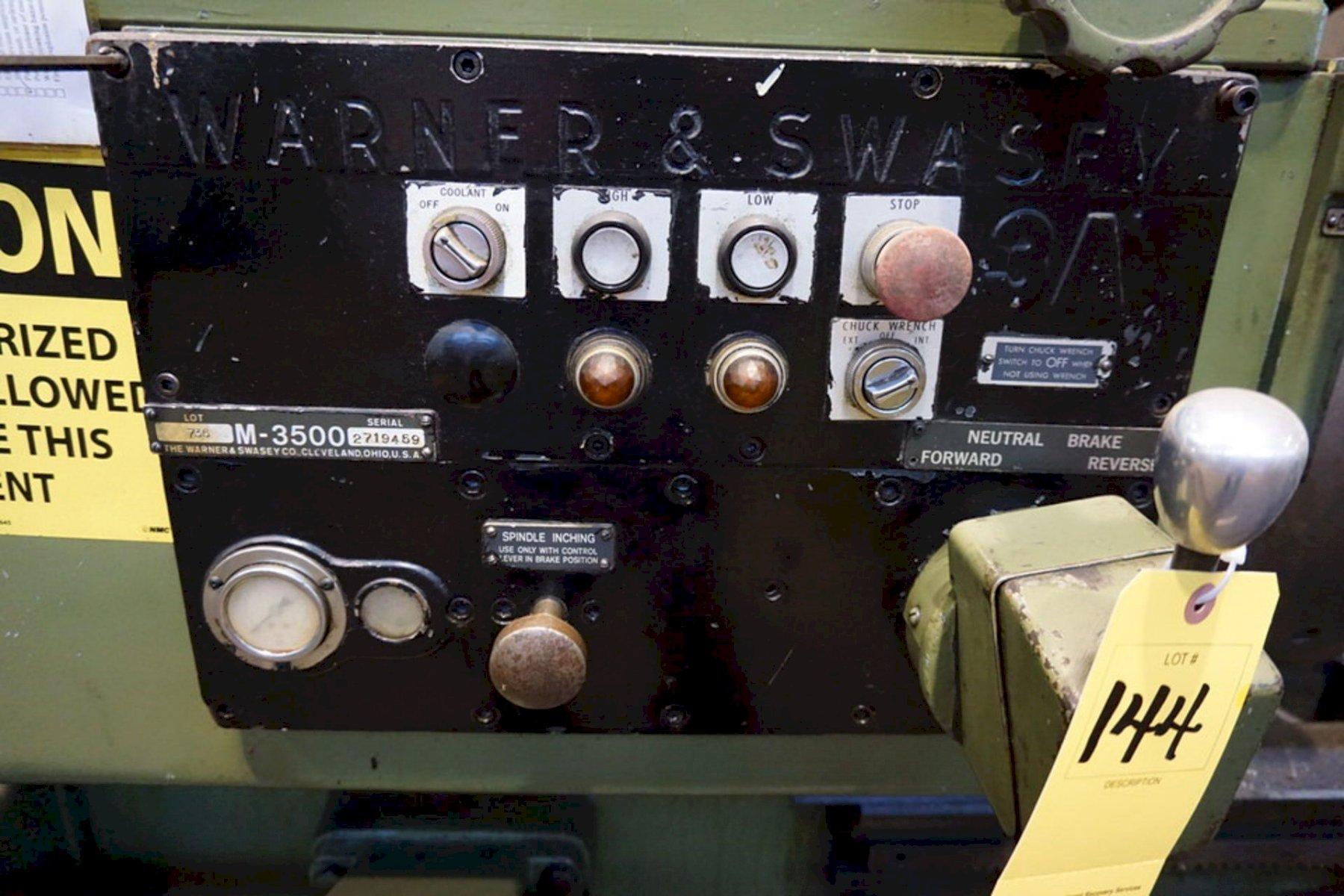

SERIAL .......................... 2719459
MODEL ........................... 3500
YEAR NEW ........................ 1976
SWING OVER BED .................. 24-1/2"
SWING OVER CARRIAGE ............. 18"
SPINDLE NOSE TO TURRET .......... 58-3/4"
SPINDLE HOLE .................... 6-1/4"
SPINDLE SPEEDS .................. (32) 12 TO 851 RPM
CARRIAGE LONGITUDINAL FEEDS ..... (16) .005 TO .167 IPR
CARRIAGE CROSS FEEDS ............ (16) .002 TO .082 IPR

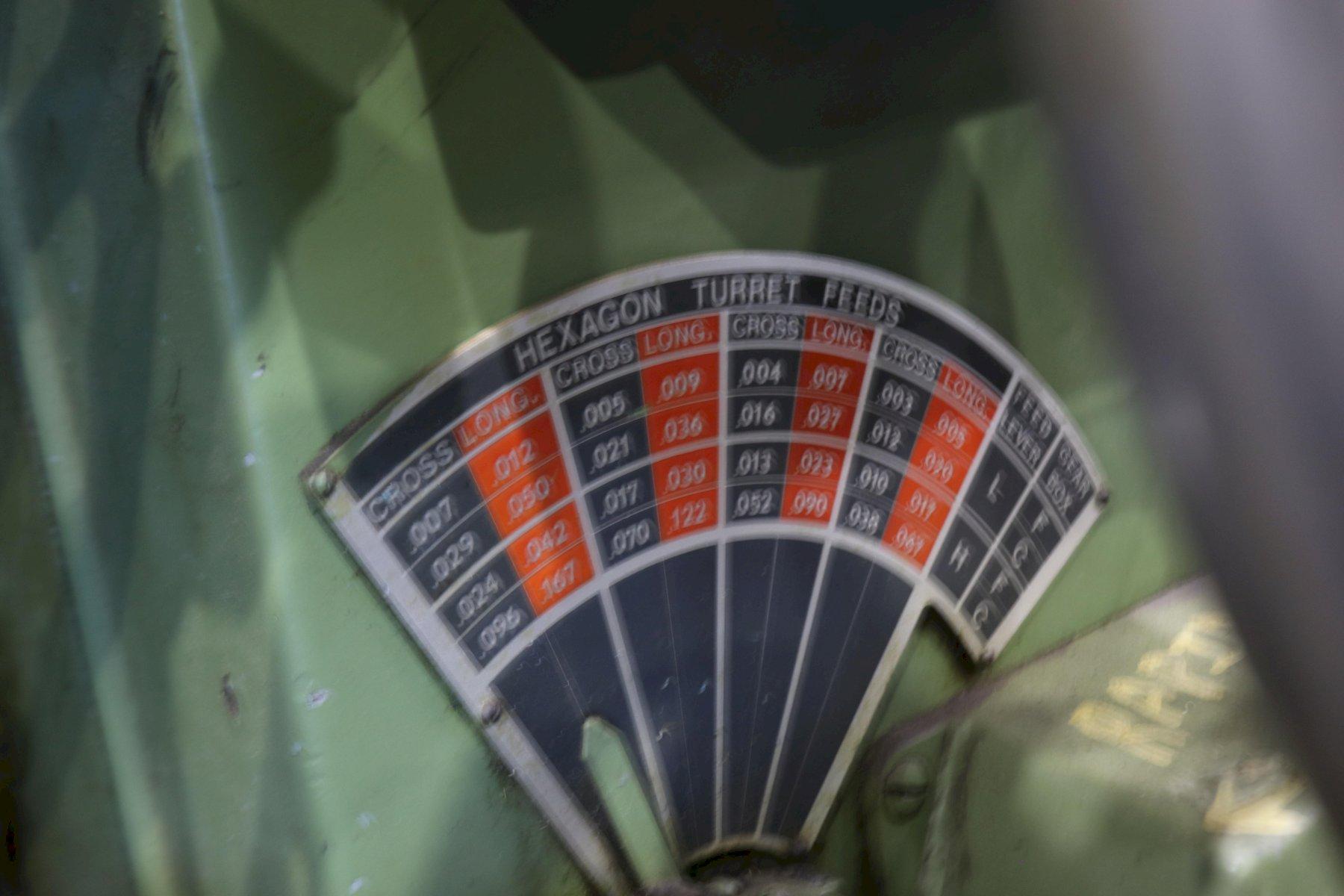

TURRET LONGITUDINAL FEEDS ....... (16) .005 TO .167 IPR
TURRET CROSS FEEDS .............. (16) .003 TO .096 IPR
MAXIMUM LENGTH TURNED ........... 44-1/4"

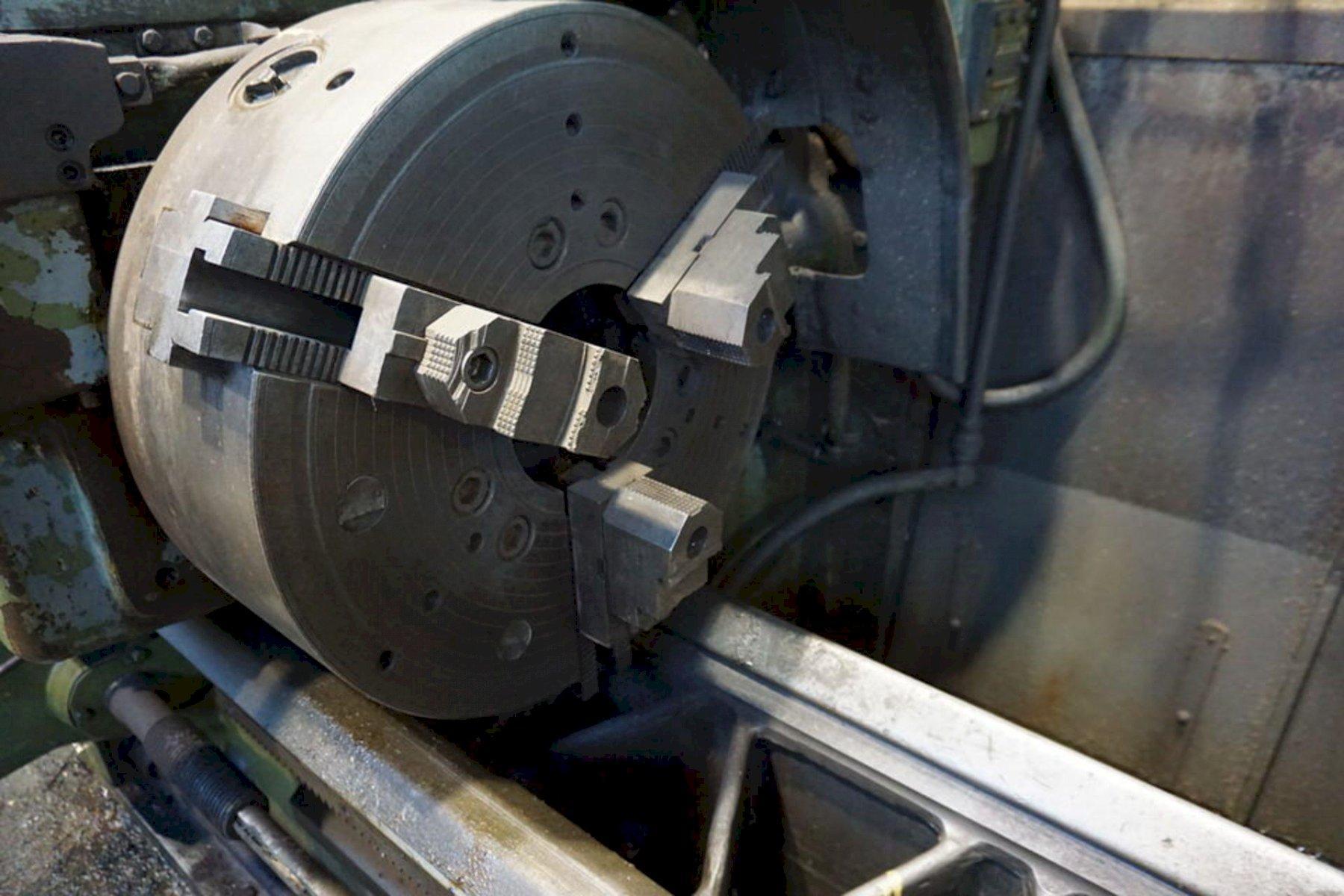

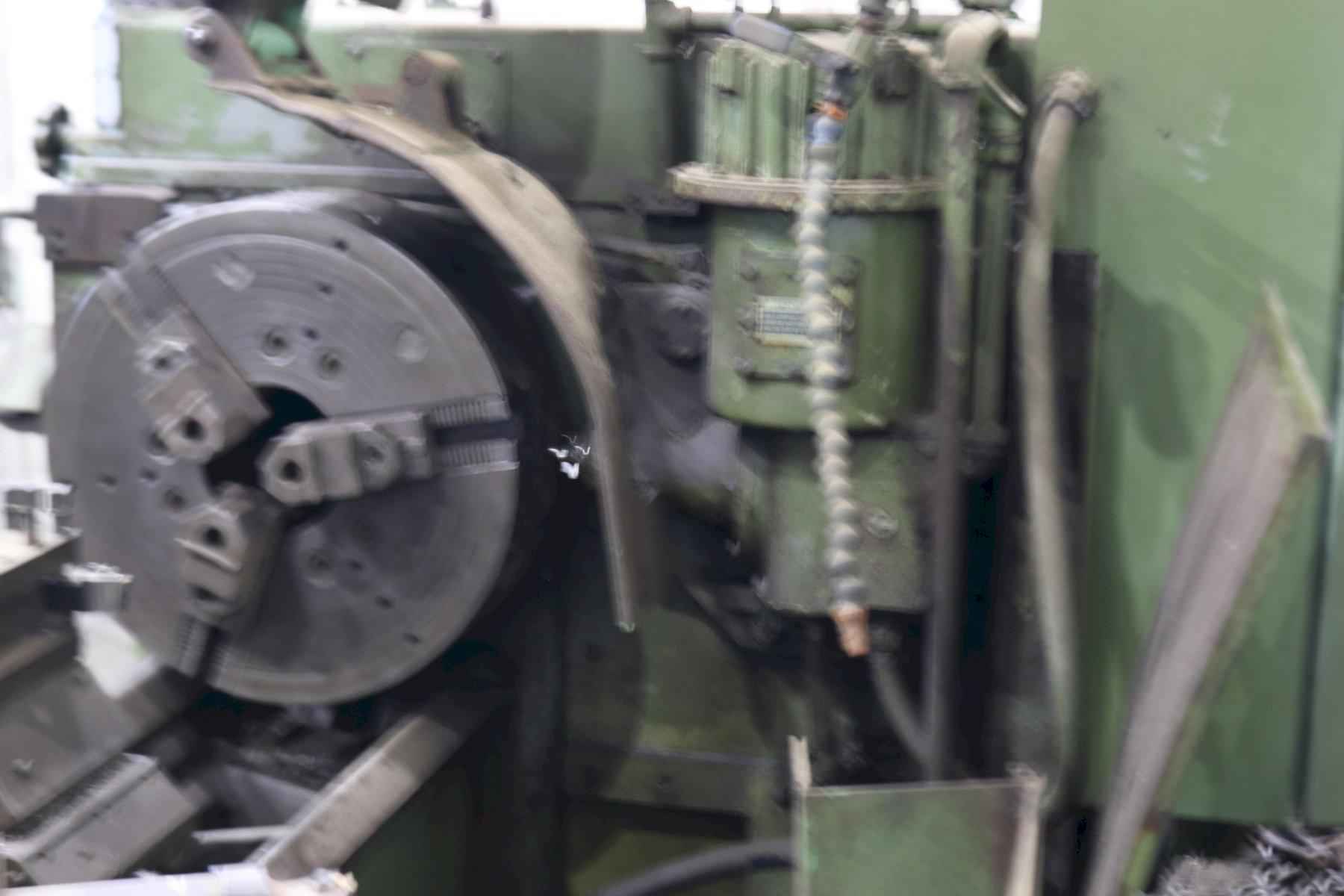

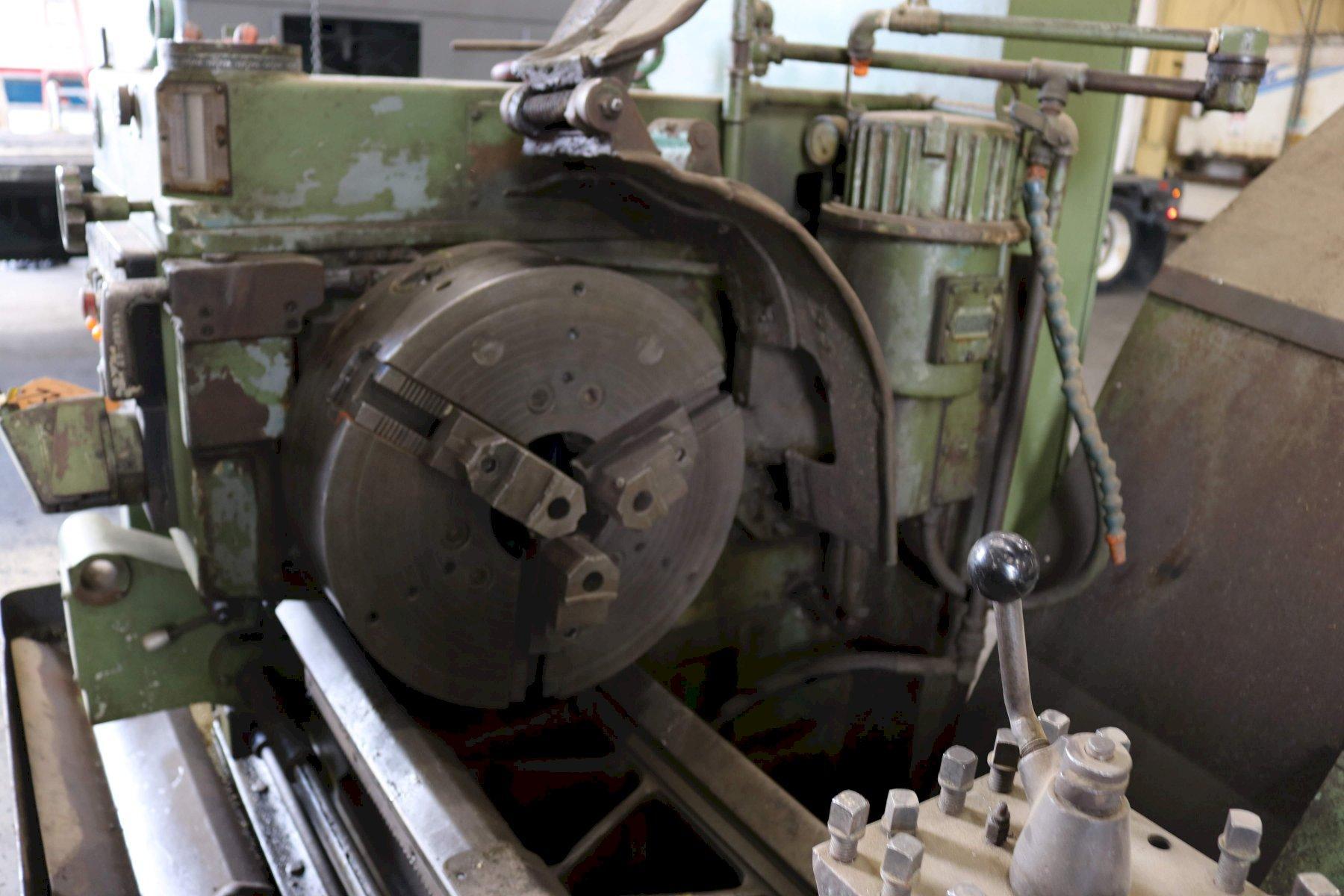

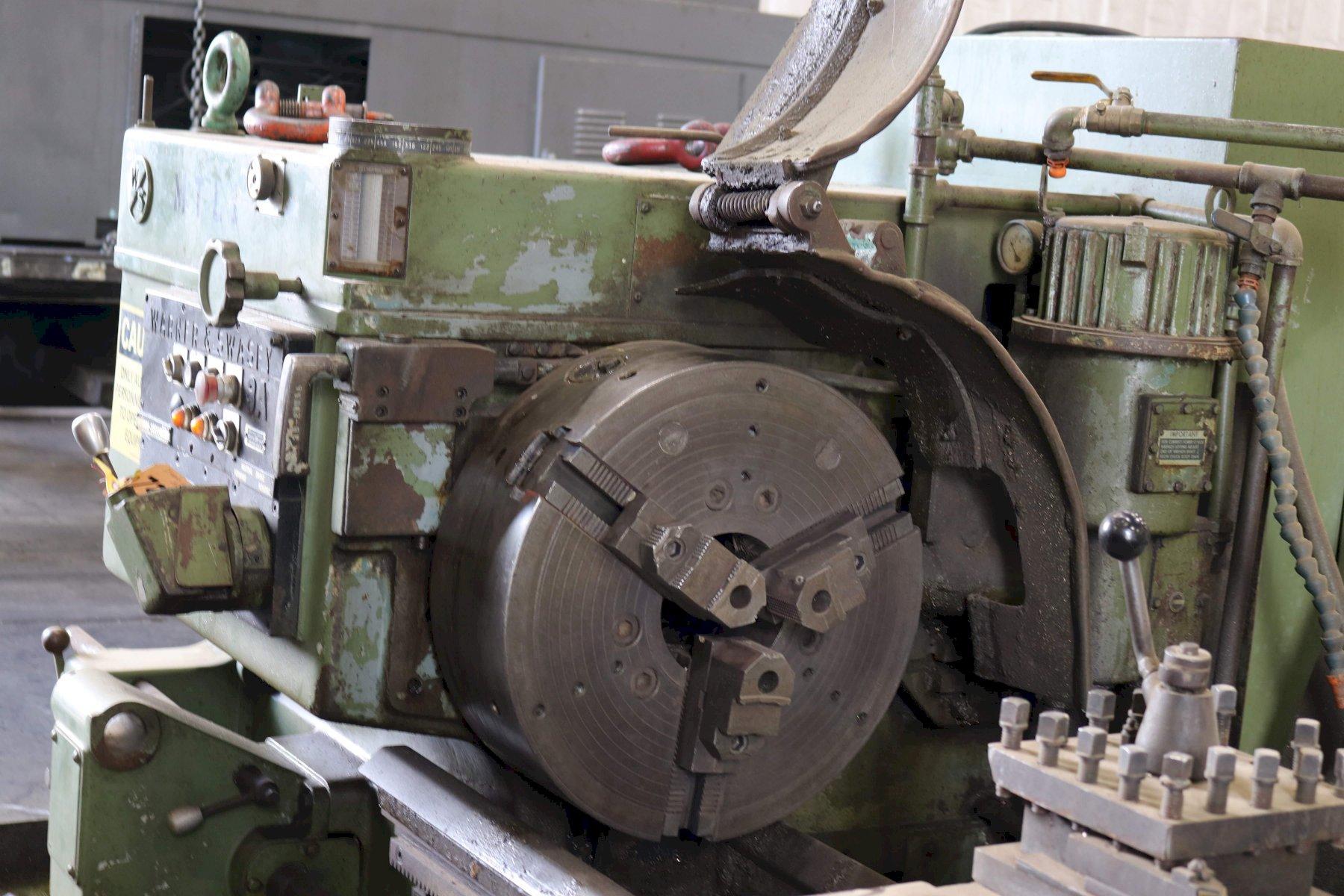

3 JAW CHUCK ..................... 21"
POWER CHUCK WRENCH .............. YES
POWER COMPOUND FEED ............. YES

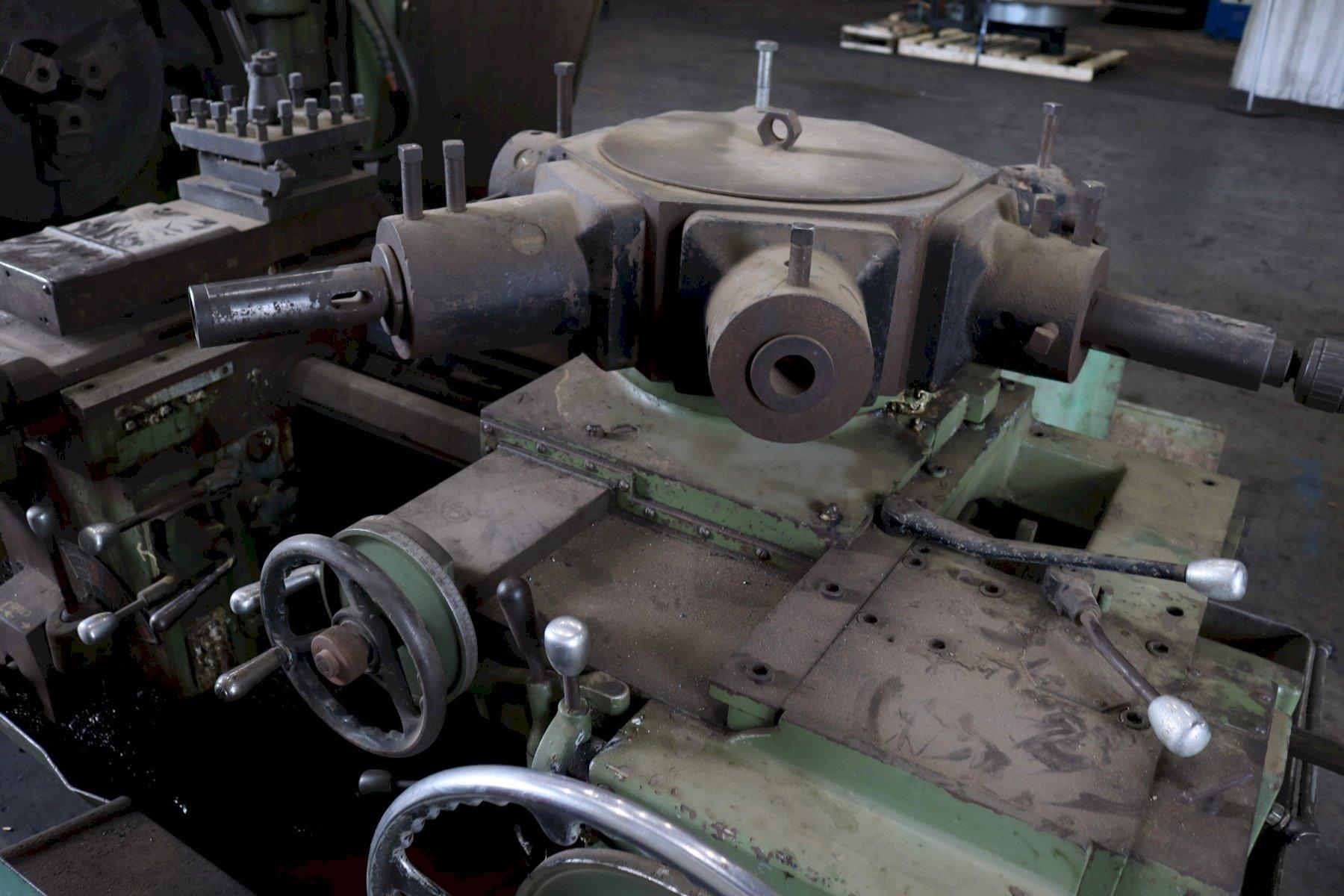

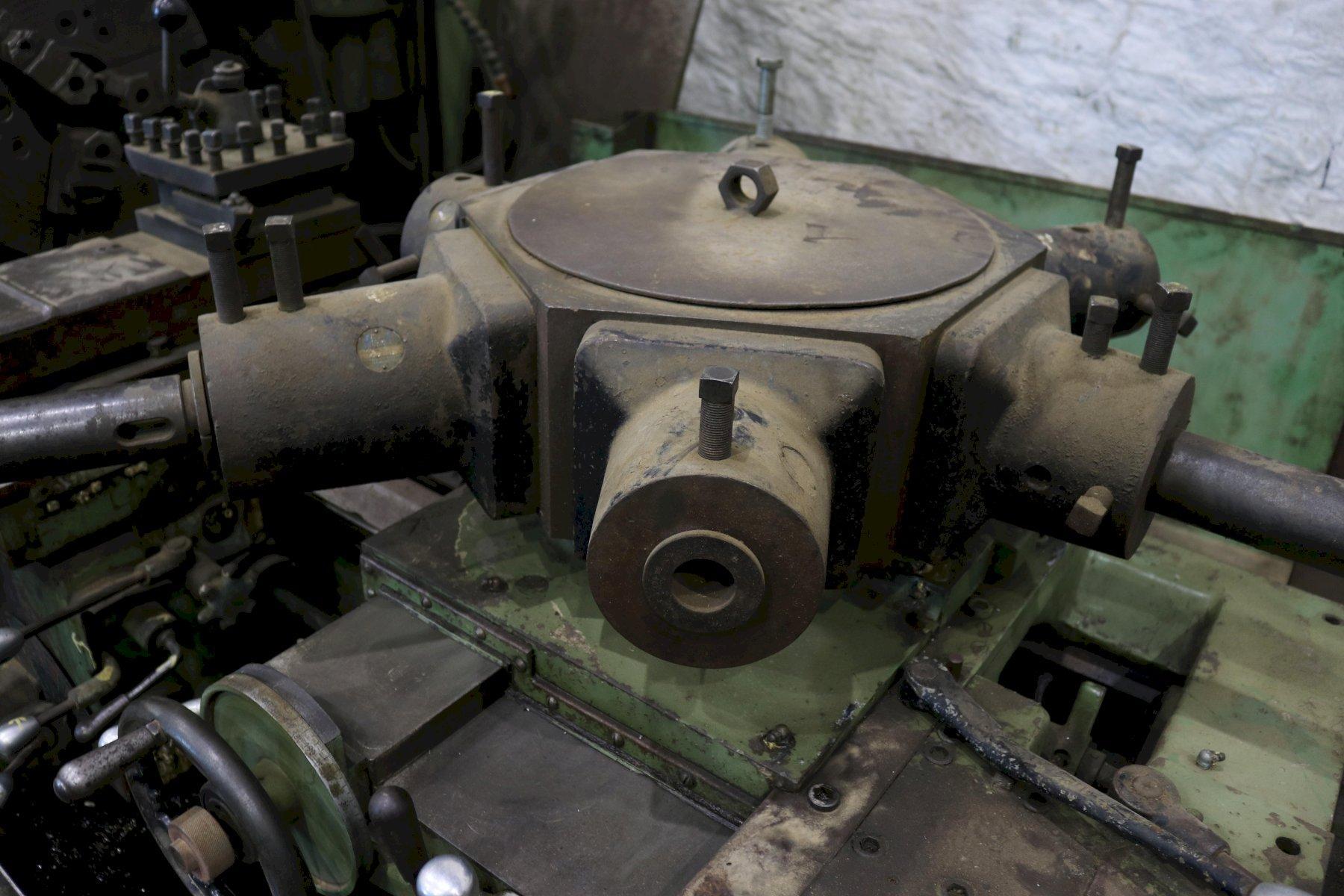

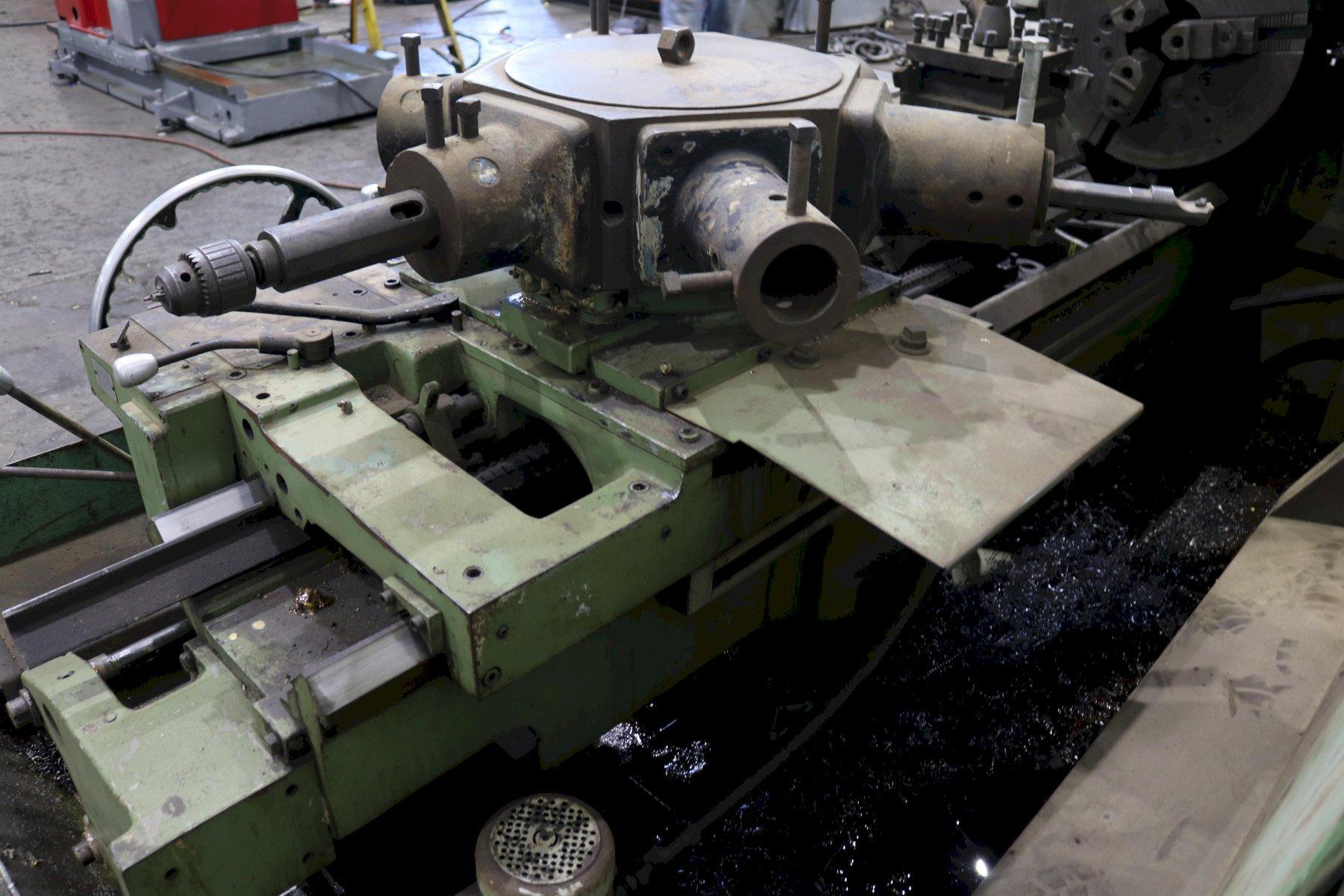

CROSS SLIDING TURRET ............ YES
THREADING ....................... LEADON

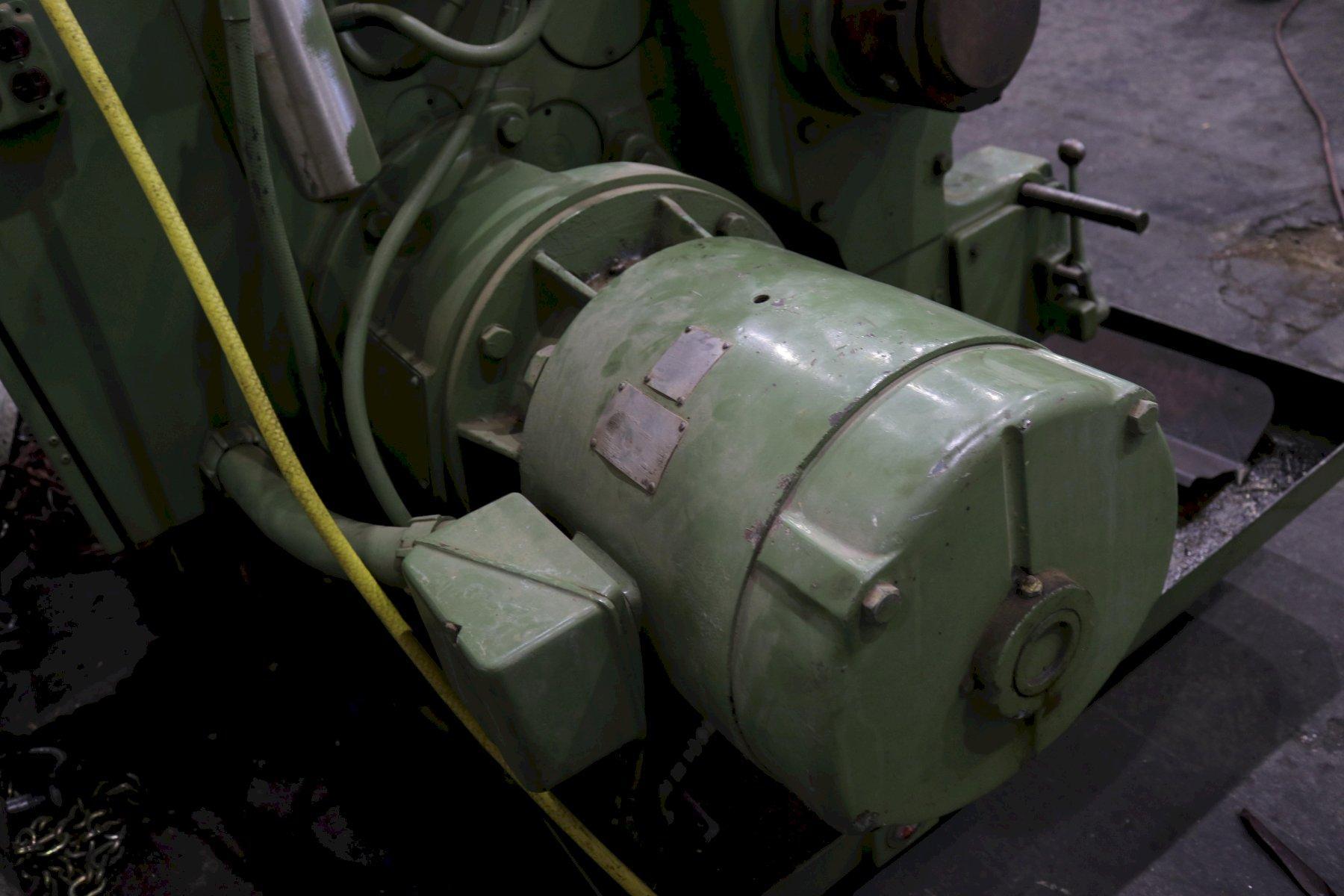

MOTOR ........................... 40/20 HORSEPOWER
