WARNER & SWASEY MODEL #4A TURRET LATHE: STOCK 61463

Manufacturer

Category

Lathes

Type

LATHES, TURRET, SADDLE TYPE

Stock

61463

Model

4A

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet

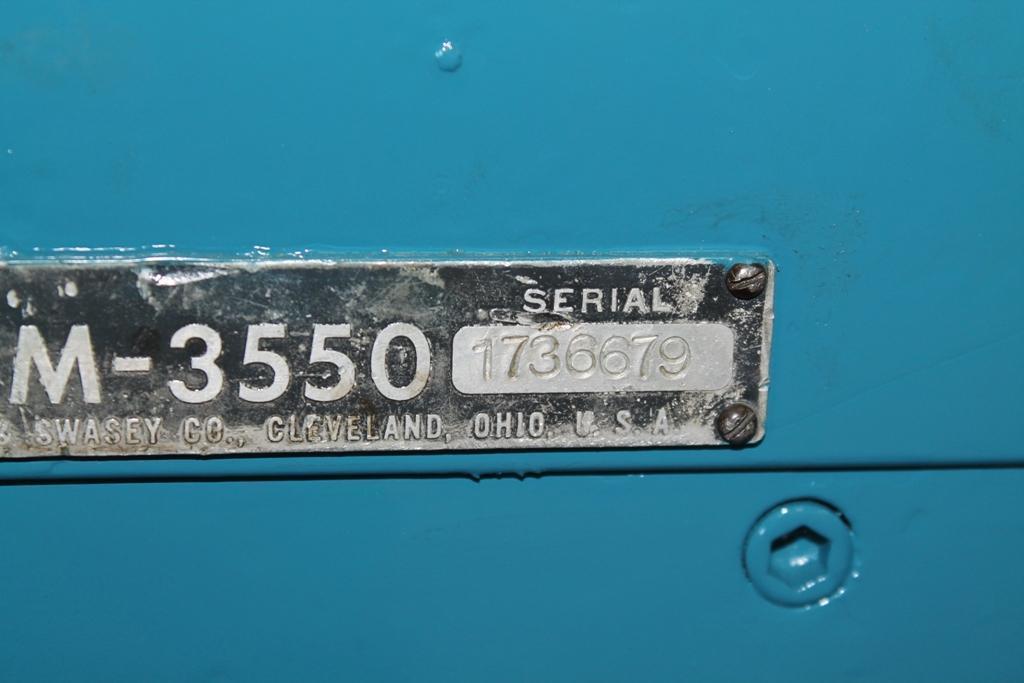

SERIAL ............................. 1736679
MODEL .............................. 4A M-3550
SWING OVER WAYS .................... 29-1/2"
SWING OVER CARRIAGE ................ 22-7/16"
DISTANCE SPINDLE TO TURRET FACE .... 76-1/4"
SPINDLE SPEEDS ..................... (32) 10 TO 263 RPM
TURRET FEEDS ....................... (16) .005 TO .167 IPR
CROSS SLIDE FEEDS .................. (16) .002 TO .077 IPR
DIAMETER OF SPINDLE HOLE ........... **9-1/2"**
CHUCK .............................. 28" 3 JAW
POWER CLUTCH WRENCH ................ YES
RAPID TRAVERSE ..................... YES
ADJUSTABLE SLIDE TOOL .............. 1
CHIP PAN AND COOLANT ............... YES
MAIN MOTOR ......................... 50/25 HORSEPOWER
