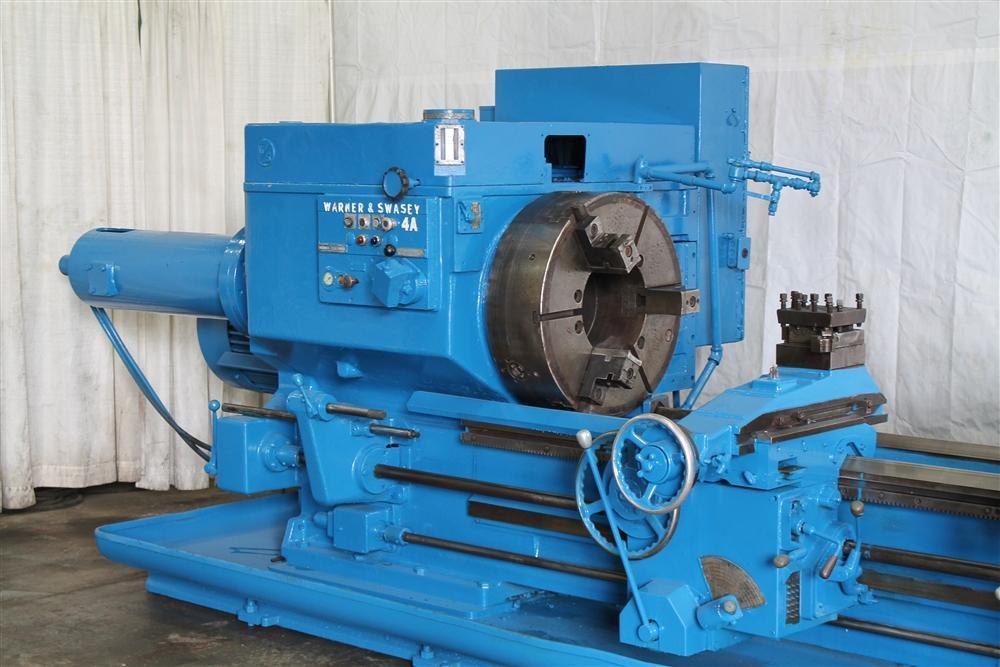

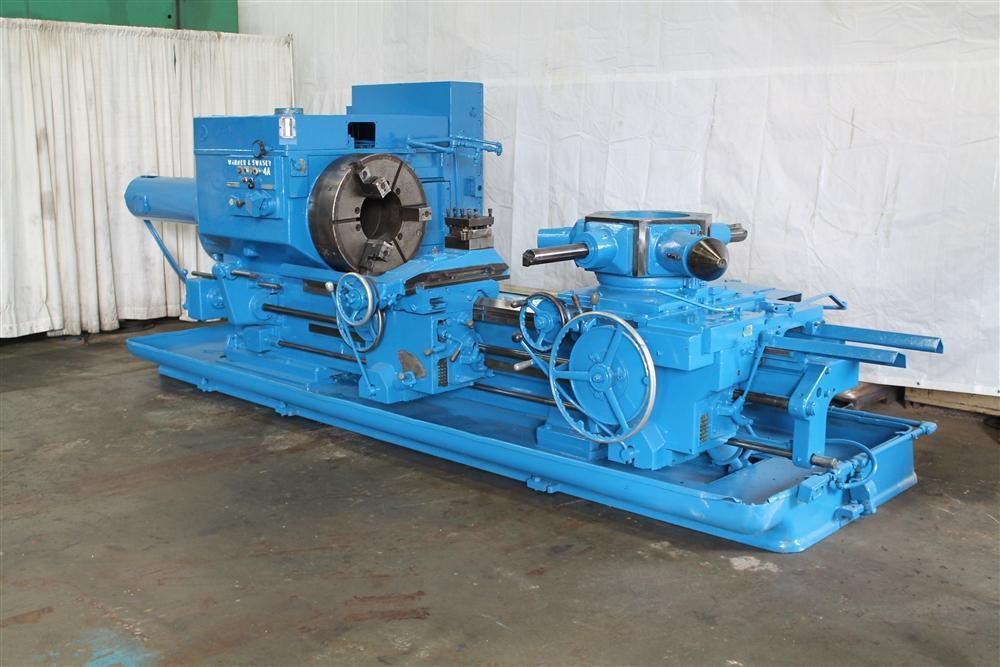

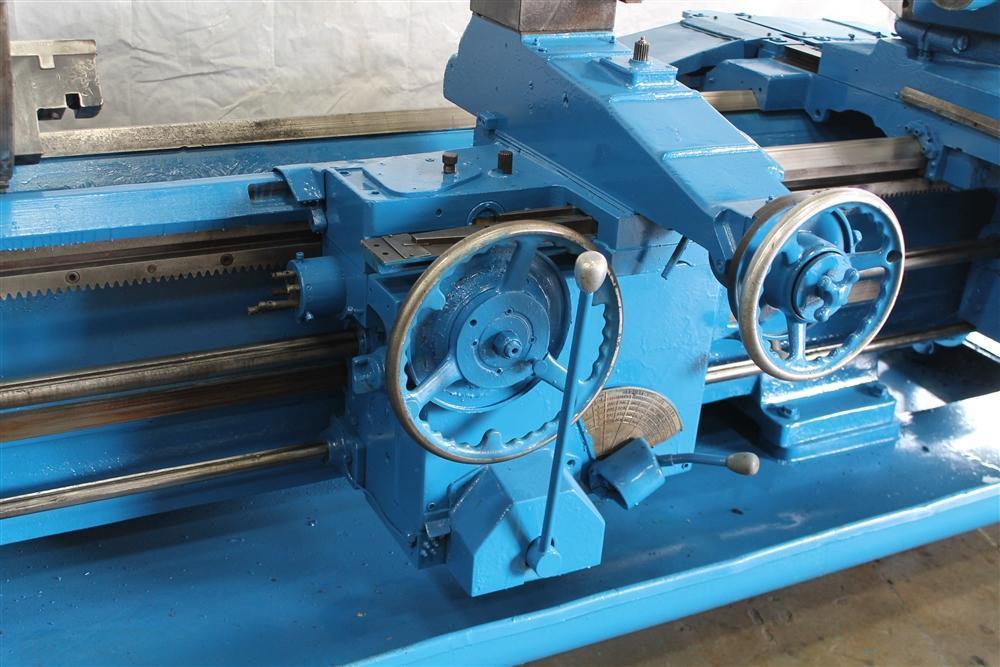

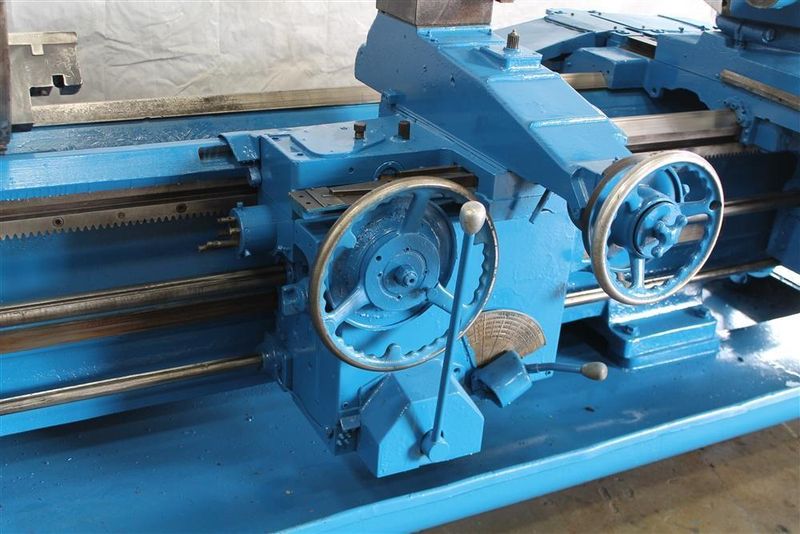

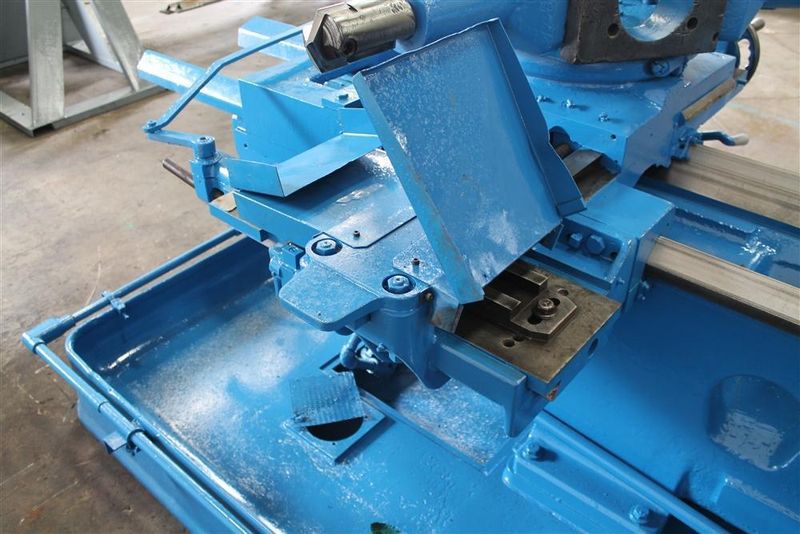

WARNER & SWASEY MODEL #4A SQUARE HEAD TURRET LATHE: STOCK #61476

Manufacturer

WARNER & SWASEY

Category

Lathes

Type

LATHES, TURRET, SADDLE TYPE

Stock

61476

Model

4A

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet



SERIAL ............................. 2338765
MODEL .............................. M3580
LOT ................................ 19
YEAR NEW ........................... 1970
SWING OVER WAYS .................... 29-1/2"
SWING OVER CARRIAGE ................ 22-7/16"
DISTANCE SPINDLE TO TURRET FACE .... 68-1/4"
SPINDLE SPEEDS ..................... (32) 15 TO 526 RPM
TURRET FEEDS ....................... (16) .005 TO .167 IPR
CROSS SLIDE FEEDS .................. (16) .002 TO .077 IPR
CROSS SLIDING TURRET FEEDS ......... (16) .003 TO .090 IPR
DIAMETER OF SPINDLE HOLE ........... **12-1/2"**
CHUCK .............................. 24" 3 JAW

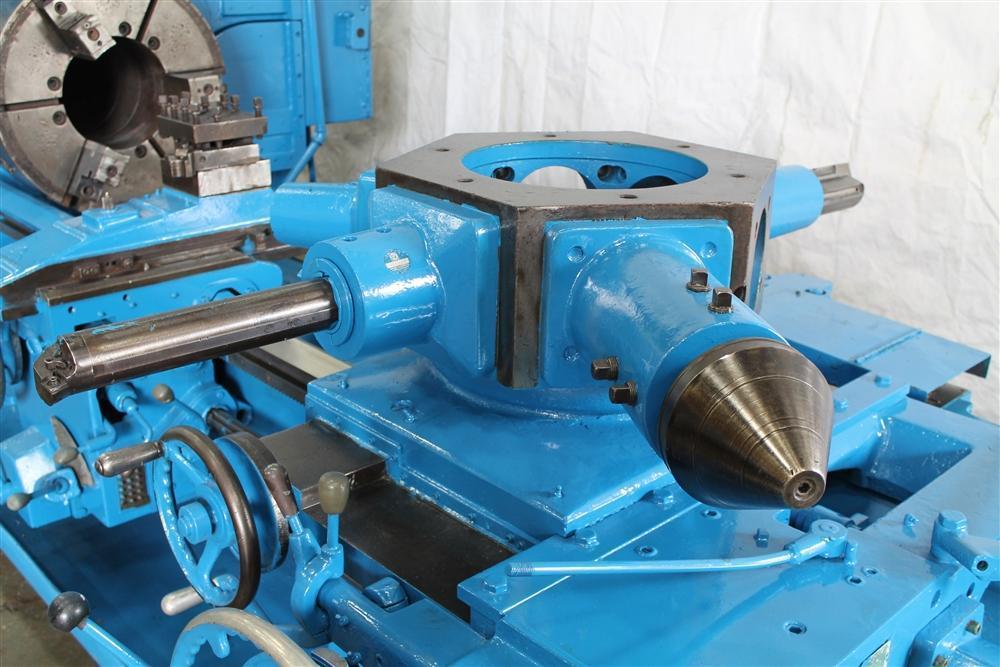

**CROSS SLIDING TURRET**............ YES
TAPER ON CROSS SLIDE ............... YES
TAPER ON TURRET CARRIAGE ........... YES
RAPID TRAVERSE ..................... YES

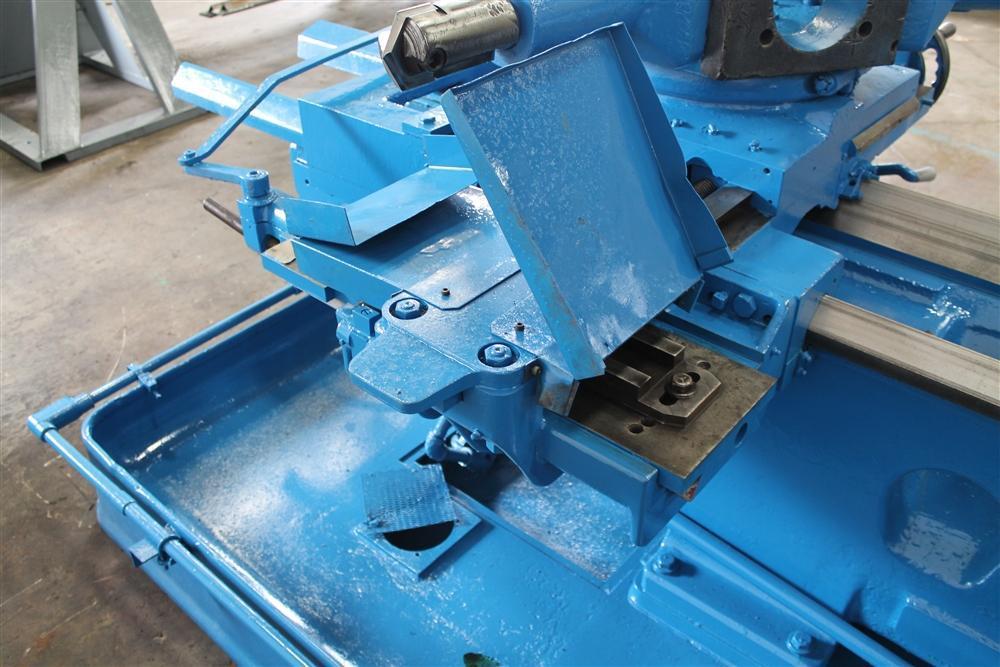

CHIP PAN AND COOLANT ............... YES
CHIP CONVEYOR ...................... YES

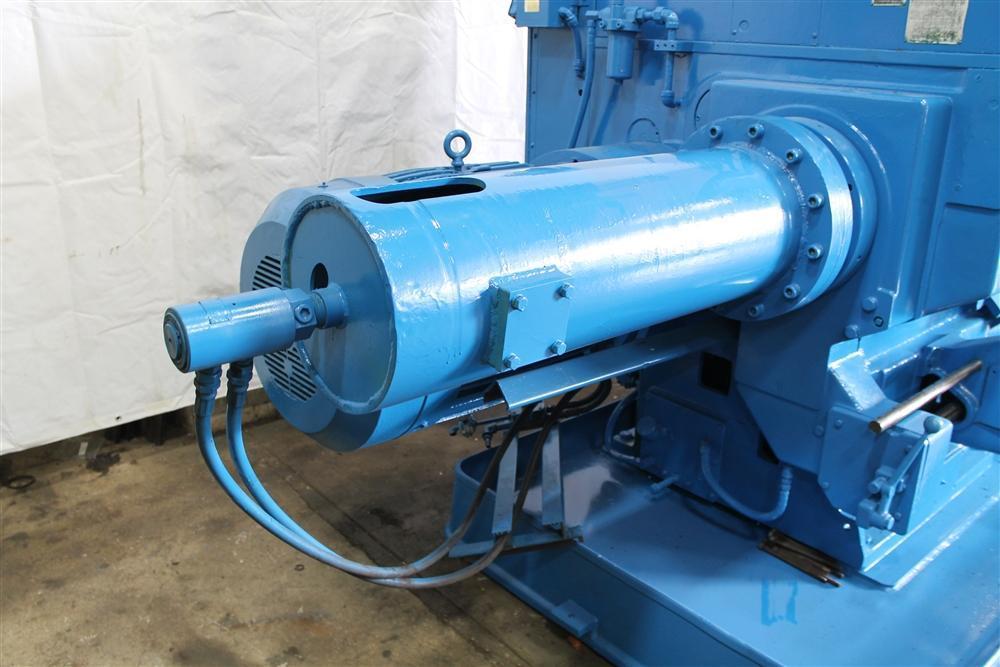

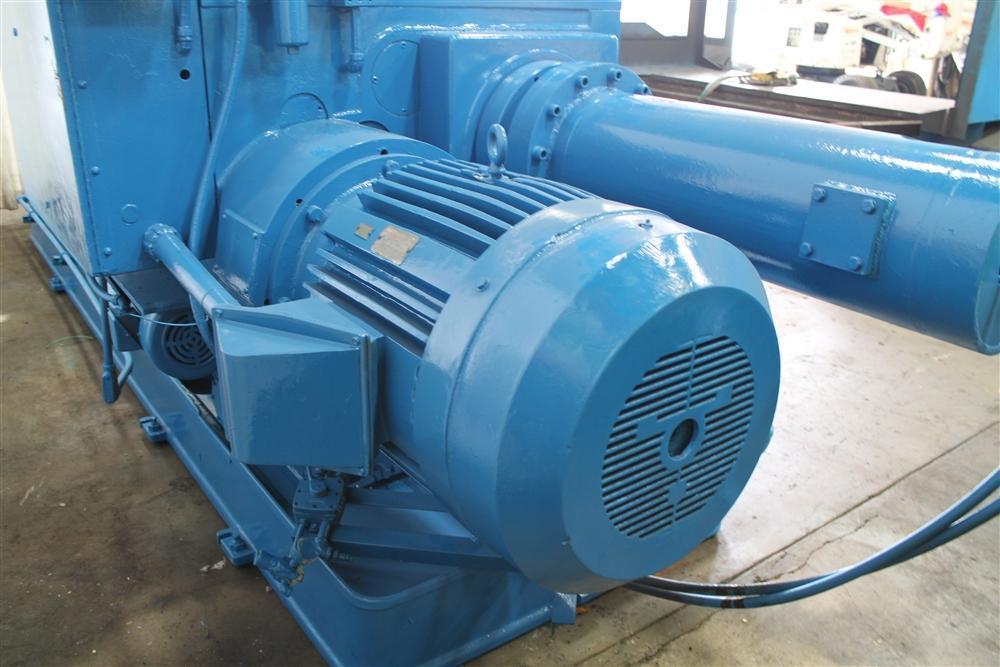

MAIN MOTOR ......................... 75/37.5 HORSEPOWER
