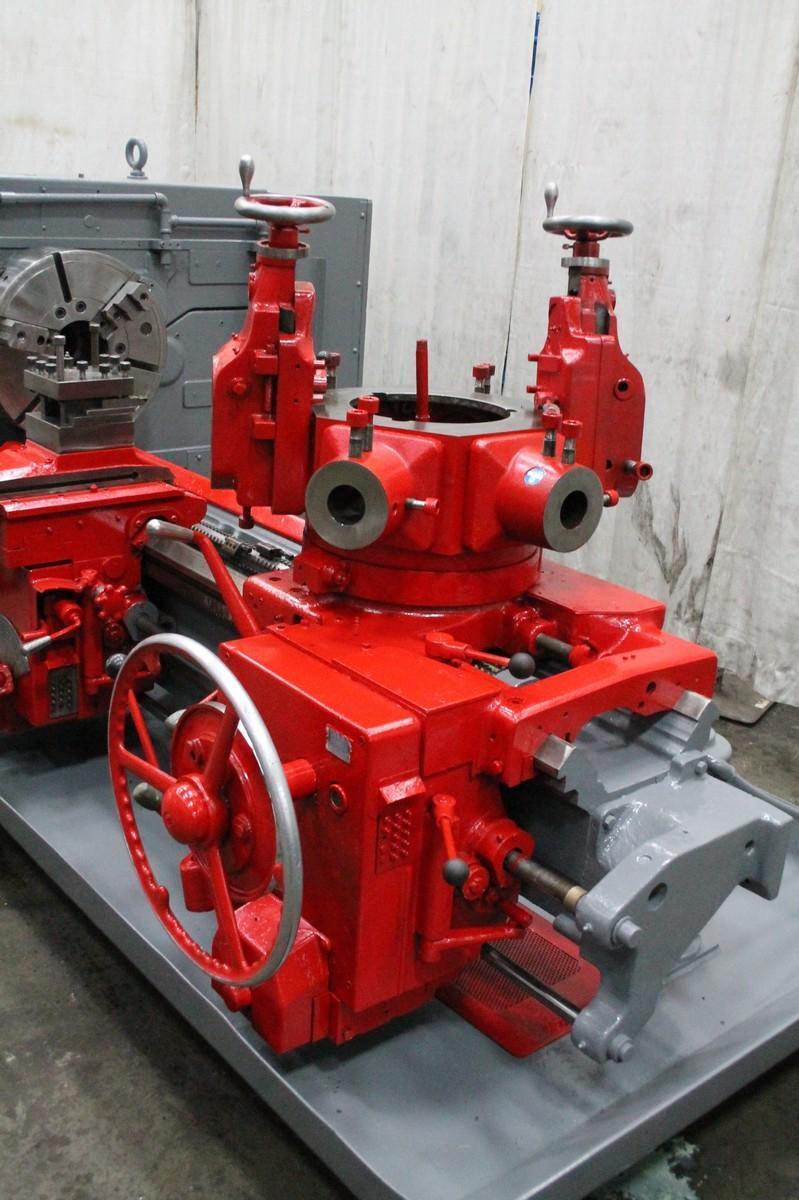

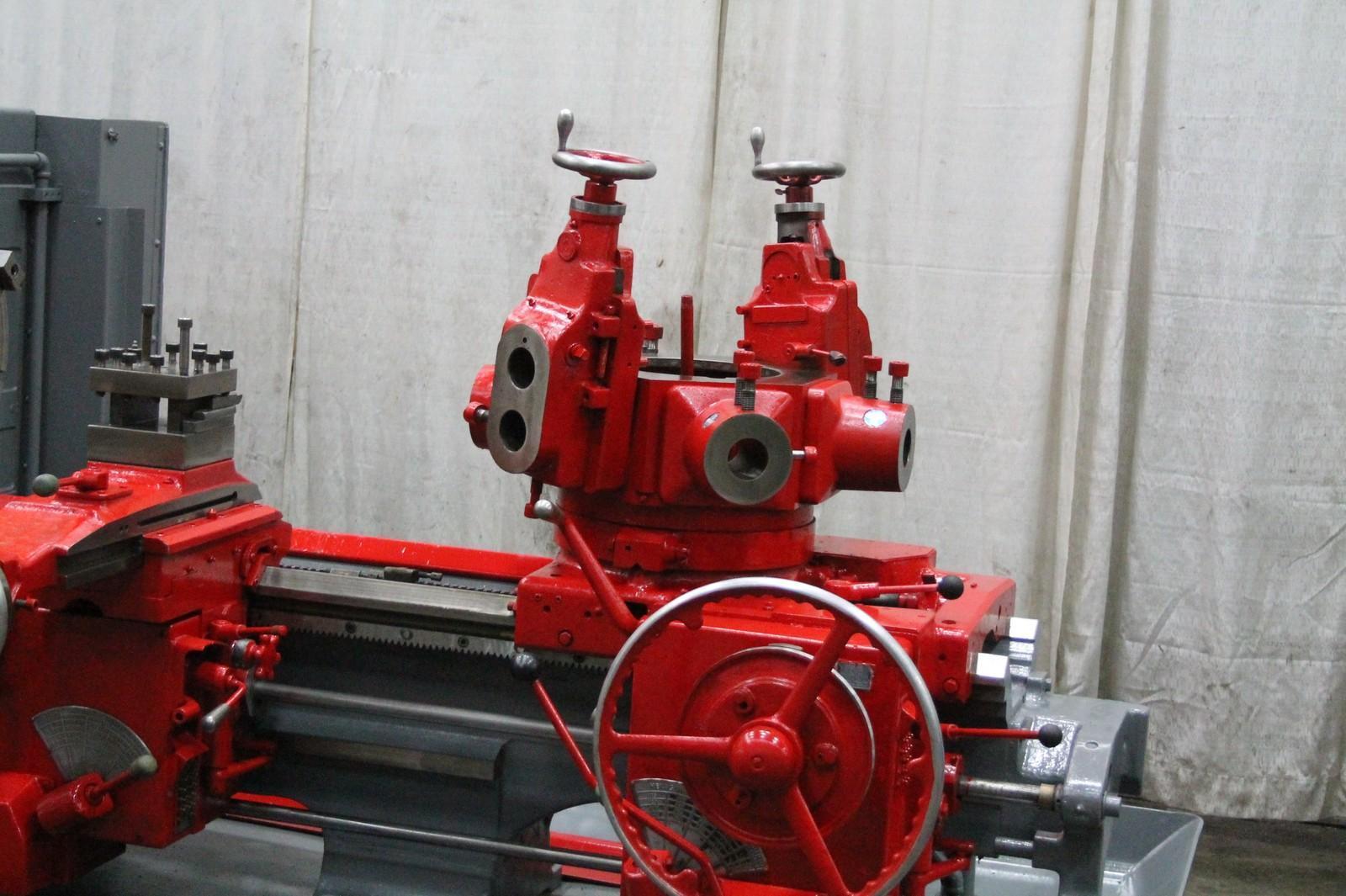

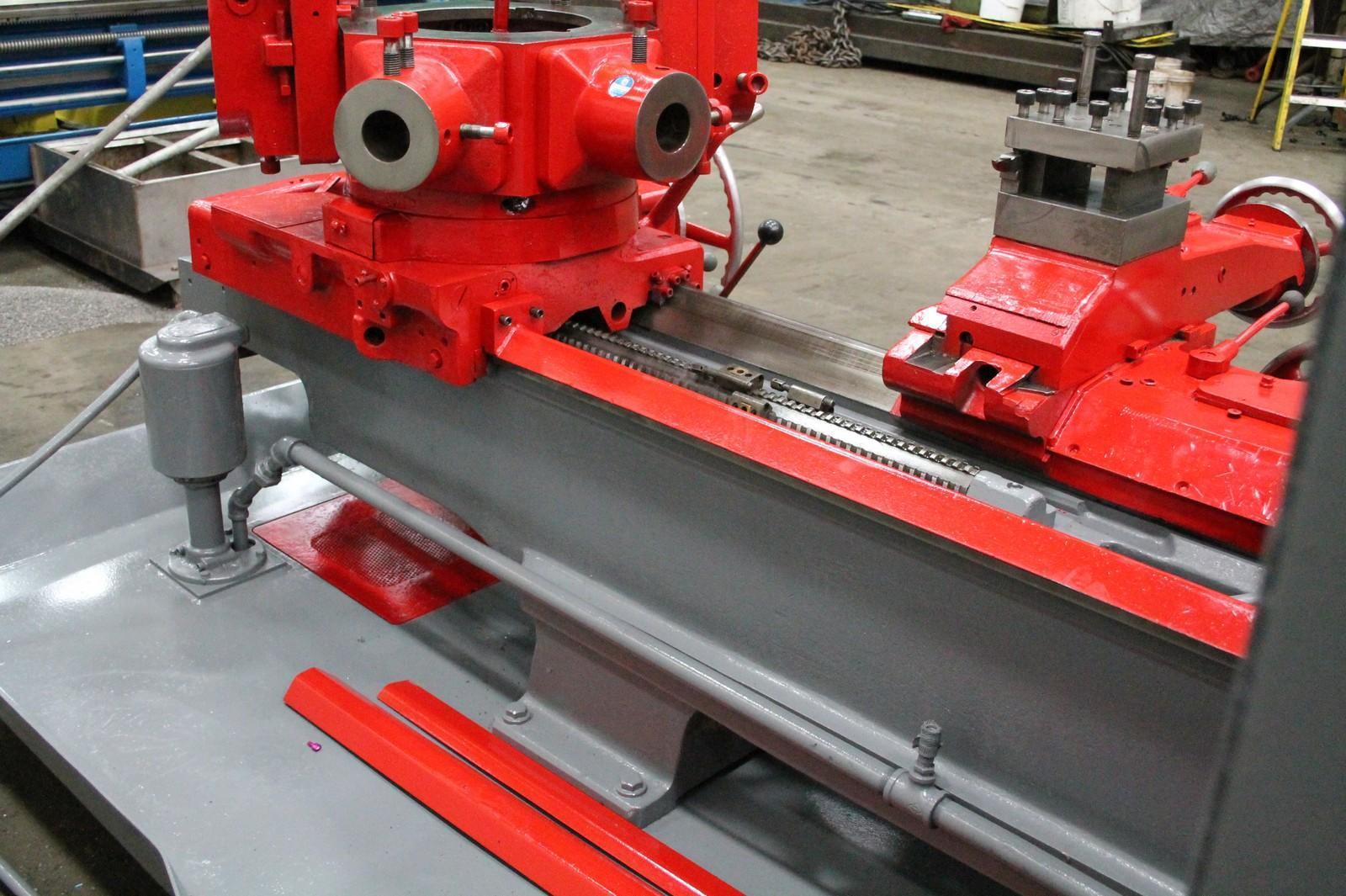

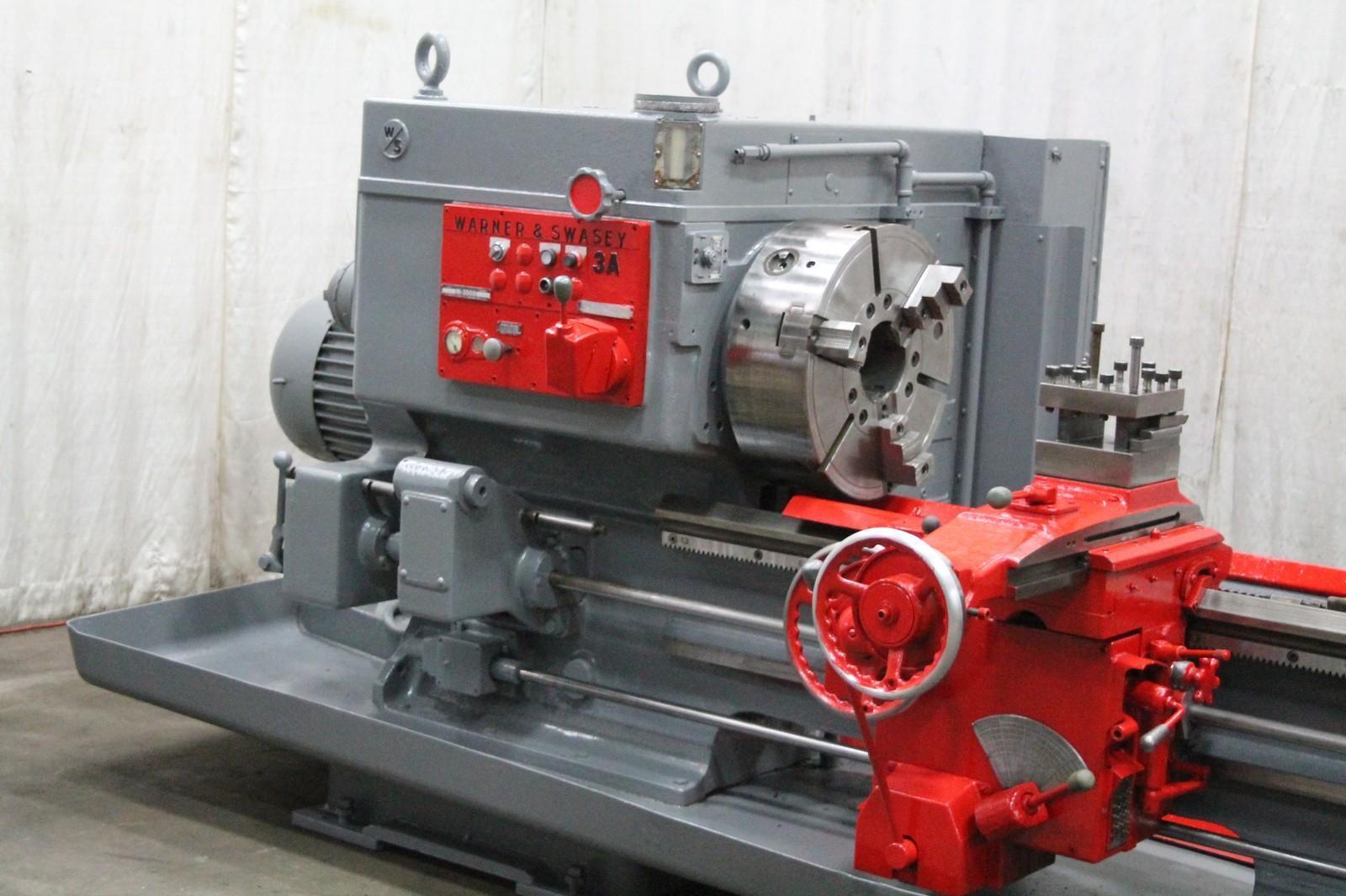

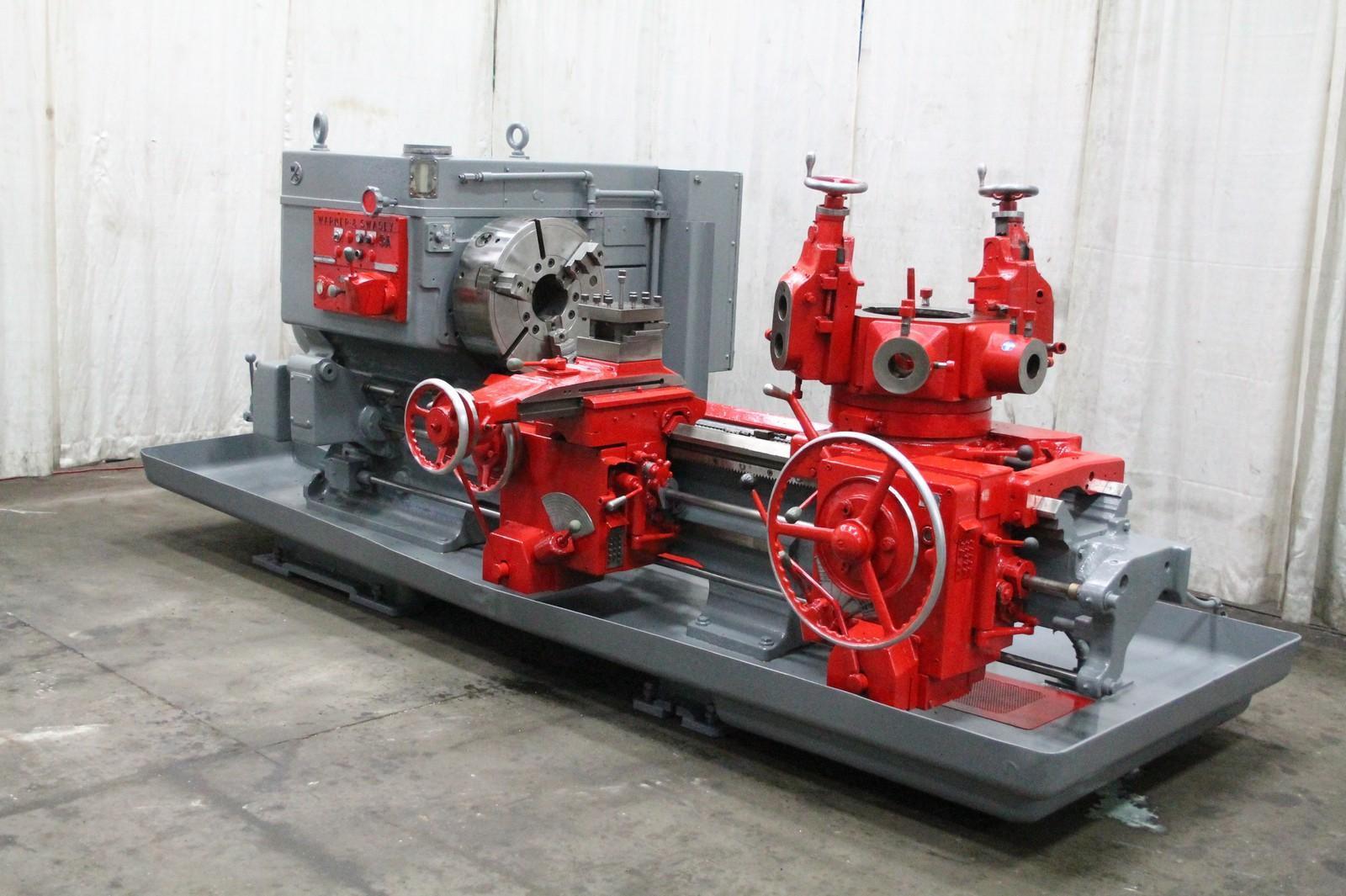

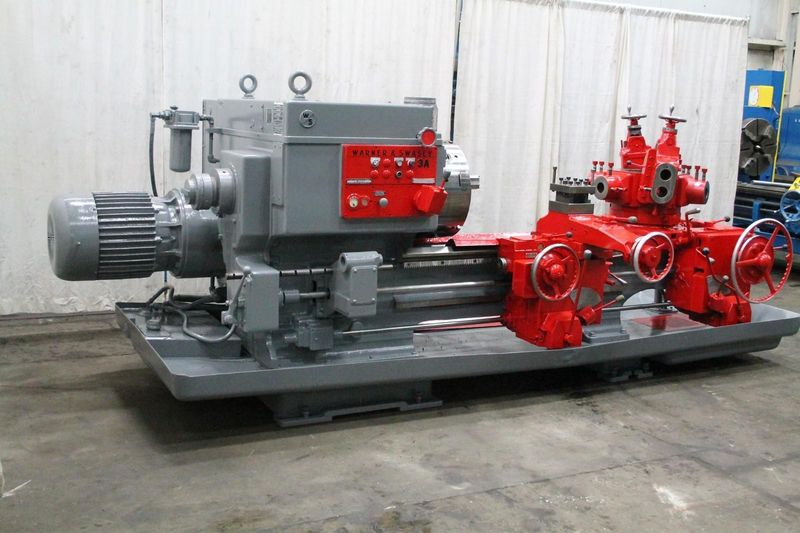

3A WARNER & SWASEY MODEL #3500 TURRET LATHE: STOCK #65642

Manufacturer

Category

Lathes

Type

LATHES, TURRET, SADDLE TYPE

Stock

65642

Model

3A

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet



SERIAL ............................. 2345548

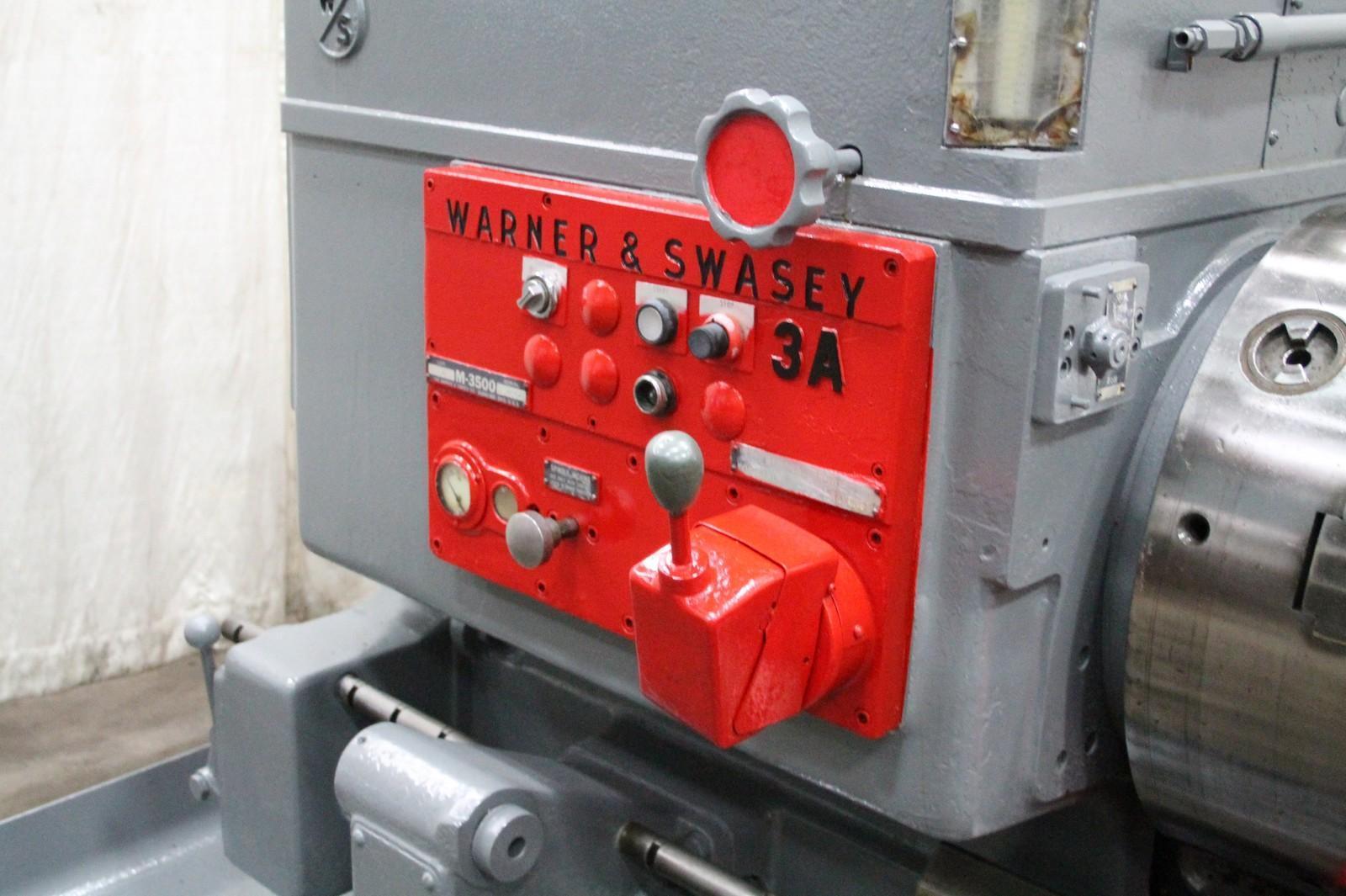

MODEL .............................. 3A (M-3500) SQUARE HEAD
SWING OVER BED ..................... 24-1/2"
SWING OVER CARRIAGE HORN ........... 18"
SPINDLE NOSE TO TURRET ............. 58-3/4"
SPINDLE HOLE ....................... 6-1/8"
SPINDLE SPEEDS ..................... (32) 12 TO 851 RPM

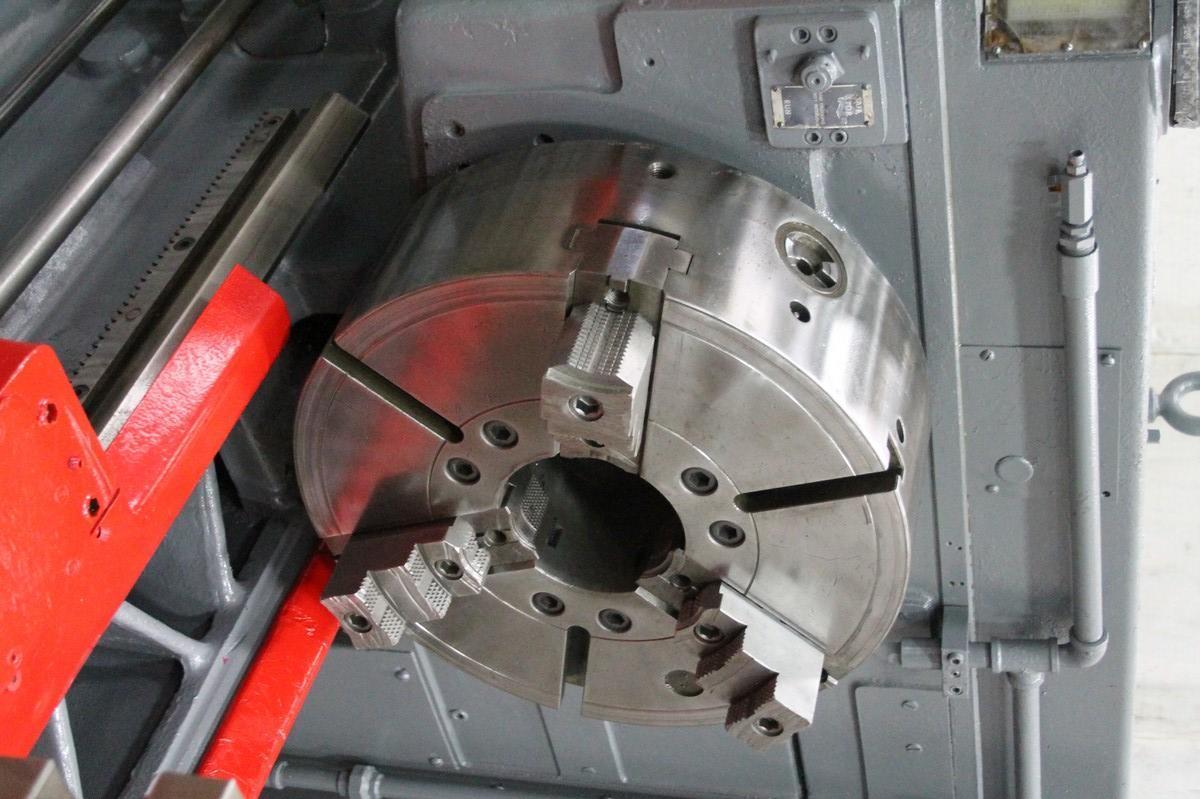

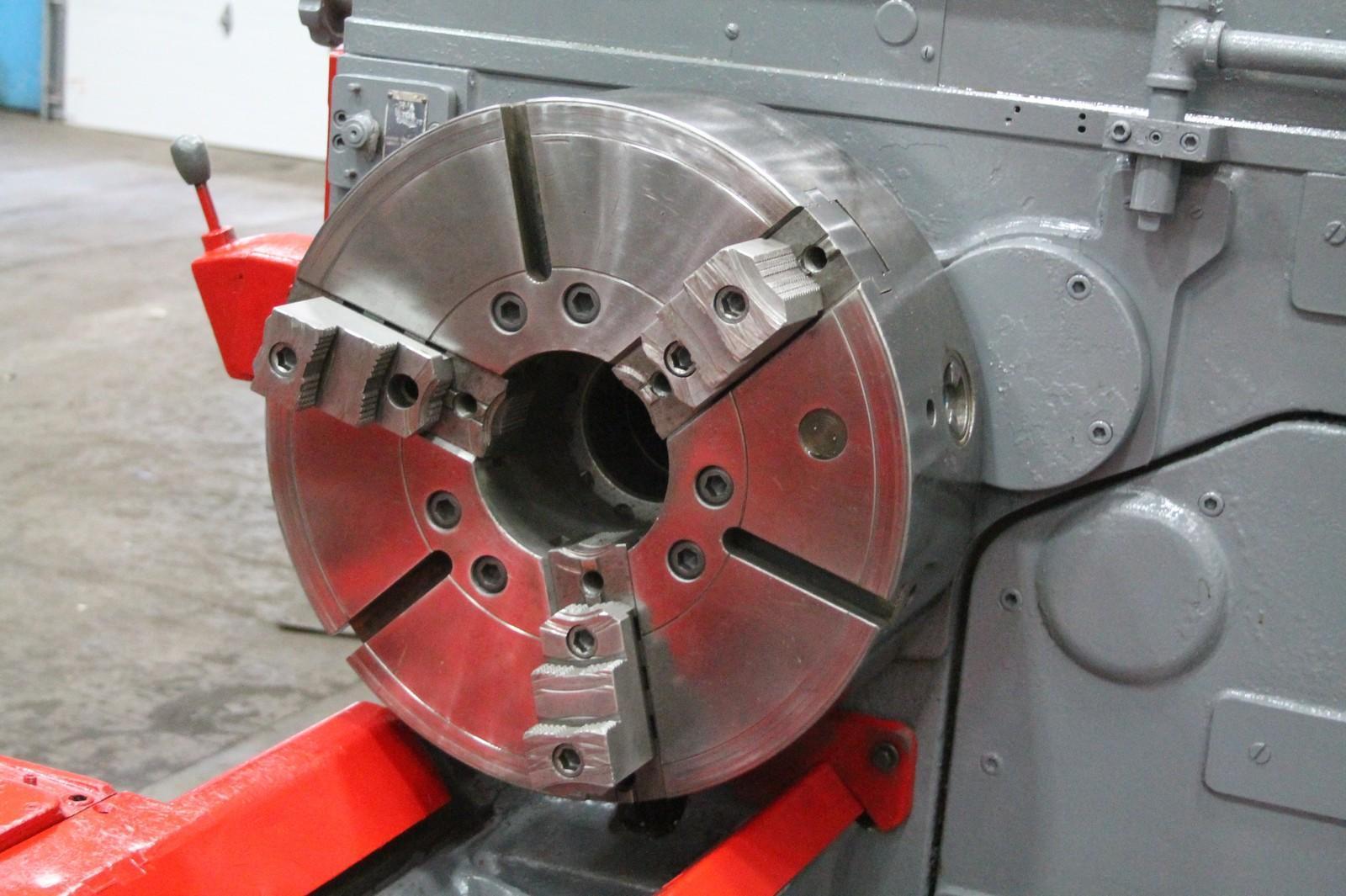

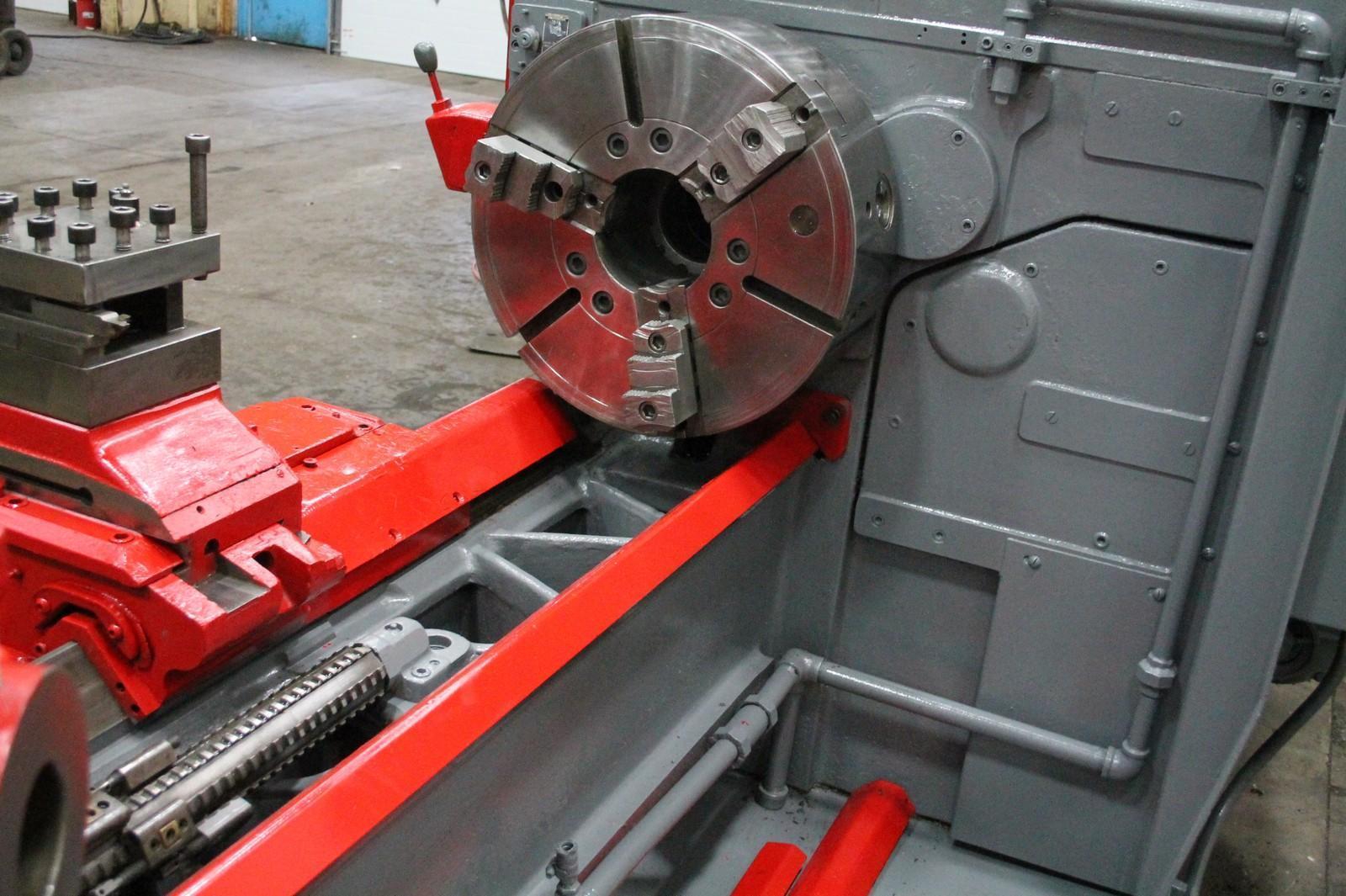

CHUCK .............................. 21" 3 JAW
FULL LENGTH THREADING .............. 1 TO 36 TPI
TAPER ON CARRIAGE .................. YES
CARRIAGE LONGITUDINAL FEEDS ........ (16) .005 TO .167 IPR
CARRIAGE CROSS FEEDS ............... (16) .002 TO .082 IPR
TURRET LONGITUDINAL FEEDS .......... (16) .005 TO .167 IPR
CHIP PAN WITH COOLANT .............. YES

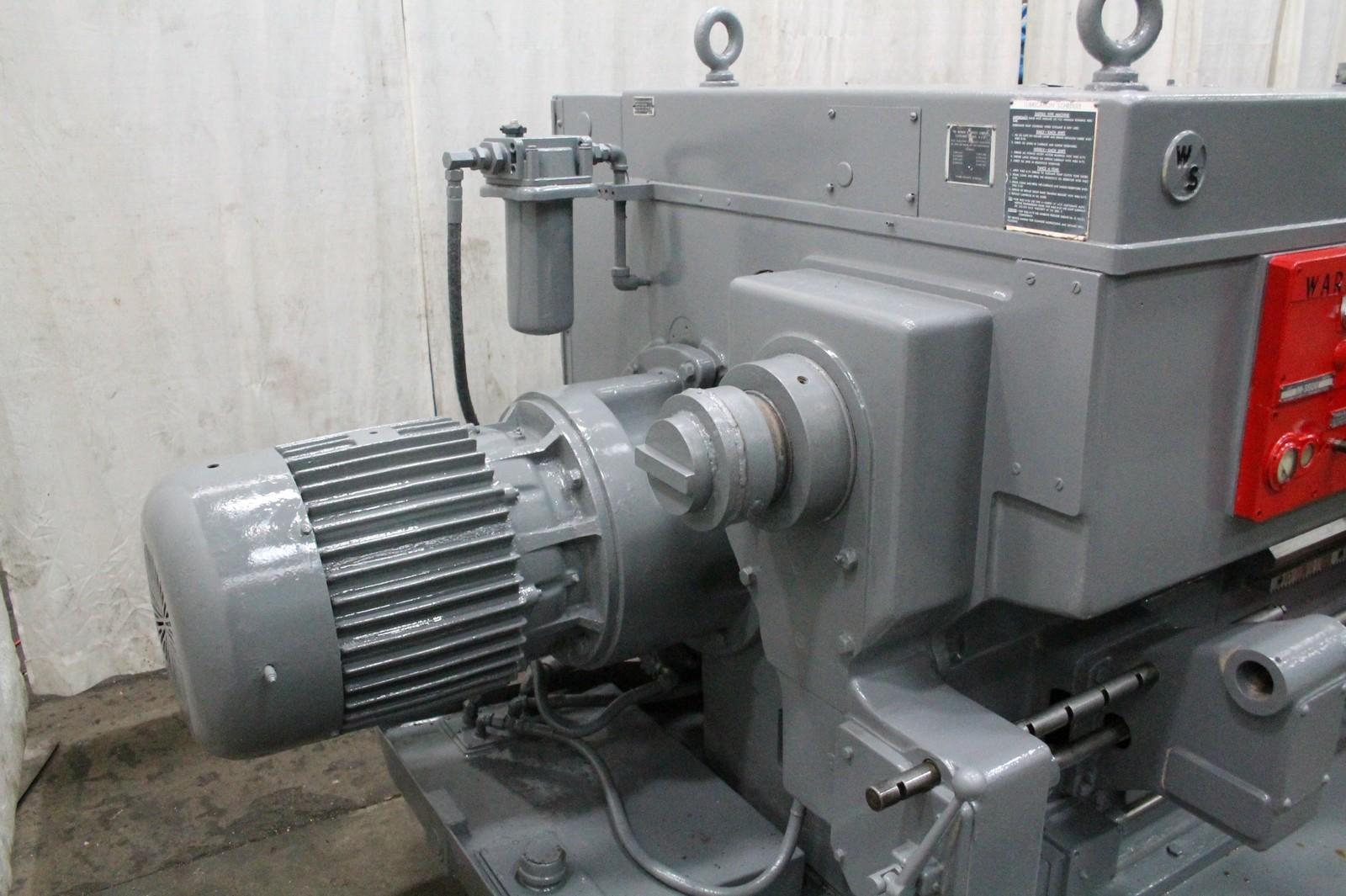

MAIN MOTOR ......................... 40 HORSEPOWER
