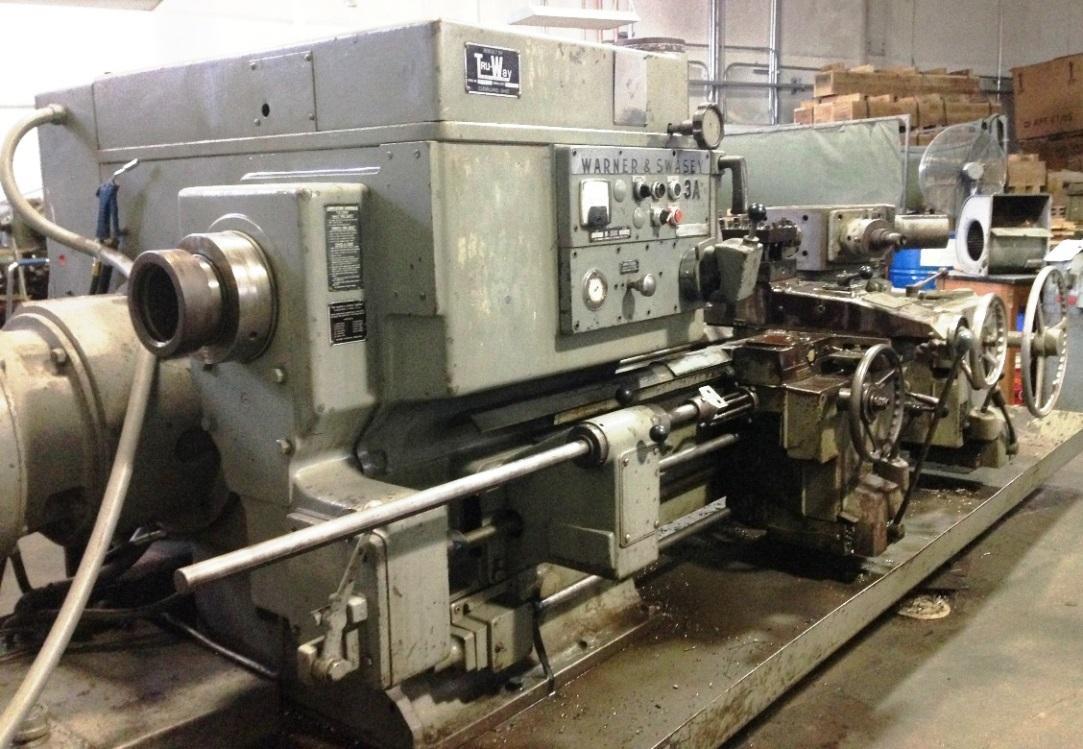

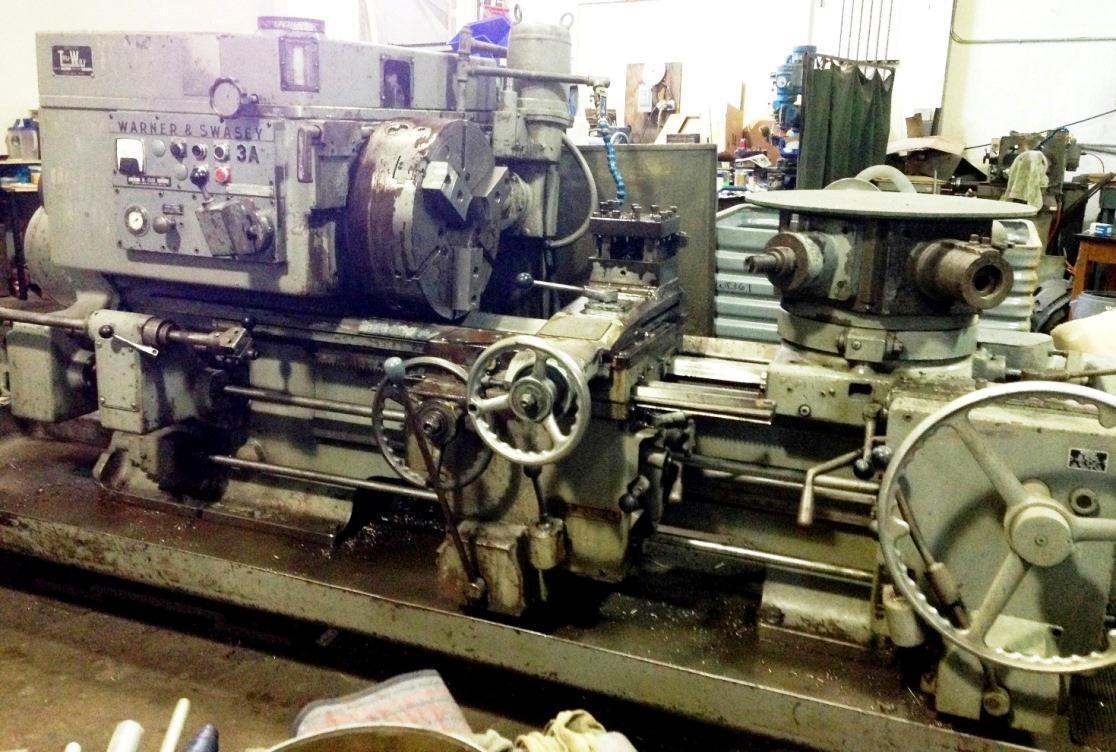

3A WARNER & SWASEY TURRET LATHE: STOCK #66524

Manufacturer

WARNER & SWASEY

Category

Lathes

Type

LATHES, TURRET, SADDLE TYPE

Stock

66524

Model

3A

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet



SERIAL ................................. 1532310
MODEL .................................. 3A (M-3500) SQUARE HEAD
SWING OVER BED ......................... 24-1/2"
SWING OVER CARRIAGE HORN ............... 18"
SPINDLE NOSE TO TURRET ................. 58-3/4"
SPINDLE HOLE ........................... 4-1/2"
SPINDLE SPEEDS ......................... (32) 12 TO 851 RPM
CHUCK .................................. 21" 3 JAW
CARRIAGE LONGITUDINAL FEEDS ............ (16) .005 TO .167 IPR
CARRIAGE CROSS FEEDS ................... (16) .002 TO .082 IPR
TURRET LONGITUDINAL FEEDS .............. (16) .005 TO .167 IPR
TURRET CROSS FEEDS ..................... (16) .003 TO .096 IPR
TAPER ON CARRIAGE ...................... YES
CHIP PAN WITH COOLANT .................. YES
MAIN MOTOR ............................. 30 HORSEPOWER
