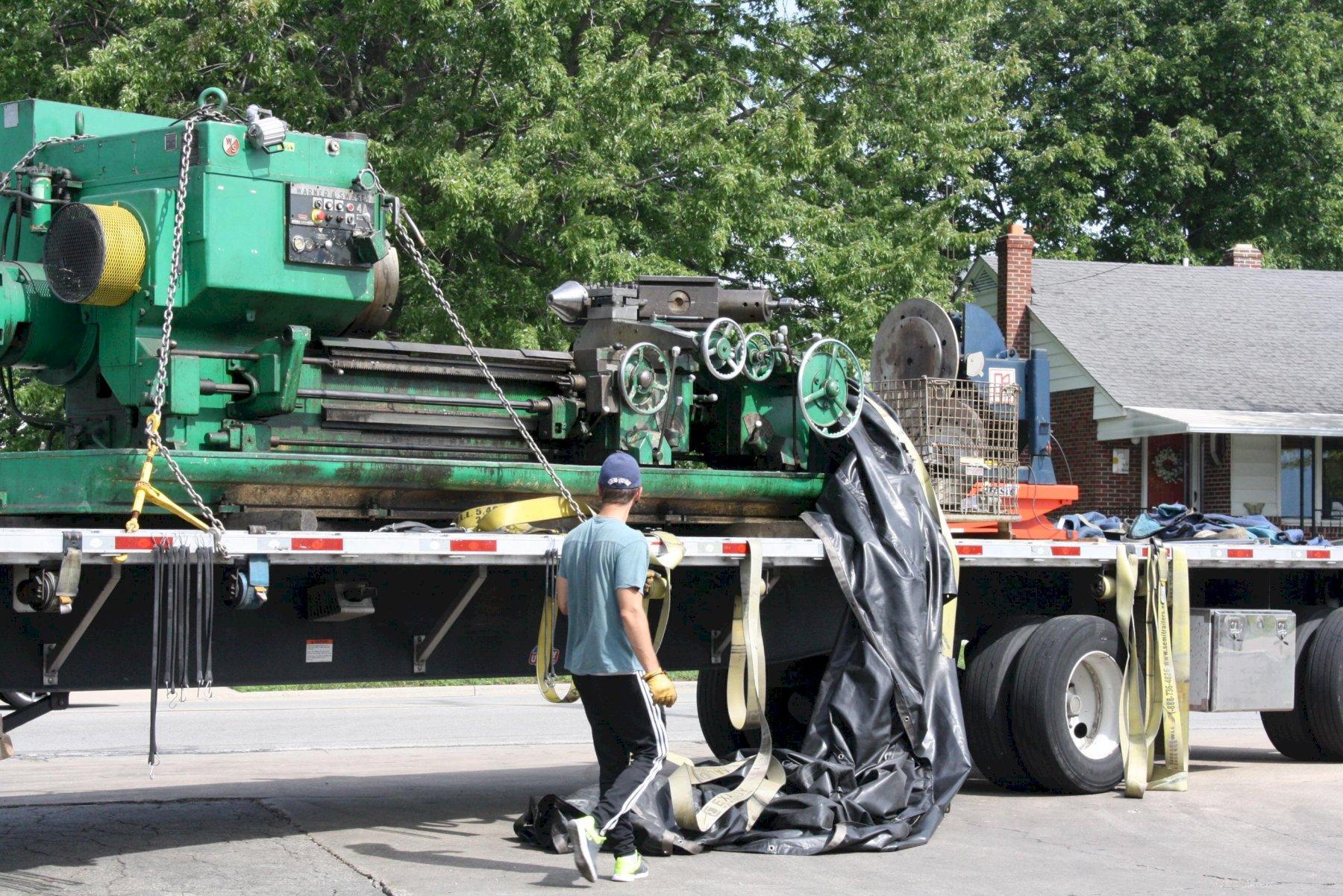

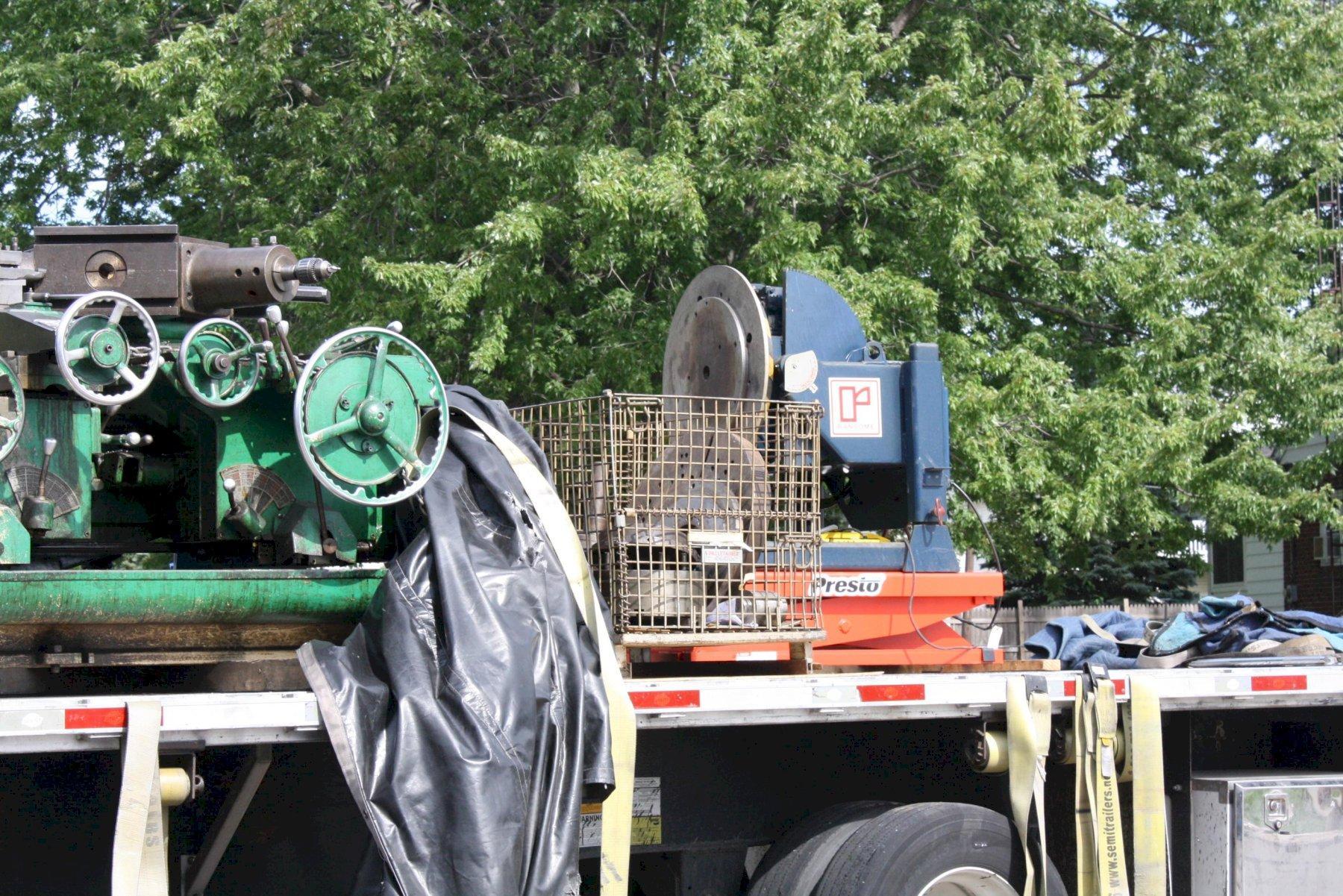

4A WARNER & SWASEY SQUARE HEAD SADDLE TYPE TURRET LATHE: STOCK 66758

Manufacturer

Category

Lathes

Type

LATHES, TURRET, SADDLE TYPE

Stock

66758

Model

4A

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet



SERIAL ................................. 2765688
MODEL .................................. M-3550, SQUARE HEAD
SWING OVER BED ......................... 28-1/4"
SWING OVER CARRIAGE .................... 22-7/16"
MAXIMUM DISTANCE SPINDLE TO TURRET ..... 59-1/2"
SPINDLE SPEEDS ......................... (32) 10 TO 526 RPM
DIAMETER OF SPINDLE HOLE ............... 9"
LONGITUDINAL & TURRET FEEDS ............ (16) .005 TO .167 IPR
CROSS SLIDE FEEDS ...................... (16) .003 TO .103 IPR
CHUCK .................................. 24" 3 JAW
LEAD ON THREADING ...................... YES
RAPID TRAVERSE ......................... YES
FLANGE HOLDERS ......................... 3
COOLANT WITH CHIP PANS ................. YES
MAIN DRIVE MOTOR ....................... 50 HORSEPOWER
