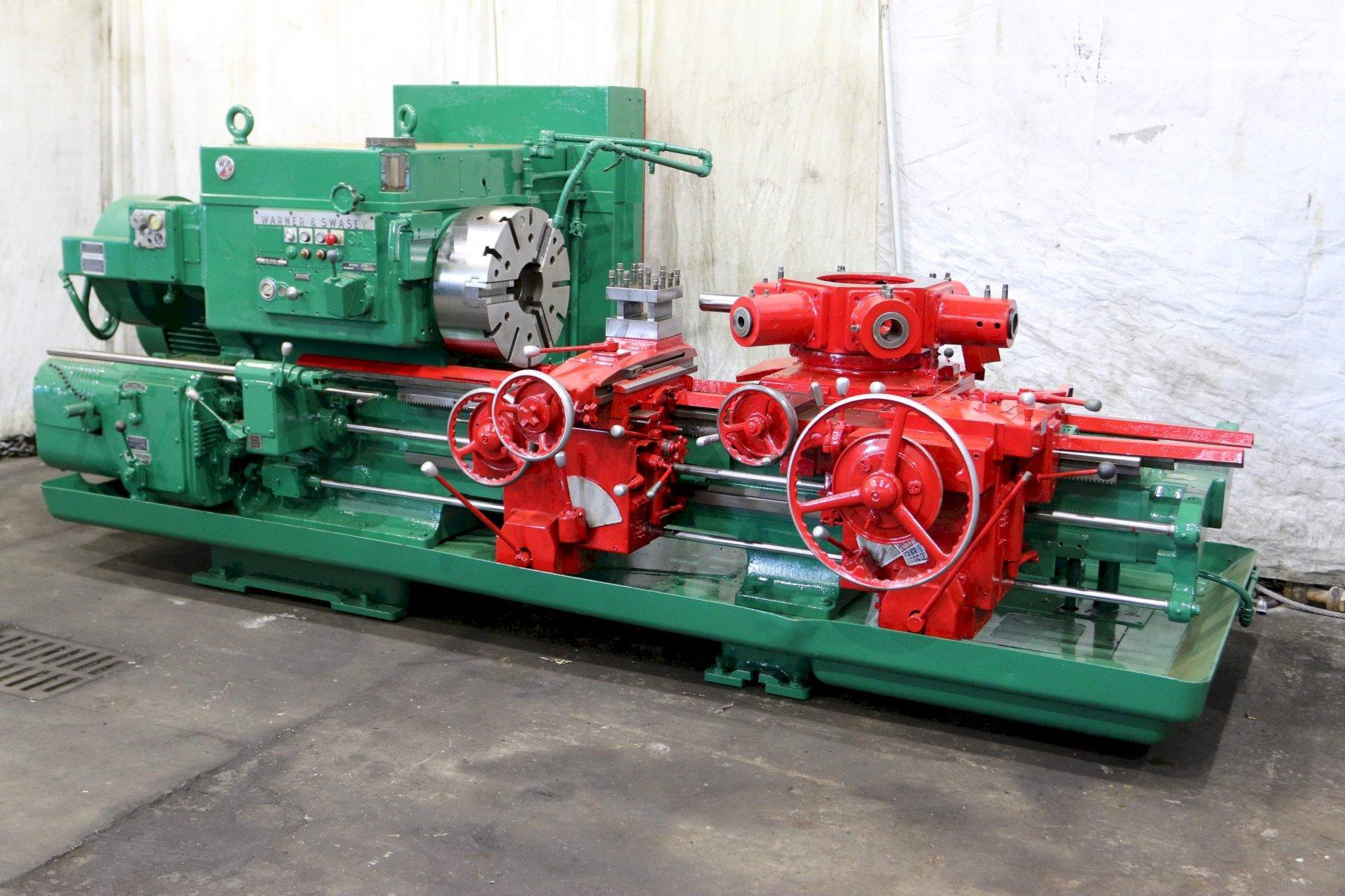

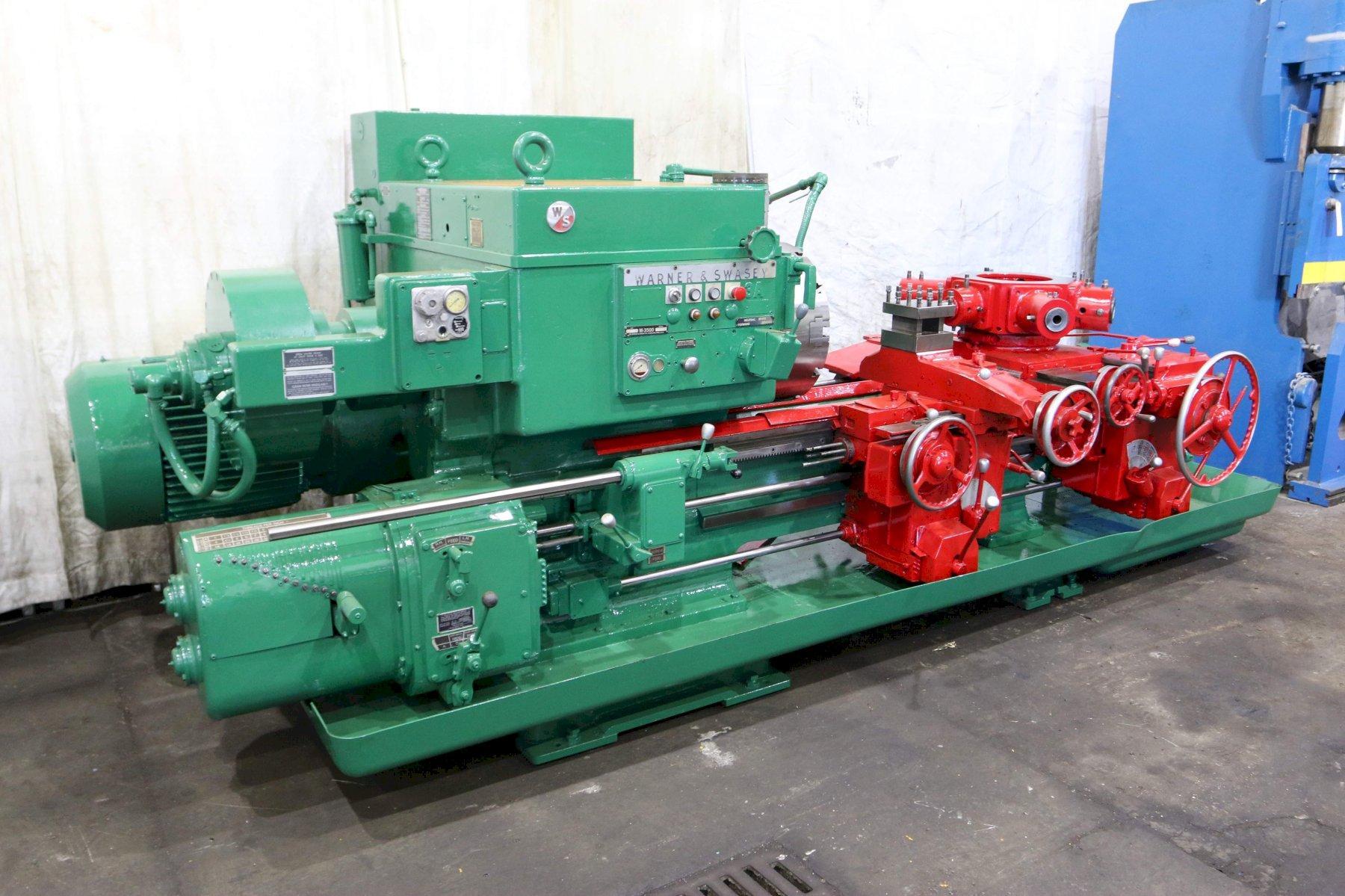

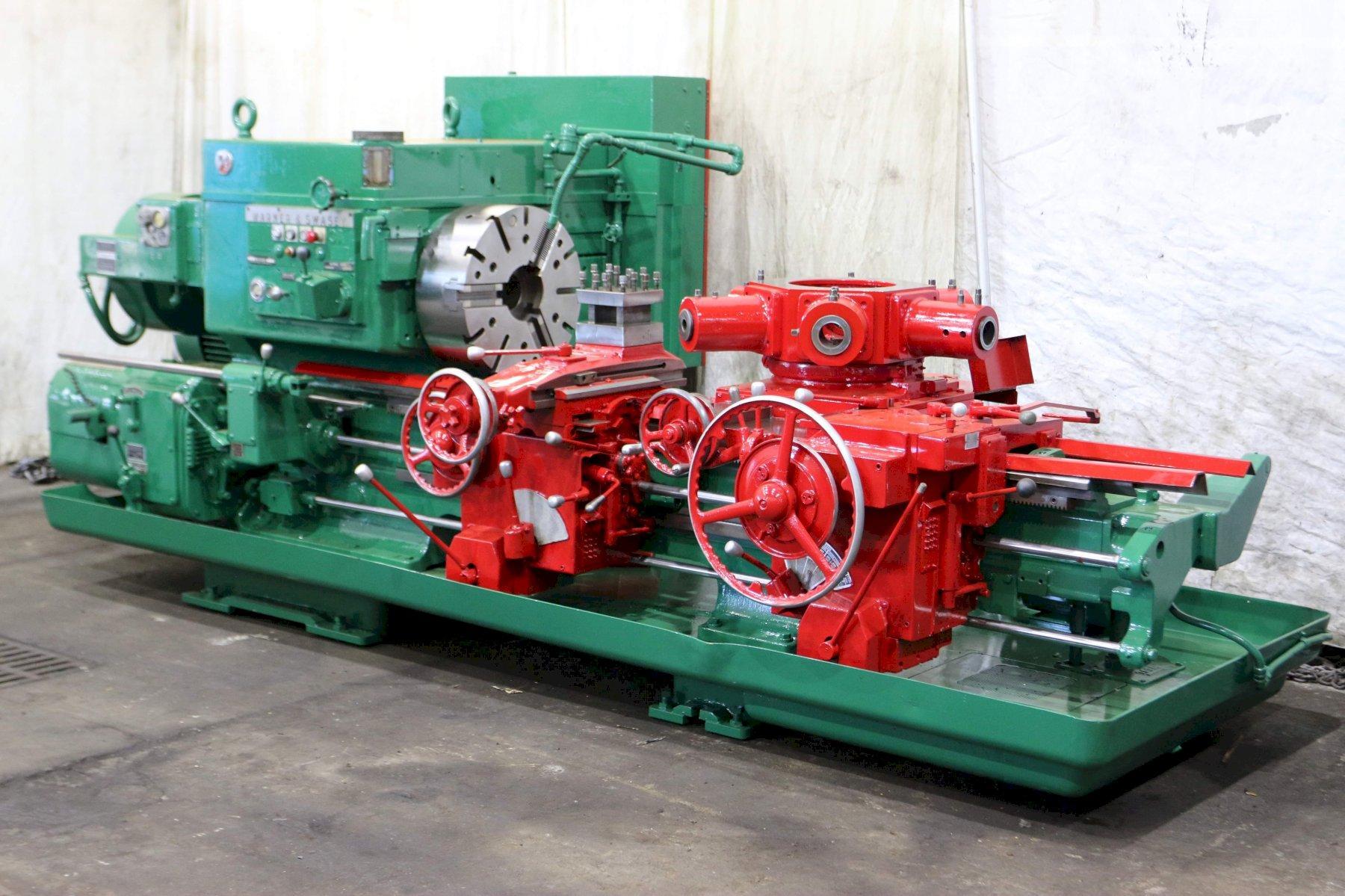

3A WARNER & SWASEY MODEL #M3500 TURRET LATHE: STOCK #66823

Manufacturer

WARNER & SWASEY

Category

Lathes

Type

LATHES, TURRET, SADDLE TYPE

Stock

66823

Model

3A

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet



SERIAL ................................. 3046551 LOT 865
MODEL .................................. 3A (M-3500) SQUARE HEAD
SWING OVER BED ......................... 24-1/2"
SWING OVER CARRIAGE HORN ............... 18"
SPINDLE NOSE TO TURRET ................. 58-3/4"
SPINDLE HOLE ........................... 6-1/8"
SPINDLE SPEEDS ......................... (32) 12 TO 851 RPM
CHUCK .................................. 21" 3 JAW
CHUCK CLOSER ........................... PNEUMATIC
CARRIAGE LONGITUDINAL FEEDS ............ (16) .005 TO .167 IPR
CARRIAGE CROSS FEEDS ................... (16) .002 TO .082 IPR
TURRET LONGITUDINAL FEEDS .............. (16) .005 TO .167 IPR
TURRET CROSS FEEDS ..................... (16) .003 TO .096 IPR

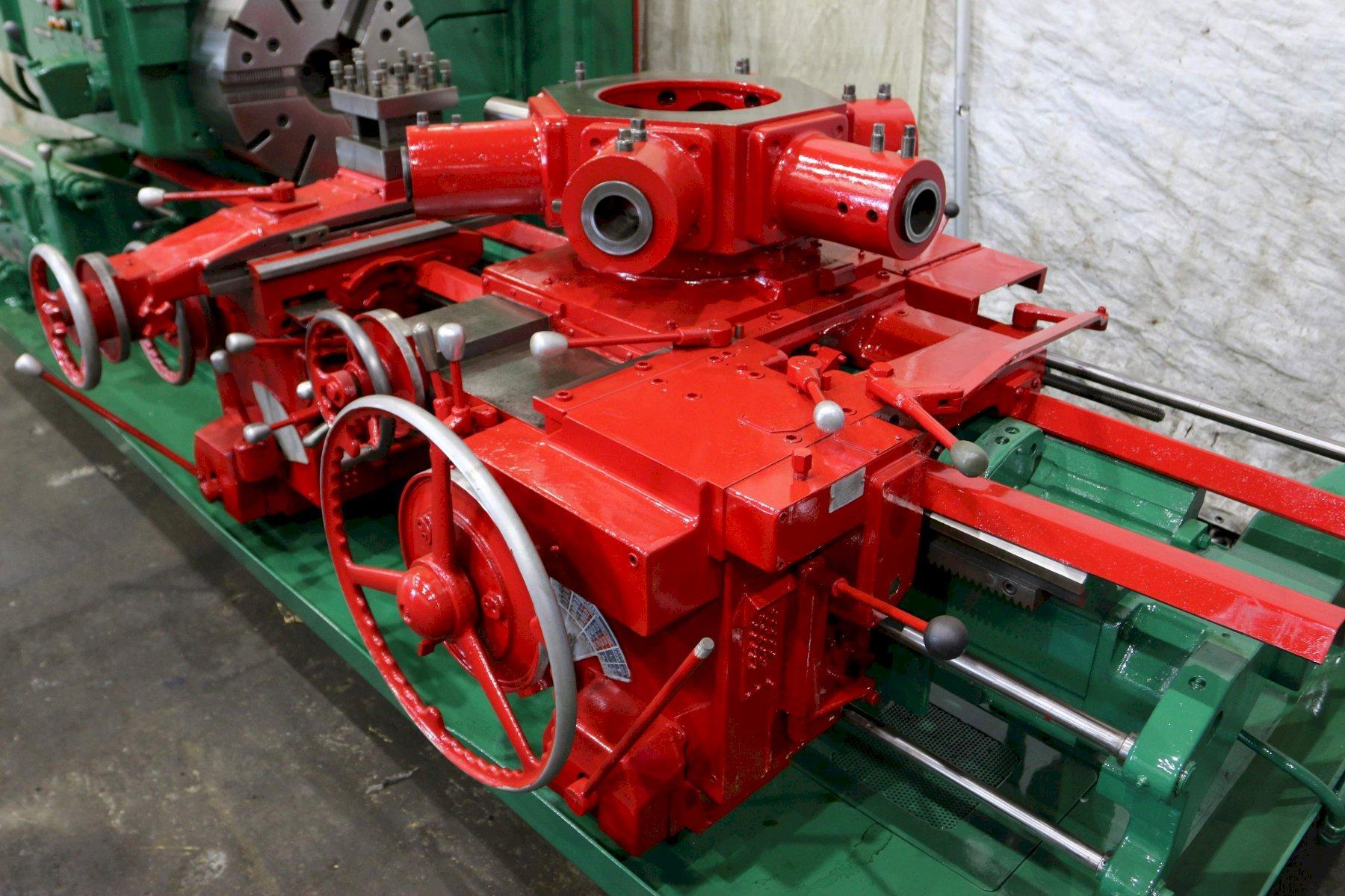

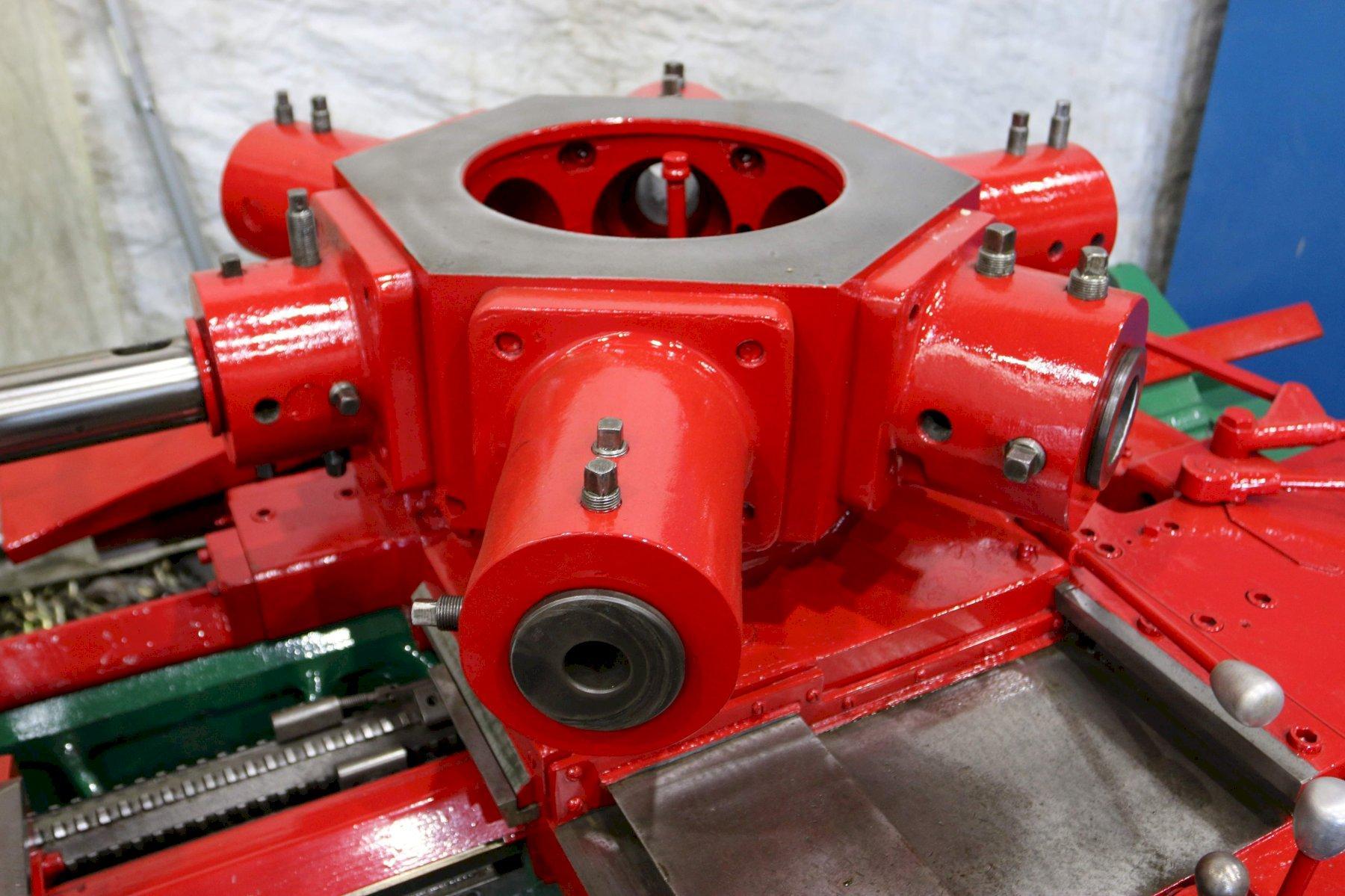

**CROSS SLIDING TURRET** ............... YES
TAPER ON CARRIAGE ...................... YES
TAPER ON TURRET ........................ YES

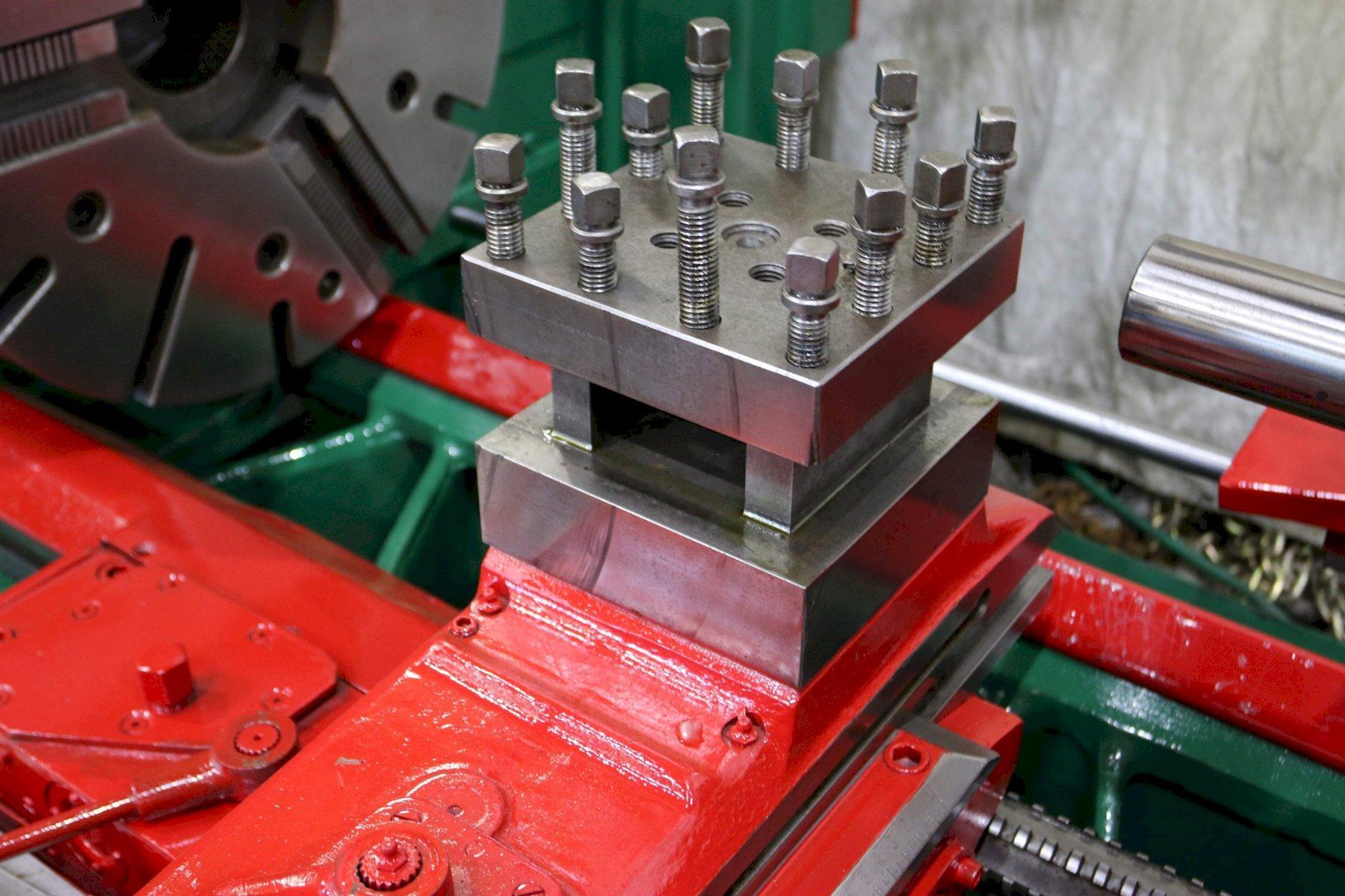

TOOLPOST ............................... YES
CHIP PAN WITH COOLANT .................. YES
THREADING .............................. (30) 1 TO 36 TPI
MAIN MOTOR ............................. 60 HORSEPOWER
