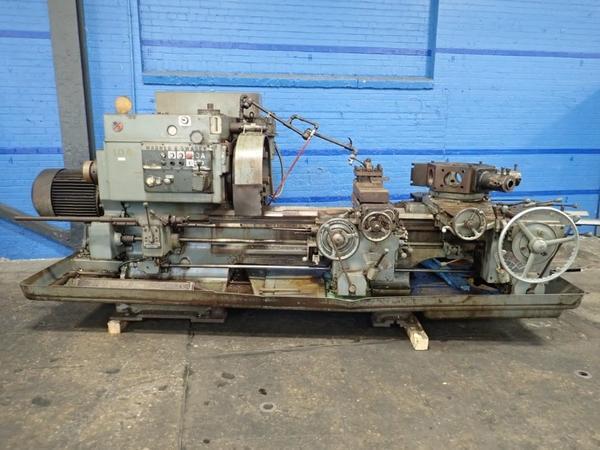

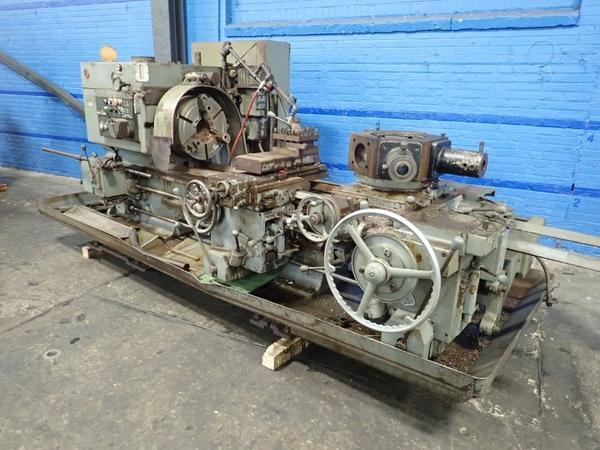

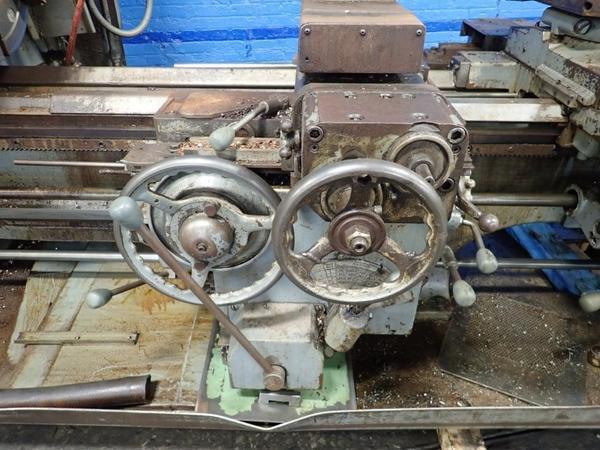

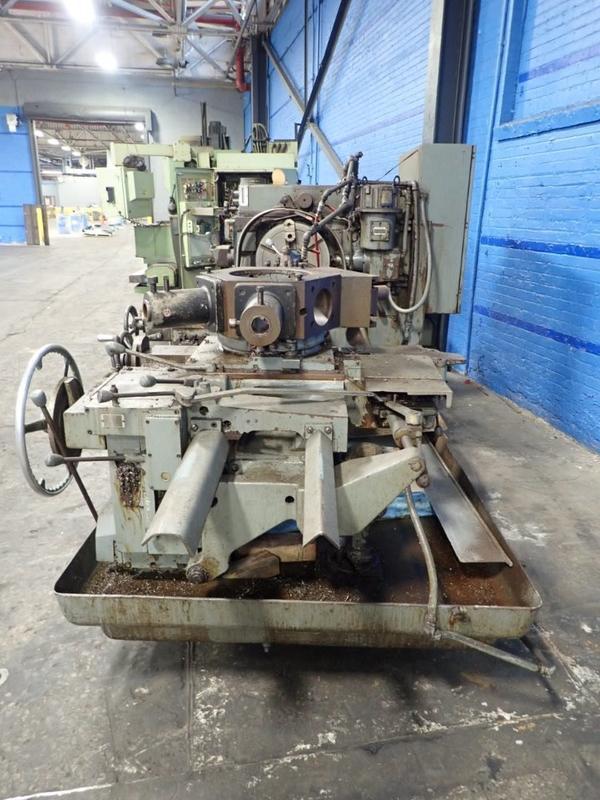

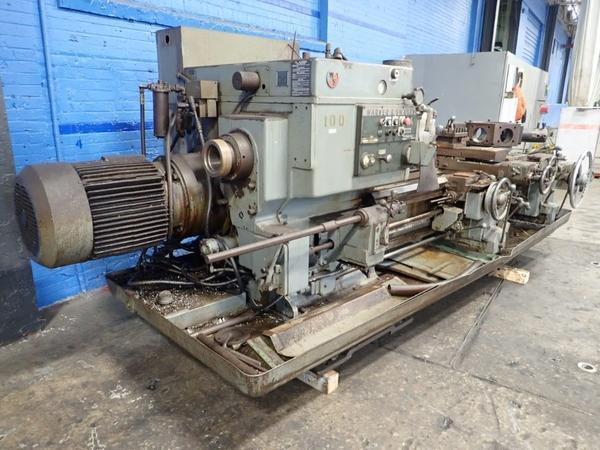

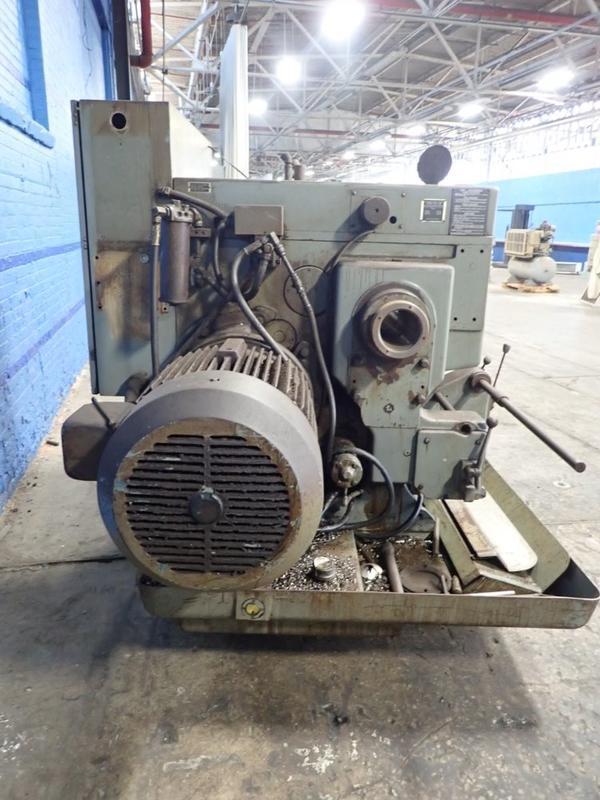

#3A WARNER & SWASEY MODEL #3500 TURRET LATHE: STOCK #71826

Manufacturer

WARNER & SWASEY

Category

Lathes

Type

LATHES, TURRET, SADDLE TYPE

Stock

71826

Model

3A

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet



SERIAL .......................... 2640489
MODEL ........................... 3A (M3500)
YEAR NEW ........................ 1974
SWING OVER BED (................. 24-1/2"
SWING OVER CARRIAGE ............. 18"
SPINDLE NOSE TO TURRET .......... 58-3/4"
SPINDLE HOLE .................... 6-1/4"
SPINDLE SPEEDS .................. (32) 12 TO 851 RPM
CARRIAGE LONGITUDINAL FEEDS ..... (16) .005 TO .167 IPR
CARRIAGE CROSS FEEDS ............ (16) .002 TO .082 IPR
TURRET LONGITUDINAL FEEDS ....... (16) .005 TO .167 IPR
TURRET CROSS FEEDS .............. (16) .003 TO .096 IPR
MAXIMUM LENGTH TURNED ........... 44-1/4"

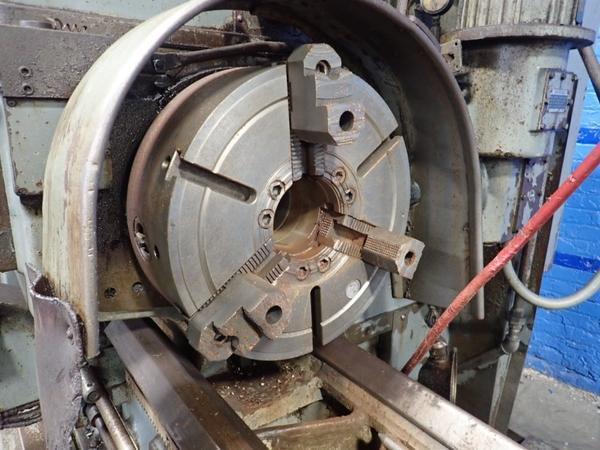

3 JAW CHUCK ..................... 21"
POWER CHUCK WRENCH .............. YES
TAPER ATTACHMENT ................ YES

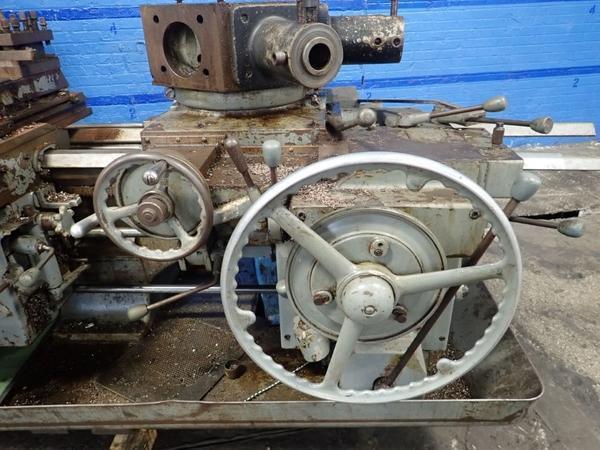

CROSS SLIDING TURRET ............ YES
