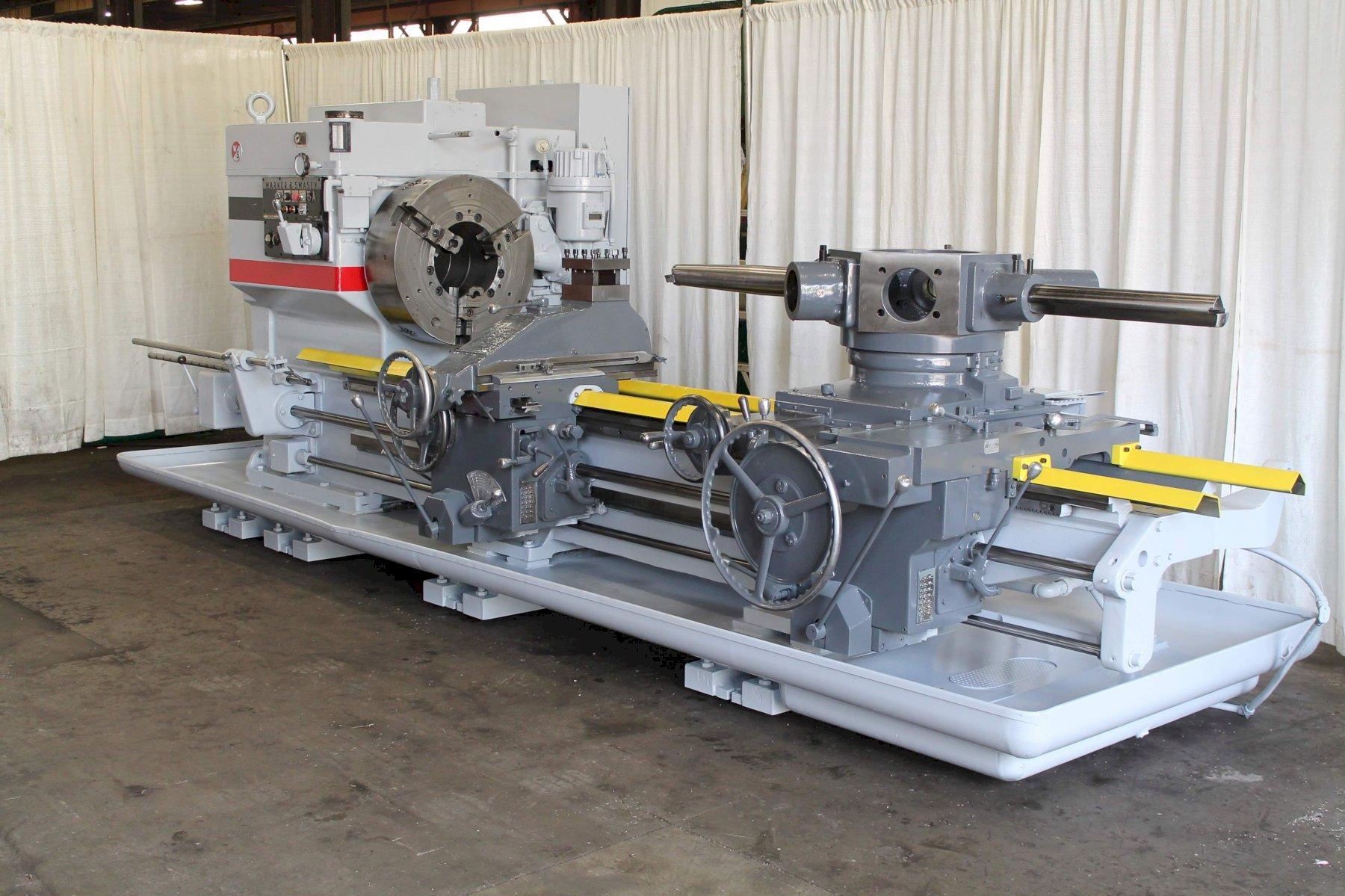

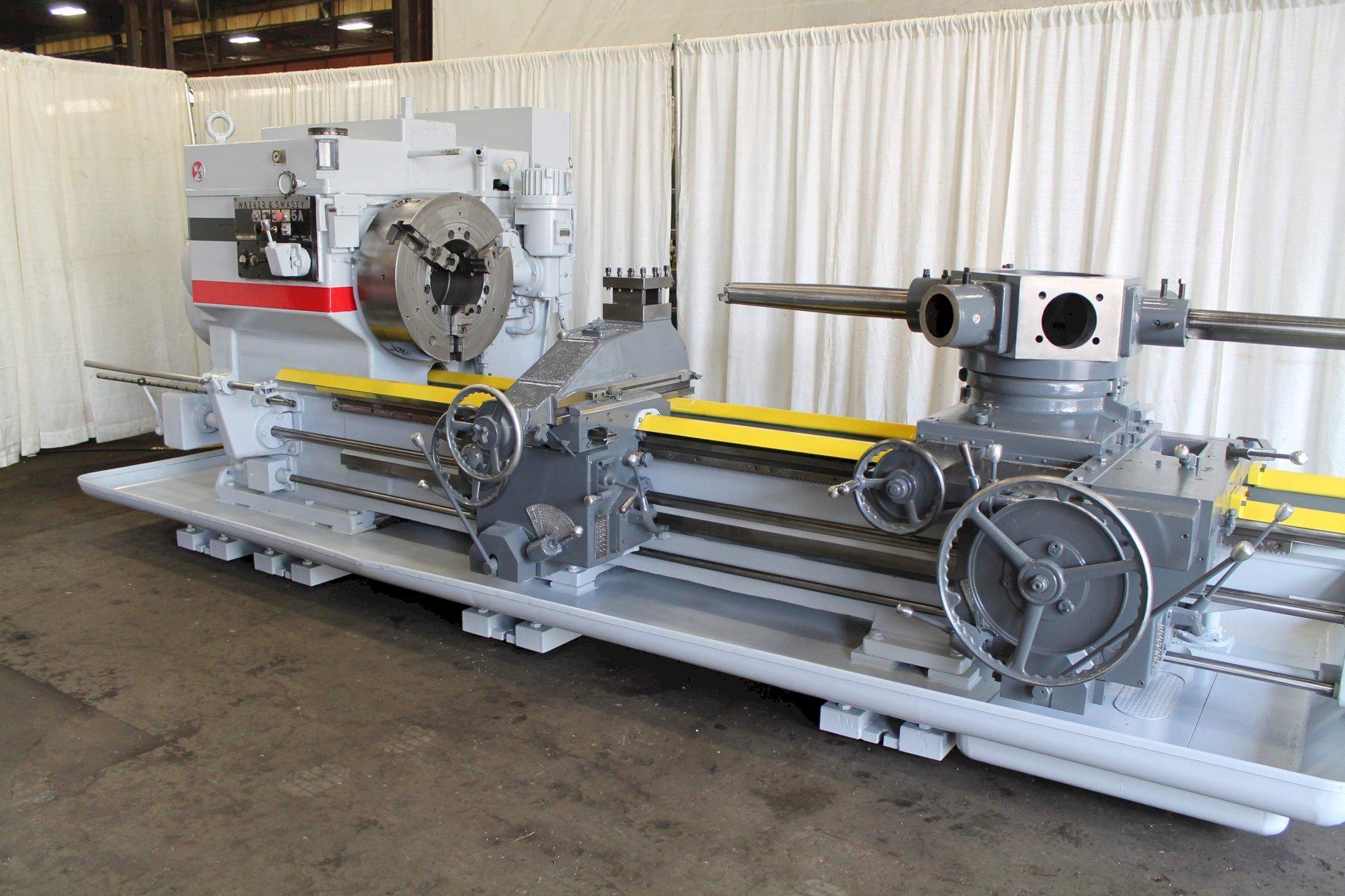

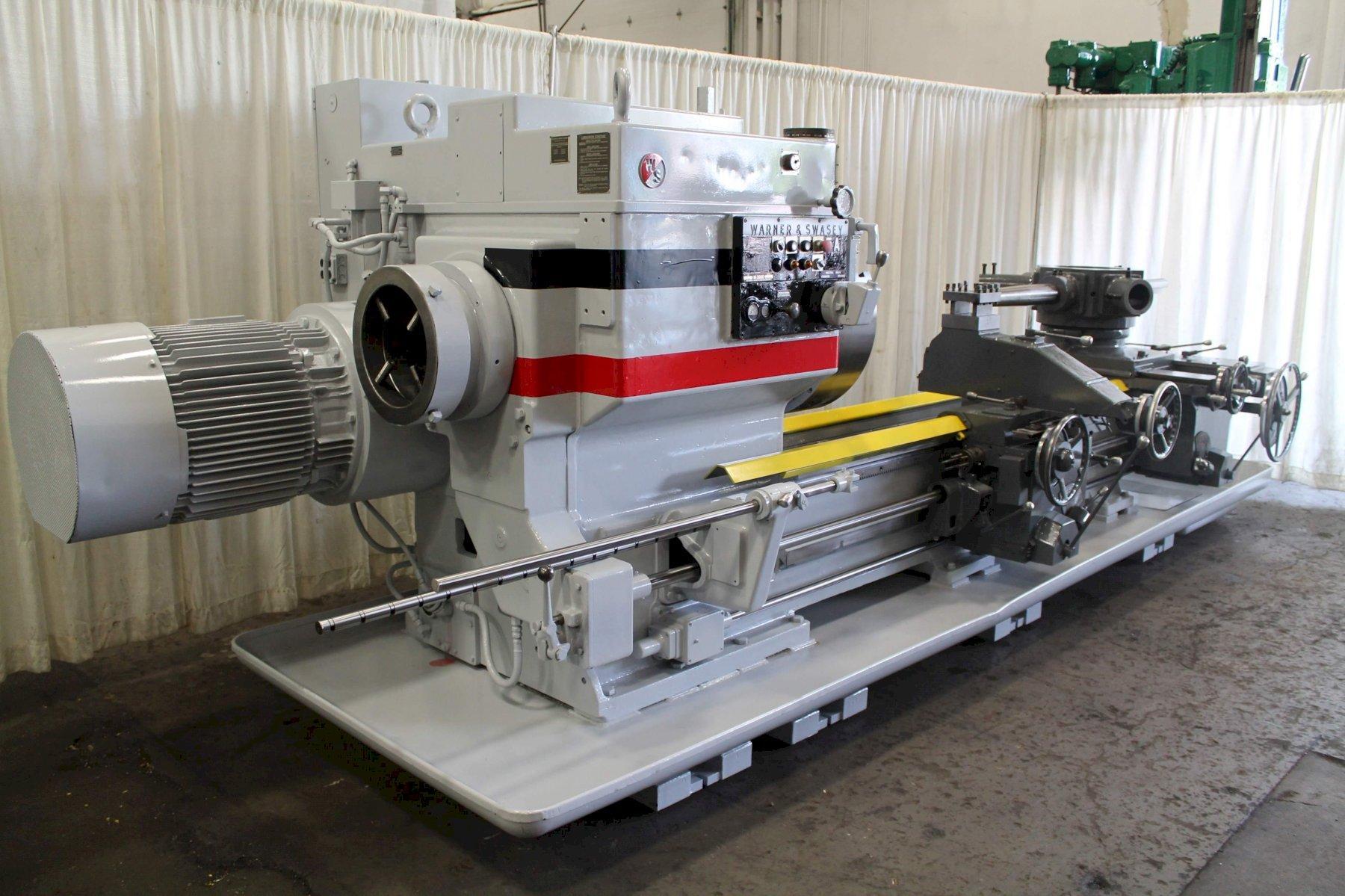

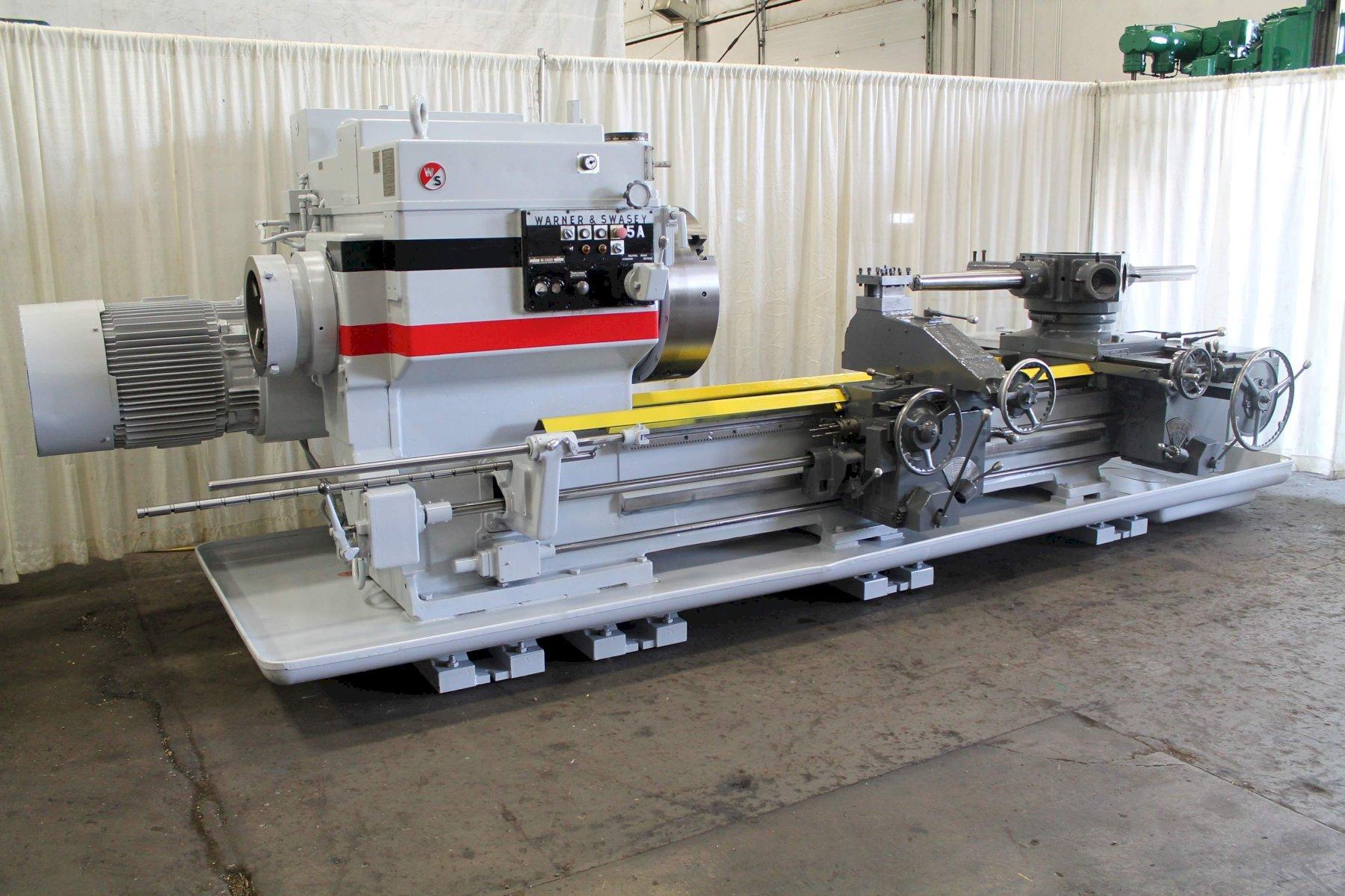

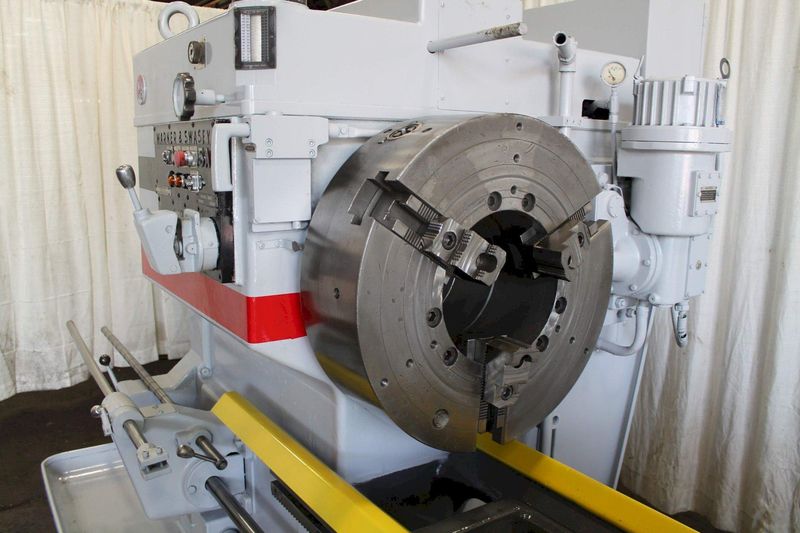

WARNER & SWASEY #5A SADDLE TURRET LATHE: STOCK #72777

Manufacturer

WARNER & SWASEY

Category

Lathes

Type

LATHES, TURRET, SADDLE TYPE

Stock

72777

Model

5A

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet

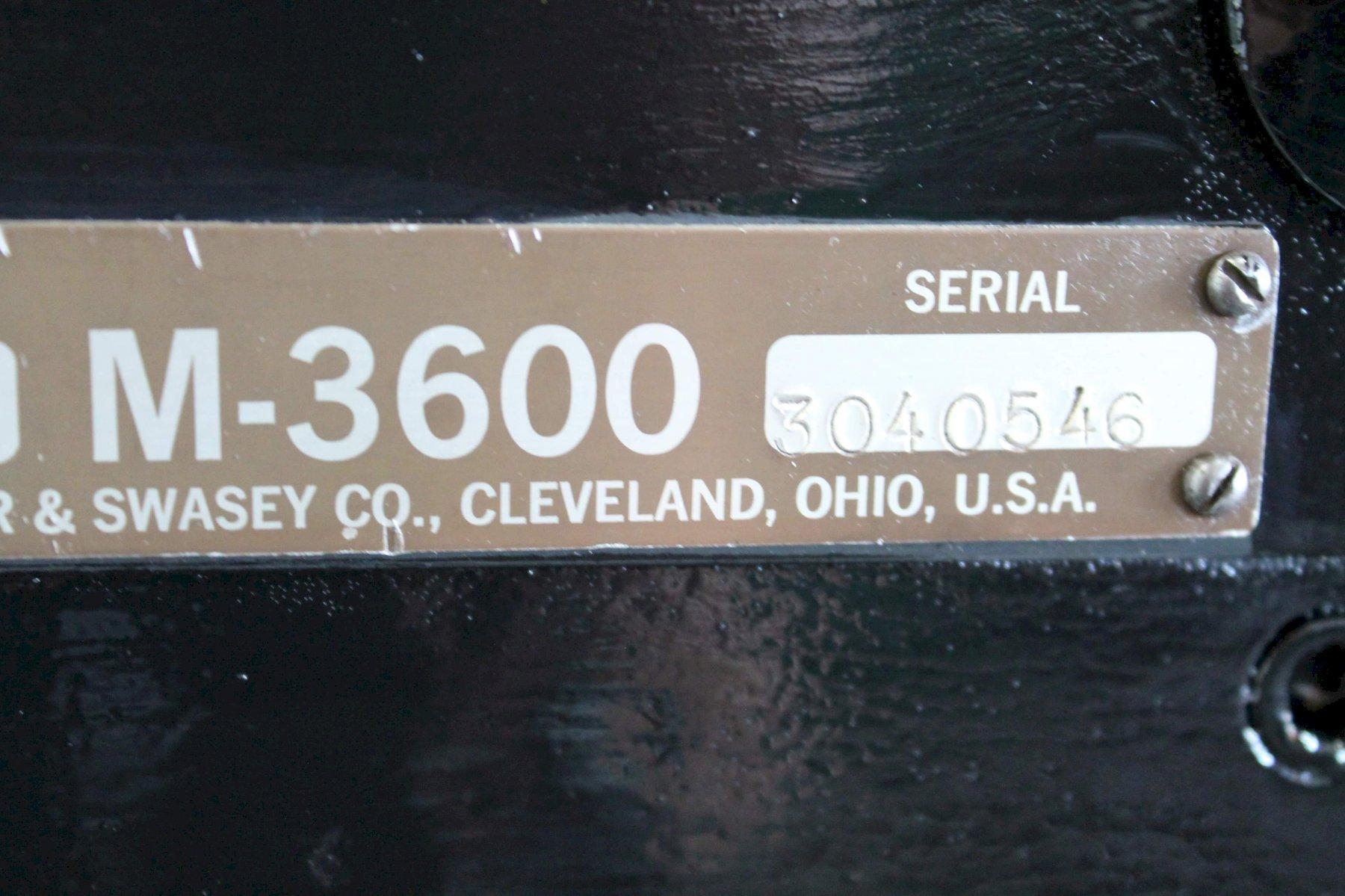

SERIAL ............................. #3040546

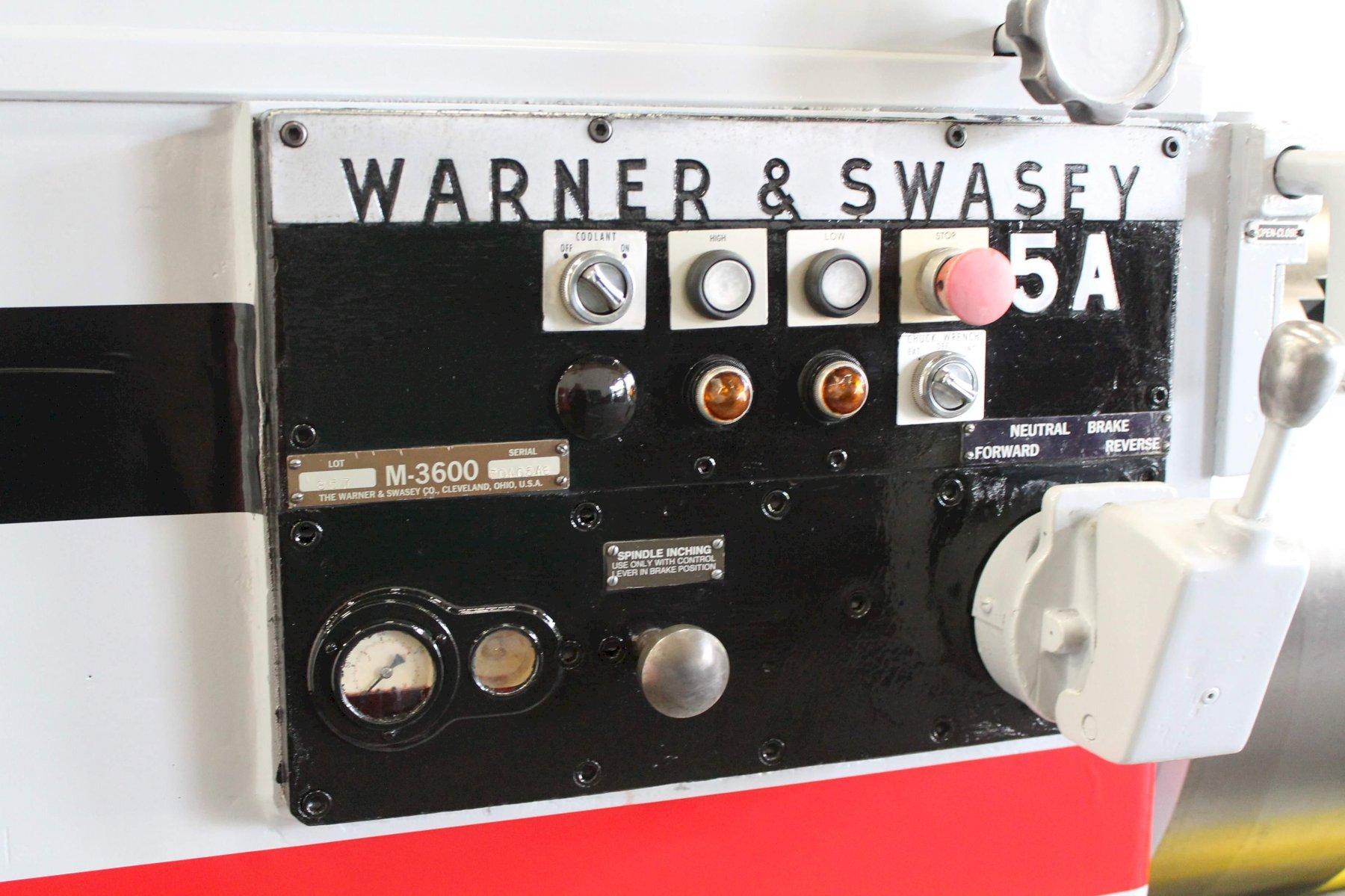

MODEL .............................. M 3600
LOT ................................ 857
YEAR NEW ........................... 1981
SWING OVER CARRIAGE ................ 36"

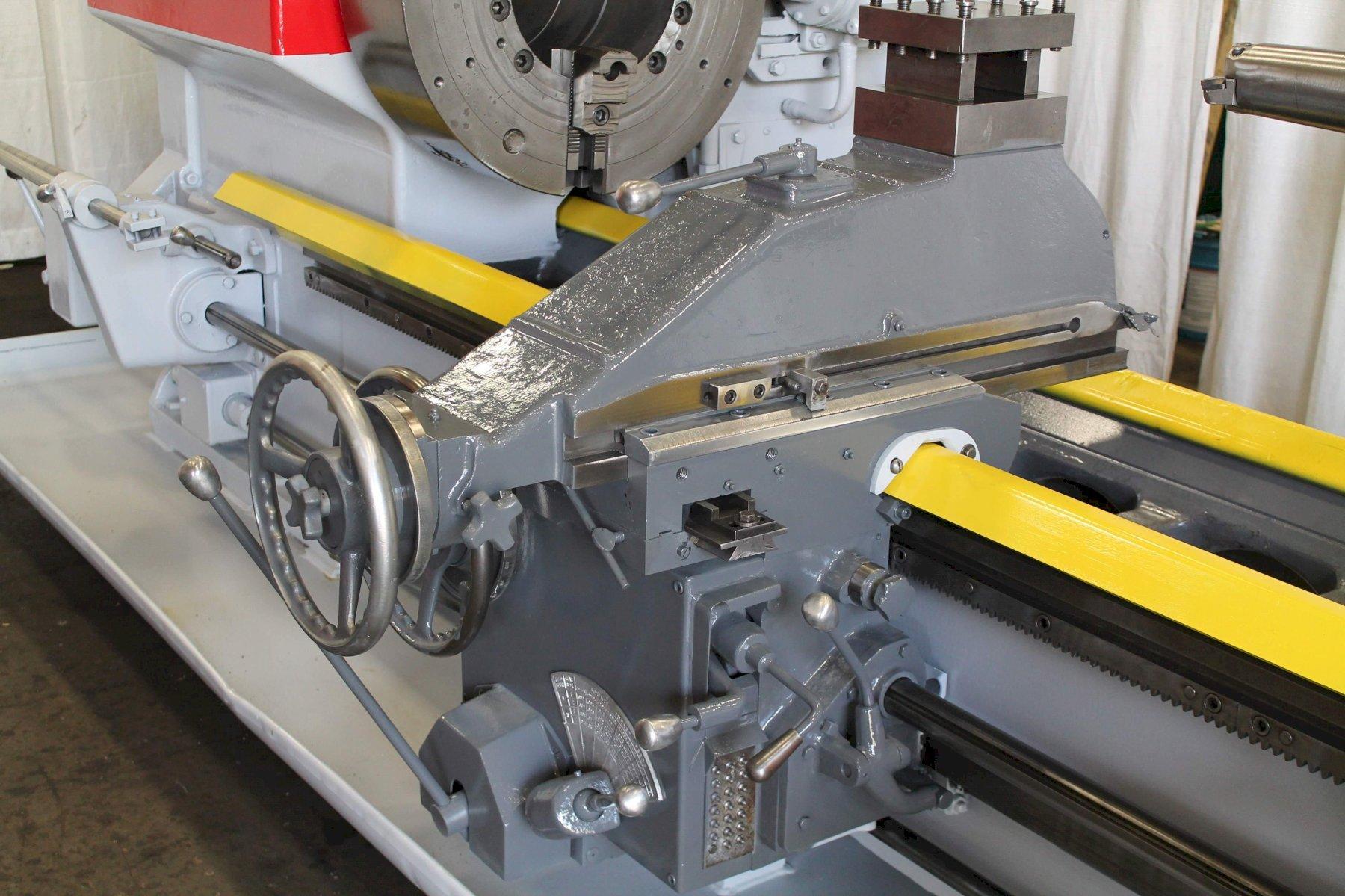

SWING OVER CROSS SLIDE ............. 32-3/4"
SPINDLE TO TURRET FACE ............. 96"
SPINDLE SPEEDS ..................... 10 TO 281 RPM
CROSS SLIDE FEEDS .................. .002 TO .007 IPR
TURRET FEEDS ....................... .005 TO .167 IPR
CROSS SLIDING TURRET FEEDS ......... .006 TO .090 IPR

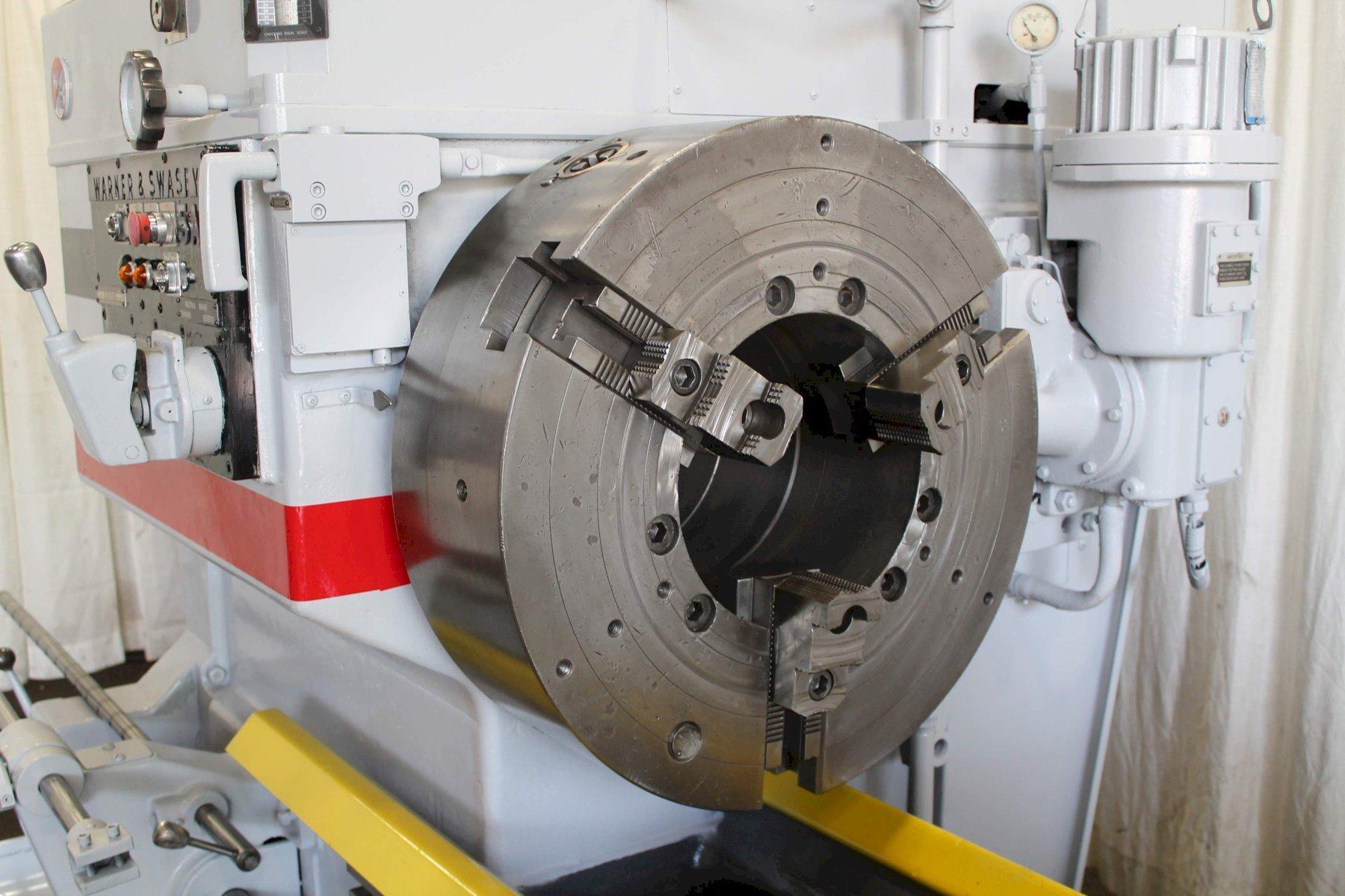

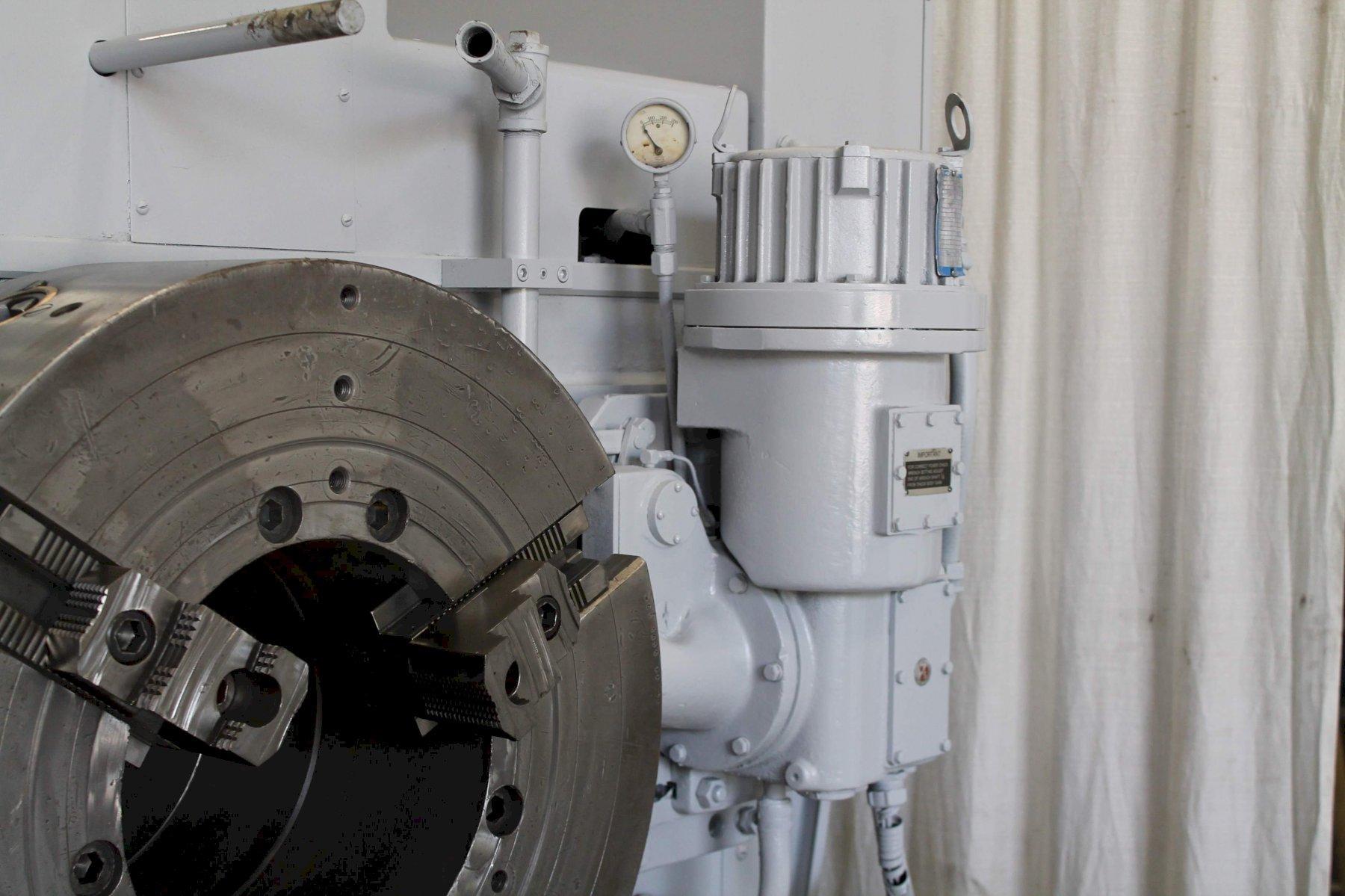

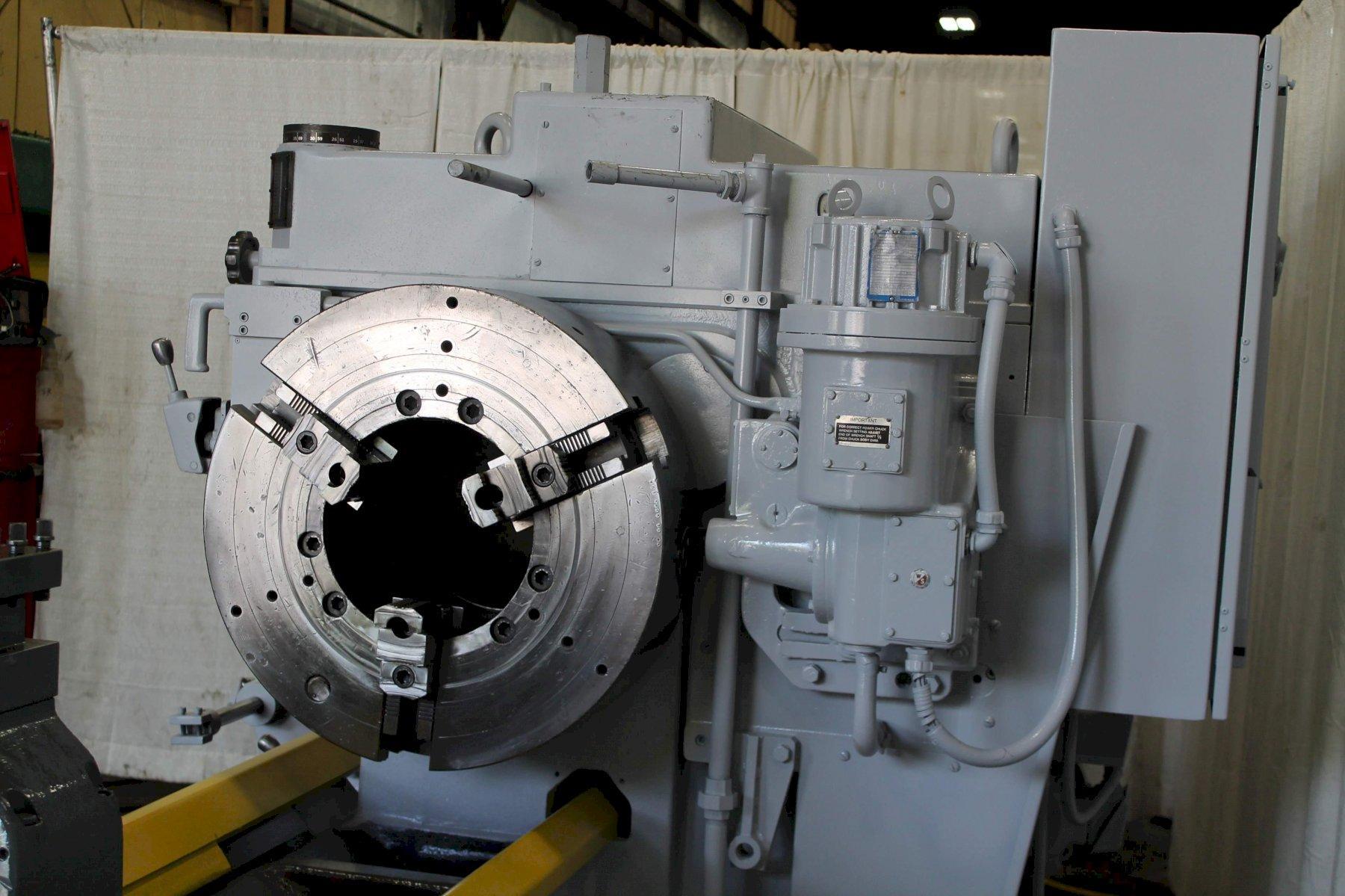

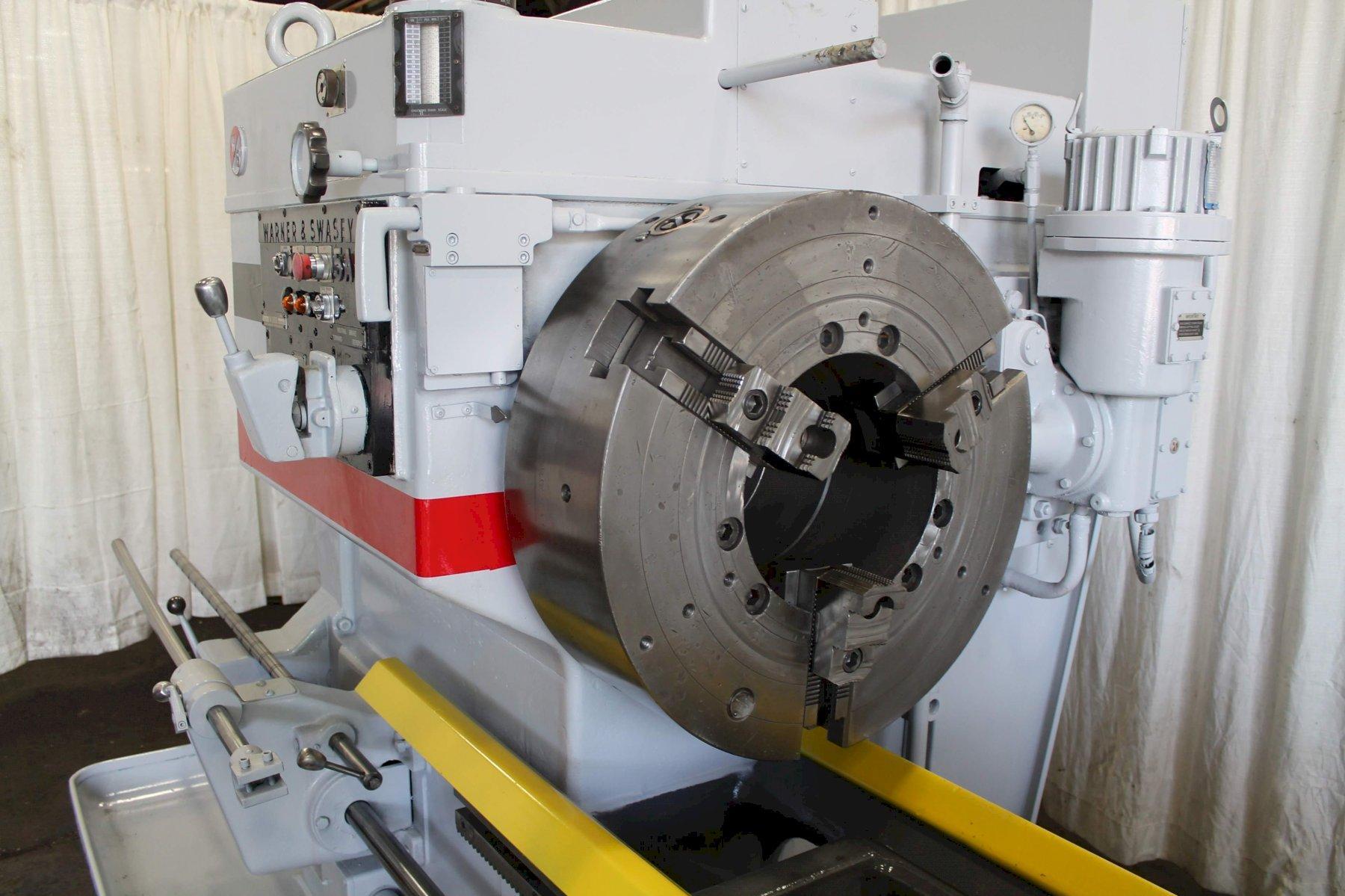

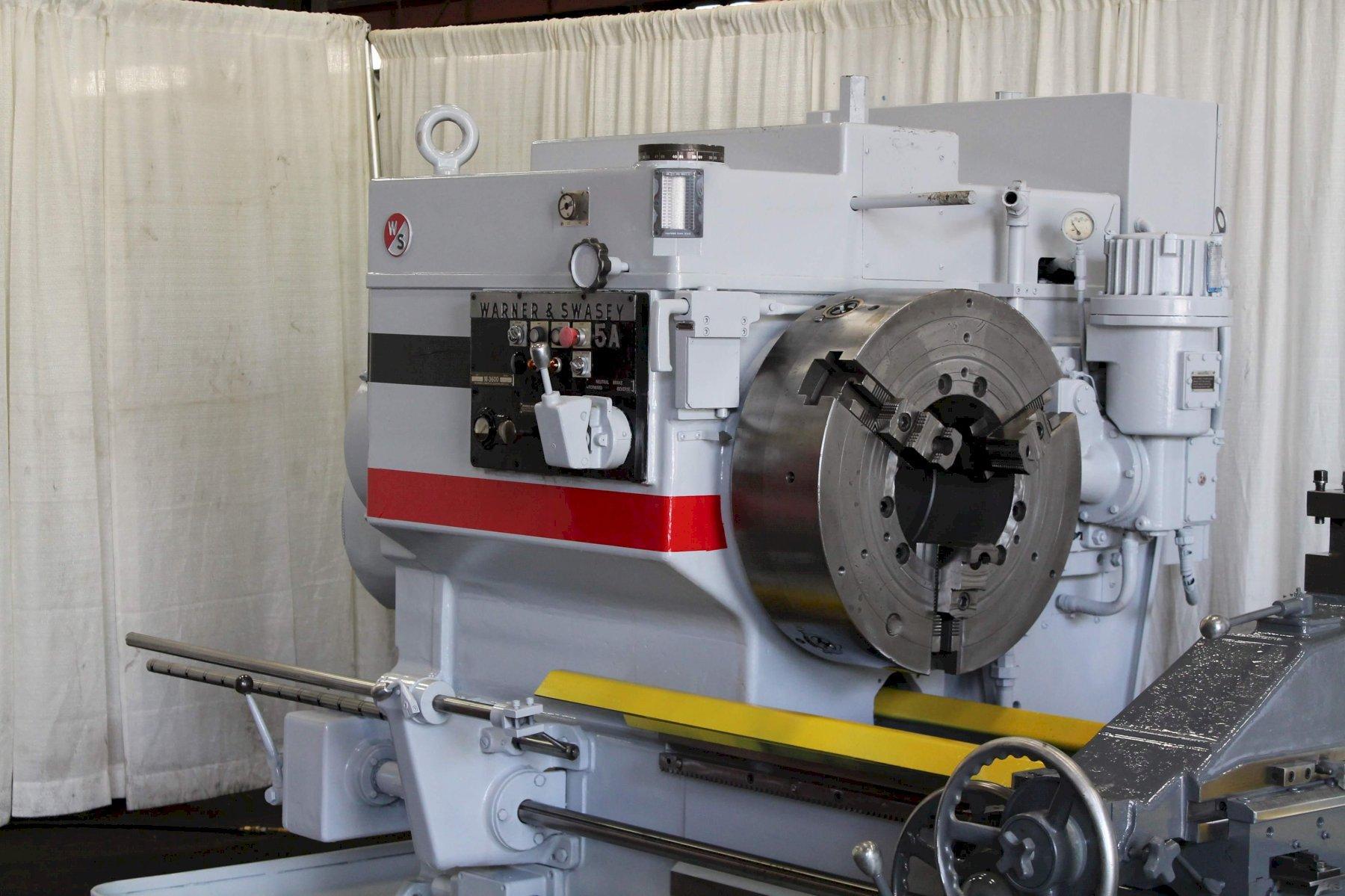

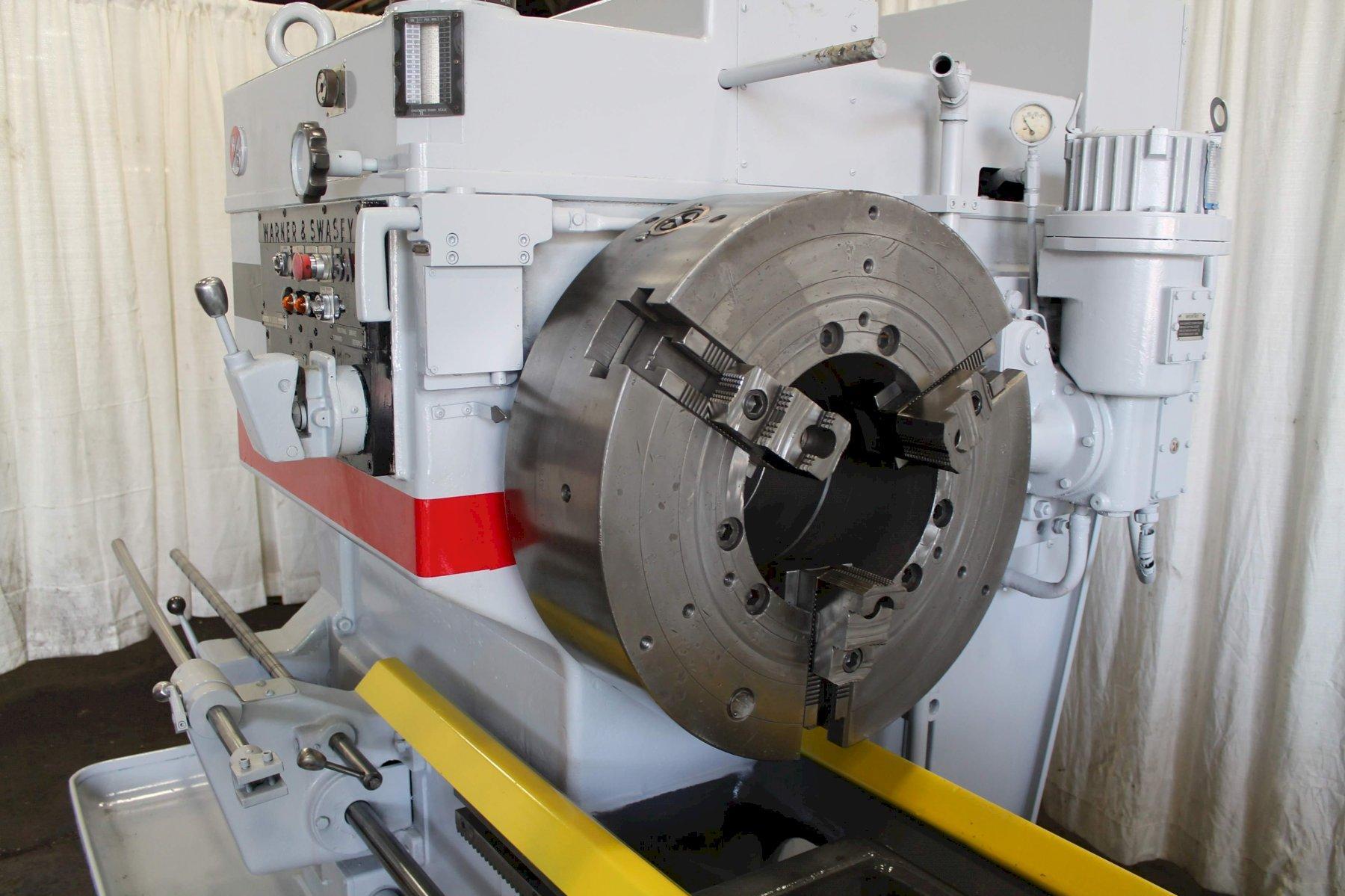

CHUCK 3 JAW UNIVERSAL (12" HOLE) ... 28" POWER CHUCK
**SPINDLE HOLE**.................... **12-1/2"**

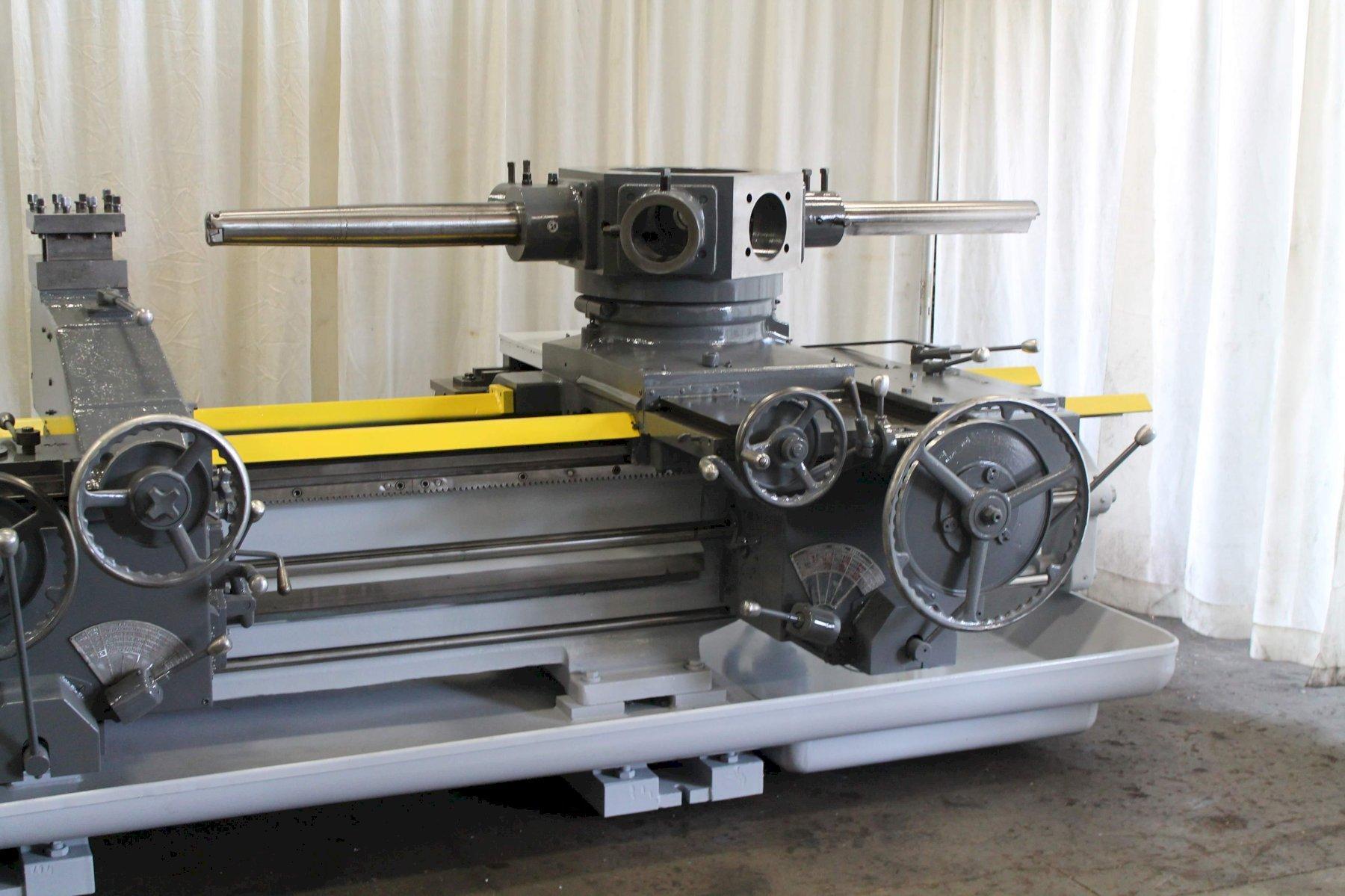

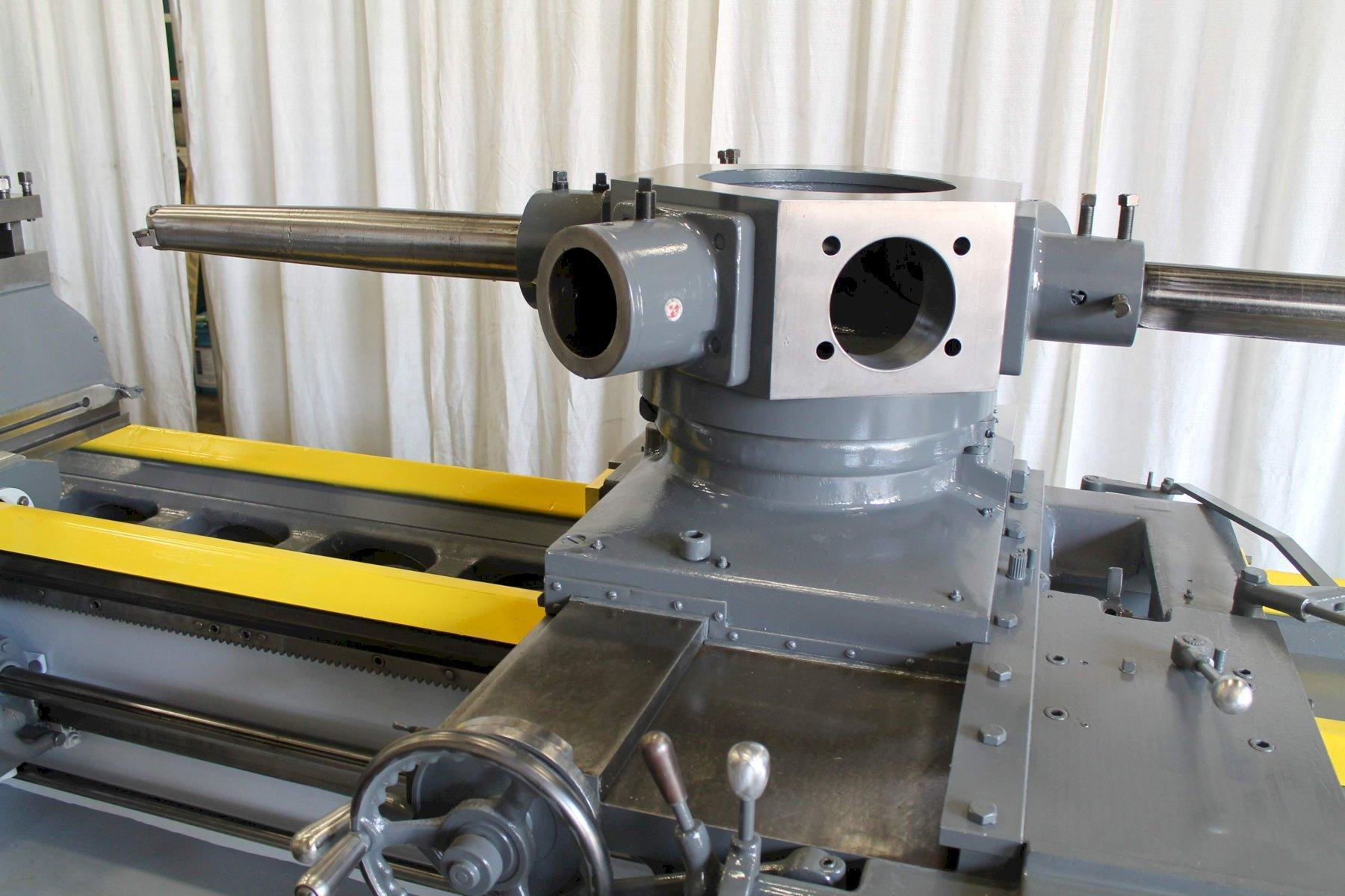

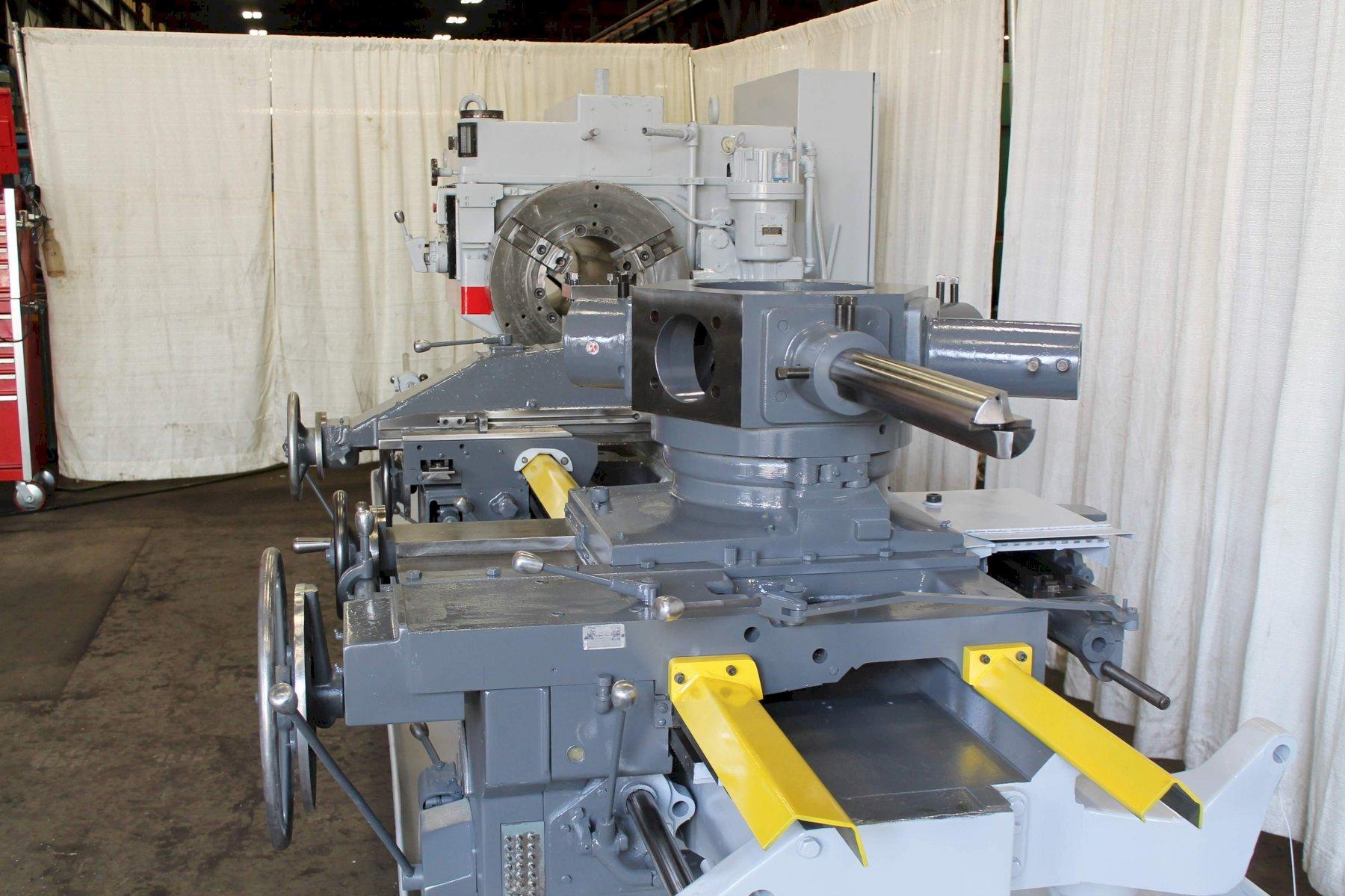

**CROSS SLIDING TURRET** ........... YES
**TAPER ON CROSS SLIDE AND TURRET**. YES
RAPID TRAVERSE ..................... YES
POWER CHUCK WRENCH ................. YES
CHIP PAN AND COOLANT ............... YES
2 SPEED MOTOR ...................... YES

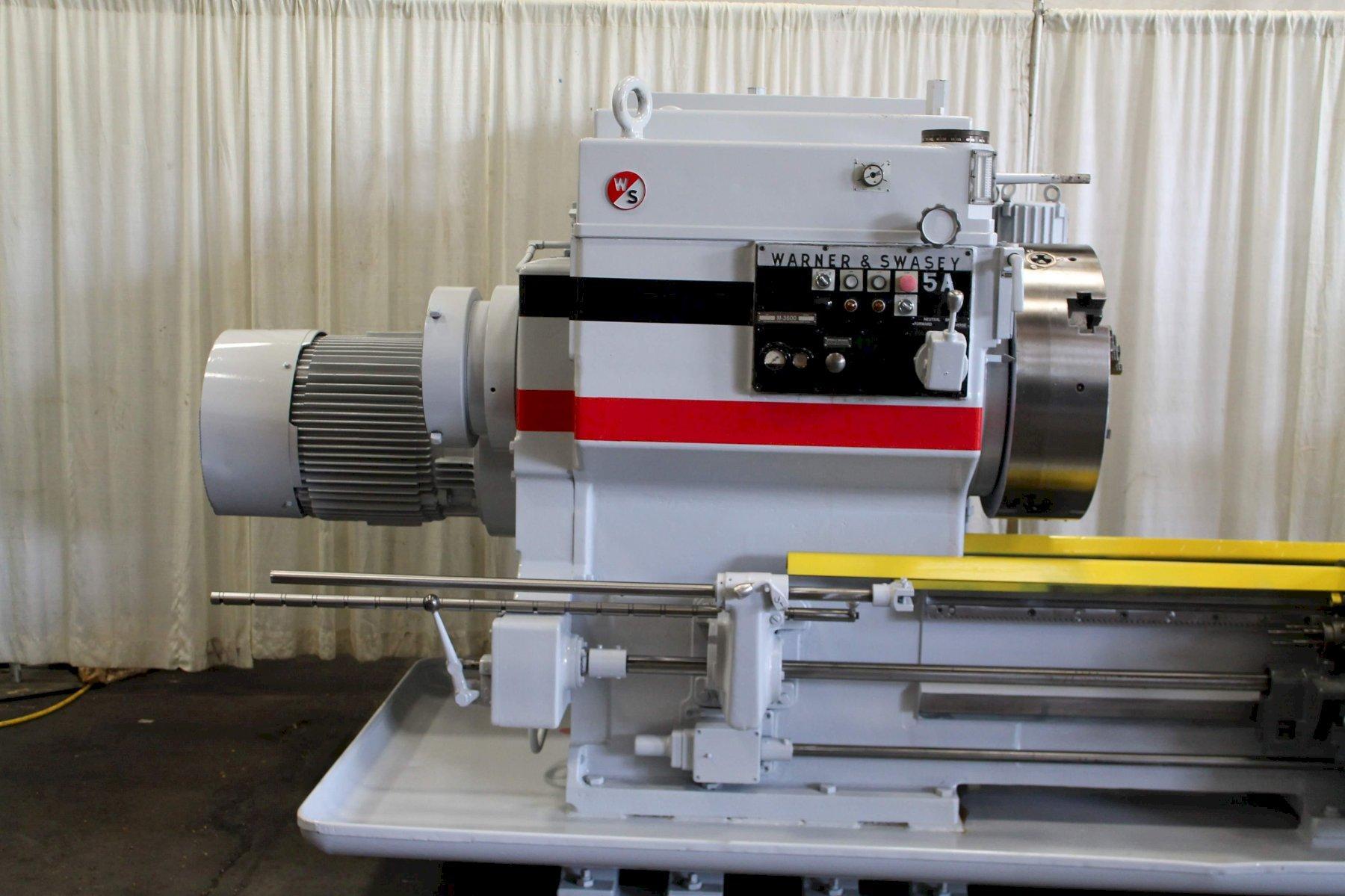

MAIN MOTOR ......................... 75 HORSEPOWER
