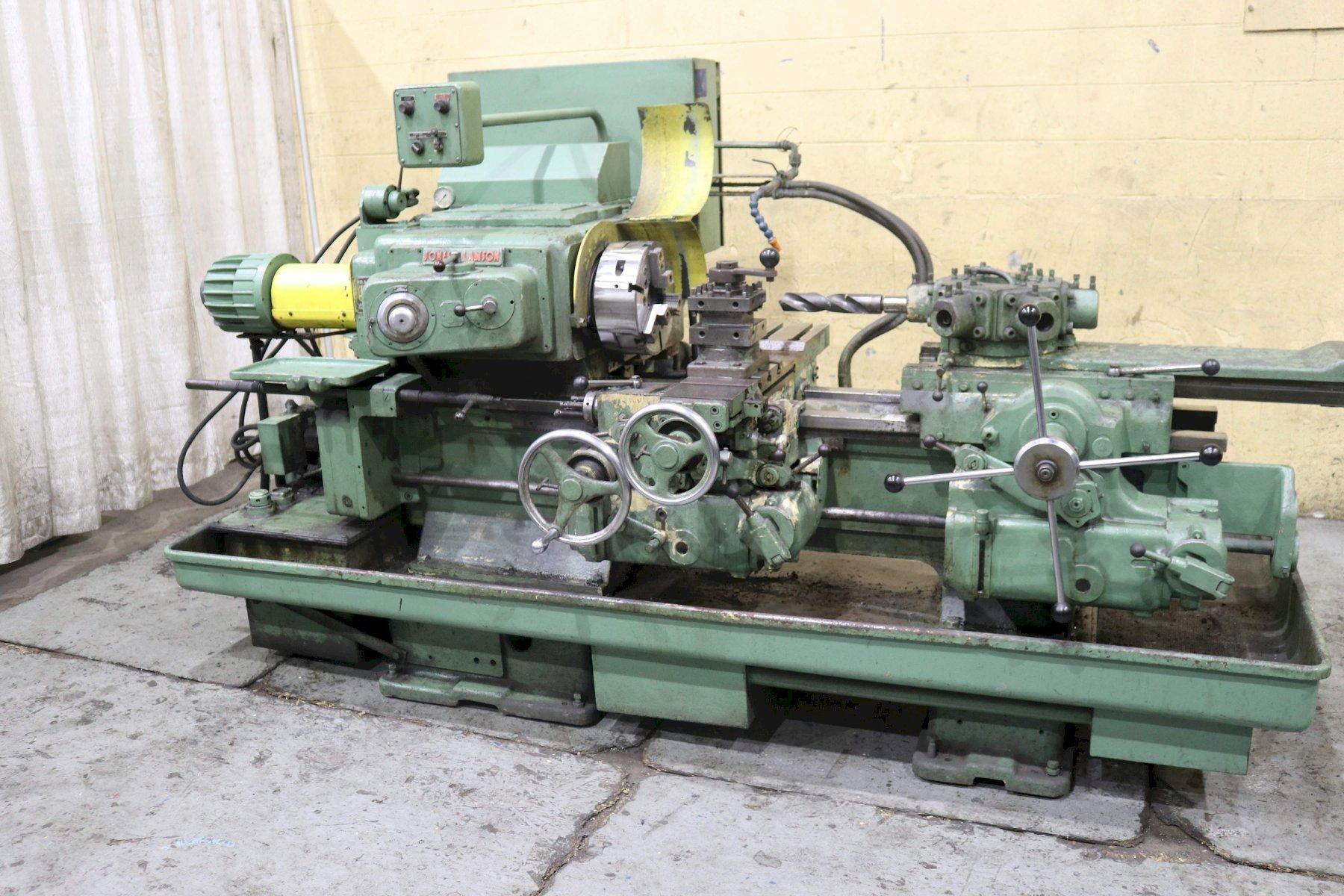

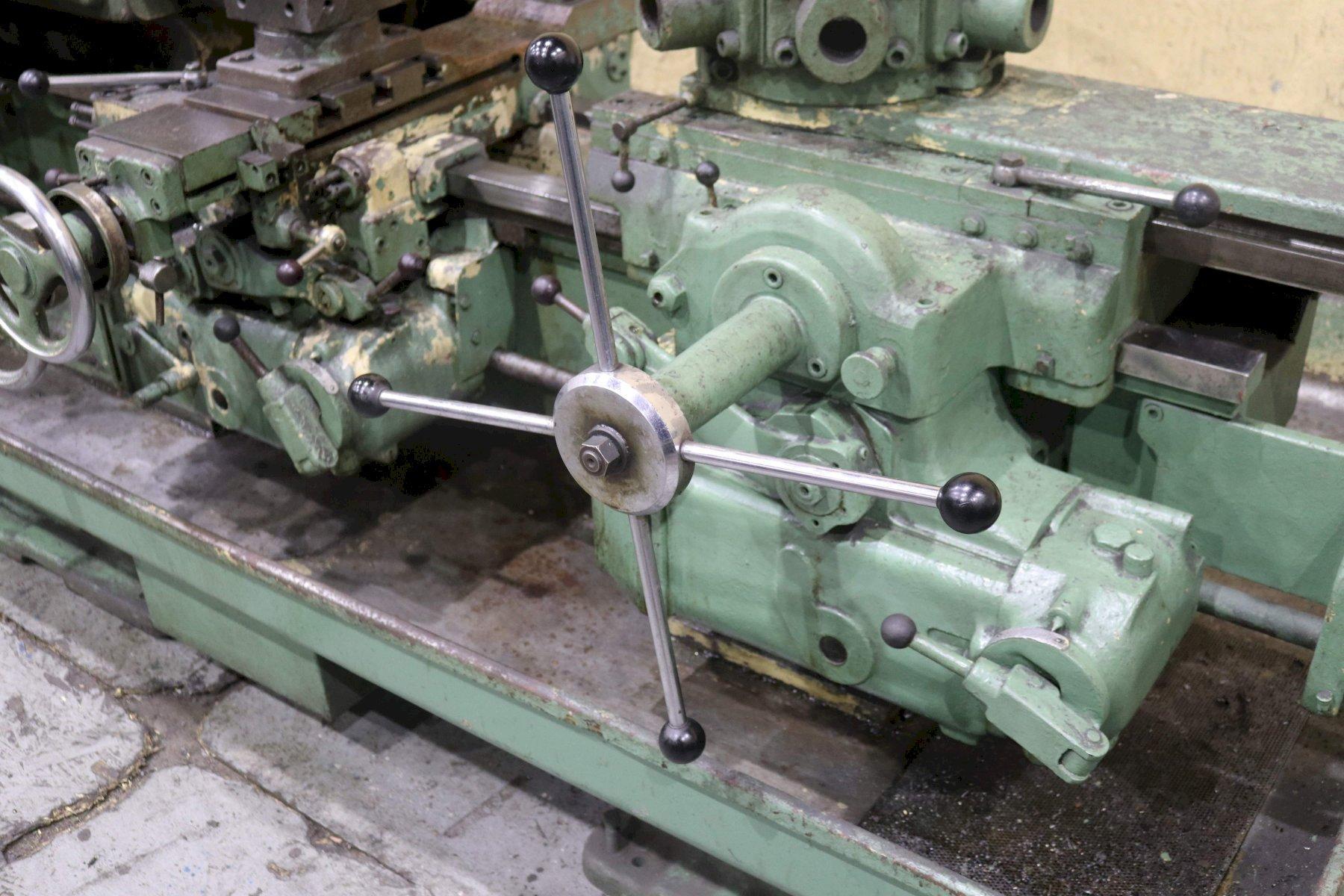

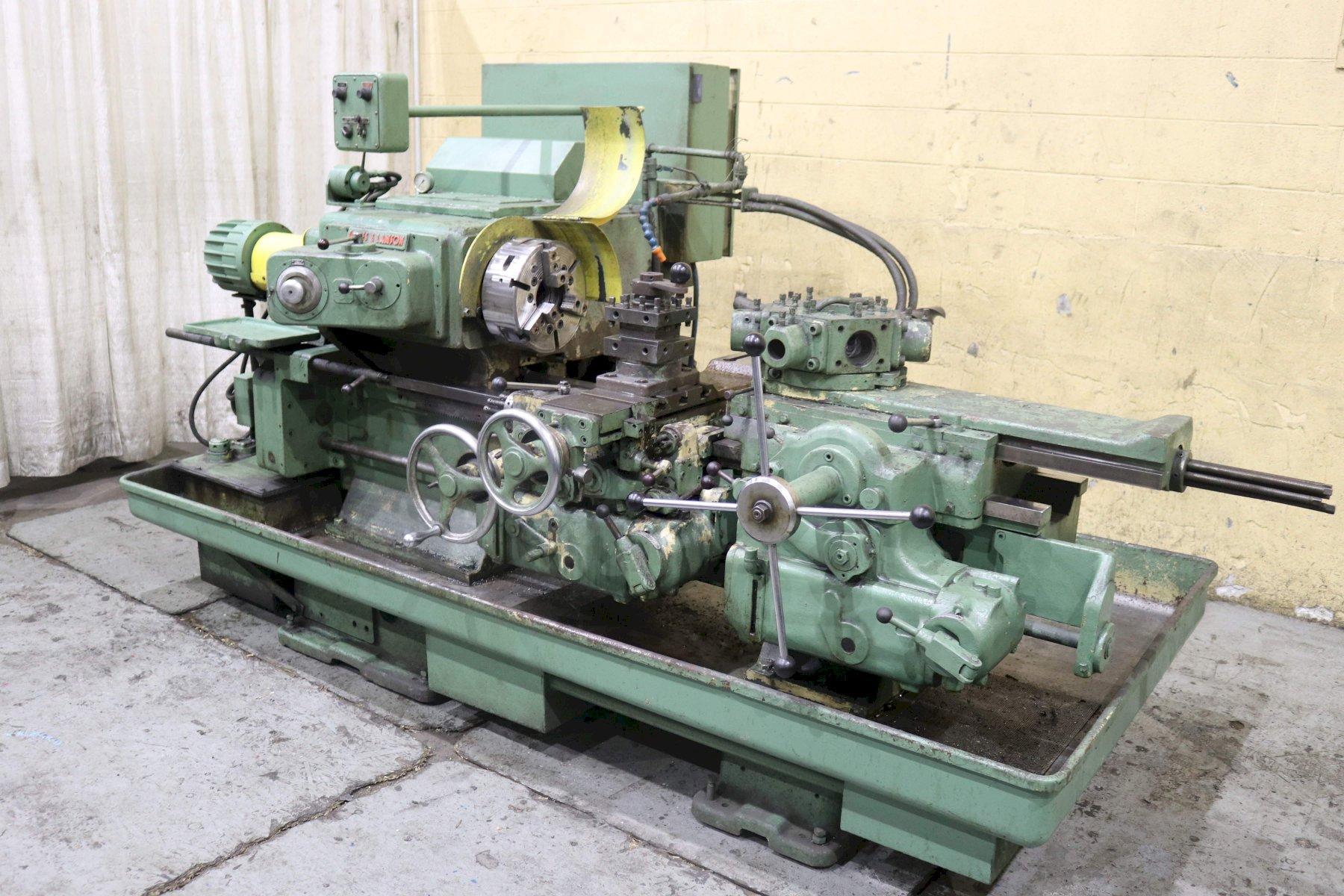

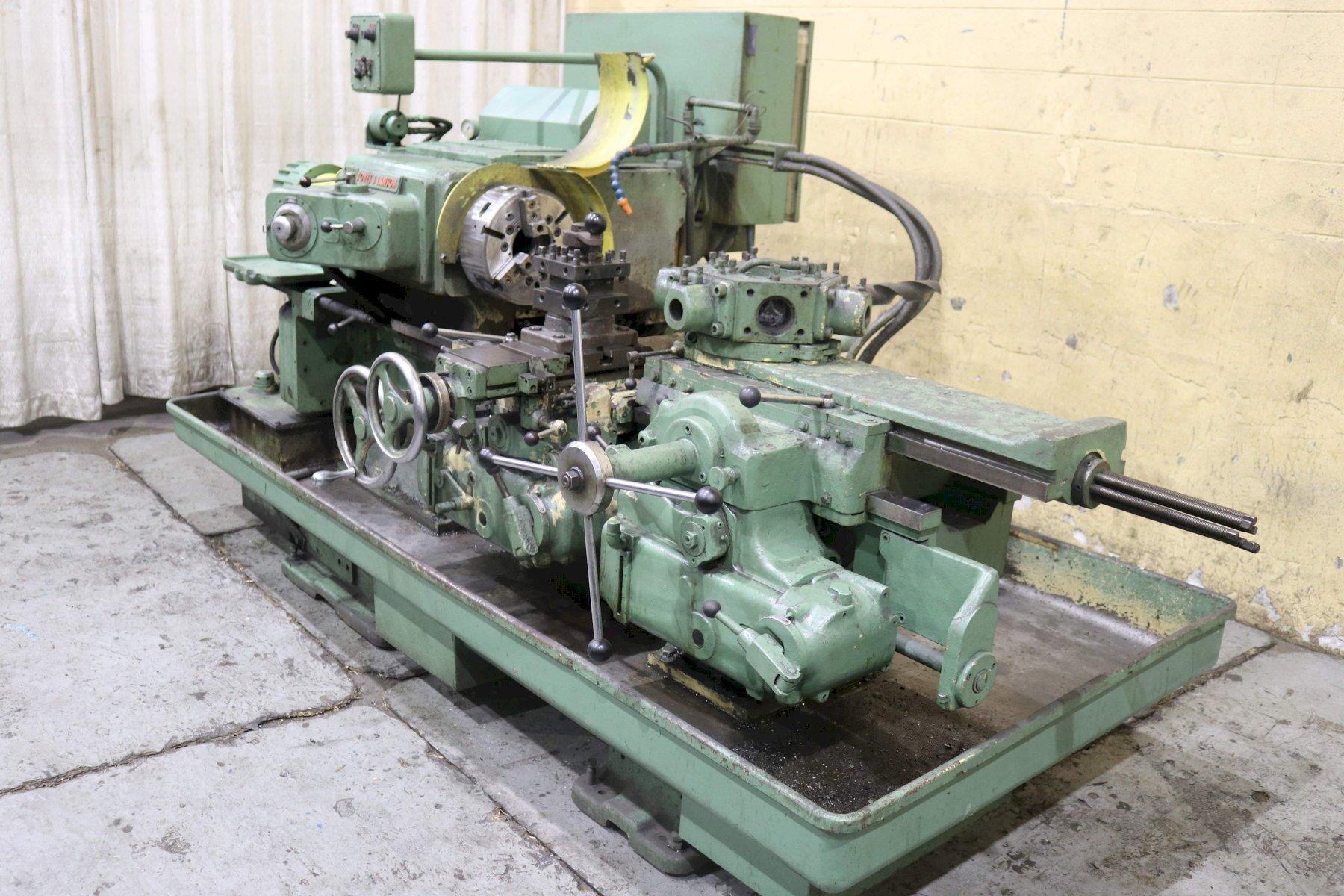

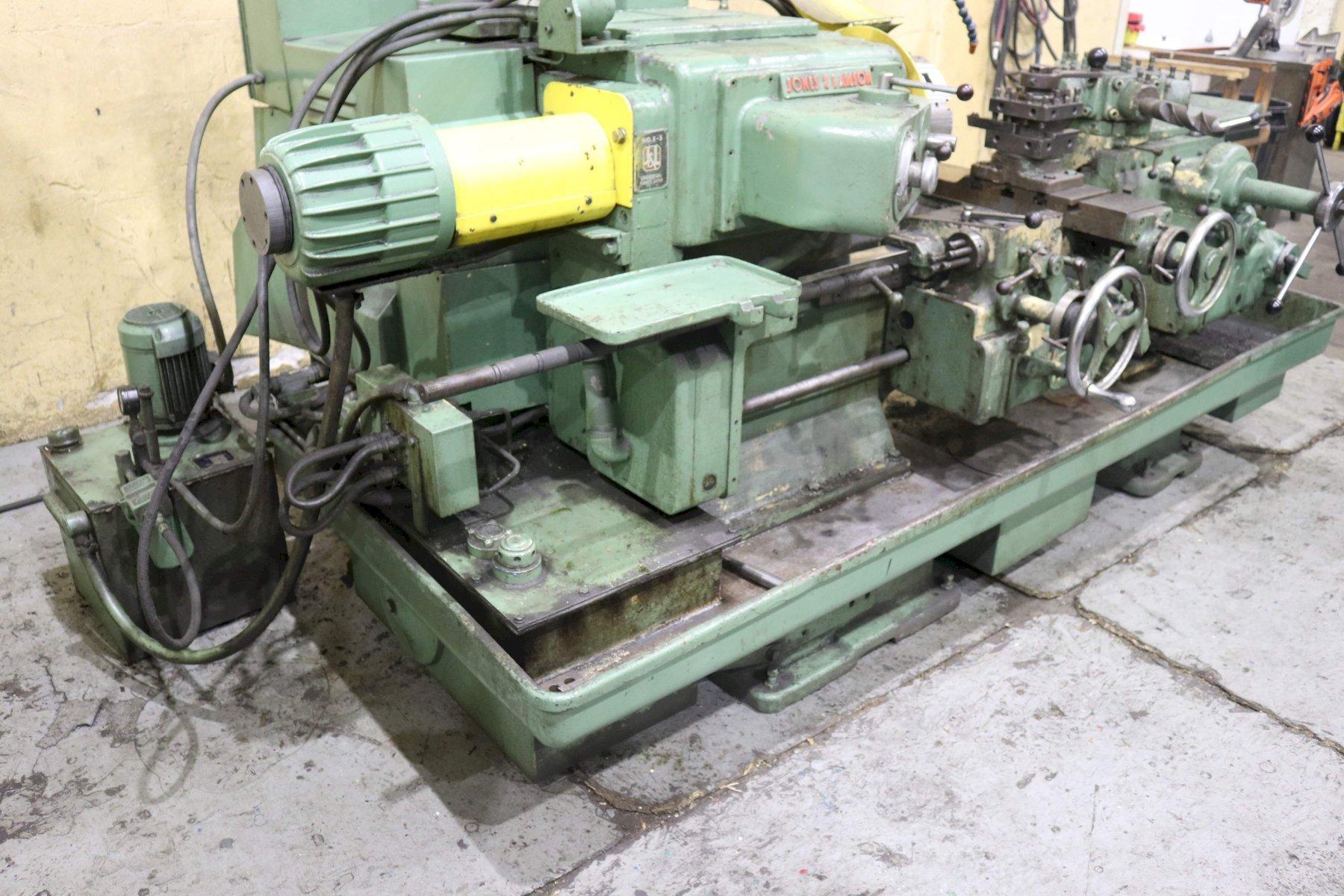

JONES & LAMSON TURRET LATHE: STOCK #72880

Manufacturer

JONES & LAMSON

Category

Lathes

Type

LATHES, TURRET, SADDLE TYPE

Stock

72880

Model

None listed

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet

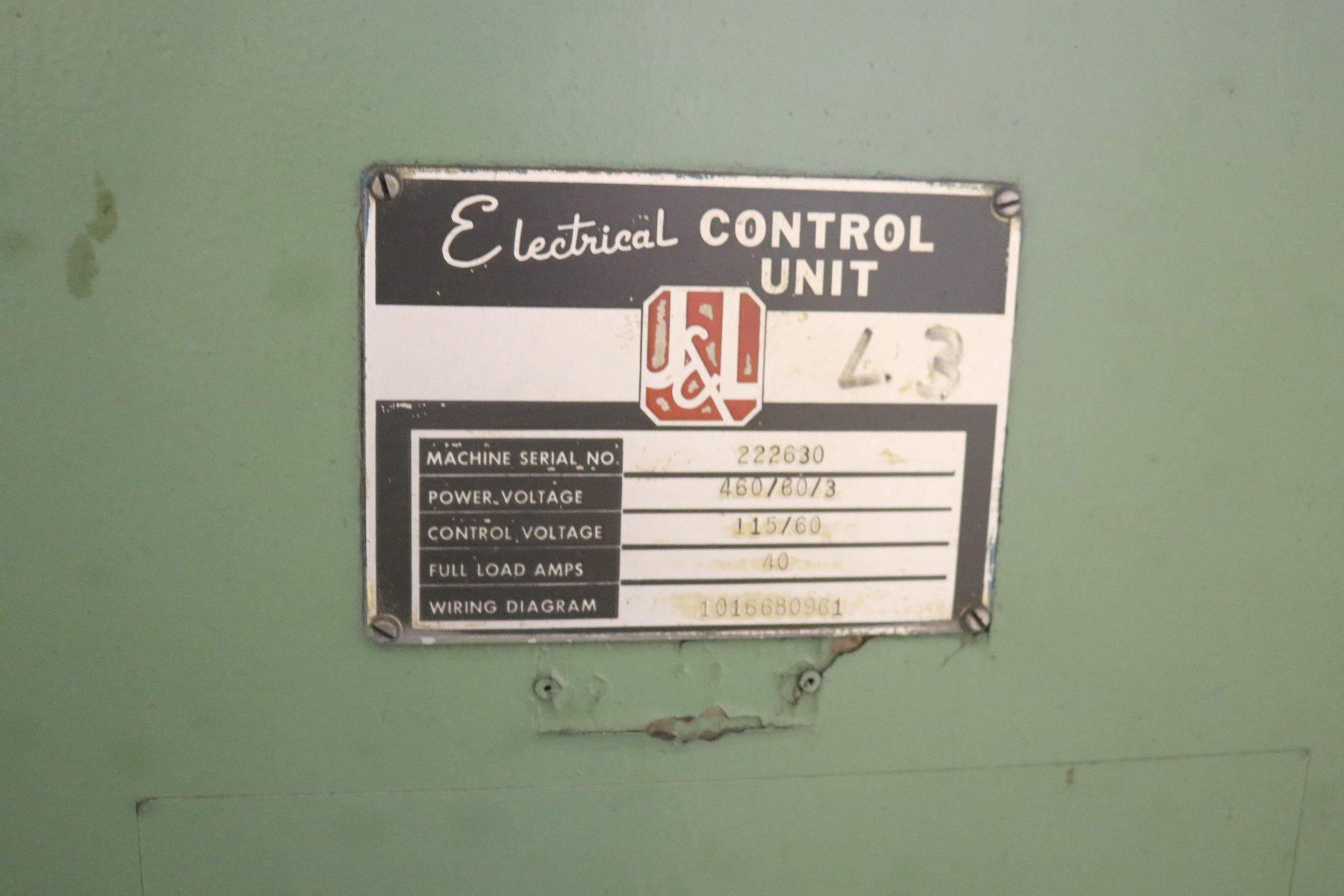

SERIAL ........................... 222630
MODEL ............................ 5-3
NEW .............................. 1970
SWING OVER WAYS .................. 21-1/4"
SWING OVER CROSS SLIDE ........... 13"
SPINDLE NOSE TO TURRET FACE ...... 35" MAX.
SPINDLE HOLE ..................... 3-1/2"
SPINDLE SPEEDS ................... (24) 30 TO 1500 RPM
LONGITUDINAL CARRIAGE FEEDS ...... (9) .005 TO .100 IPR
CROSS CARRIAGE FEEDS ............. (9) .0025 TO .050 IPR
TURRET FEEDS ..................... (9) .005 TO .100 IPR

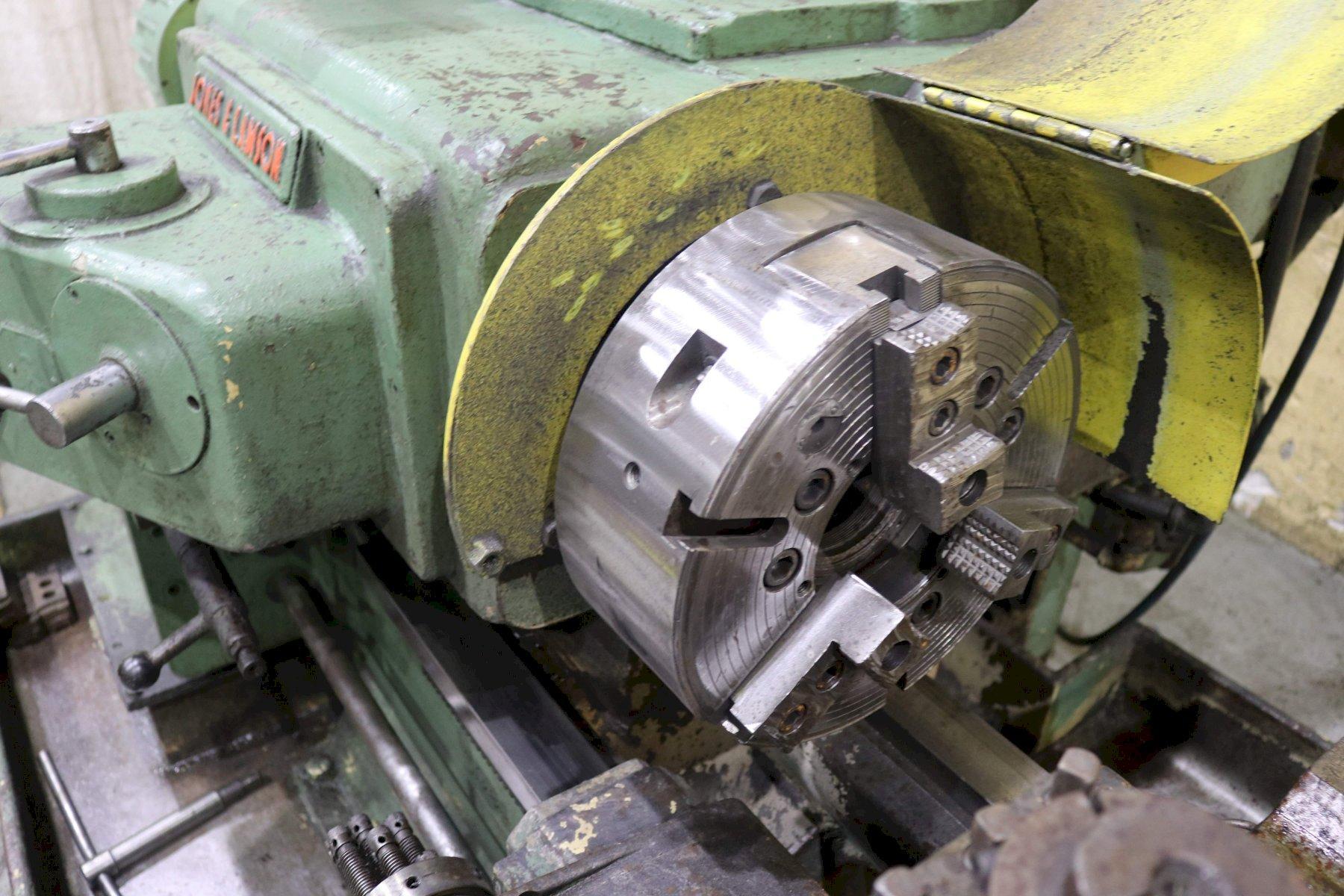

CHUCK ............................ 11-1/2"
HARDENED REPLACEABLE BED WAYS .... YES
TAPER ATTACHMENT ................. YES

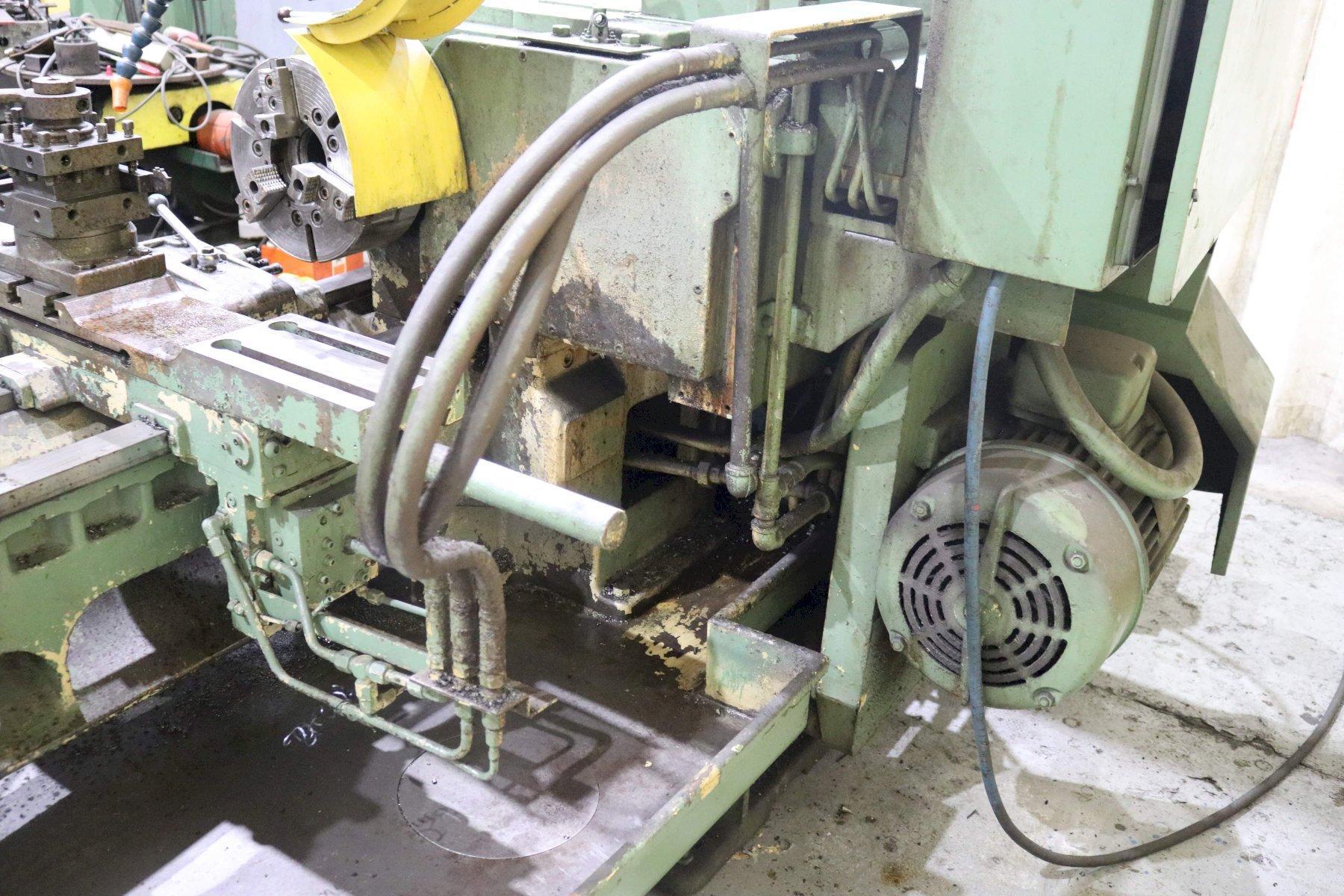

COOLANT WITH CHIP PANS ........... YES

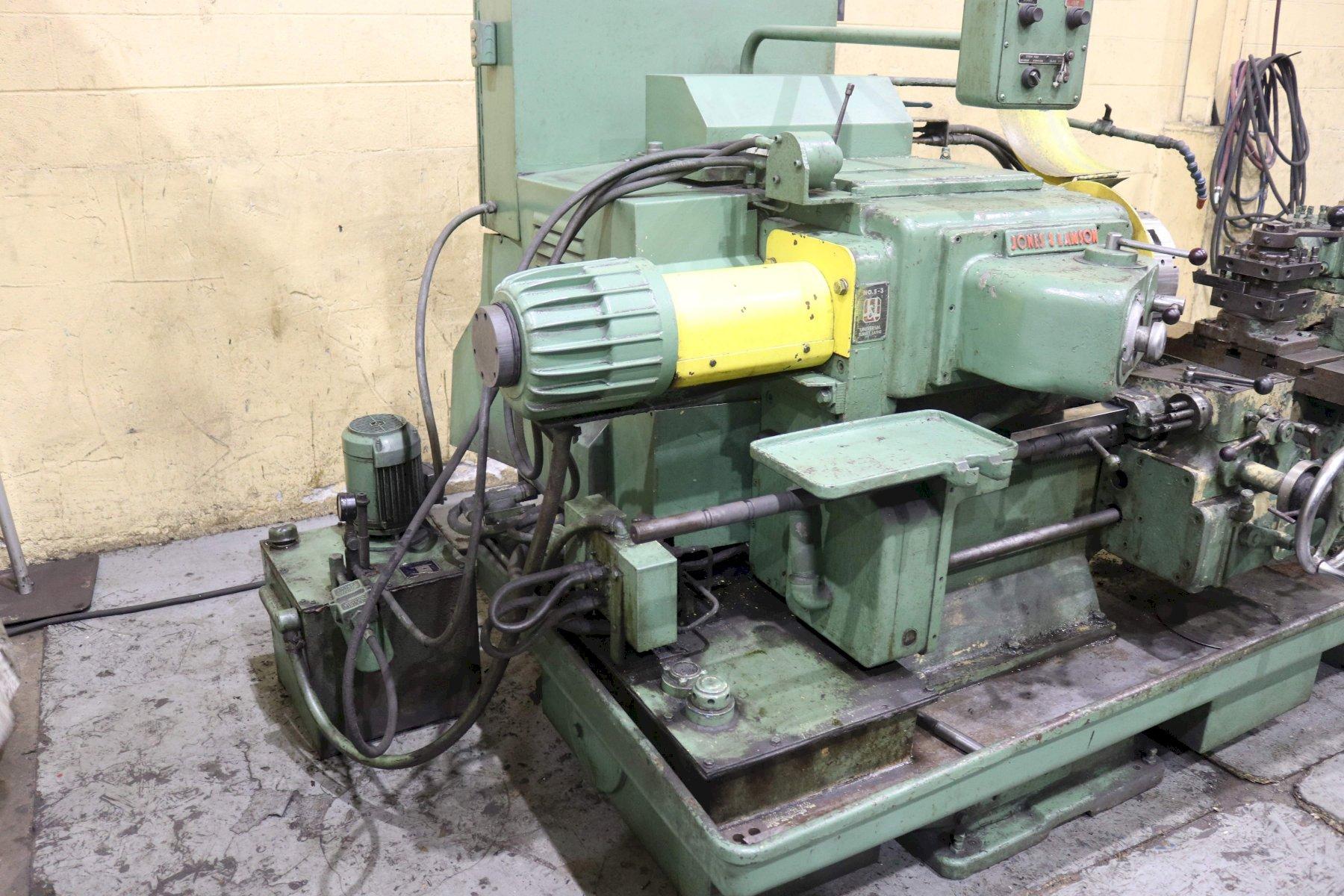

MOTOR ............................ 40 HORSEPOWER
