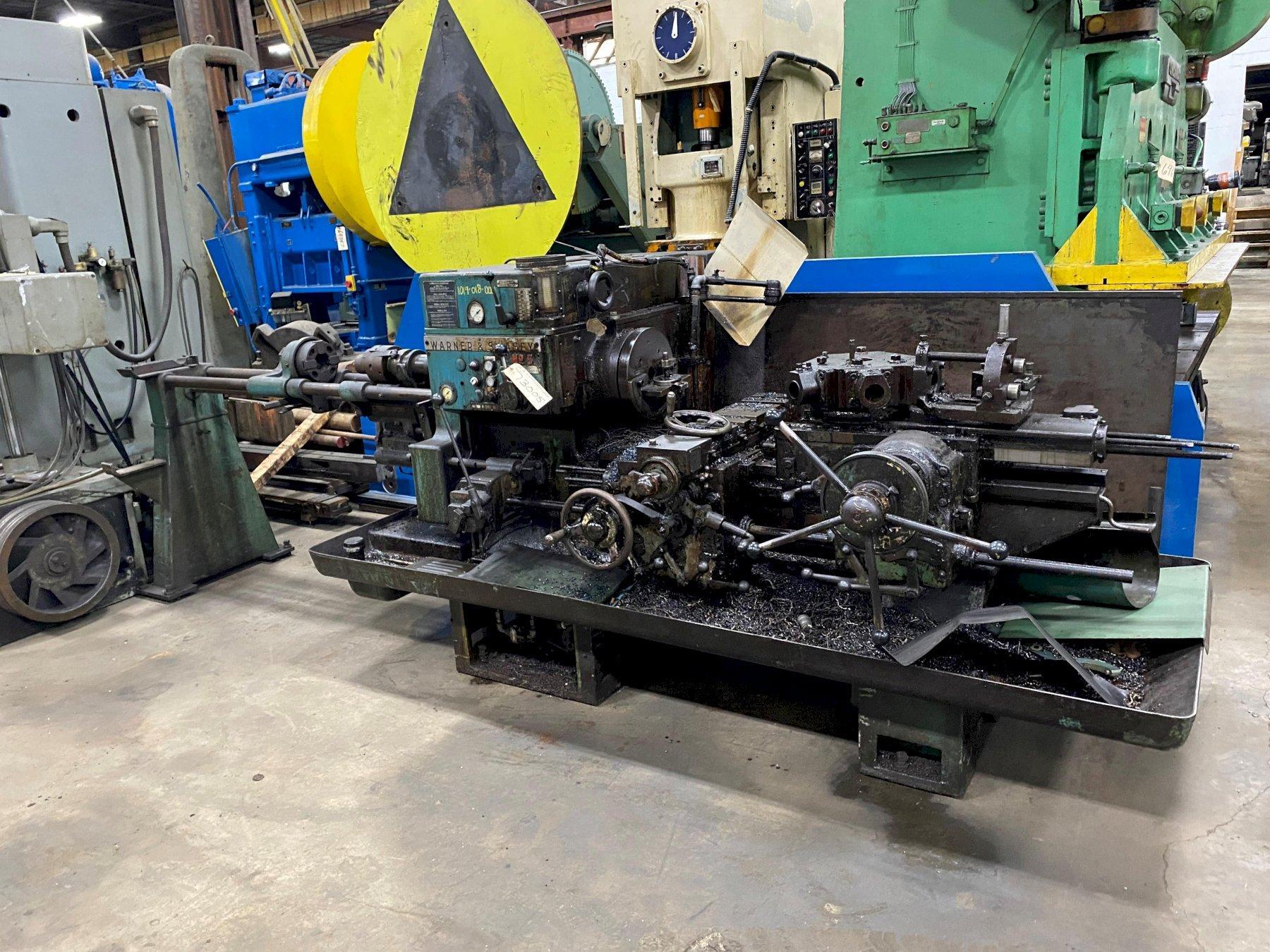

#5 WARNER & SWASEY MODEL #2250 RAM TYPE TURRET LATHE: STOCK #73005

Manufacturer

Category

Lathes

Type

LATHES, TURRET, SADDLE TYPE

Stock

73005

Model

None listed

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet



SERIAL .............................. 1627948
MODEL ............................... 5 (M-2250) SQUARE HEAD
SWING OVER BED ...................... 20"
SWING OVER CROSS SLIDE .............. 10-1/4"
SPINDLE NOSE TO TURRET FACE (MAX.) .. 36-1/2"
HOLE THRU SPINDLE ................... 2-7/8"
SPINDLE SPEEDS ...................... (24) 25 TO 1556 RPM
CARRIAGE LONGITUDINAL FEEDS ......... (6) .0023 TO .022 IPR
CARRIAGE CROSS FEEDS ................ (6) .0015 TO .014 IPR
TURRET FEEDS ........................ (6) .003 TO .024 IPR
CHUCK ............................... COLLET NOSE TYPE
CHIP PAN ............................ YES
COOLANT ............................. YES
SPINDLE MOTOR (2-SPEED) ............. 20/10 HORSEPOWER
