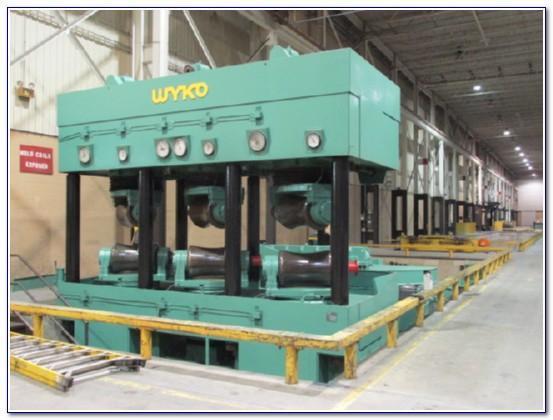

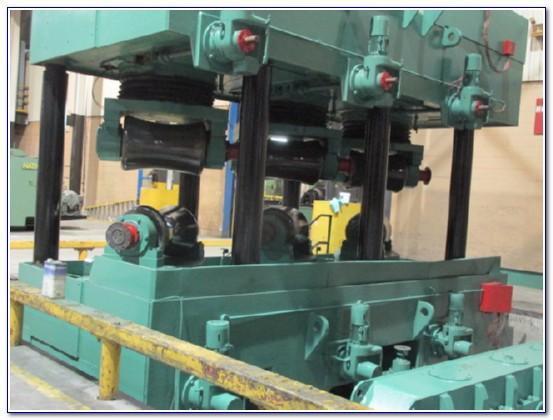

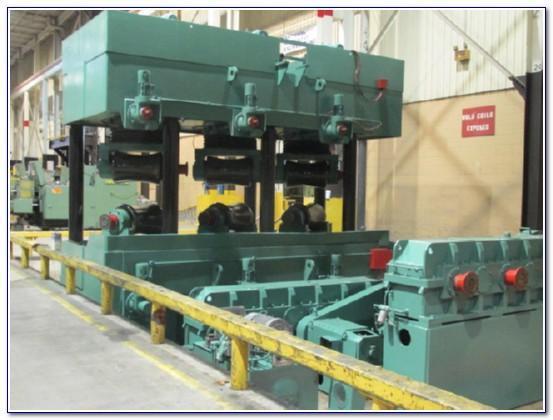

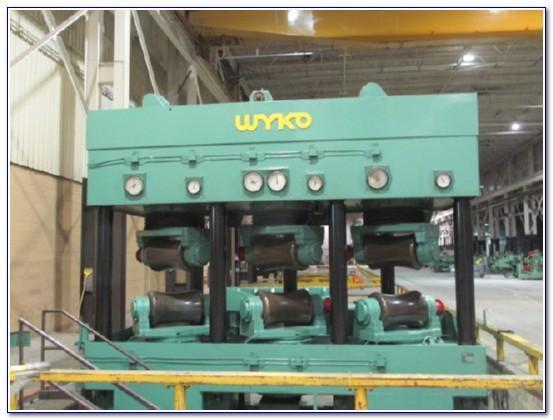

18" WYKO #WS12PS 6-ROLL ROTARY TUBE STRAIGHTENER: STOCK #19406

Stock

19406

Model

18 WS12PS

Dealer Location

Ohio

Spec Sheet



18", WYKO #WS12PS 6-ROLL ROTARY TUBE STRAIGHTENER, '83, DIA RANGE:
450mm-160mm
CAPACITY
MAX OUTSIDE DIA .......... 450mm
MIN OUTSIDE DIA .......... 160mm
MAX WALL THICK ........... 25mm
MAX YIELD STRENGTH ....... 100,000psi
Two (2) 80 KW dc drive motors with rectifier 440/60/3PHASE
Variable speed 3 to 30 meter/minute

FEATURES

Right to Left hand feed
Bottom Roll Hydraulic drop

PRESSURE SENSING

Top rolls - All
Bottom Rolls - Center

Motorized Angle Adjustment


Total Weight - 114tons


Like new condition


Case 1.- Electric cabinet 8'x10"LR x 21"FB X 8'6" H

Case 2.- Gear Box & motor 10'10"LR X 7'FB X 6'6" H
Case 3.- Gear Box & motor 10'LR X 7' FB X 3'10" H
Case 4.- Hyd. power supply 50'LR X 32" X 40" HIGH (7 RODS & 14 NUTS)
Case 5.- Bases for gear boxes (2) 10'5"LR X 7" FB X 18" H
Straightener base - 18'LR X 9'8"FB X 9'10"H
Straightener crown - 18'9"LR X 9'6" FB X 7' H
