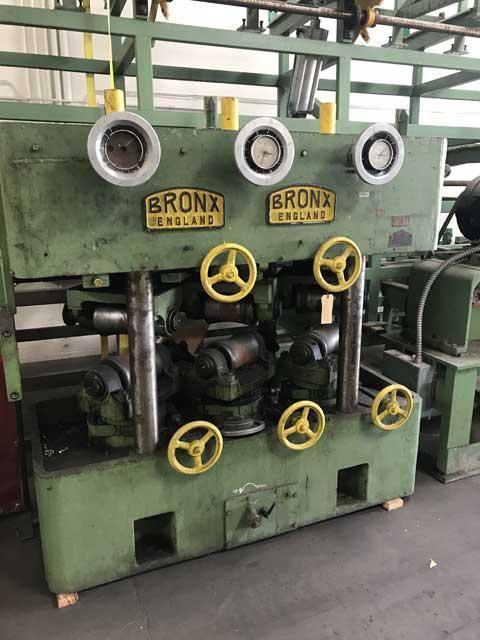

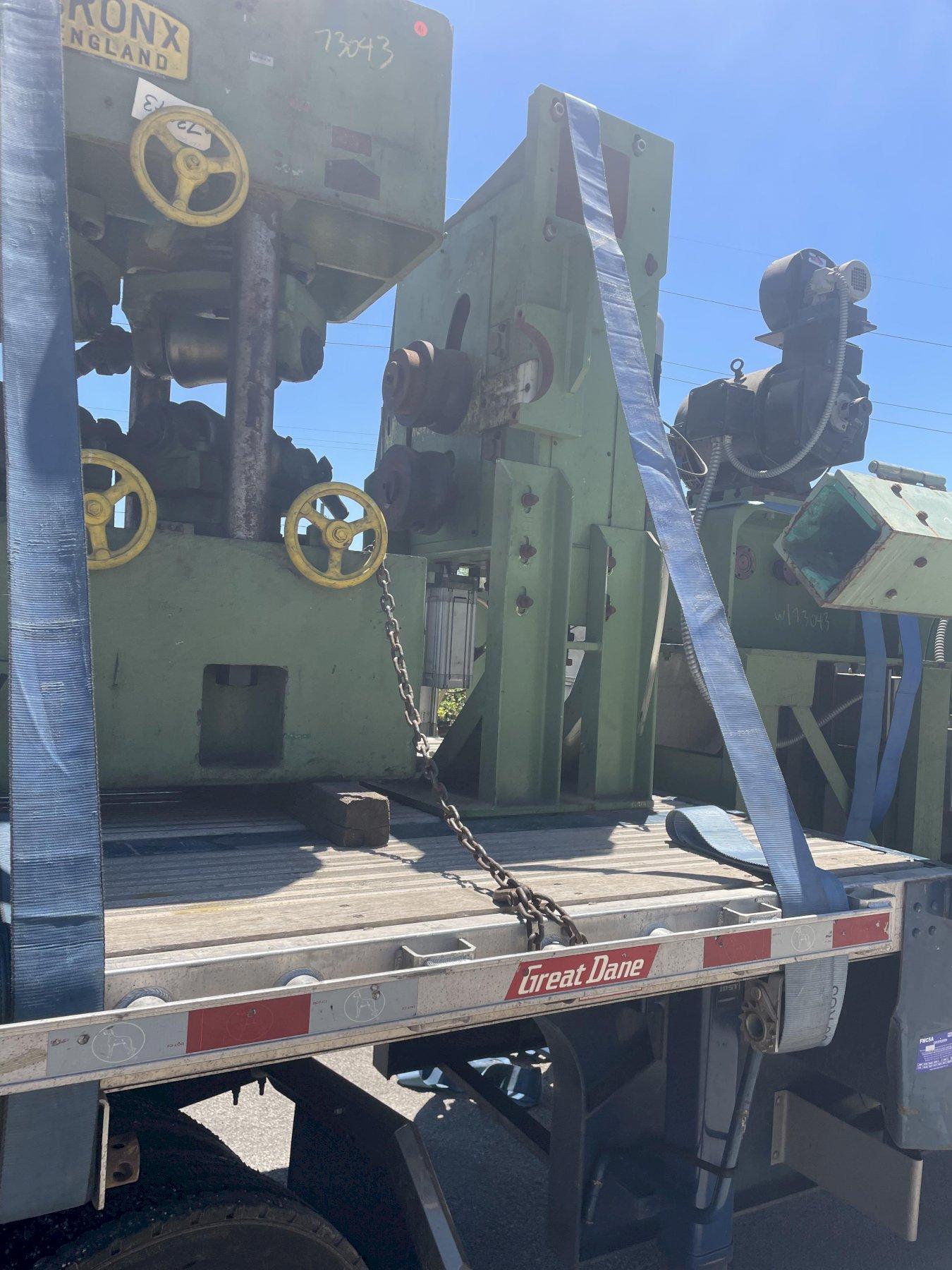

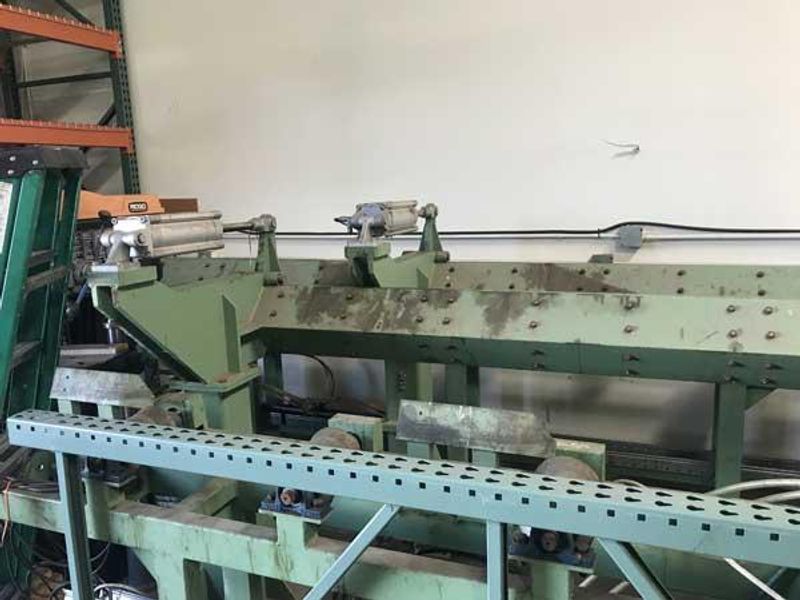

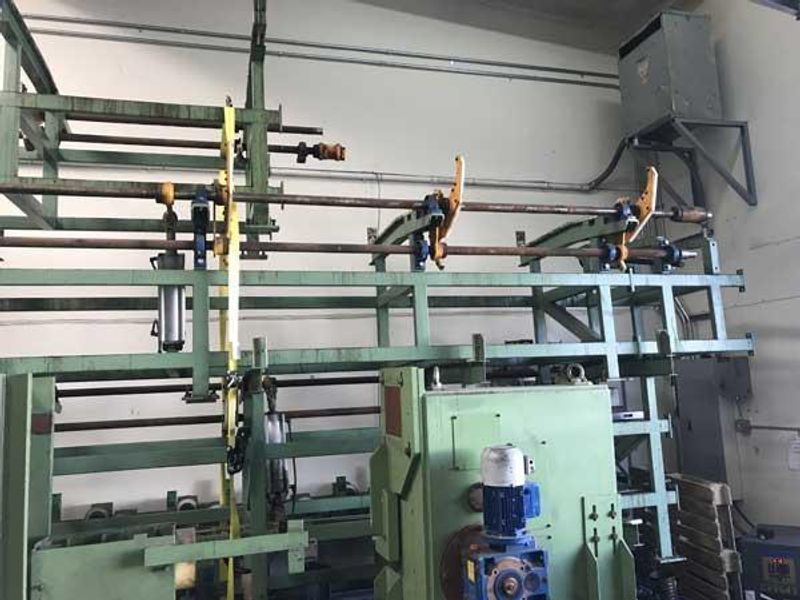

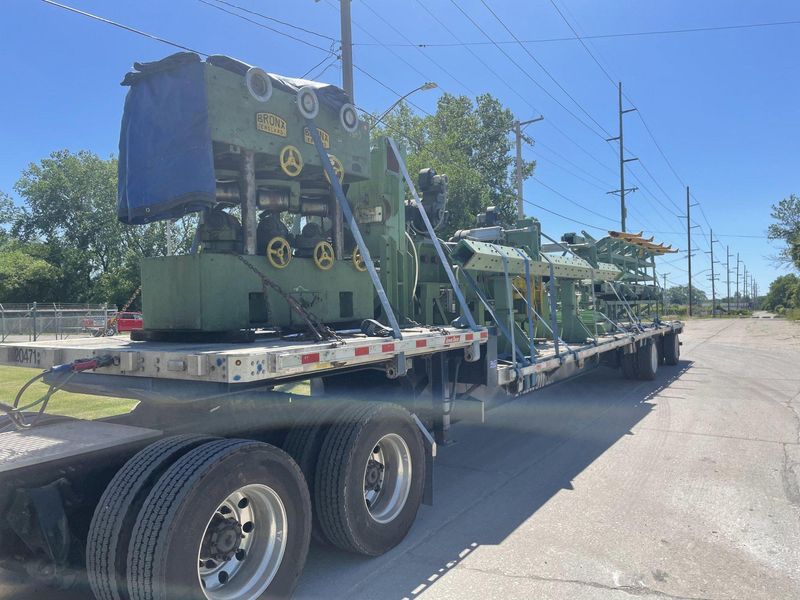

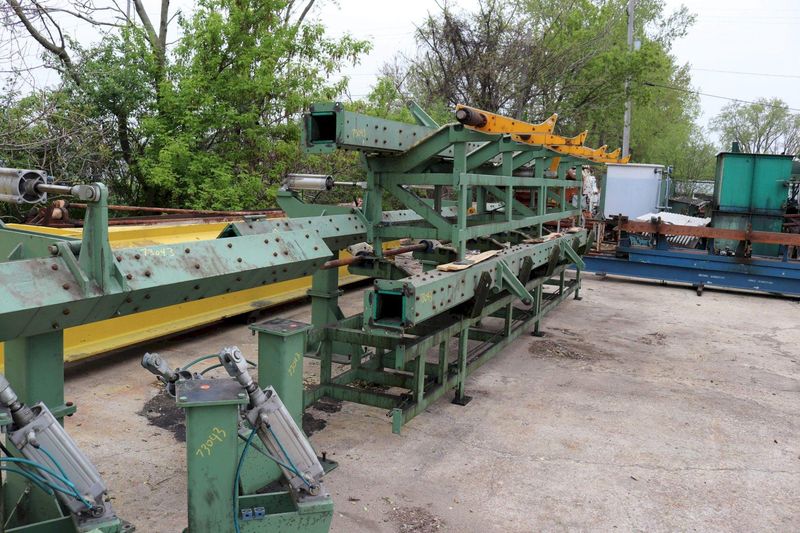

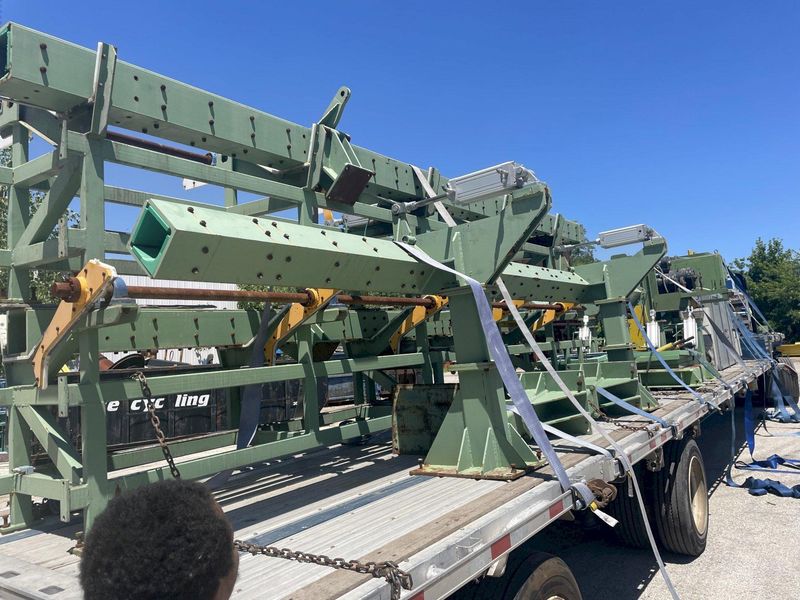

6J ROLL BRONX ROTARY BAR STRAIGHTENER: STOCK #73043

Manufacturer

Category

Feeders & Straighteners

Type

STRAIGHTENERS, TUBE & BAR

Stock

73043

Model

None listed

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet



SERIAL ............. 6745
MODEL .............. 6CR5BW

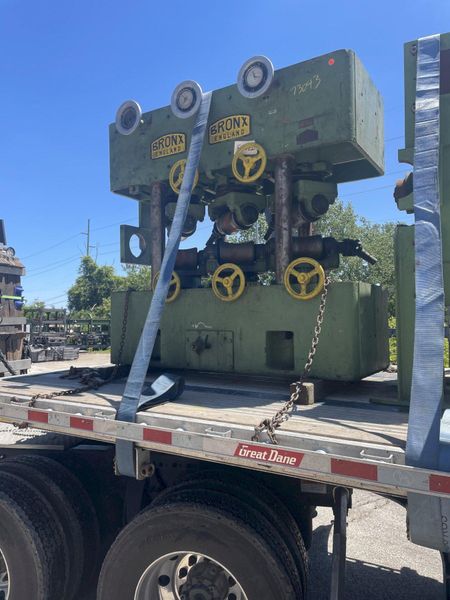

2 1/2" (65mm), BRONX, No. 6CR5BW, 6 ROLL ROTARY TUBE, NON OR FERROUS
Normal Max. Diameter: 2.5" (65mm)
Max. Diameter Admitted: 3.9" (100mm)
Min. Diameter: 0.5" (13mm)
Normal Max. Wall Thickness: 0.24" (6mm)
No. of Driven Rolls: 6

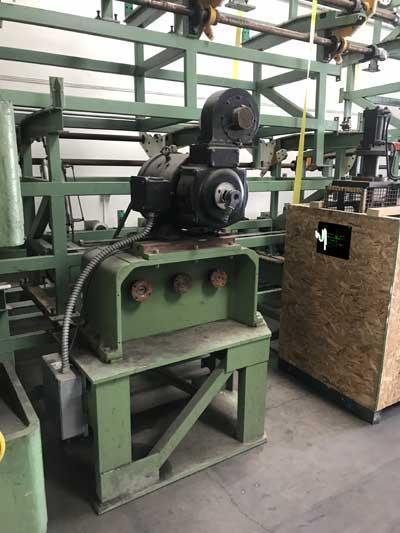

No. of Drive Motors: 2 (One for Top Rolls; One for Bottom Rolls)
Motor Specs:
Drive is Veebelt Transmission
Totally Enclosed Gearboxes
Universal Spindles and Couplings
Roll Material: Carbon Chrome, Hardened Steel
Upper Rolls and Bottom Center Roll are Vertically Adjustable.
All Rolls have Angular Adjustment.

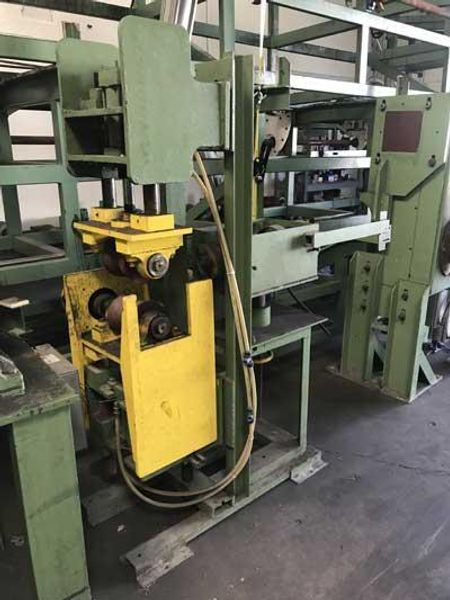

Pinch Roll Feeds

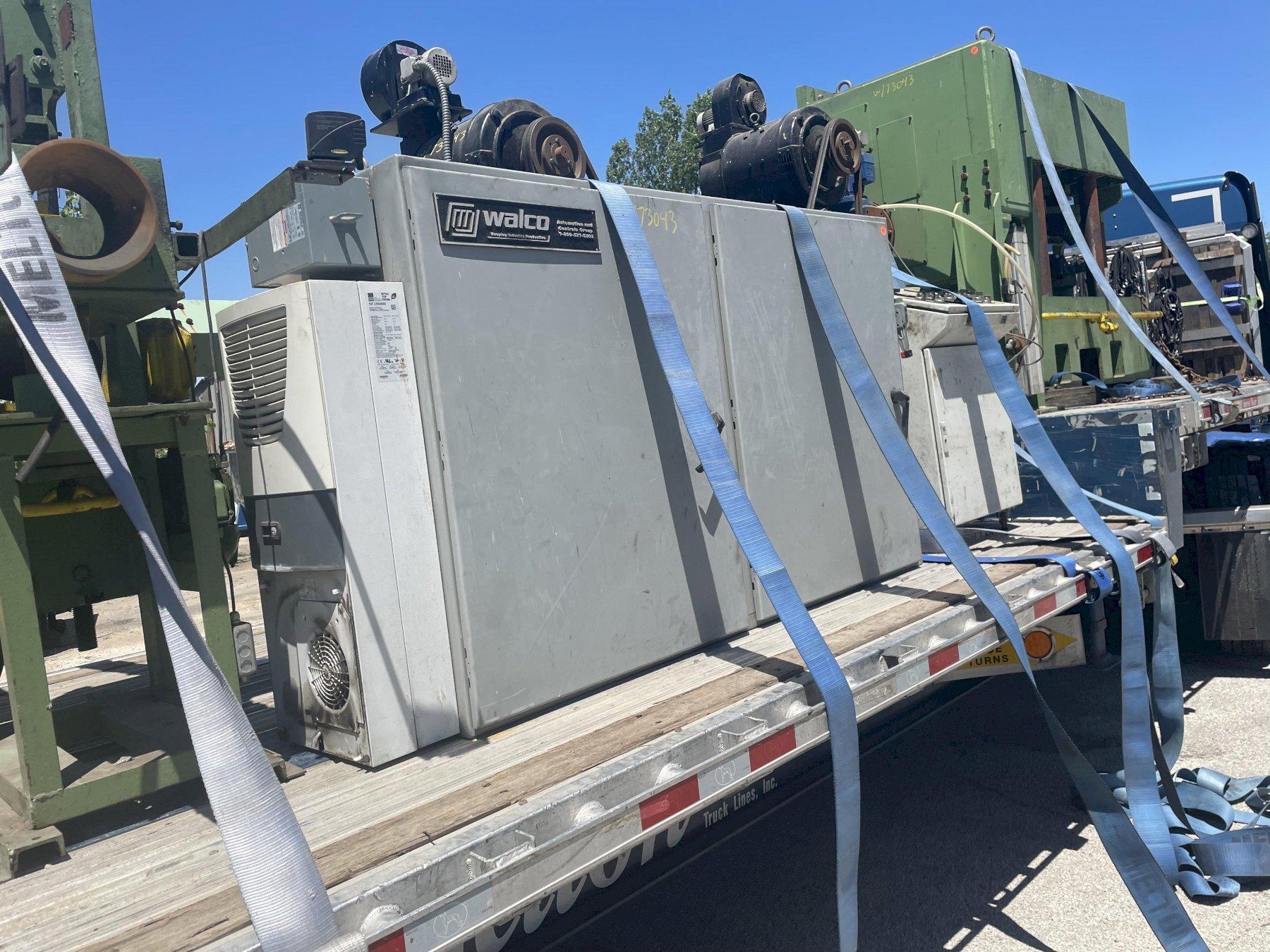

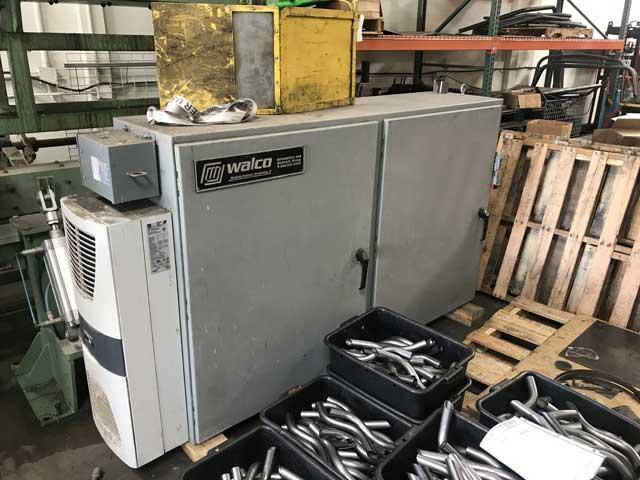

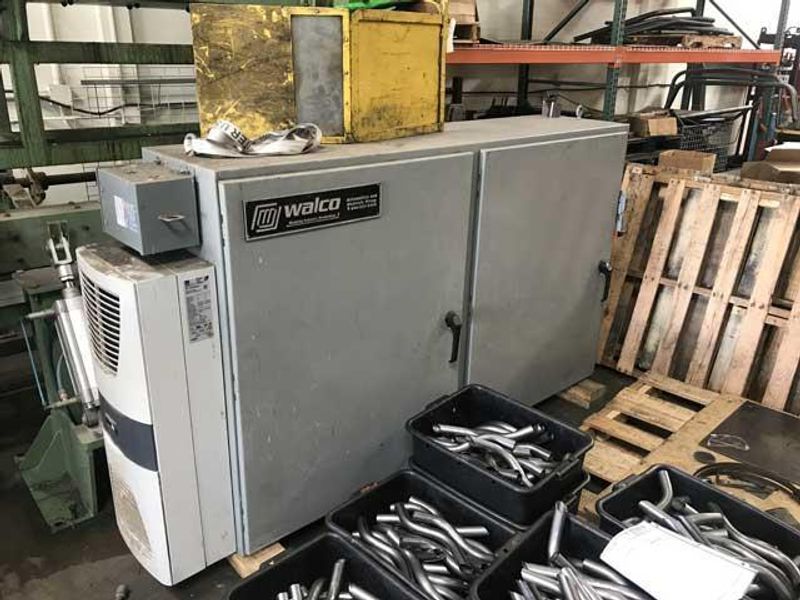

Drive Controls: Walco Electric
Operator Desk
* Based on Yield Strength of 20 Tons/sq. inch or 31.5 Kg/mmc sq. mm
