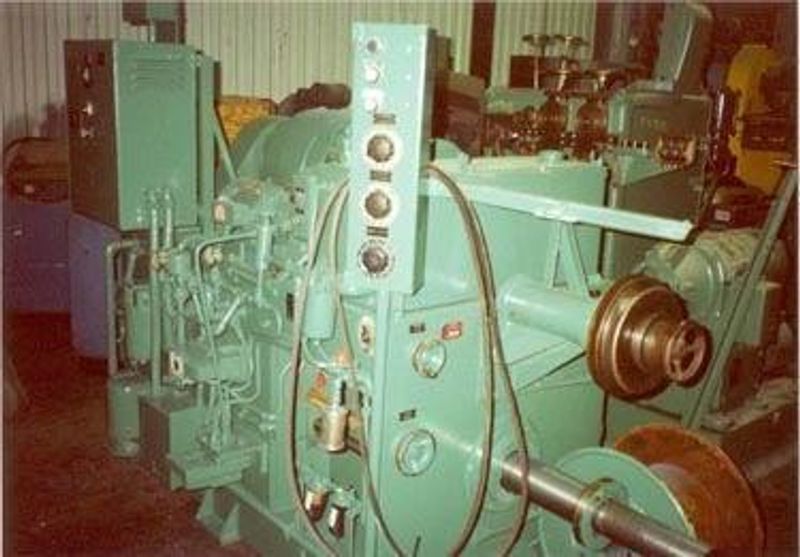

NO. 600 SYNCRO WIRE DRAWER: STOCK #18756

Manufacturer

Category

Wire Machines

Type

WIRE MACHINERY, TURNERS

Stock

18756

Model

None listed

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet



SERIAL NUMBER ...................................... 4369-SY2731
MODEL .................................................... 600
VARIABLE SPEED ........ 250 - 500 FPM WITH EDDY CURRENT CLUTCH
SPINDLE SIZE .......... 3-1/4" DIAMETER X 12" LONG
AIR CYLINDER SPOOL PUSH OFF .............................. YES
LIMIT SWITCH STROKE ADJUST WITH HANDWHEEL ................ YES
DWELL ADJUST WITH HYDRAULIC METERING HANDWHEEL LINKEAGE .. YES
PITCH ADJUST WITH HYDRAULIC METERING HANDWHEEL LINKEAGE .. YES
WIRE GUIDE WHEEL WITH 6" LOCATING ADJUSTMENT ............. YES
11" SPINDLE TRAVERSE ..................................... YES
SUMP PUMP OIL FLOOD LUBRICATION TO BEARINGS
AND WEAR SURFACES ........................................ YES
TENSION CONTROL HANDWHEEL & GAGES FOR RUN & STANDBY ...... YES
BRAKE DRAG CONTROL POST .................................. YES
ELECTRICAL PUSH BUTTON STATION ........................... YES
EDDY CURRENT CLUTCH FOR VARIABLE SPEED CONTROLLER ........ YES
WARNER ELECTRIC BRAKE .................................... YES
(4) SPOOLS - 600# CAPACITY - 12" BARREL DIA., 22" FLANGE
DIAMETER, 11" TRAVERSE WIDTH, 3-1/2" BORE............... YES
